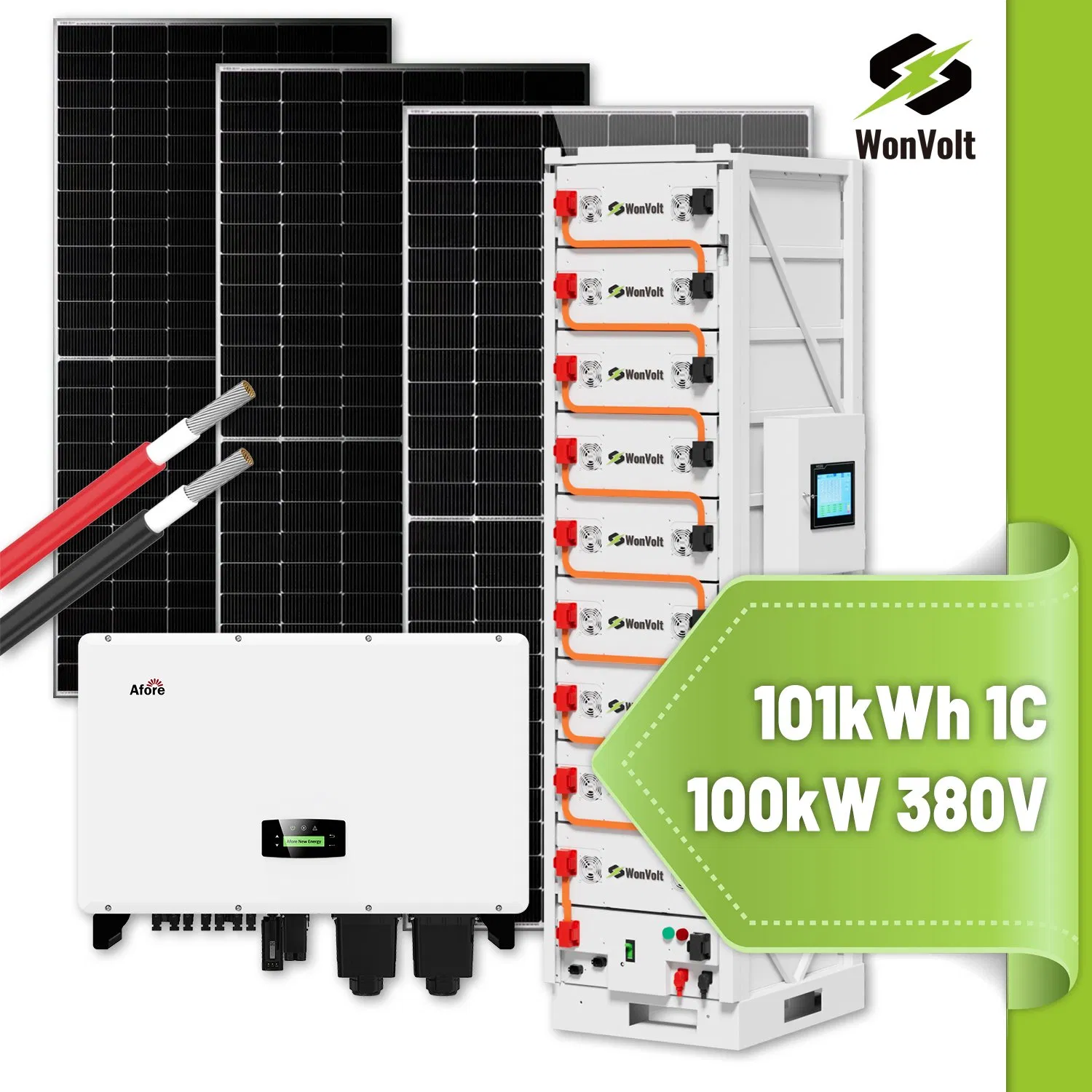

100kw/215kwh Commercial Solar Storage System - High Energy Density & Safety
100kw/215kwh Commercial Solar Storage System - High Energy Density & Safety
100kw/215kwh Commercial Solar Storage System - High Energy Density & Safety
100kw/215kwh Commercial Solar Storage System - High Energy Density & Safety
100kw/215kwh Commercial Solar Storage System - High Energy Density & Safety
1 / 5
100kw/215kwh Commercial Solar Storage System - High Energy Density & Safety
100kw/215kwh Commercial Solar Storage System - High Energy Density & Safety
100kw/215kwh Commercial Solar Storage System - High Energy Density & Safety
100kw/215kwh Commercial Solar Storage System - High Energy Density & Safety
100kw/215kwh Commercial Solar Storage System - High Energy Density & Safety

100kw/215kwh Commercial Solar Storage System - High Energy Density & Safety

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

iBasic Information
Model NO.
WV-100KW-215KWh-0.5C
Cycle Life
6000 Times
Nominal Capacity
100kw/200kwh+
Application
Commercial and Industrial
AC Output
380V/400V/415V
Battery Type
LiFePO4/Lithium
Battery Capacity
100-600kwh
Support
UPS/Black Start/Dg
Cooling
Smart Air Cooling
PV Inputs
10 Mppts
Solar Panel
A Grade 550W-565W Module
Parallel
Yes, up to 3 Units
1Commercial ESS Solutions

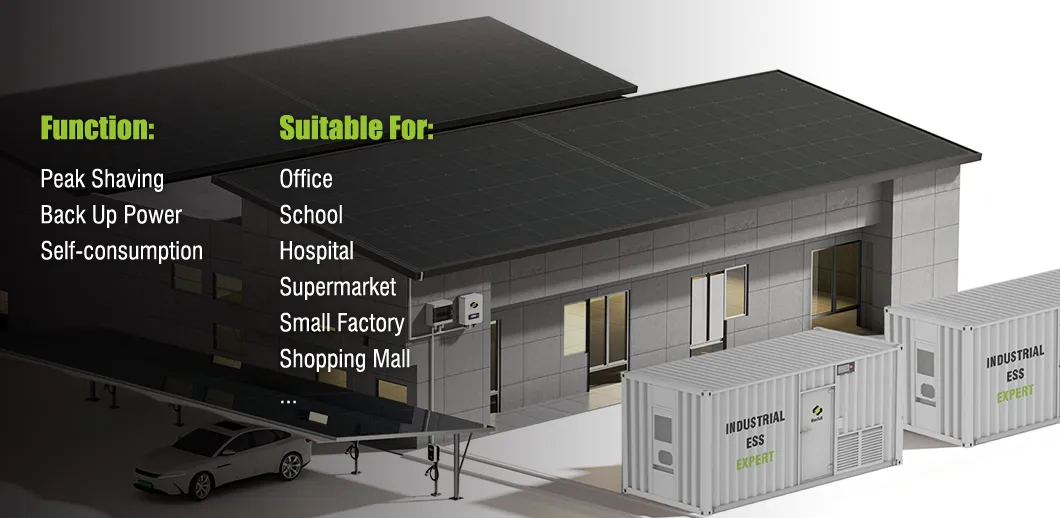

Commercial Solar Storage System
2System Configuration
Equipment Model 100KW-200.7KWh 200KW-401KWh 300KW-602KWh
PV Module WV-72KUN-565 187 374 561

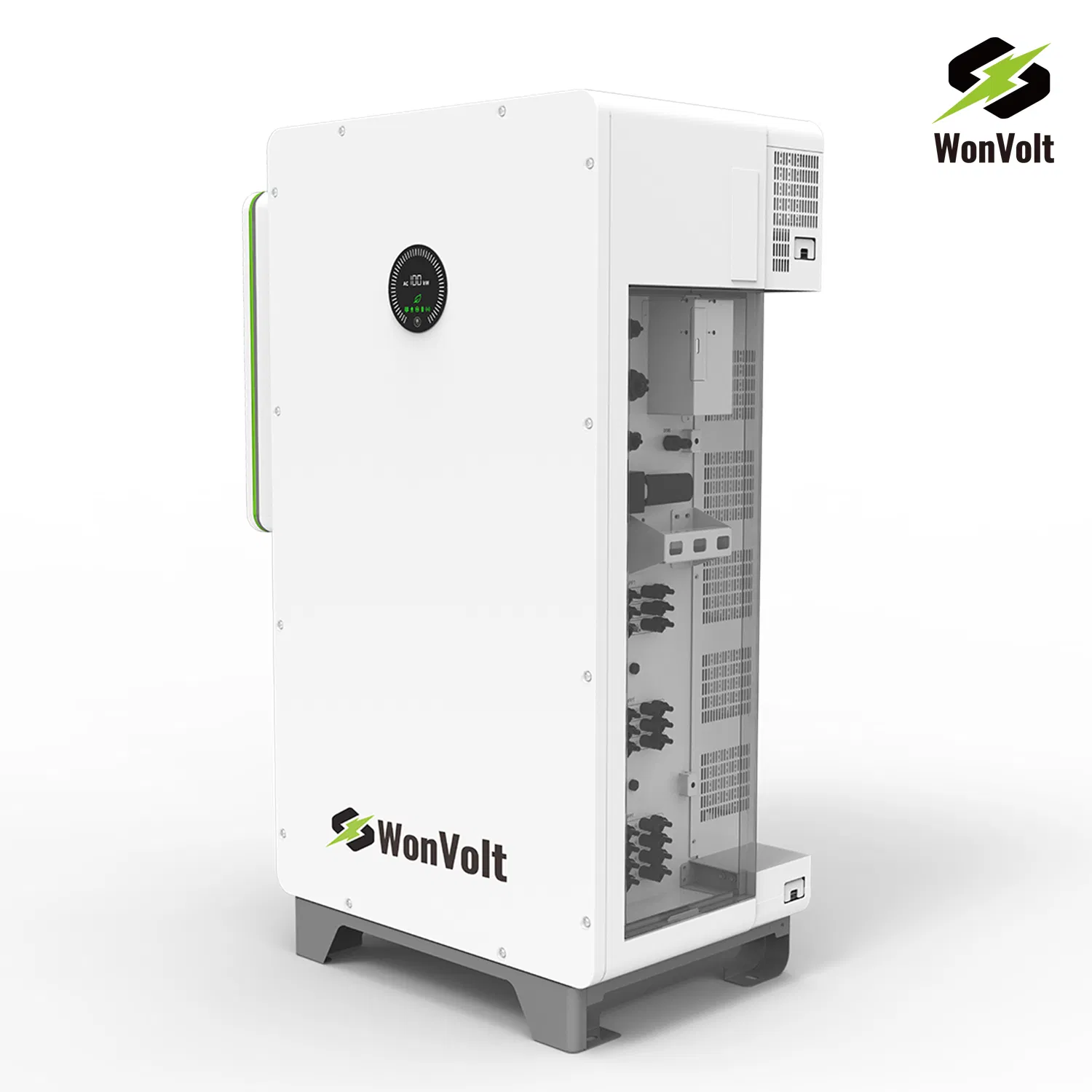

Inverter WIT-100K-HU 1 2 3

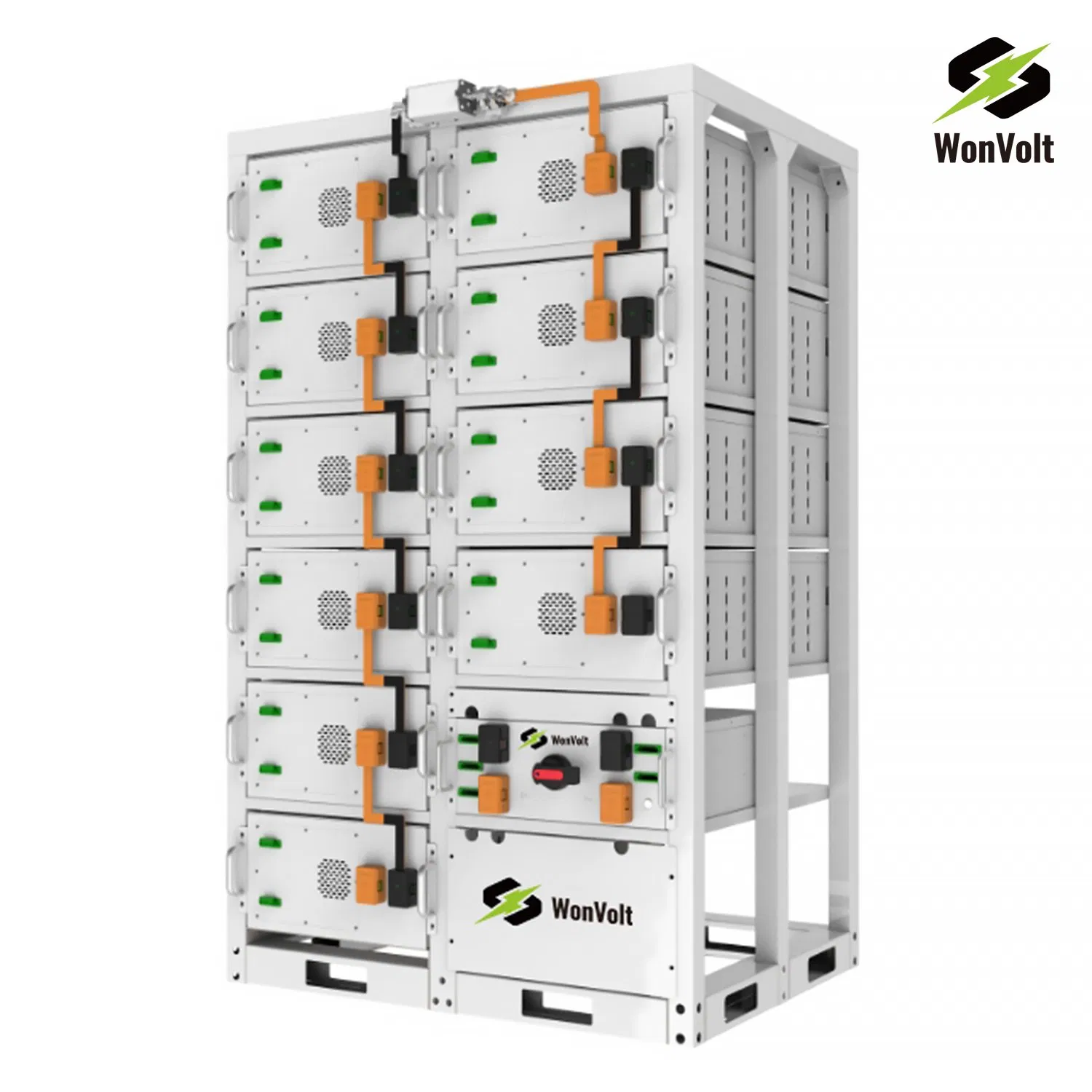

Battery Pack WV51280H 14 28 42
Control Box Standard 1 2 3
Connector MC4 40 80 120

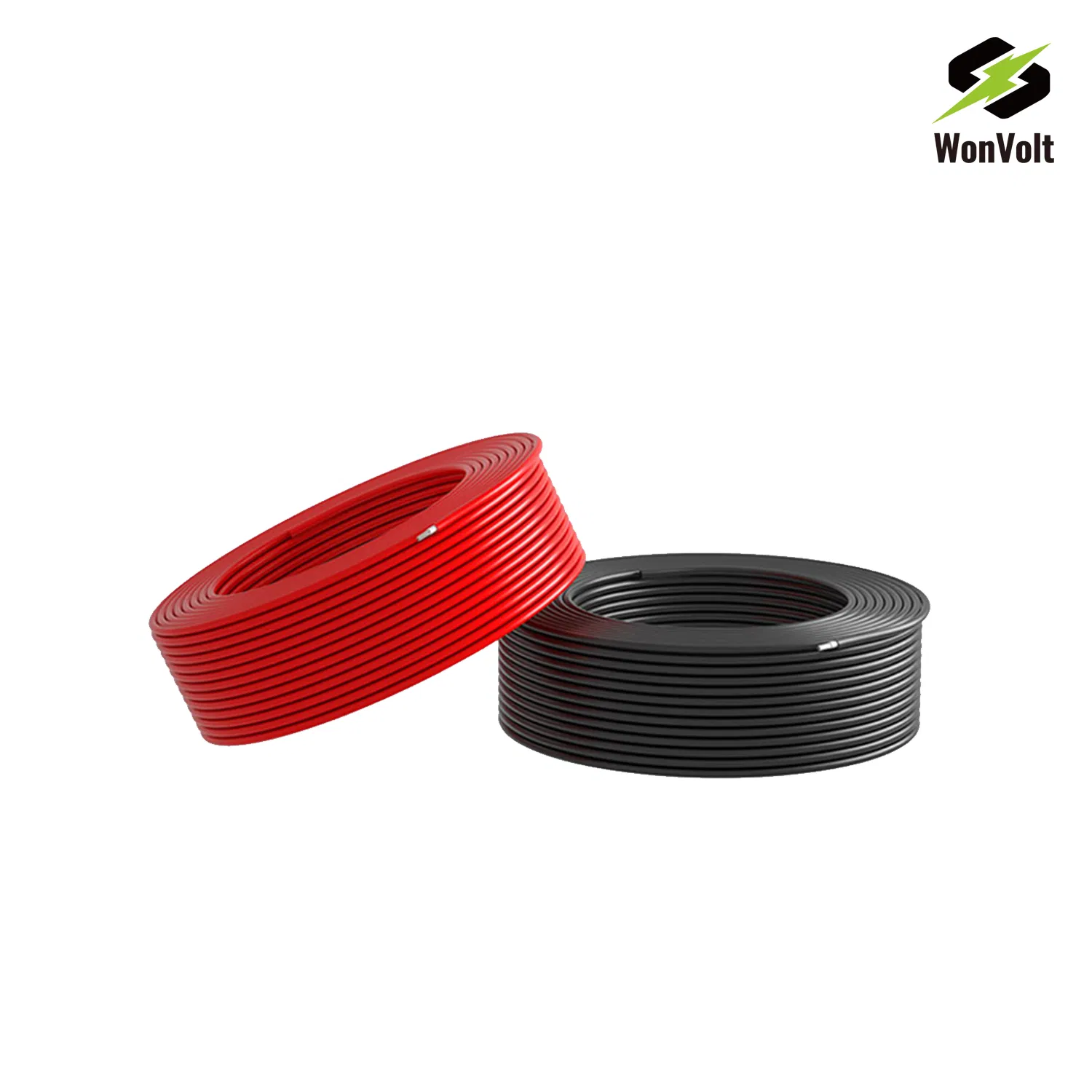

PV Cable PV1-F 1*4mm2 1100 2200 3300
ATS (Opt) ATS300KW 1 1 1
Remote Monitoring WIFI / SEM-X 1 1 1

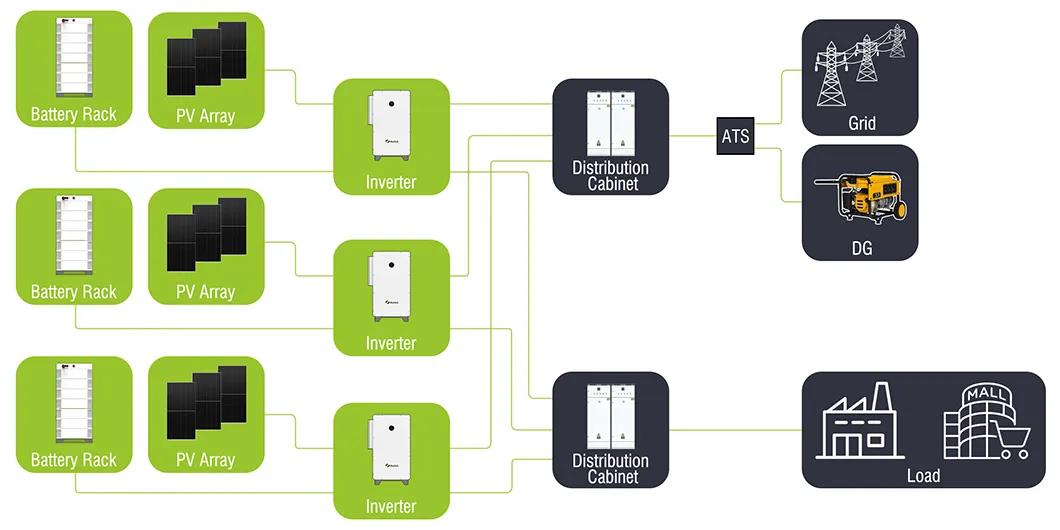

System Configuration Layout
3Product Features

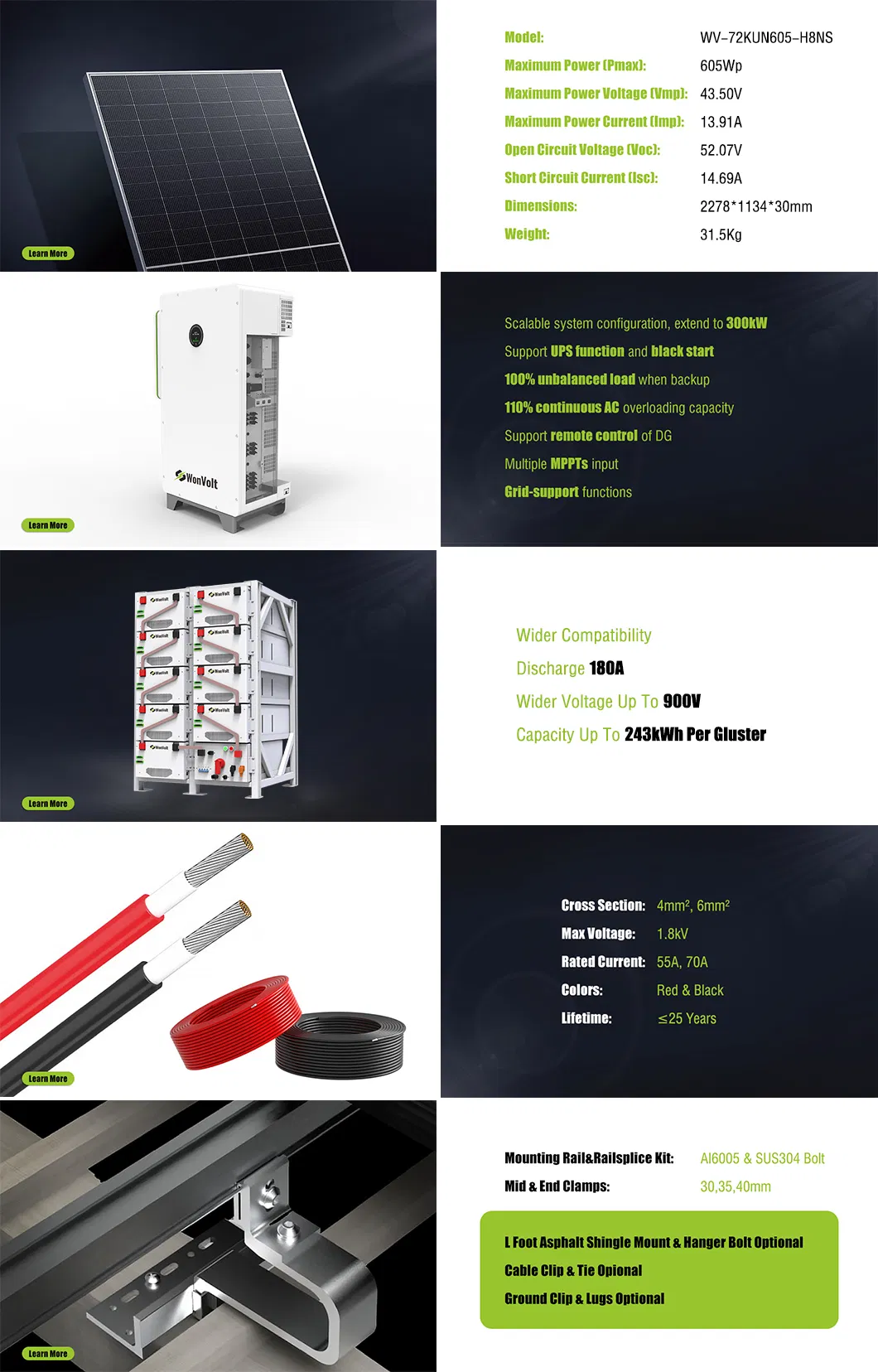

Detailed Product Description
4Technical Support

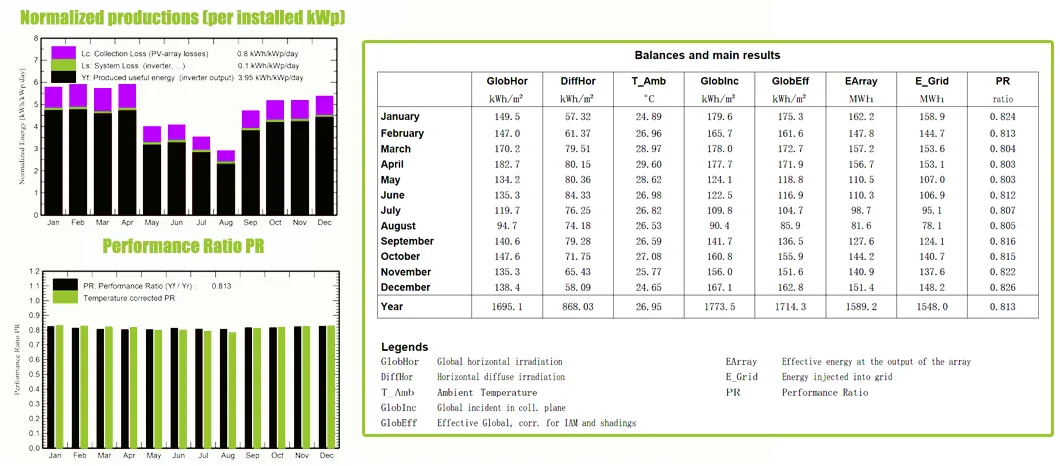

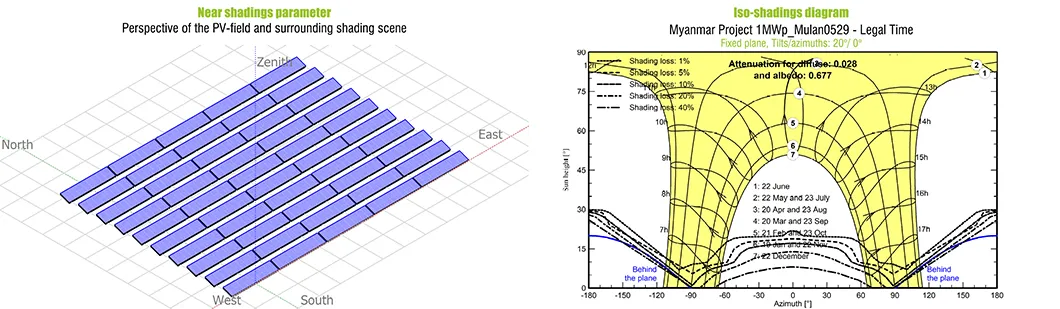

Technical Support 1 Technical Support 2 Technical Support 3
5Production Facility

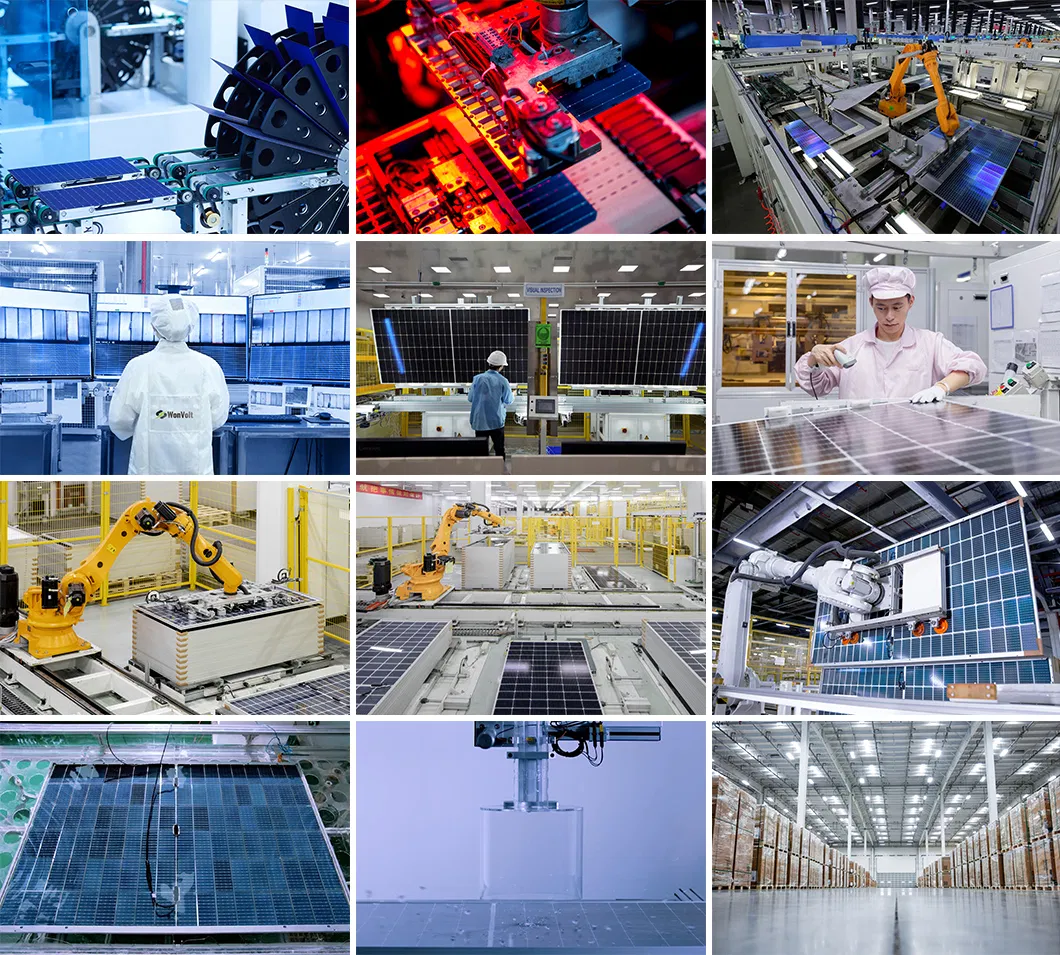

Factory Production Line
6Reference Projects
Project Case Studies
Frequently Asked Questions
What is the cycle life of the battery system?
The system features high-quality LiFePO4 batteries with a cycle life of approximately 6,000 times, ensuring long-term reliability for commercial use.
Can the system be expanded if my energy needs increase?
Yes, the system is designed with scalability in mind and supports parallel connection of up to 3 units to increase both power and capacity.
What cooling method does the system use?
The energy storage system utilizes a Smart Air Cooling design to maintain optimal operating temperatures and ensure battery safety and efficiency.
Does this ESS support off-grid operation?
Yes, the system supports UPS functions, Black Start capabilities, and Diesel Generator (DG) integration for reliable power during grid outages.
What monitoring options are available?
Users can monitor the system remotely via WIFI or the SEM-X platform, allowing for real-time data tracking and system management.
What safety certifications does the system have?
The product is fully certified with CE, UN38.3, IEC, and EN50549 standards, meeting international requirements for safety and grid connection.
