Type
Multi-Layer Warehouse
Material
Steel and Reinforced Concrete
Load Capacity
＞500kg per Layer
Usage
Industrial, Warehouse Rack, 3PL
Finishing
Powder Coated or Galvanized
Lead Time
3 Weeks (2*40' Container)

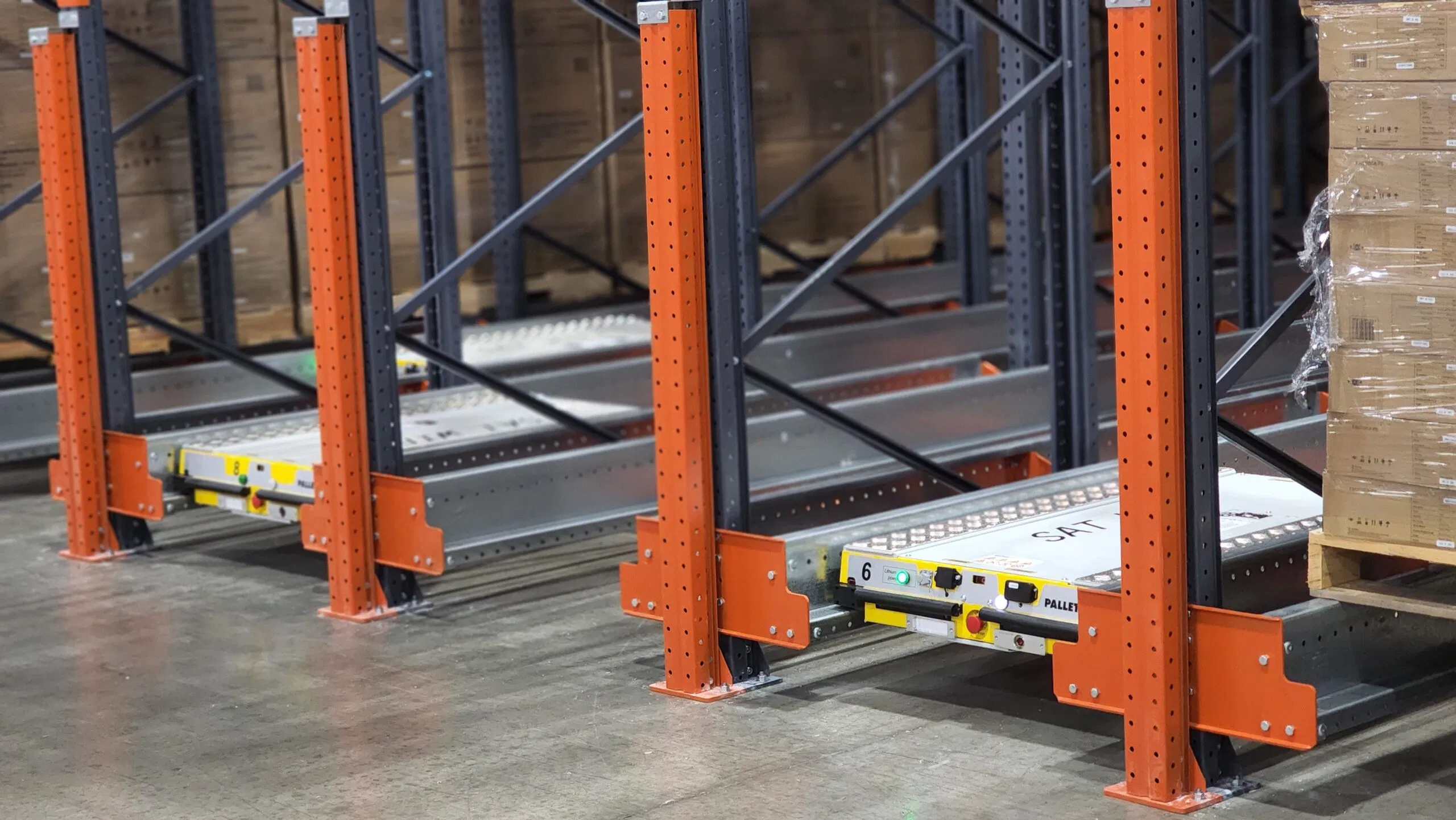

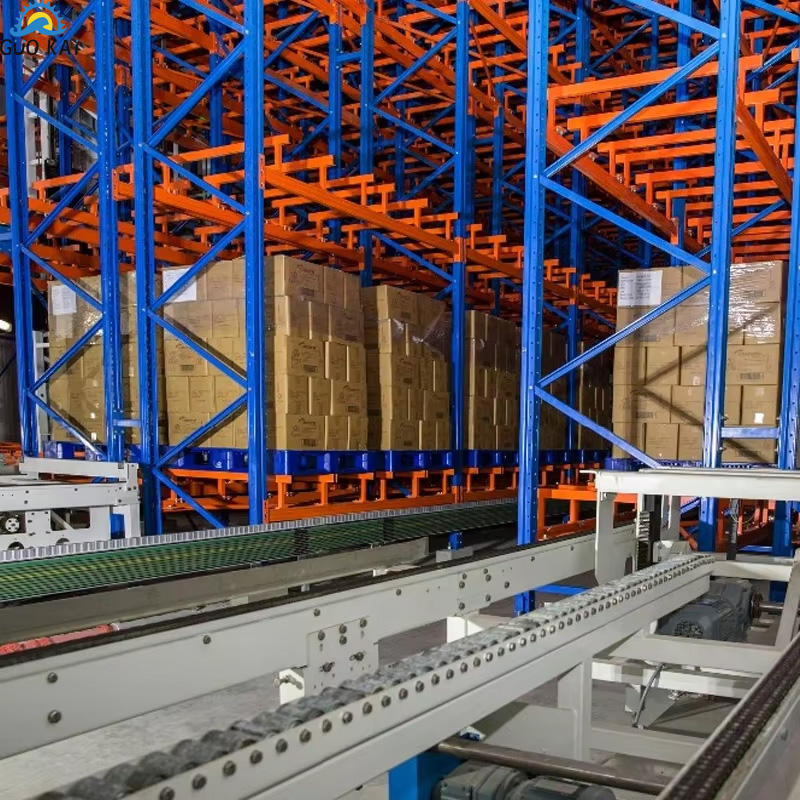

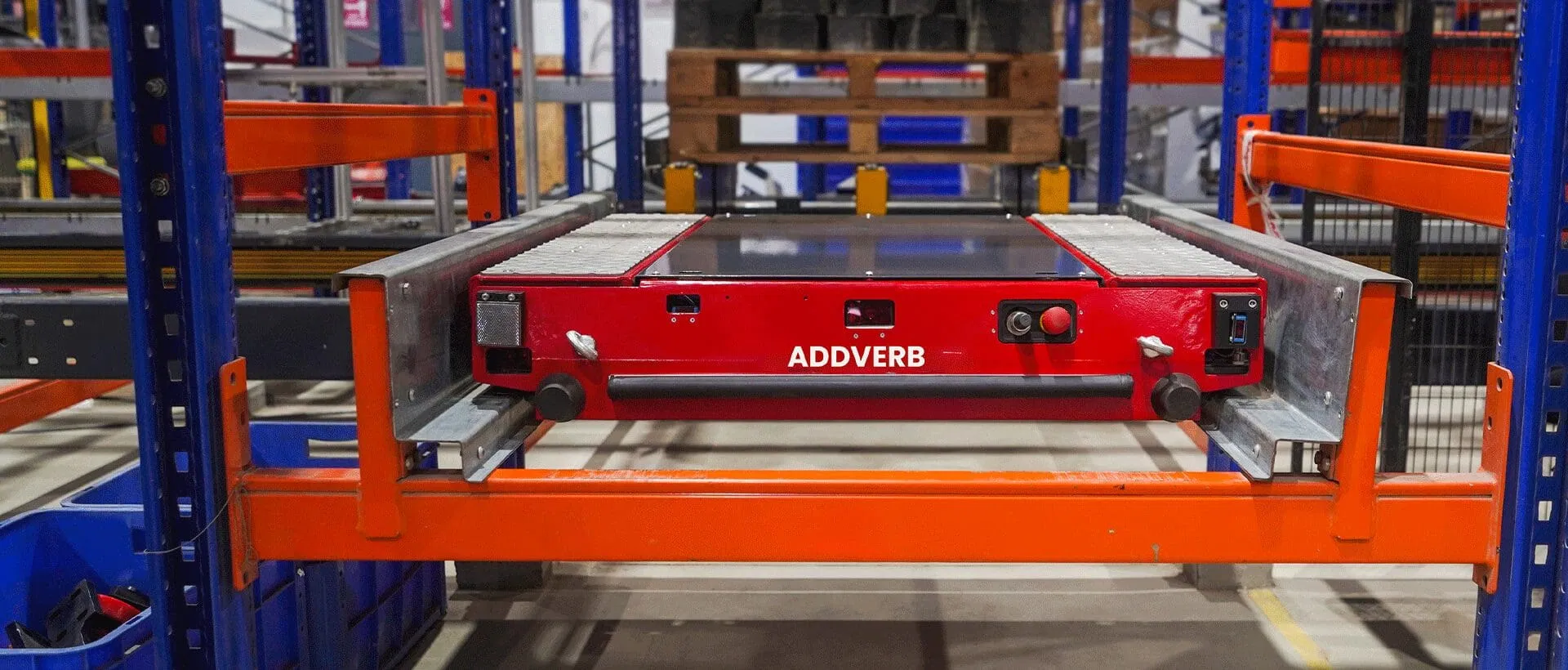

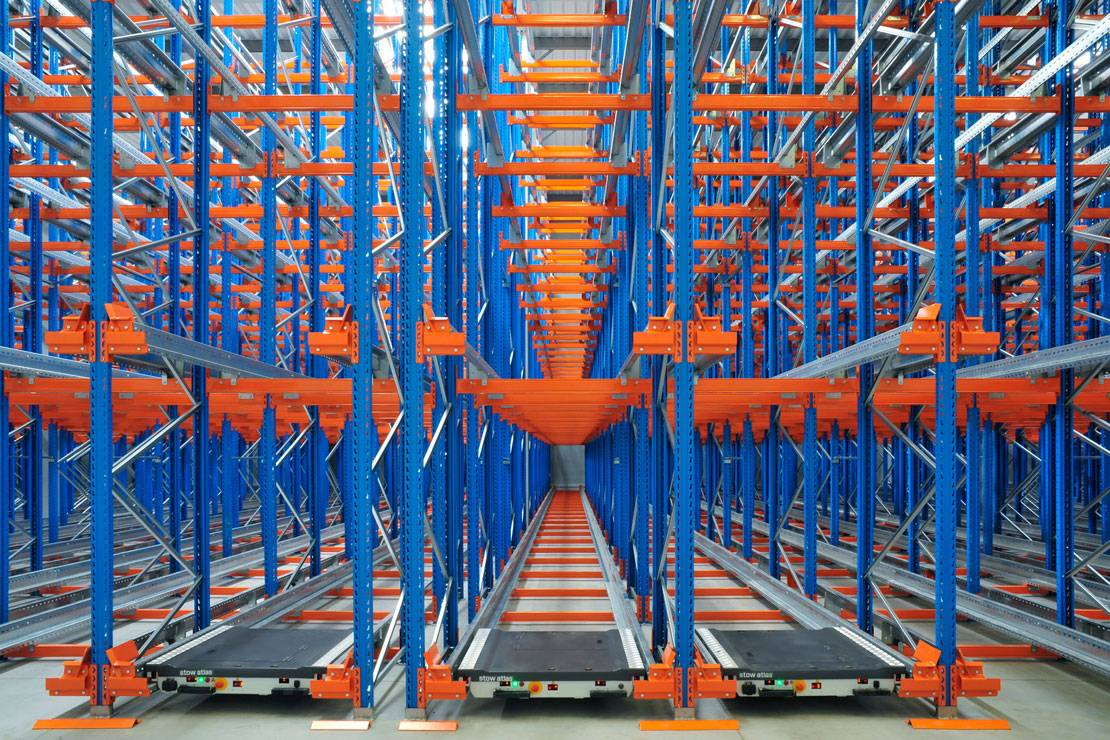

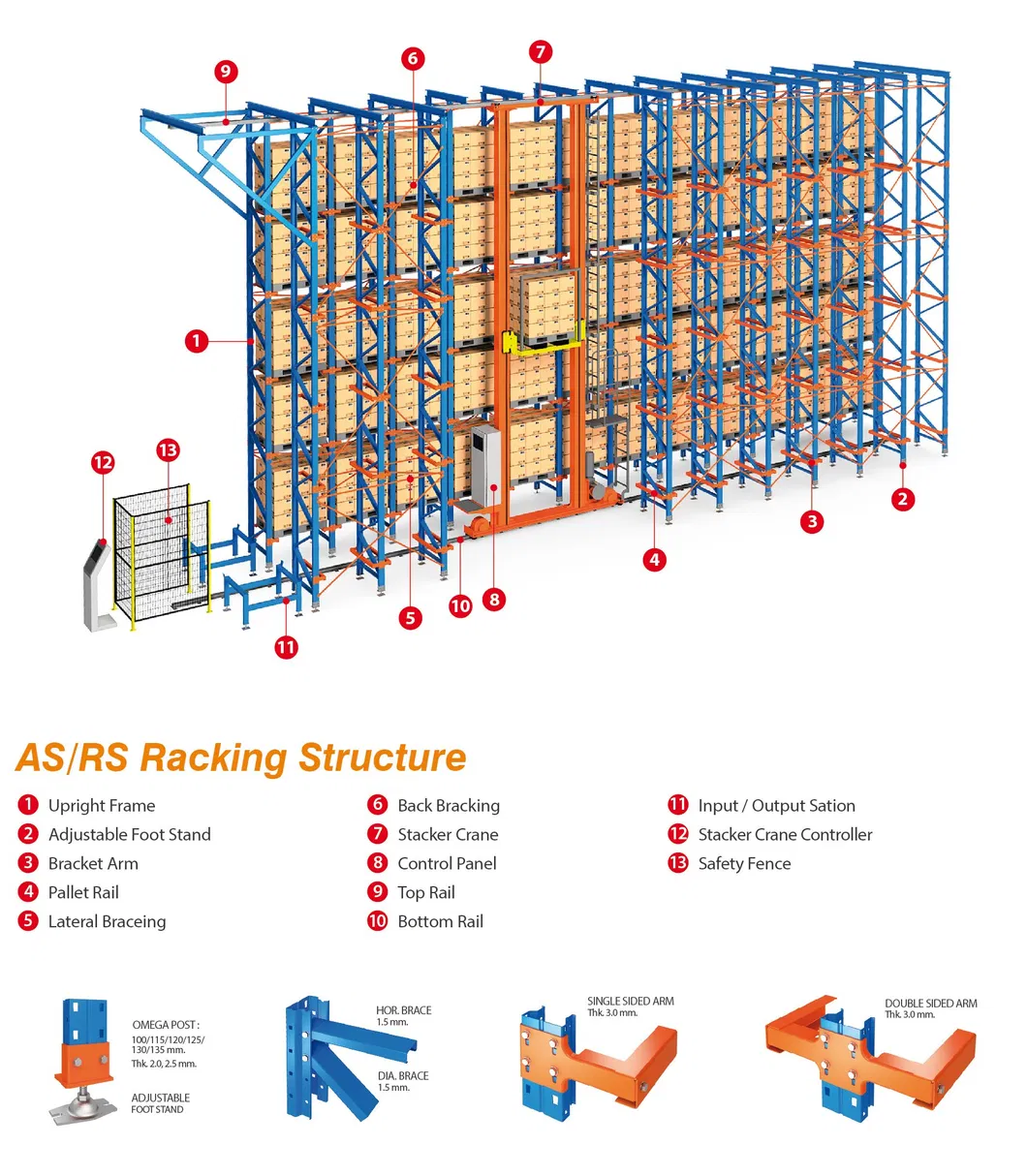

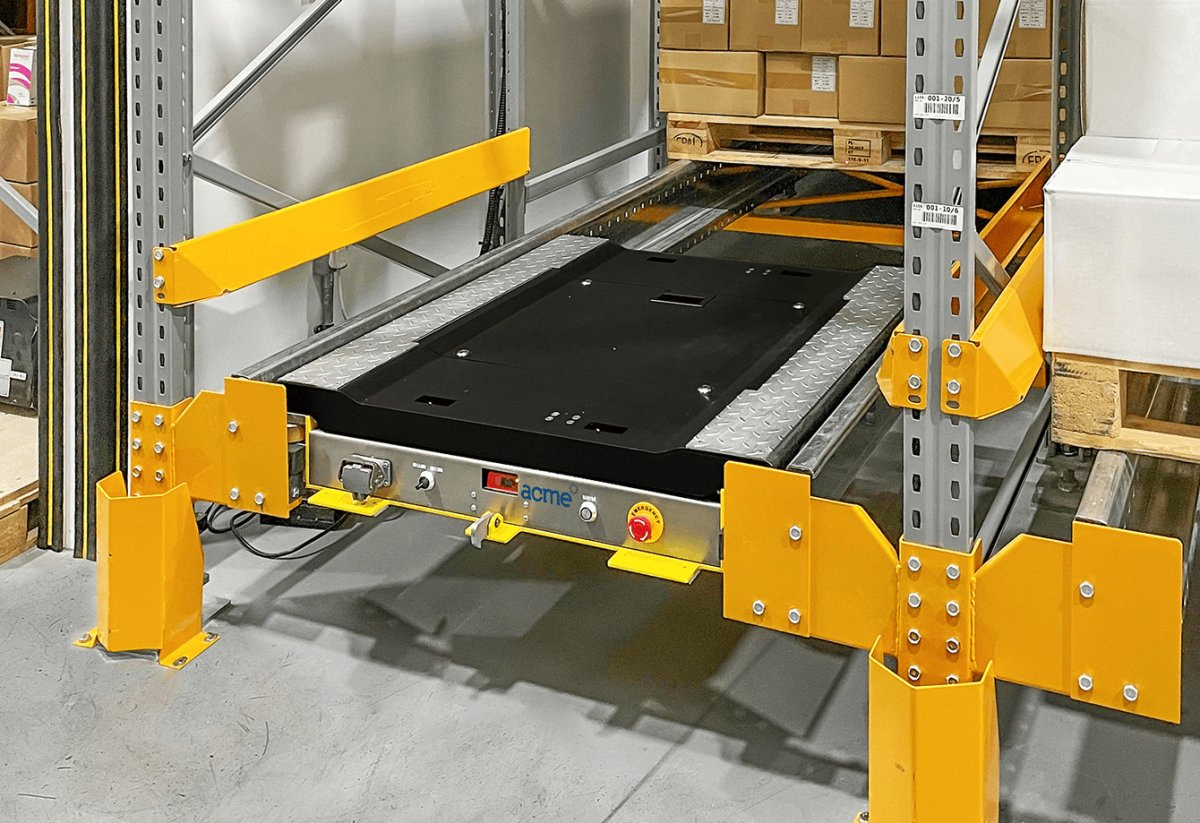

ASRS (Automated Storage and Retrieval System) efficiently loads and unloads heavy items, ensuring high-density vertical storage. It's highly adaptable and compatible with various equipment and locations. Designed for pallet loads of up to 1500 kg, it offers accurate real-time inventory tracking through its WCS/WMS module.
| Product Name | Automated Storage & Retrieval System |
| Material | Q235 (or Q345) Cold-rolled Steel |
| Adjustable Pitch | 50mm, 50.8mm, 75mm, 76.2mm |
| Storage Depth | Multi Deep |
| Positioning | Based on Laser |
| Max Height | Up to 40m |
| Operating Temp. | +5 - 45°C |
| Max Speed | Up to 4m/s |
| Finishing | Powder Coated or Galvanized |
| Design Service | Free CAD Design & Drawing |
| Trade Term | EXW / FOB / CNF / CIF |
Frequently Asked Questions
Are you a distributor or manufacturer?
We are a professional and leading manufacturer with nearly 20 years of experience in the industry.
What installation and debugging services do you provide?
We have installation teams with rich overseas experience. We send engineers to sites for debugging and training. For racking systems, we can install via our own teams or appoint engineers to guide the operation globally.
What is the Minimum Order Quantity (MOQ)?
Normally, a 1*20ft container is suggested to optimize delivery costs and logistics efficiency.
What are the primary advantages of an ASRS system?
ASRS maximizes vertical space utilization, improves inventory accuracy with real-time tracking, and significantly reduces labor costs through automation.
Can the racking system be customized for specific warehouse heights?
Yes, our systems are highly customizable. We can design and manufacture structures up to 40 meters in height to suit your specific warehouse requirements.
What are your standard payment terms?
We typically accept T/T (Telegraphic Transfer) or LC (Letter of Credit) at sight.
