Automatic Storage Equipment Stacker Cranes & ASRS Systems

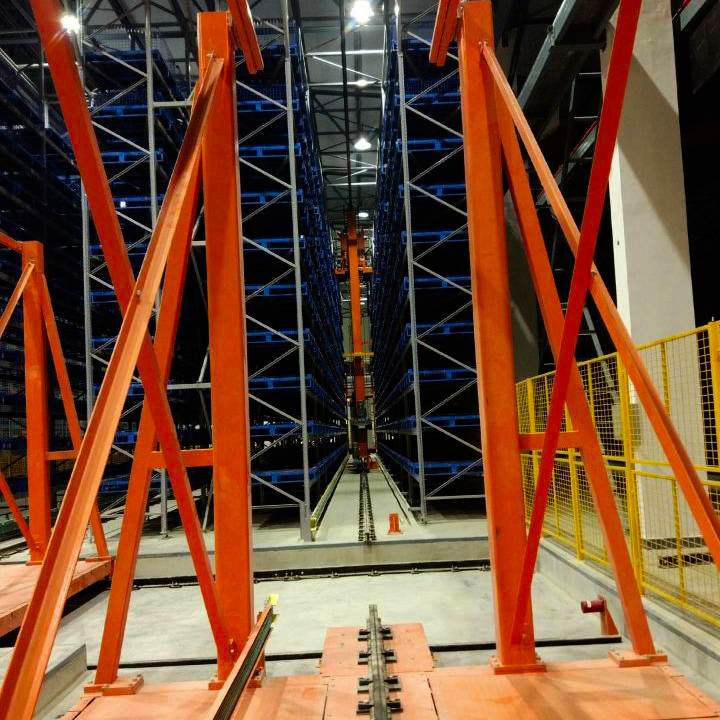

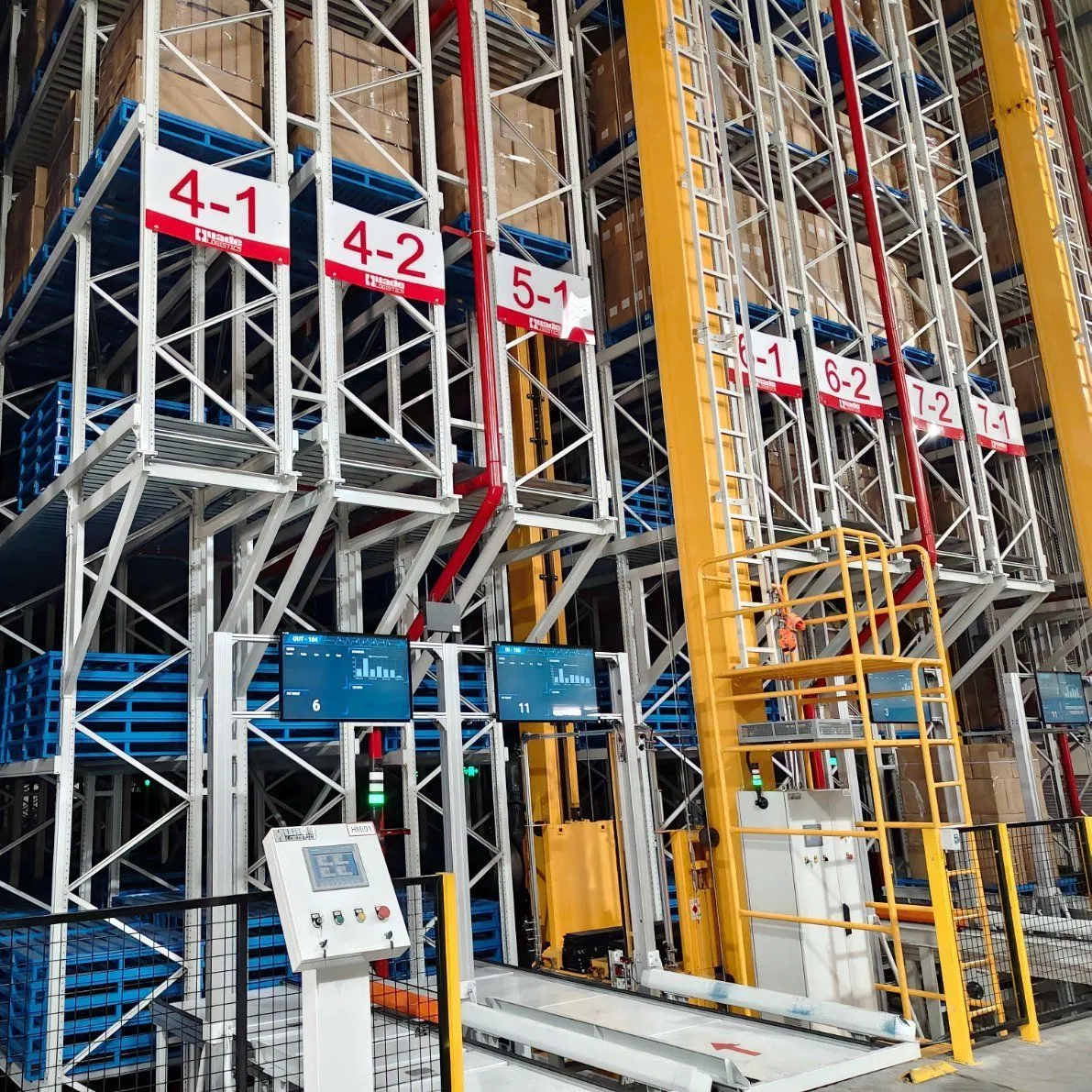

The automated system efficiently stores and retrieves goods, replacing manual warehousing tasks. These stacker cranes function as machines designed to move in length, height, and depth to load and unload goods from racking structures in a highly agile and precise manner.

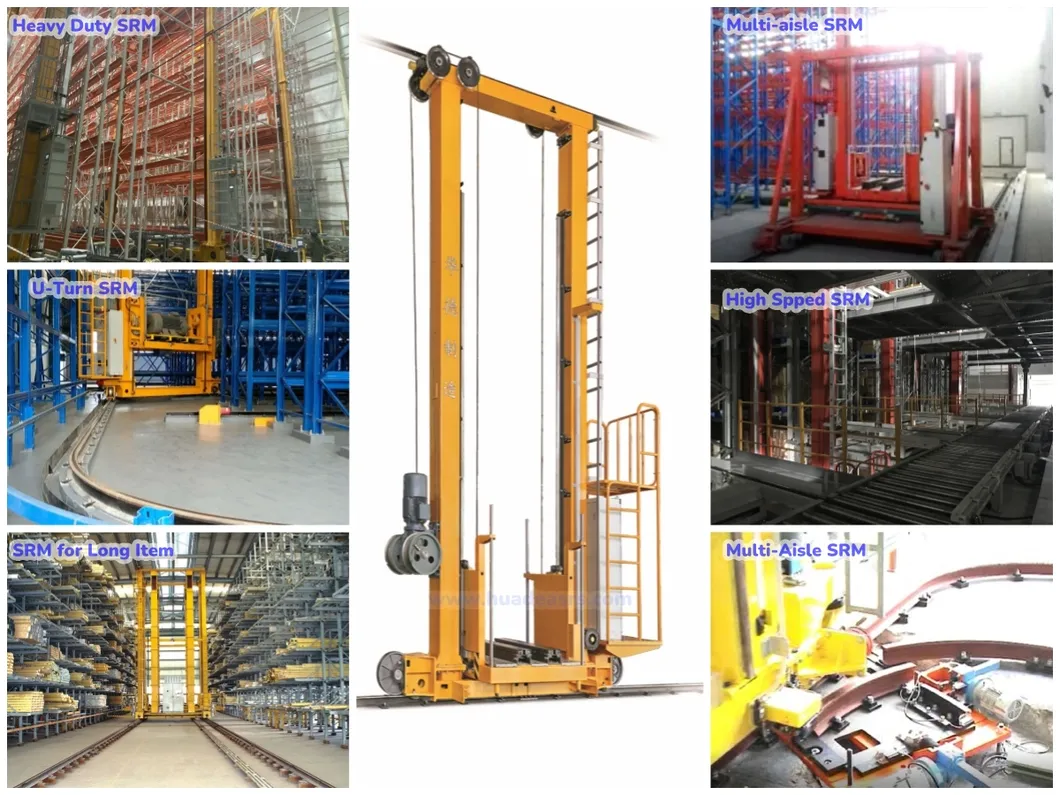

The Storage / Retrieval Machine (S/RM) enables horizontal and vertical movement within the AS/RS. The double mast design provides stability for heights up to 140 feet. It achieves horizontal speeds up to 900 ft./min and vertical speeds of 400 ft./min.

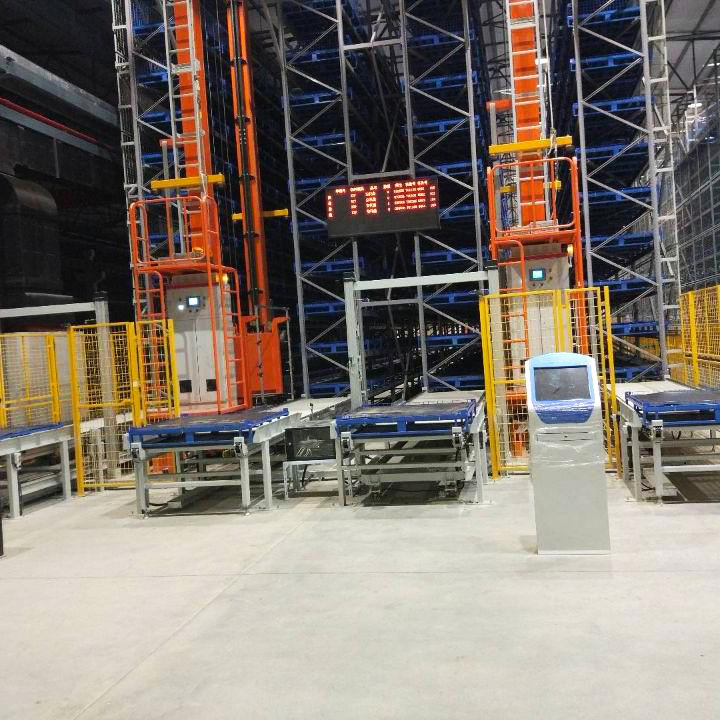

Systems ensure accurate movement of goods, integrating seamlessly with stretch-wrappers, label applicators, and staging systems. Engineered for high throughput to meet rigorous order fulfillment schedules.

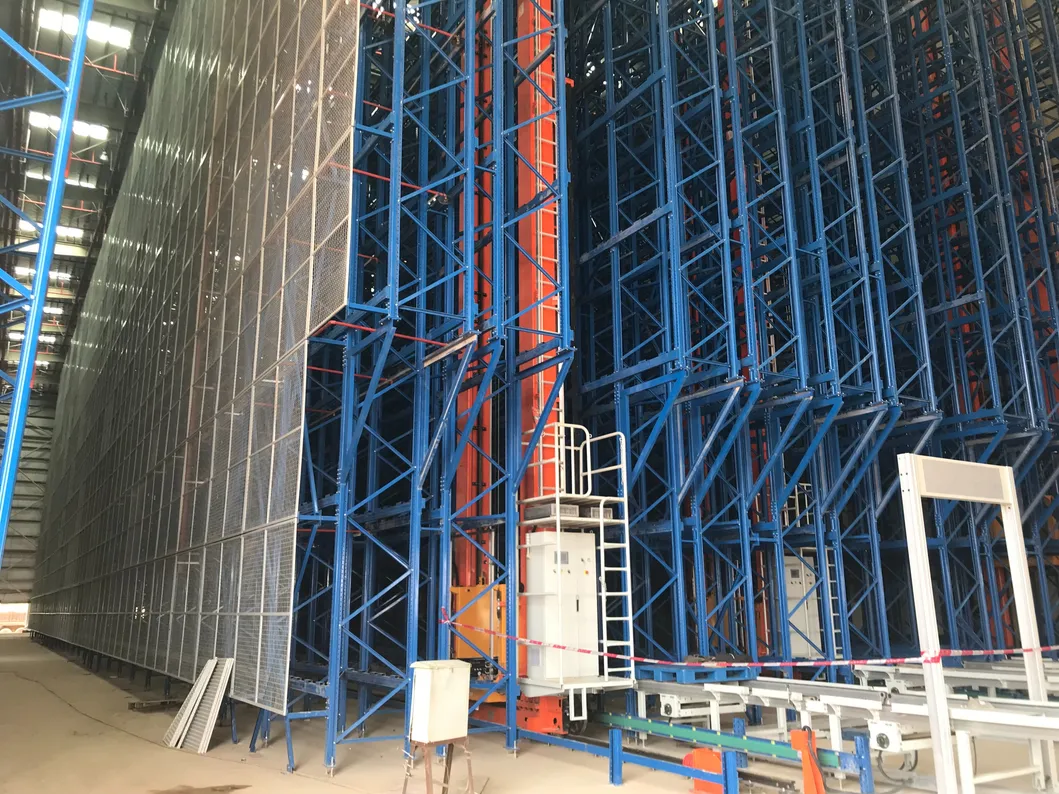

Optimized for high-bay warehouses, these structures are precision-manufactured and fully bolted to the floor. Supports heavy loads while catering to environmental and seismic requirements.
| Racking | Equipped with pallet and drive-in racking. Composite structures with steel or wooden panels. instructions managed via central computer for food, tobacco, and electronic industries. |
| Stacker | Double upright structure, vector frequency conversion drive, and encoder position control. Includes mechanical and electronic safety devices. |

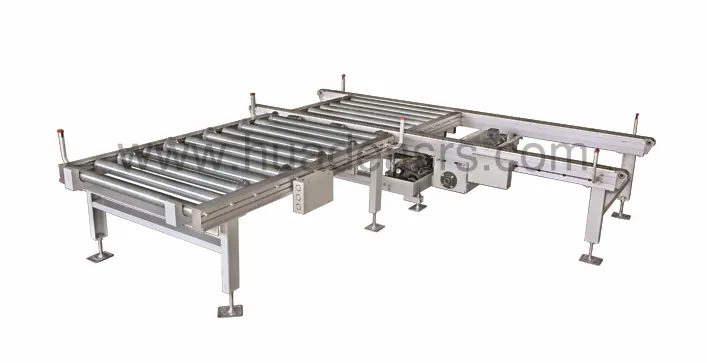

| Conveying | Equipped with rolling or chain conveyors, rotating devices, and lifts to bridge forklifts and stacker operations. |
| WMS System | Star network structure utilizing Windows Server and MS SQL. Includes equipment controlling software (WCS) and barcode management (RFS). |
We provide Pallet Type (Unitload), Box/Container Type (Miniload), Shuttle Storage & Sequencing systems, and Electrical Mobile Racking Systems.
Our stacker cranes can support heights up to 40 meters (standard models up to 140 feet) and load capacities up to 6000kg.
The system achieves horizontal speeds of up to 900 ft./min and vertical speeds of 400 ft./min for high-efficiency throughput.
The system utilizes WMS (Warehouse Management Software), WCS (Equipment Controlling Software), and RFS (Bar code management) running on Windows Server environments.
Yes, the AS/RS can be designed for either existing warehouses or new-build facilities, depending on space and structural requirements.
Key safety features include an on-board operator cage, dual hoist brakes, overweight limits, and a hoist free-fall catching system.
