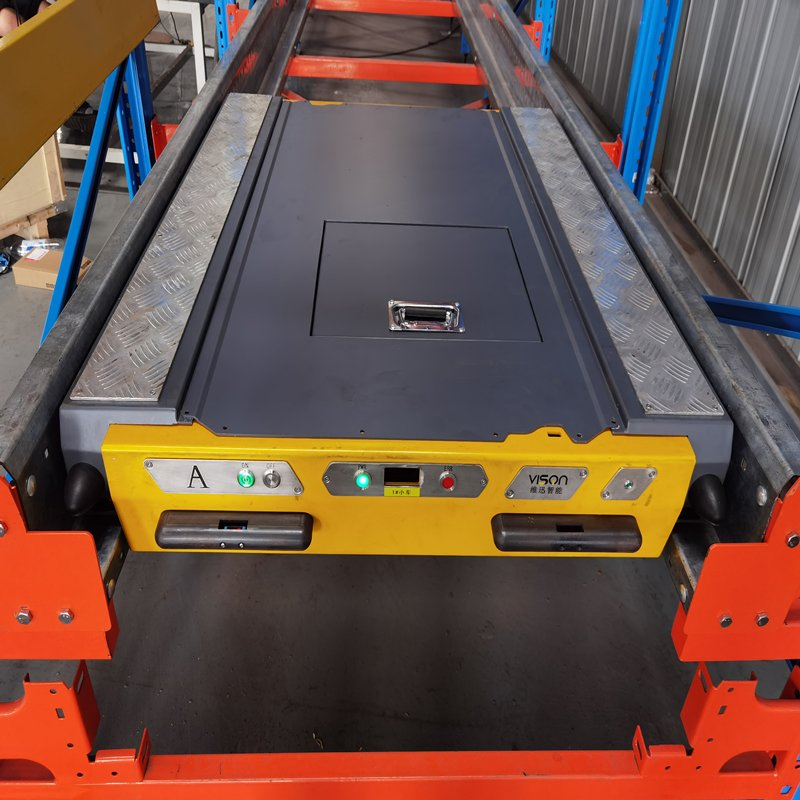

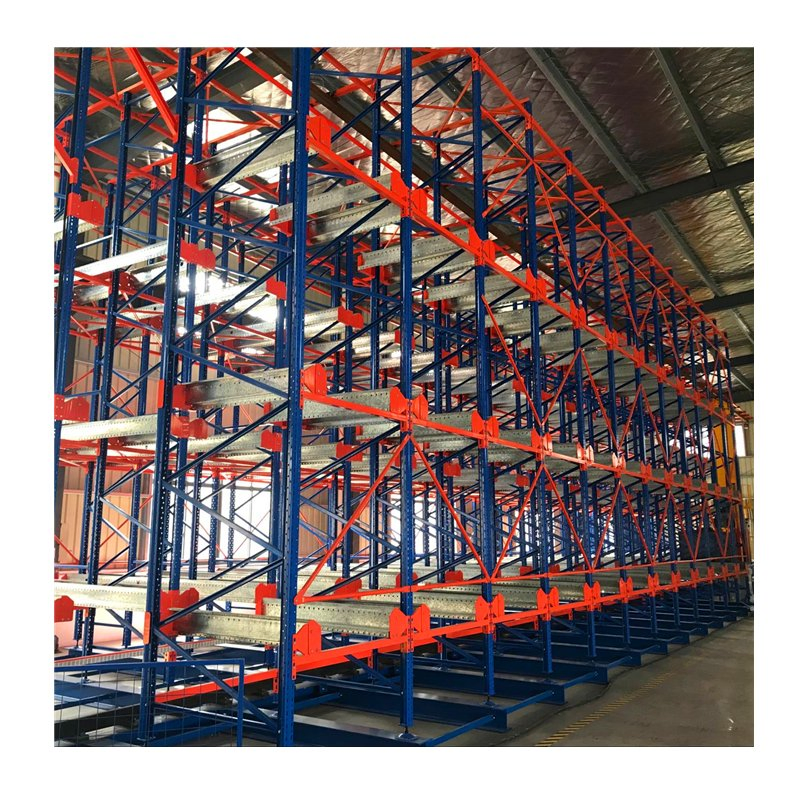

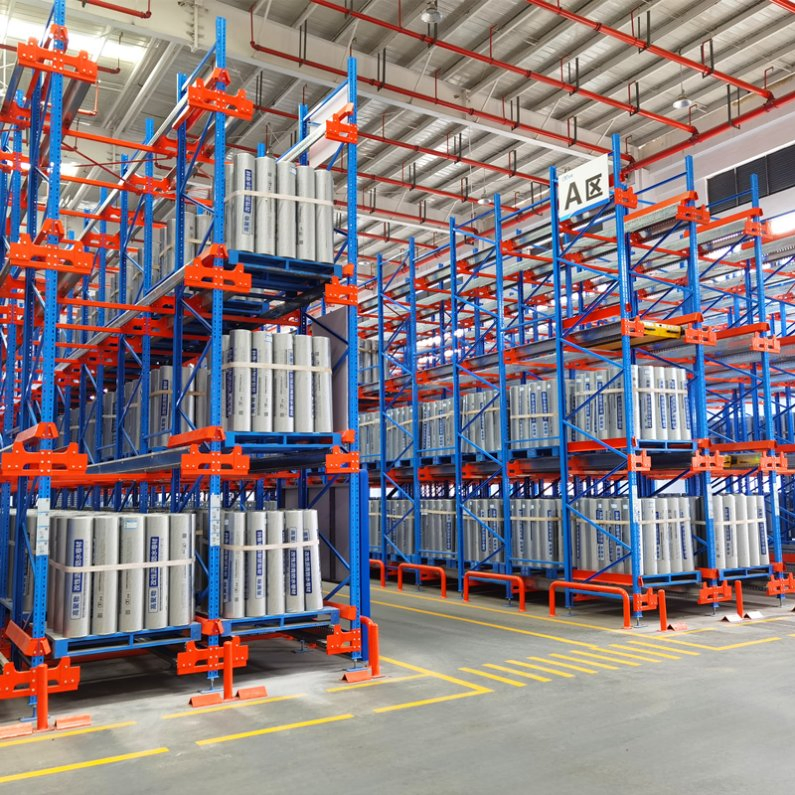

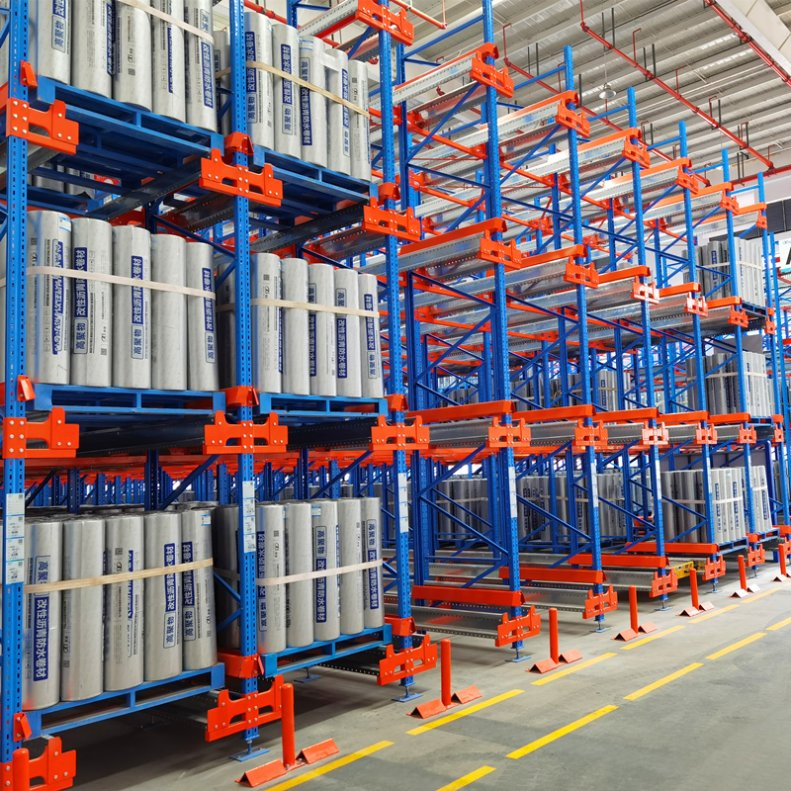

Fast Stock Picking Radio Shuttle Cart Warehouse Automated Storage Pallet Shuttle System OEM

i

Basic Information

Model NO.	Shuttle-ASRS
Type	Multi-Layer Warehouse
Material	Steel
Height	up to 30m
Load Capacity	＞500kg per layer
Usage	Tool Rack, Beverage, Supermarket, Food, Industrial, Warehouse, Logistics
Function	Automated Storage
Operation	Automatic Addressing Artificial Loading
Shuttle Load	1500kg~3000kg
Speed	0.8-1.0m/S (No Load) / 0.6-0.8m/S (Full Load)
Battery	24V/60A (Duration Over 8 Hours)
Temperature	-50~40℃ (Customized Supported)

★

Brief Introductions

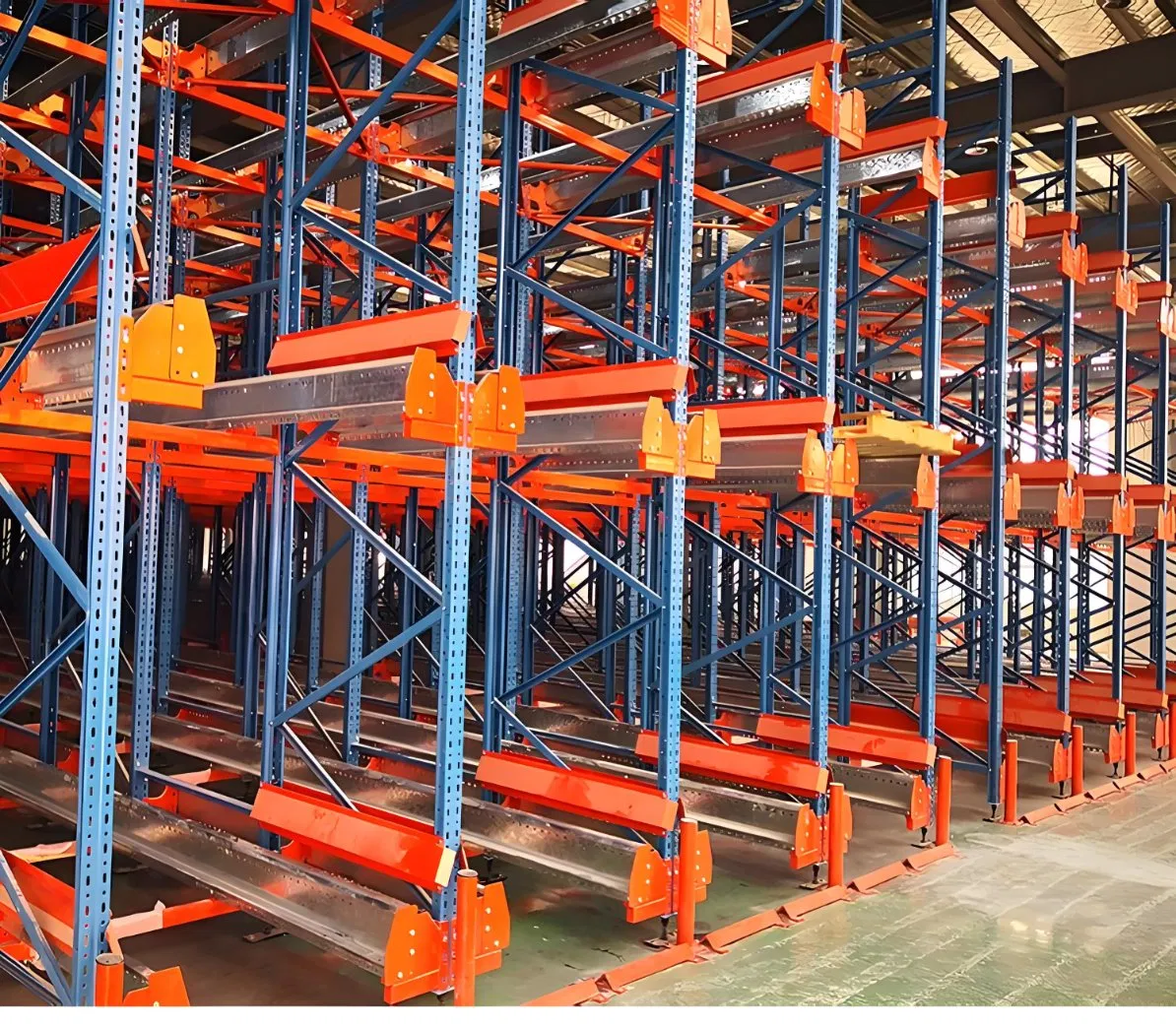

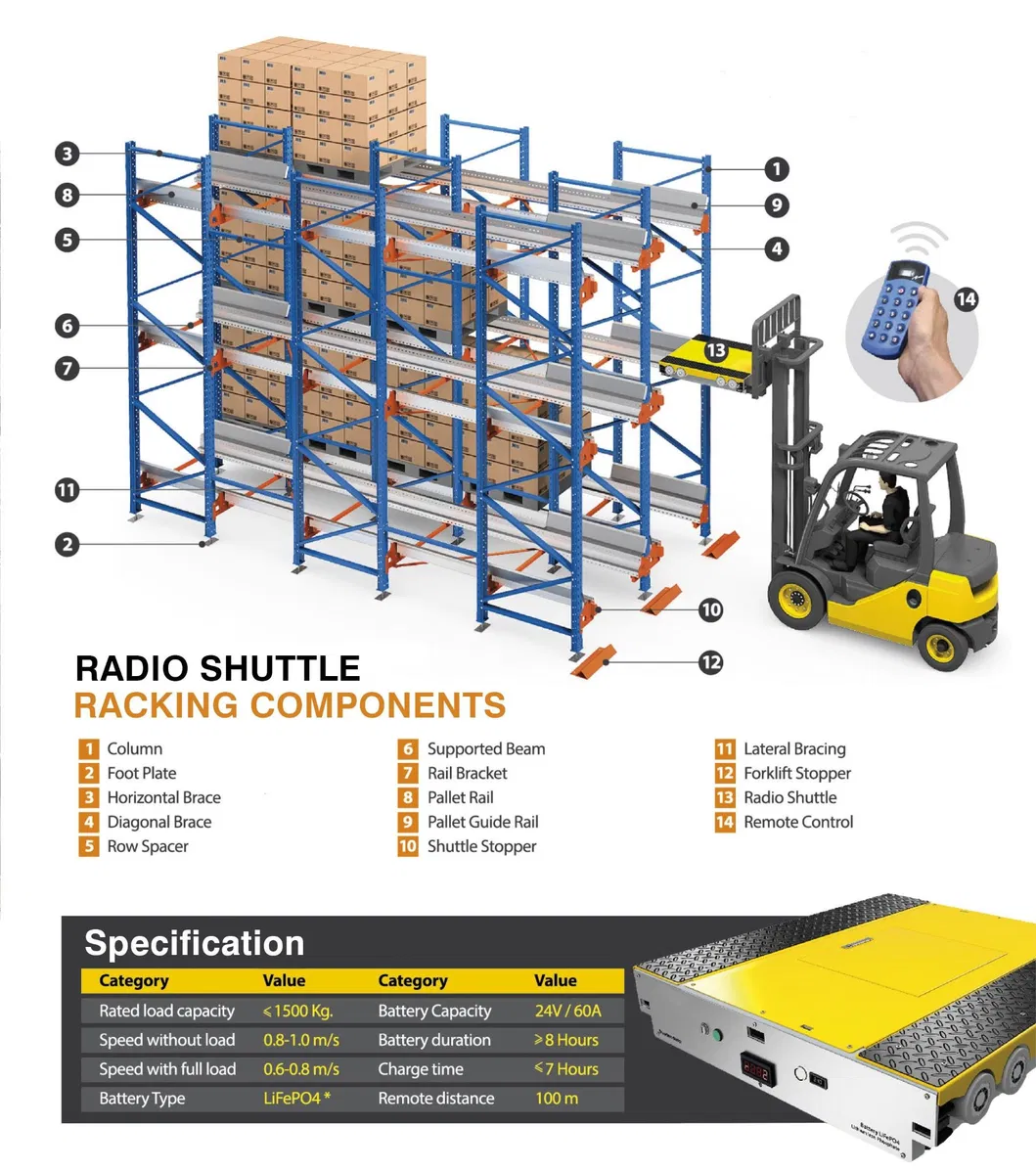

Radio shuttle racking is a semi-automated palletized products storage solution system, which is revolutionary within the fields of warehousing and logistics allowing for greater efficiency and better usage of the warehouse area than ever before.

It consists of pallet racking, radio shuttle and forklift.

Loading: Forklifts load the pallet on the shuttle cart, then the shuttle car carries the pallet to an appointed location via remote control.
Unloading: Shuttle car carries the pallet to the exit of the racking system, then the forklift unloads the pallet.

System Features

High density storage system for pallets, efficient warehouse utilization
First-in-last-out access system (FILO)
Top and back bracing ensure the whole racking remains stable and safe
First level pallets can be placed on the guide rails
Easy to install with improved space utilization

⚙

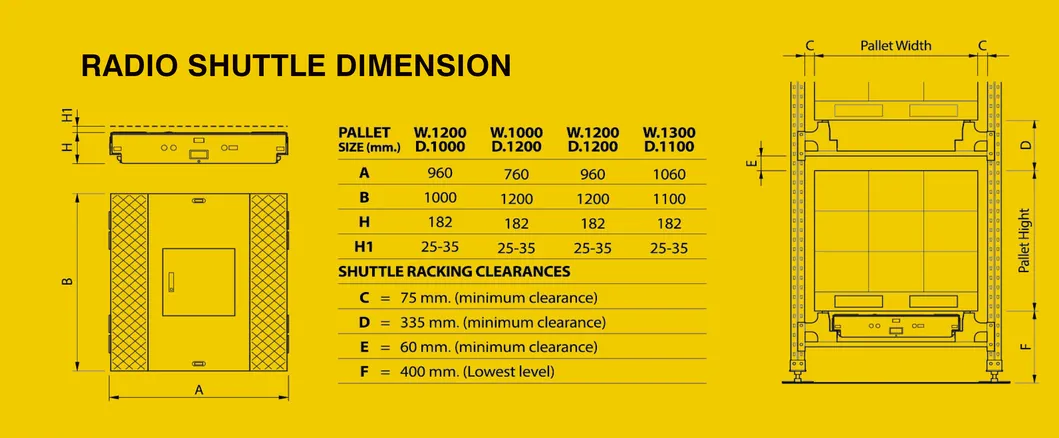

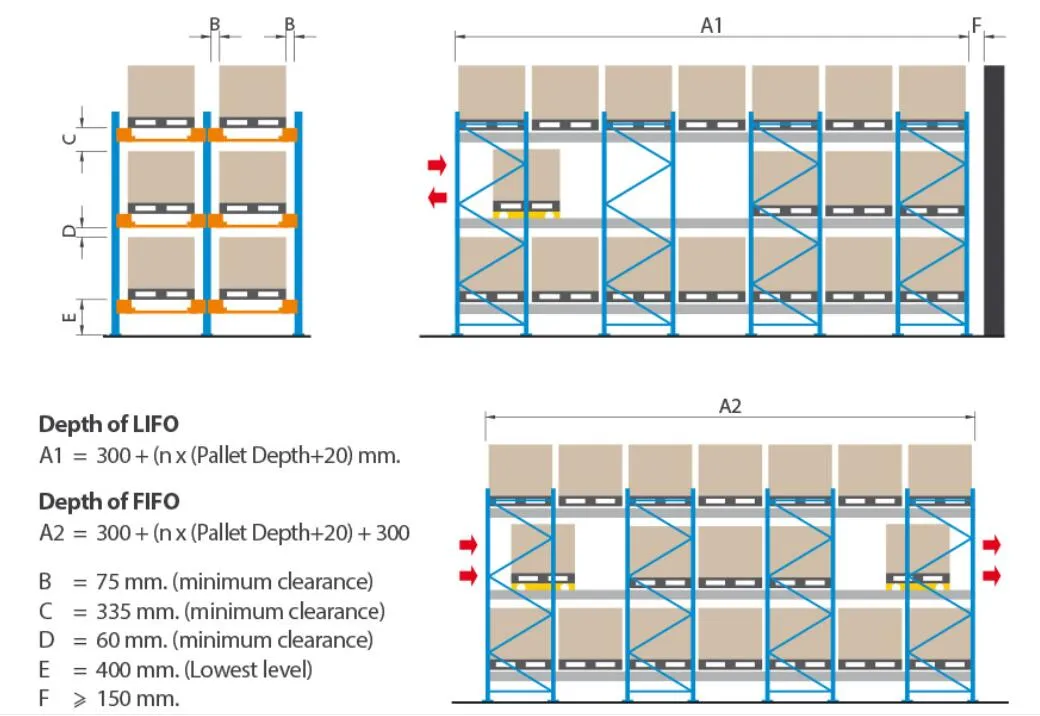

Product Parameters

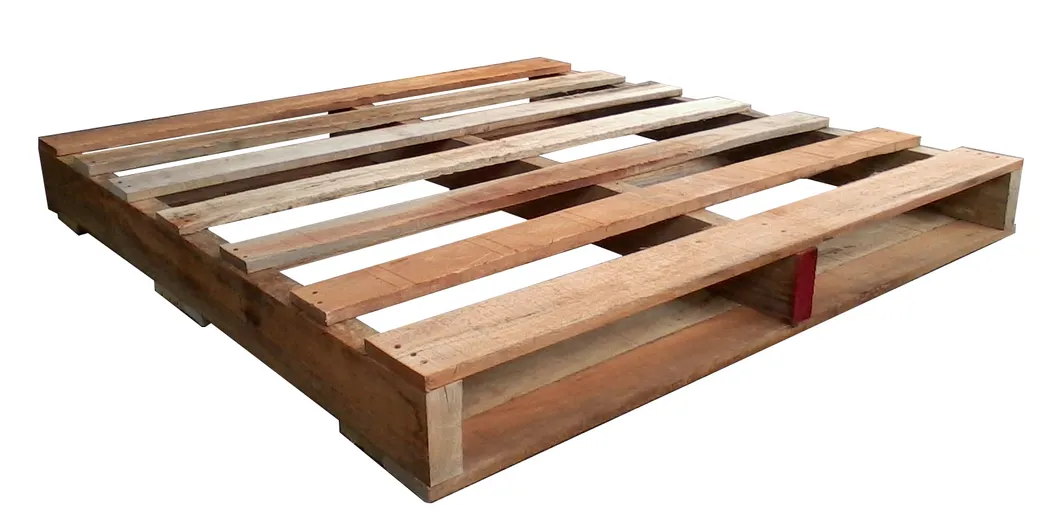

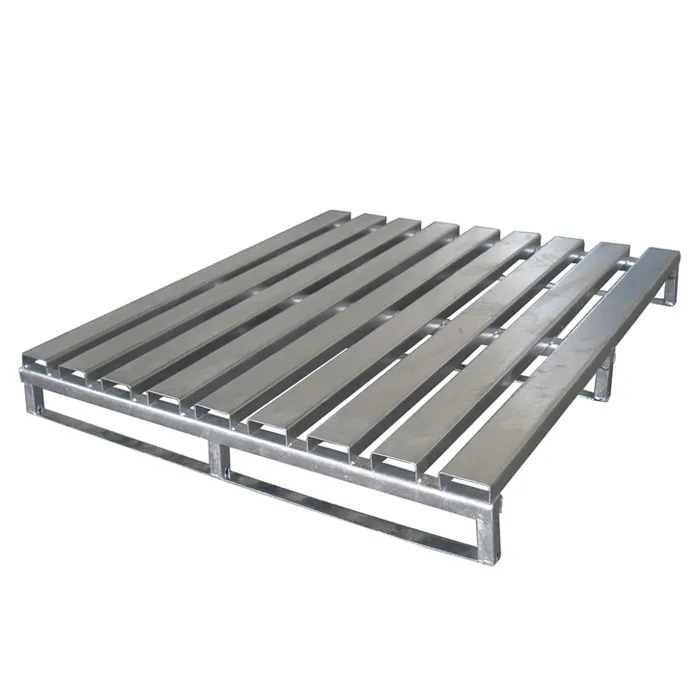

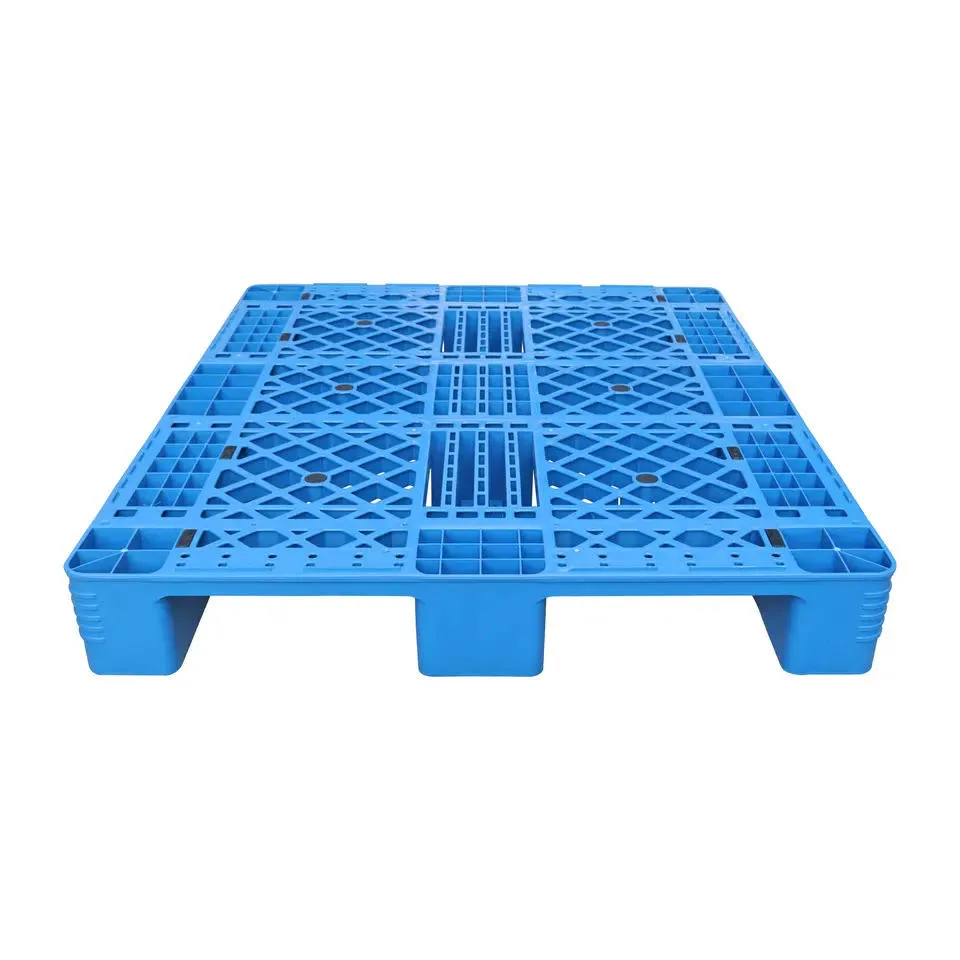

Matched Pallets for Radio Shuttles

Commonly Used Pallet Size	Pallet Material	Remarks
L1200*W1000mm	Wood, steel, plastic	Good condition
L1200*W800mm	Wood, steel, plastic	Good condition
L1100*W1100mm	Wood, steel, plastic	Good condition
L1219*W1016mm	Wood, steel, plastic	Good condition
Customized radio shuttle systems for different pallet sizes are supported.

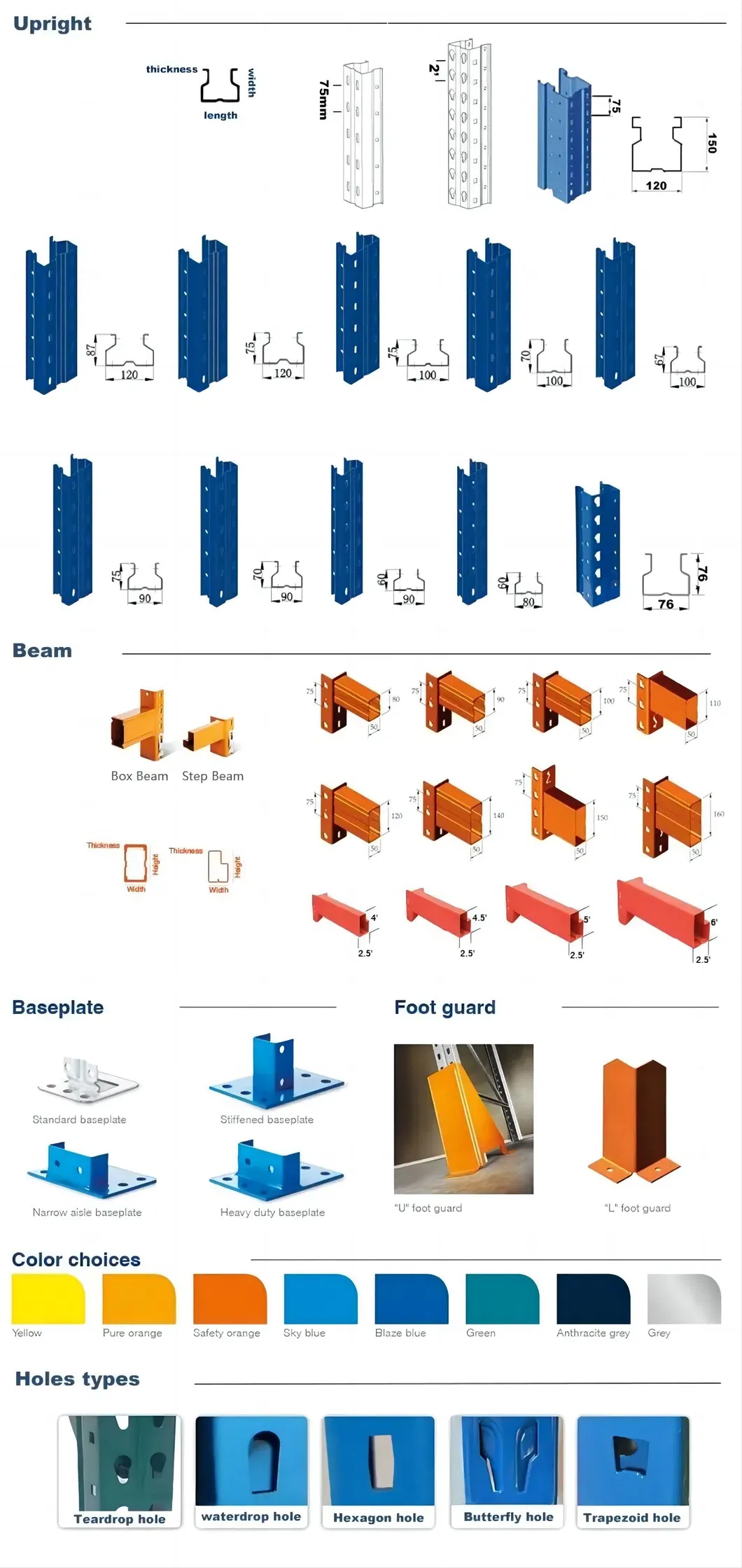

Material Details

High durable high strength steel: Q235B, Q355B
Finishing: RAL color and galvanized options available
Column adjusted by 50mm, 50.8mm, 75mm, 76.2mm
High quality rigid beam connectors with high grade bolts & nuts
Certification: ISO/RMI/CE/TUV/AS4084-2012

✎

Design Cases & Production

Experienced engineers provide professional storage solutions based on warehouse layout, product characters, inventory quantity, and picking rates. Smart storage solutions focus on space maximization and cost-saving.

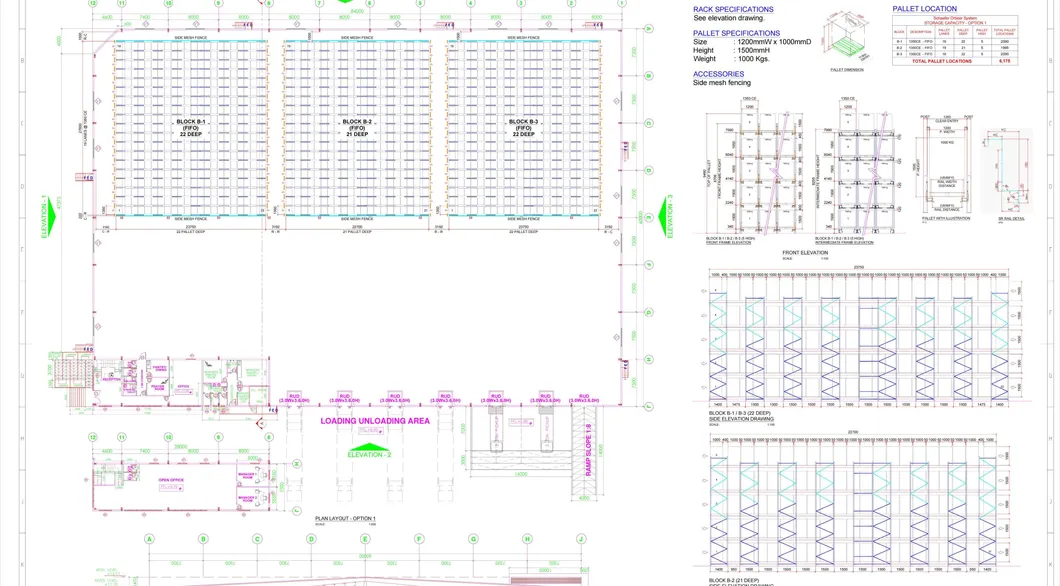

Design Case

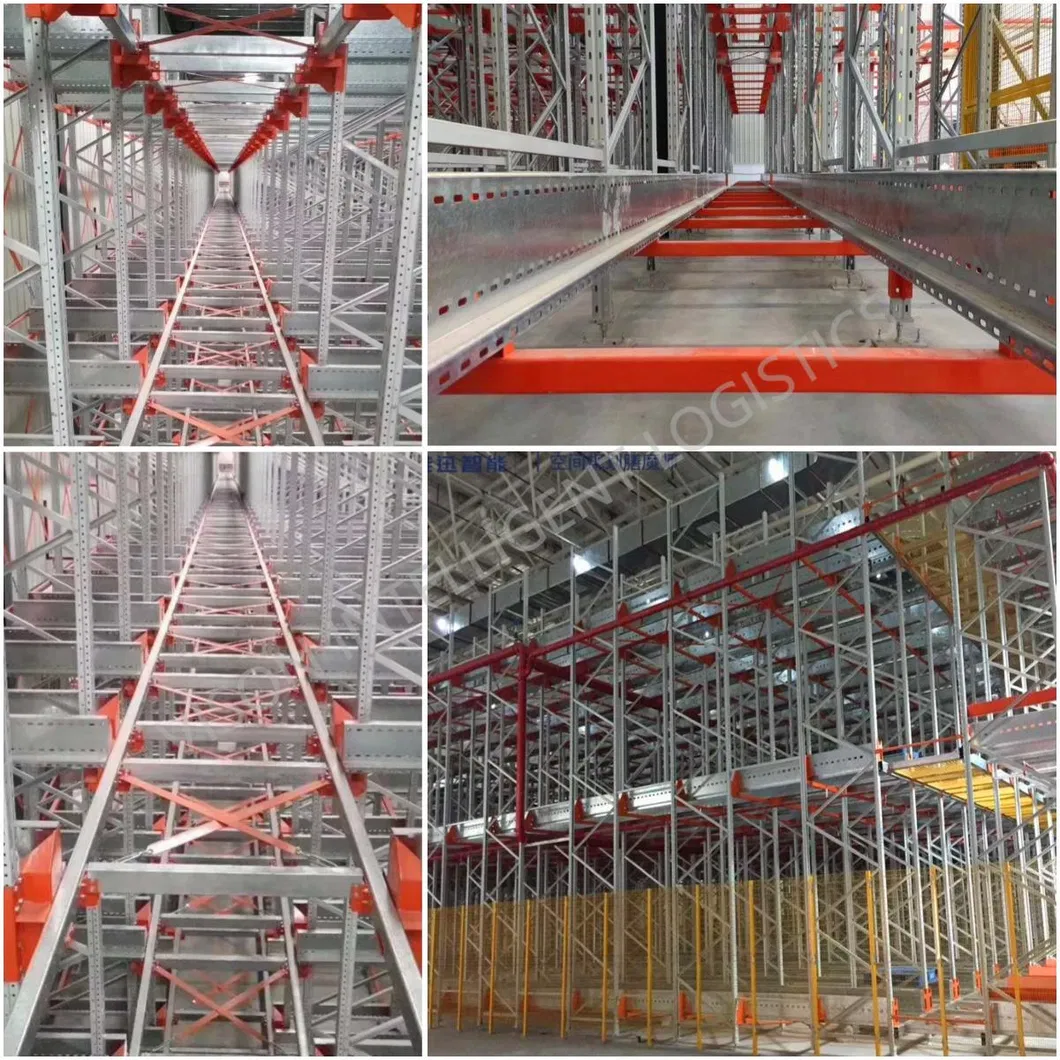

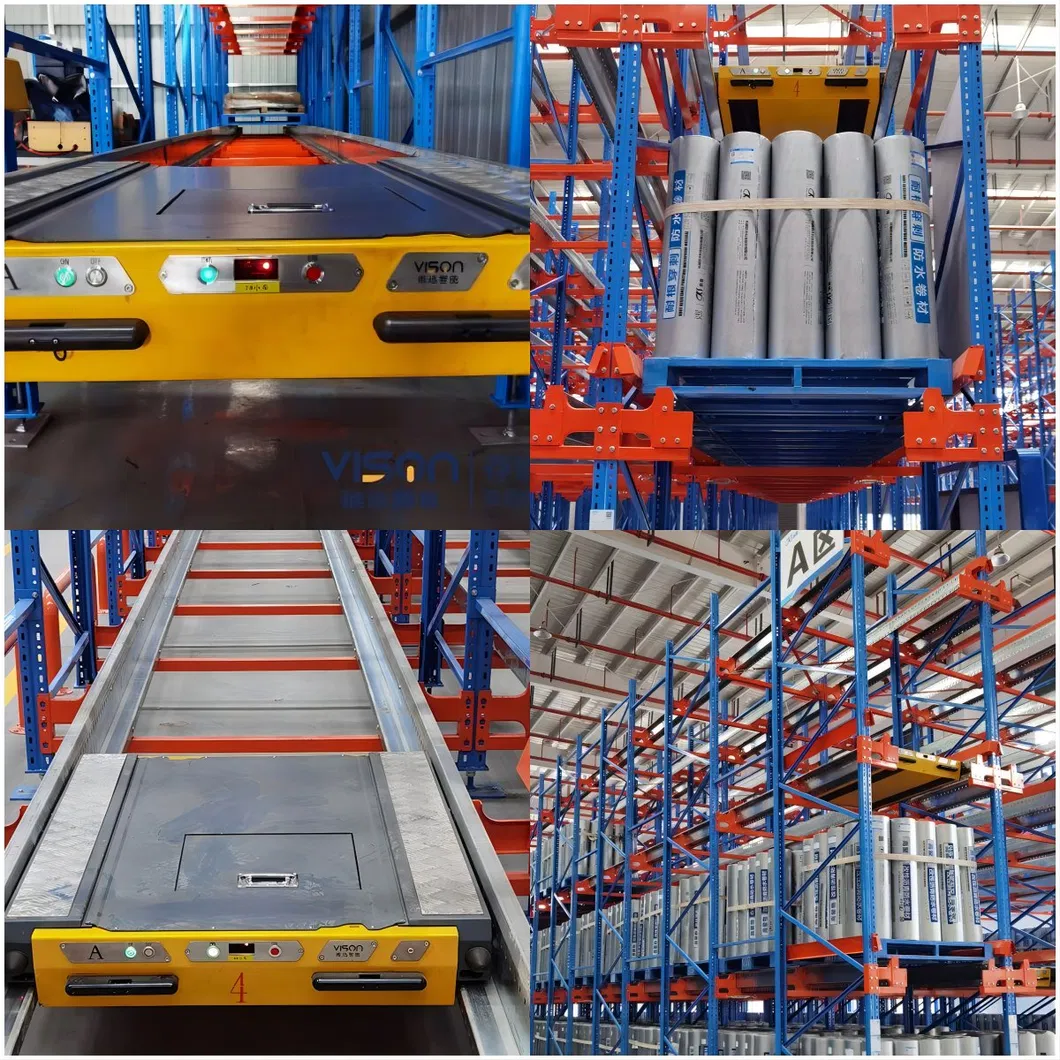

Project Show

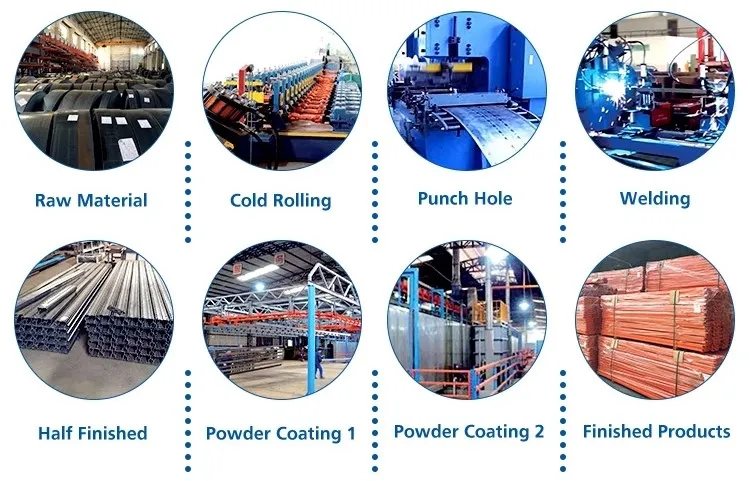

Intelligent Production Process

📦

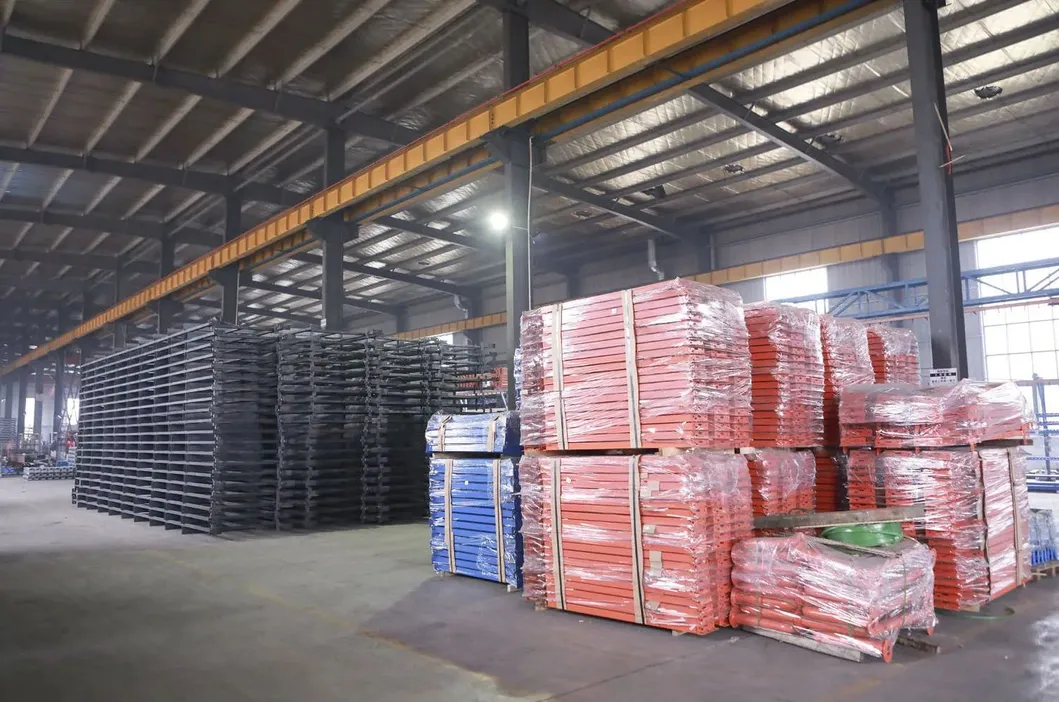

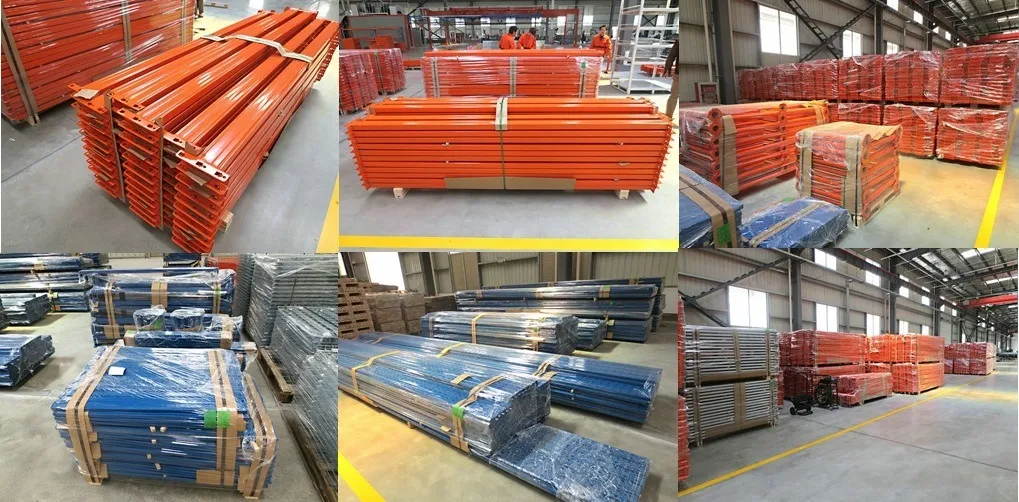

Packaging & Shipping

✔

Why Choose US

One-stop services from design, production, and installation to application instruction.
Rich experience in international markets supporting reliable OEM and ODM services.
Large production capacity with strict quality control and competitive pricing.
Leading R&D focusing on warehouse storage solutions and intelligent material handling.
Certified standards: ISO9001:2008, CE, AS4084-2012, RMI, FEM, etc.

Certifications

🏭

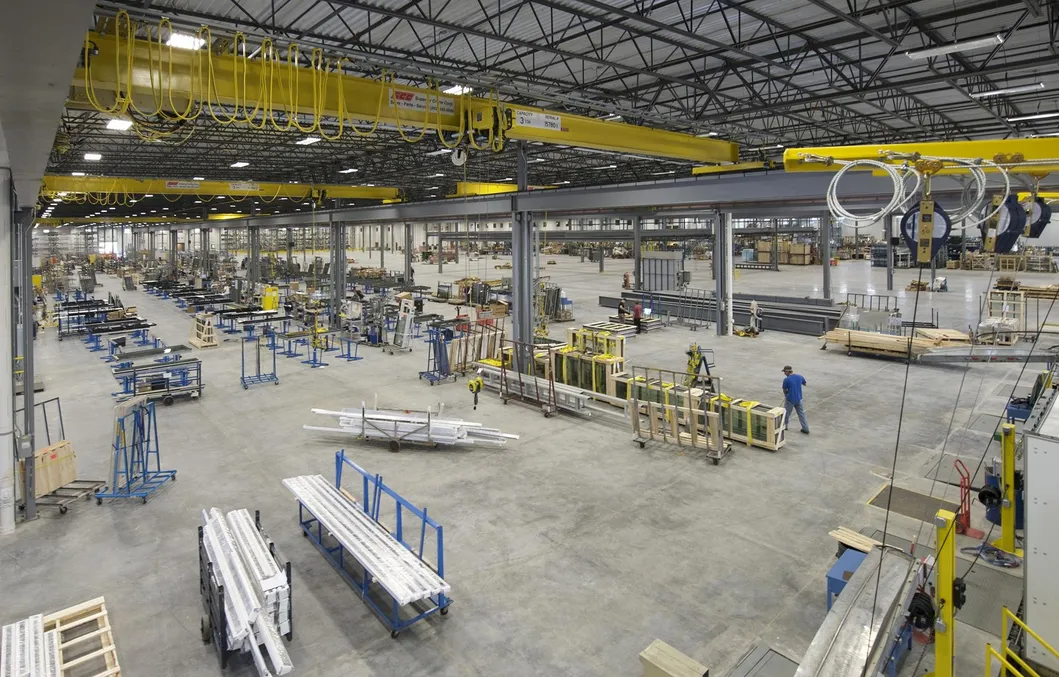

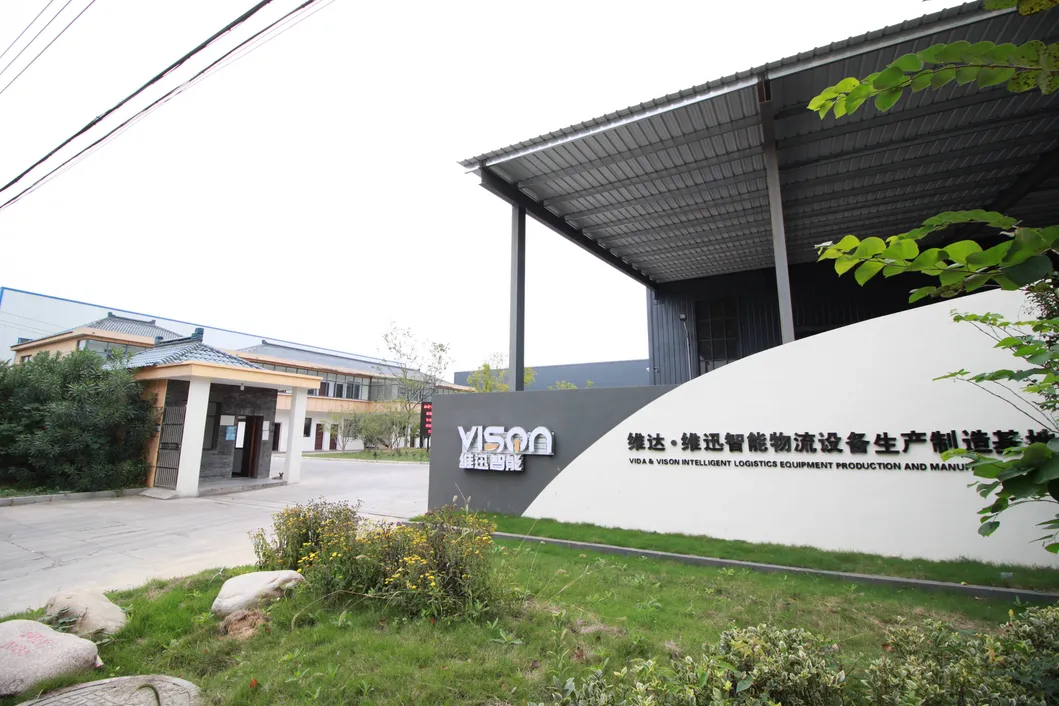

Manufacturing Capability

?

FAQ

Q: What are your trading terms and payment methods? A: Payment terms usually involve a 30% deposit via T/T, with the 70% balance paid against the bill of lading. L/C and O/A options are also available. We offer discounts for large quantity orders.

Q: What is the typical lead time for an order? A: The standard lead time is normally 20-25 days after the deposit is received. Rush orders can be processed for faster delivery.

Q: How do you ensure product quality? A: We follow a strict QC inspection process. Our products meet international standards including ISO9001:2008, CE, and RMI. We also offer a two-year warranty where broken parts are replaced.

Q: Do you offer free design services? A: Yes, free designs by experienced professional engineers are available to help maximize your warehouse space and efficiency.

Q: Is there a minimum order requirement (MOQ)? A: We do not have a strict MOQ, but we recommend ordering at least one 20ft container (approx. 15 tons) to get the most competitive shipping and product pricing.

Q: What packaging materials do you use for shipping? A: We use corrugated paper, carton boxes, pallets, angle steel, plastic film, and airbags to ensure the safety of the products during transport. Customized packaging is also supported.
