Automatic Addressing Artificial Loading Flexible Heavy Duty Radio 2D Pallet Shuttle Racking System

Basic Information

Model NO.

Shuttle-ASRS

Type

Multi-Layer Warehouse

Material

Steel

Height

Up to 30m

Load Capacity

＞500kg per Layer

Usage

Logistics, Industrial, Food, Beverage, Warehouse

Function

Automated Storage

Battery Duration

Over 8 Hours

Charge Time

5~6 Hours

Remote Distance

100m

Brief Introduction

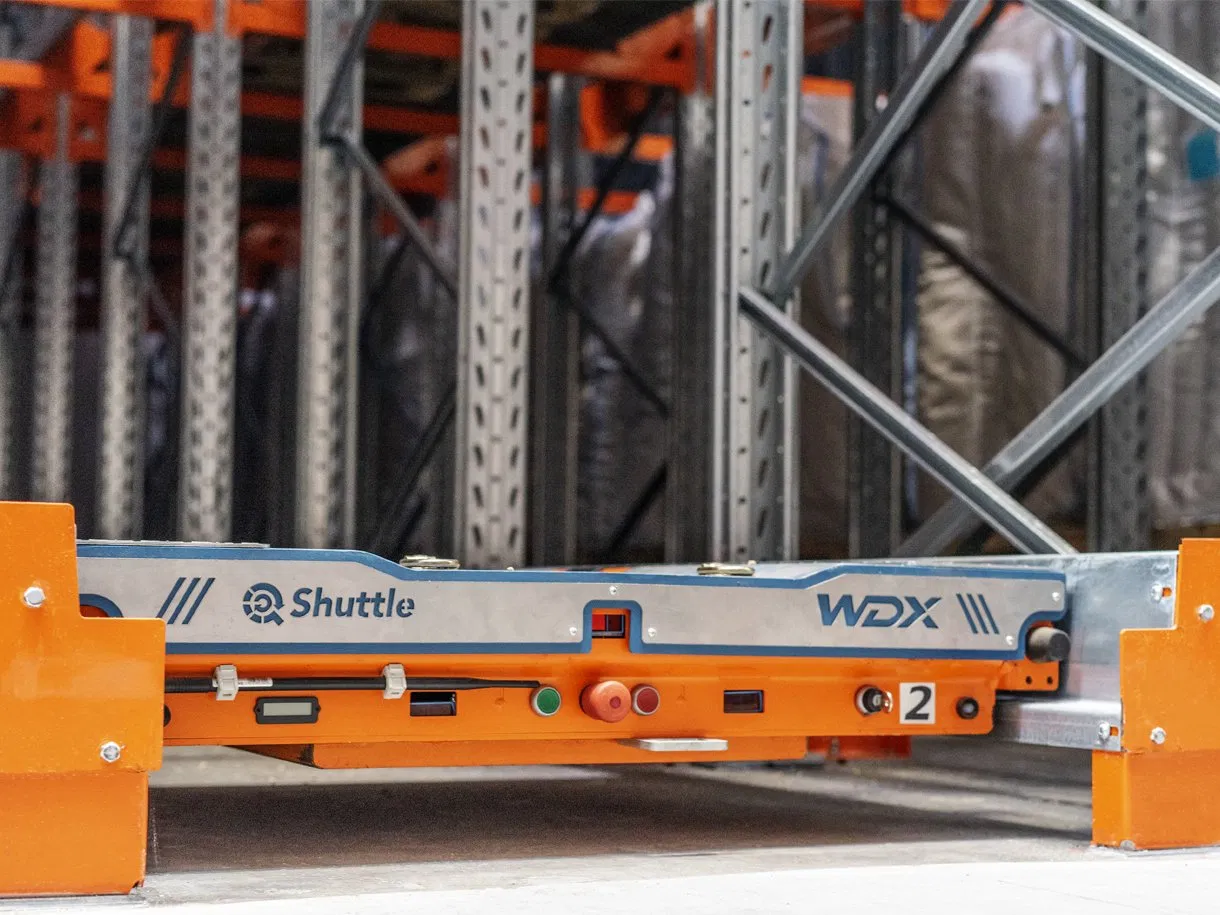

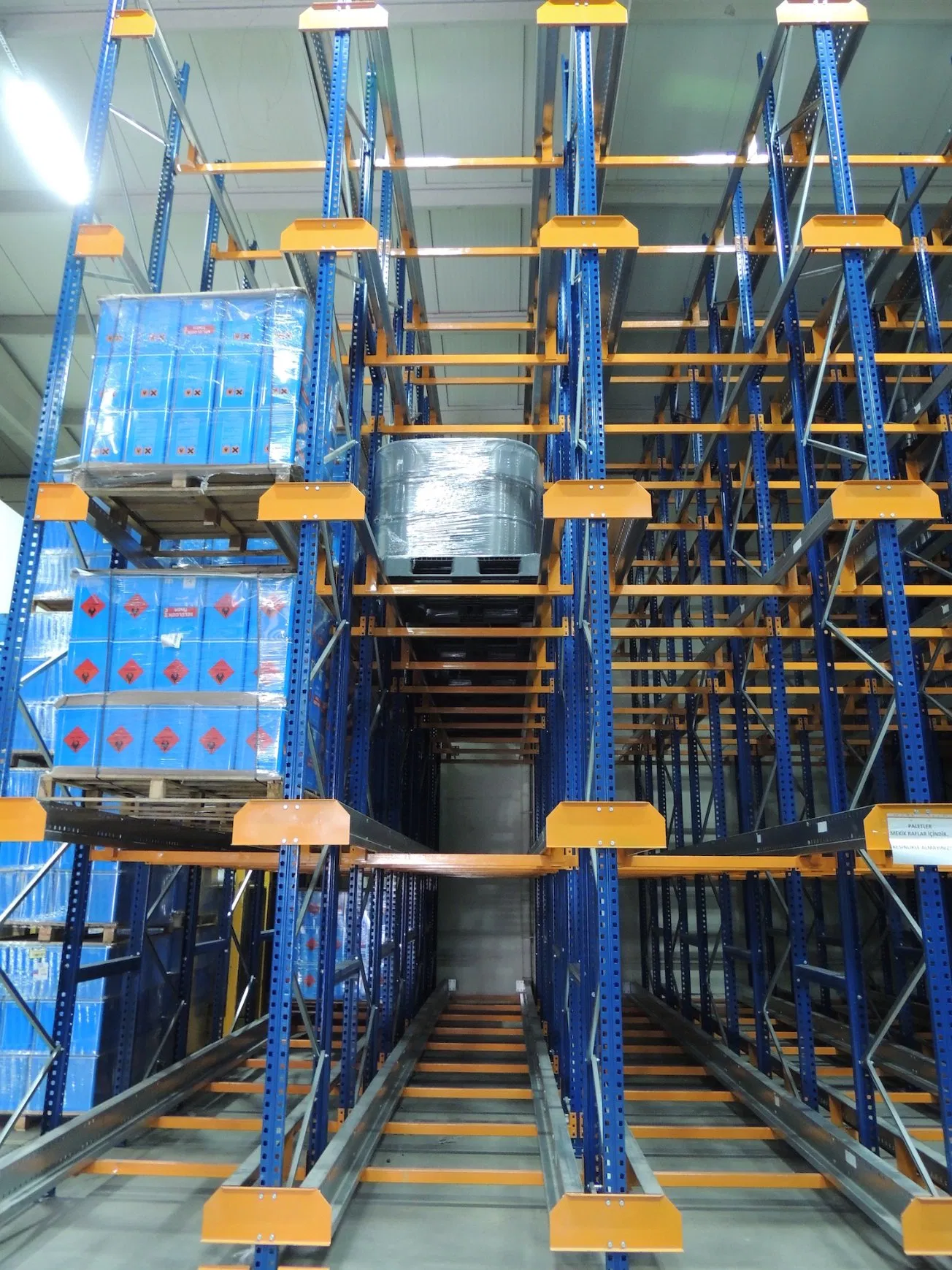

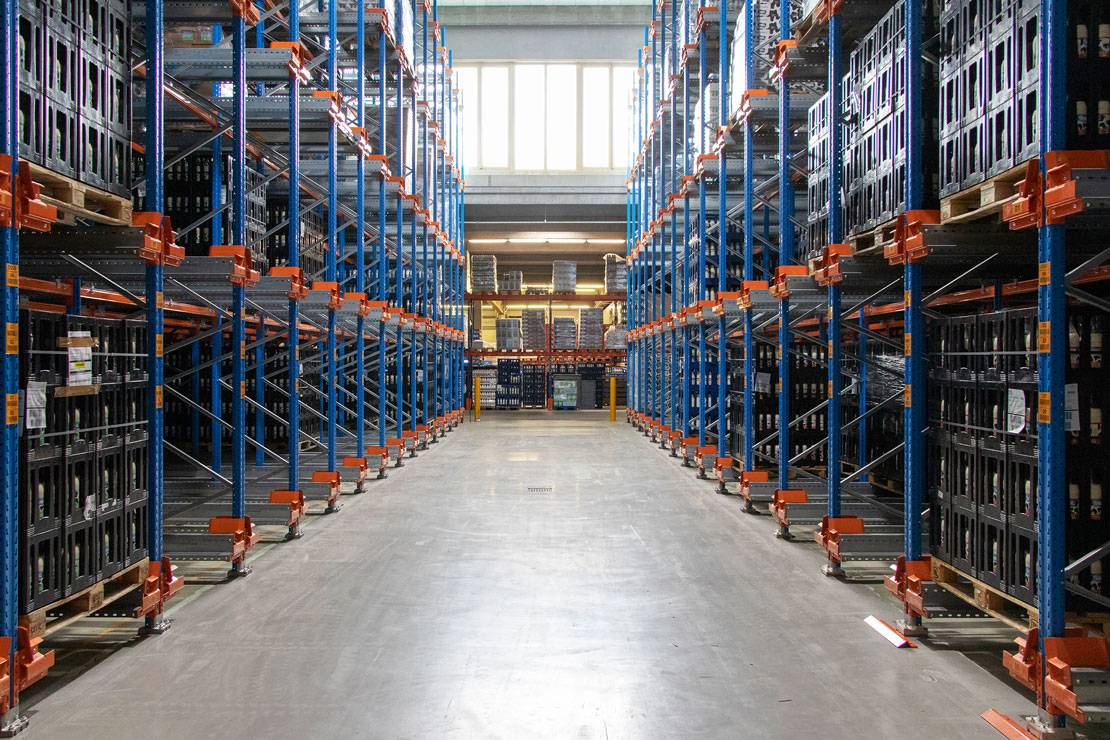

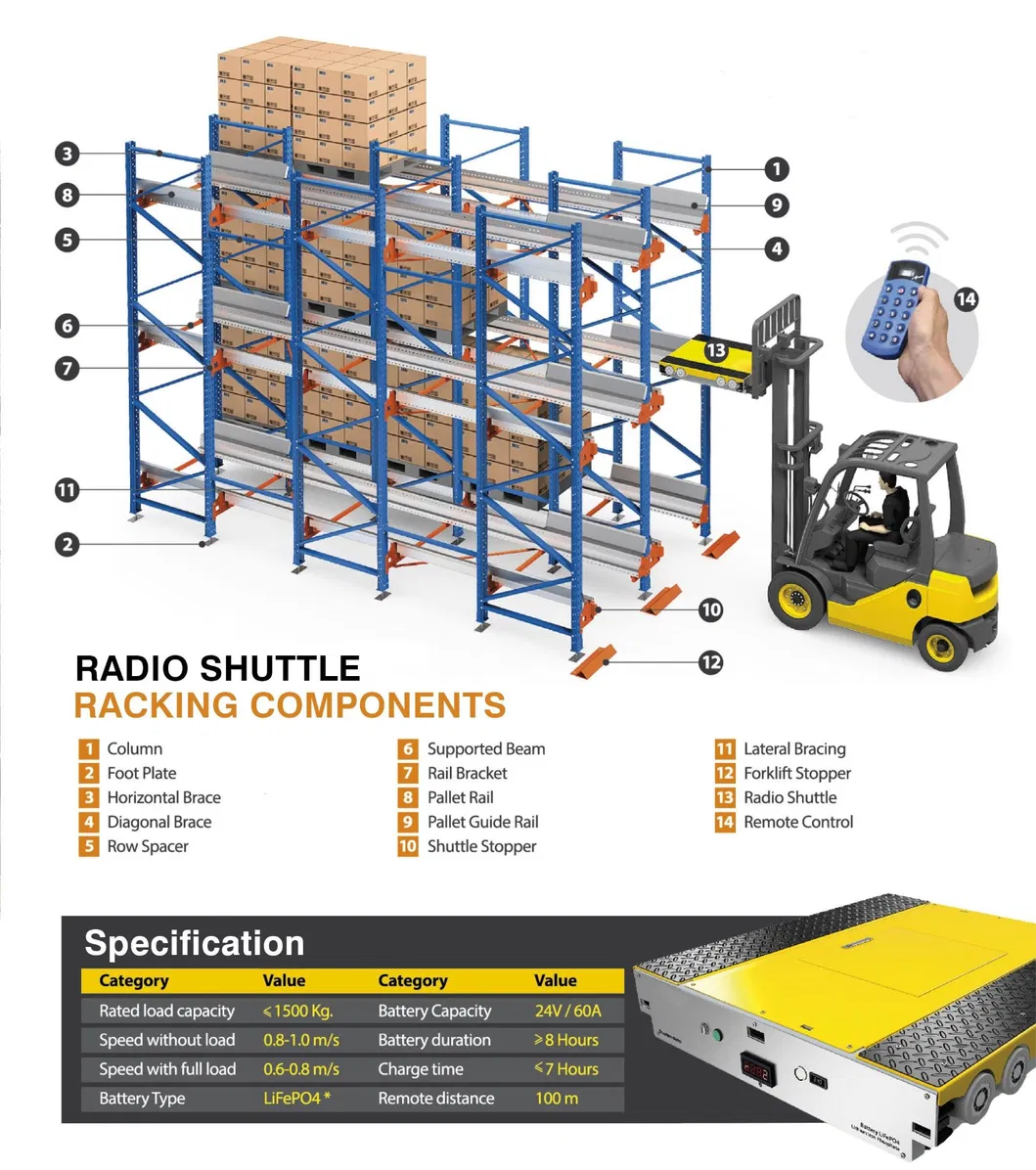

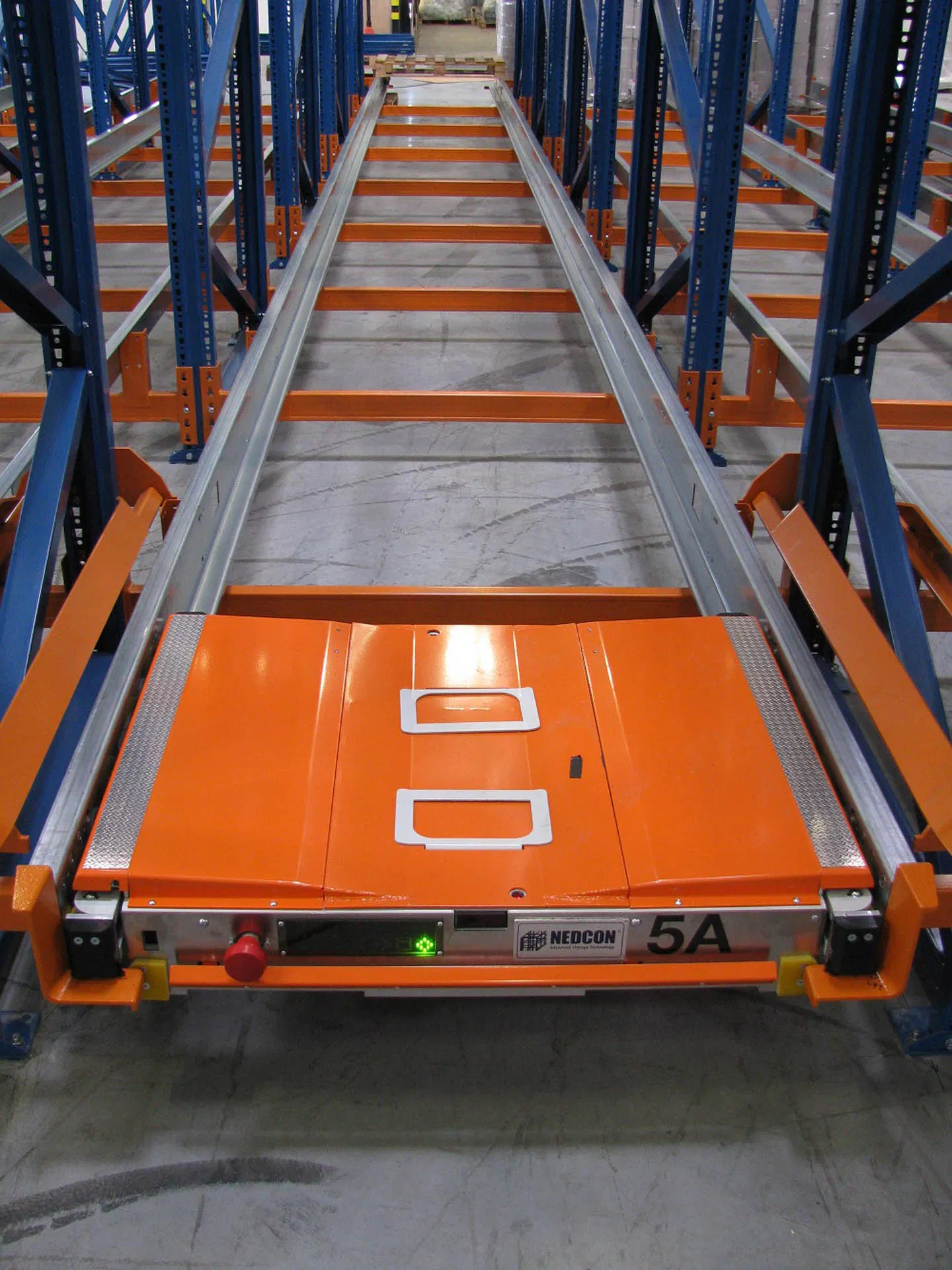

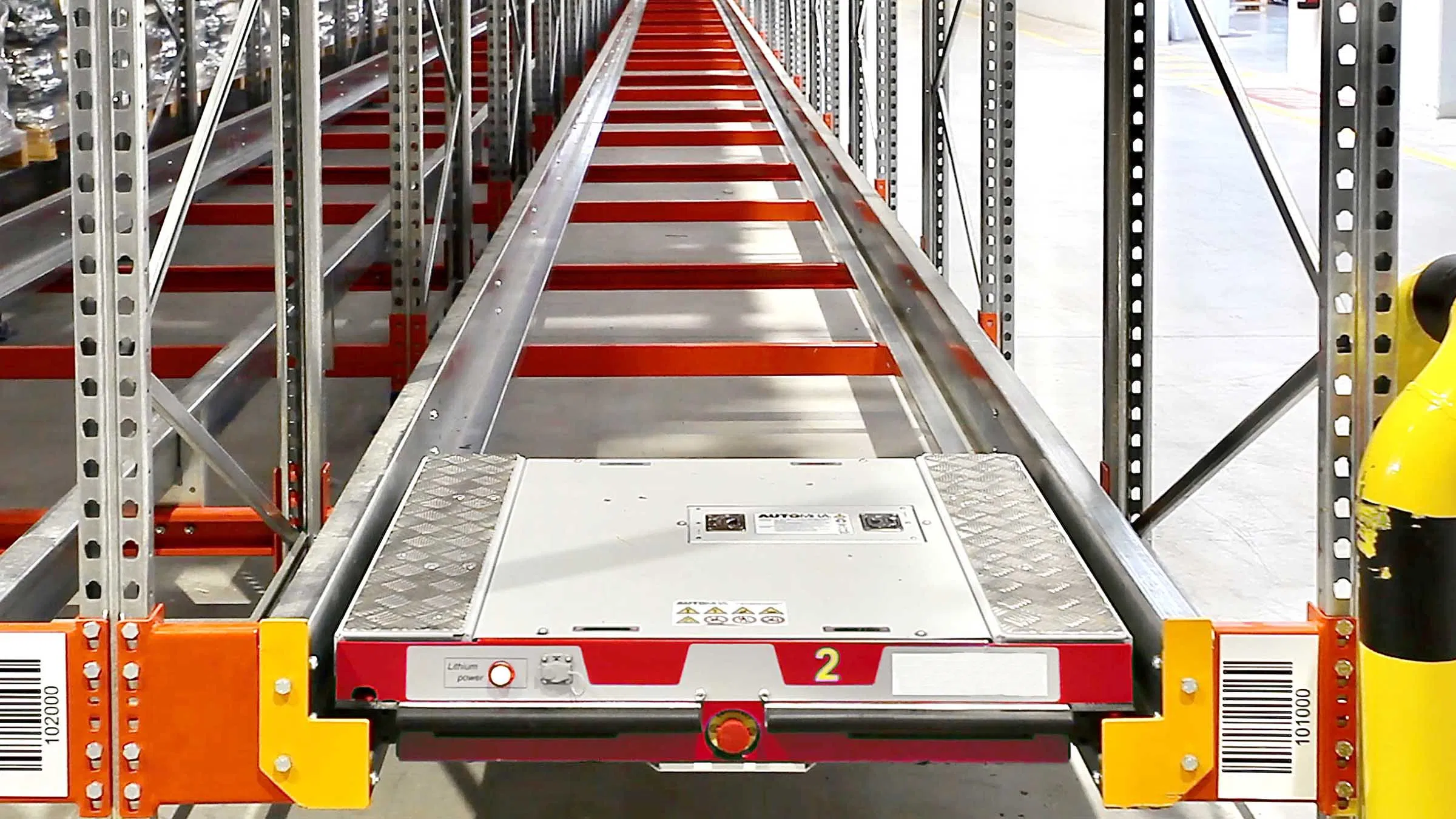

Radio shuttle racking is a semi-automated palletized products storage solution system, revolutionary within the fields of warehousing and logistics. It allows for greater efficiency and better usage of the warehouse area than ever before. It consists of pallet racking, radio shuttle, and forklift.

Loading: Forklifts load the pallet on the shuttle cart, which carries the pallet to an appointed location via remote control.
Unloading: The shuttle car carries the pallet to the exit of the racking system for forklift pickup.

Key Features

High density storage system for efficient warehouse utilization.
First-in-last-out access system (FILO).
Top and back bracing for maximum stability and safety.
Easy to install and improved space utilization.

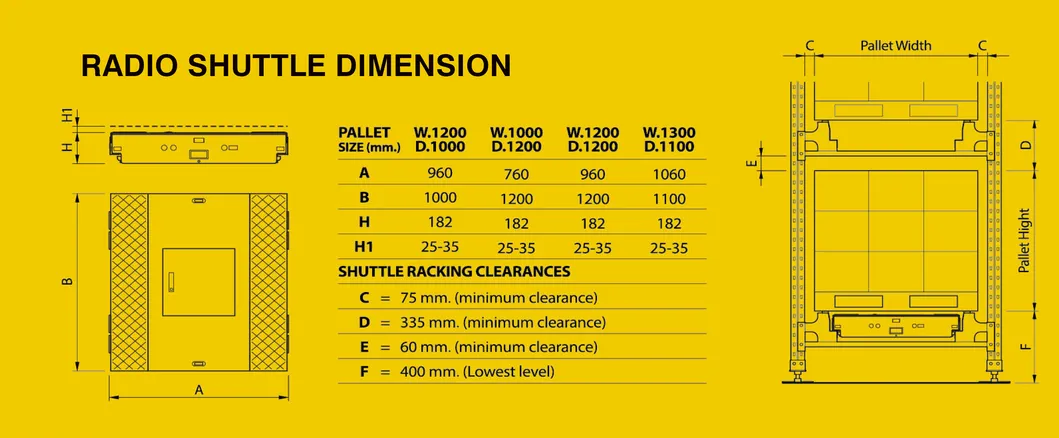

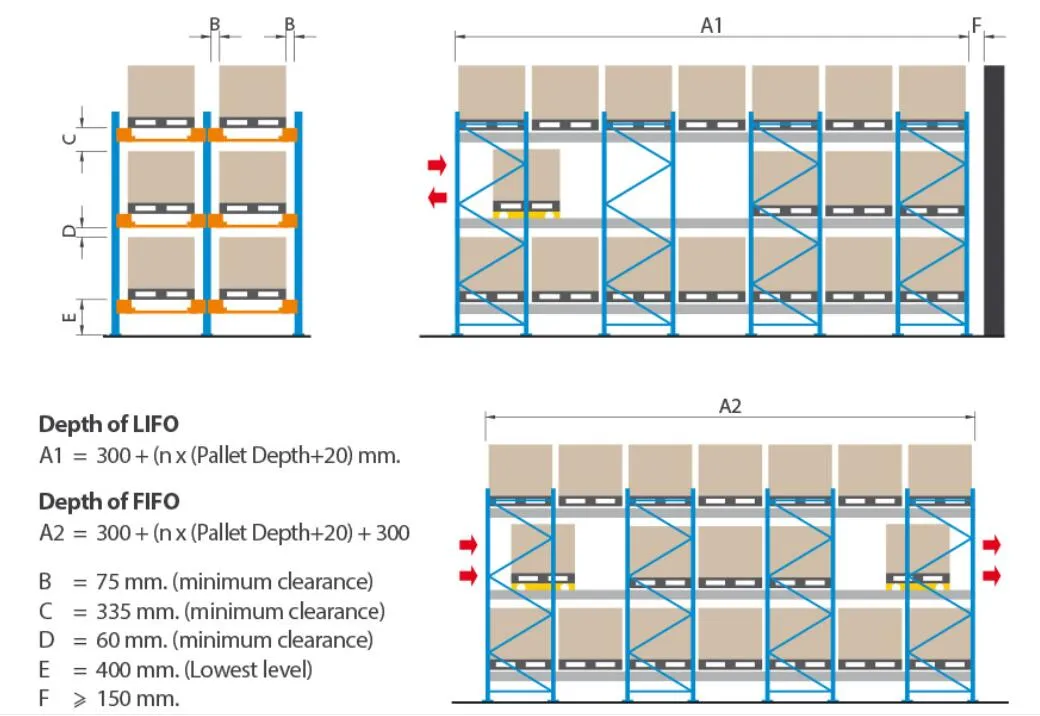

Product Parameters

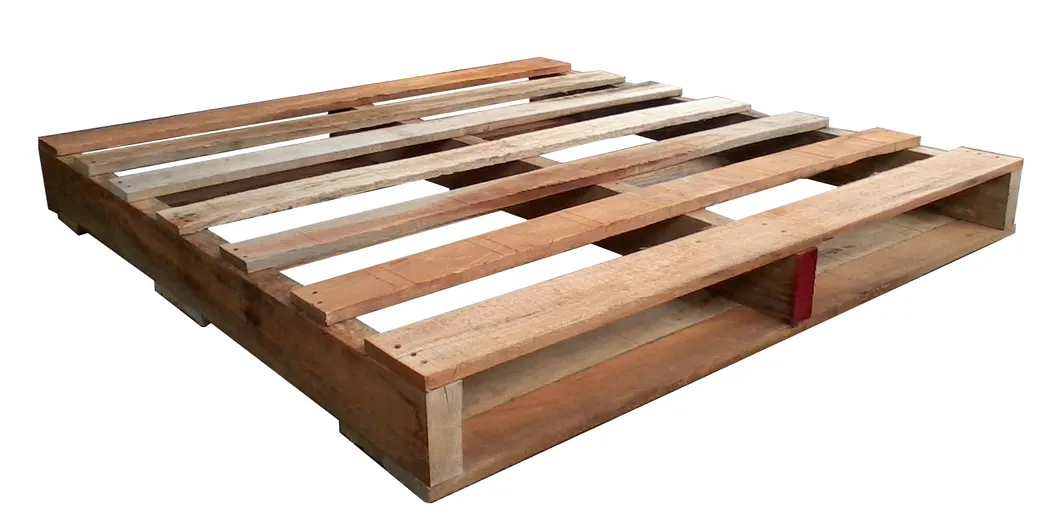

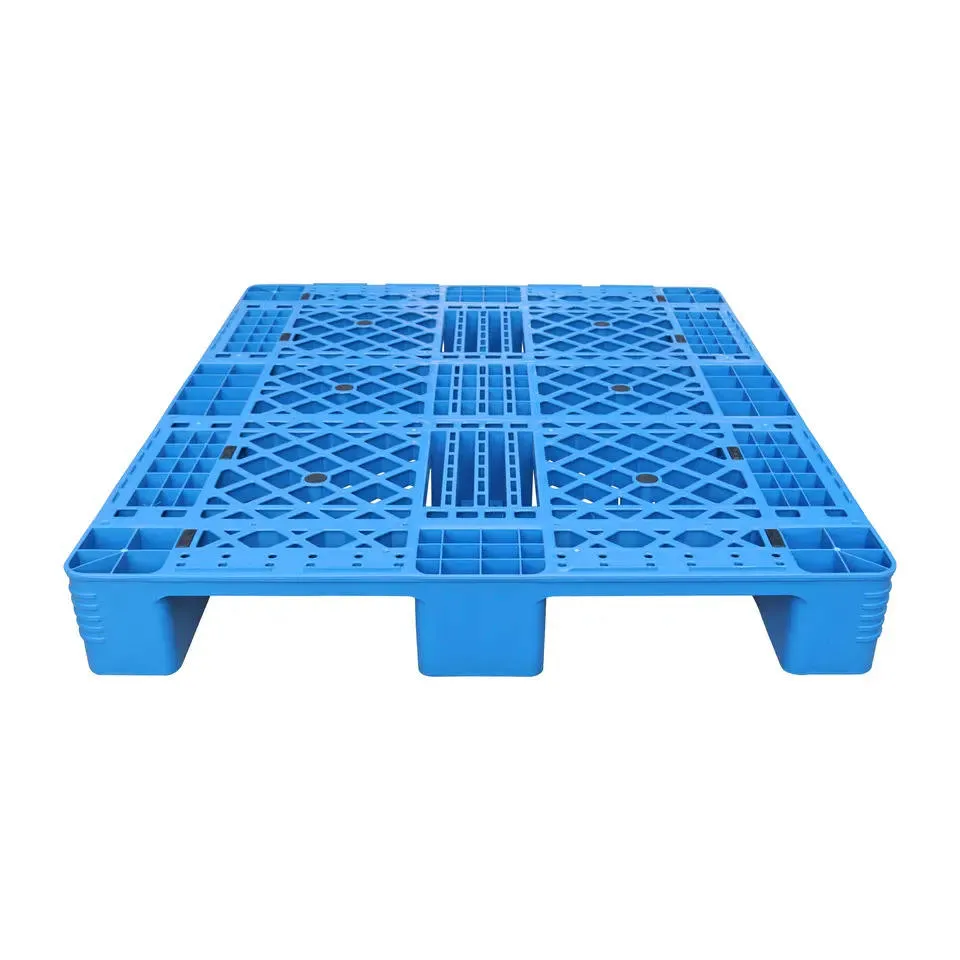

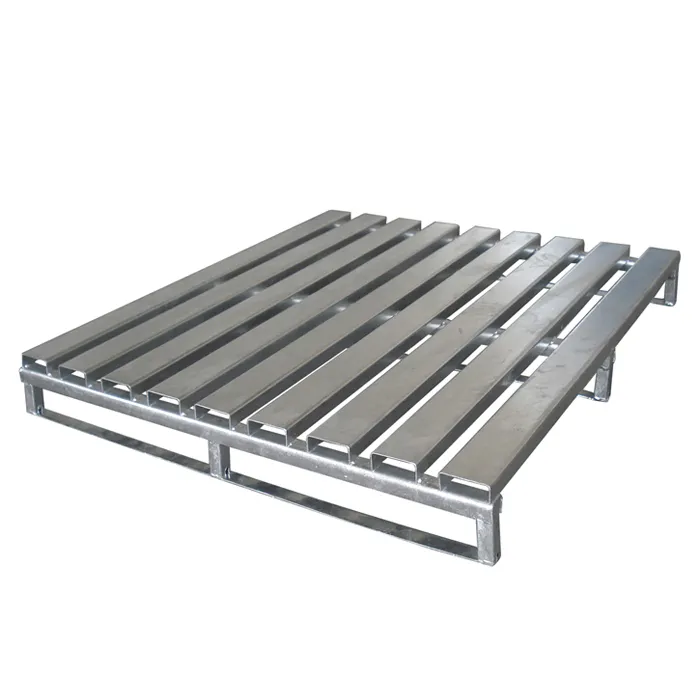

Matched Pallets for Radio Shuttles

Commonly Used Pallet Size	Pallet Material	Remarks
L1200*W1000mm	Wood, steel, plastic	Good condition
L1200*W800mm	Wood, steel, plastic	Good condition
L1100*W1100mm	Wood, steel, plastic	Good condition
L1219*W1016mm	Wood, steel, plastic	Good condition

Design Cases & Production

Our team provides free consultation for storage solutions. Experienced engineers design professional storage layouts based on warehouse dimensions, product characteristics, and picking rates to maximize space and save costs.

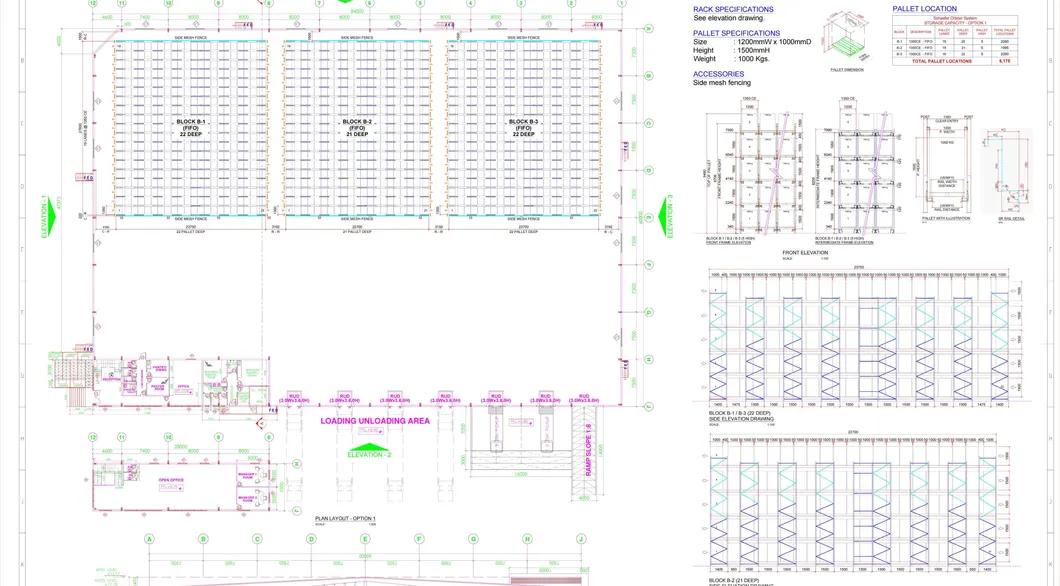

Design Case:

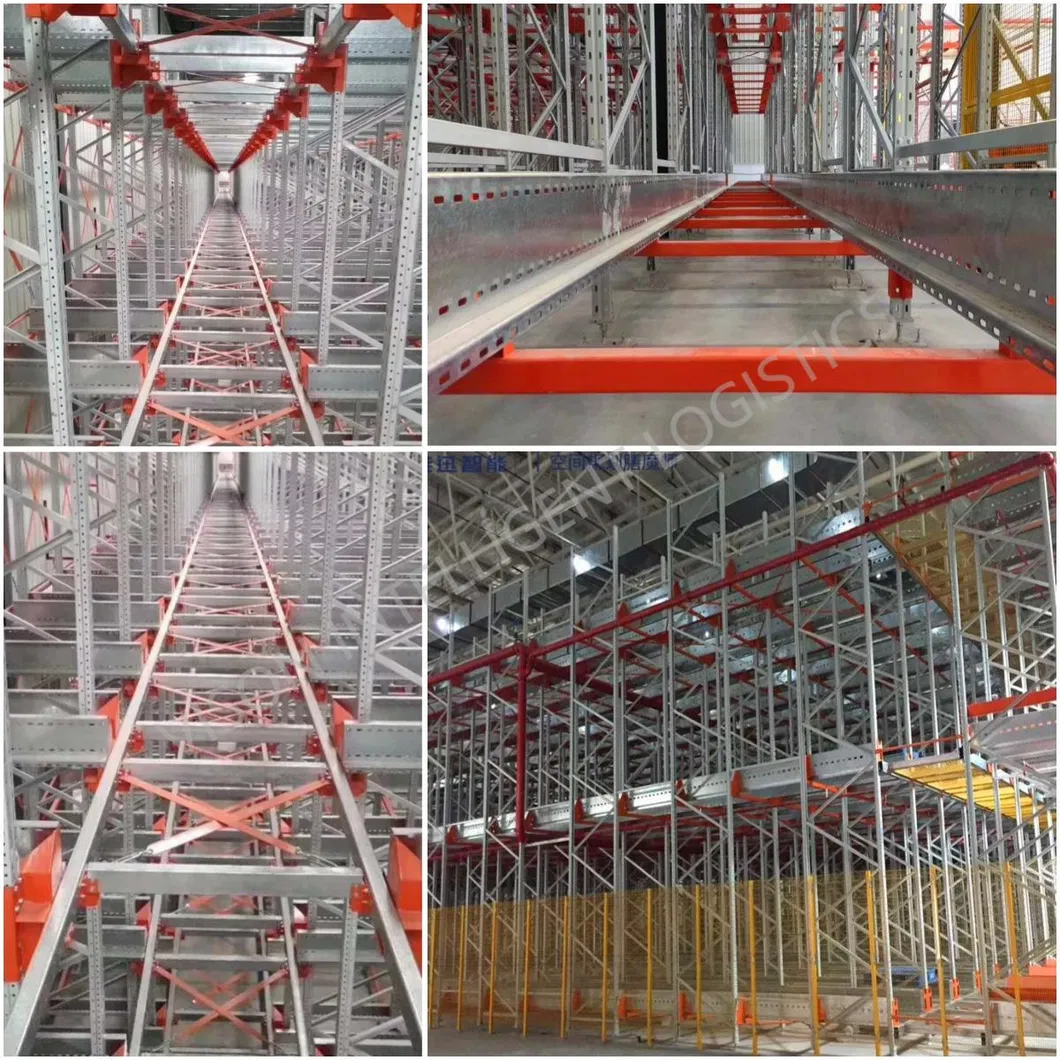

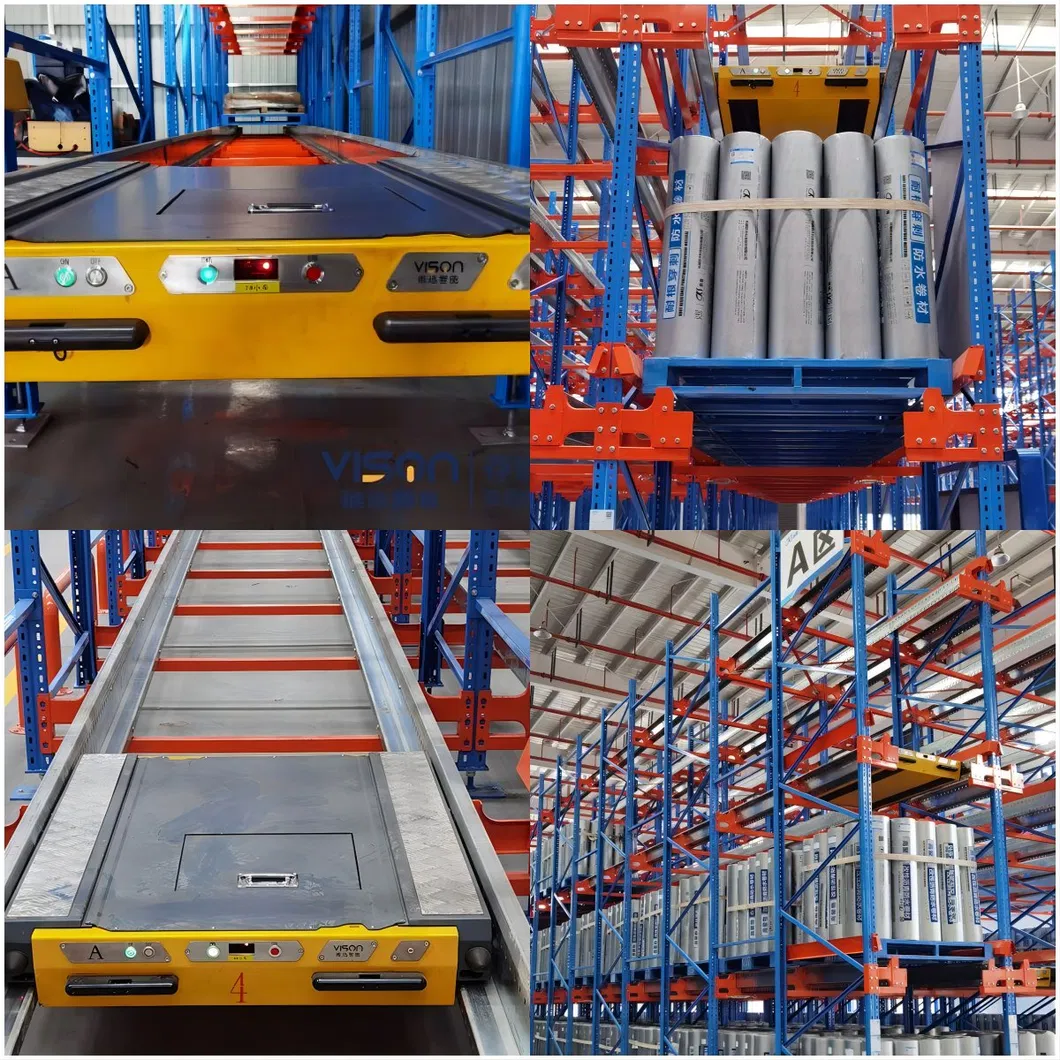

Project Show:

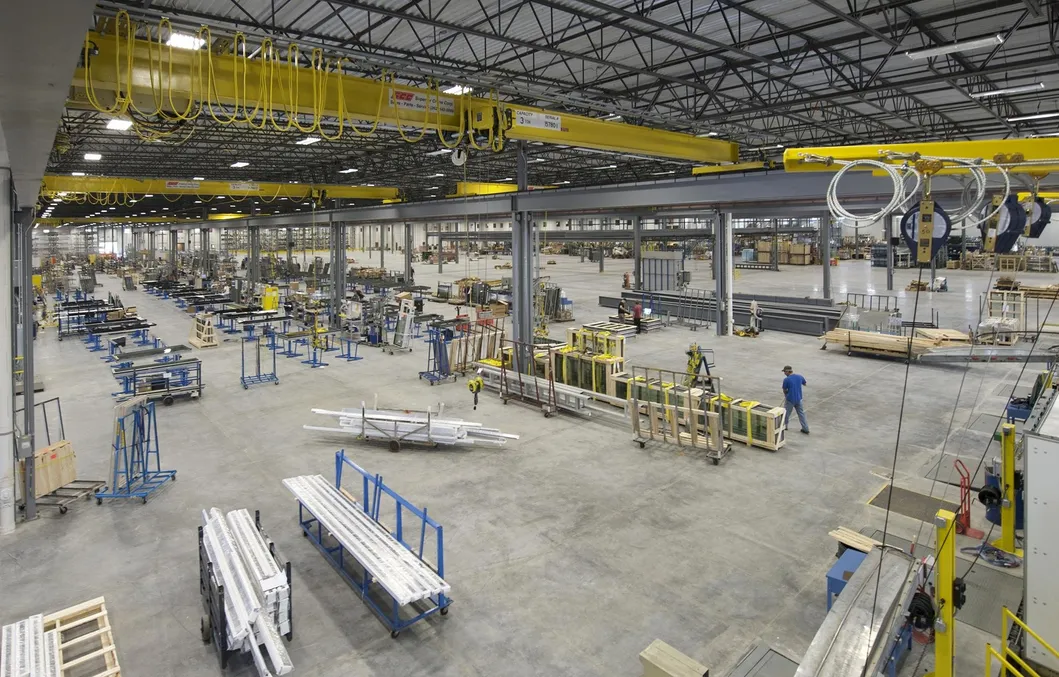

Intelligent Production Process

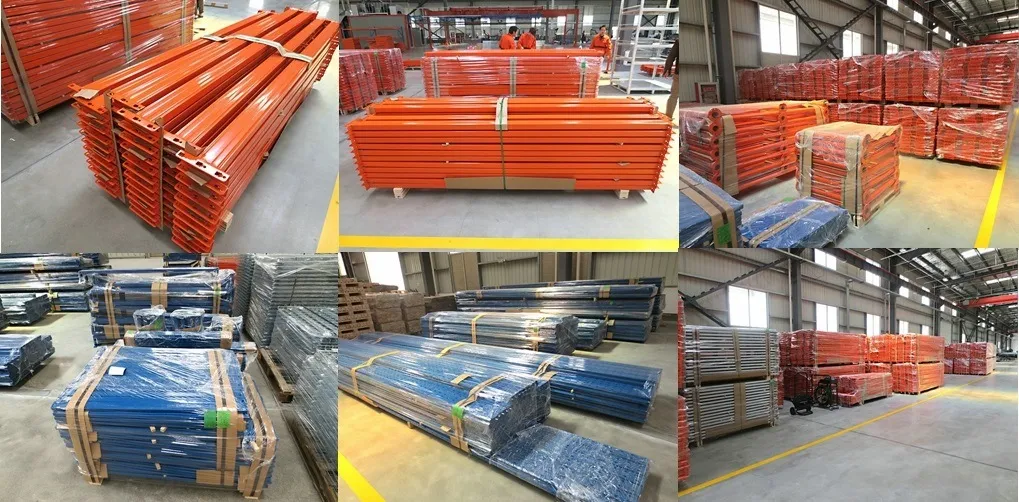

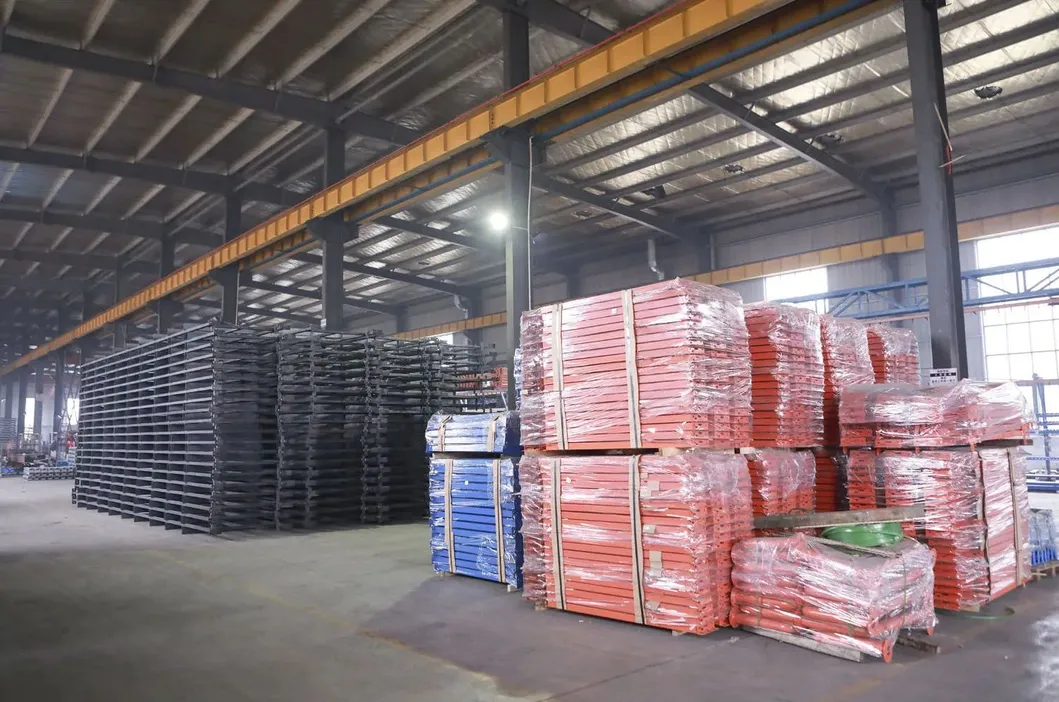

Packaging & Shipping

Why Choose Us

One-stop services from design, production, installation to application instruction.
Rich experience in international markets supporting reliable OEM and ODM services.
Large production capacity with strict quality control and competitive pricing.
Leading research and development focusing on intelligent material handling equipment.
Certifications: ISO9001:2008, CE, AS4084-2012, RMI, and FEM standards.

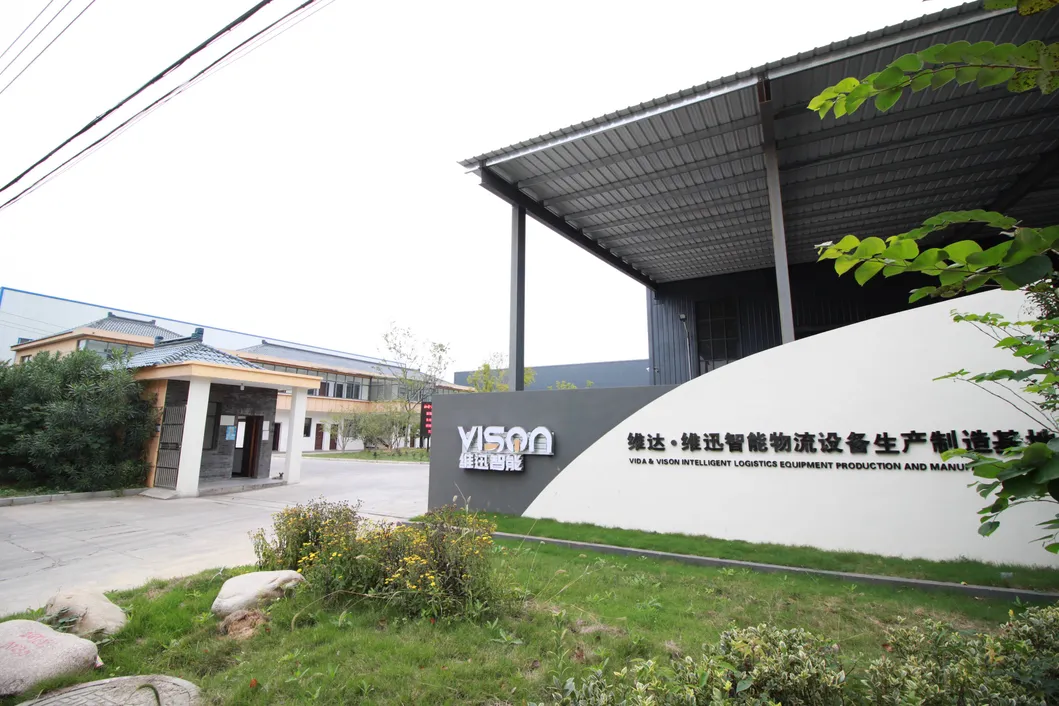

Company Profile

We are one of the earliest manufacturers and suppliers of intelligent storage shelves and equipment. Our core focus is the manufacturing of high-quality storage systems and automated equipment. Our products are exported globally, including to Europe, America, Southeast Asia, and South Korea. With independent research and development at our core, we guarantee innovative and reliable solutions for our customers.

Frequently Asked Questions

Q: What are your trading and payment terms? A: We typically require a 30% deposit via T/T after order confirmation, with the 70% balance paid against the bill of lading. L/C and O/A options are also available.

Q: How do you handle delivery of goods? A: Goods are primarily shipped via sea freight. We can deliver to major ports like Shanghai or Nanjing, or work with your designated shipping agent.

Q: What services do you provide? A: We offer 12-hour inquiry response times, professional English-speaking support, OEM/ODM services, and free custom designs from experienced engineers.

Q: What is the purchase process? A: The process follows: Design drawing → Confirm drawing → Quotation → PI → Confirm PI → 30% Deposit → Manufacture → QC Inspect → Pay Balance → Shipping.

Q: What are your packaging standards? A: We use corrugated paper, carton boxes, pallets, angle steel, plastic film, and airbags. Customized packaging is available upon request.

Q: Do you have a Minimum Order Quantity (MOQ)? A: No strict MOQ, but we recommend ordering enough to fit at least one 20ft container (approx. 15 tons) to optimize pricing and shipping costs.
