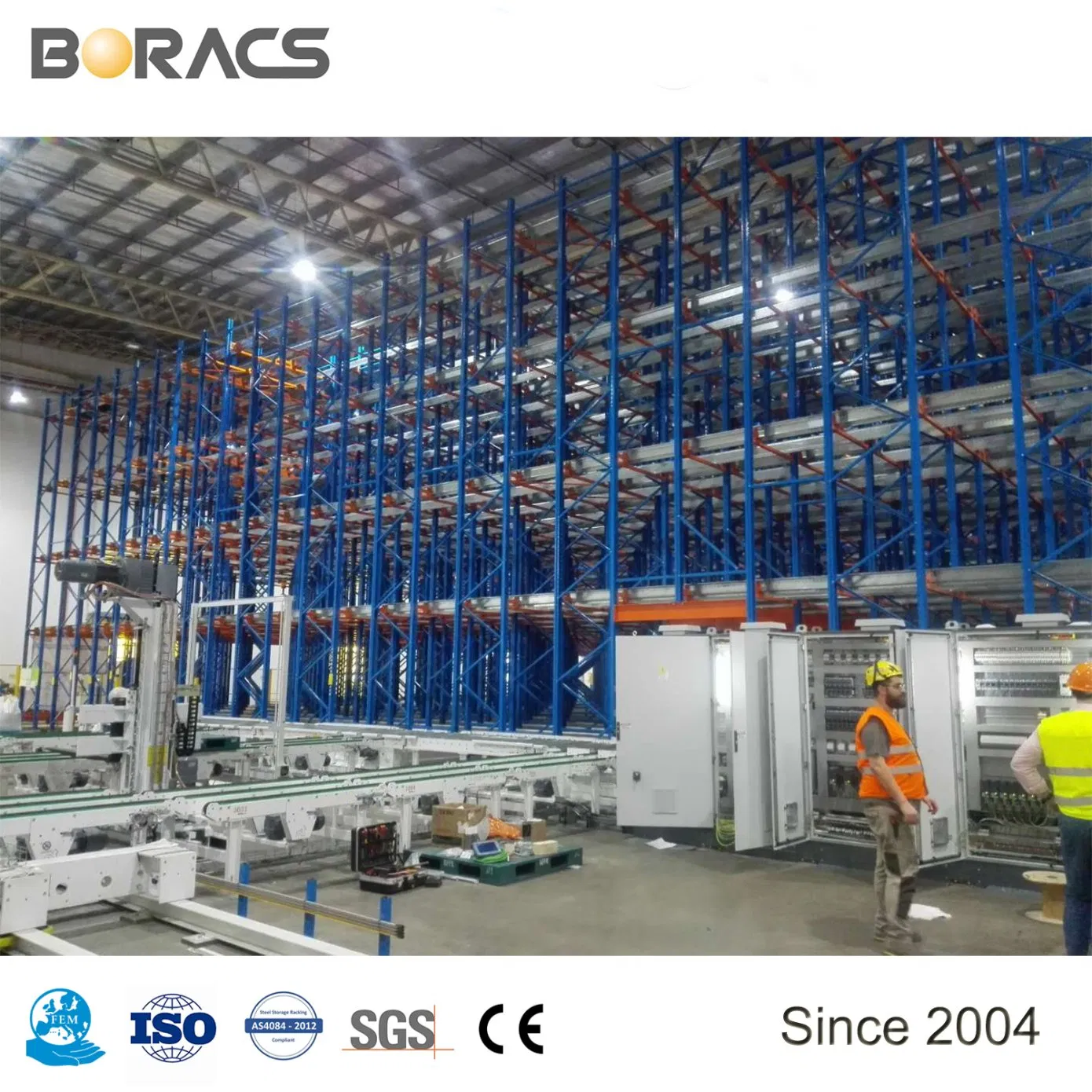

Automated Storage and Retrieval System (AS/RS) Warehouse Rack
Intelligent Storage AS/RS Shelving Automatic Racking Pallet Systems refers to a computerized robotic system that automates operations such as unloading, sorting, put-away, storage, order-picking, staging and loading. Systems typically consist of 4 main components: the storage rack, the input/output system, the storage and retrieval (S/R) equipment, and the computer management system.
Heavy-duty rackings are placed on both sides with a small aisle space. Rail-mounted stacker cranes travel along the aisle, carrying out placement and retrieval of goods, making full use of storage space and achieving automation.
| Product Name | AS/RS Racking System Details |
|---|---|
| Basic Components | Racking system, stacker system, conveyor system, management and controlling system |
| Size | Customized size (Height up to 45m) |
| Material | Steel, cold-rolled steel |
| Color | RAL system (blue, grey, orange or customized) |
| Surface Treatment | Powder coating |
| Usage | Warehouse rack, Industrial Storage |

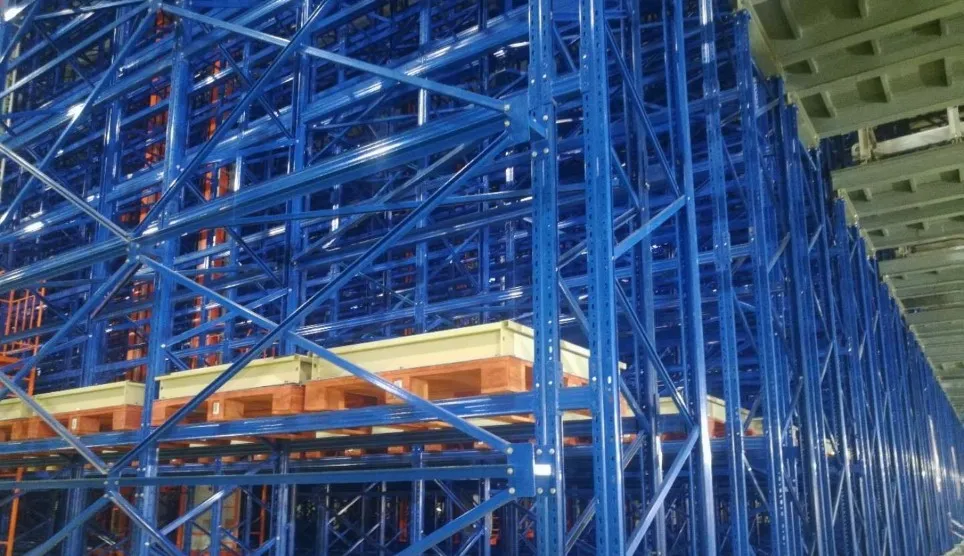

1. Racking Structure: AS/RS Systems are usually equipped with pallet racking and drive-in racking. Steel and wooden panels are available. Used widely in food, tobacco, electronic, and mechanical industries.

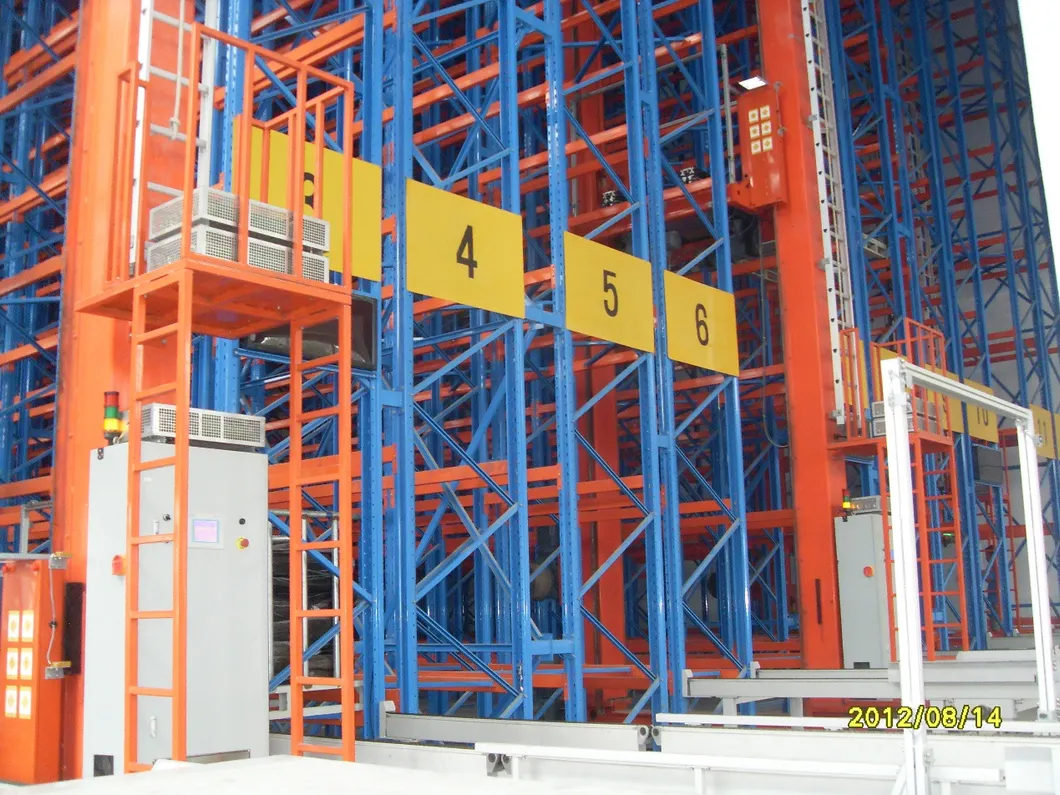

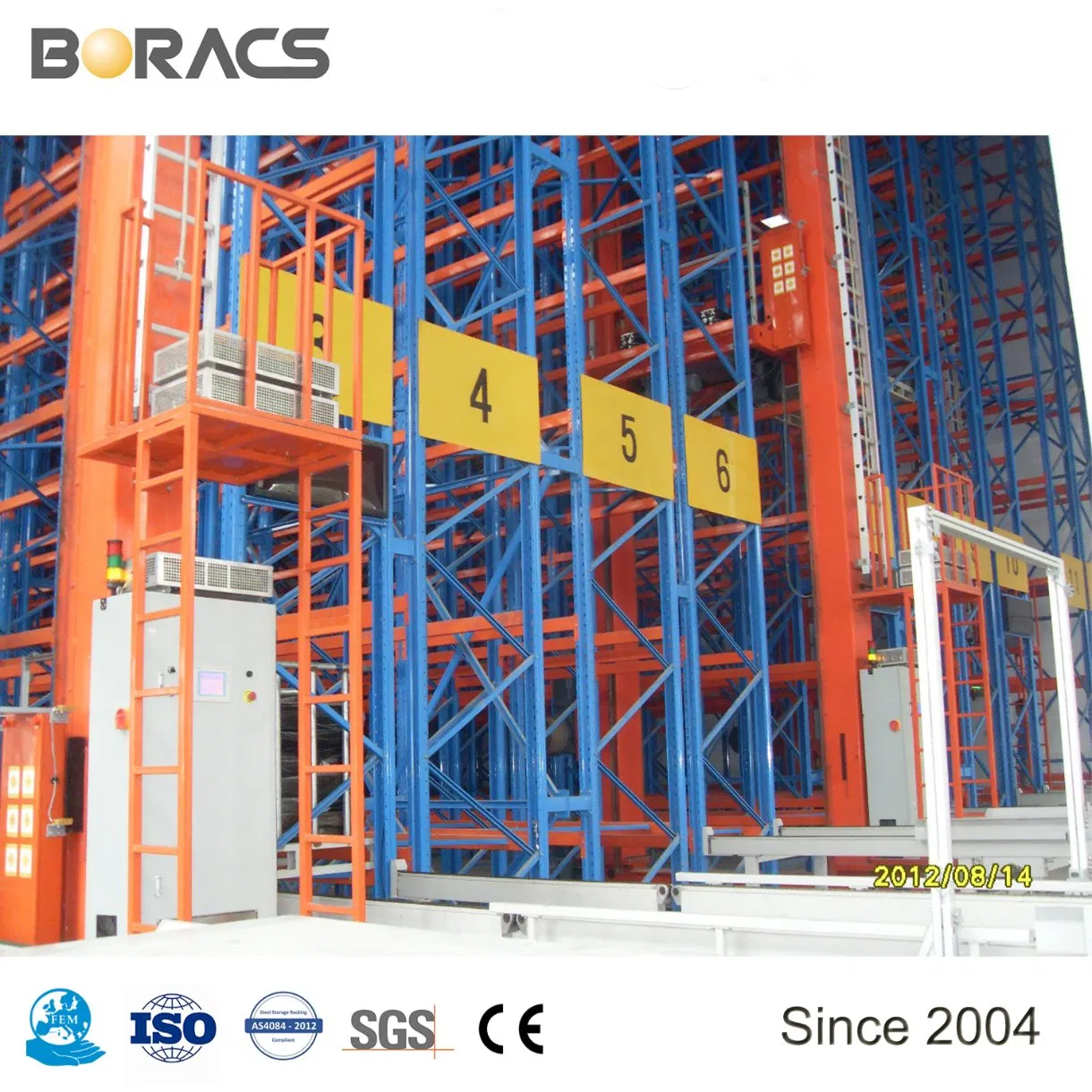

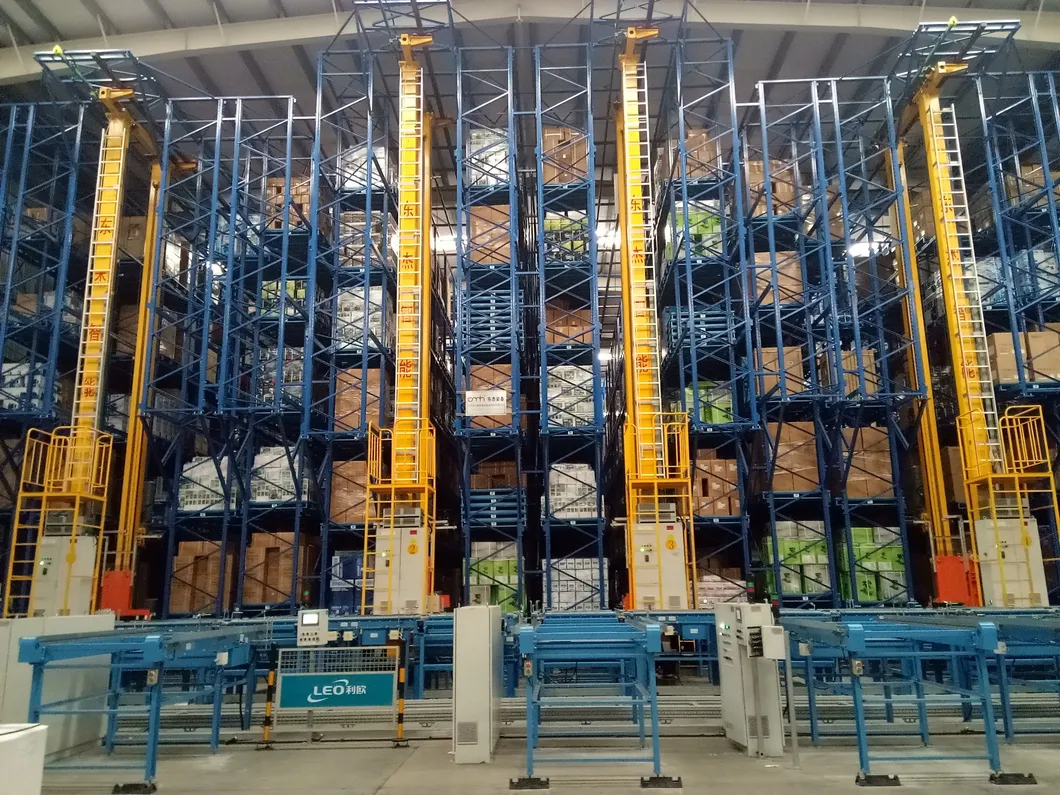

2. Stacker: Double upright structure, steady and reliable. Features vector frequency conversion drive and encoder position control for precision. Equipped with mechanical and electronic safety devices.

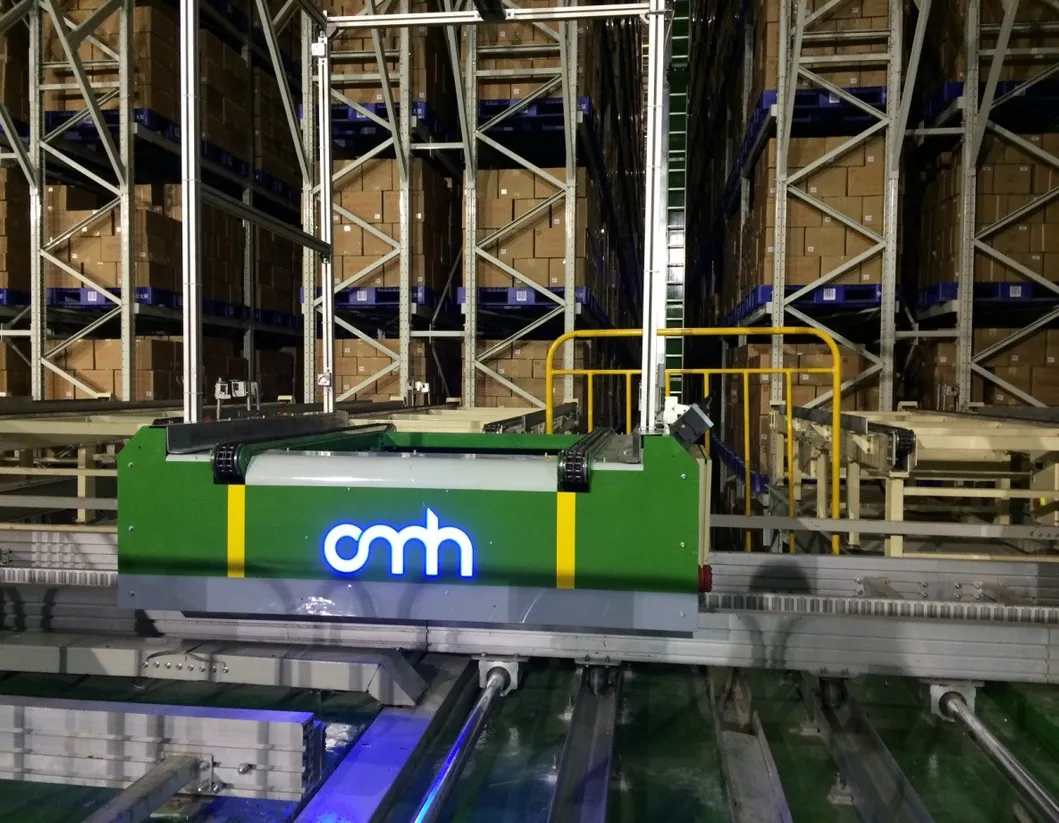

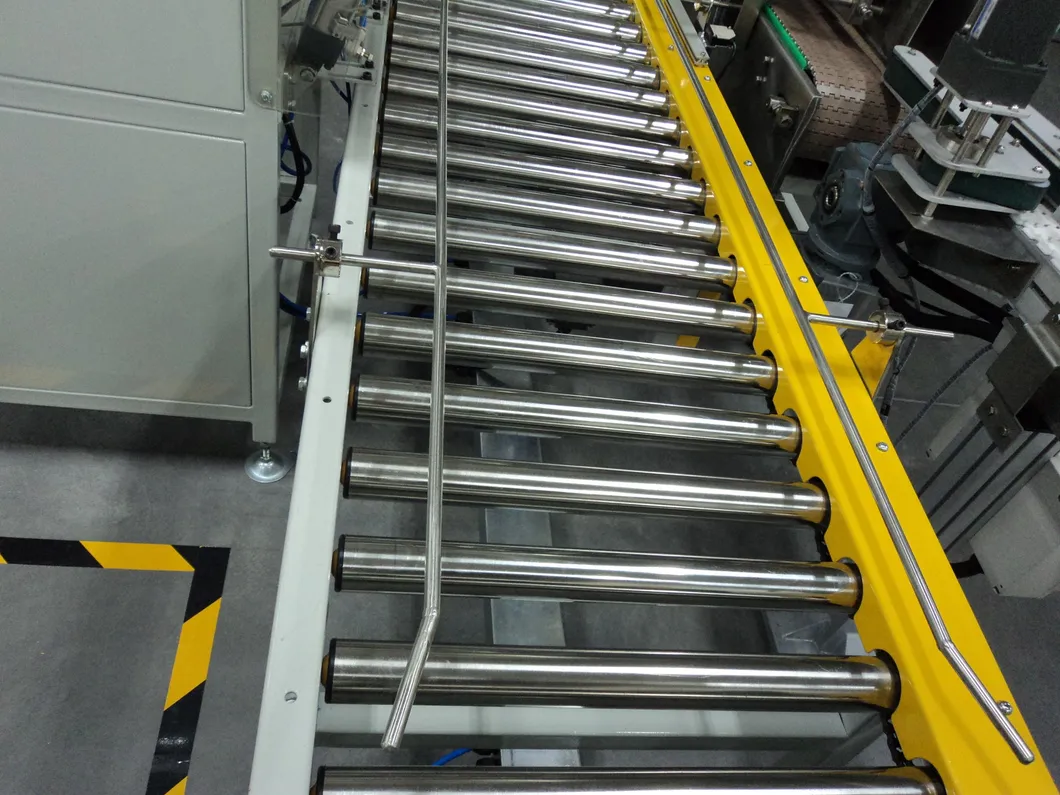

3. Conveyor System: Bridging the gap between forklifts and stackers using rolling or chain conveyors, rotating devices, and lifts.

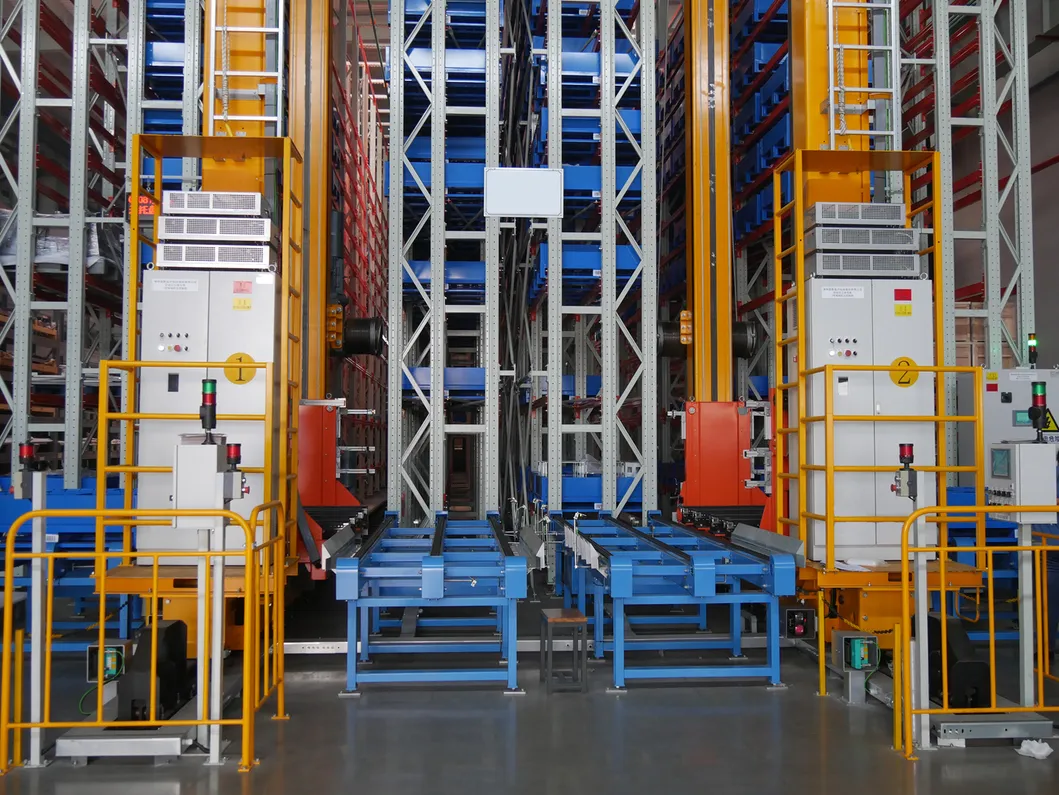

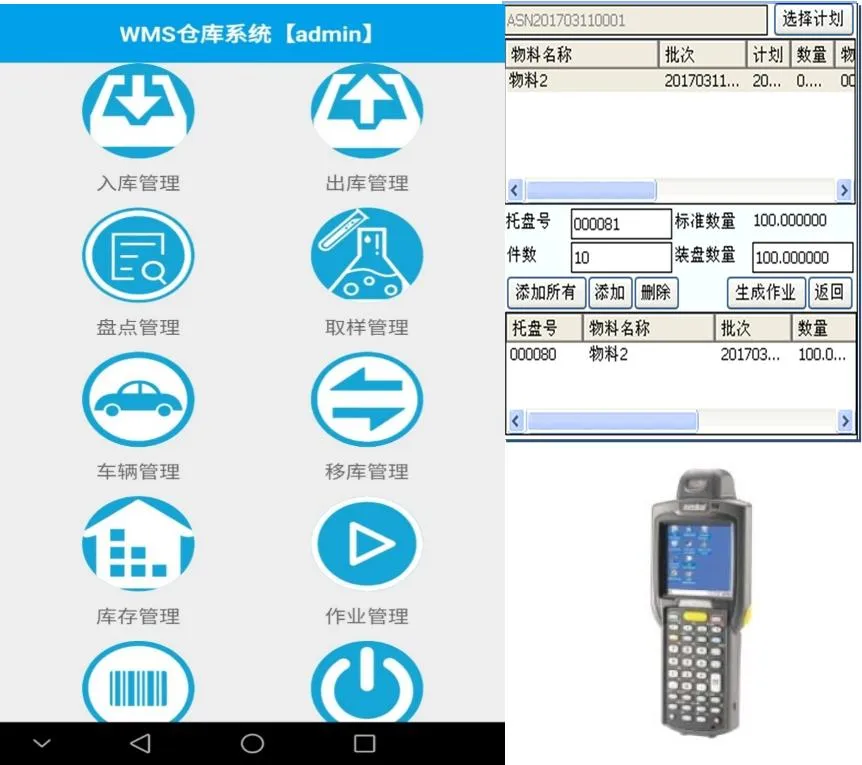

4. WMS & Control System: Communicates through OPC agreement. Star network structure with RF servers and management terminals for total warehouse monitoring.
| Lifting Speed | 0-60m/min by frequency control |
| Positioning Method | Laser ranging + rotary encoder, photoelectric address |
| Horizontal Running Speed | 0-240m/min by frequency control |
| Total Height | Can reach up to 45 meters |
Our facility specializes in the international export market, providing racking solutions to over 30 countries. We conduct regular Tensile and Yield Strength tests to ensure that only the best qualified materials are used. Our selective and cantilever racks are subjected to rigorous tests in compliance with European FEM and Australian Standards.
Payment terms generally involve a 30% deposit via T/T after order confirmation, with the remaining 70% balance paid against the bill of lading or via L/C. Standard lead time is approximately 30 days after the deposit is received.
Yes, we offer full OEM and ODM services. Our professional engineers can help design customized racks and automated solutions tailored to your specific storage requirements and warehouse dimensions.
Stacker cranes are equipped with both mechanical and electronic safety devices. They use vector frequency conversion drives and encoder position control to ensure steady, reliable, and safe operation within the aisles.
The system utilizes laser ranging combined with rotary encoders and photoelectric addressing to achieve high-precision positioning for the horizontal and vertical movement of goods.
The total height of our AS/RS systems can reach up to 45 meters, with a bay capacity ranging between 10,000kg to 40,000kg, depending on the specific design and materials used (Q235/Q355 steel).
We provide a two-year warranty during which broken parts will be replaced. All materials undergo tensile and yield strength tests to meet international standards such as FEM and Australian standards.
