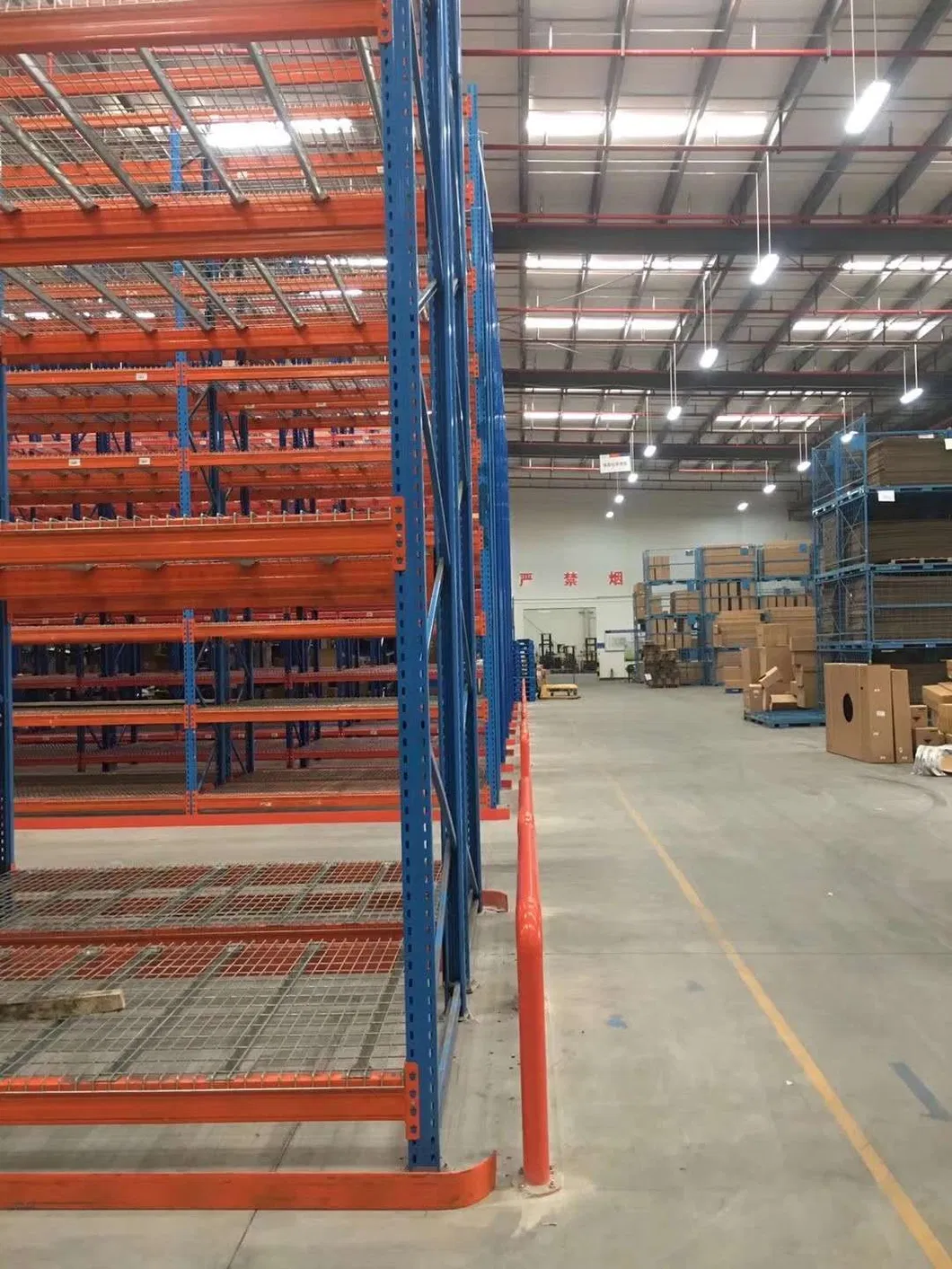

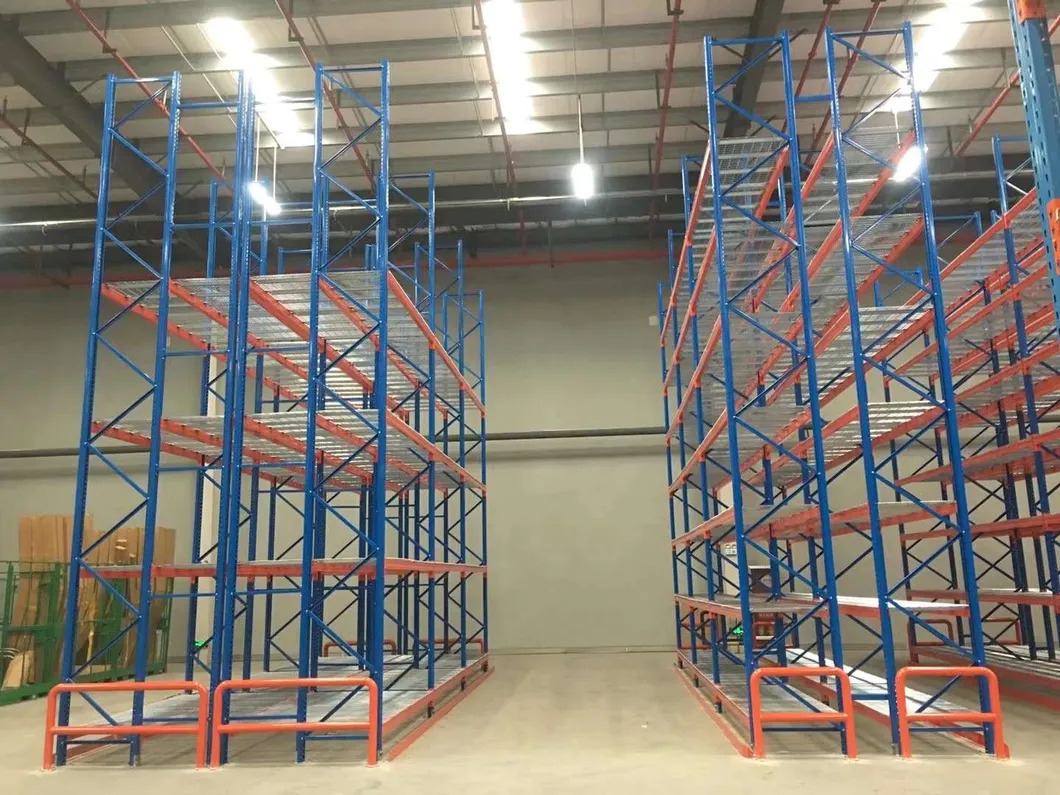

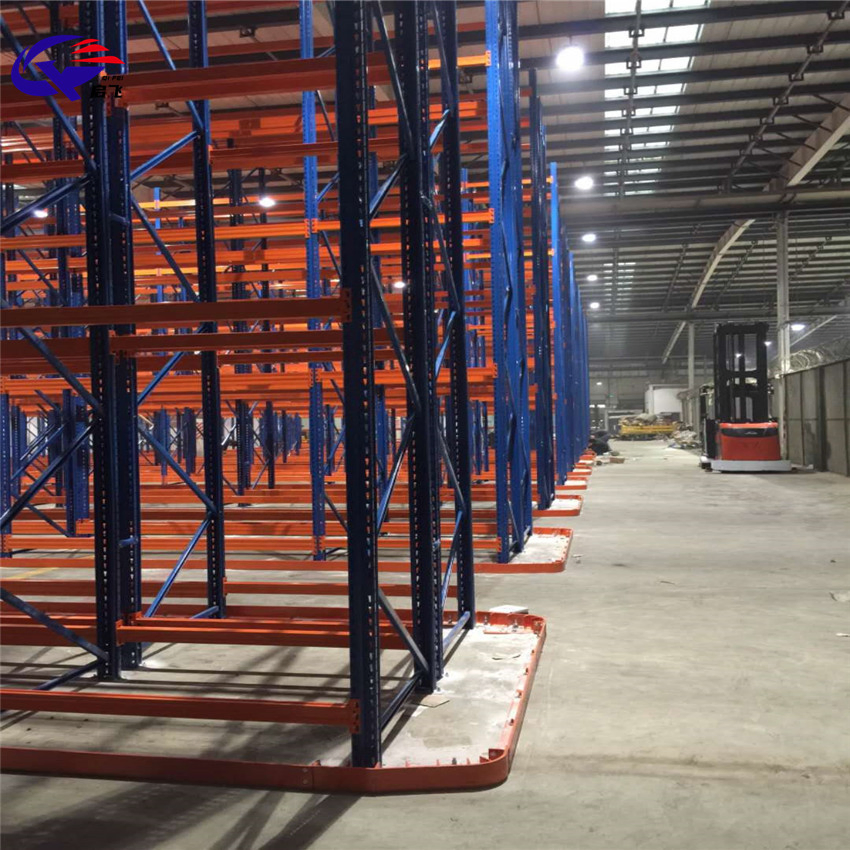

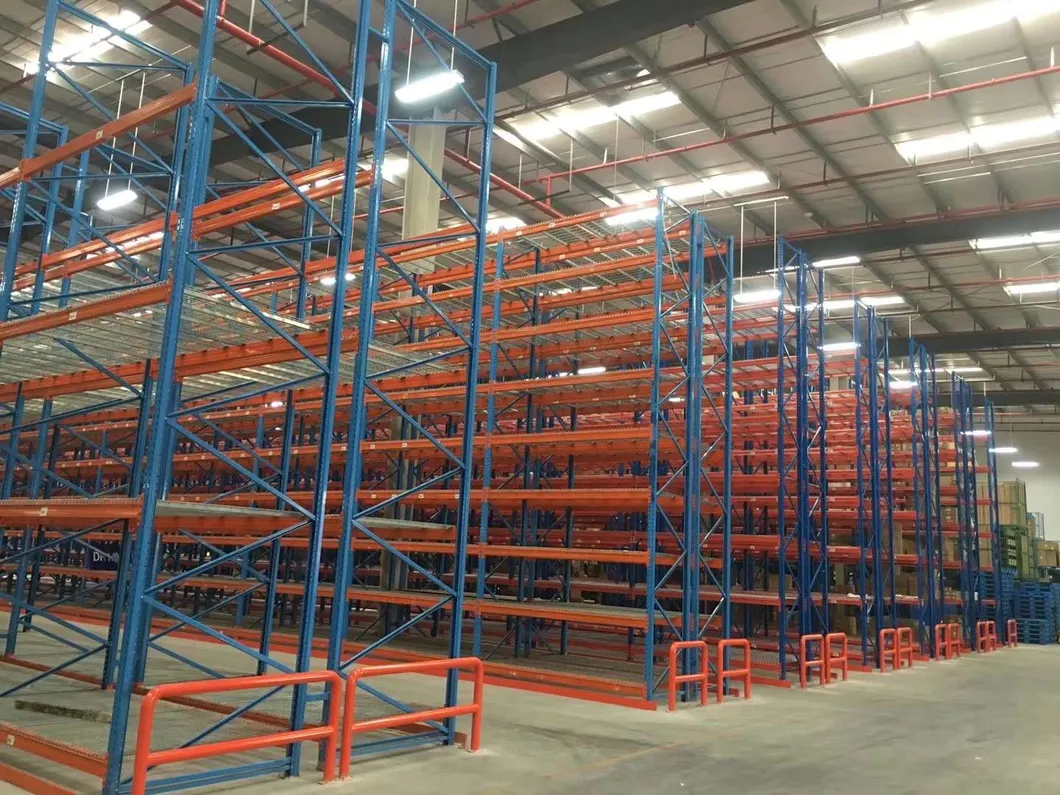

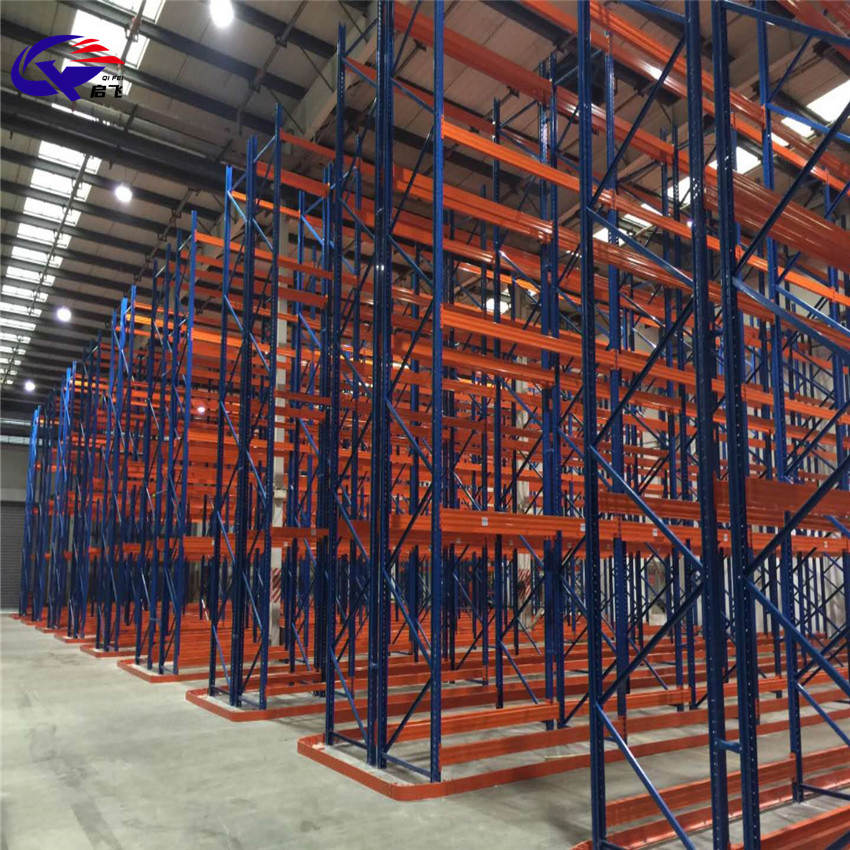

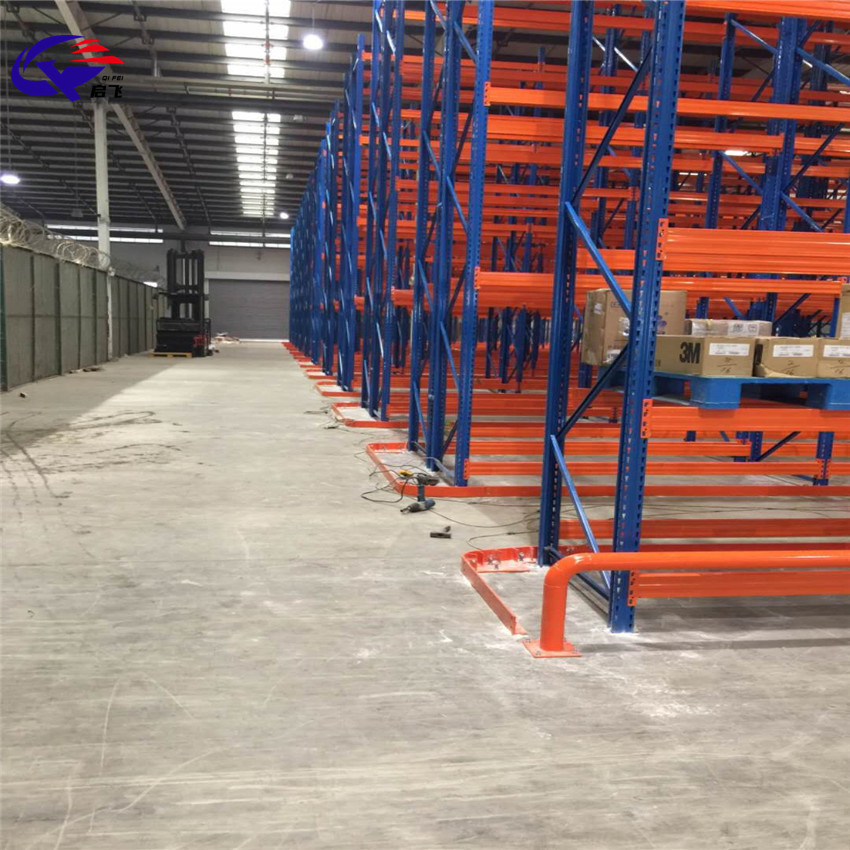

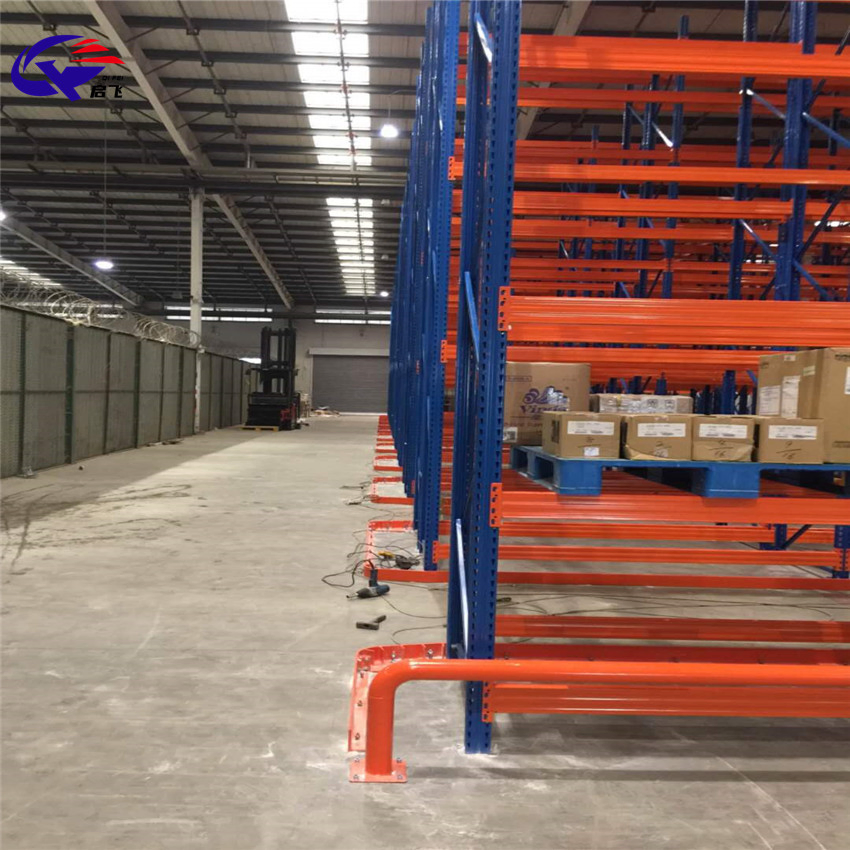

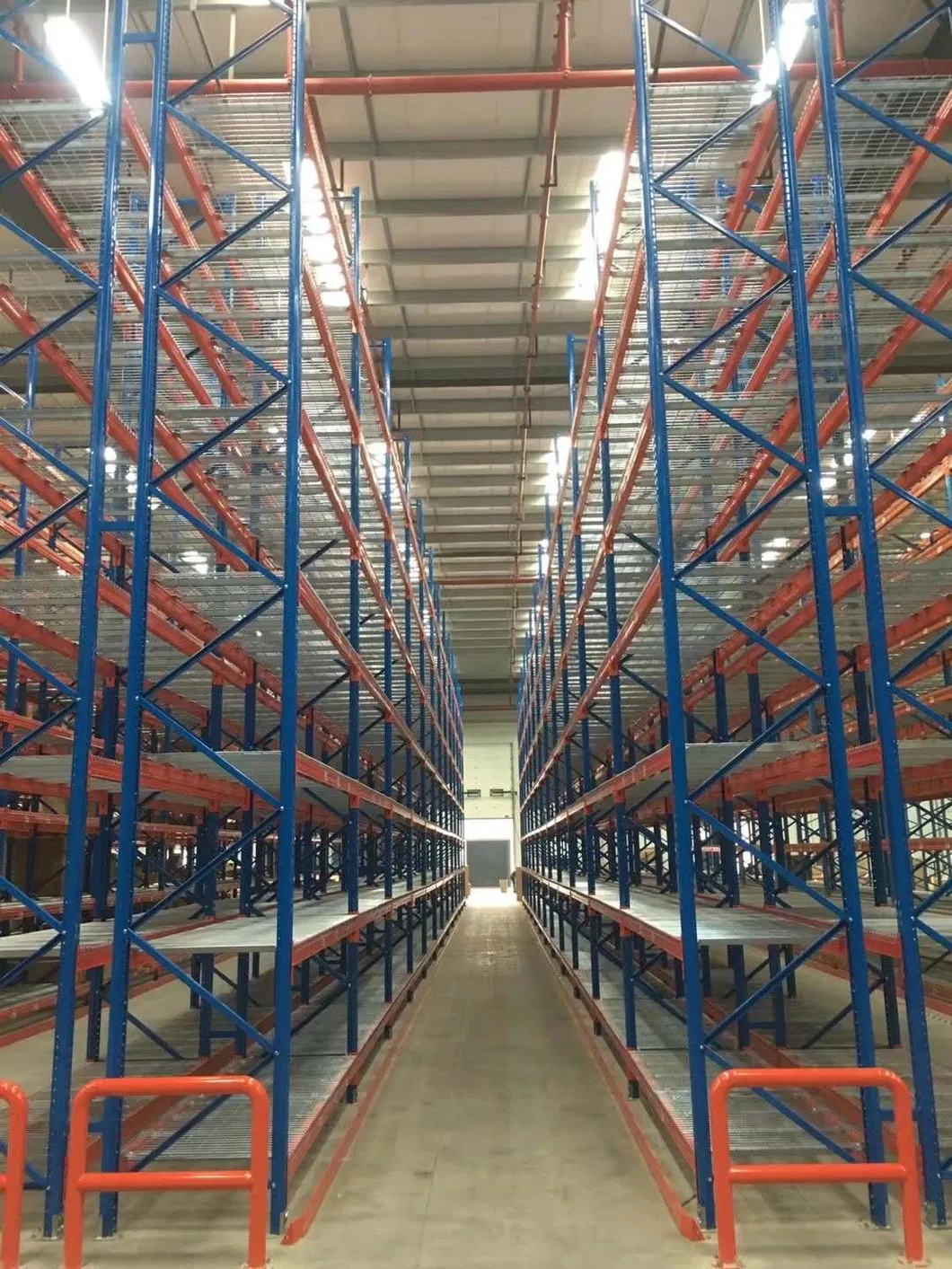

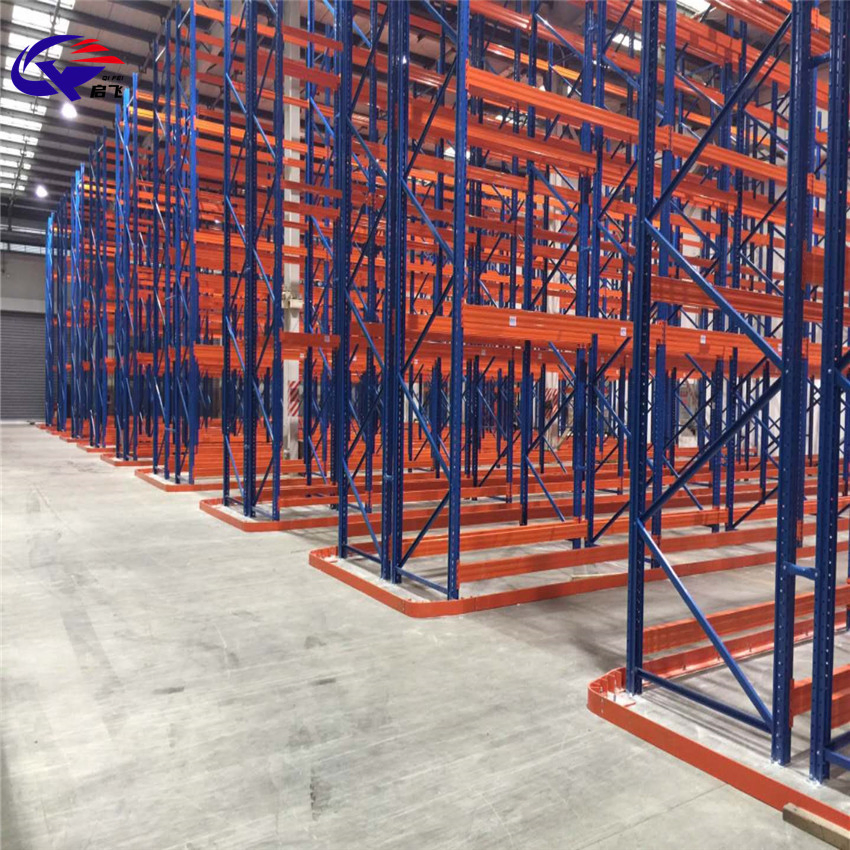

Very Narrow Aisle (VNA) Rack System:
The Very Narrow Aisle pallet rack is designed for use with specialized three-way forklifts. By occupying smaller aisles, it significantly saves warehouse space and allows for rapid product storage and retrieval, effectively cutting operating costs. This system is particularly suitable for logistics centers with heights up to 15 meters.
Compared to conventional pallet racks, VNA aisles are much narrower (typically 1600-2000 mm), increasing space utilization by approximately 20%. Guide rails are installed on both sides of the aisle to ensure safe and precise forklift operation.
Key Advantages:
| Feature | Details |
|---|---|
| Style | Warehouse Storage Pallet Rack |
| Selection | Single Row, Back-to-back Rows, Multiple Rows |
| Standard Pallet Sizes | 1200*800, 1200*1000, 1100*1100, 1066*1220 mm |

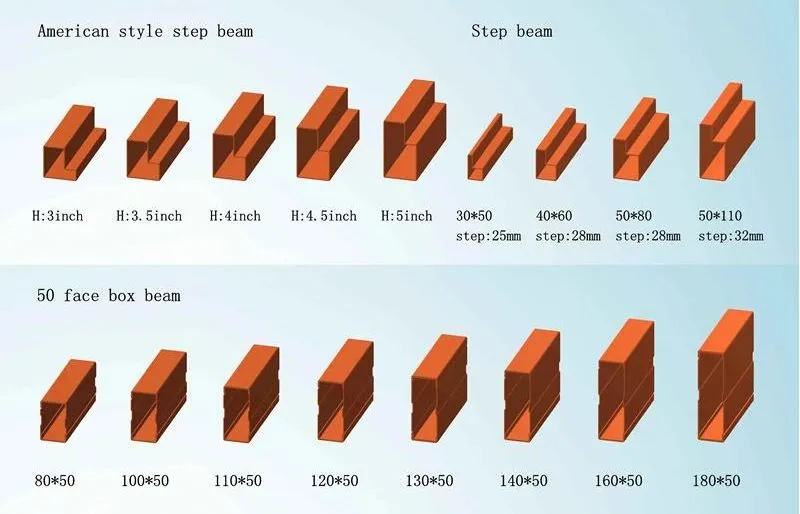

| Beam Specs | Height: 80~160mm; Width: 45/50mm; Thickness: 1.5~2.5mm |

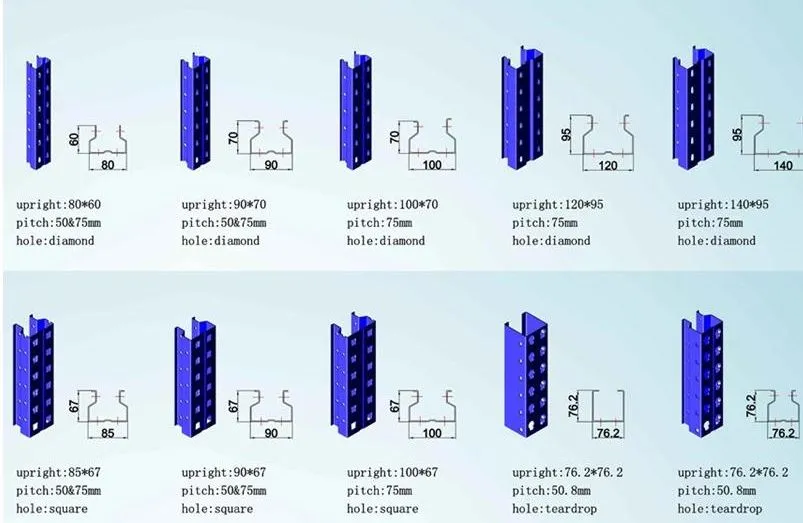

| Upright Specs | 80*60 to 120*87mm; Thickness: 1.5~3.0mm |
| Bearing Capacity | Max 5000KG per level; Max 1500KG per pallet |
