| Model NO. | VNA | Usage | Warehouse Rack, Industrial, Supermarket, Logistics |
| Material | Steel Q235B | Structure | Rack |
| Type | Pallet Racking | Mobility | Fixed |
| Height | 5-15m | Weight Capacity | 1000-4500kg |
| Surface Treatment | Galvanized / Powder Coating | Lead Time | 20-25 Days |

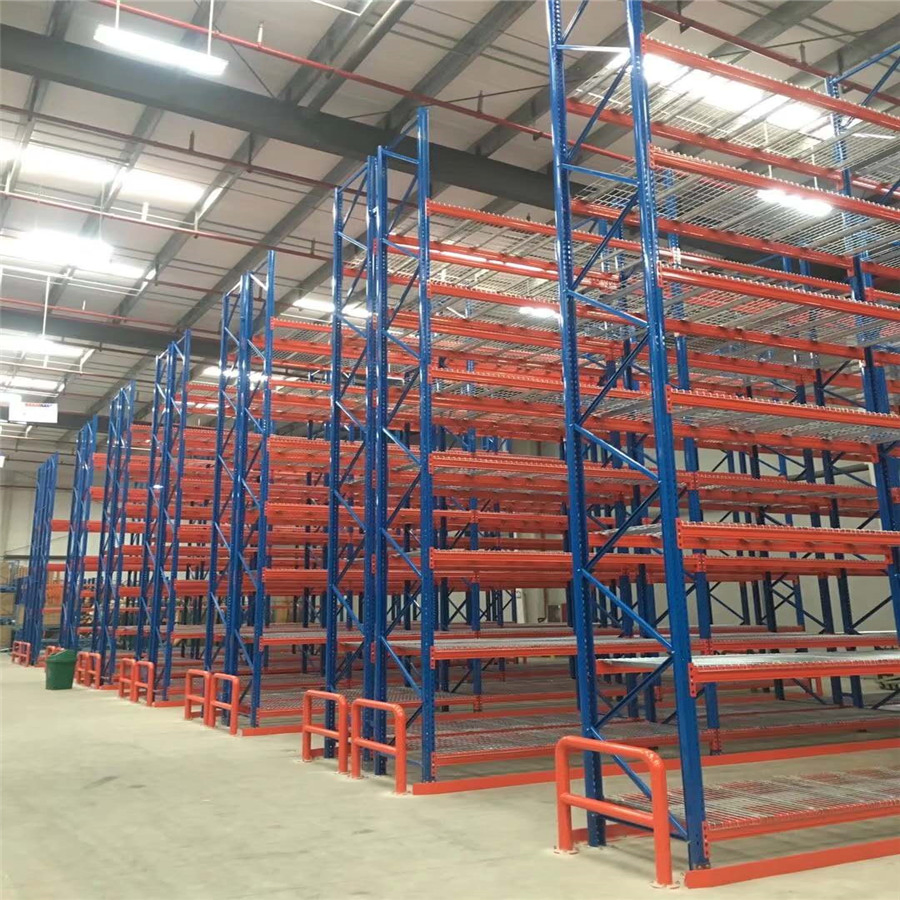

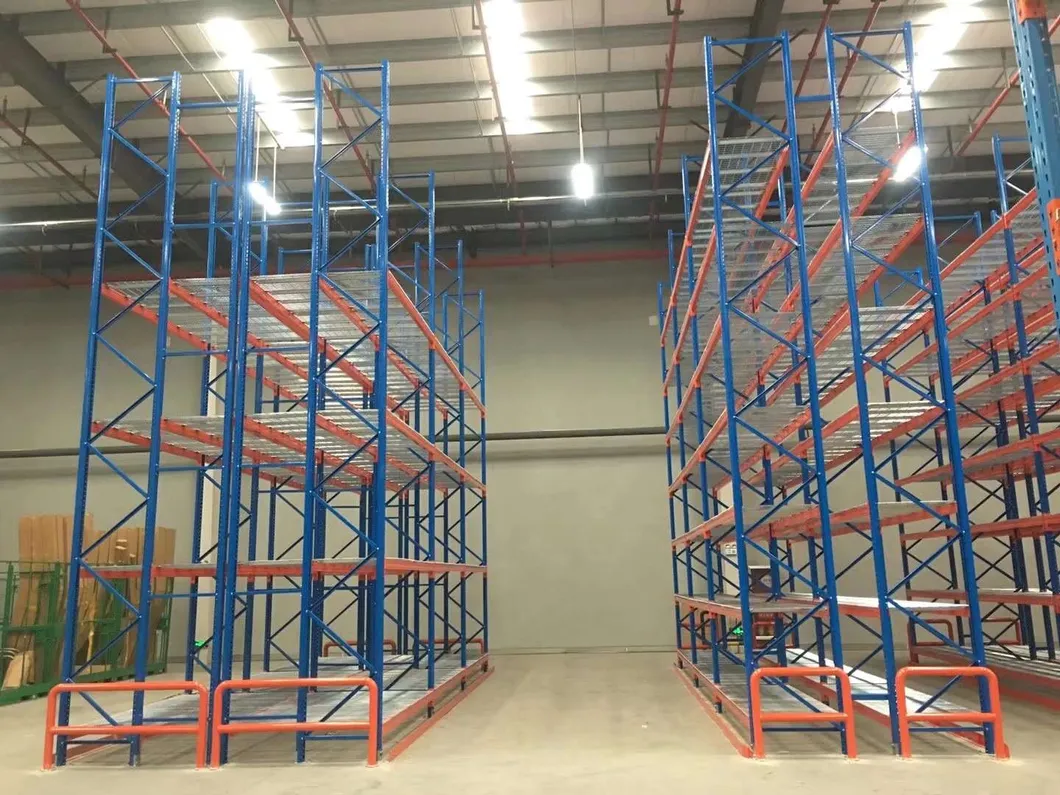

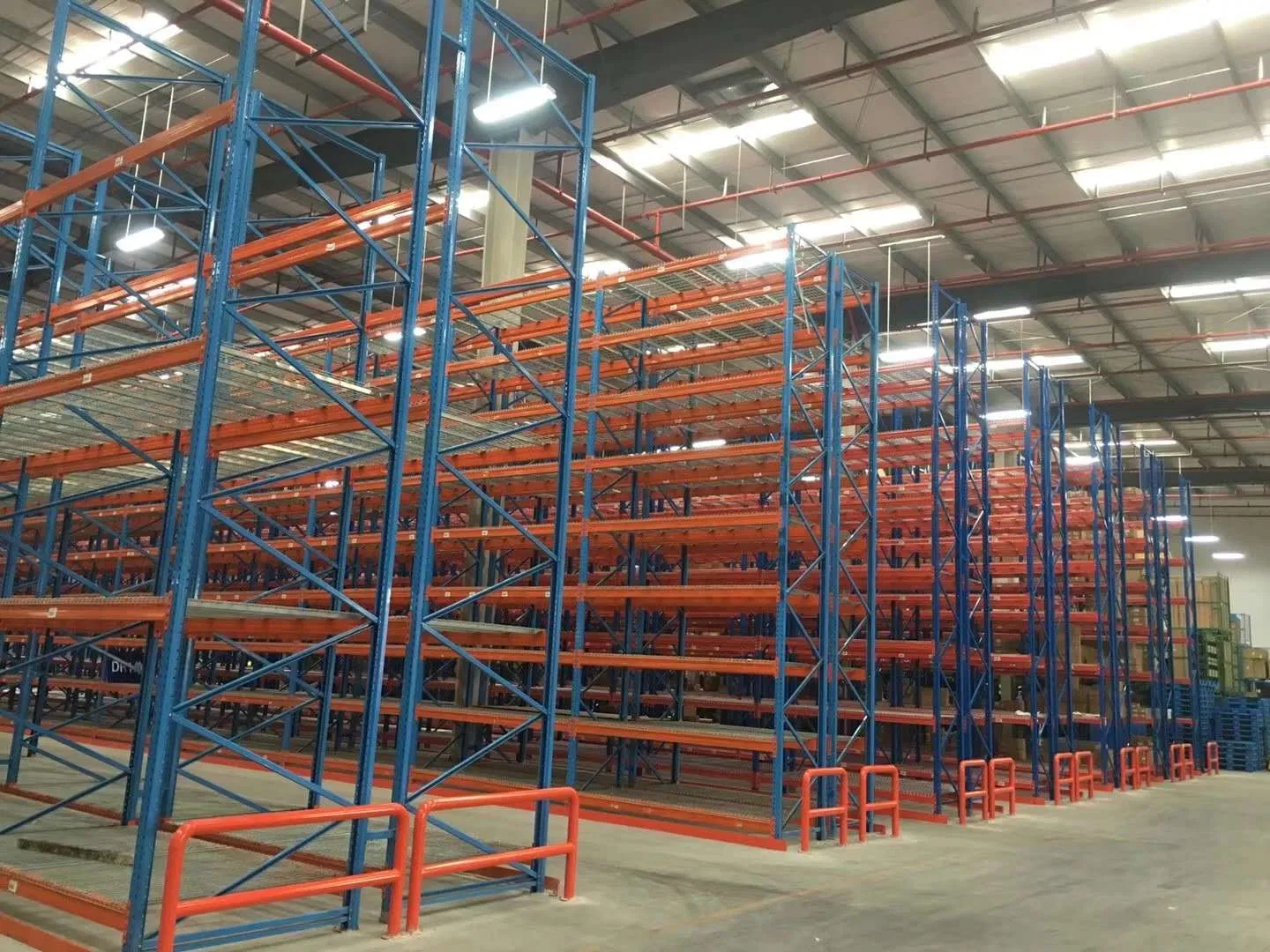

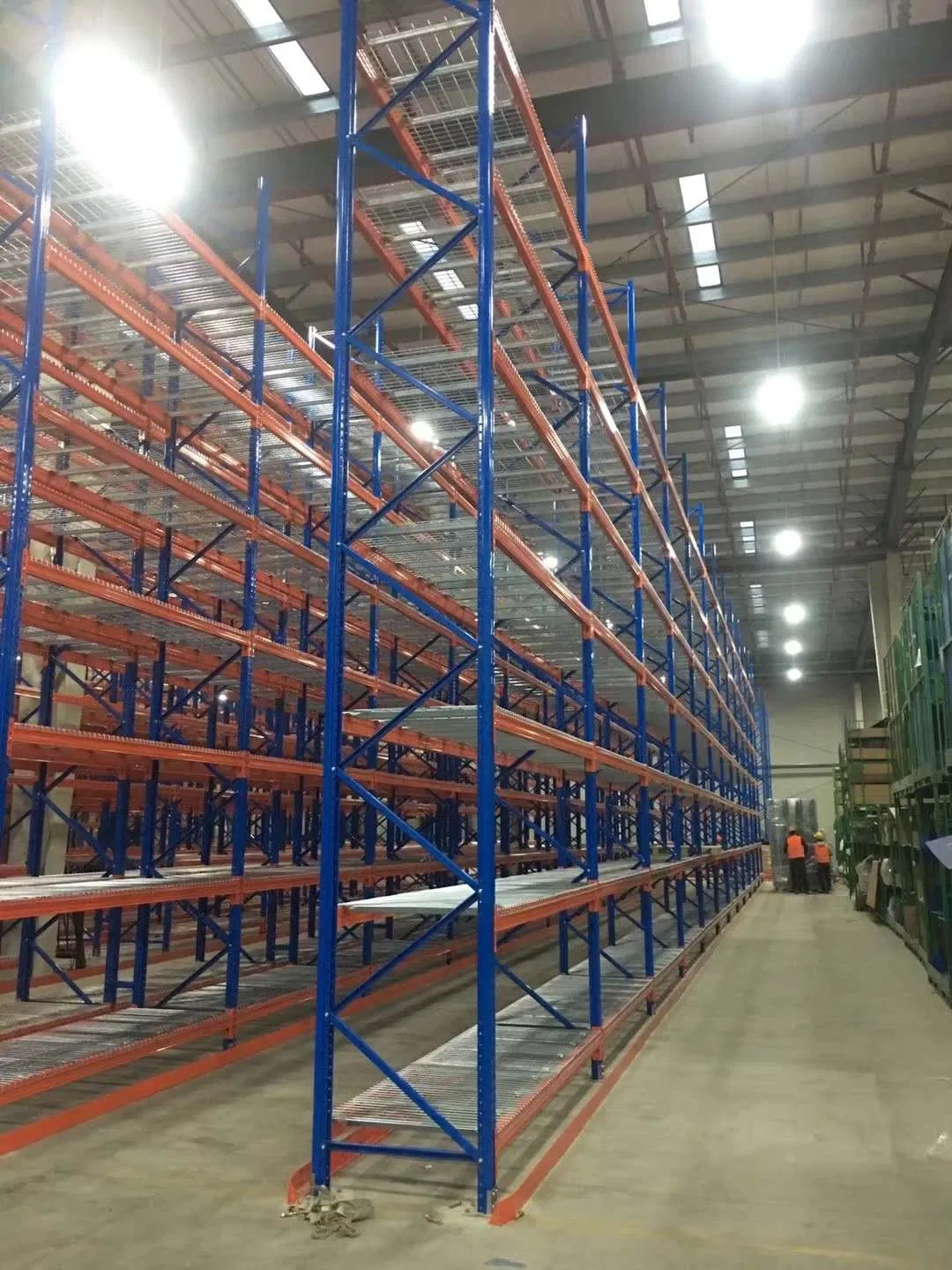

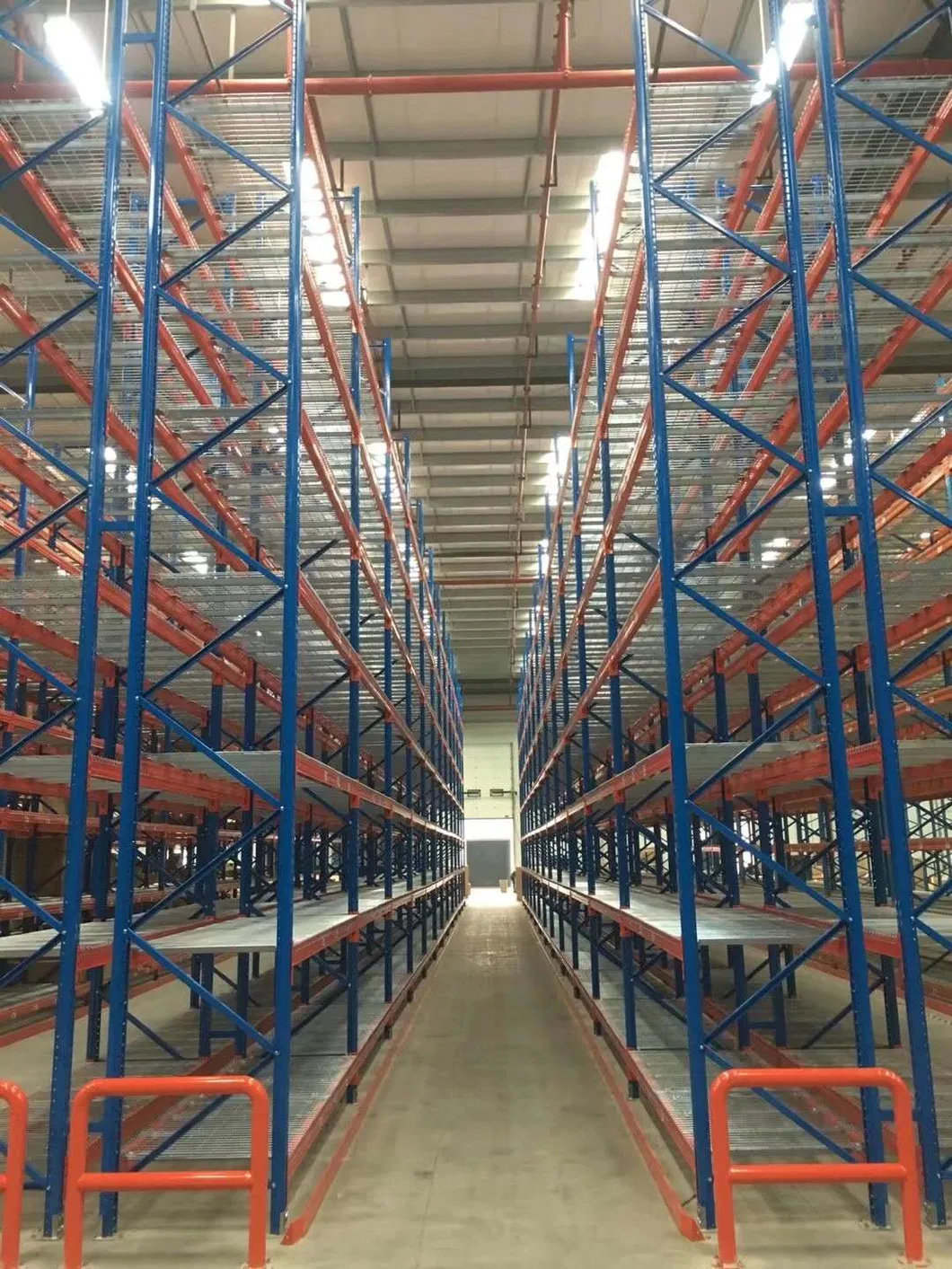

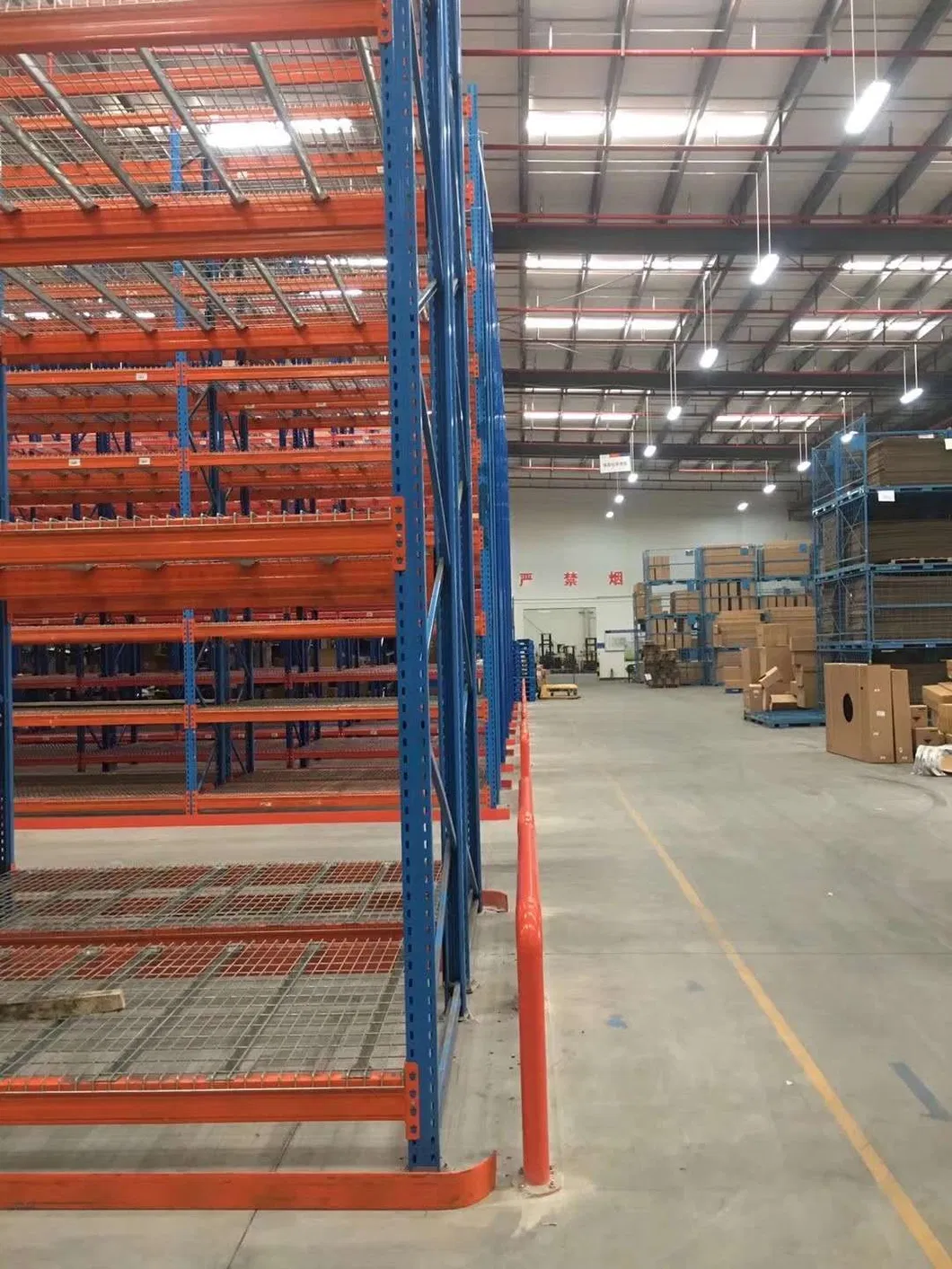

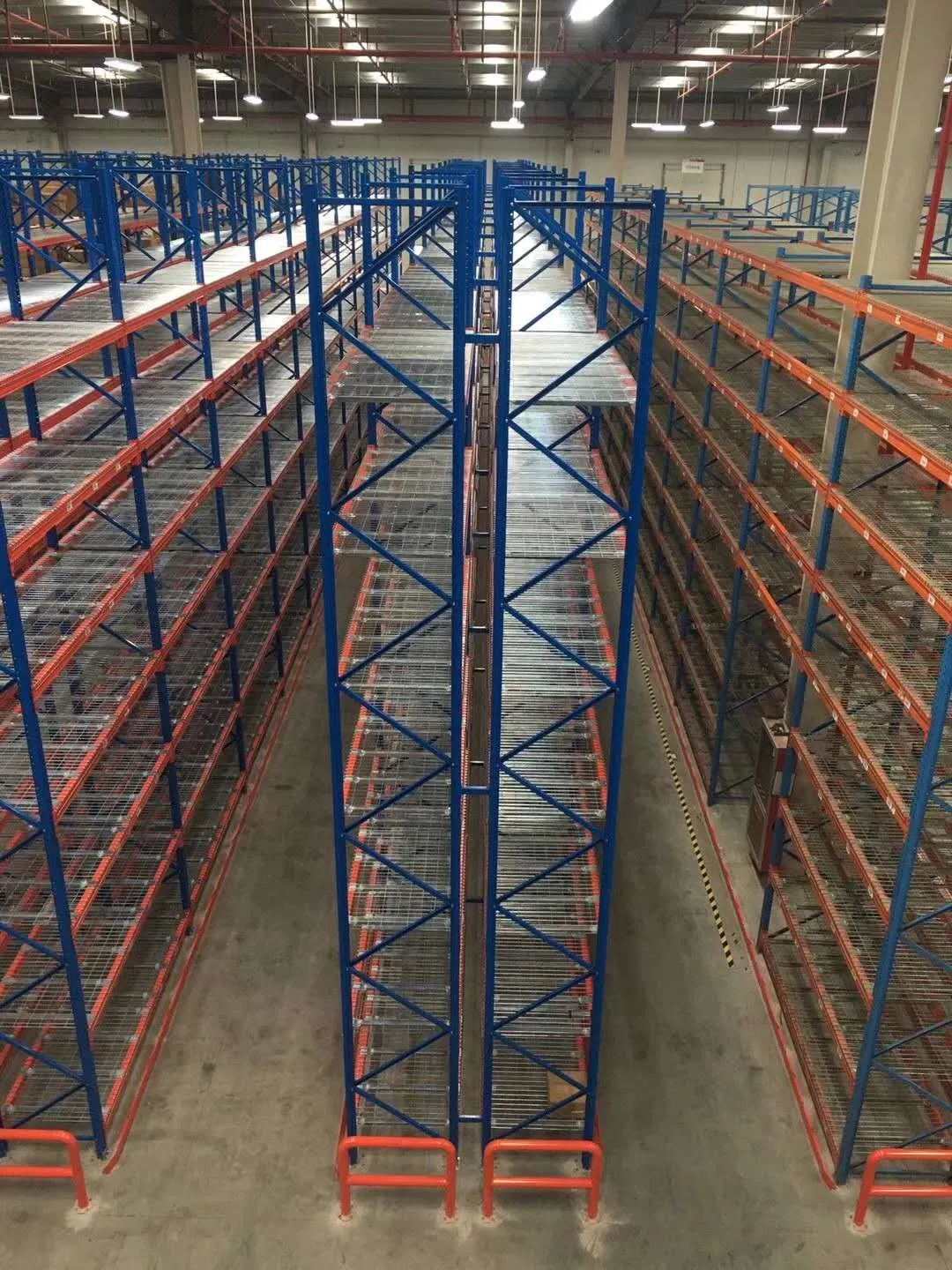

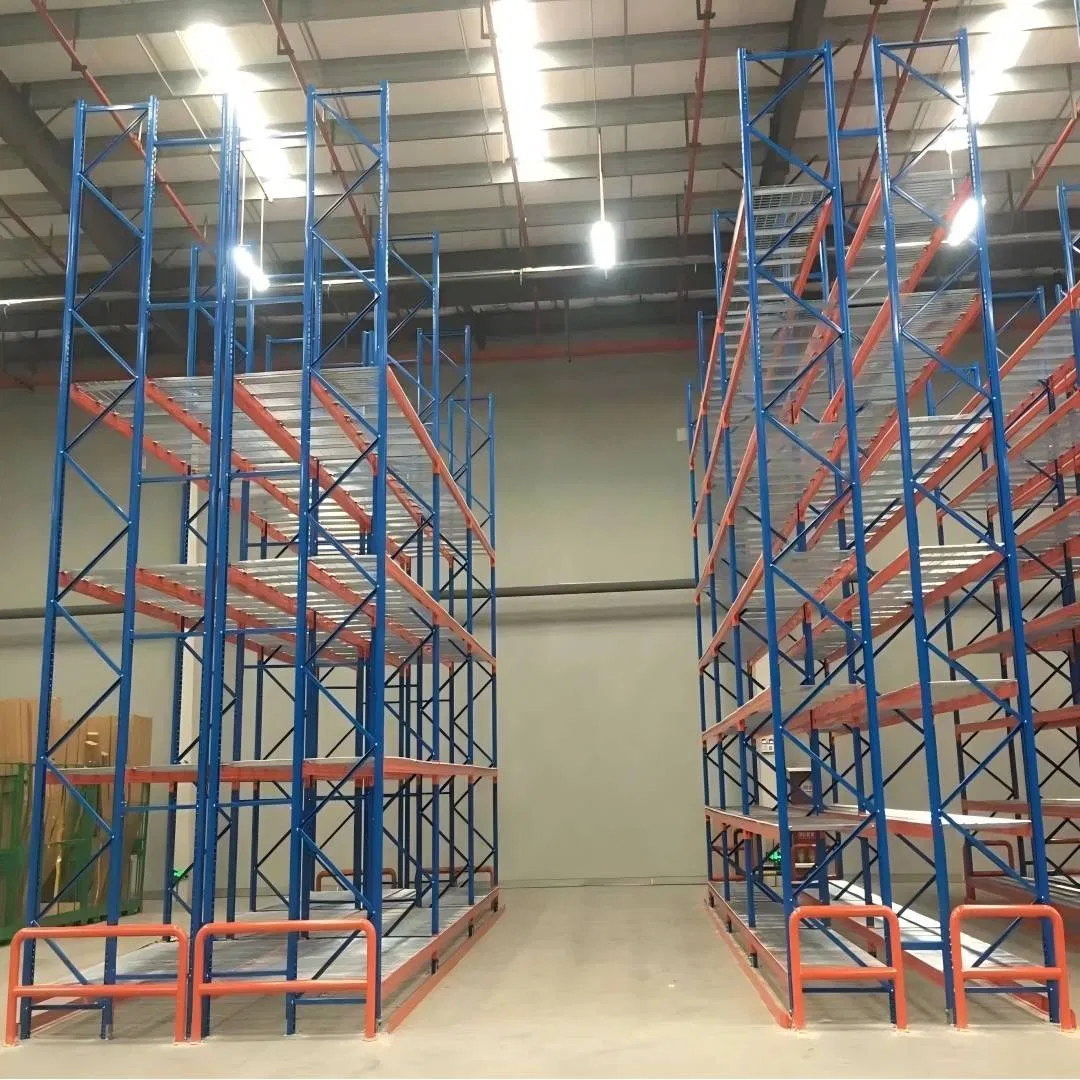

VNA (Very Narrow Aisle) Pallet Rack:
Very narrow aisle pallet rack is mainly used with specialized three-way forklifts. By occupying smaller aisles, it significantly saves warehouse space, allowing for quick storage and retrieval of products to reduce operating costs. It is particularly suitable for logistics centers with heights up to 15m.
Compared to conventional pallet racks, the VNA rack aisle is much narrower (ordinarily 1600-2000 mm), increasing space utilization by approximately 20%. Guide rails are typically installed on both sides of the aisle for the three-way forklift operation.

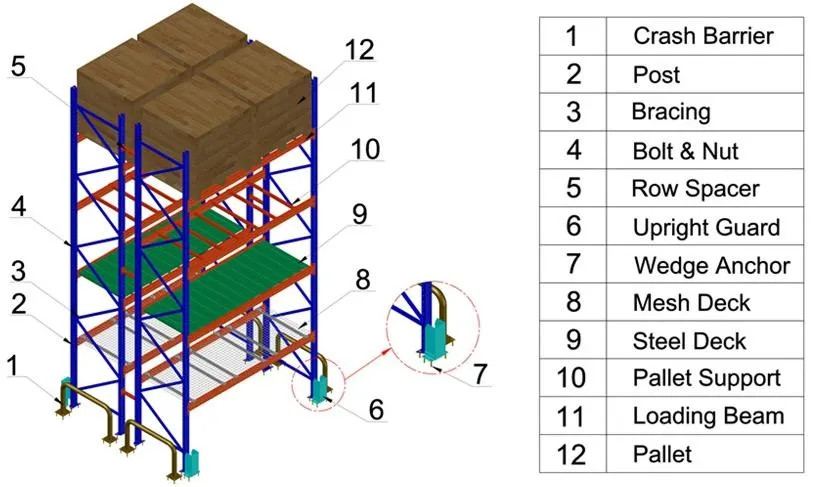

| Component | Details & Dimensions |
|---|---|
| Style | Warehouse Storage Pallet Rack |
| Selection | Single Row, back-to-back Rows and multiple Rows |
| Dimension | Standard Pallet: 1200*800 / 1200*1000 / 1100*1100 mm Depth: 900mm - 1020mm | Width: 2300mm - 2700mm |
| Beam | Height: 80-160mm; Width: 45-50mm; Thickness: 1.5-2.5mm |
| Upright | Various profiles (80*60 to 120*87mm); Thickness: 1.5-3.0mm |
| Bearing Capacity | Max 5000KG per level; Max 1500KG per pallet |
