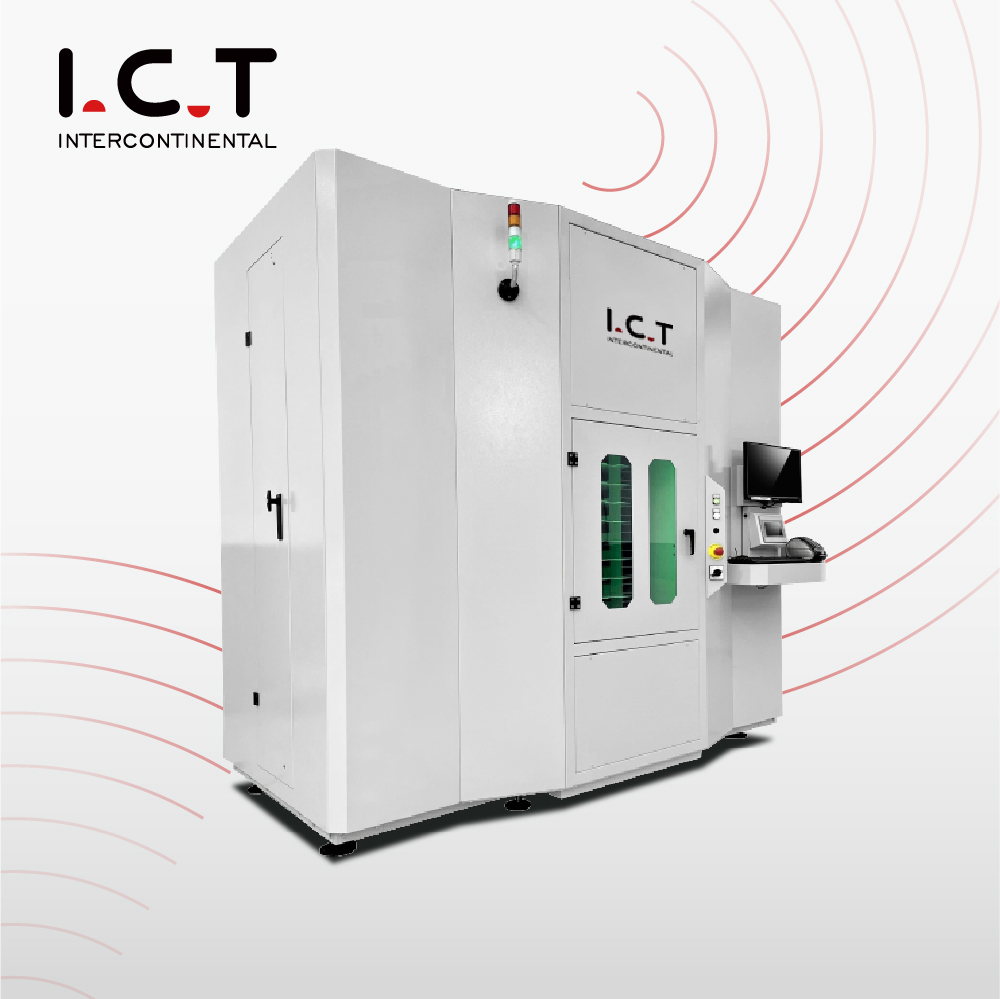

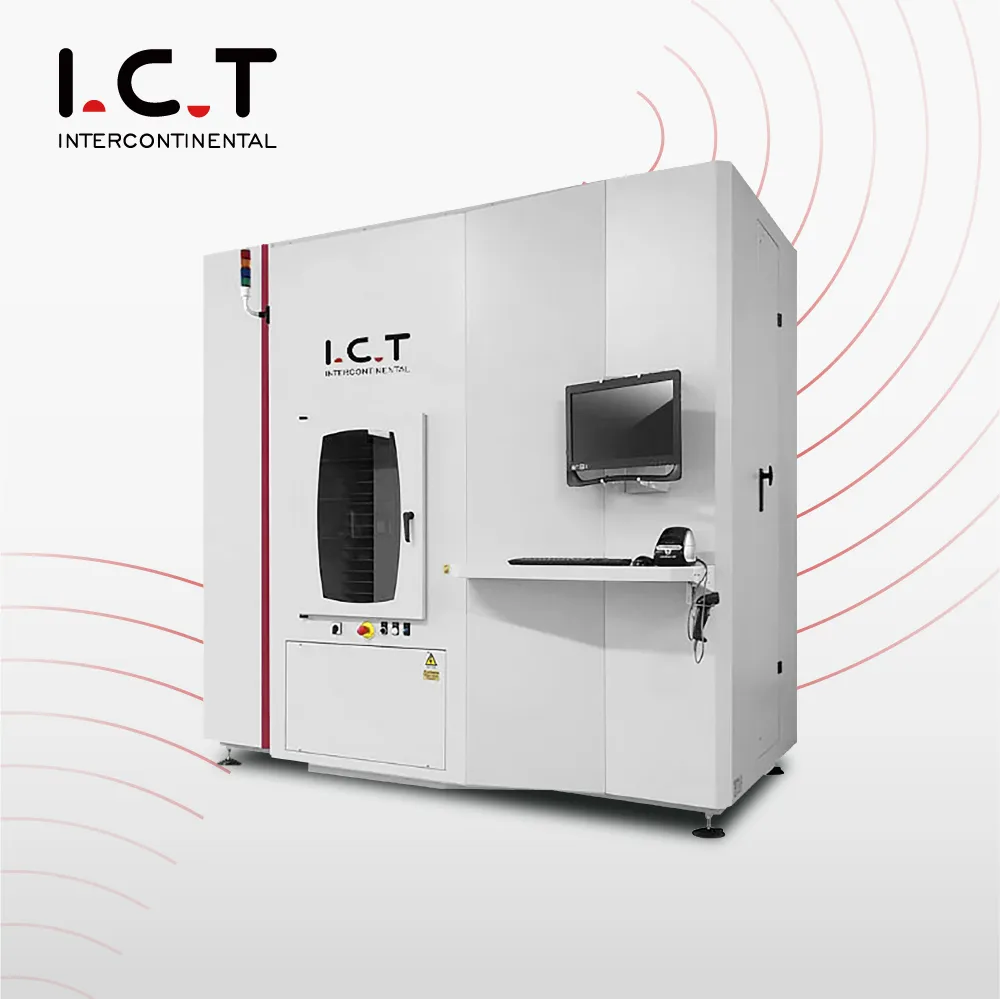

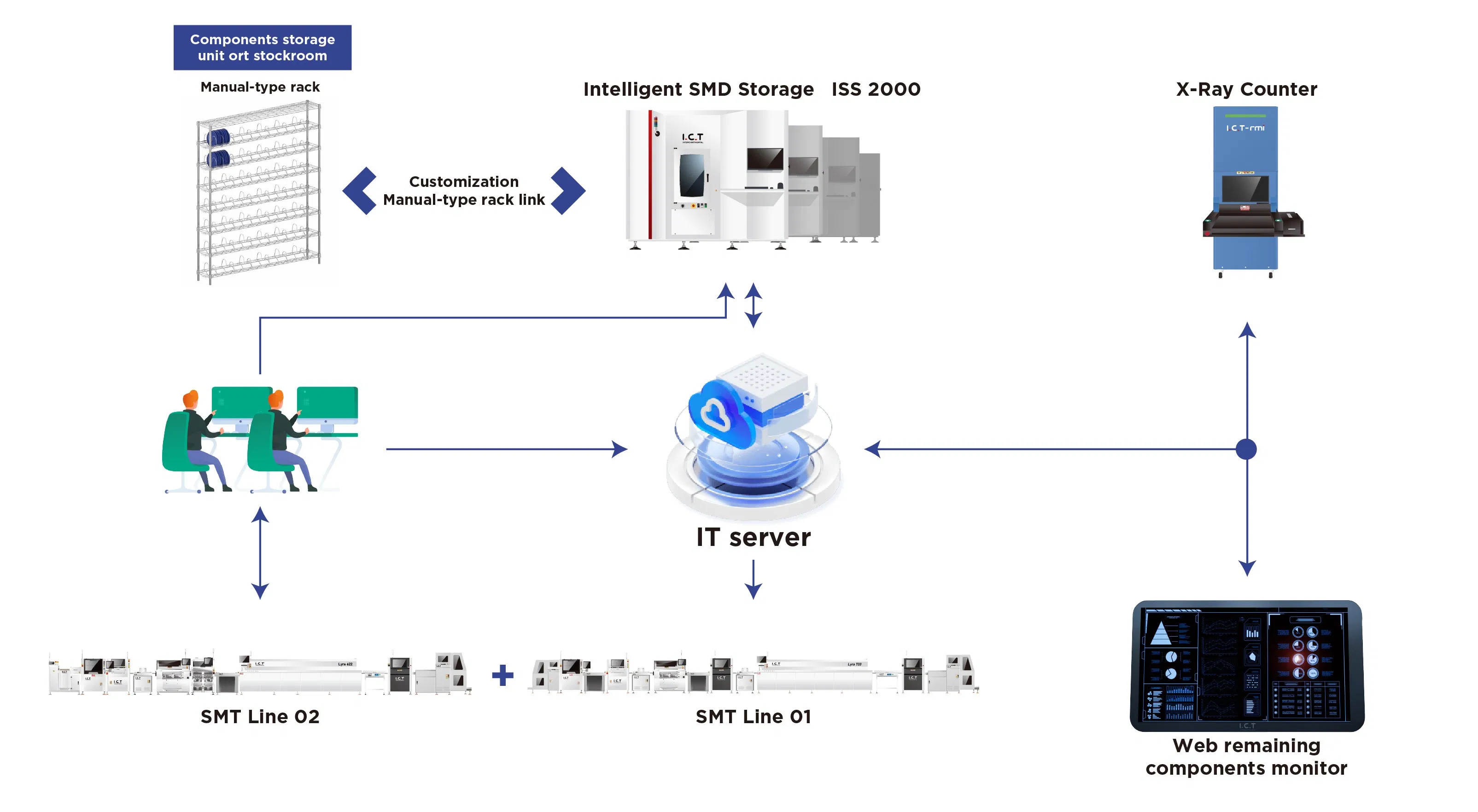

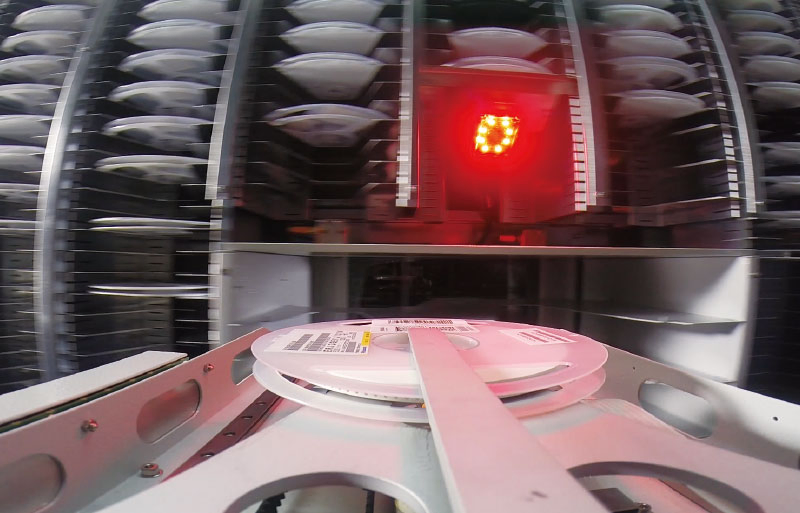

The Intelligent Storage System is a critical component of the modern smart factory. This system integrates cloud management and intelligent operation for refined component handling. It enables efficient loading, unloading, and replenishment of reel components, reducing manual management and significantly improving production efficiency.
| Parameter | Details | ||
|---|---|---|---|
| Model | ISS-2000 | ||
| Reel Height Support | 8mm (OK) | 12mm (OK) | 16mm/24mm/32mm (OK) |
| Max Reel Weight | 2.0 Kg | ||
| Cycle Capacity | Up to 35 Reels (Small) / 25 Reels (Standard) | ||
| Average Unloading Time | 15 Seconds | ||
| Operating System | Windows 10 Pro | ||
| Environmental Humidity | 20% to 80% | ||
| Power Consumption | 0.71 kW (With Humidity Control) | ||
| Machine Dimensions | 2715 * 1620 * 2450mm (Standard) | ||
| Total Weight | Approx. 1565Kg | ||
Standard Package: Vacuum Wooden Case Protection
Shipping Methods: • Air Express (DHL/UPS/EMS) for small packages • Sea Freight for large equipment orders • Customized logistics based on customer requirements
Delivery Time: Generally within 35 days after payment.
