Cross Shape Wire Rack Rolling Rings Traverse Drive Gp20b

1 / 5

Cross Shape Wire Rack Rolling Rings Traverse Drive Gp20b

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

QPX20B

Type

Transmission

Material

Alloy

Certification

ISO

Size

120*80*300mm

HS Code

8463102000

Capacity

50,000 PCS/Year

⚙️

Product Description

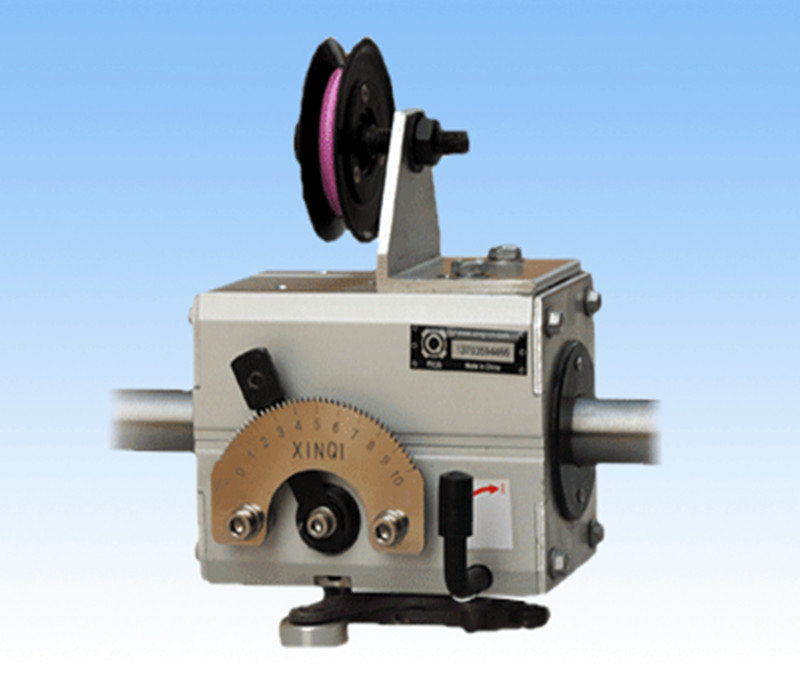

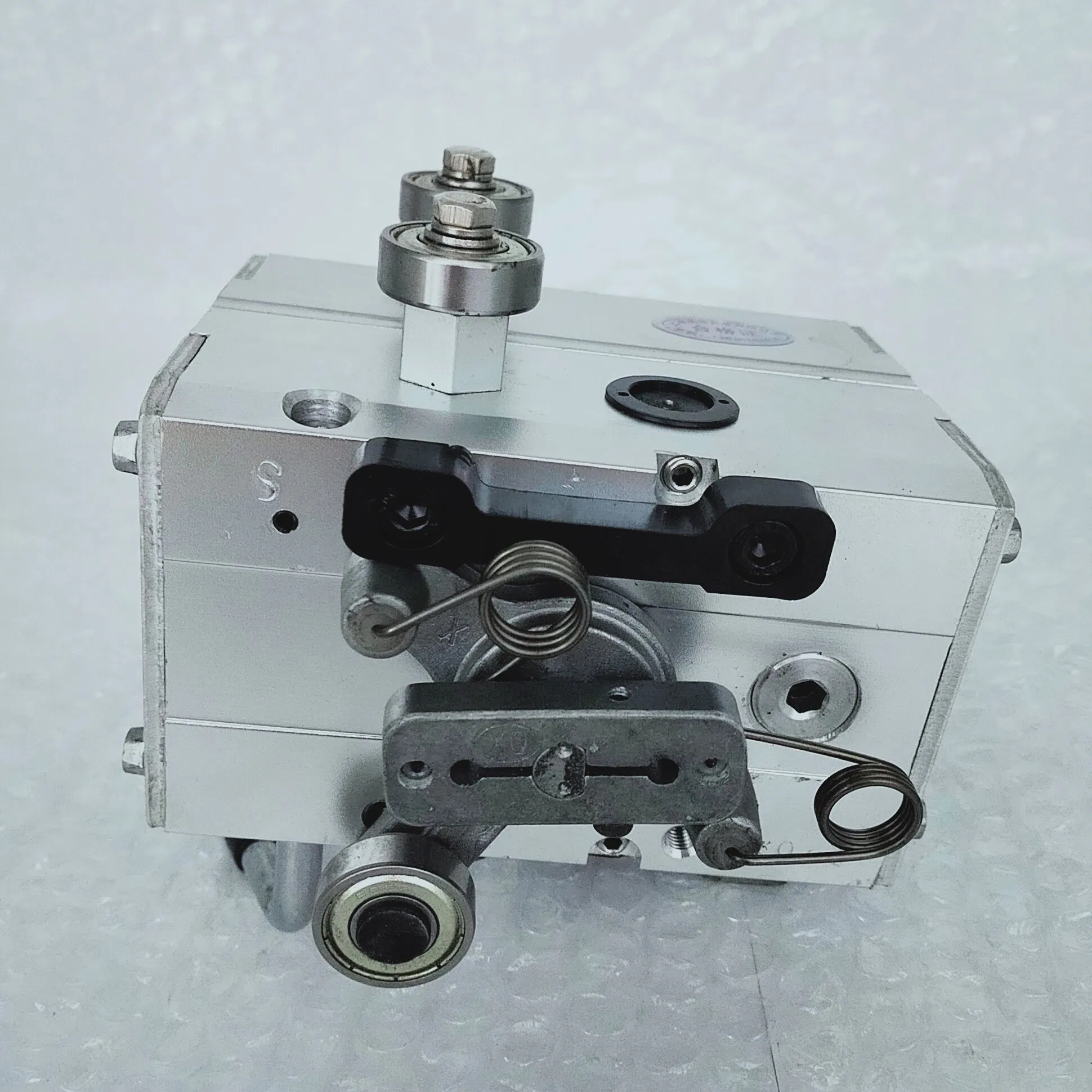

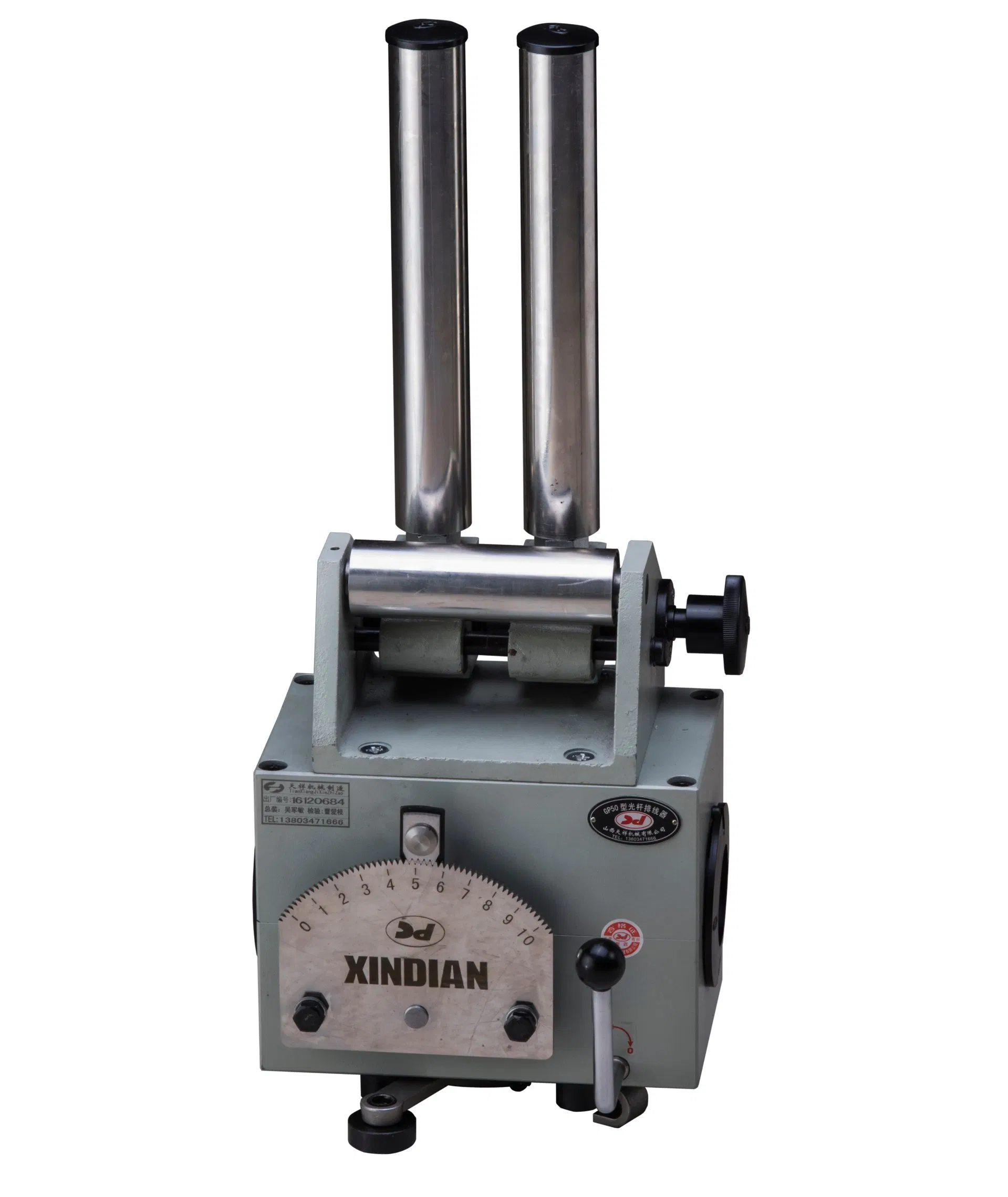

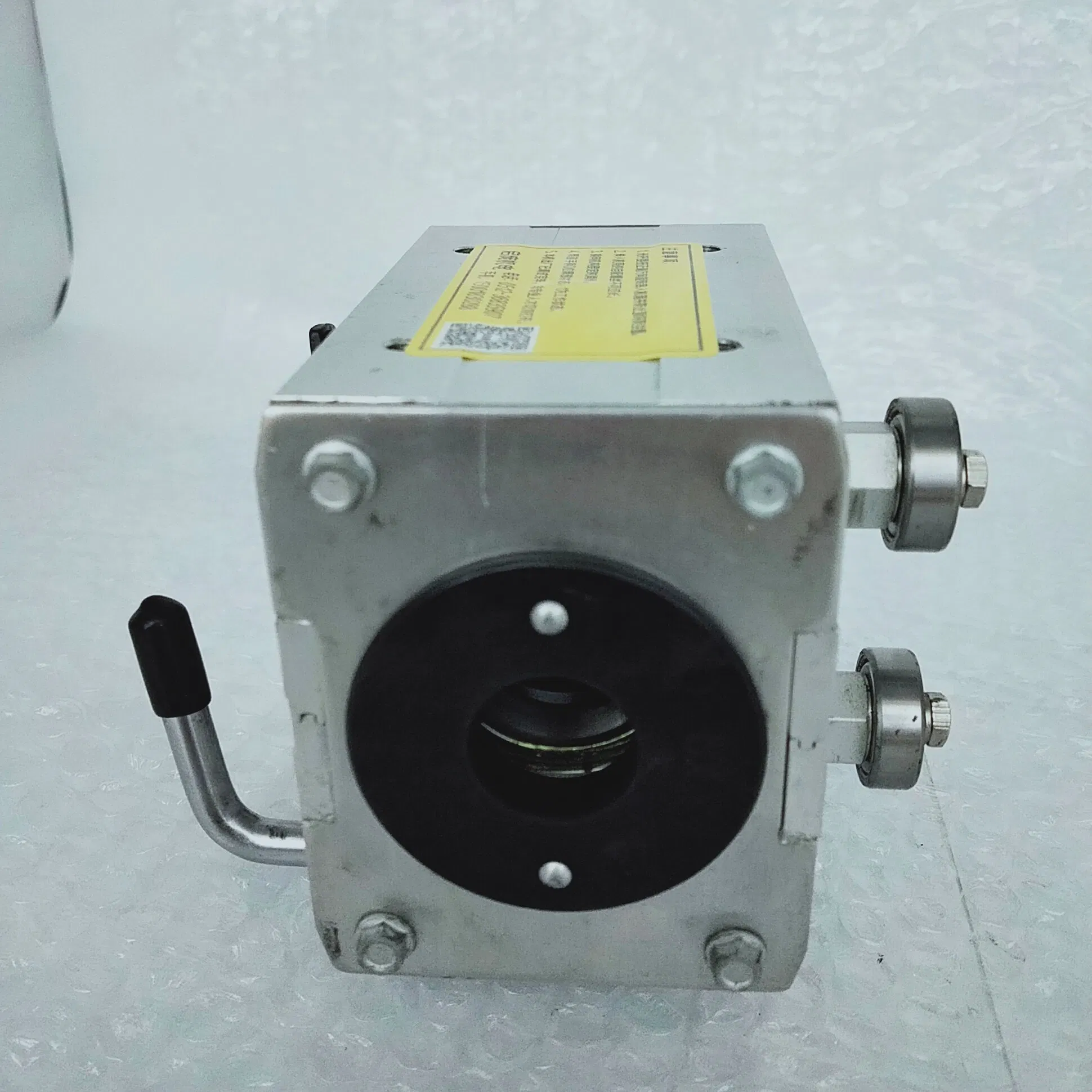

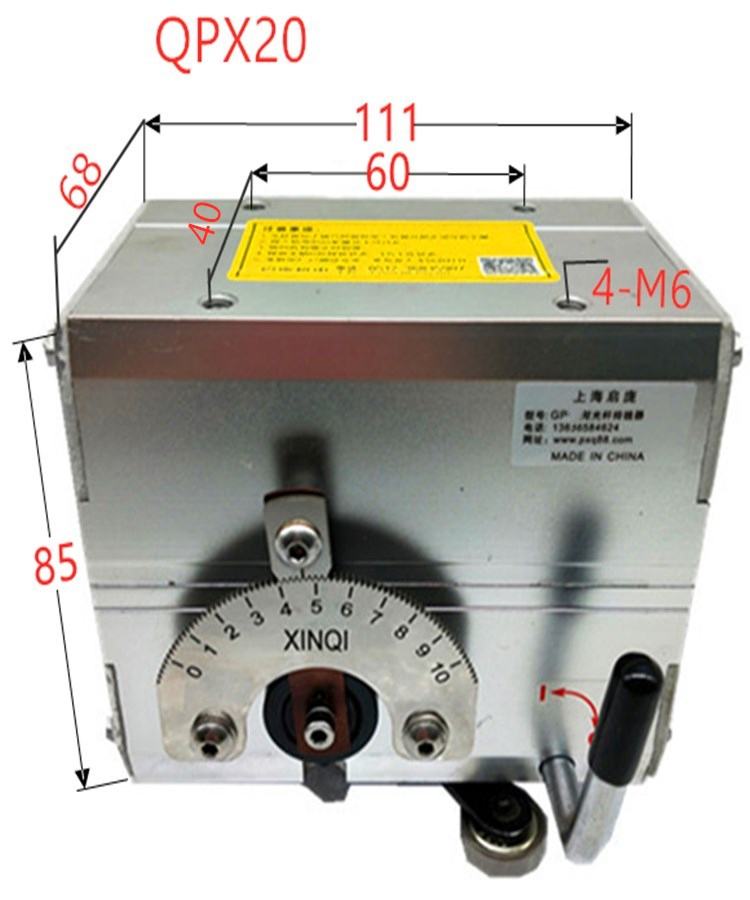

Cross Shape Wire Rack Rolling Rings Traverse Drive Gp20b

Note: The linked product is a Type B rolling ring drive.

We specialize in manufacturing high-quality mechanical components including rolling ring drives, linear drives, wire straighteners, and automatic coiling systems. Our products are essential for precision winding in wire, cable, and textile industries.

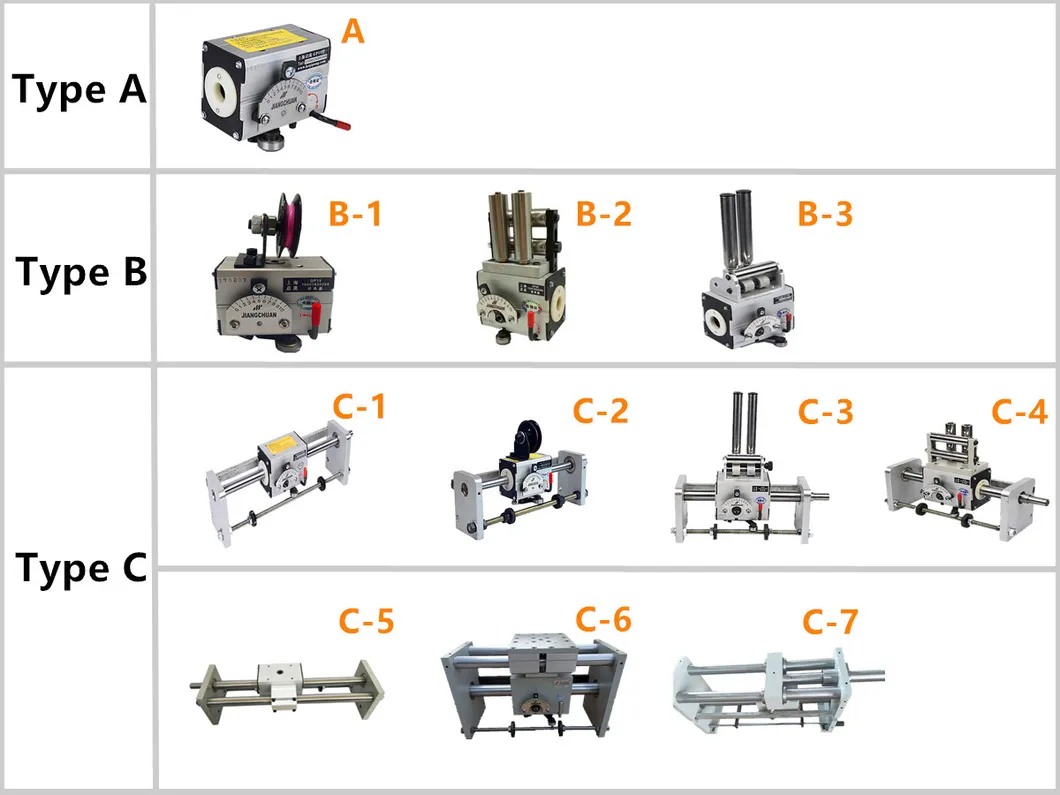

A Series: Features a single rolling ring linear drive, available in eight types based on shaft diameter.

B Series: Features one rolling ring linear drive equipped with Guide Rollers or Guide Wheels.

C Series: A complete assembly including shaft, guide rollers, bearing blocks, and steady bars.

📊

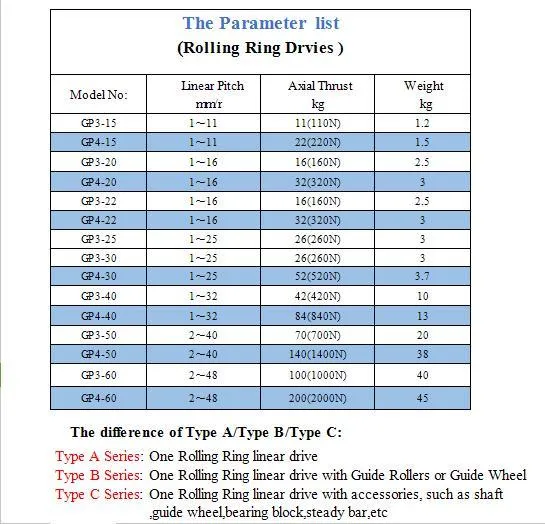

Technical Parameters

Model No.	Linear Pitch (mm/r)	Axial Thrust (kg)	Weight (kg)
GP3-15	1~11	11(110N)	1.2
GP4-15	1~11	22(220N)	1.5
GP3-20	1~16	16(160N)	2.5
GP4-20	1~16	32(320N)	3.0
GP3-25	1~25	26(260N)	3.0
GP3-30	1~25	26(260N)	3.0
GP4-30	1~25	52(520N)	3.7
GP3-40	1~32	42(420N)	10.0
GP4-40	1~32	84(840N)	13.0
GP4-60	2~48	200(2000N)	45.0

📸

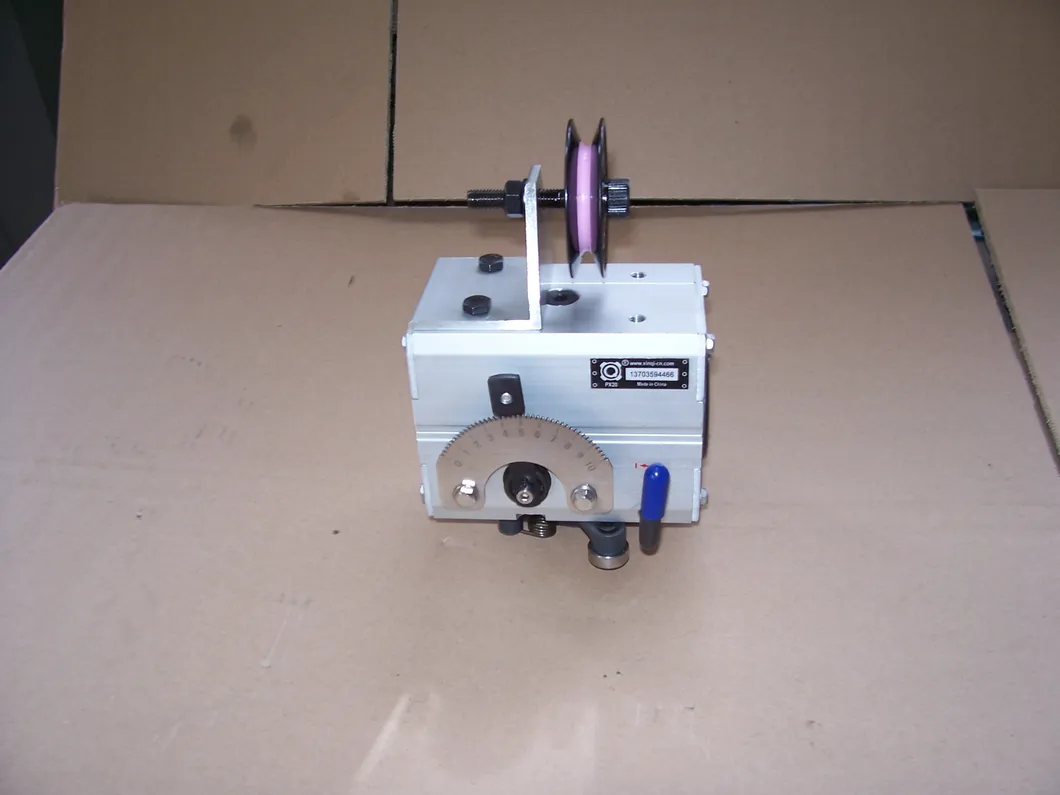

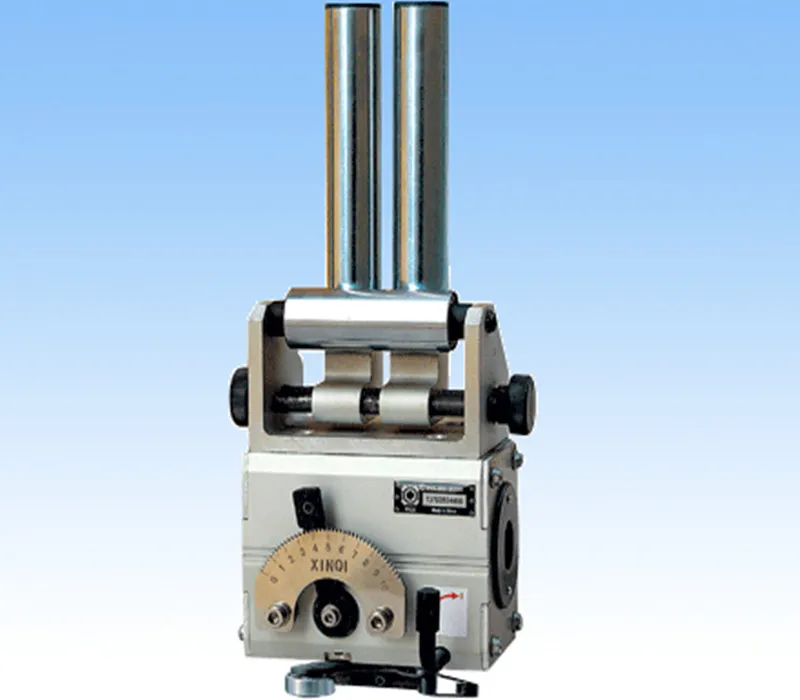

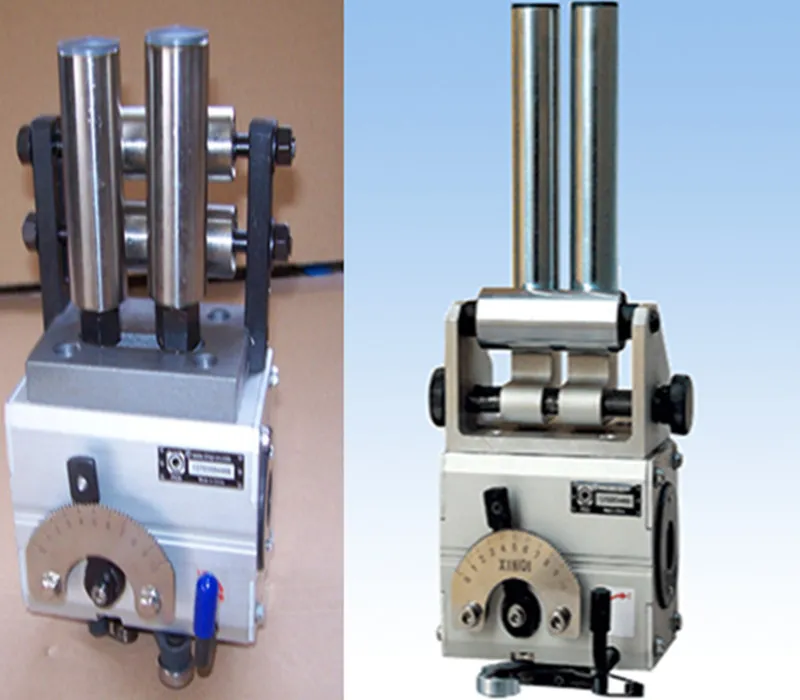

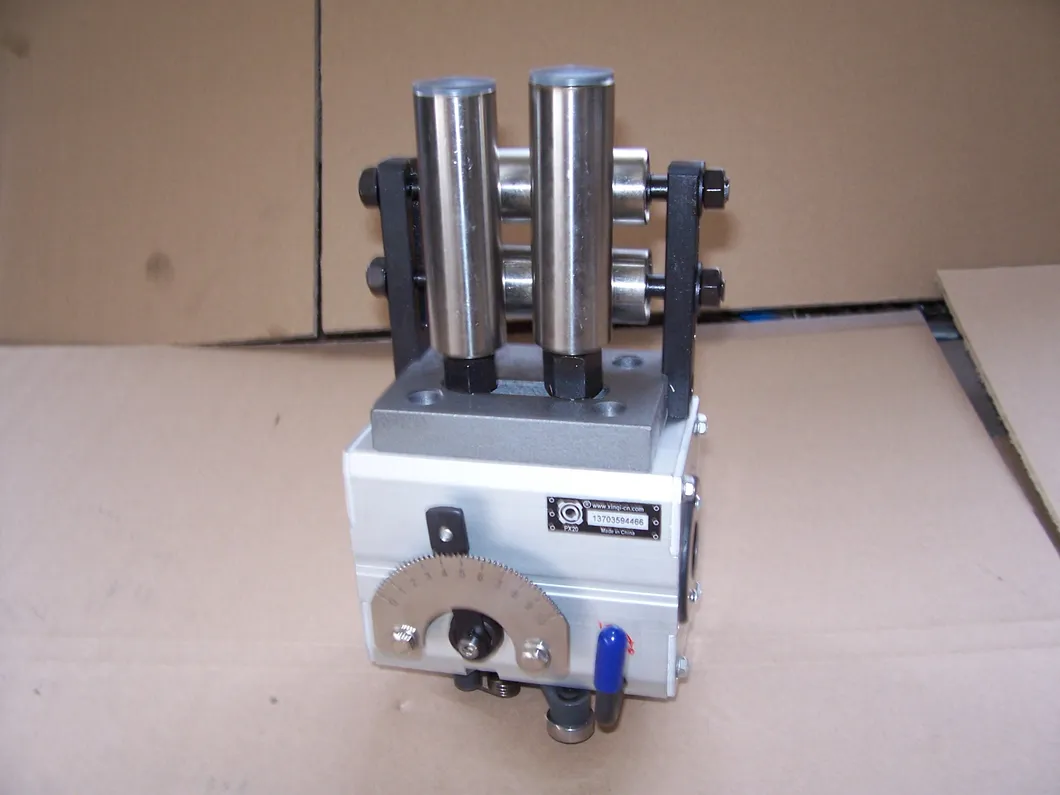

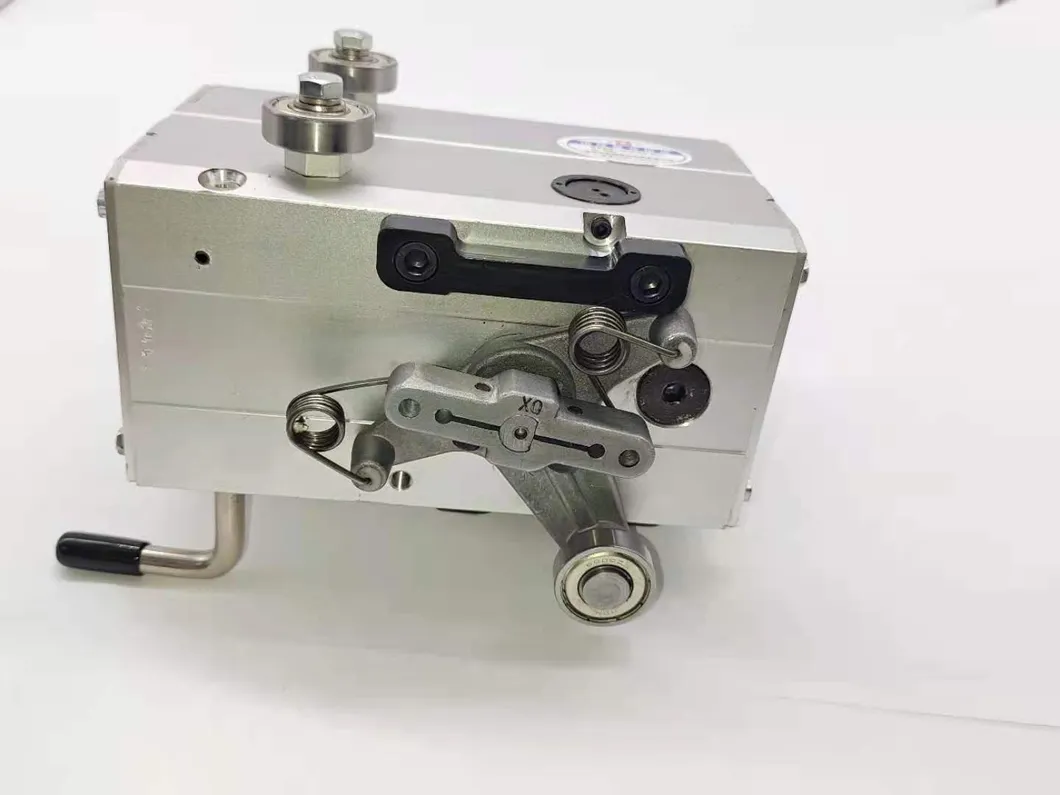

Product Gallery

📦

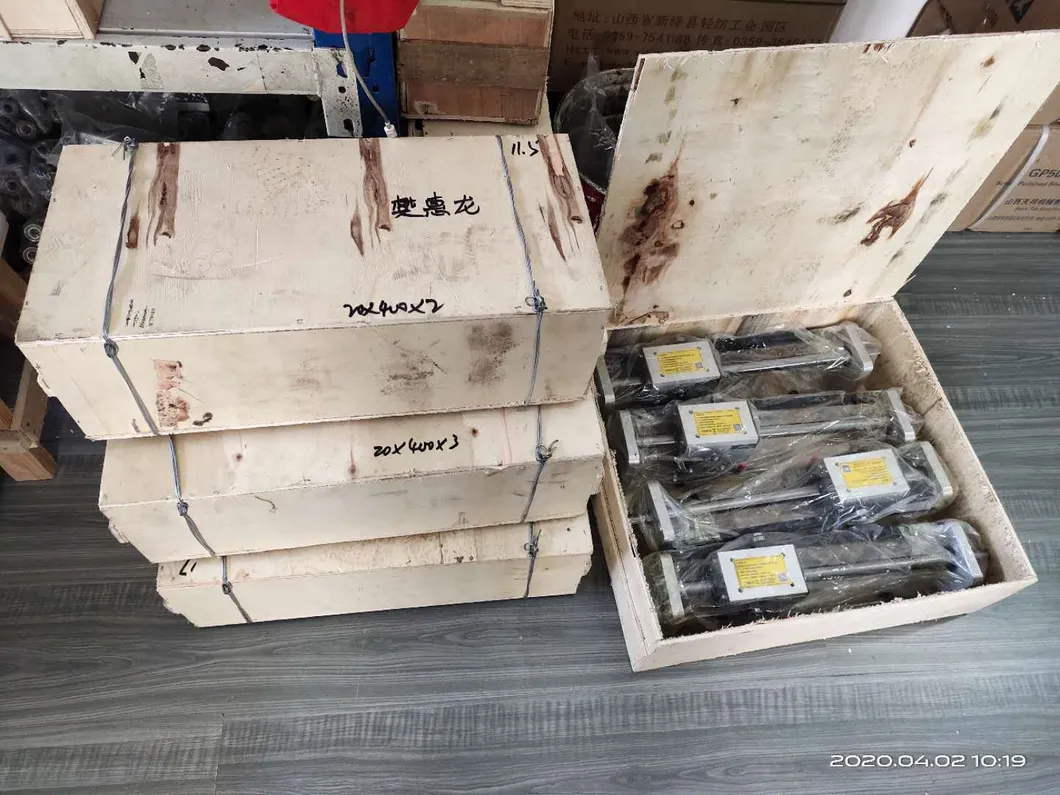

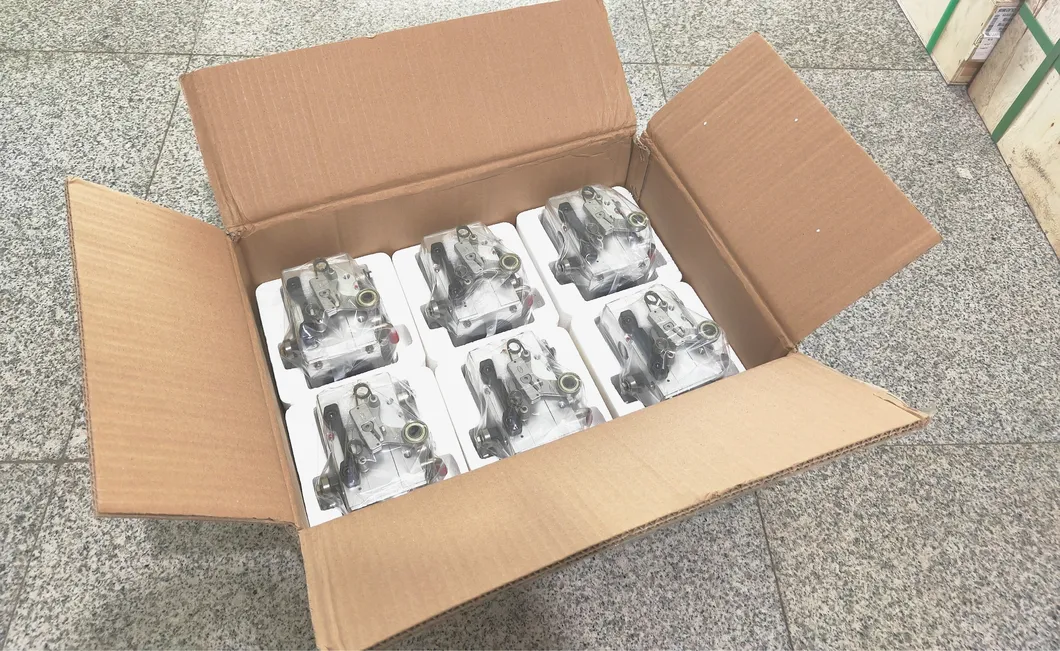

Packaging & Shipping

Package Size

20.00cm * 85.00cm * 35.00cm

Gross Weight

4.000kg

🏭

Production Overview

❓

Frequently Asked Questions

What is the main function of a rolling ring traverse drive?

It converts the constant rotation of a plain shaft into a reciprocating linear motion. It is primarily used for spooling and winding applications for wire, cable, and rope.

How does the Type B series differ from Type A?

Type B series includes one rolling ring linear drive specifically equipped with additional Guide Rollers or Guide Wheels for enhanced stability during operation.

Can the linear pitch be adjusted?

Yes, the linear pitch is adjustable within the range specified for each model (e.g., 1~11 mm/r for GP3-15), allowing for precise winding control.

What materials are used in the construction?

The drives are primarily constructed from high-grade alloy materials to ensure durability, high axial thrust capacity, and long service life.

Is the direction of travel reversible?

Yes, rolling ring drives feature an automatic reversal mechanism that triggers when the drive hits end stops, without needing to change the direction of shaft rotation.

What are the typical industries for this product?

These units are widely used in the wire and cable industry, textile manufacturing, steel wire production, and electrical component assembly.
