Heavy Duty Customizable Garage Storage System for Ultimate Organization
Heavy Duty Customizable Garage Storage System for Ultimate Organization
Heavy Duty Customizable Garage Storage System for Ultimate Organization
Heavy Duty Customizable Garage Storage System for Ultimate Organization
Heavy Duty Customizable Garage Storage System for Ultimate Organization
1 / 5
Heavy Duty Customizable Garage Storage System for Ultimate Organization
Heavy Duty Customizable Garage Storage System for Ultimate Organization
Heavy Duty Customizable Garage Storage System for Ultimate Organization
Heavy Duty Customizable Garage Storage System for Ultimate Organization
Heavy Duty Customizable Garage Storage System for Ultimate Organization

Heavy Duty Customizable Garage Storage System for Ultimate Organization

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
HD Racking
Usage
Warehouse Rack, Logistics, Industrial
Material
Steel Q235
Type
Selective Pallet Racking
Height
5-15m
Weight Cap
Up to 4000kg
Color
Orange Beam and Blue Frames
HS Code
73089000

Product Description

What is Selective Pallet Racking?

A selective pallet rack is the most common type of pallet racking system used in warehouses and distribution centers. It is a versatile and cost-effective storage solution that allows for direct access to all stored pallets.

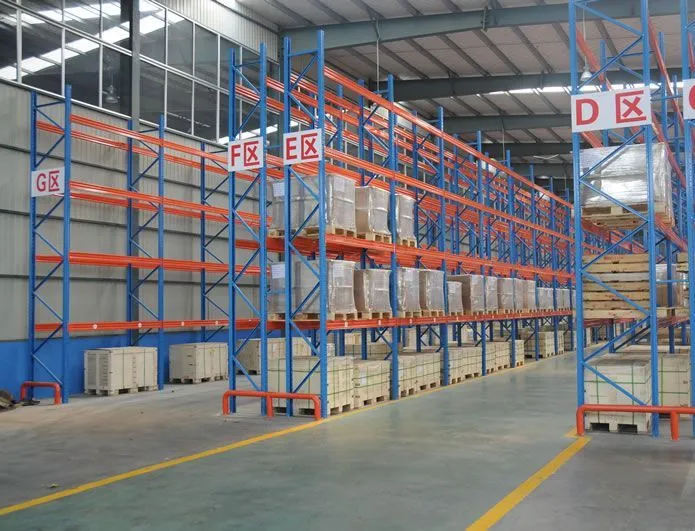

Selective Pallet Racking Photo 1

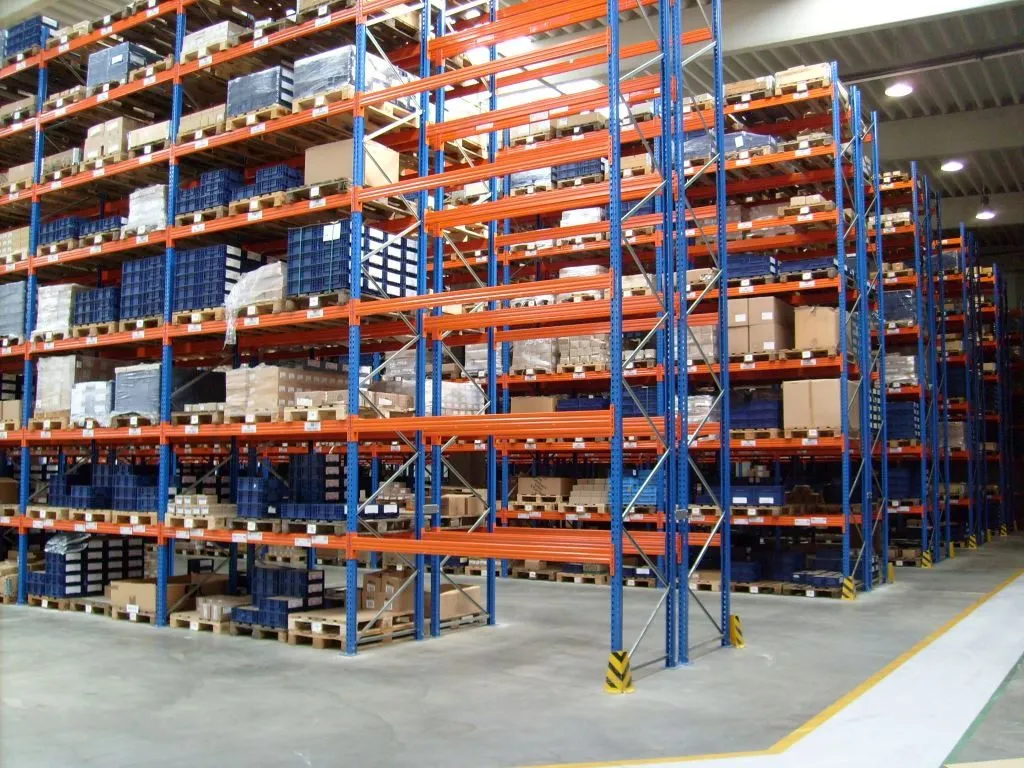

Selective Pallet Racking Photo 2

Specifications

Rack MaterialCold Roll Steel Q235
Load CapacityUp to 1~4 Tons per level
Upright HeightUp to 15m
Upright Depth600-1,400mm
Upright Section80*60 / 90*70 / 100*65 / 120*87 (mm)
Beam Length1200-4000mm
Beam Section80*50 / 100*50 / 110*50 / 120*50 / 140*50 (mm)
Beam Thickness1.4-1.5mm

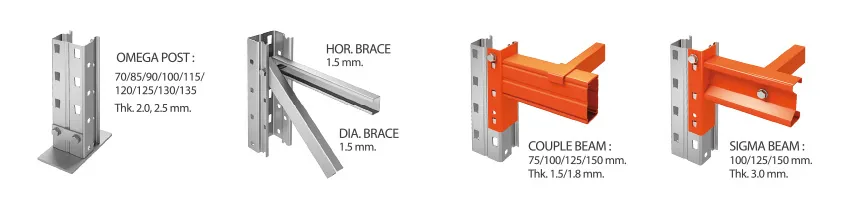

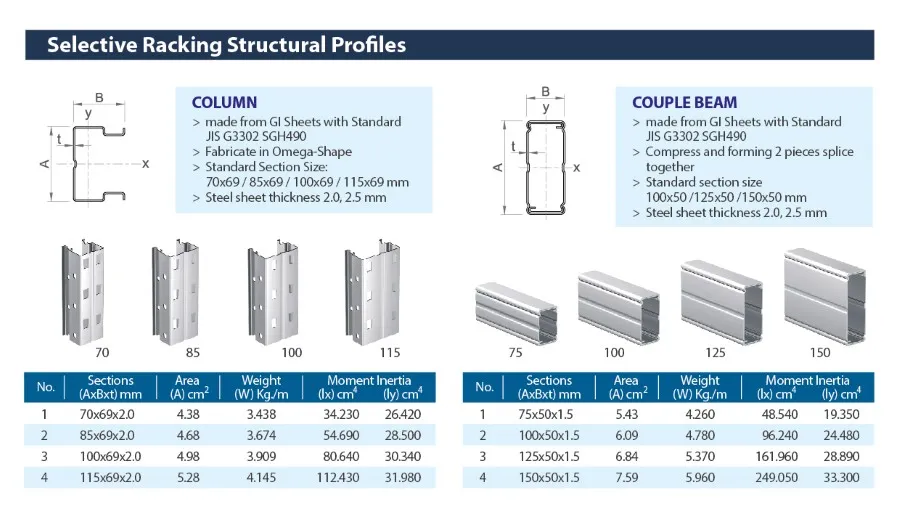

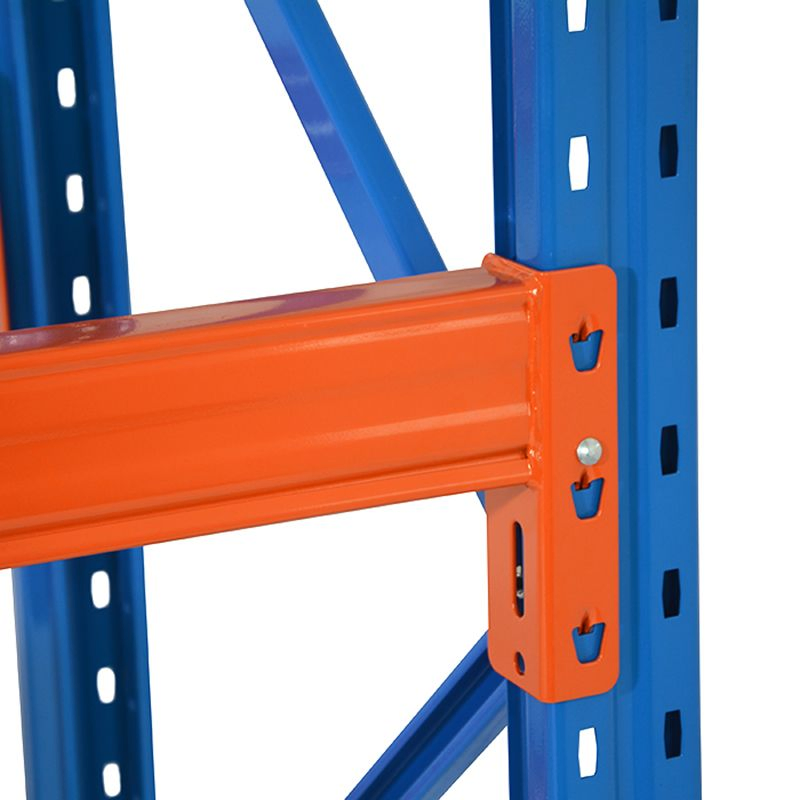

Beam Detail Rack Structure

Advantages of Pallet Racks

01
Suitable for storing palletized goods The rack is designed to store a wide variety of palletized goods, including heavy items, supporting up to 3,000 kg per shelf level.
02
High storage capacity The rack can be constructed with shelves up to 14 meters high, ideal for large volume storage.
03
Double Deep Storage option Can be configured for Double Deep Storage, increasing storage capacity by up to 30% compared to Single Deep.
04
Durable construction Made from pre-galvanized steel, making it strong and durable in all weather conditions.
05
Adjustable & Easy Assembly Features an adjustable structure for different cargo heights. Simple upright and beam design makes assembly and relocation easy.

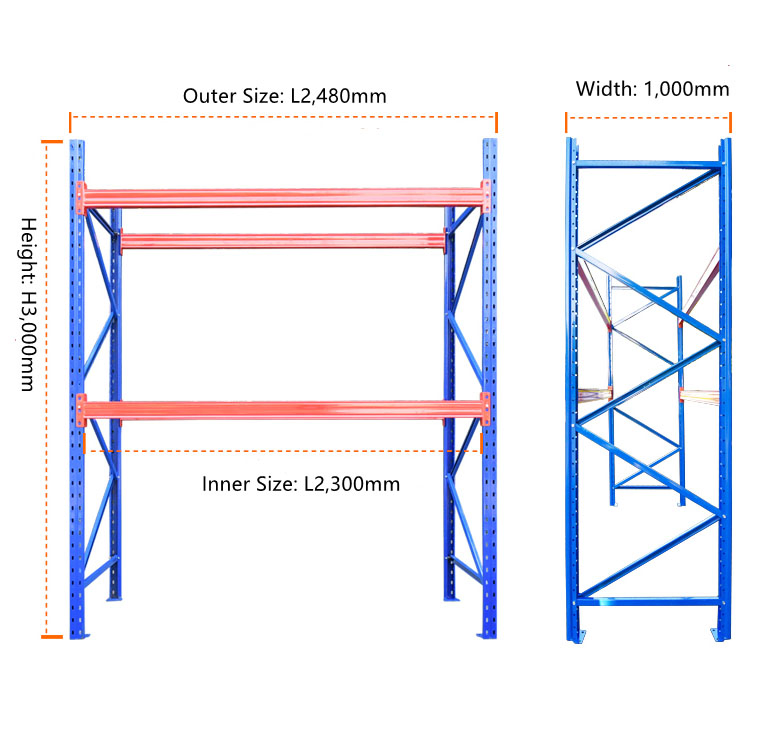

Detailed Technical Dimensions

Frequently Asked Questions

What is the production capacity?
The production capacity is approximately 20,000 tons per month.
How long is the delivery time?
Delivery time normally ranges from 25 to 45 days, depending on the order quantity and package requirements.
What main products are exported?
Main product lines include Selective (teardrop/tradition), Cantilever, ASRS (Radio Shuttle/Crane-based), Double deep, Drive-in, VNA, Mezzanines, and various steel pallets.
Which regions do you export to?
Storage racks are exported to global markets including the US, Switzerland, Australia, Denmark, India, the Netherlands, Southeast Asia (Cambodia, Thailand, Singapore), and more.
What are the standard payment terms?
Generally, the terms are 50% T/T in advance as a deposit, and 50% T/T against a copy of B/L as balance.
How are the products packaged?
We use various forms including corrugated paper, carton boxes, pallets, angle steel, plastic film, and airbags to ensure safe international transit.
