Customizable Warehouse Drive-in Rack, 1 or More Access Ports Available

Customization:	Available
After-sales Service:	Yes
Warranty:	0

Basic Specifications

Model NO.SN46126

Device Depth1,000 mm-3,500 mm

Dead Weight1,300 Kg-5,500 Kg

Access Port1 or More

Safety ProtectionSafety Light Curtain

Login MethodPassword/Fingerprint/Face

SpecificationW4450*D2090*H5000

PackageStandard Packing

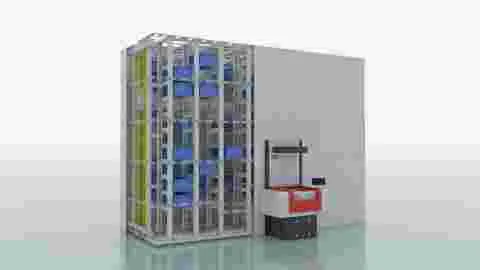

Vertical Sort Module Storage System

Optimal Warehouse Space Utilization

The Vertical Sort Module Storage System accurately reads material box signals and achieves horizontal movement by lifting the synchronous belt on the platform to pull the telescopic fork, enabling high-efficiency material handling and storage.

System Components: Main frame, prefabricated panel, lifting power mechanism, horizontal movement fork, integrated entrance/exit, touch screen, and material signal reading device.

Wide Application Scenarios

⚙️ Cutting Tools, Tool Holders, Molds (CNC machine tool industry)

🧩 Spare Parts (Small, precise, multi-standard materials)

🧪 Samples & Pharmaceuticals (Cosmetics, chemical reagents, soil samples)

🔌 Semiconductors & Electronics (Circuit breakers, relays, PLCs)

🛡️ Labor Protection Supplies (Intelligent disinfection storage)

Technical Elevations

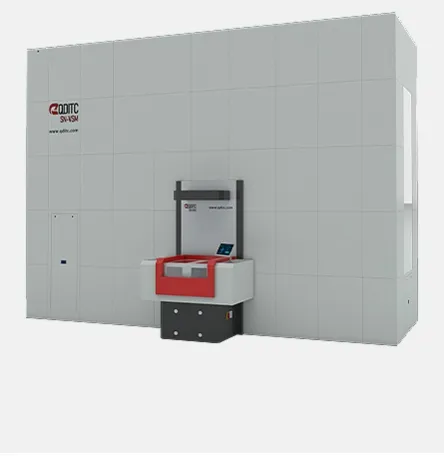

Right Elevation

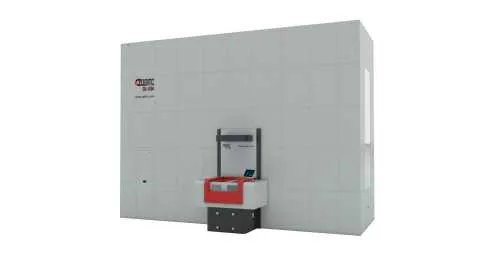

Left Elevation

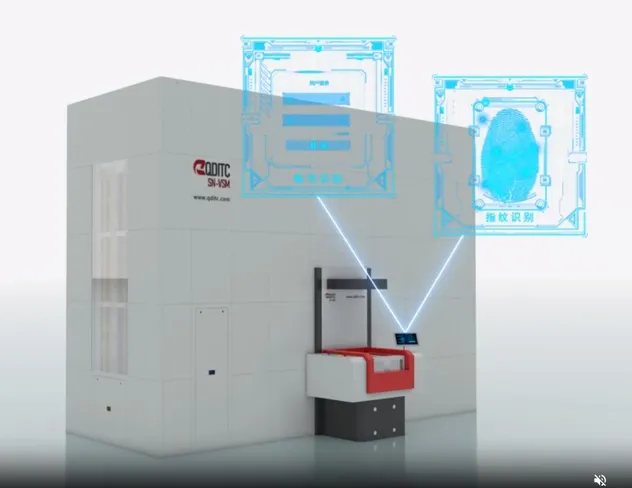

Front Elevation

Technical Specifications

Model	SN46066	SN46069
Device dimensions	W: 4,450 mm, D: 2,090 mm, H: 3,000 mm	W: 6,220 mm, D: 2,090 mm, H: 3,000 mm
Storage Quantity	71 units	107 units
Box size	W400D600H230 mm	W400D600H230 mm
Rated load	50KG	50KG
Rate of climb	2.0 m/s	2.0 m/s
Horizontal velocity	1.0 m/s	1.0 m/s

*(Custom configurations available upon request.)

Professional Integration Solutions

Providing integrated automated warehouse solutions including:

Vertical Lift Storage (VLM)
Vertical Carousel (VCM)
Vertical Sorting (VSM)
Horizontal Sorting (IHSM)
Smart AS/RS Stacking
AGV/RGV Systems

Our solutions are widely utilized across manufacturing, trade, logistics, and terminal enterprises, focusing on innovation and client-first service.

Frequently Asked Questions

Q: What types of automated storage systems are available?

We offer a range of integrations including VLM (Vertical Lift Machine), VCM (Vertical Carousel), VSM (Vertical Sorting Machine), IHSM (Intelligent Horizontal Sorting Machine), and Smart Stacking Warehouses (AS/RS).

Q: What items are most suitable for these storage modules?

They are primarily used for tools, knives, spare parts, electronic components, pharmaceutical drugs, appliances, documents, and magnetic media.

Q: What is the typical lead time for an order?

For small quantities, the lead time is approximately 60 days. Larger quantities depend on current stock levels. New or custom items may require a minimum of 90 days.

Q: Which industries can benefit from this technology?

Suitable industries include aerospace, machinery, petrochemical, medicine, electronics, archives, railroad, and automotive manufacturing.

Q: What are the standard payment terms?

Terms are usually structured as 50% advance payment, 45% pre-shipment payment, and 5% acceptance payment within 10 days of installation.

Q: Are the systems customizable?

Yes, custom configurations for dimensions, box sizes, and load ratings are available upon request to meet specific warehouse requirements.
