Boksera Shelving
1 / 5
| Model NO. | QF-Medium duty rack |
|---|---|
| Usage | Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack |
| Material | Steel |
| Structure | Rack |
| Type | Pallet Racking |
| Mobility | Adjustable |
| Height | 0-5m |
| Weight Capacity | 200kg/layer |
| Lead Time | 15 Days |
| Surface Treatment | Powder Coating |
| Specification | 2000*600*2000 mm |

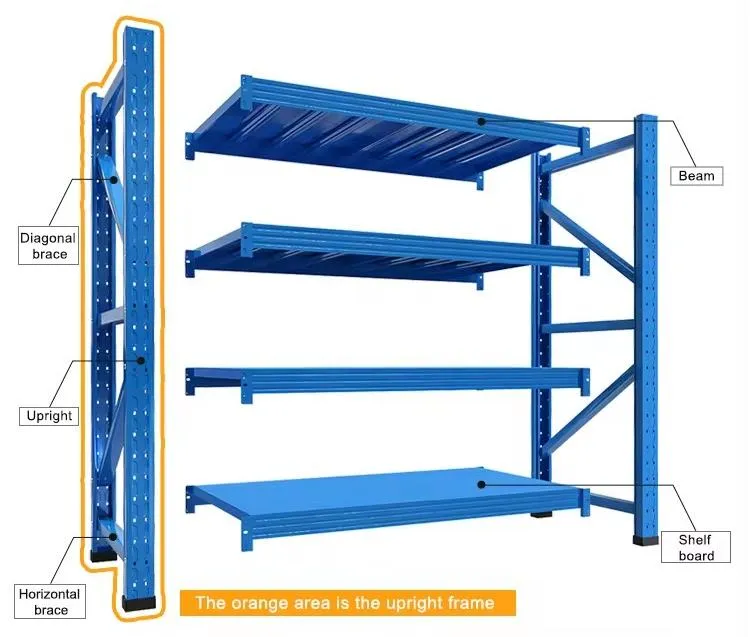

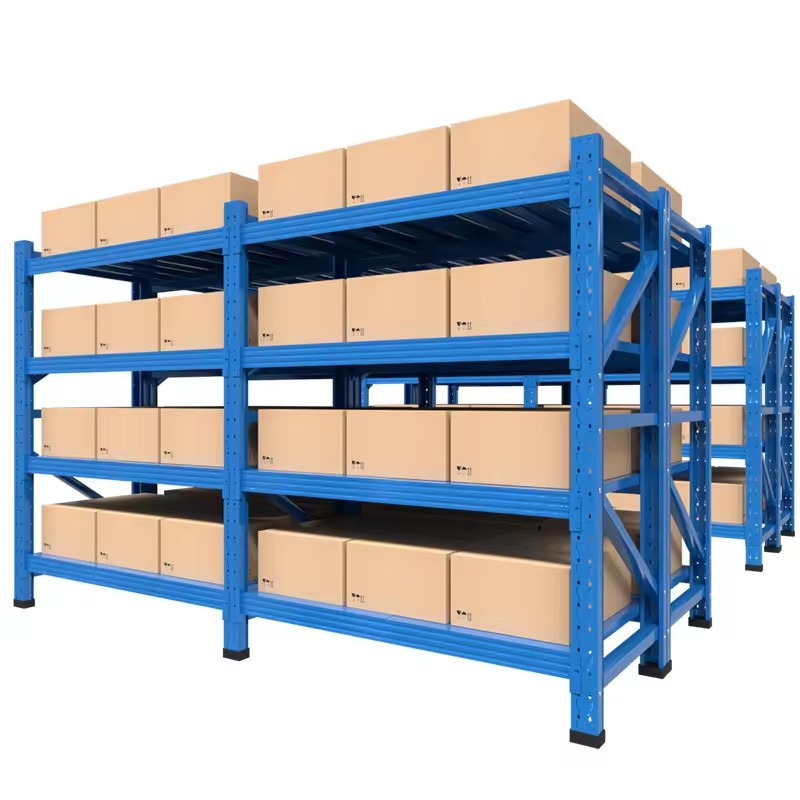

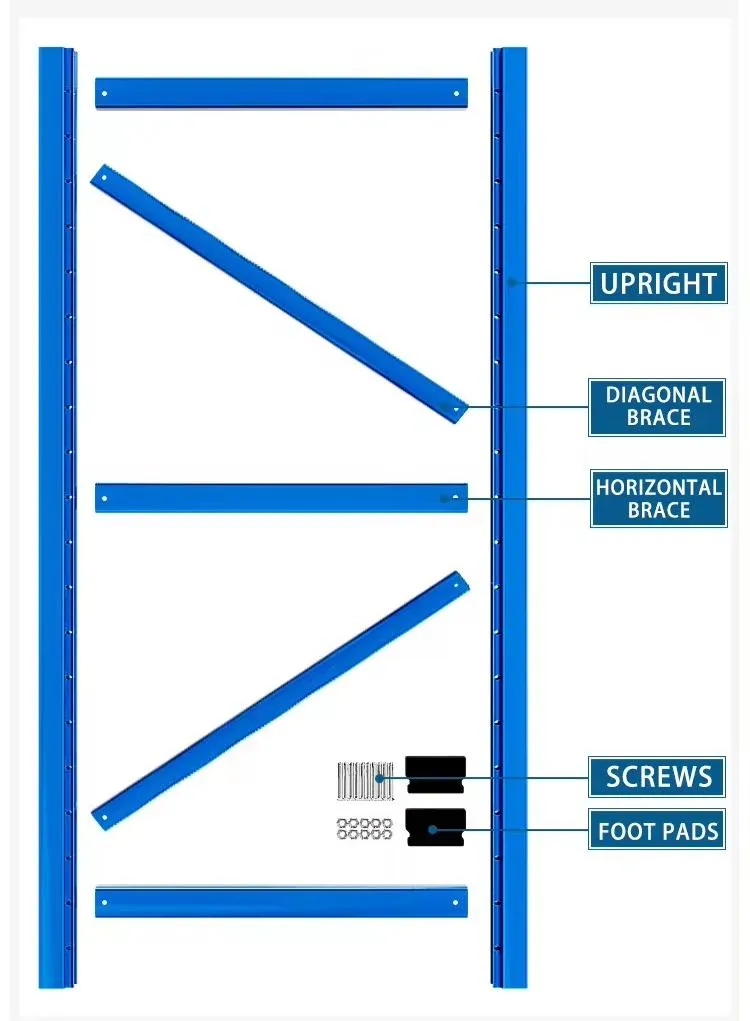

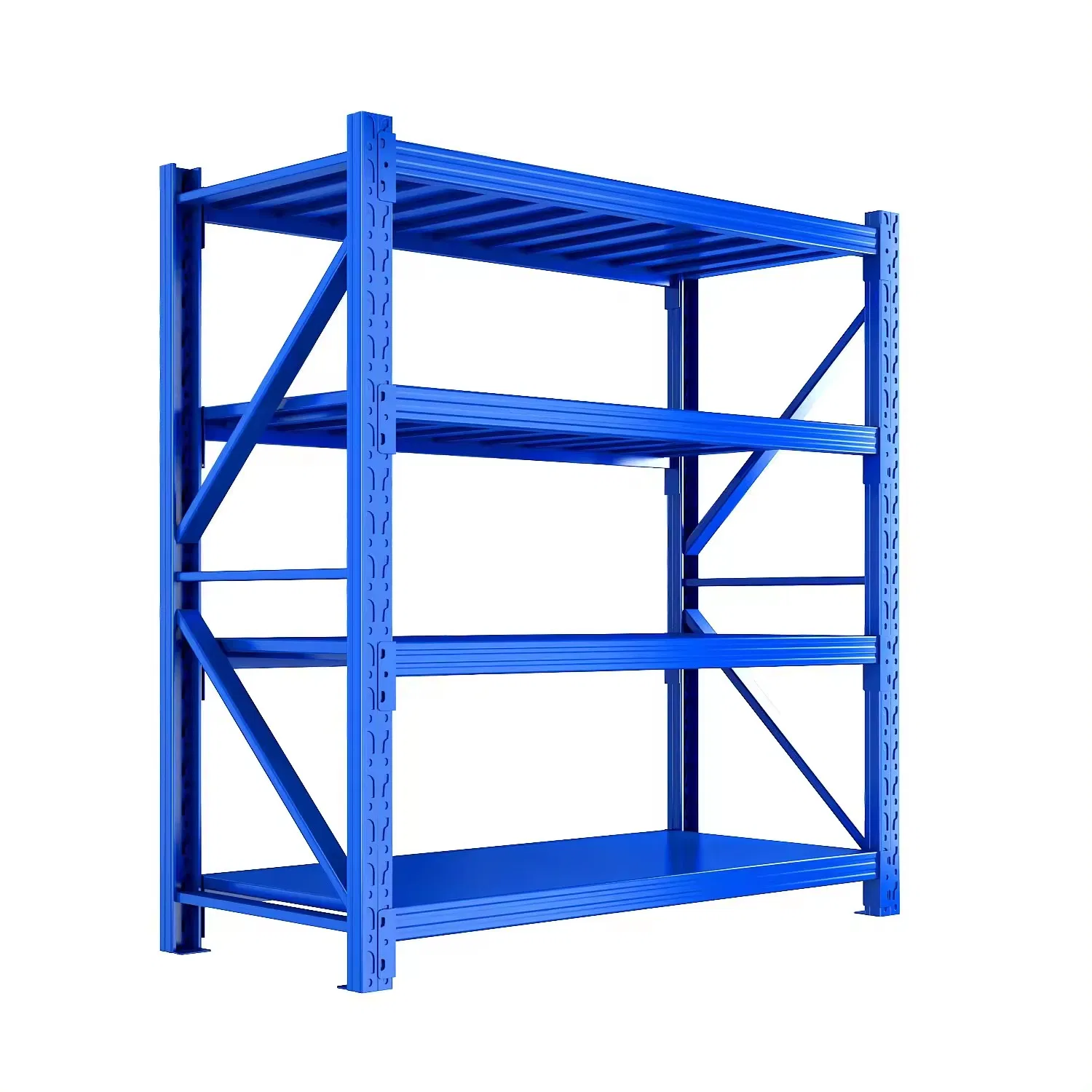

Medium Duty Rack adopts special step beams, which has the characteristics of simple structure, light weight, strong bearing capacity and low cost. The frame is connected by two uprights, horizontal braces and diagonal braces. It can be adjusted freely up and down to meet variety of storage needs. Medium duty racking is widely applied in electronics, food and medicine, clothing and office, business and other industries.
| Parameter | Value |
|---|---|
| Product Name | Medium-Duty Warehouse Shelf |
| Shelf Thickness | 0.35mm |
| Product Color | Orange, Gray, White, Blue, Black, or customized |
| Upright Specification | 50*35*0.5mm |
| Number of Shelves | 4 layers or customized |
| Manufacturing Process | Uprights/Crossbars/Shelves: Cold-rolled |
Designed for versatile storage with multiple load capacities including 100kgs, 200kgs, and 300kgs per layer. Various sizes available to fit your specific warehouse footprint.

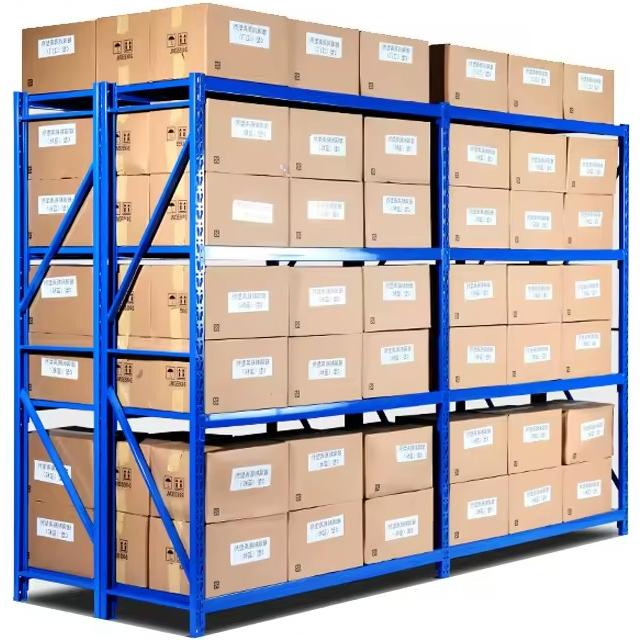

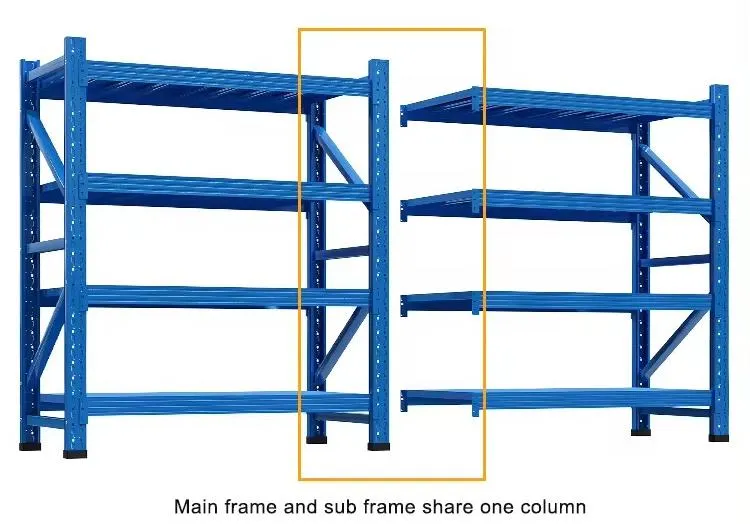

Saves Cost & Space: The main frame has two columns frames and can be used independently. Add-on racks (sub-frames) connect to the main rack, requiring only one column frame, which significantly reduces costs and installation space.

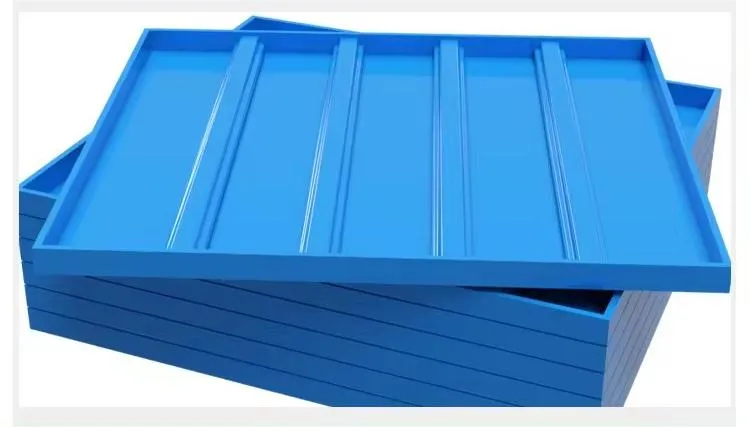

The spot-welded reinforcing ribs at the bottom of the shelf board increase the focal strength of the laminate, preventing deformation and making the structure much stronger under heavy loads.

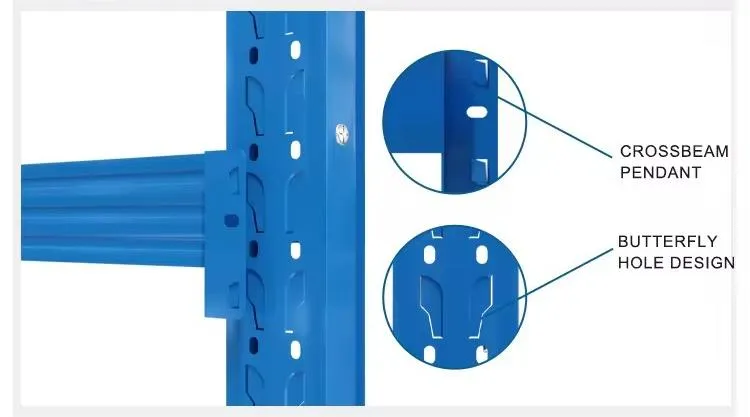

Designed with butterfly holes for easy connection with beam pendants. This boltless design saves time and effort during installation and allows for easy disassembly or height adjustment.

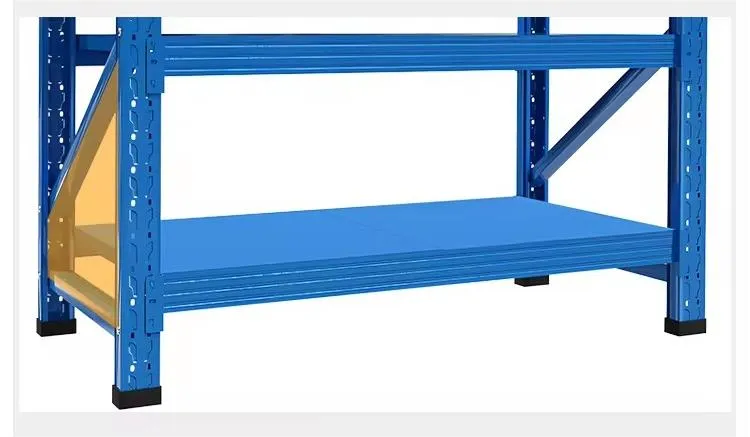

Diagonal bracing is added to the shelf system, conforming to mechanical theorems to ensure maximum stable load-bearing performance.
Assembled with bolts for efficient shipping container utilization.
We are a leading manufacturer specialized in designing and manufacturing industrial warehouse storage racks, automation warehouse systems, and professional logistics equipment. Our workshop is equipped with 6 automatic production lines and two static powder coating lines, ensuring high quality and durability.
All products are ISO:9001 certified, and our racking systems are approved by SGS. We provide cost-effective and high space utilization storage solutions for customers worldwide.
