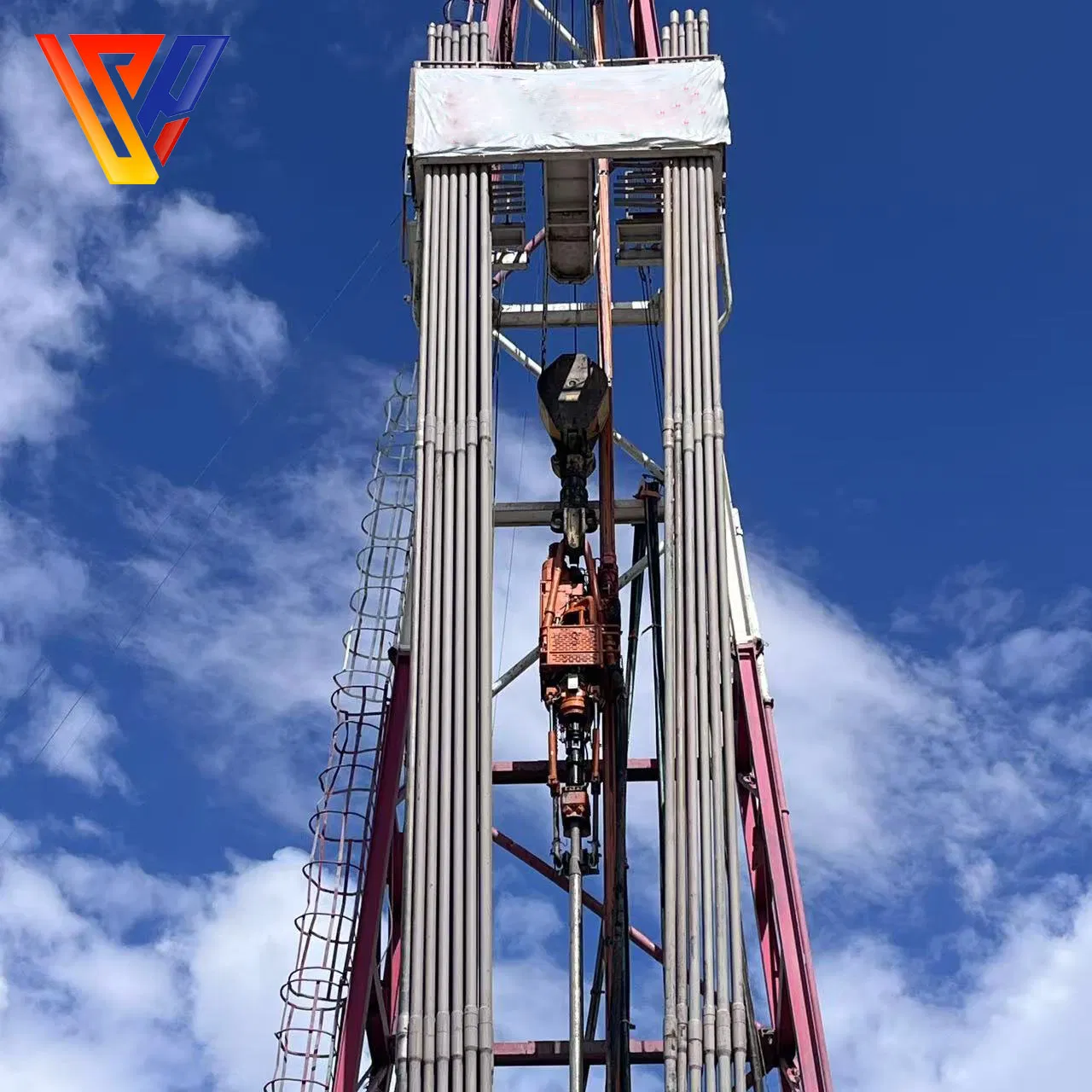

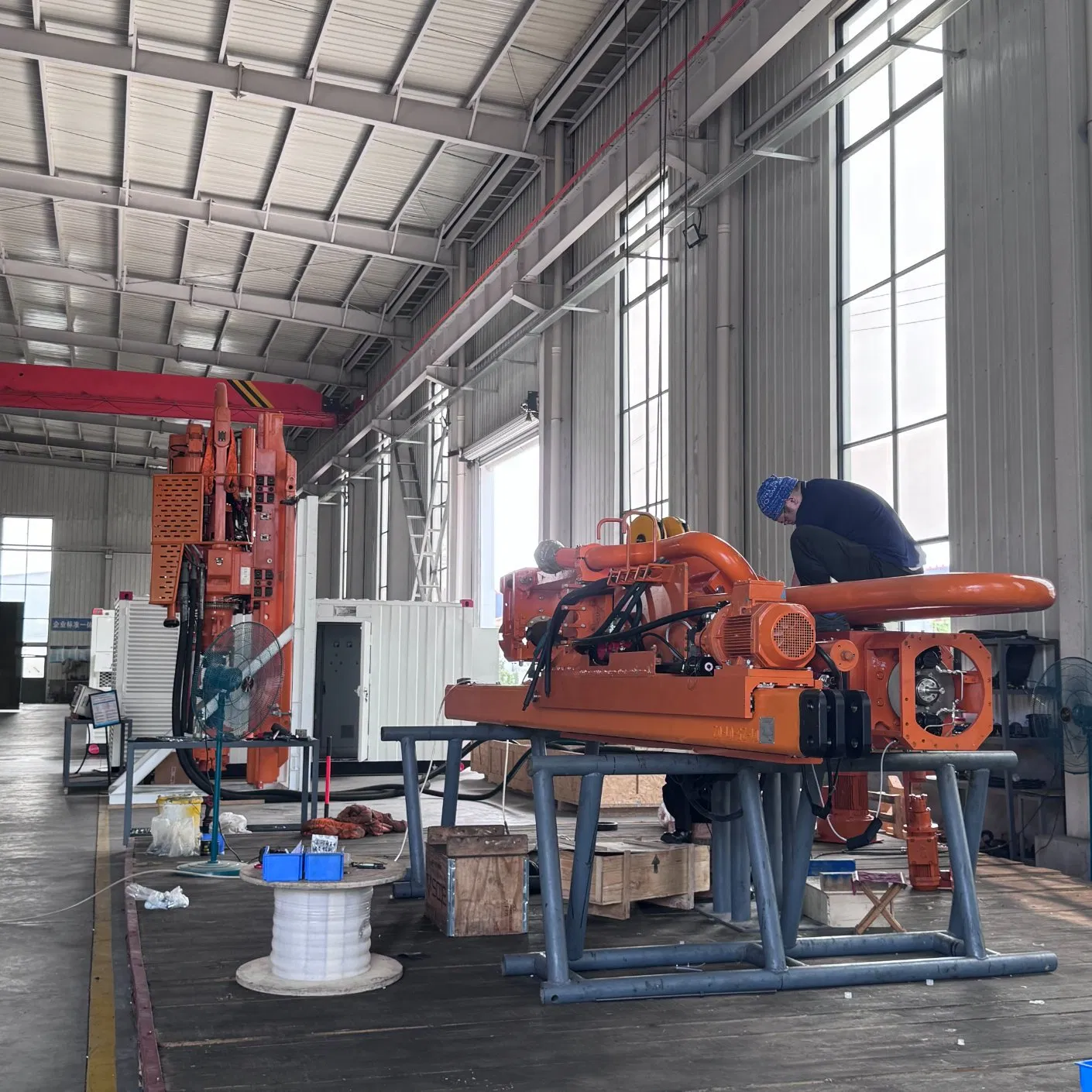

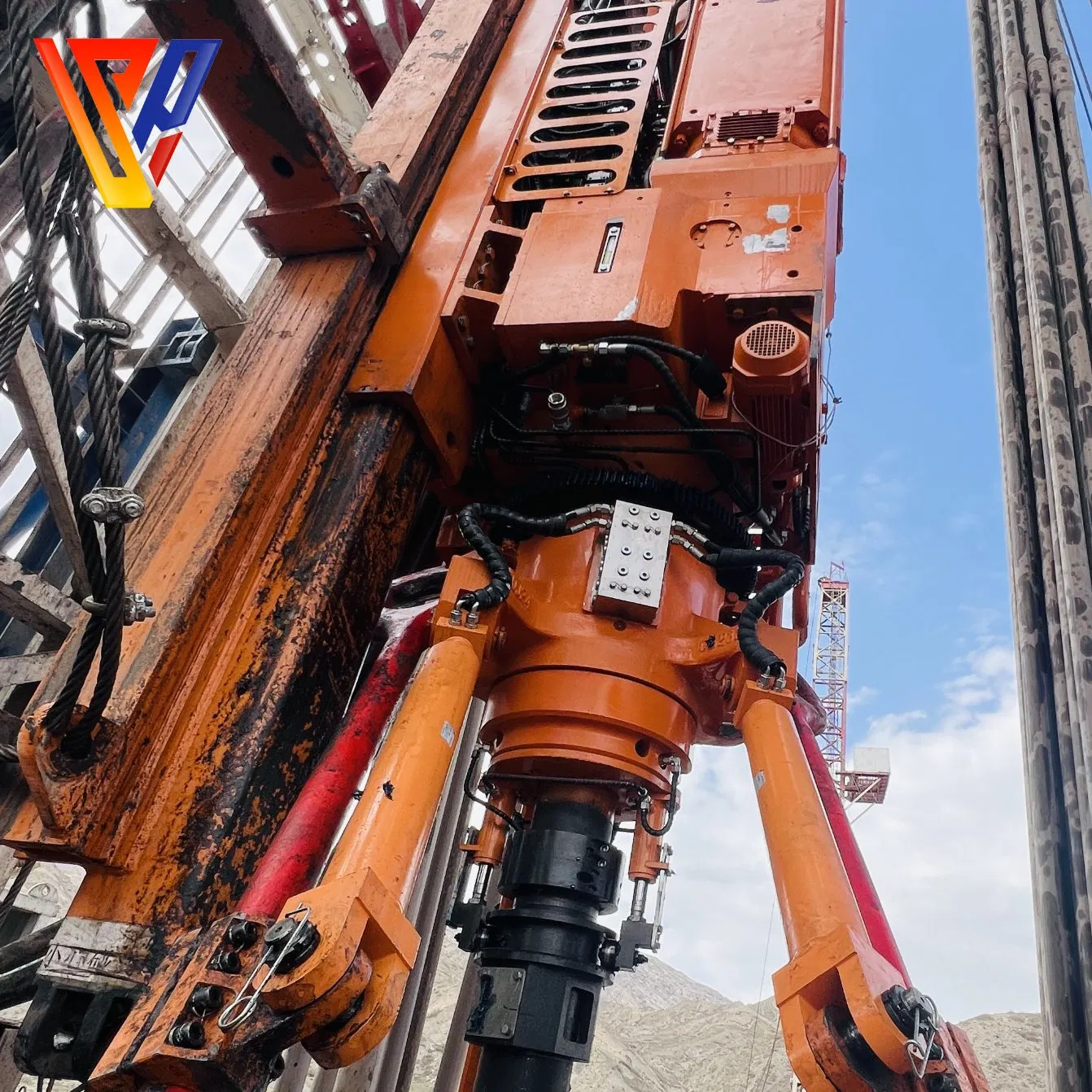

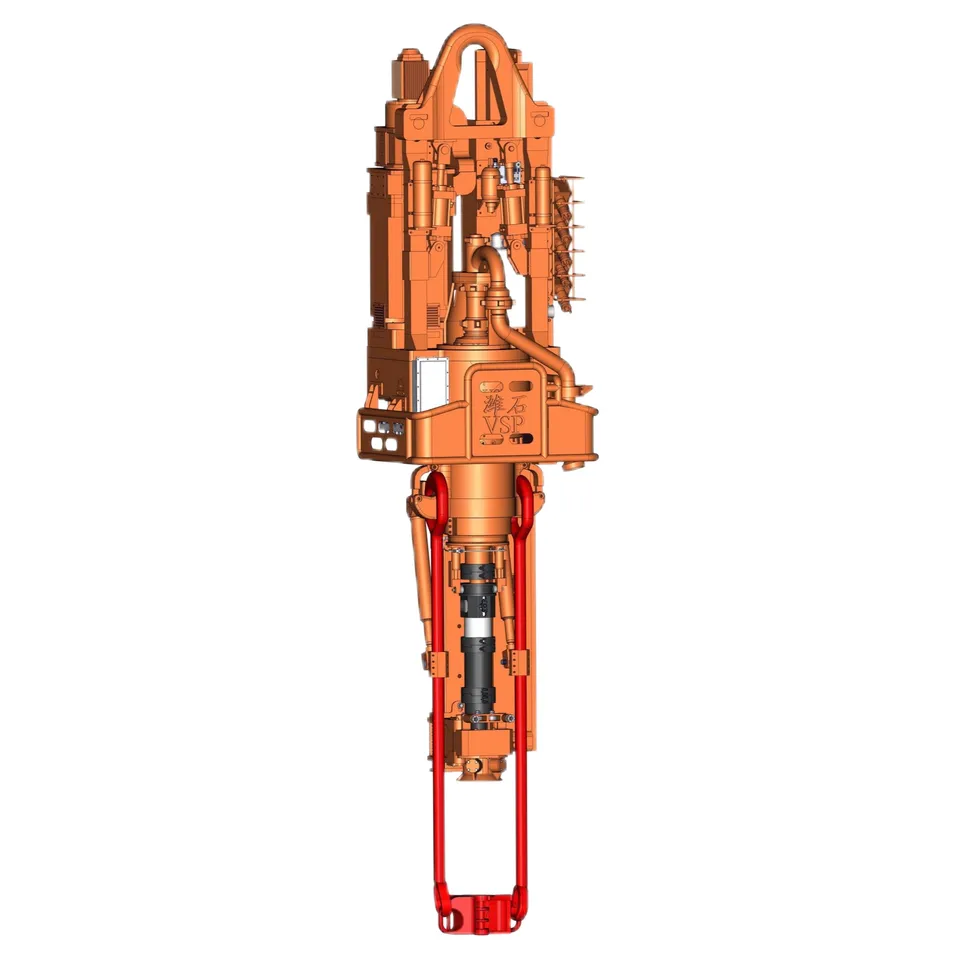

DQ50B-VSP: Torque-Dense Powerhouse for 5,000-Meter Drilling Frontiers
Engineered to conquer ultra-deep drilling challenges, this Top Drive System delivers uncompromising performance with 5,000-meter nominal capacity and a colossal 3,150 kN load rating. Powered by a high-torque 500KW motor, it generates exceptional 51 kN·m continuous output torque while maintaining precise control through 0–180 RPM infinitely adjustable rotation.
The system's 360° rotating link adapter enables unmatched maneuverability in complex directional wells. Critical pressure management features include dual-rated 35/52 MPa mud circulation and ultra-reliable 105 MPa IBOP control, ensuring operational integrity in high-pressure formations.

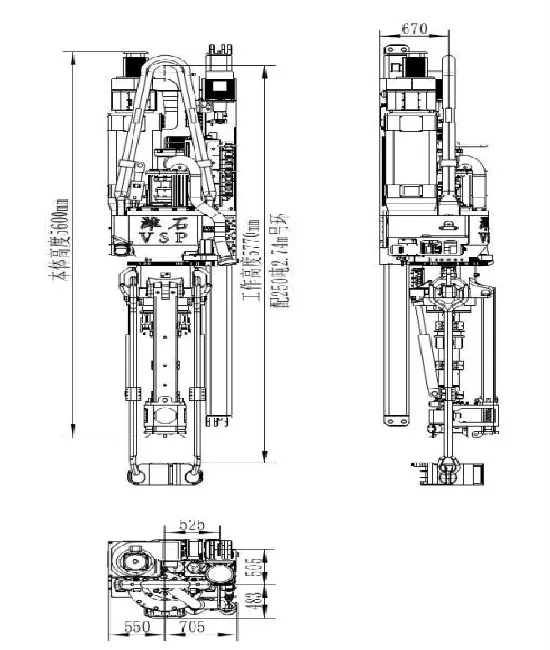

Key Technical Features:
| Parameter Class | DQ50B-VSP Details |
|---|---|
| Nominal Drilling Depth (114mm pipe) | 5000m |
| Rated Load | 3150 KN |
| Working Height (3.3m Link) | 6700mm |
| Continuous Output Torque | 51 KN.m |
| Maximum Breaking Torque | 76.5 KN.m |
| Speed Range of Main Shaft | 0-180 r/min |
| Mud Circulation Pressure | 35/52 MPa |
| IBOP Rated Pressure | 105 MPa |
| Main Motor Rated Power | 500KW |
| Ambient Temperature Range | -45℃ to 55℃ |
| Dimensions | 5700mm * 1610mm * 1540mm |

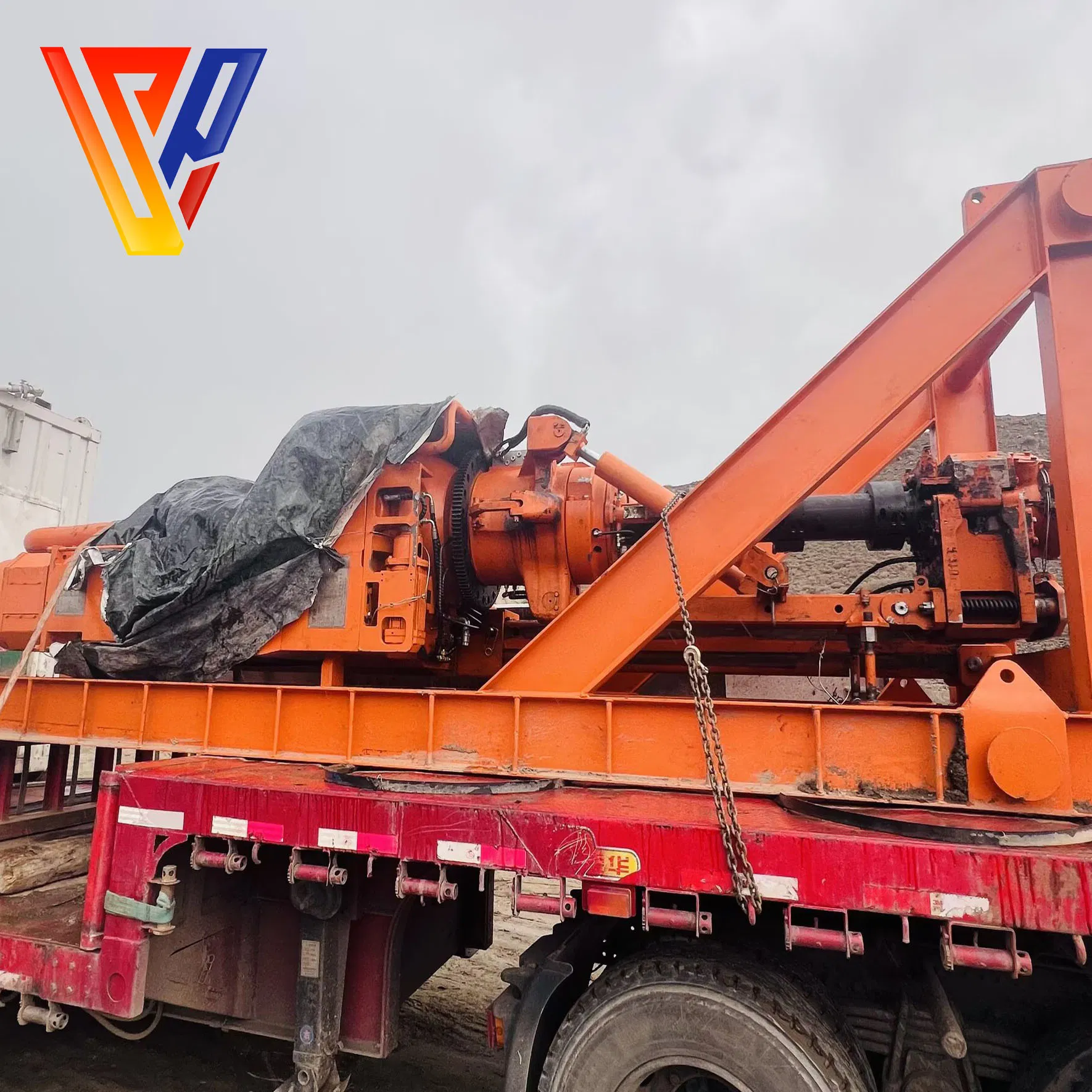

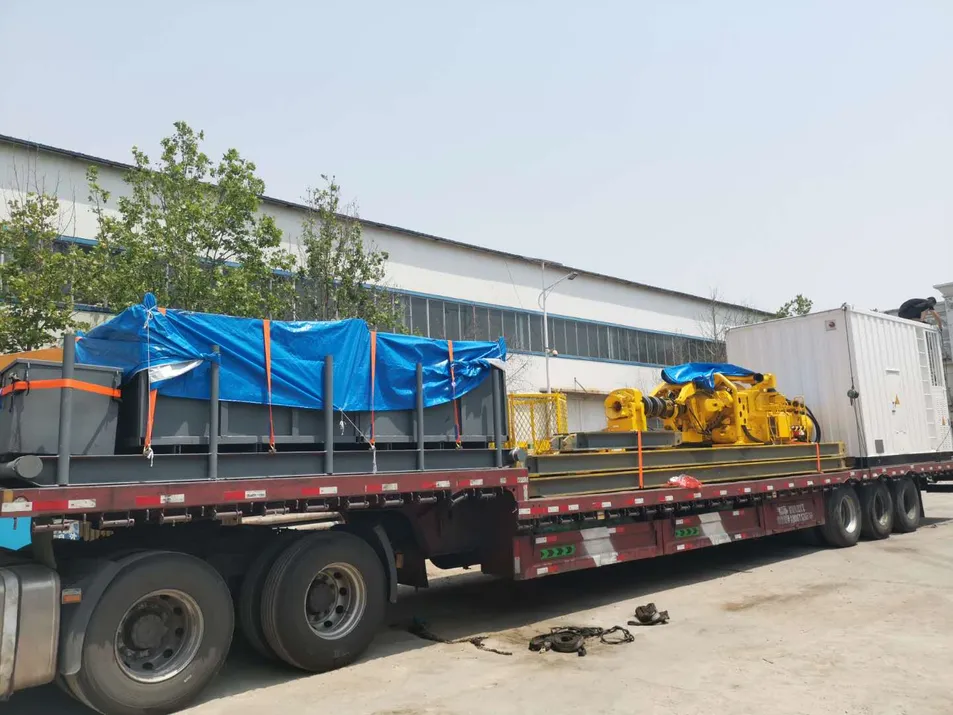

Our operations utilize API-certified warehousing and substantial emergency inventory, enabling 24-hour global dispatch. All shipments use industrial wooden crates reinforced with anti-corrosion treatments and shock sensors. We also provide iron racks or containerization based on cargo profiles. Every package features clear labeling and RFID tracking for global reach across the Middle East, Russia, Africa, and India.

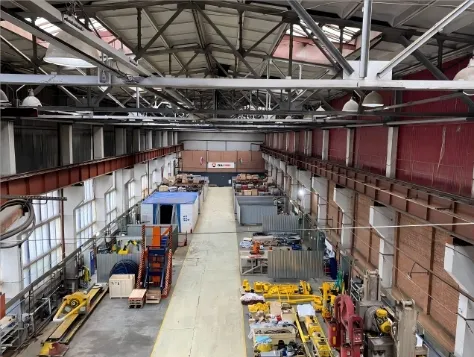

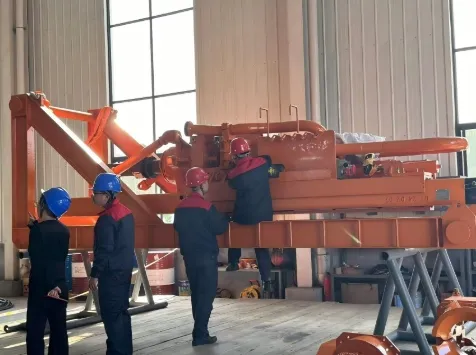

Comprehensive partnership to maximize equipment uptime:
