Durable Design Asrs Warehouse Picking System Automated Storage and Retrieval System
Durable Design Asrs Warehouse Picking System Automated Storage and Retrieval System
Durable Design Asrs Warehouse Picking System Automated Storage and Retrieval System
Durable Design Asrs Warehouse Picking System Automated Storage and Retrieval System
Durable Design Asrs Warehouse Picking System Automated Storage and Retrieval System
1 / 5
Durable Design Asrs Warehouse Picking System Automated Storage and Retrieval System
Durable Design Asrs Warehouse Picking System Automated Storage and Retrieval System
Durable Design Asrs Warehouse Picking System Automated Storage and Retrieval System
Durable Design Asrs Warehouse Picking System Automated Storage and Retrieval System
Durable Design Asrs Warehouse Picking System Automated Storage and Retrieval System

Durable Design Asrs Warehouse Picking System Automated Storage and Retrieval System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
HYD-ASRS02
Material
Steel (Q235)
Structure
Selective Pallet Racking
Height Range
5-40m
Weight Capacity
150kg-5000kg
Pallet Size
1*1.2m or Customized
Warehouse Type
Existing or New Build
Storage Medium
Pallet, Metal Cage or Others
Packaging & Delivery
Package Size
120.00cm * 70.00cm * 60.00cm
Gross Weight
1500.000kg
Product Overview

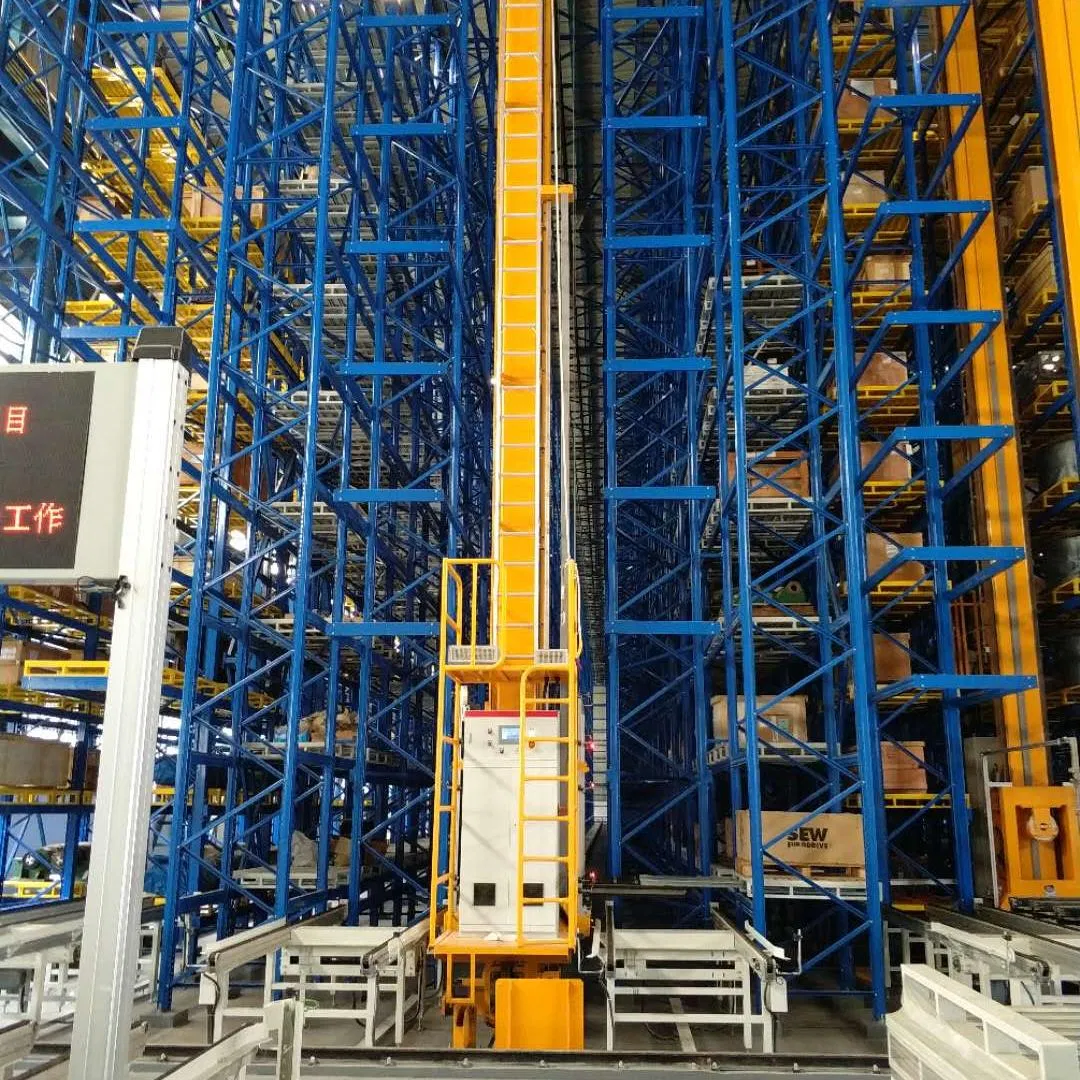

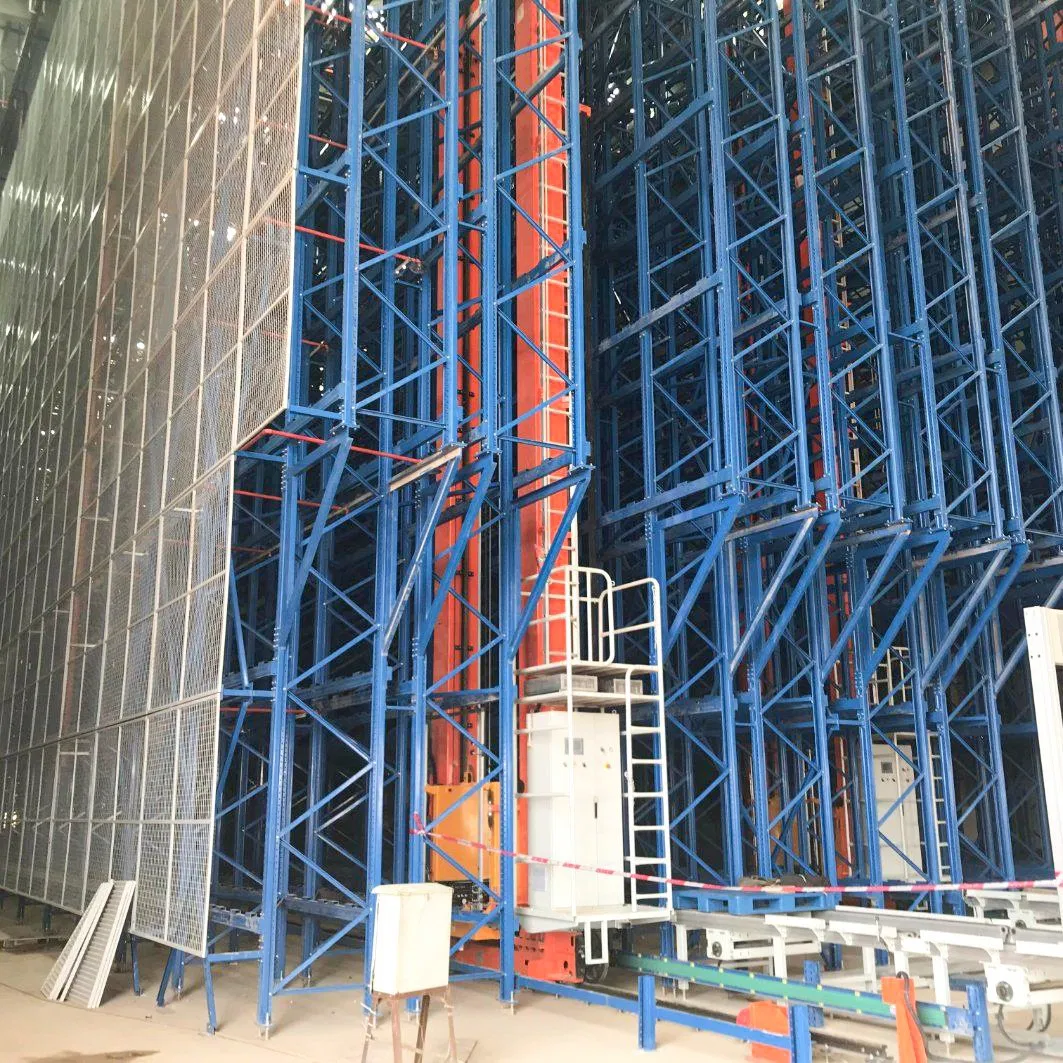

Stacker Crane AS/RS for pallets is an automated system that efficiently stores and retrieves goods, replacing manual warehousing tasks. The storage and retrieval machine (SRM) operates as a crane that moves horizontally within a single aisle.

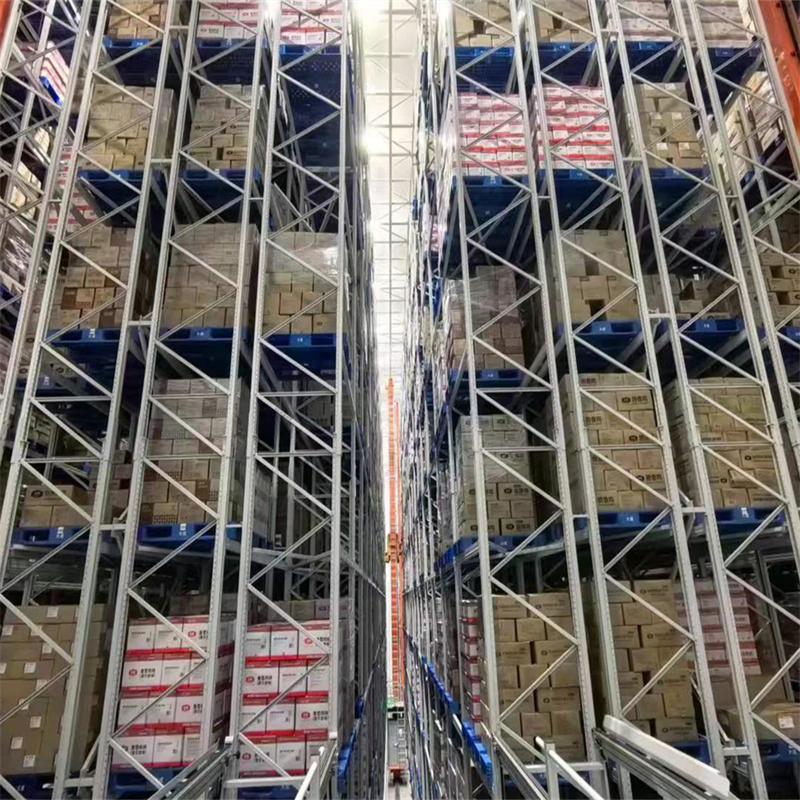

Double Deep Pallet Automated Warehouse Storage System is renowned for its high-density pallet storage, rapid operation, and adaptability. Its versatile design spans up to 40 meters, allowing customization to seamlessly integrate into your specific installation environment.

ASRS Warehouse Picking System
Solution Advantages
  • Make full use of warehouse vertical space and improve warehouse turnover rate
  • Reduce dependence on manual labor demand
  • Fast transportation speed, reducing storage and transportation losses
  • Automated management of goods with WMS/WCS integration
Unit Load Handling Scope

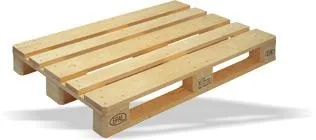

Open Pallet Open Pallet: Standard shape popular in Europe and Asia. Standard sizes: 800x1200mm and 1000x1200mm.

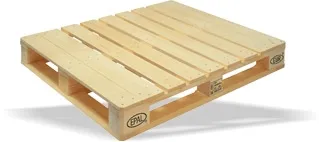

Closed Pallet Closed Pallet: Standard shape popular in Europe and Asia. Standard sizes: 800x1200mm and 1000x1200mm.
Pallet Cage Stillages / Pallet Cage: A four-legged pallet cage commonly used for storing machine parts.
Key Configurations

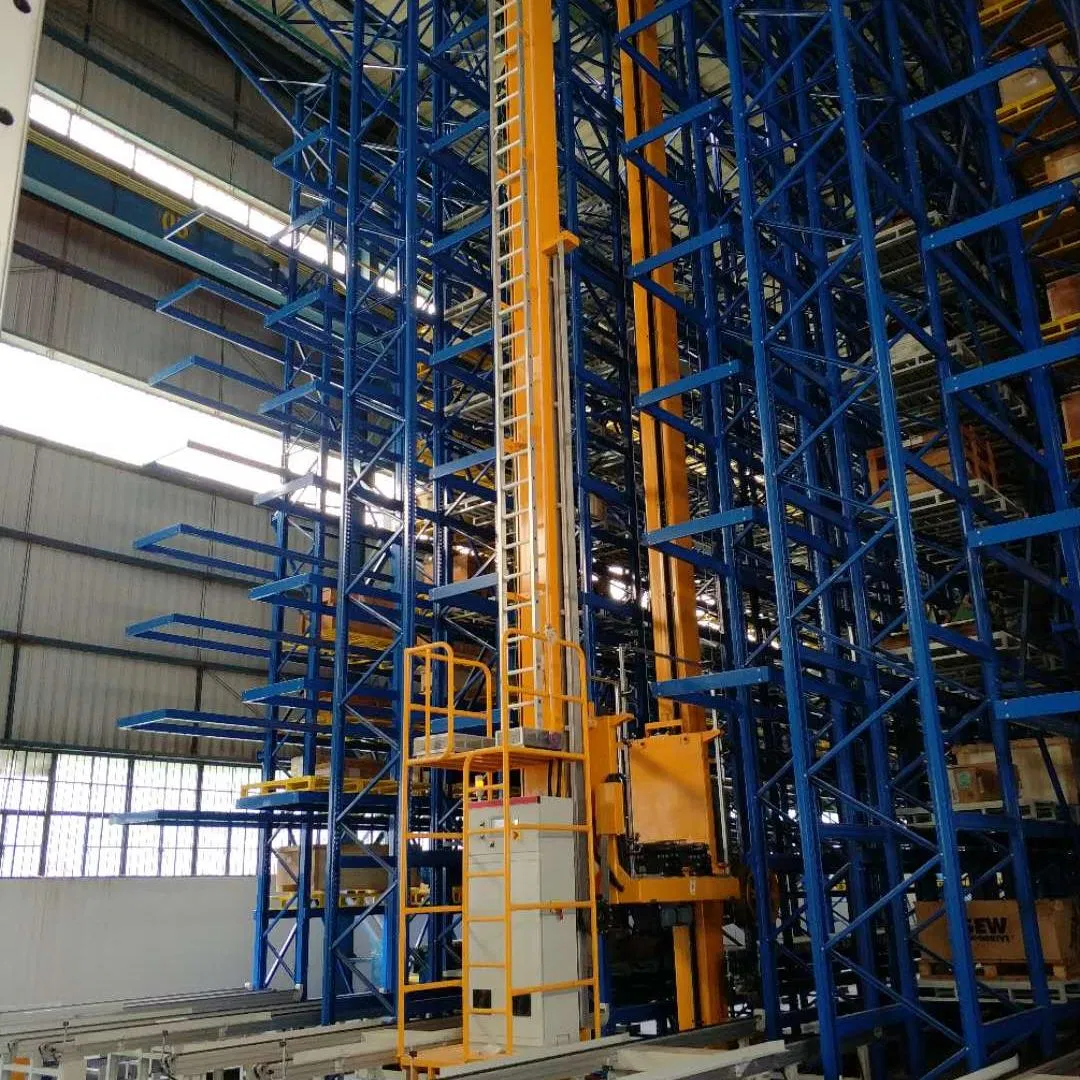

Storage / Retrieval Machine (S/RM)

Our S/RM enables efficient horizontal and vertical positioning within the AS/RS. The Double Mast Design provides added stability for heavier loads and supports heights up to 140 feet.

  • Horizontal Speed: Up to 900 ft./min
  • Vertical Speed: 400 ft./min
  • Load Capacity: Up to 5,000 lbs
SRM Machine

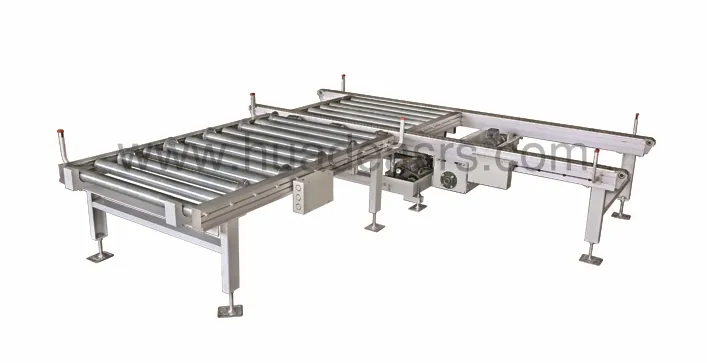

Conveying Systems

Ensures continuous and accurate movement of goods. Integrates with stretch-wrappers, label applicators, and staging systems.

  • Real-time monitoring and precise control
  • High throughput for rigorous fulfillment
  • Robust components for minimal maintenance
Conveying Systems
Project Gallery

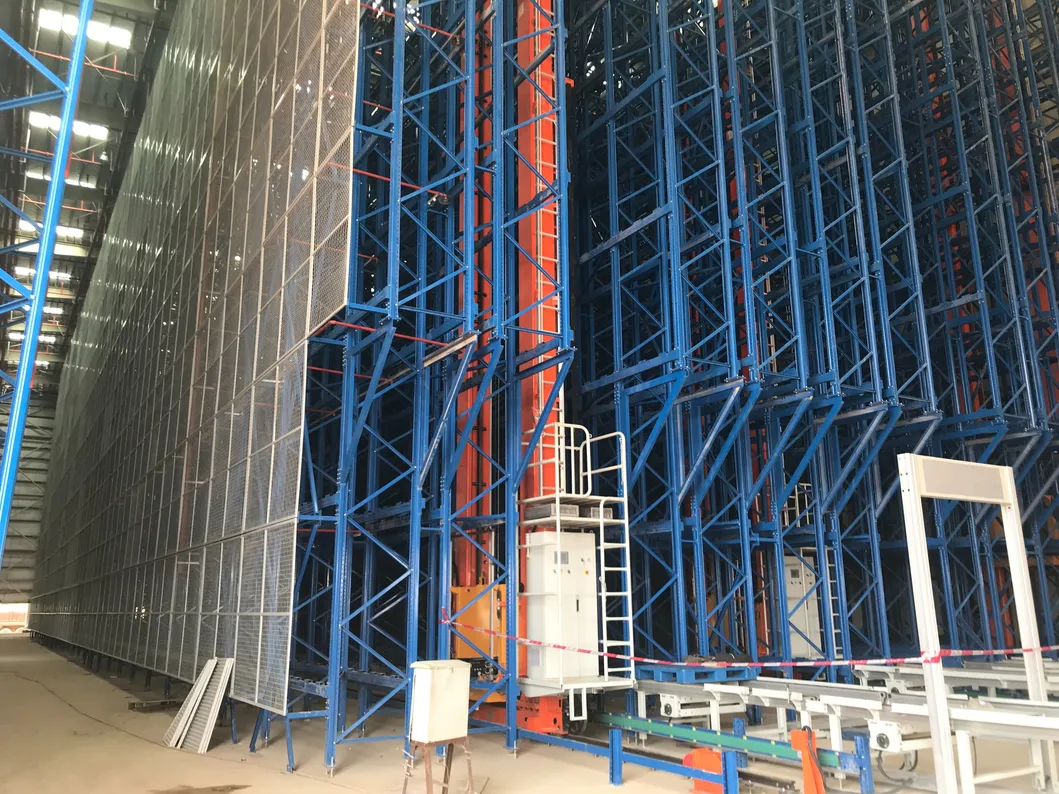

Gallery 1
Gallery 2
Gallery 3
Gallery 4
Gallery 5
Gallery 6
Frequently Asked Questions
What types of ASRS systems are available?
We offer Unitload AS/RS for pallets, Miniload AS/RS for boxes/containers, Shuttle Storage systems, and Rack-supported building types.
What is the maximum height and load capacity?
The system can reach heights up to 40 meters (140 feet) and handle single loads up to 5,000 lbs (approx. 2,260 kg).
Is the system suitable for cold storage?
Yes, the stacker cranes feature a specially treated anti-low temperature design, making them ideal for cold storage projects.
How does the project implementation process work?
The process involves 6 steps: Define objectives, Measure data, Analyze requirements, Design the model, Validate feasibility, and final Presentation.
Can the system handle non-standard loads?
Yes, in addition to standard pallets, the system can be configured for long objects like pipes and plates up to 6 meters long, as well as metal cages.
What controls are used for positioning?
The system utilizes QR code precise positioning control in both horizontal and vertical directions for high accuracy and fast movement.
