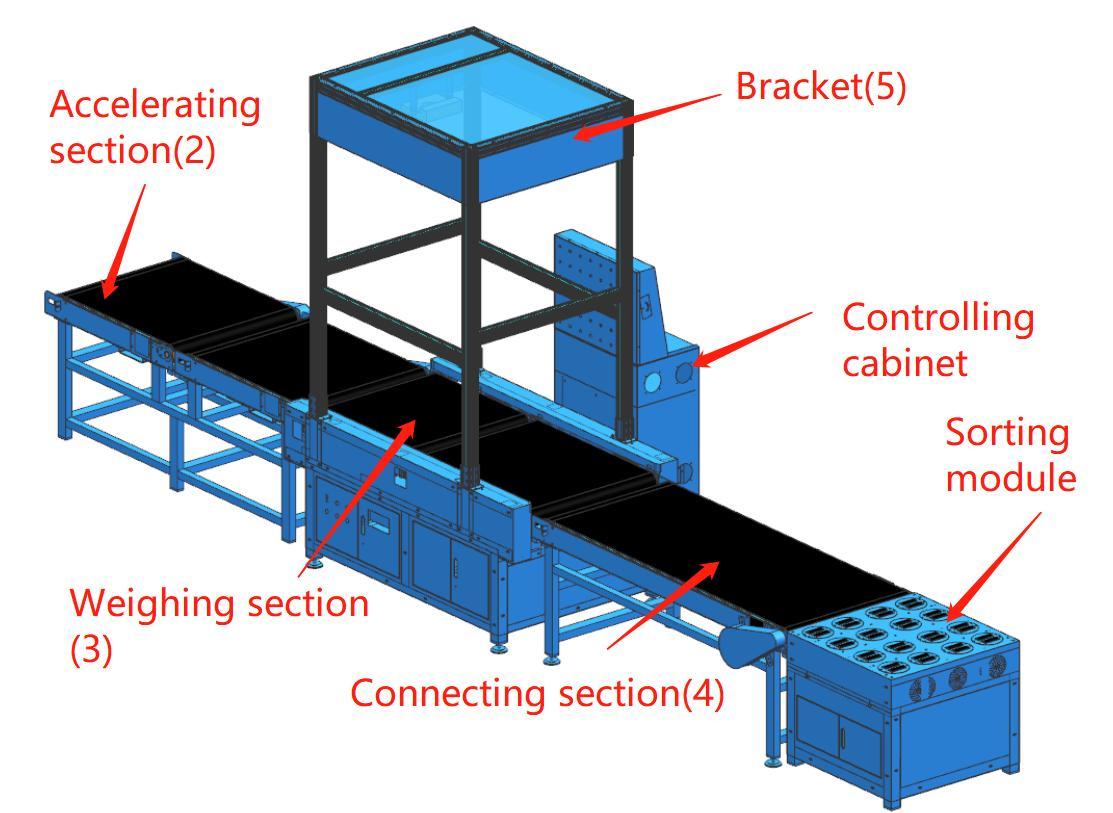

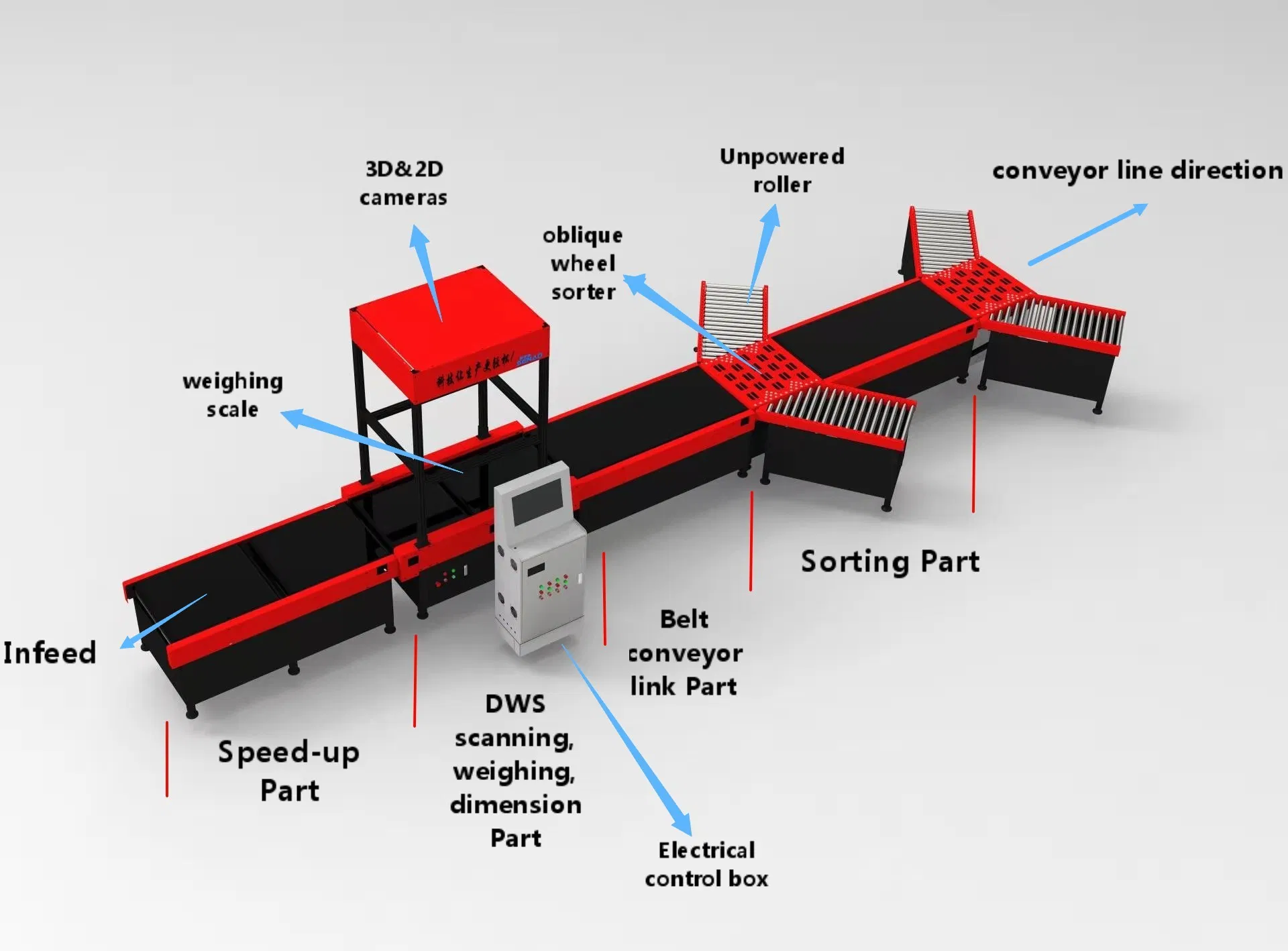

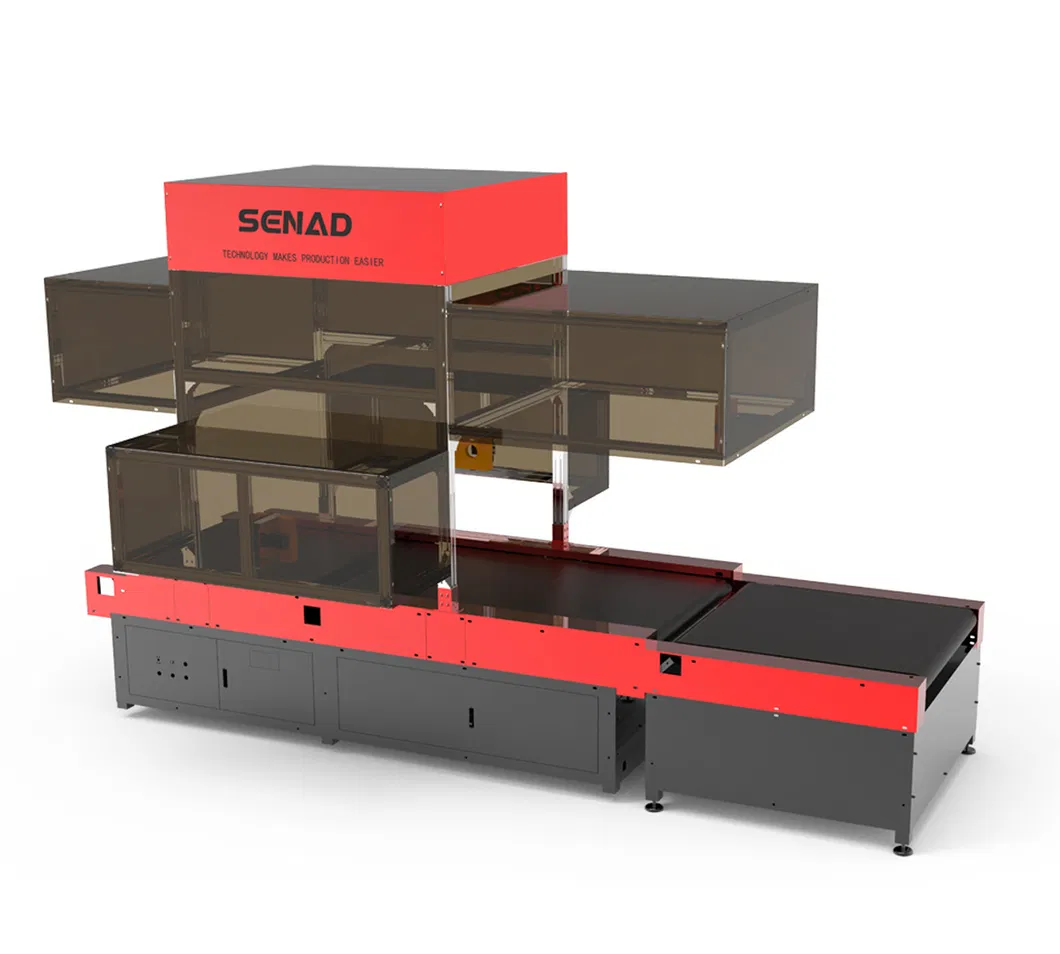

The DWS adopts the self-developed high-resolution intelligent barcode reading camera, volume measuring instrument, and dynamic weighing module, which can efficiently complete the real-time accurate collection and output of the three major information of volume, barcode and weight. The system can realize the automatic sorting of express parcels with the sorting equipment.
| Parts & Index | Configuration & Parameter | ||
|---|---|---|---|
| Industrial computer | Intel I5 | Weighing range | 30g~60kg |
| Display | 19.5inches LCD | Dimensioning range | 50*50*5~800*800*800mm |
| Camera | 20 million pixel Industrial camera | Capacity | 2500~3600pcs/hour |
| Load cell | 100kg | Scanning accuracy | 99% |
| Software Interface | HTTP, TCP, 485 | Weighing accuracy | ±10g |
| Remote diagnosis | Yes | Weighing mode | Dynamic weighing |

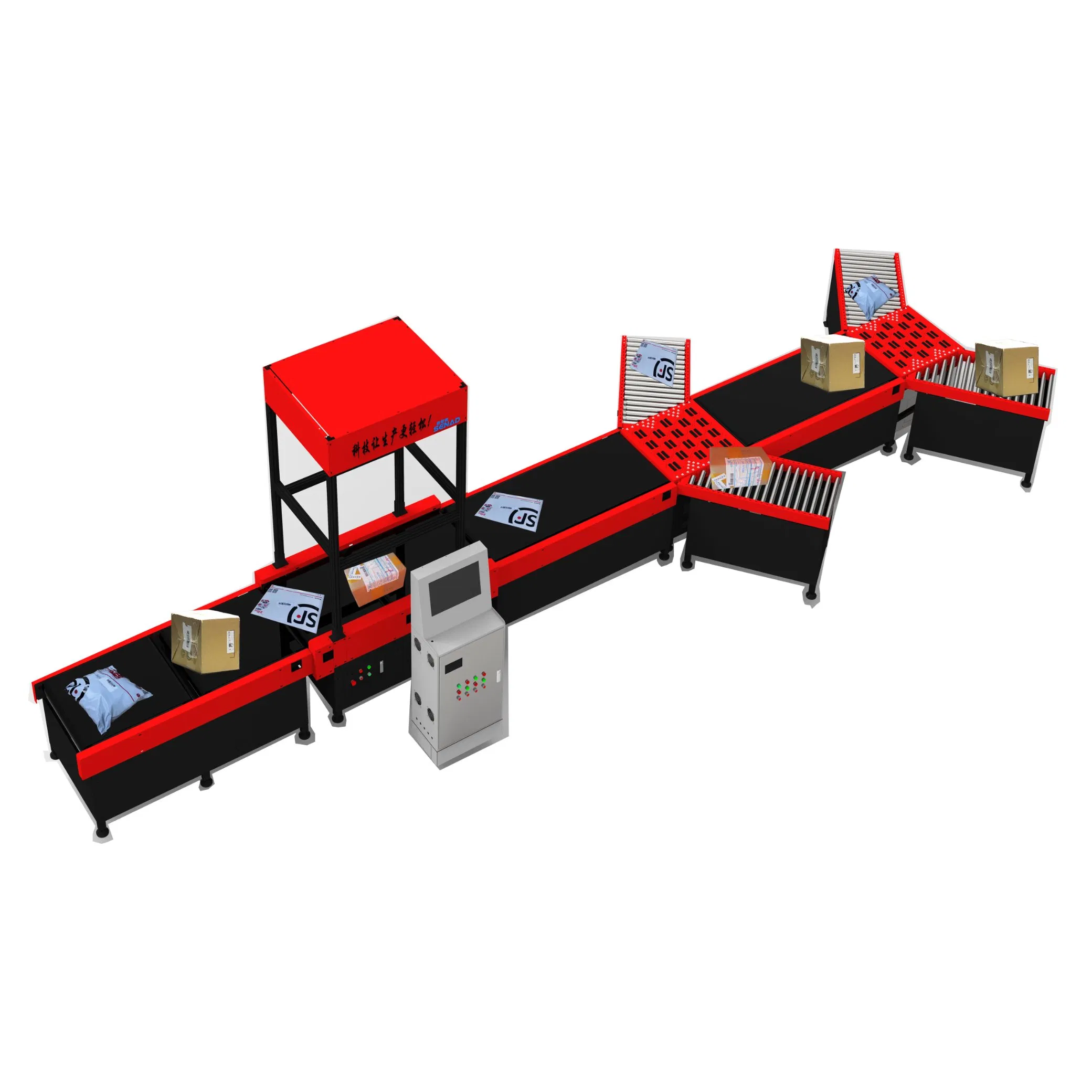

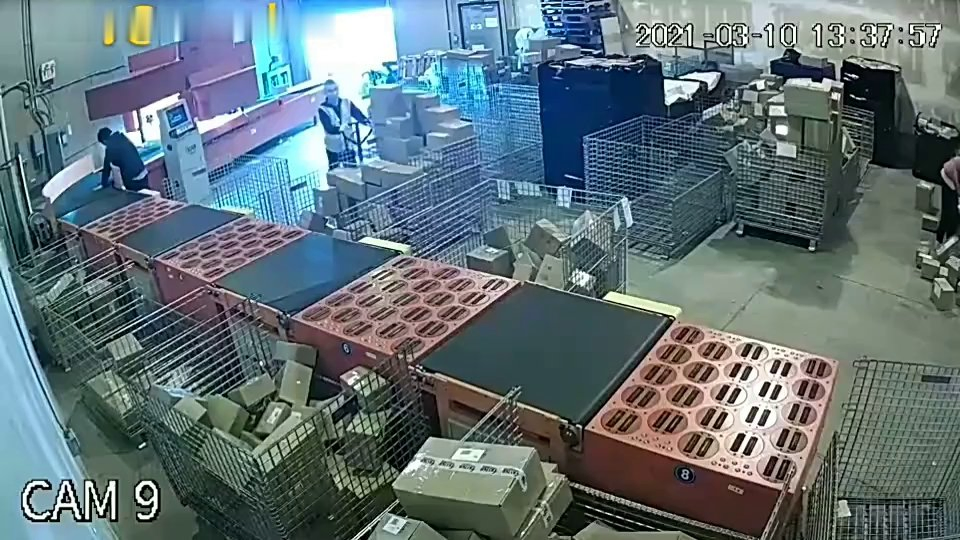

Automatically sorted into 3 directions for efficient parcel handling.
Scans barcode, weighs, and measures volume simultaneously to the cloud.

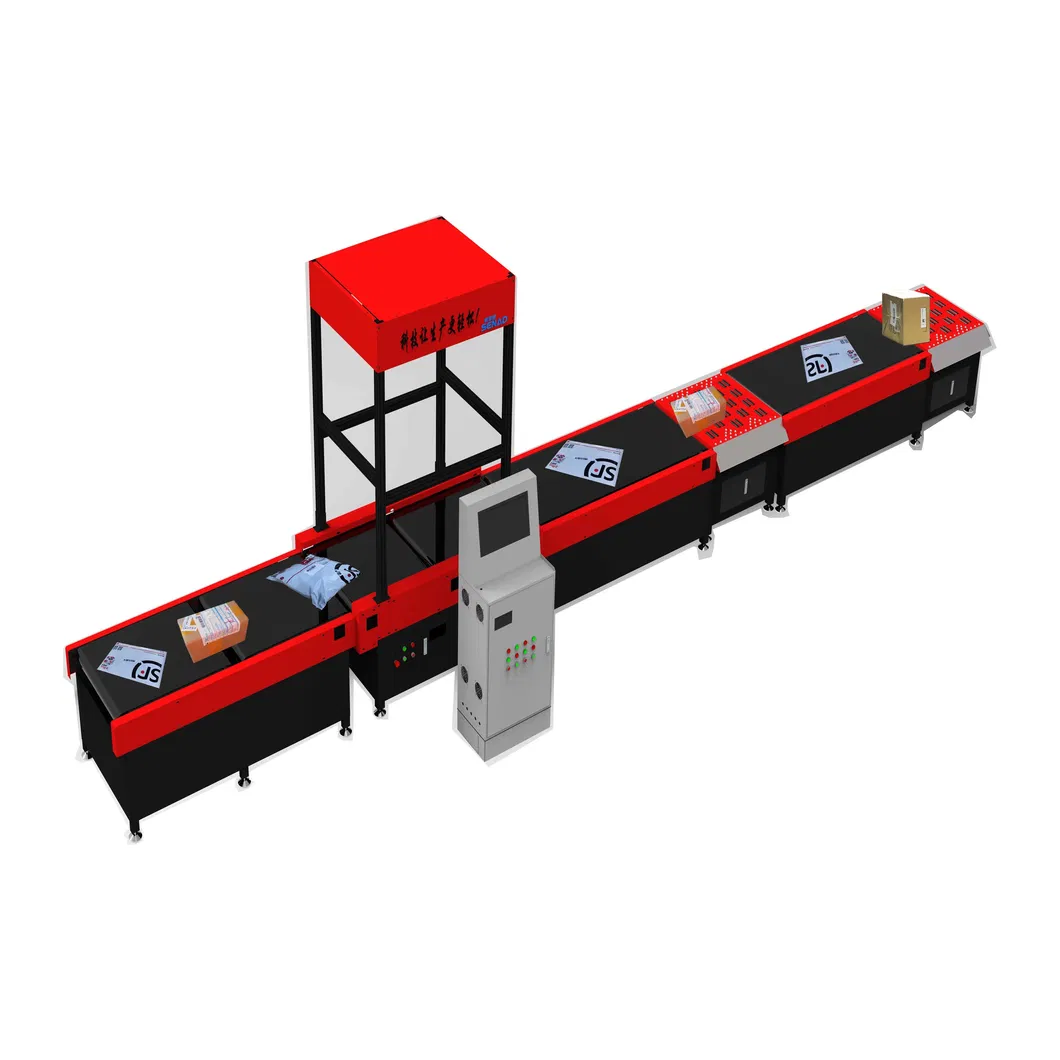

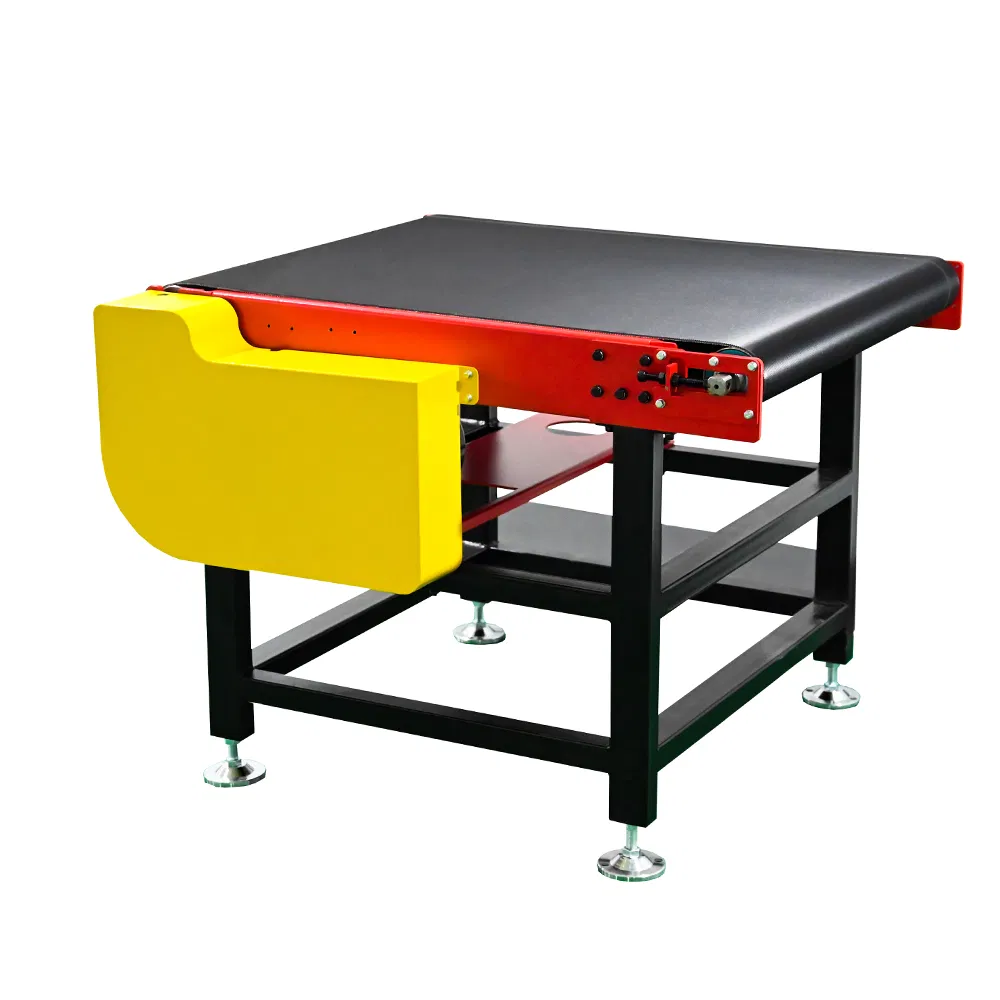

Customizable length and width based on site requirements.
Founded in 2012, our high-tech enterprise concentrates on R&D and production of high-end warehouse automation equipment. We provide standard and customizable solutions for high-speed barcode scanning, weighing, volume dimensions measuring, and integrated sorting lines. Utilizing machine vision deep learning algorithms and robot motion control, we aim to replace manual labor with high-efficiency robotic systems, reducing human errors and increasing operational productivity.
