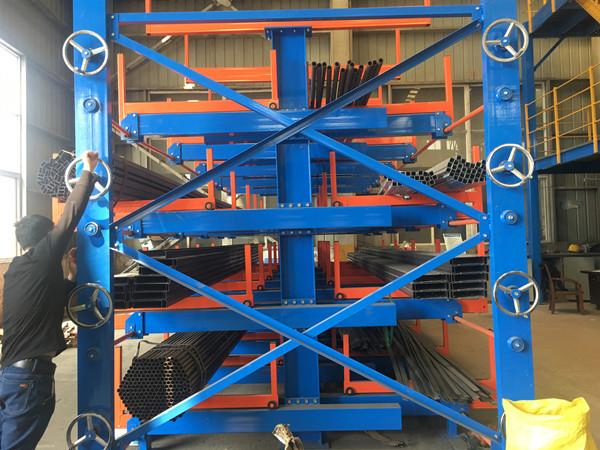

Efficient Pipes Storage System with Durable Cantilever Racking Design

Customization:	Available
After-sales Service:	All Life
Warranty:	10 Years

Basic Information

Model NO.

cantilever racking 2

Usage

Warehouse Rack, Industrial, Supermarket

Material

Steel Q355 or Q235

Structure

Rack

Type

Cantilever Racking

Mobility

Adjustable

Height

3-12 Meter

Weight Capacity

300-1500kg / Pallet

Surface Treatment

Powder Coating or Galvanizing

Coating Color

Blue / Orange / Grey

Production Capacity

500,000 pieces/Year

HS Code

73089000

Product Description

DRIVE IN RACK

Drive-in and drive-through racks are ingeniously engineered to cater to both last-in, first-out (LIFO - drive-in) and first-in, first-out (FIFO - drive-through) inventory management systems. Pallets are strategically positioned on support rails affixed to columns, allowing forklifts seamless entry into the system.

High Warehouse Utilization: Surpassing 80% spatial efficiency.
Impressive Loading: Accommodating 300-1500 kg per pallet layer.
Large-Scale Storage: Ideal for limited variety of high-volume goods.
Flexible Operations: Compatible with both LIFO and FIFO systems.

Applications:

Minimized aisle requirements enhance spatial efficiency.
Sophisticated 'Last In, First Out' storage system solution.
Highest density pallet storage rack system on the market.
Perfect for uniform products, refrigerated, and frozen storage needs.
Tailored for seasonal or slow-moving inventory.

Product Parameters

Drive In Racking Parameters
Used scene		Package on Pallet, a few cargoes type
Loading and Unloading		Forklift or AGV for Pallet
Material		Steel Q355 or Q235
Surface Treatment		Powder coating or Galvanizing (Blue, Orange, Grey)
Main Components List
No.	Item	Size (mm)	Section (mm)	Process
1	Frame	Height x Depth	90/100/120	Punching-Roll forming-Cutting
2	Single Upright	Height	90/100/120	Roll forming-Cutting
3	Frame spacer	Length	50x30, 60x40	Cutting - Welding
4	Half arm	Standard	Match Frame	Punching-Bending
5	Arm	Standard	Match Frame	Punching-Bending
6	Support rail	Length	Thickness: 2.0/2.5	Roll forming-Cutting
11	Guide rail	Length	140x80x4.0 / 170x85x4.0	Roll forming-Cutting

Detailed Photos & Features

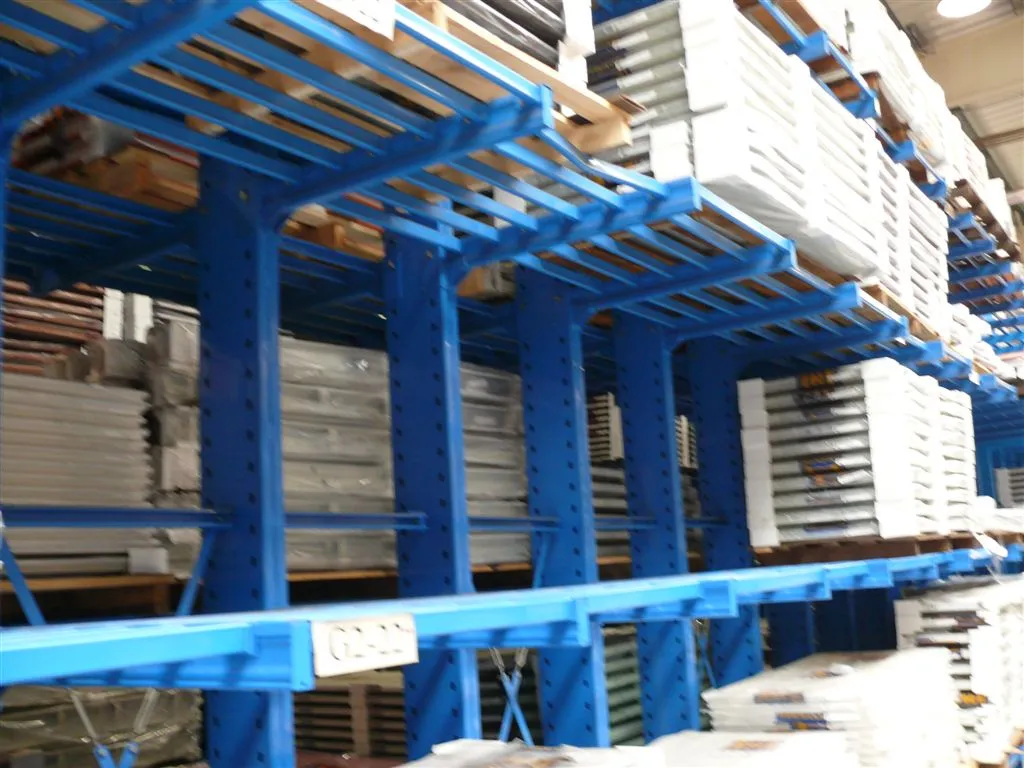

HEAVY-DUTY CAPACITY: 300-2000 kg per tier, perfect for food freezer and heavy storage.

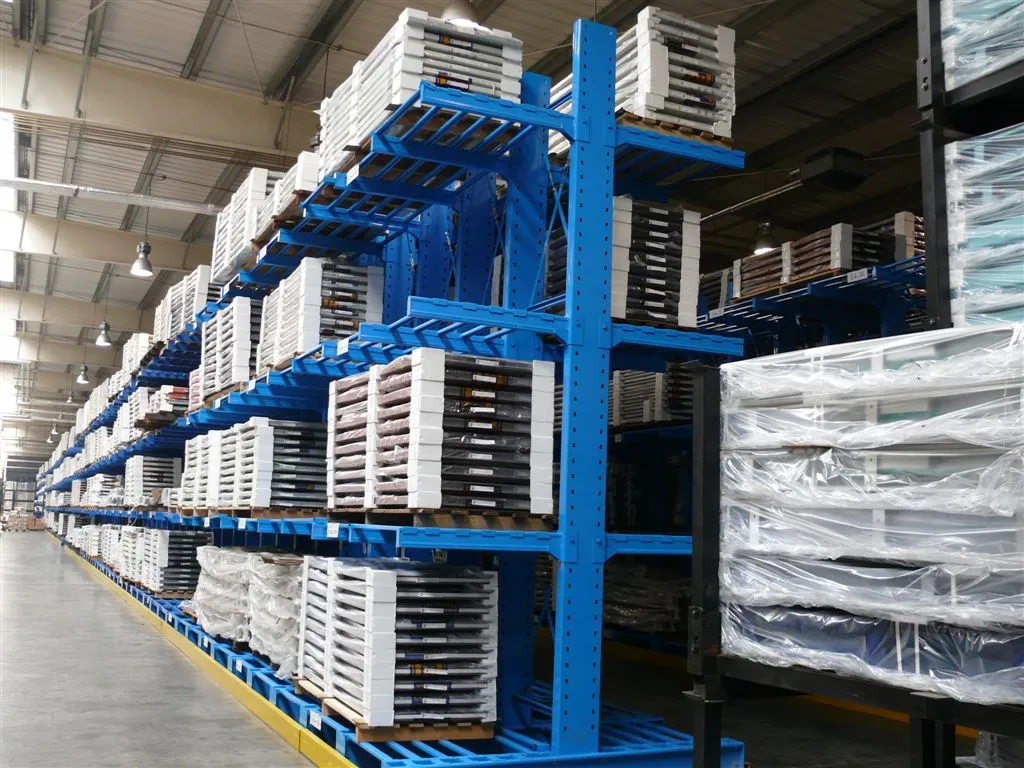

CUSTOMIZABLE DESIGN: Dimensions can be tailored to meet specific warehouse requirements.

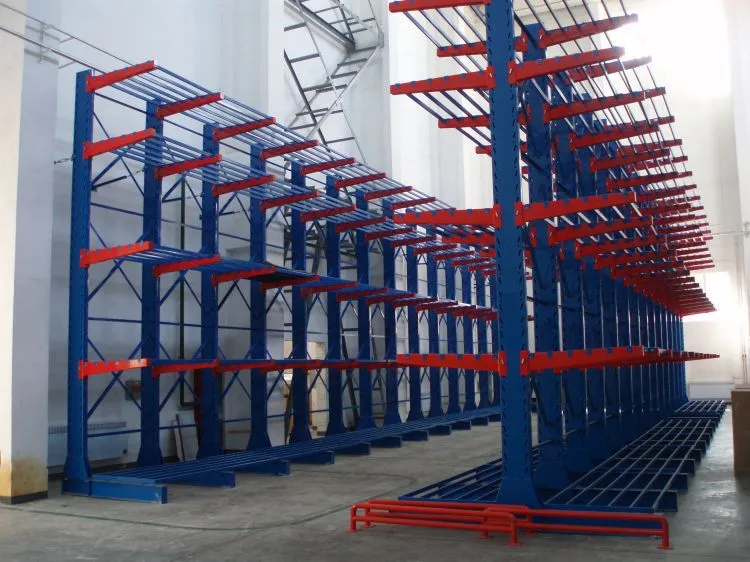

DURABLE CONSTRUCTION: Premium steel with electrostatic spray finish for corrosion resistance.

EFFICIENT STORAGE: Adeptly designed for FIFO and FILO inventory management.

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a manufacturer. Our factory has been focusing on warehouse racks and various display racks for years.

How long is your delivery time?

Generally within 25 days. It also depends on the order quantity and specific shelf design.

What is the payment term?

Payment terms: A 30% deposit is paid when signing PI, and the balance will be settled by T/T before delivery.

How should I install the rack?

We provide detailed installation instructions for each type of rack. If necessary, we can also provide engineering support.

Can you produce according to the customer's design?

Of course, we are very experienced in customizing racks to meet specific storage needs.

What is the packing method?

Generally, the storage racks are flat-packed with bubble film/film in standard export cartons. Other packaging such as wooden boxes can be provided upon request.
