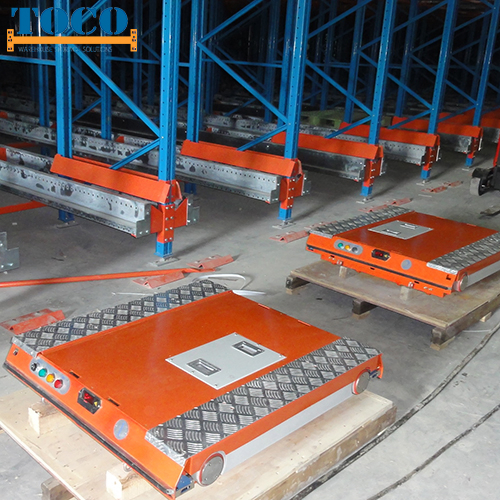

High Efficient Radio Shuttle Racking System Autosat Compatible for Beverages

Customization: Available
After-sales Service: Lifetime Technical Support
Warranty: One Year

Product Description

ℹ️

Basic Information

Model NO.TRS-Standard
UsageBeverage, Food, Industrial, Warehouse Rack
MaterialSteel
StructureRack
TypeCompact Storage
MobilityFixed
Height5-15m
Weight300kg
Load Weightup to 2000kg
CertificateISO9001, CE
Work Temp.50 to -30 Degree
Capacity3000 Tons Monthly
📦

Product Description

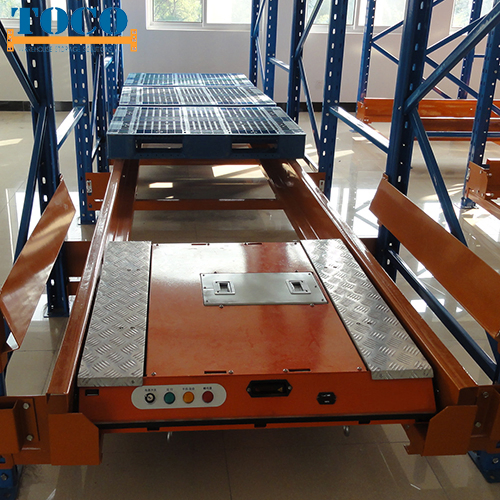

Radio Pallet Shuttle Shelving Systems are energy efficient, with battery charging 3 hours, and keep working 8 hours in temperatures from 50 down to -30 degrees. The Semi-Automated Shuttle Systems utilize forklifts and are modular and easily converted to a fully automated system, as your business needs and labor demands require.

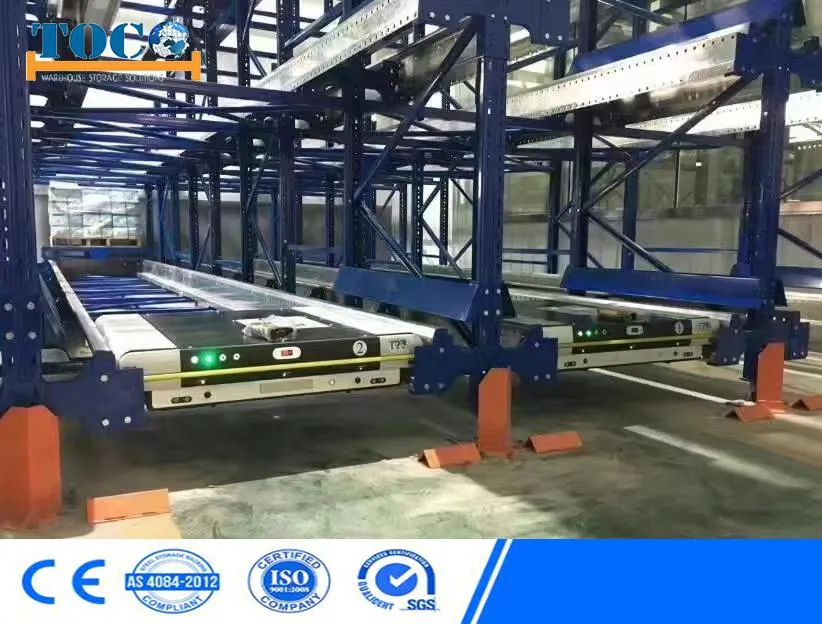

Shuttle Channel Racking for High Throughput Performance

Shuttle channel racking offers many advantages, ranging from the high throughput performance during complete filling and emptying of a pallet channel, to collision-free storage and retrieval of pallets as well as optimum space utilization thanks to less operation aisles required. The racking offers sufficient height and width for multiple pallet channels. The low height utilization per channel level allows effective use of the available storage height.

High Efficient Radio Shuttle Racking System
Name Radio Pallet Shuttle Rack Model No. IPR08
Capacity Up to 2000kg/Pallet Material Q235 or Q345 High Grade Steel
Finish Powder Coating or Galvanized
Standards Meet FEM, AS4084, TUV, CE, ISO9000
Lifespan 10+ Years for racking

Key Features:

  • High density storage system, more than 80% of the warehouse space utilization.
  • Can fulfill both FIFO/LIFO access mode, more convenient than any other racking systems.
  • Forklift no enter into racking, safer for forklift operator.
  • Turnover speed enhanced, work efficiency improved.
  • Electricity automated system, reduce energy consumption, save cost.
⚙️

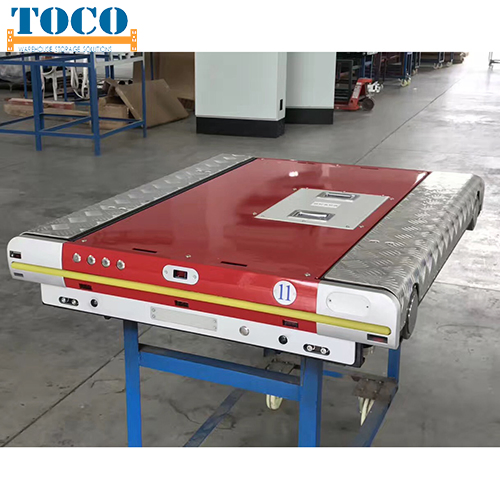

Radio Shuttle Technical Brief

Parameter Specification
Loading capacity maxMax 1500kg
Running speedVmax_empty:1.0m/s | Vmax_full:0.8m/s
Drive motorBrushless servo motor 48VDC 600W
Lift height≤45mm
Control systemSiemens S7-1200 PLC
Power supplyLithium battery (48V, 30AH)
Running time≥8h
Charging time3~4H
Ambient temperature0ºC ~ 50ºC (Humidity: 5% ~ 95%)
🖼️

System Gallery

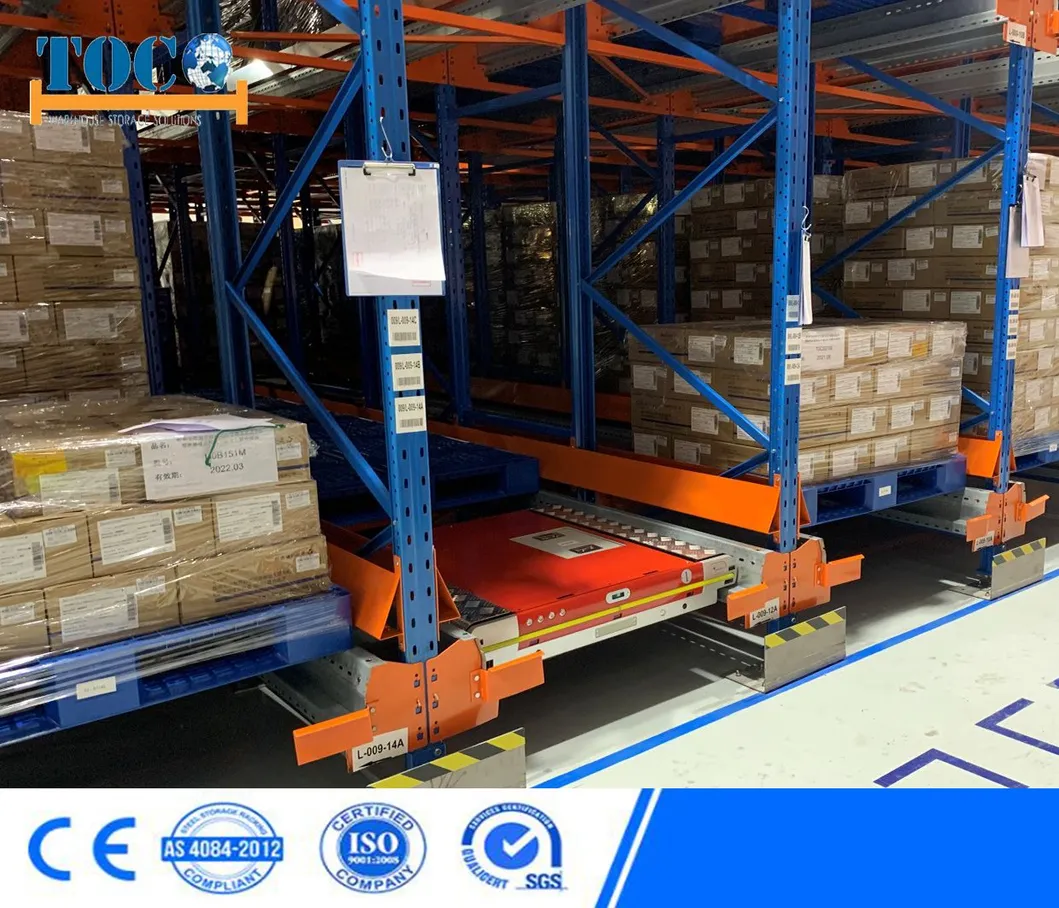

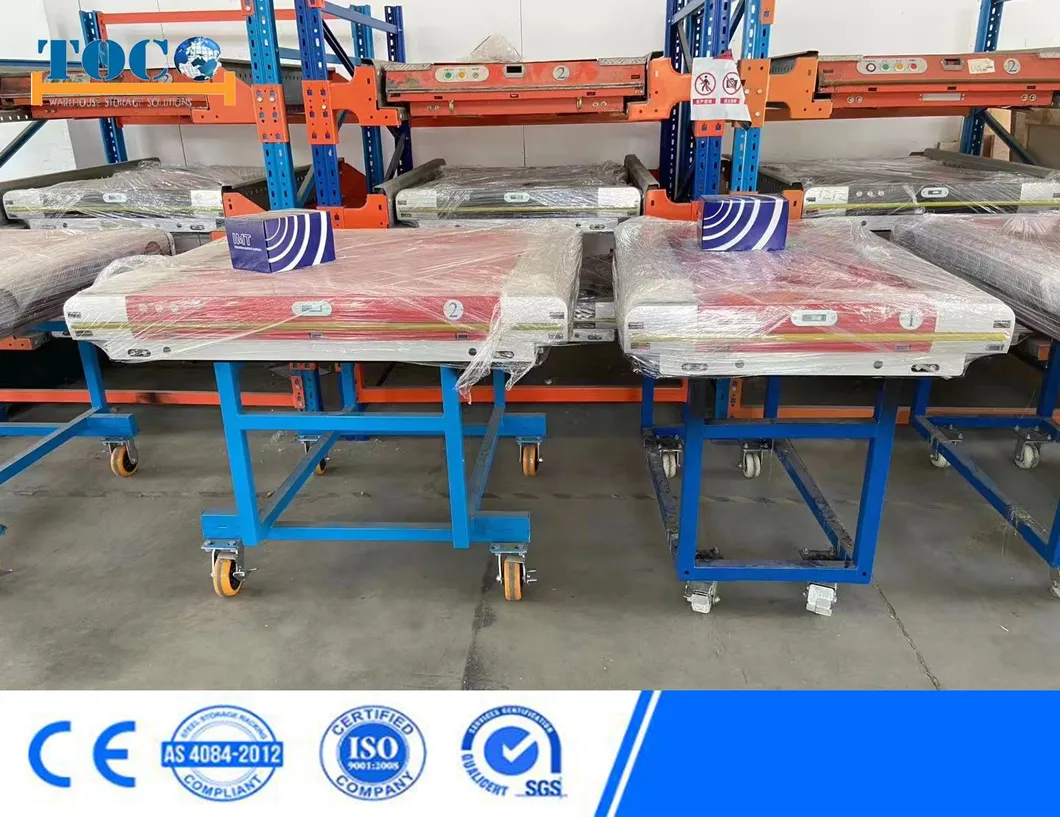

Shuttle System 1 Shuttle System 2

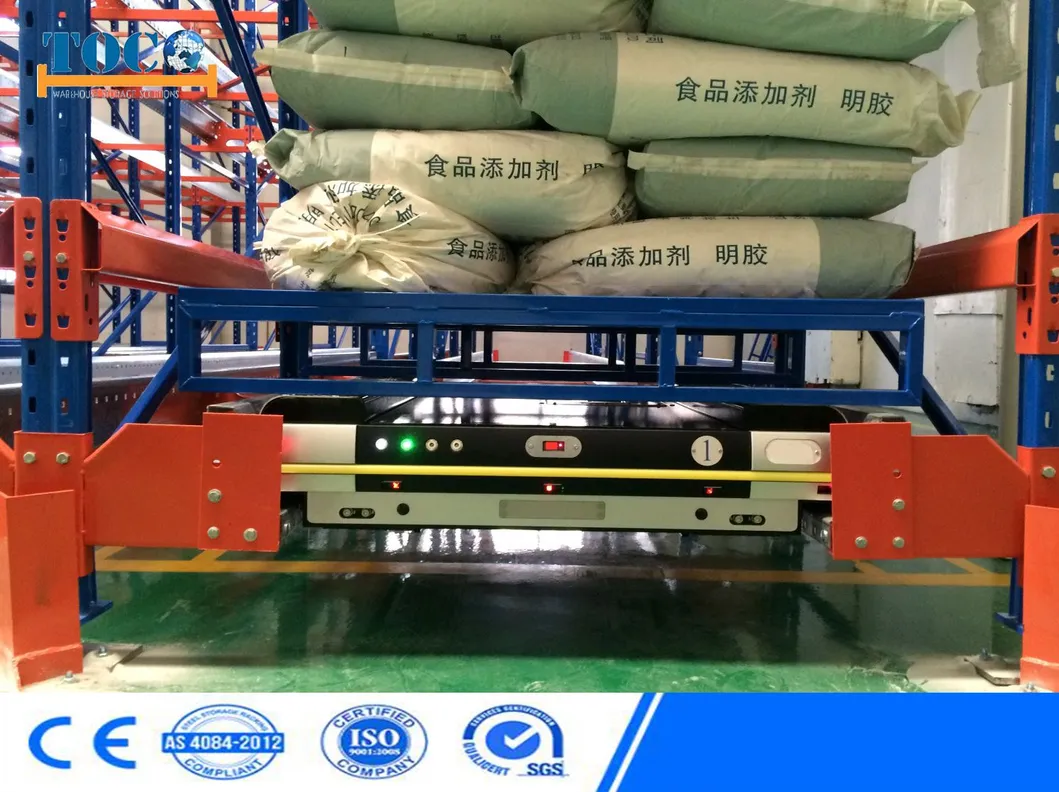

Shuttle System 3 Shuttle System 4

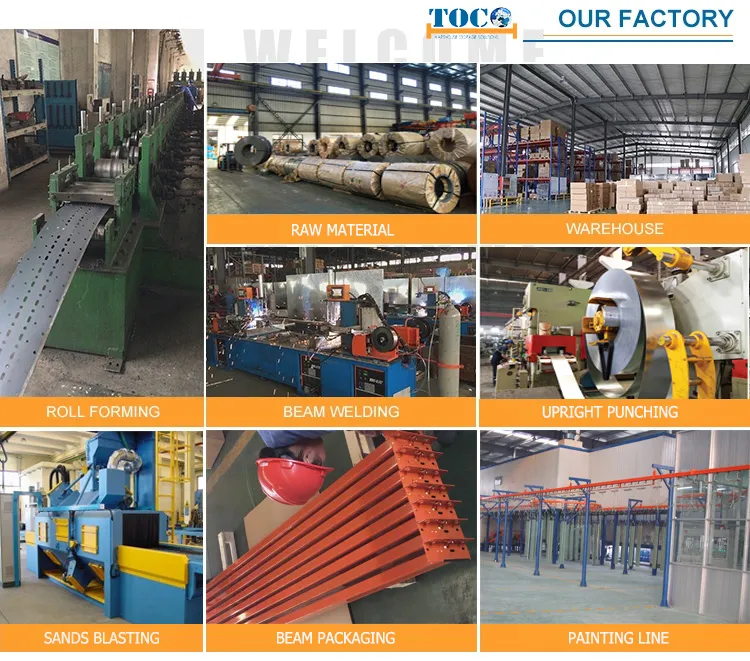

Shuttle System 5 Shuttle System 6
Shuttle System 7 Shuttle System 8

Frequently Asked Questions

Q: What are the primary trade terms?
A: Payment terms include T/T 40% as deposit, L/C at sight, or O/A. Standard lead time is 14-21 working days after deposit. Free small samples are available within 7-10 days.
Q: How is the delivery handled?
A: Goods can be delivered via Sea Freight (coordinated with major shipping companies) or Air Freight (TNT, DHL, Fedex).
Q: What services do you provide for customized projects?
A: We offer OEM & ODM services. Our experienced engineers provide professional warehouse solutions and respond to inquiries within one working day.
Q: What is the standard ordering process?
A: Solution Design → Drawings Approval → Pricing → Order Confirmation → Deposit → Manufacturing → Inspection → Balance Payment → Delivery.
Q: What are the main competitive advantages?
A: We offer flexible payment (O/A 30-60 days), fast delivery options, direct factory pricing, and a comprehensive one-year warranty.
Q: How are the racks installed?
A: We provide complete assembly instructions and documents. If necessary, engineers and experienced installers can be sent to assist with the installation on-site.
