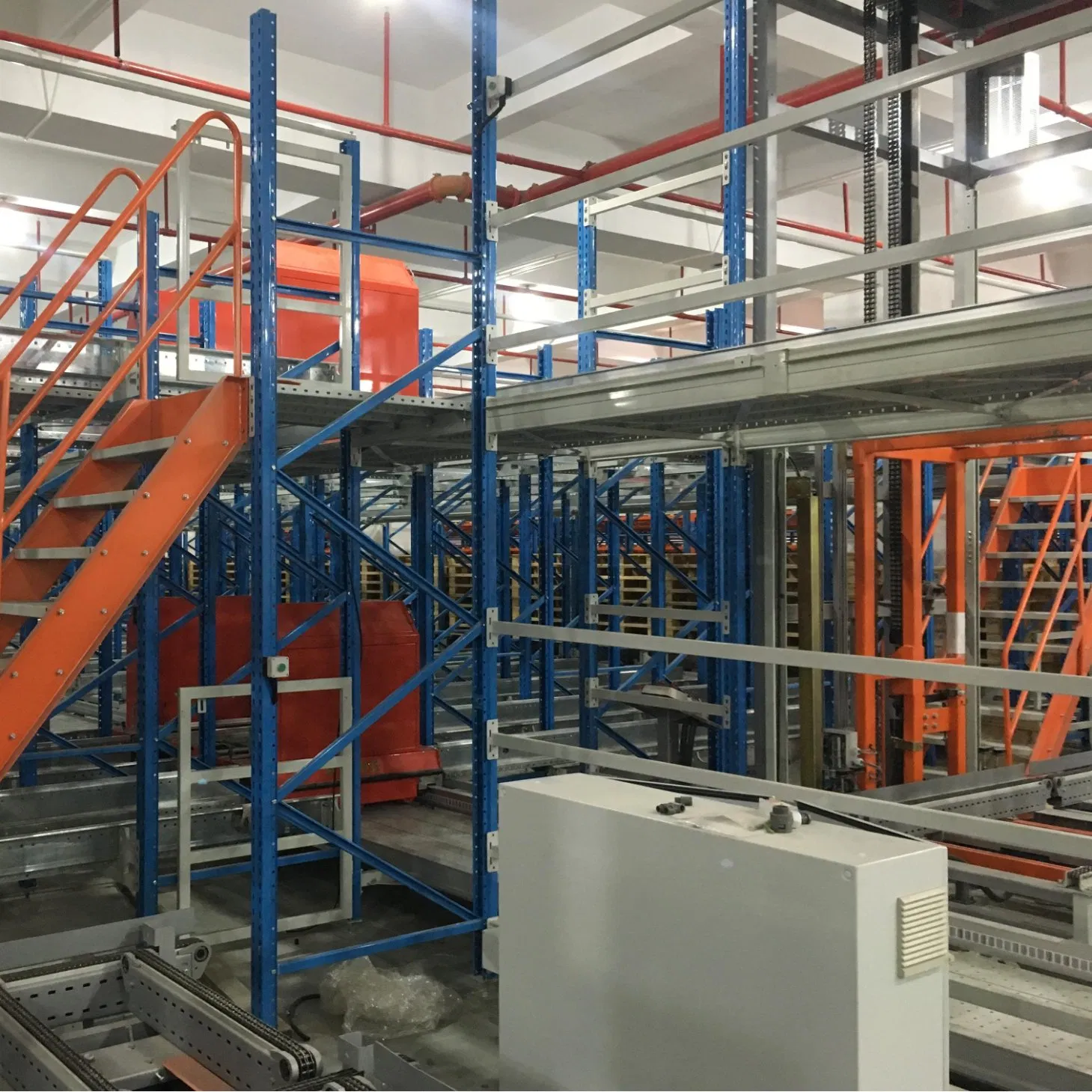

Factory Direct Mother & Child Radio Shuttle Racking System Radio Shuttle Pallet Racking System for Cold Room

1 / 5

Factory Direct Mother & Child Radio Shuttle Racking System Radio Shuttle Pallet Racking System for Cold Room

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

■ Basic Info.

Model NO.

Mother&Child Shuttle

Type

Shuttle Robot

Pallet Size

1*1.2 or Customzied

Warehouse Type

Existing or New Build

Mother Shuttle Speed

160m/Min

Throughput

≥30pph

Max Working Load

1800kg

Operation Mode

Manual, Semi or Fully Automated

Applicable Temp

-20 to +45degc

HS Code

8428902000

■ Product Description

Multi Deep Pallet ASRS are fully automated pallet storage solutions for warehouses with low ceilings, fewer unique products and high throughput requirements. These shuttle based ASRS system range from:

Mother & Baby Shuttle (satellite) System
Four Way Shuttle System
S/R M + Shuttle System
Radio Shuttle System - Semi Automated Solution

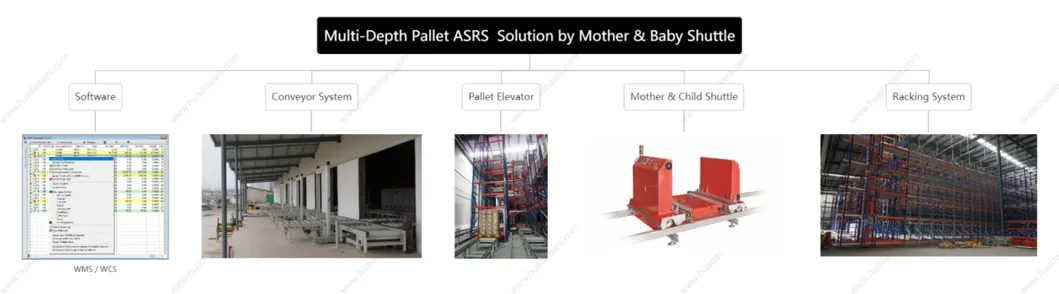

The Mother & Baby Shuttle ASRS consists of high-density pallet racking, mother shuttle (satellite) powered by bus bar, baby (child) shuttle board on mother shuttle, pallet elevator, buffer conveyors etc.

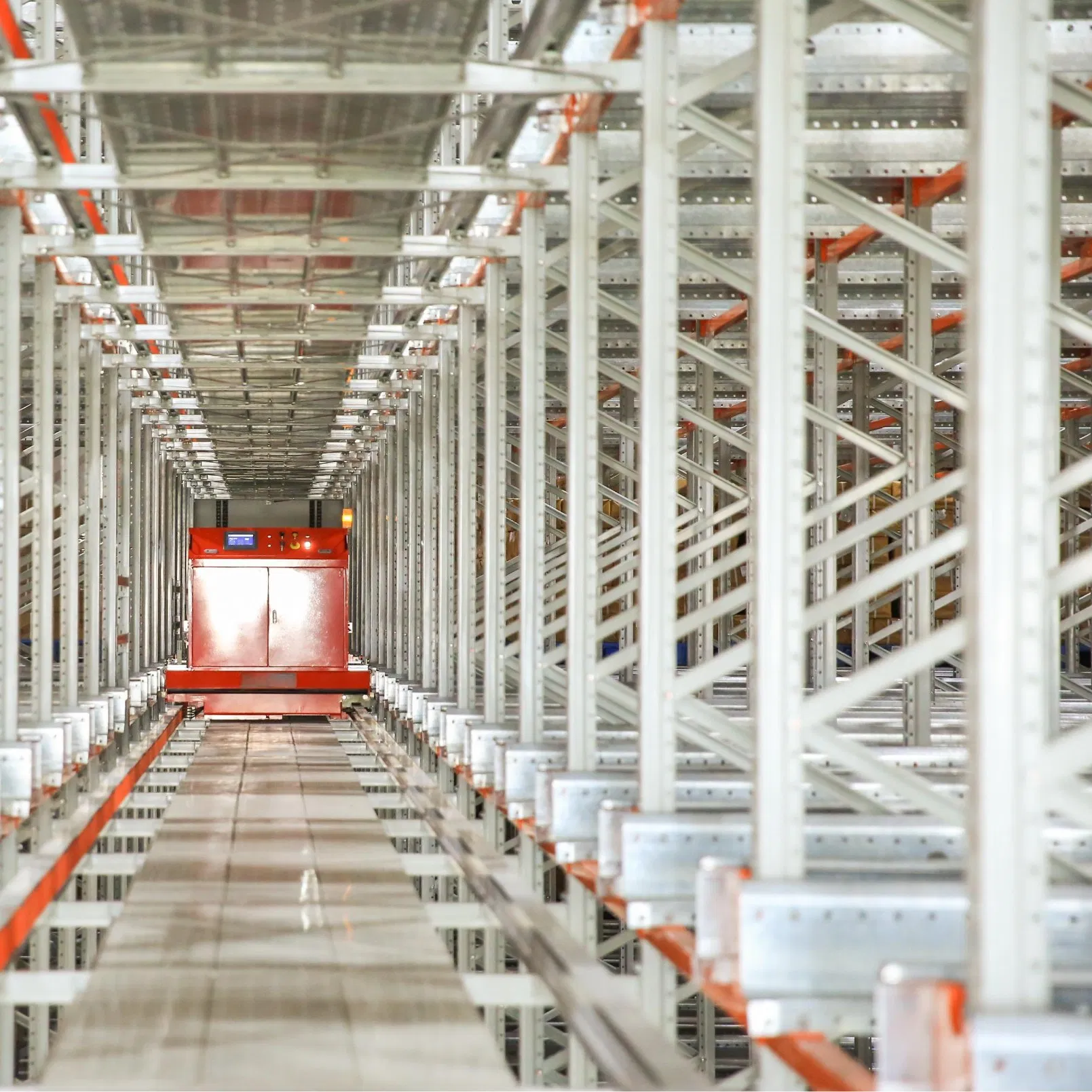

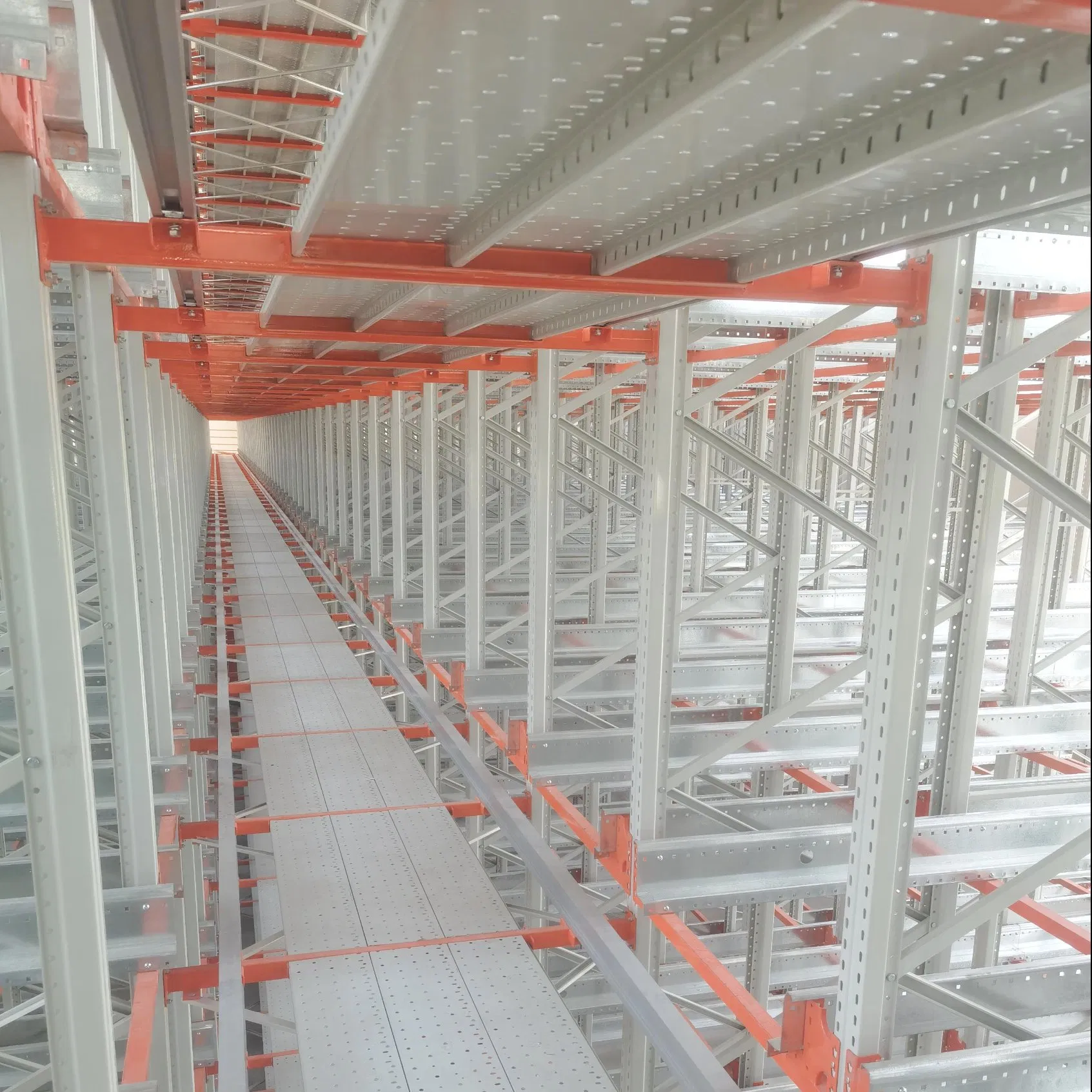

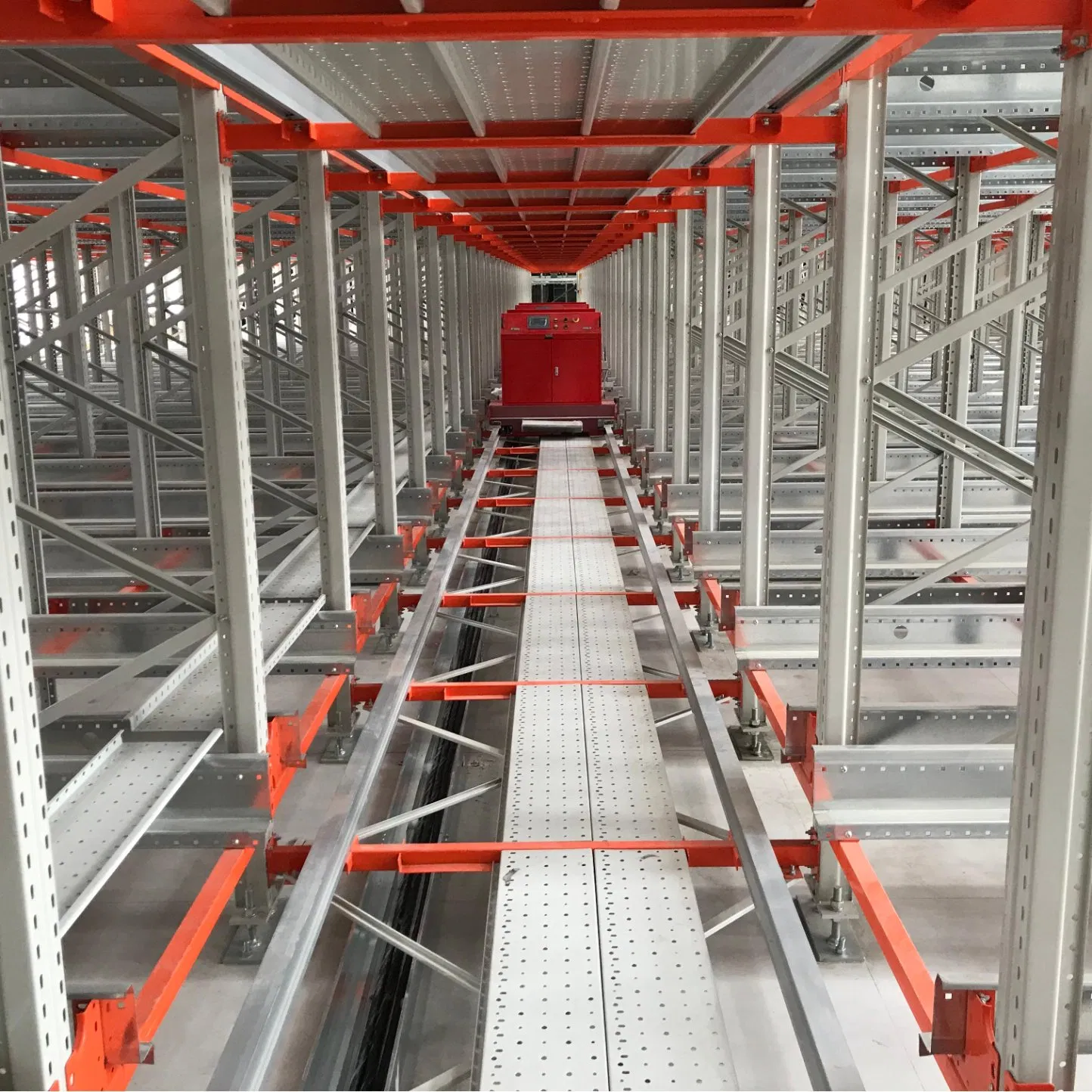

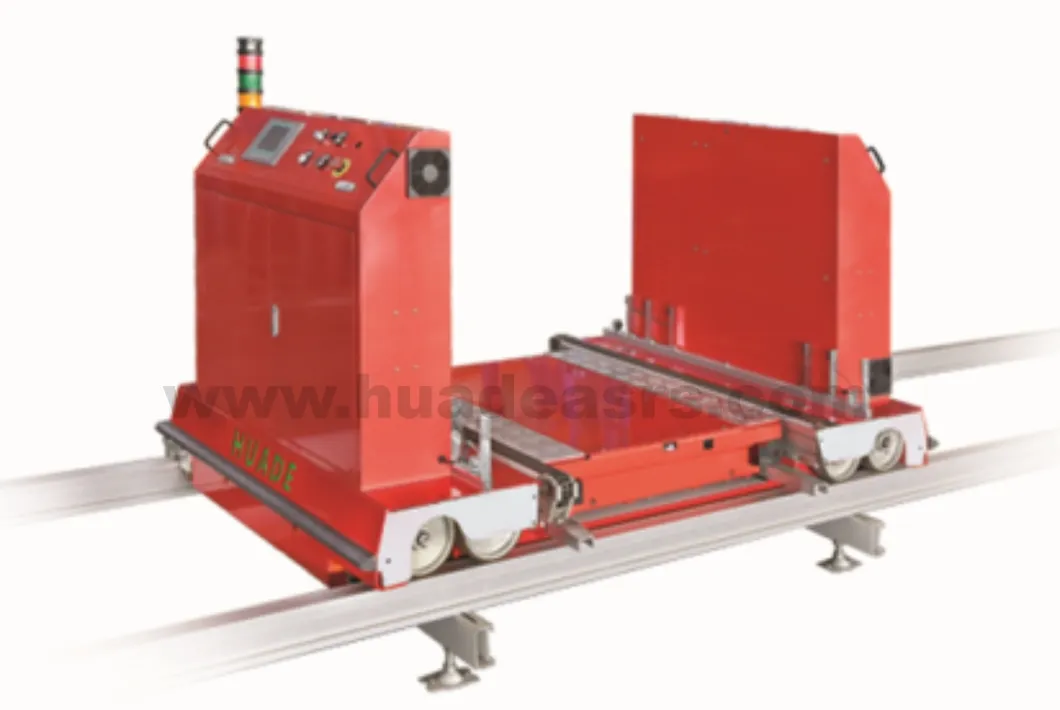

Mother & Child Radio Shuttle Racking System

Technical Specifications:

Type	Non layer transfer type		Layer transfer type
Power Supply Mode	Bus bar	Battery	Bus bar	Battery
Max Load Capacity (kg)	1500	1500	1500	1500
Mother Shuttle Speed (Empty)	2.5 m/s	1.5 m/s	2.5 m/s	1.5 m/s
Mother Shuttle Speed (Full)	2.0 m/s	1.0 m/s	2.0 m/s	1.0 m/s
Satellite Speed (Empty/Full)	1.0/0.6 m/s	0.9/0.5 m/s	1.0/0.6 m/s	0.9/0.5 m/s

Latest four way shuttle transport technology enables multiple deep pallets at any level to be accessed, suitable for smaller building footprints with minimal environmental impact.

■ Mother Child Shuttle Features

Maximum storage capacity up to 80%-90%
Effectively eliminate error rate via Warehouse Management System
Allow for expansion as throughput increases without changing original layout
Ideal for manufacturing, FMCG, food, beverage, and cold chain industries

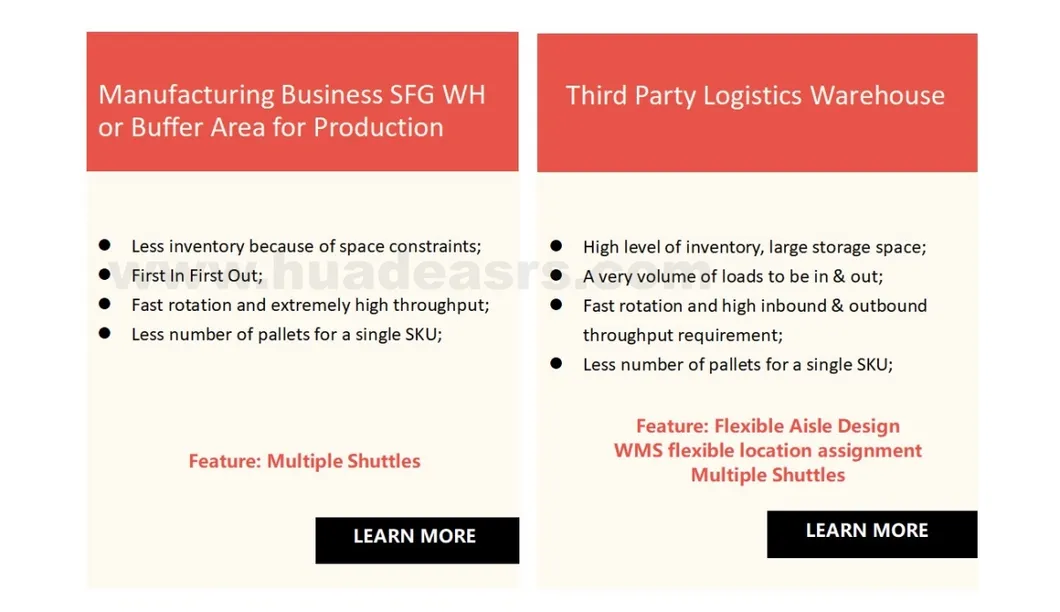

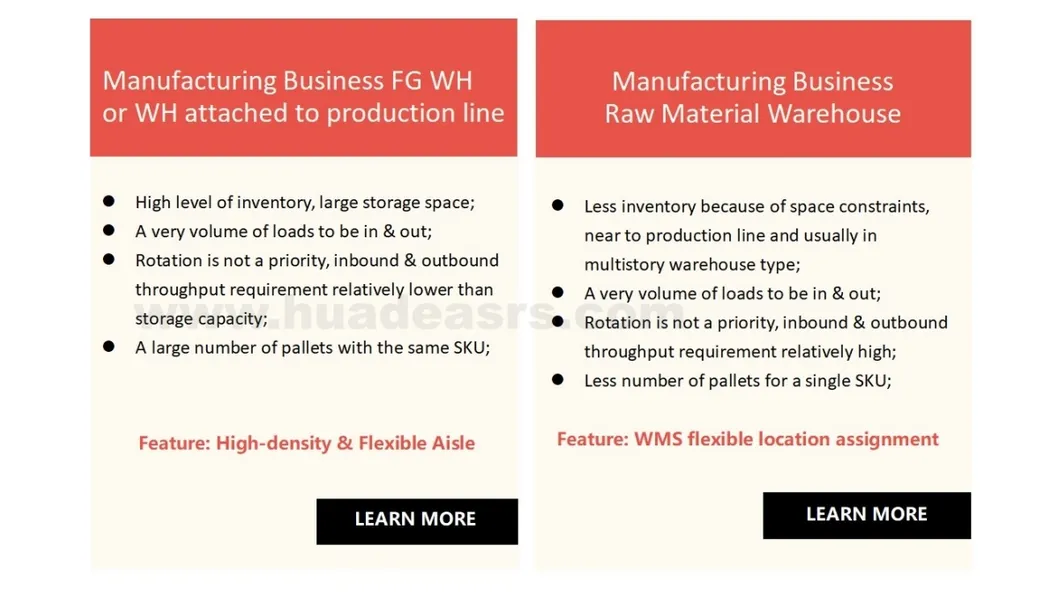

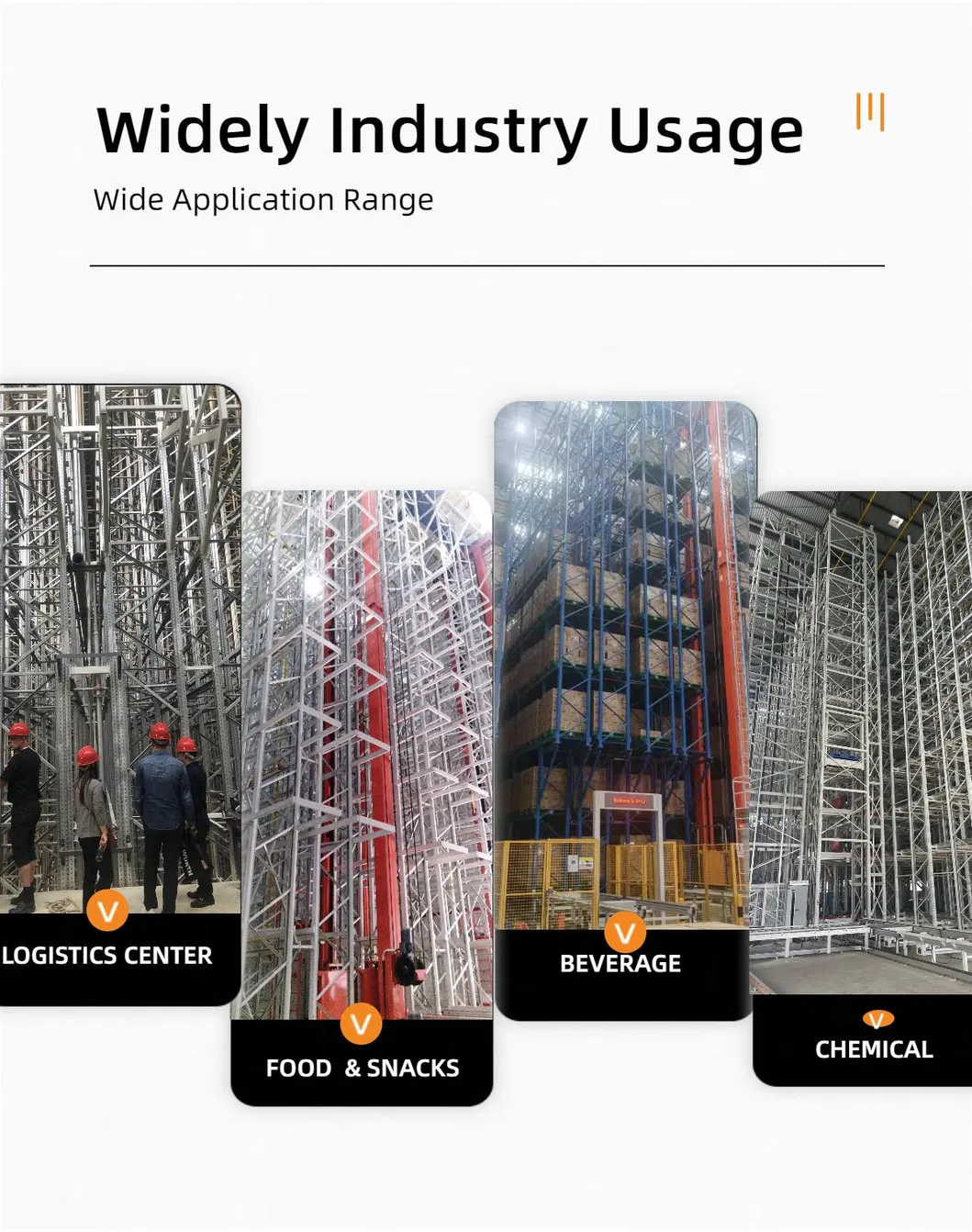

■ Applications & Visuals

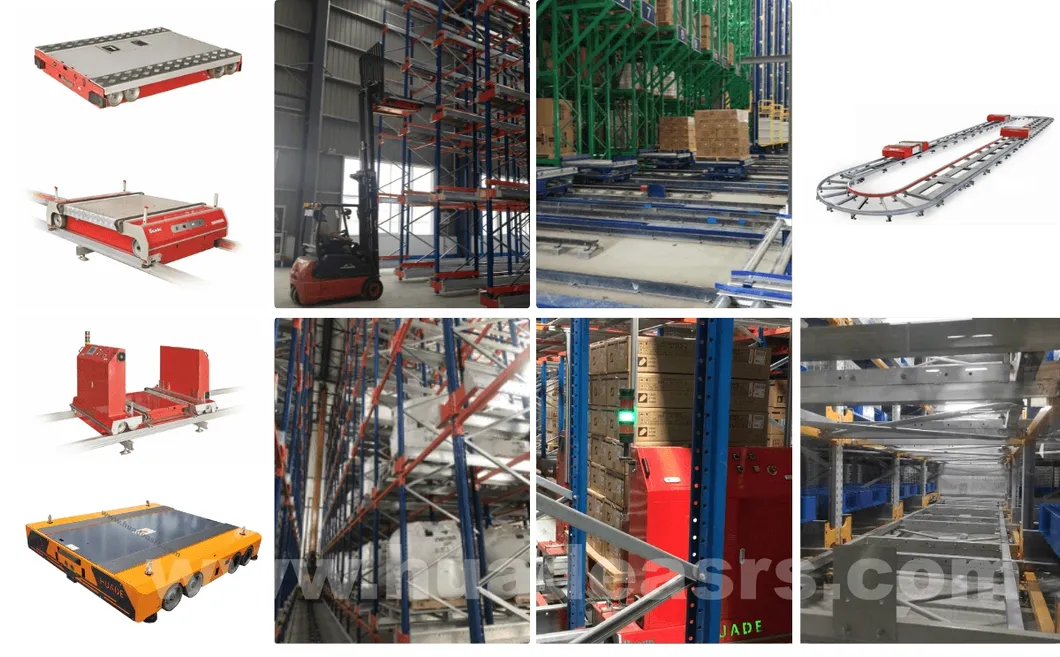

■ Shuttle Family Gallery

? FAQ

Q1: What types of automated storage systems are available? We offer Unitload AS/RS for pallets, Miniload AS/RS for boxes and containers, Shuttle Storage & Sequencing systems, Rack-supported buildings, and Semi-automated Radio Shuttle systems.

Q2: What are the primary advantages of the Mother & Child Shuttle system? It offers high-density storage (80-90% utilization), reduces error rates through WMS integration, and allows for system expansion as throughput needs grow without layout changes.

Q3: What industries benefit most from this technology? It is ideal for manufacturing, fast-moving consumer goods (FMCG), food and beverage sectors, and specialized cold chain storage environments.

Q4: How is the Mother Shuttle powered and controlled? The system can be powered via bus bar or battery. Control modes include manual, automatic, and fully integrated on-line operation via WMS.

Q5: What is the load capacity and speed of the shuttle? The system supports a maximum working load of up to 1800kg. The Mother Shuttle can reach speeds of 160m/min (2.5m/s) when empty.

Q6: What are the steps for system implementation? The process follows a professional six-step path: Define project objectives, Measure existing business data, Analyze state predictions, Design the custom solution, Validate feasibility, and finally present the best solution.
