Galvanized Warehouse Heavy Duty Cantilever Racking System

1

Basic Specifications

Model NO.

20240903-96

Material

Galvanized

Type

Galvanized Cantilever Rack

Height

6m or Customized

Weight Capacity

500-15000kg

Upright

Single-Sided/Double-Sided

Cantilever Length

600-1400mm

Capacity/Arm

Max 800kg/Arm

Surface Finish

Galvanized

Color

Blue, Orange or RAL Colors

2

Packaging & Delivery

Package Size

100.00cm * 90.00cm * 200.00cm

Gross Weight

850.000kg

3

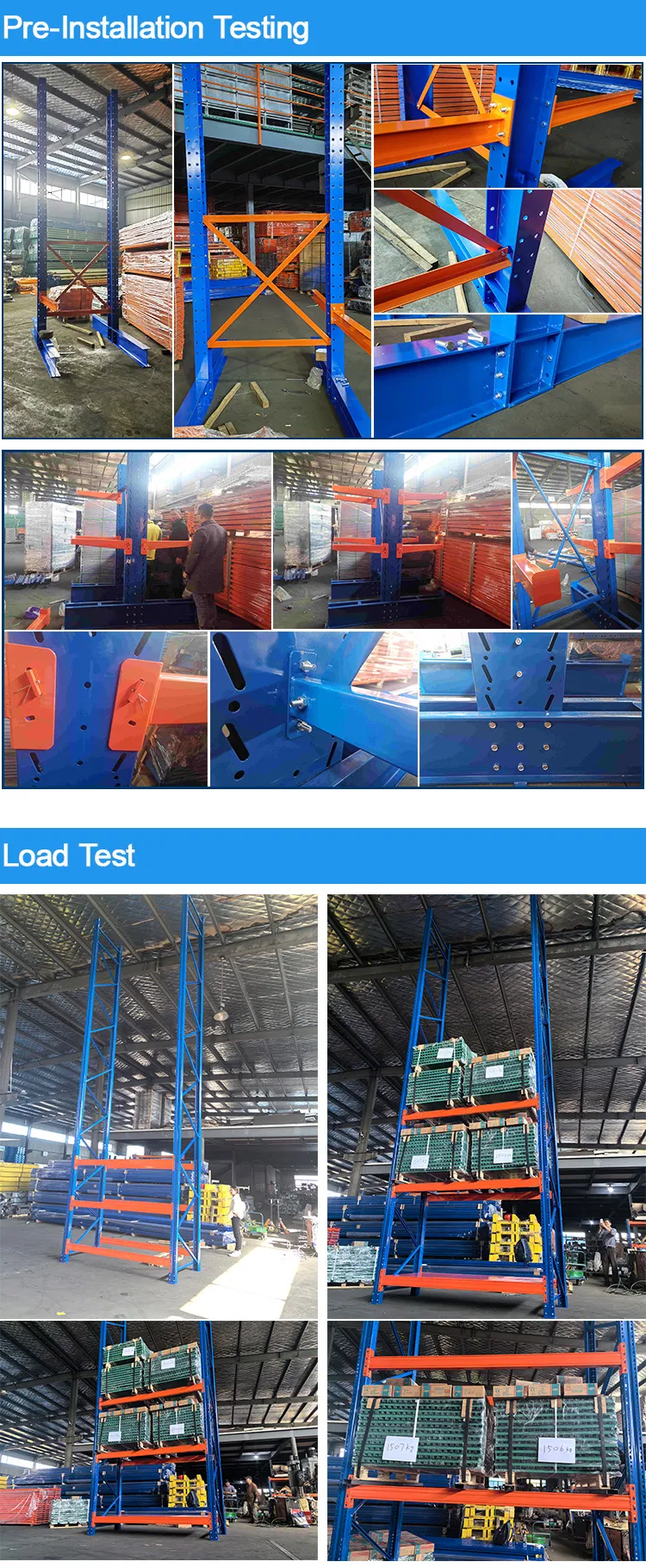

Product Details & Load Test

Galvanized Warehouse Heavy Duty Cantilever Racking System

4

Safety Assurance System

Our meticulously designed safety accessories, coupled with top-notch structural engineering, enhance the stability of our racking units, providing you with peace of mind, safety, and practicality.

● Tilted Cantilever: An upward angle (2°~4°) prevents goods from scattering when weight causes a shift.
● Arm Ends & Base Retainers: Prevents goods from rolling and falling, safeguarding operators.
● Cross Braces: Strengthens torsional stability via horizontal and diagonal connections.
● Extended Base: Prevents tilting by being longer than the cantilever arms.
● High-Strength Bolts: Uses M16/M18 bolts to ensure structural integrity and prevent toppling.

5

Product Support & Services

Free Consultation	Yes, expert consultation available
Free Design	Yes, CAD/PDF/3D Drawings provided
3D Sample	Yes, 1:1 3D Samples available
Installation Service	Installation drawings and videos provided
Lead Time	15-20 Days
Warranty	Long-term quality assurance

6

Main Components

Uprights & Beams

Made from high-quality Q235 cold-rolled steel with a hole spacing of 100mm, allowing for vertical arm adjustment.

Base & Bracing

High load-bearing H-Beam construction combined with crisscross bracing for maximum stability.

7

Why Choose Our Racking System

1. Strict Quality Inspection: Professional team checks every production step.
2. Advanced Equipment: State-of-the-art technology ensures precision and delivery speed.

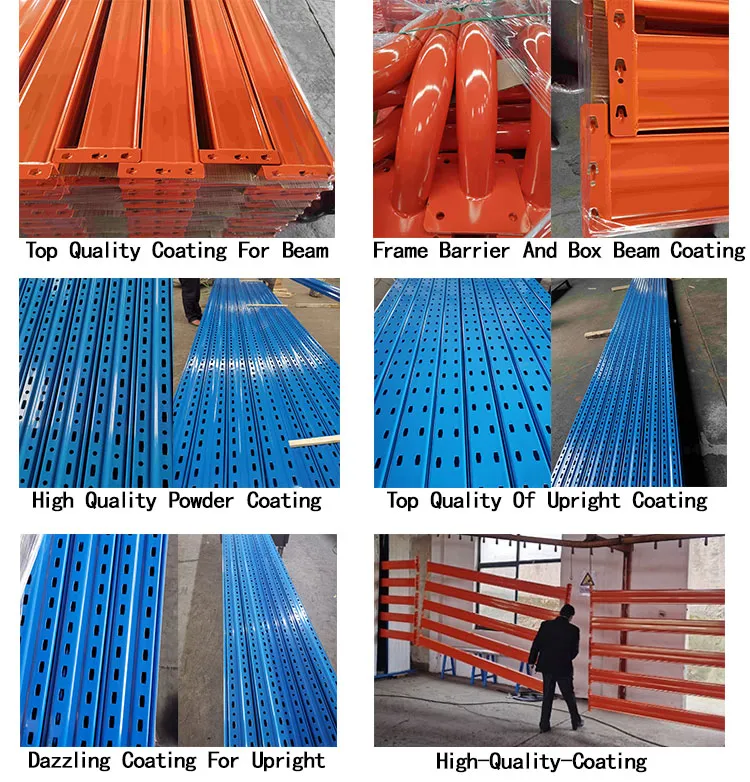

3. Superior Powder Coating: Advanced pickling technology creates an oxidation film for better resin powder adsorption, significantly increasing racking life.

?

Frequently Asked Questions

Q1: What is the difference between Roll-Formed and Structural Cantilever Racks?

Roll-formed systems have a bolt-less structure ideal for lightweight materials. Structural types are bolted to the ground and are perfect for heavy-duty goods.

Q2: What factors should I consider before purchasing?

You should consider your warehouse roof height, the specific dimensions of your goods to avoid overhanging, and the required load capacity for uprights and arms.

Q3: Can goods be stored at the base of the racking system?

Yes, it is perfectly safe and common practice to store materials at the base of cantilever racking systems.

Q4: How can I adjust or expand the cantilever rack?

The uprights have holes at 100mm intervals, allowing for height adjustments. You can also add more uprights to extend the overall length of the system.

Q5: What maintenance is required?

Regular inspections for damage, cleaning, and checking bolt tightness are necessary to ensure long-term safety and performance.

Q6: What support is provided after purchase?

We provide comprehensive after-sales service including maintenance guides, installation support, and a 10-year warranty.

★
