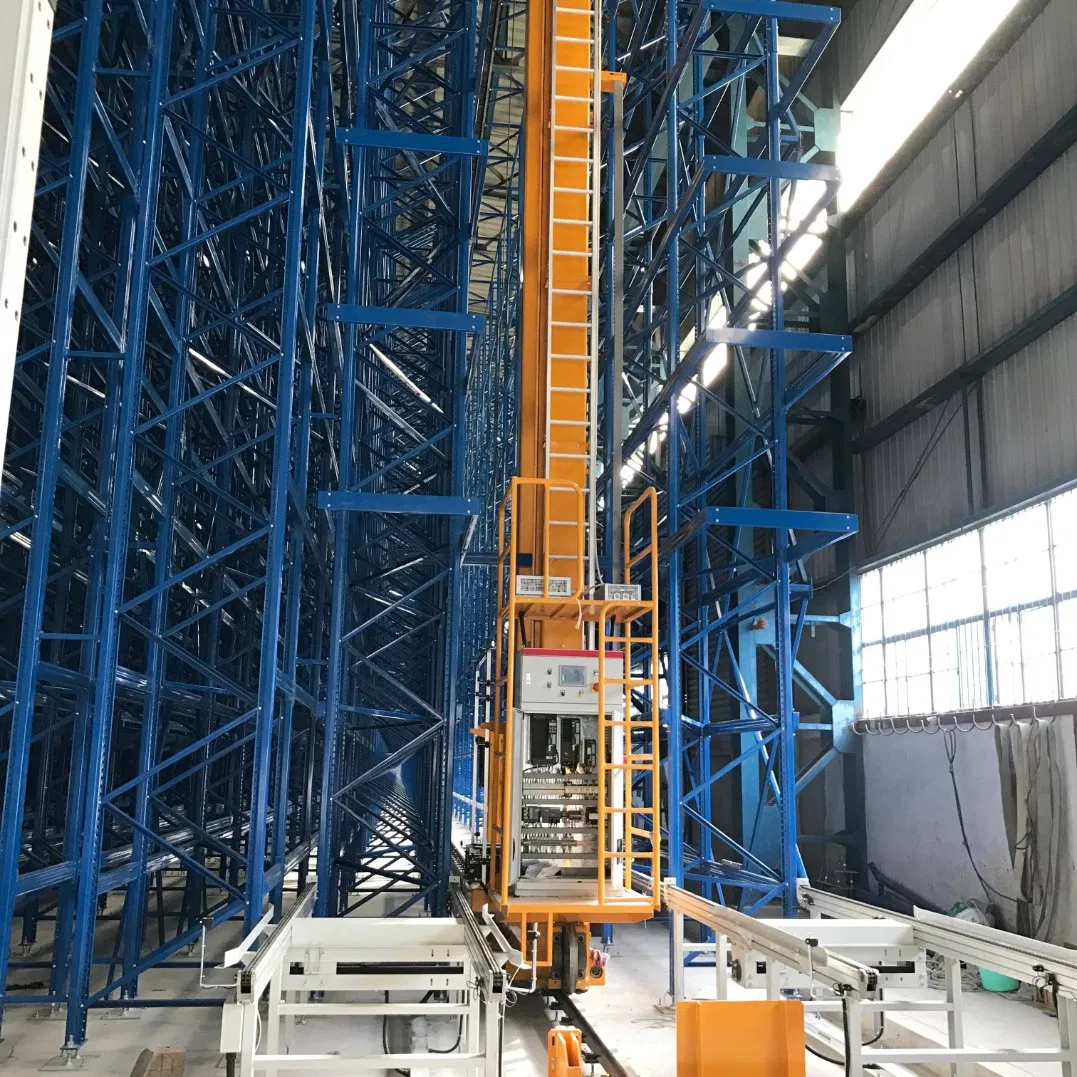

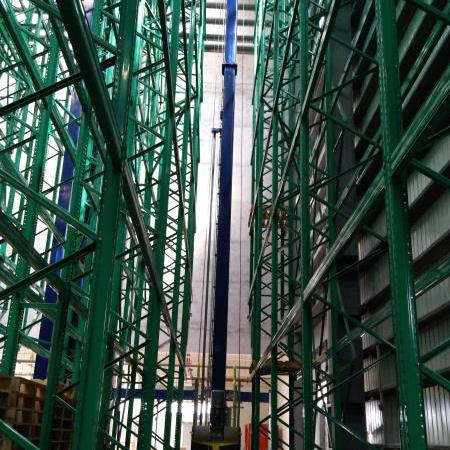

Stacker Crane AS/RS for pallets is an automated system that efficiently stores and retrieves goods, replacing manual warehousing tasks. The storage and retrieval machine(SRM) operate as a crane that moves horizontally within a single aisle.
These machines are designed to store and retrieve pallets automatically. They move in length, height, and depth to load and unload goods from racking structures in a highly agile, precise manner. Equipped with state-of-the-art technology, they significantly increase warehouse productivity and maximize space utilization to boost storage capacity.
We are a premier designer and manufacturer of material handling equipment and systems. Key features of our stacker cranes include:

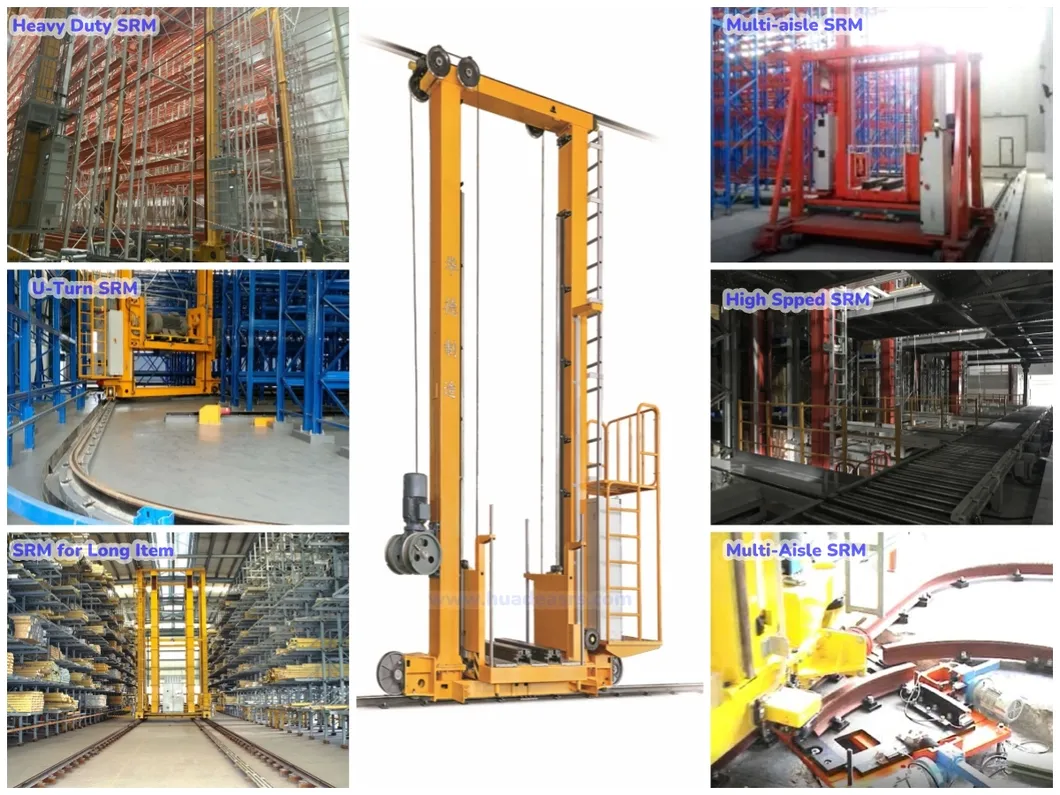

Storage / Retrieval Machine (S/RM)
Enables efficient horizontal and vertical movement within the AS/RS. Supports heights up to 140 feet with a double mast design for added stability. Achieves horizontal speeds up to 900 ft./min and vertical speeds of 400 ft./min.

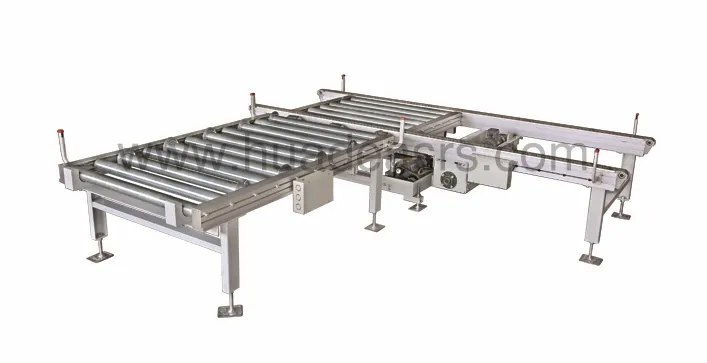

Conveying Systems
Ensures accurate movement of goods. Integrates seamlessly with S/RMs, stretch-wrappers, and label applicators. Engineered for high throughput and precision control.

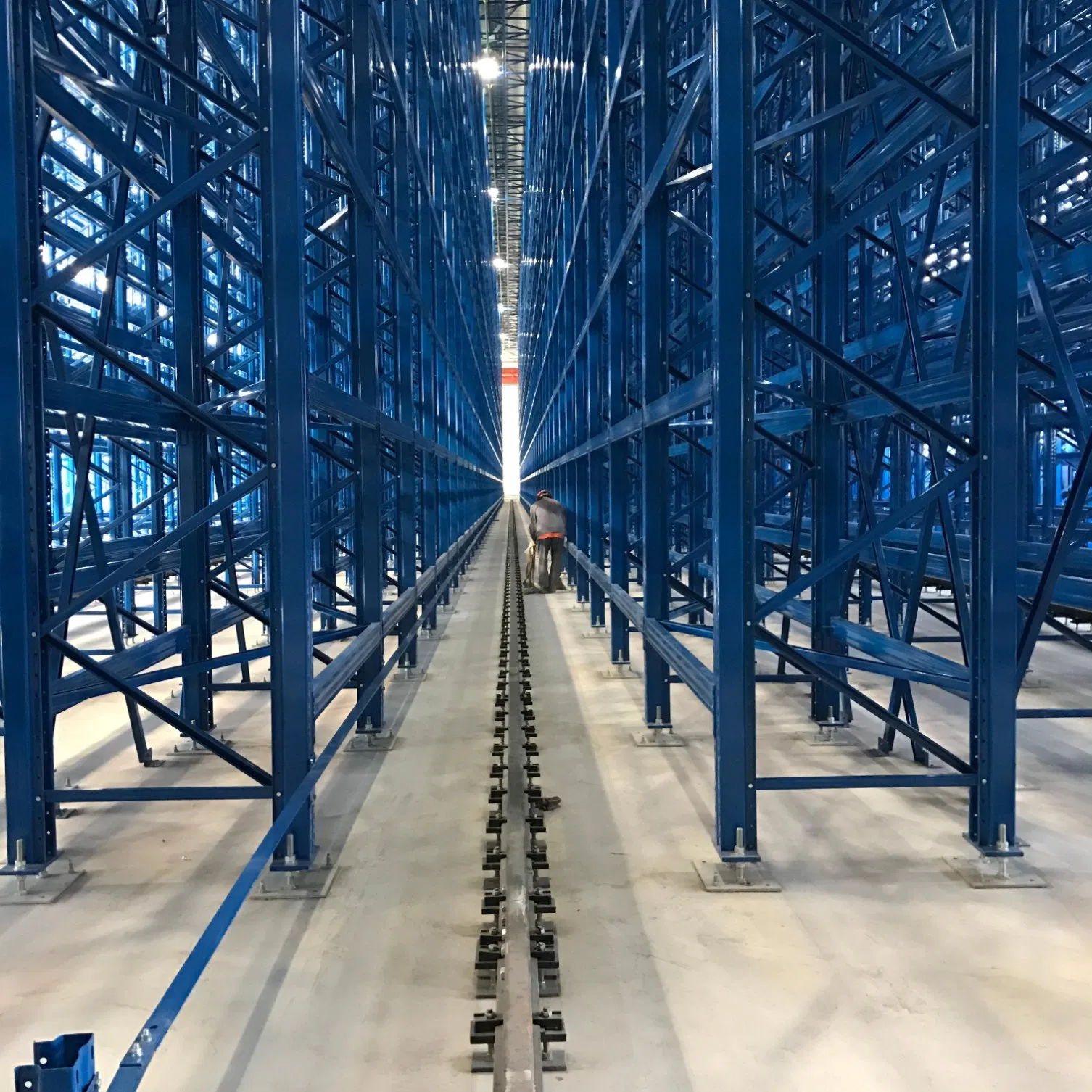

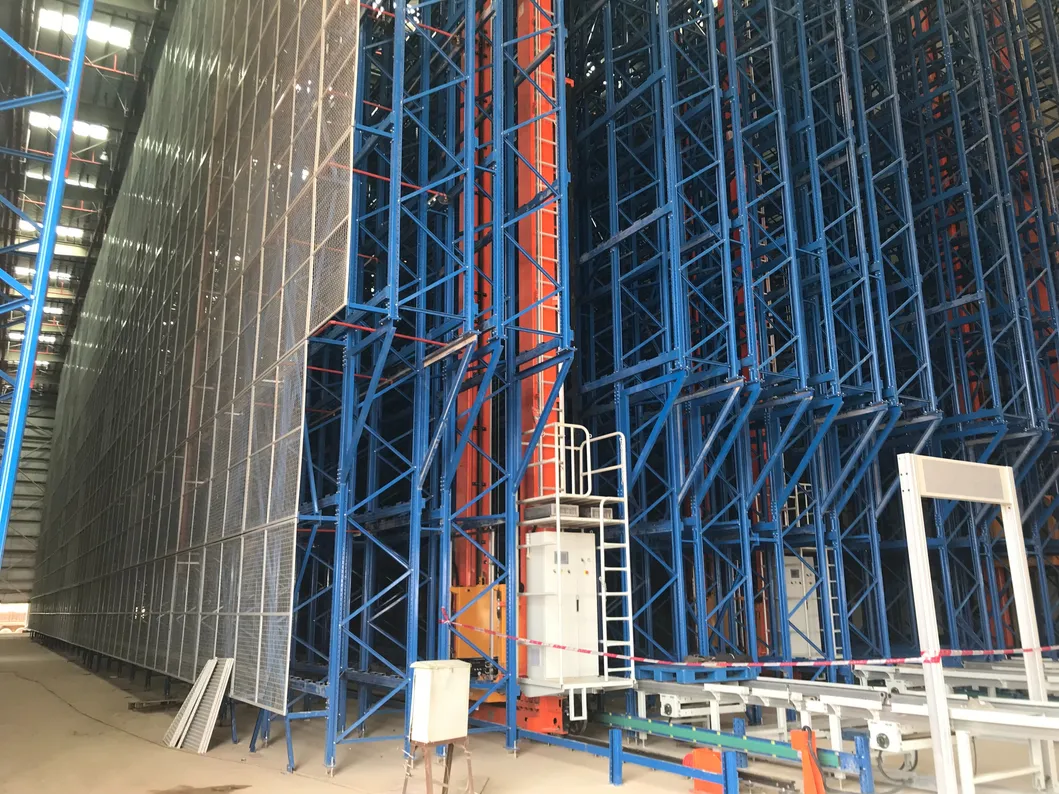

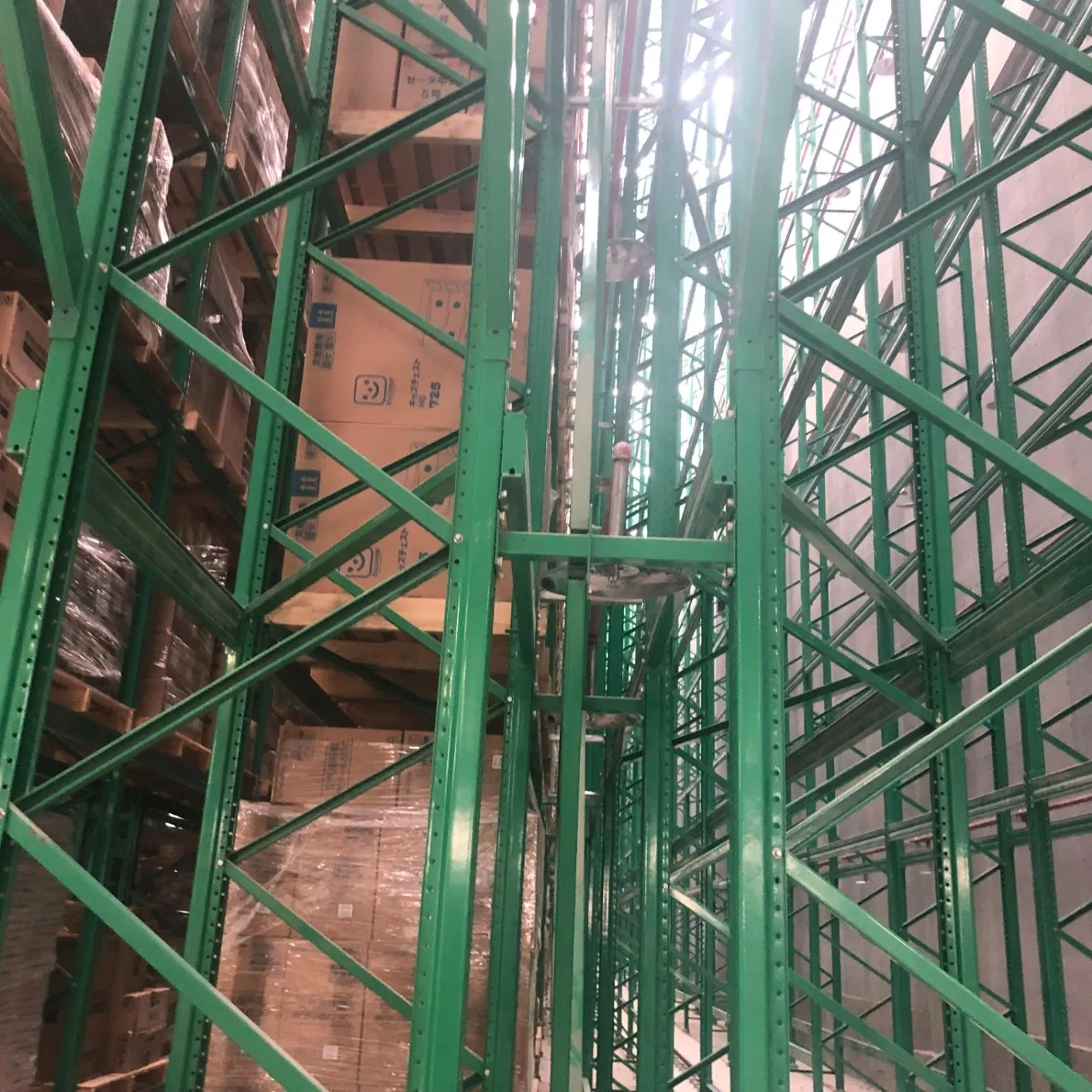

Offers compact storage in high bay warehouses. Structures are engineered to optimize space and are fully bolted to the floor slab for maximum robustness. Catering to various environmental loads and seismic requirements.
| Component | Structural Features |
|---|---|
| Racking | Equipped with pallet racking and drive-in racking. Composite structure with steel or wooden panels. Used in food, electronic, and mechanical industries. |
| Stacker | Double upright structure, vector frequency conversion drive, and encoder position control. Includes manual, semi-automatic, and automatic linkage control. |
| Conveying System | Equipped at front or back of warehouse; utilizes rolling or chain conveyors with lifts and rotating devices to bridge forklift and stacker procedures. |
| Controlling System | Communicates via OPC agreement and PROFIBUS bus network. Siemens S7-300 controller enables offline conveyor operations. |
| WMS System | Star network structure with management and monitor computers. Operating on MS SQL Server with dedicated WCS and RFS software modules. |
We offer Pallet Type AS/RS (Unitload), Box/Crate Type AS/RS (Miniload), Shuttle Storage & Sequencing systems, and Rack-supported building types, along with semi-automated radio shuttle systems.
Automated systems maximize space utilization, reduce labor costs, minimize human error, and provide high-efficiency 24/7 operation with real-time inventory tracking.
Our S/RM units can achieve horizontal speeds of up to 900 ft./min and vertical lifting speeds of up to 400 ft./min, ensuring rapid throughput for high-demand environments.
The process involves six key steps: Defining objectives, Measuring existing data, Analyzing requirements, Designing the model, Validating feasibility/costs, and final Client Presentation.
Yes, our systems are versatile. Single-load machines can handle up to 5,000 lbs, while dual-load machines are capable of handling up to 2 x 3,500 lbs.
Key safety features include two independent hoist brakes, overweight limit sensors, a hoist free-fall catching system, and mechanical/electronic safety devices for reliable operation.
