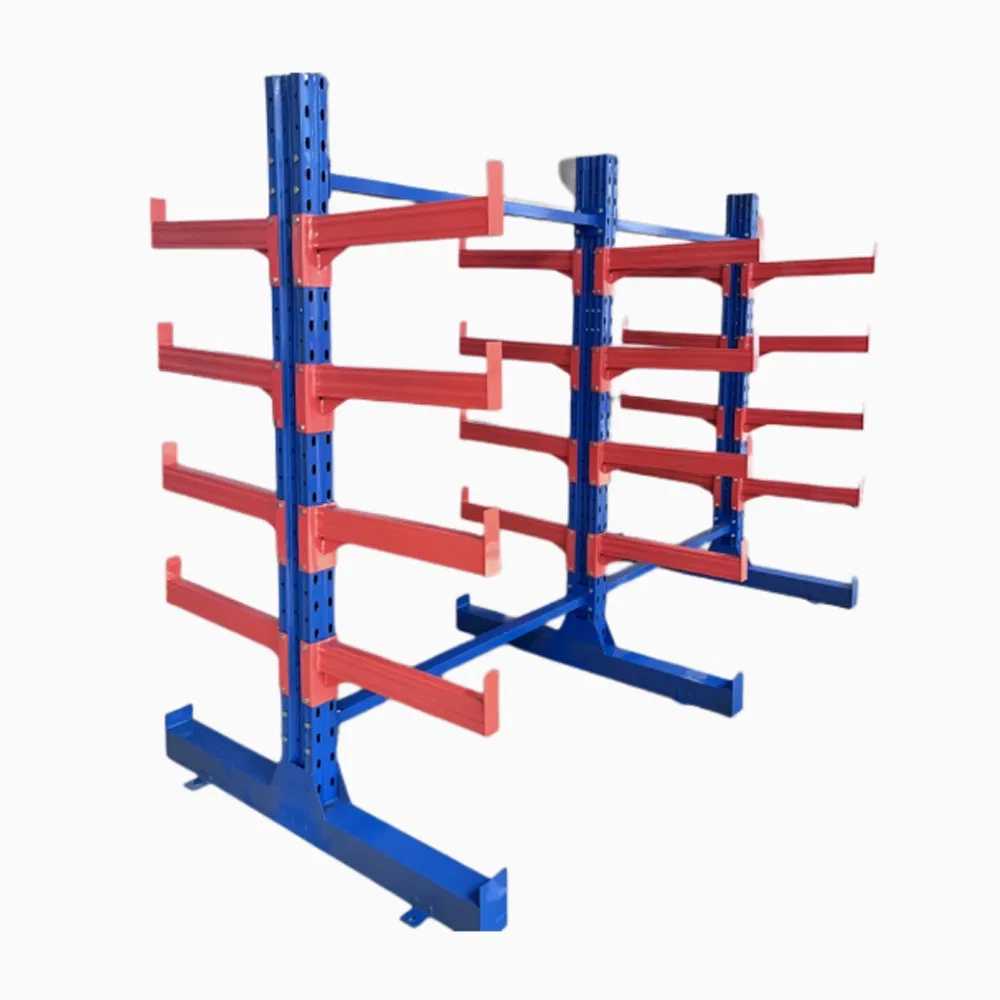

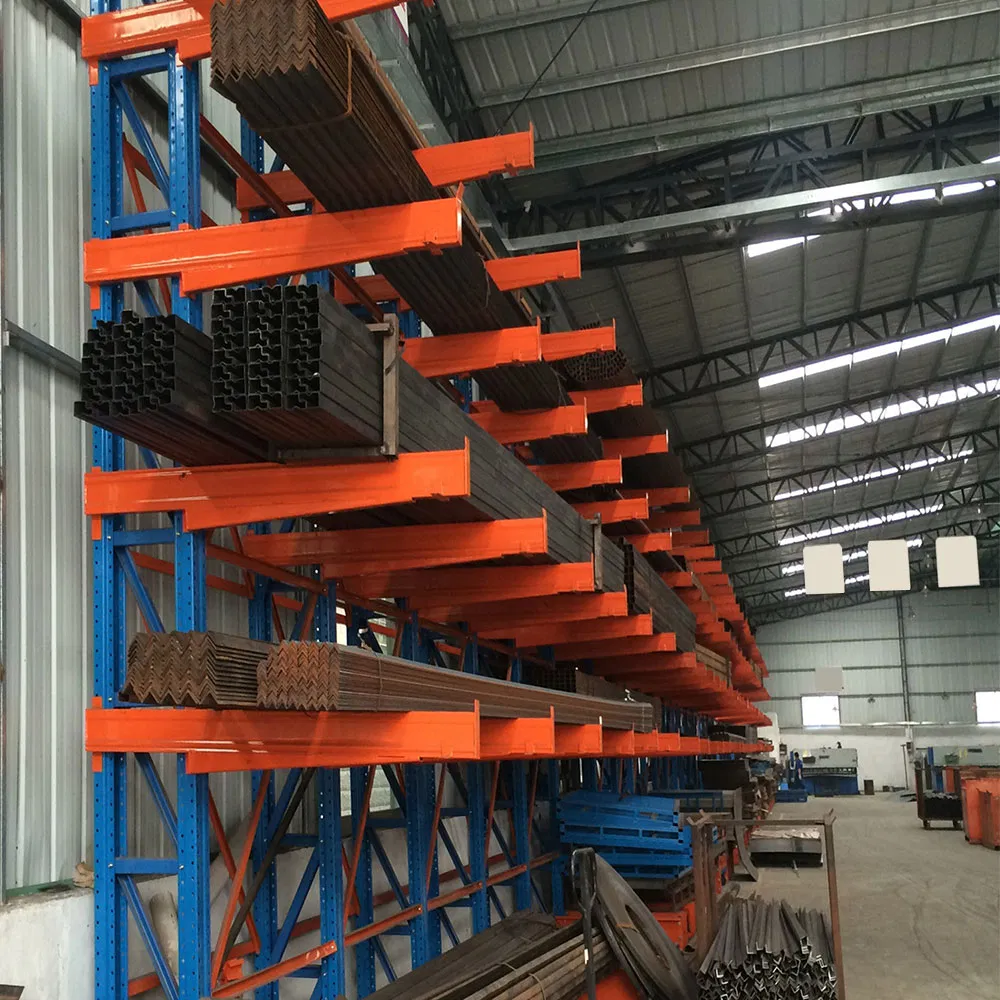

High Efficient Warehouse Storage Metal Heavy Duty Shelf Cantilever Rack System for Warehouse Pipe Storage

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
20251105-02
Usage
Tool Rack, Beverage, Food, Industrial, Warehouse
Material
Steel
Structure
Rack
Type
Cantilever Rack
Mobility
Adjustable
Height
6m or Customized
Weight
500-15000kg
Product Name
Cantilever Rack
Width
600-1400mm or Customized
Weight Capacity
Max 800kg/Arm
Surface Finish
Powder Coated/ Galvanized

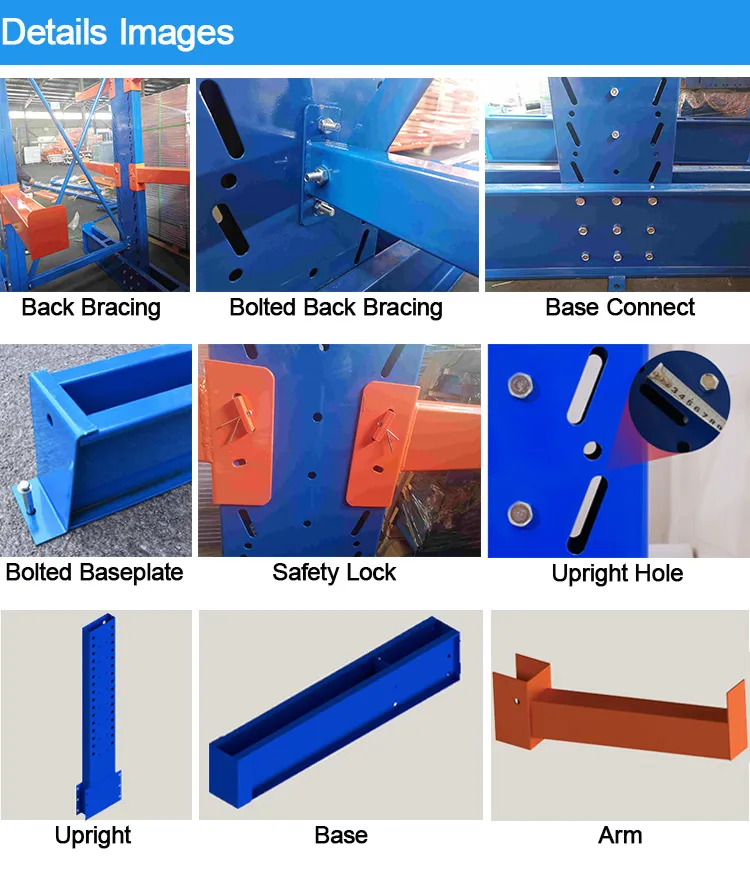

Details Images

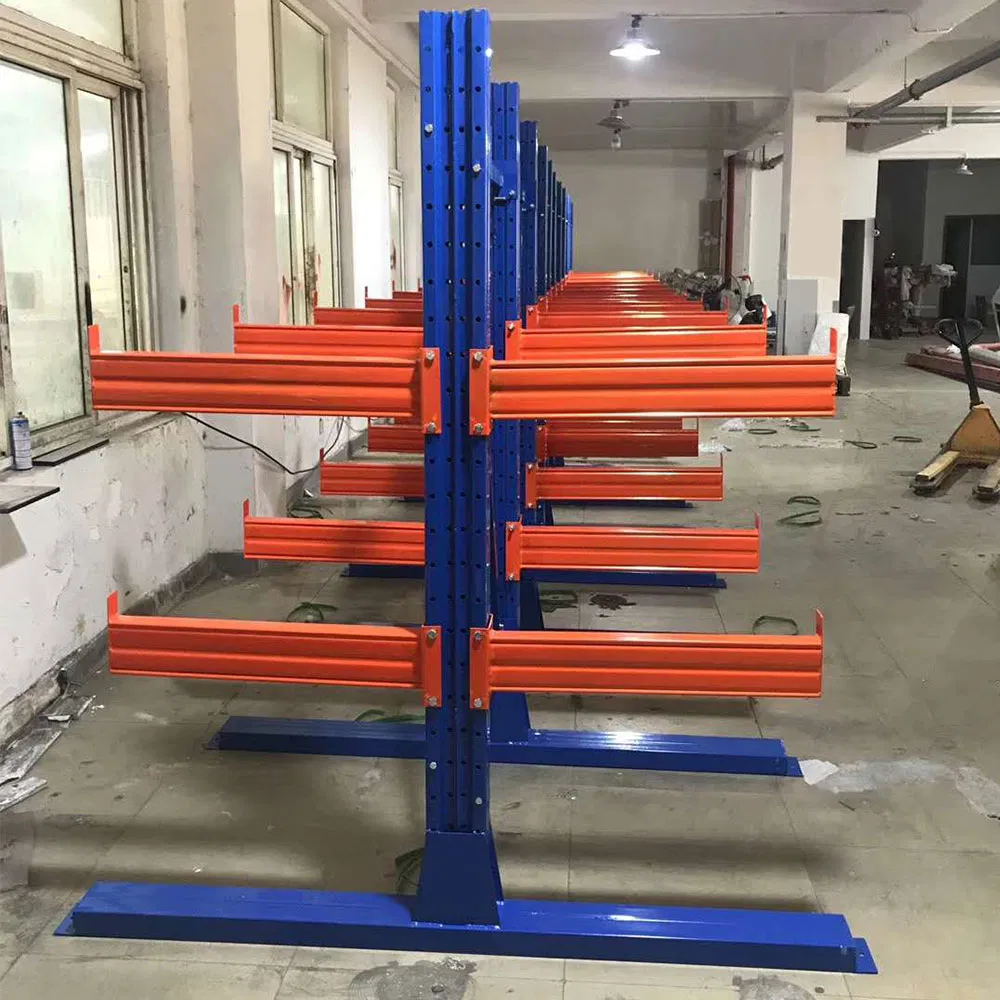

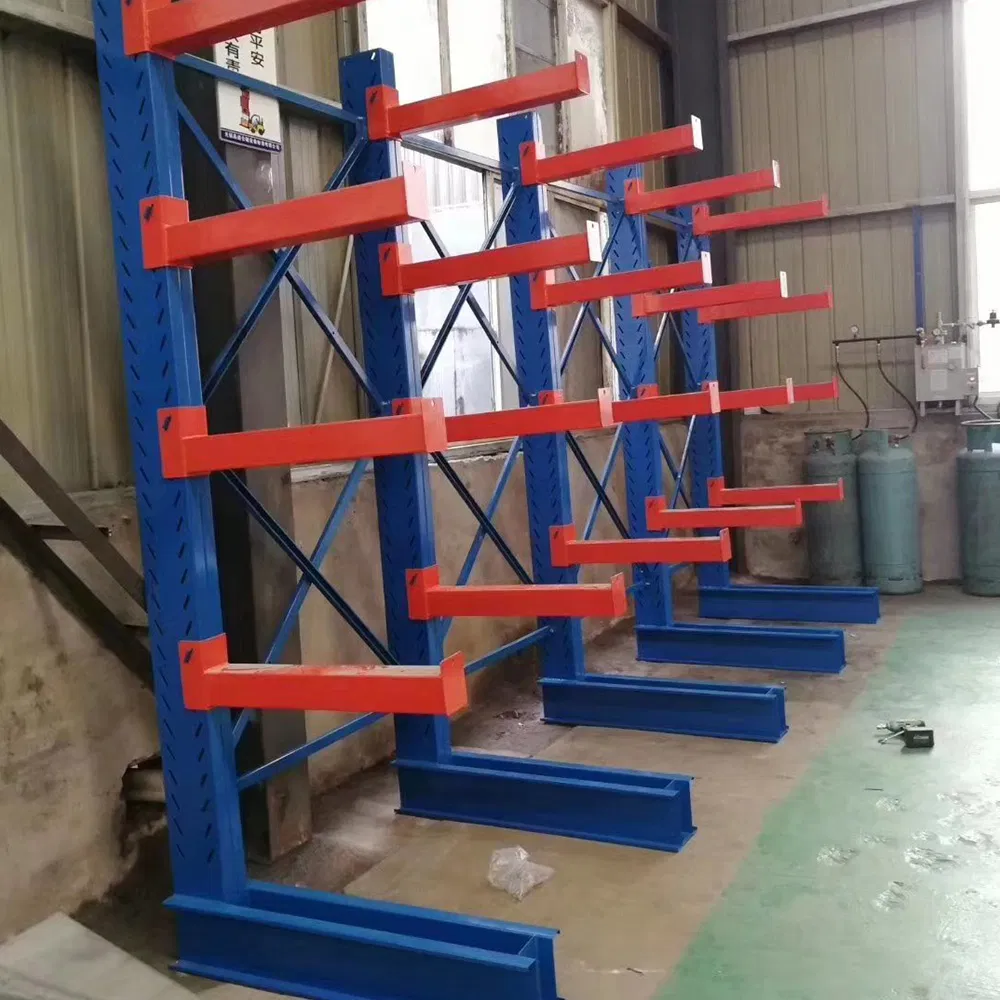

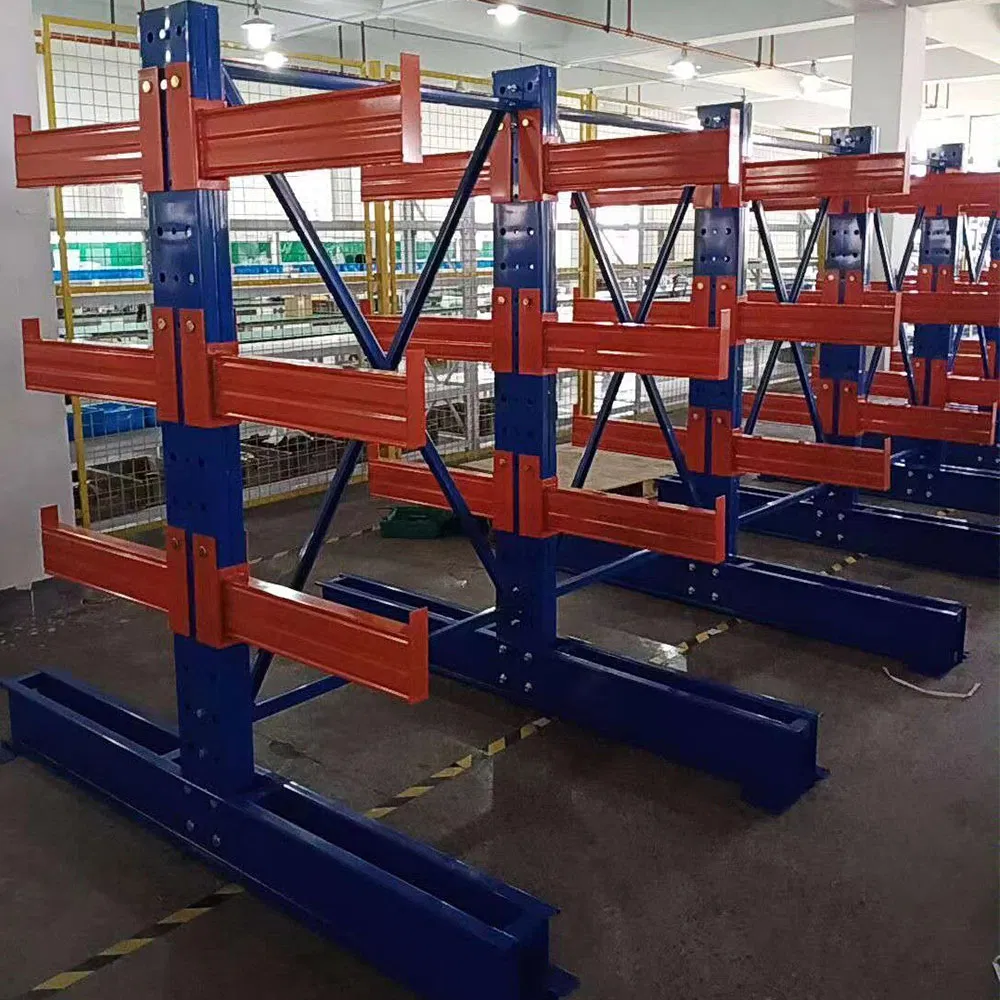

Cantilever Rack System Details

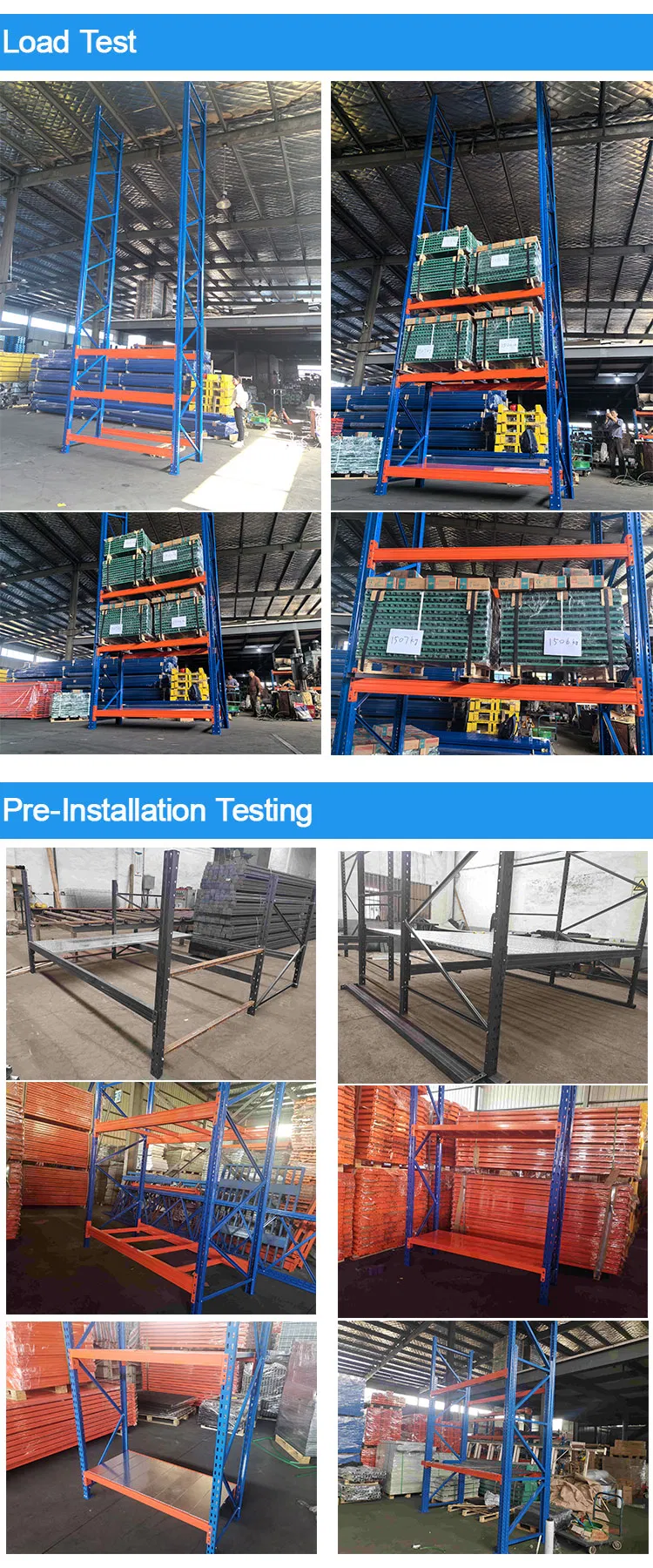

Load Test & Safety Assurance
Cantilever Rack Load Test
Safety Assurance

Our meticulously designed safety accessories, coupled with top-notch structural engineering, enhance the stability of our racking units, providing you with peace of mind, safety, and practicality.

■ Tilted Cantilever: When the weight of goods causes a downward angle shift, the upward angle (2°~4°) effectively prevents goods from scattering.

■ Cantilever Arm Ends & Base Retainers: Installing retainers prevents goods from rolling and falling, safeguarding operators.

■ Specially Designed Cross Braces: Horizontal and diagonal connections strengthen torsional stability.

■ High-Strength Base Bolts: Secured with premium expansion bolts to reinforce connections and prevent toppling.

Products Support & Services
Service Type Availability & Details
Free ConsultationYes, Any Questions You Can Consult With Free.
Free DesignYes, CAD/PDF/3D Drawing
3D SampleYes, 1:1 3D Sample available
OEM & ODMAvailable
Lead Time15-20 Days For Regular Orders
Maintenance ServiceYes, Free Maintenance Guide provided.

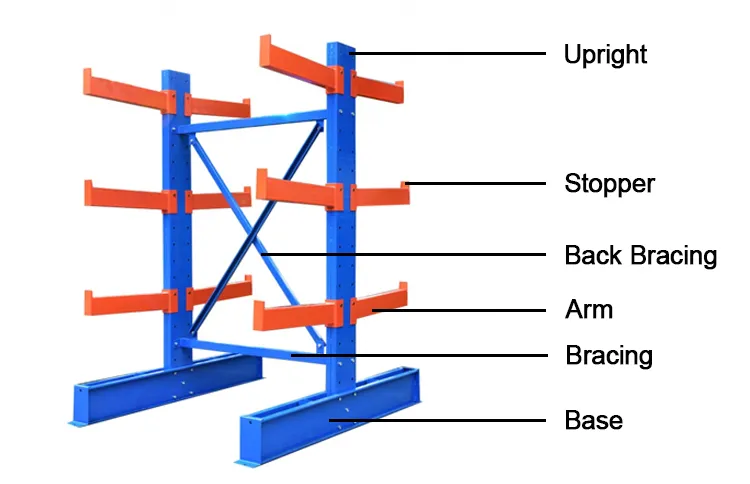

Core Components
Cantilever Components
Uprights

Made from high-quality Q235 cold-rolled steel with a hole spacing of 100mm. Available in single-sided and double-sided types.

Beams/Arms

Acting as levels for storing goods, available in horizontal and tilted types. Supports both embedded and bolt connections.

Base & Braces

Using high load-bearing H-Beam for stability. Cross braces enhance the torsion and overall structure of the rack.

Customized Services
Customization banner

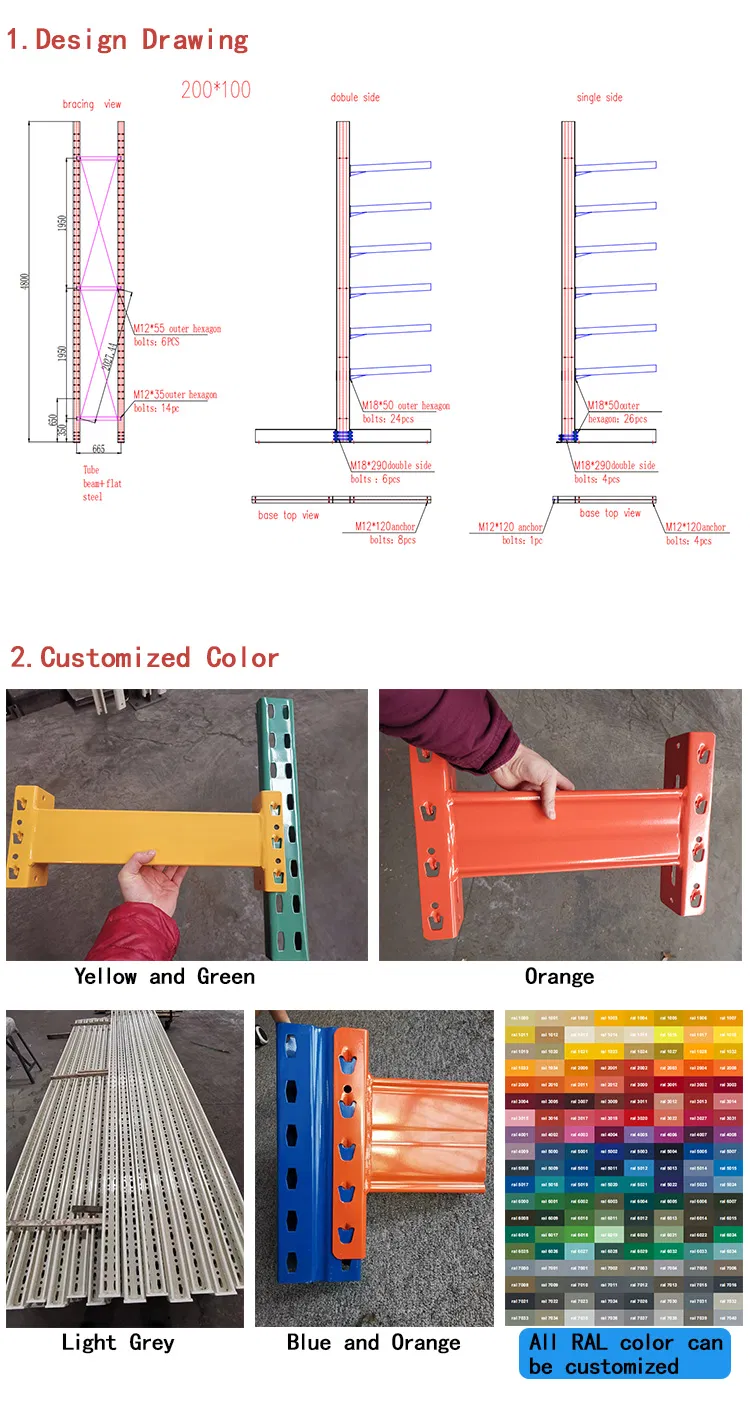

We support customization, including drawing, color, package, and size etc.

Custom size options
Why Choose Us

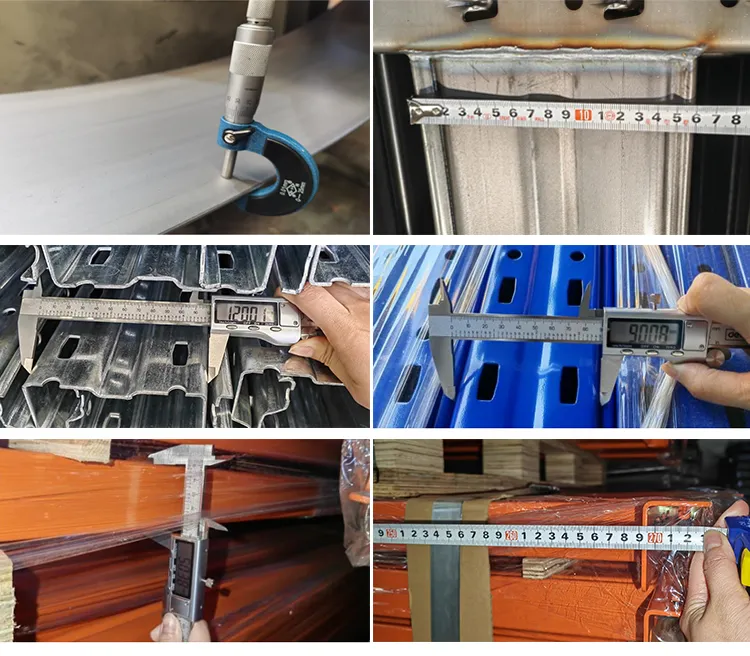

1. Strictly Quality Inspection: A professional team checks the quality for every production step.

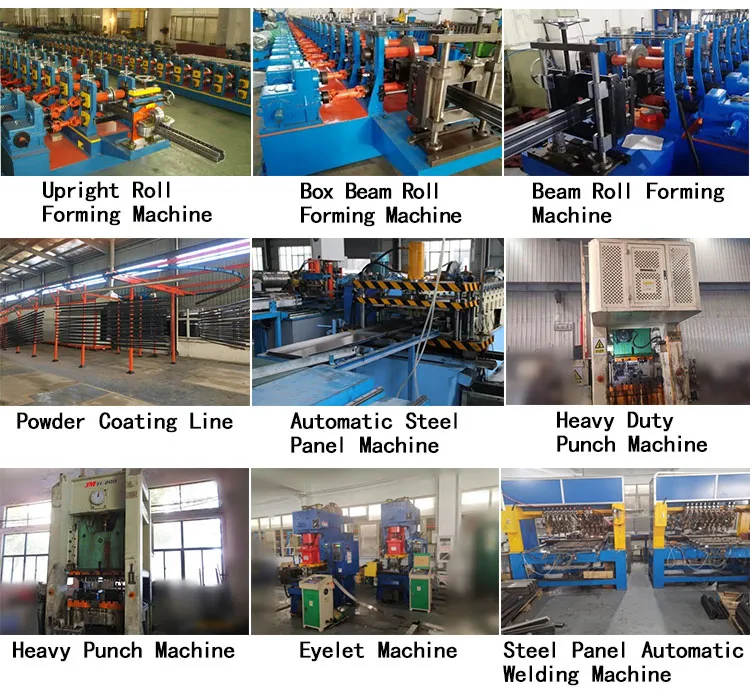

2. Advanced Equipment: Complete production facilities ensure delivery time and quality control.

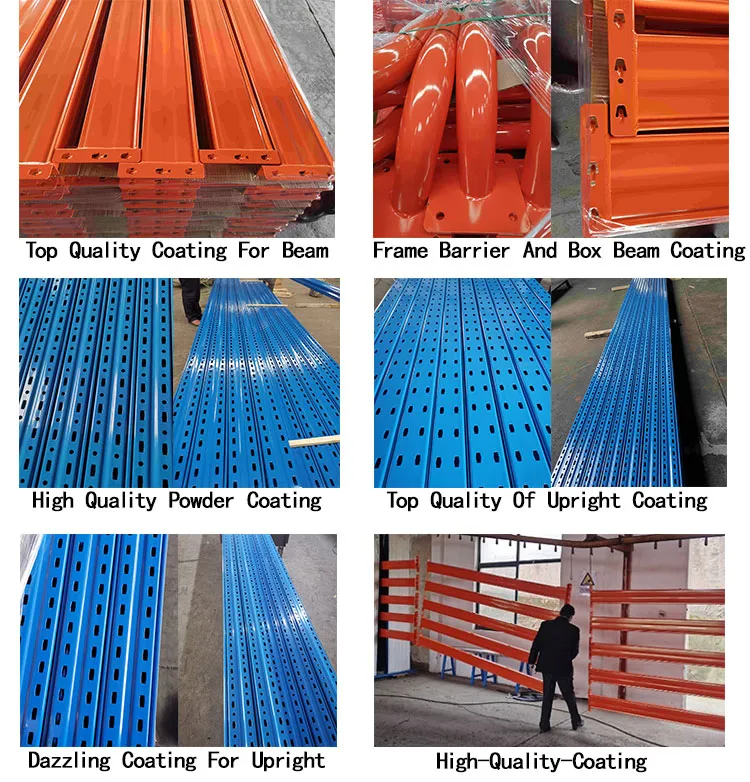

3. Superior Powder Coating: Utilizing powerful pickling technology to create an oxidation film, ensuring better resin powder adsorption and longer racking life.

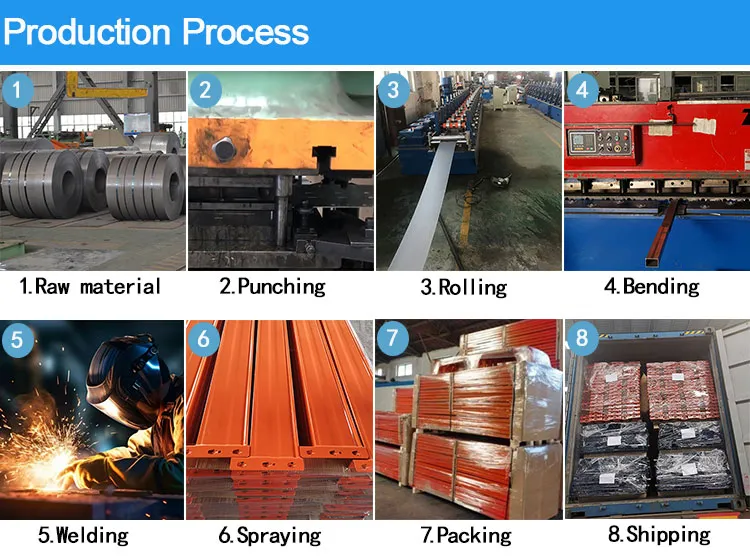

Production & Facility
Company Introduction

We are dedicated to the production of racking storage, providing quality solutions for saving your storage space. With over 23 years of experience exporting to over 85 countries, our automated technology ensures optimum racking production. We offer a 10-year warranty to cover your racking needs.

Frequently Asked Questions
What is best - Roll-Formed or Structural Cantilever Arm Rack?
Roll-formed systems have a bolt-less structure best for lightweight materials. Structural types are fixed to the ground through bolting, making them perfect for heavy goods.
What is the estimated cost of a new cantilever pallet rack?
The cost depends on your specific requirements, warehouse space, and the racking design chosen.
What factors should I consider before purchasing?
Pay attention to the roof height of your warehouse for customization. Correct uprights, braces, and arms are necessary to avoid product deflection.
Can goods be stored at the base of the racking system?
Yes, storing materials at the base of your cantilever racking is safe and provides extra storage area.
How can I adjust or expand the cantilever rack?
Uprights have hole intervals of 100mm for height adjustment. You can add more uprights to extend the depth/length of the rack.
What warranty or support is provided?
We offer a 10-year warranty and 24/7 after-sales support for all our racking systems.
