Heavy-Duty Warehouse Drive-in Rack with Drive-in Shelving, 1, 300 Kg Capacity

1 / 5

Heavy-Duty Warehouse Drive-in Rack with Drive-in Shelving, 1, 300 Kg Capacity

Customization:	Available
After-sales Service:	Yes
Warranty:	0

Send Inquiry

Product Description

Basic Specifications

Model NO.

SN46126

Device Depth

1,000 mm-3,500 mm

Dead Weight

1,300 Kg-5,500 Kg

Access Port

1 or More

Safety Protection

Safety Light Curtain

Password/Fingerprint/Face

Transport Package

Packing

Specification

W4450*D2090*H5000

Product Overview

Versatile Vertical Sort Module for Optimal Warehouse Space Use

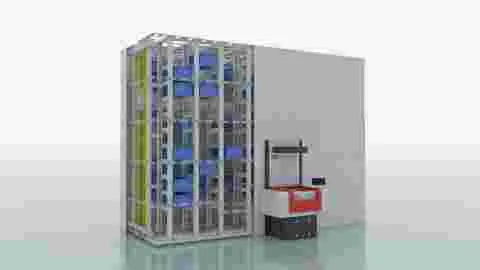

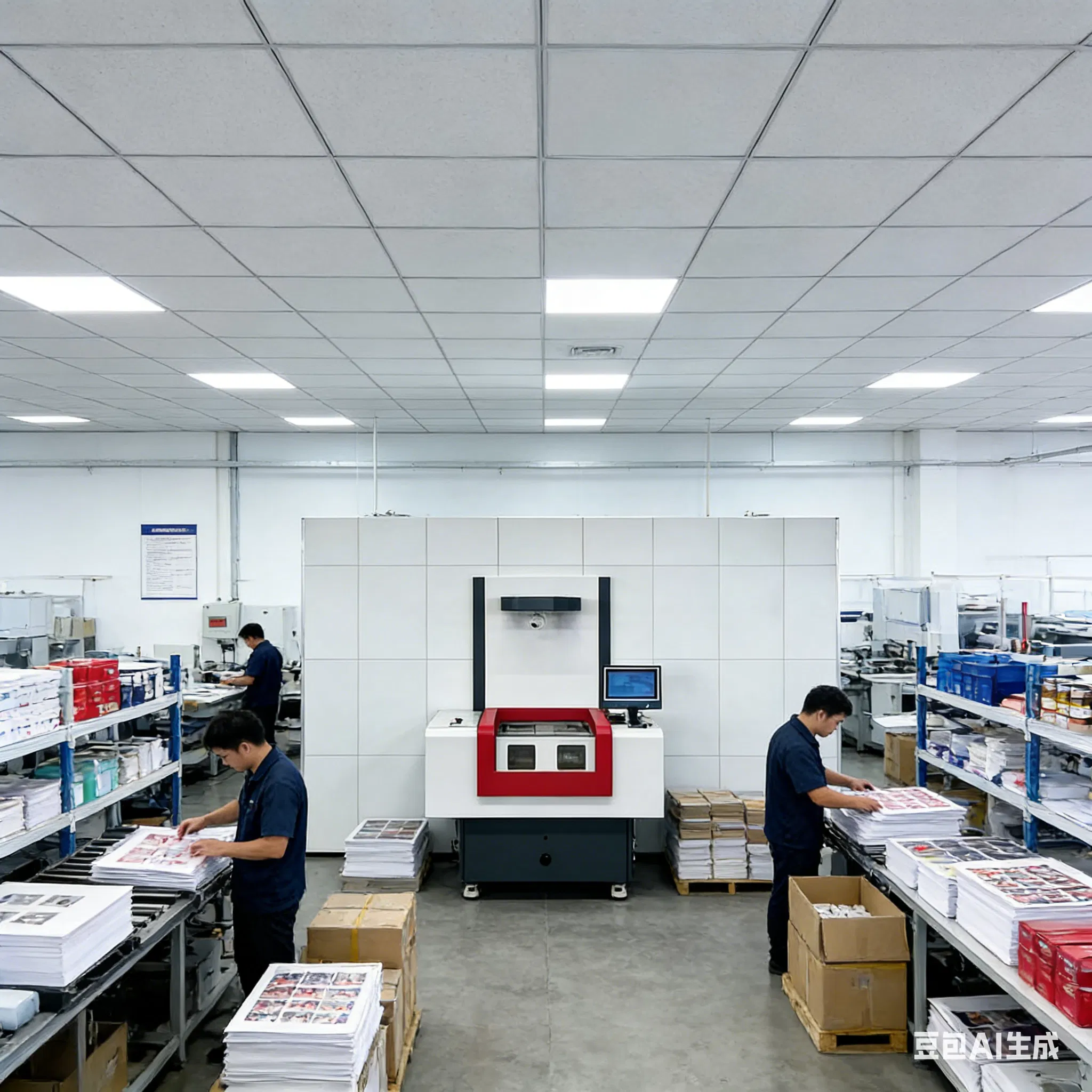

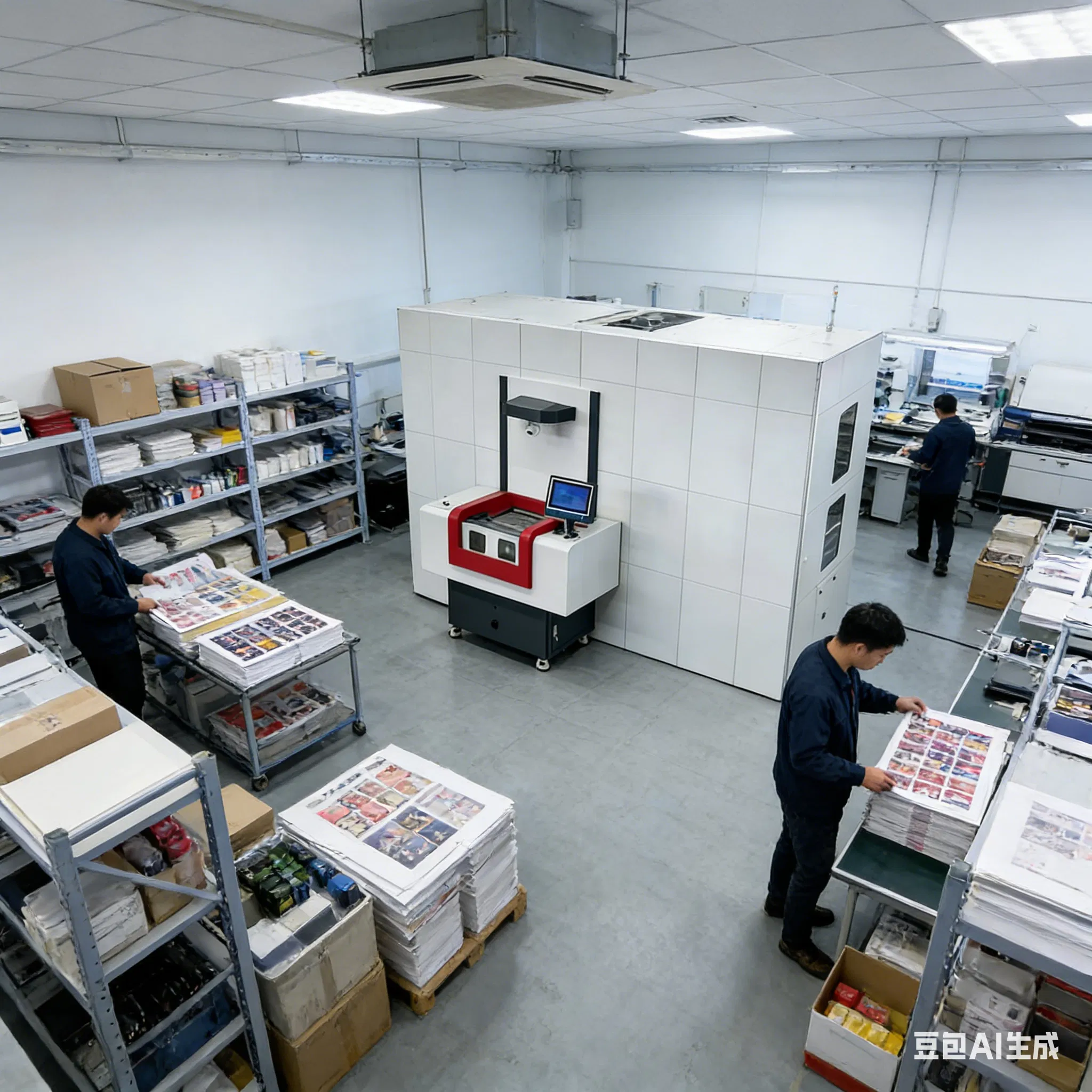

The Vertical Sort Module Storage reads box signals and moves horizontally via a synchronous belt, utilizing a telescopic fork for precise handling and storage. This system comprises a main frame, prefabricated panel, lifting mechanism, horizontal fork, and an intuitive touch screen interface.

Application Scenarios

Cutting Tools, Tool Holders, and CNC Molds
Small, Precise Spare Parts for Equipment
Pharma, Cosmetics, and Reagent Samples
Semiconductors, PCB, and Electronic Components
Labor Protection Supplies (Supports Disinfection)
Standard Carriers for Various Industrial Materials

Technical Visuals

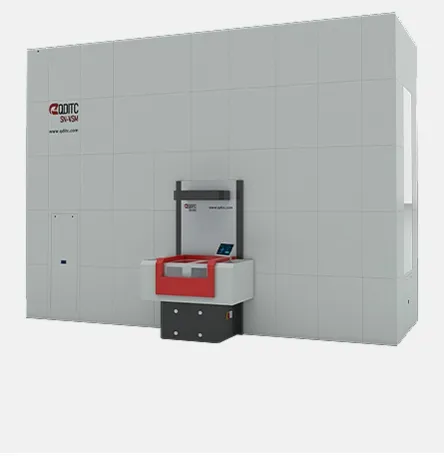

Right Elevation

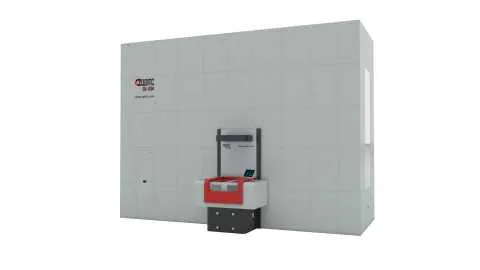

Left Elevation

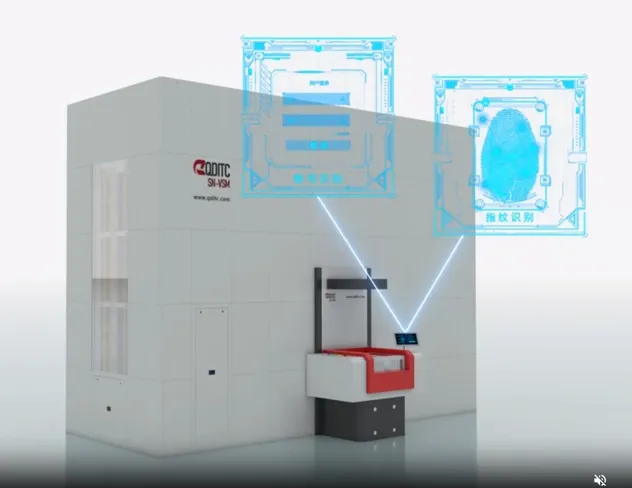

Front Elevation

Technical Specifications

* Custom configurations available based on specific warehouse requirements.

Model	SN46066	SN46069
Device Dimensions	W: 4,450 mm, D: 2,090 mm, H: 3,000 mm	W: 6,220 mm, D: 2,090 mm, H: 3,000 mm
Storage Quantity	71 units	107 units
Box Size	W400 * D600 * H230 mm	W400 * D600 * H230 mm
Rated Load	50 KG	50 KG
Rate of Climb	2.0 m/s	2.0 m/s
Horizontal Velocity	1.0 m/s	1.0 m/s

Product Expertise & Solutions

We provide advanced automated warehouse systems designed to maximize efficiency and space utilization across multiple industries:

VLM (Vertical Lift Storage System)
VCM (Vertical Carousel Storage System)
VSM (Vertical Sorting Storage System)
IHSM (Intelligent Horizontal Sorting Storage)
Smart AS/RS (Smart Stacking Warehouse)
AGV / RGV Systems

Frequently Asked Questions

What core products are available for automated warehousing?

Our automated warehouse solutions include Vertical Lift Modules (VLM), Vertical Carousel Modules (VCM), Vertical Sorting Modules (VSM), Intelligent Horizontal Sorting (IHSM), Smart AS/RS, and mobile robotic solutions like AGVs and RGVs.

What types of materials are best suited for this system?

The system is ideal for storing tools, spare parts, electronic components, raw materials, medical drugs, archives, and magnetic media. It is widely used in aerospace, machinery, medicine, and automotive industries.

What is the typical lead time for an order?

Lead times vary by order size: approximately 60 days for small quantities and 90+ days for larger or custom projects. Delivery times are confirmed at the point of order to ensure accuracy.

What are the standard payment terms?

Our standard terms are 50% advance payment for contract effectiveness, 45% pre-shipment payment, and a final 5% acceptance payment within 10 days of on-site installation and actual use.

How does the system ensure operational safety?

Safety is a priority. The module is equipped with a Safety Light Curtain and multiple login methods (Password, Fingerprint, or Face recognition) to ensure only authorized personnel can access the inventory.

Can the dimensions be customized for my facility?

Yes, while we have standard specifications (e.g., SN46066/SN46069), custom configurations for height, width, and depth are available to fit your specific warehouse footprint and material requirements.
