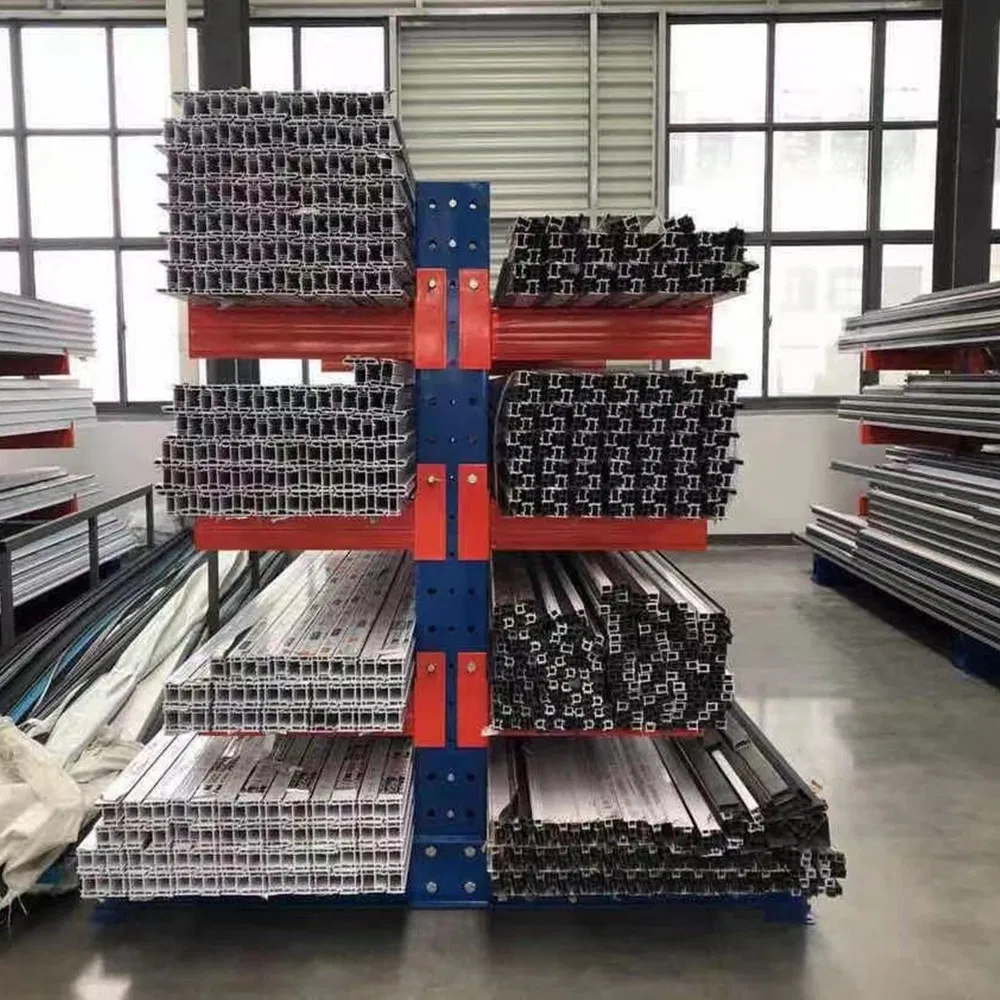

Heavy Duty Metal Steel Cantilever Racking System for Storing Fabric

1 / 5

Heavy Duty Metal Steel Cantilever Racking System for Storing Fabric

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

OKE-20250427-02

Usage

Tool Rack, Beverage, Food, Industrial, Warehouse

Material

Steel

Structure

Rack

Type

Cantilever Rack

Mobility

Adjustable

Height

6m or Customized

Weight Capacity

500-15000kg

Upright

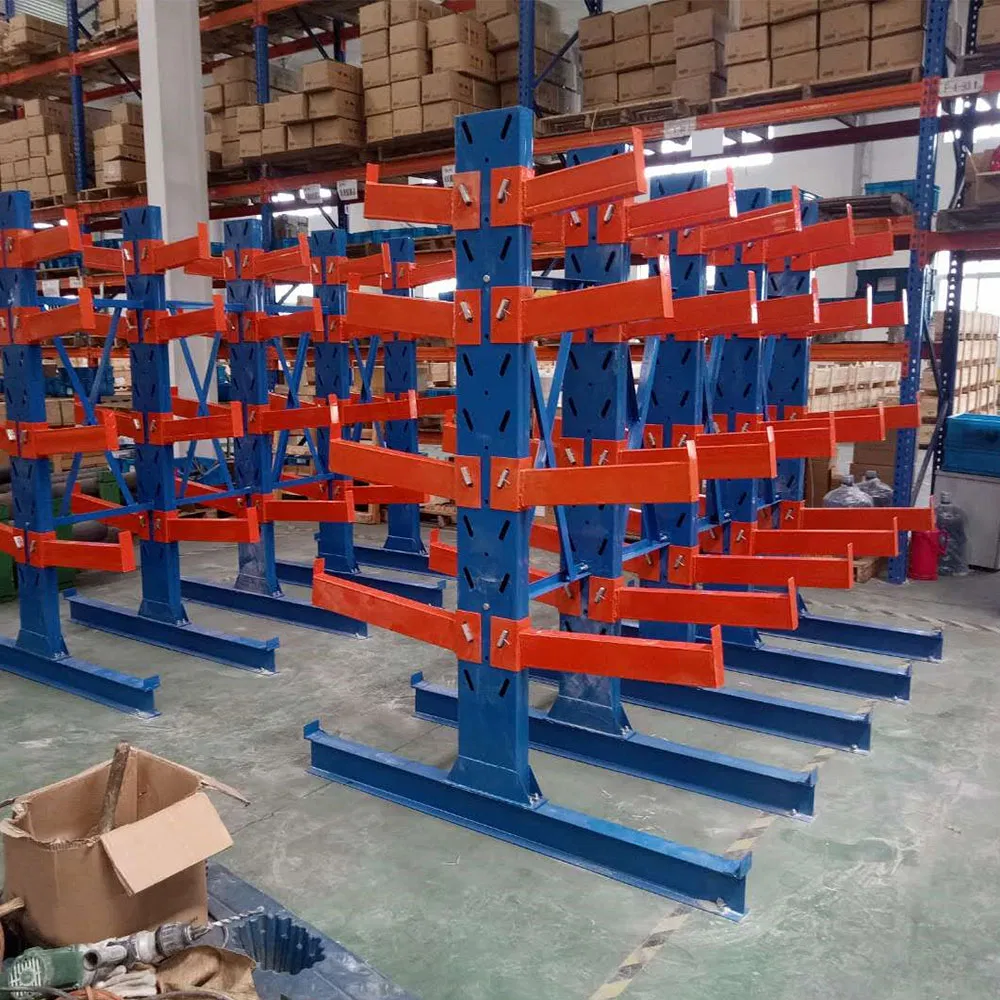

Single-Sided/Double-Sided

Surface Finish

Powder Coated / Galvanized

Origin

China

Production

20000 Set/Sets Per Month

✔

Safety Assurance & Features

Our meticulously designed safety accessories, coupled with top-notch structural engineering, enhance the stability of our racking units, providing you with peace of mind, safety, and practicality.

Tilted Cantilever When the weight of goods causes a downward angle shift, the upward angle (2°~4°) effectively prevents goods from scattering.

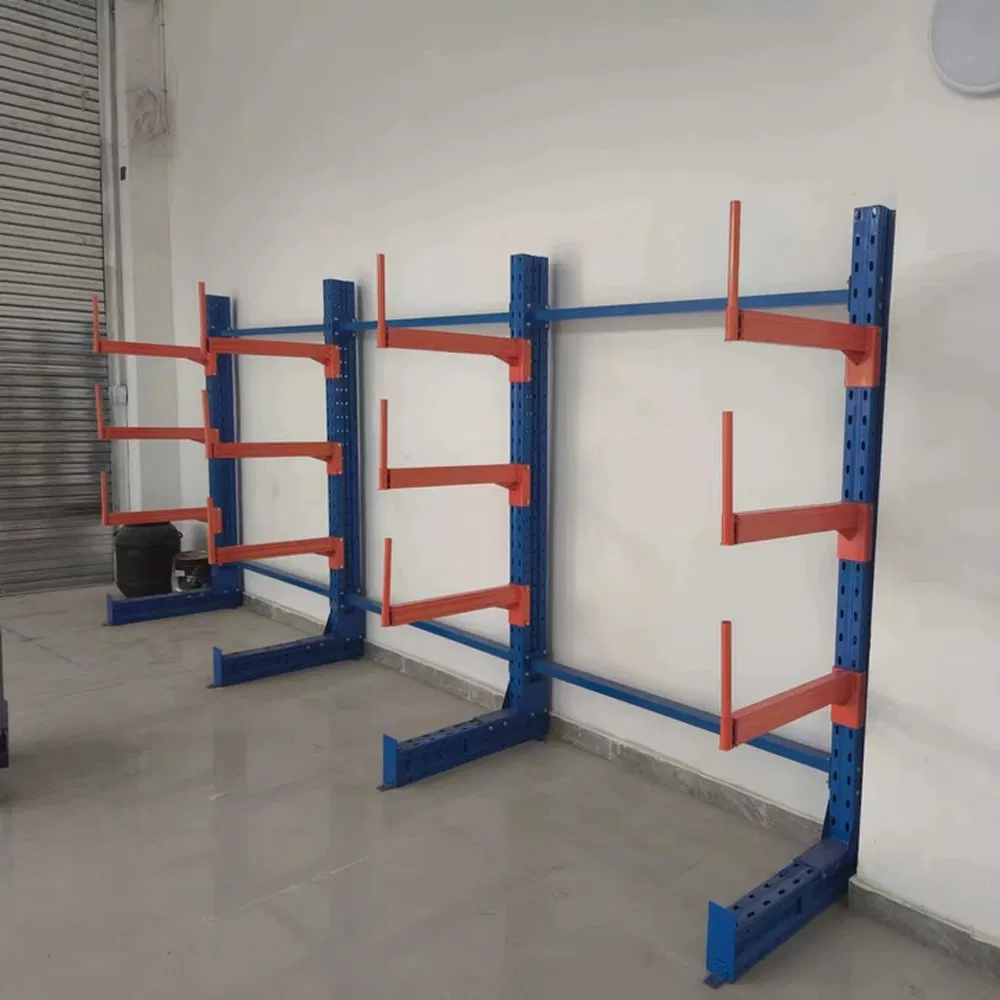

Cantilever Arm Ends & Base Retainers Installing retainers at the outer ends prevents goods from rolling and falling, safeguarding operators.

Specially Designed Cross Braces Horizontal and diagonal connections strengthen the torsional stability of the rack structure.

High-Strength Base Bolts Heavy-duty bases use M18*290 bolts to reinforce the connection between uprights and base, preventing toppling risks.

⚙

Technical Support & Services

Free Consultation	Yes, expert consultation available for all inquiries.

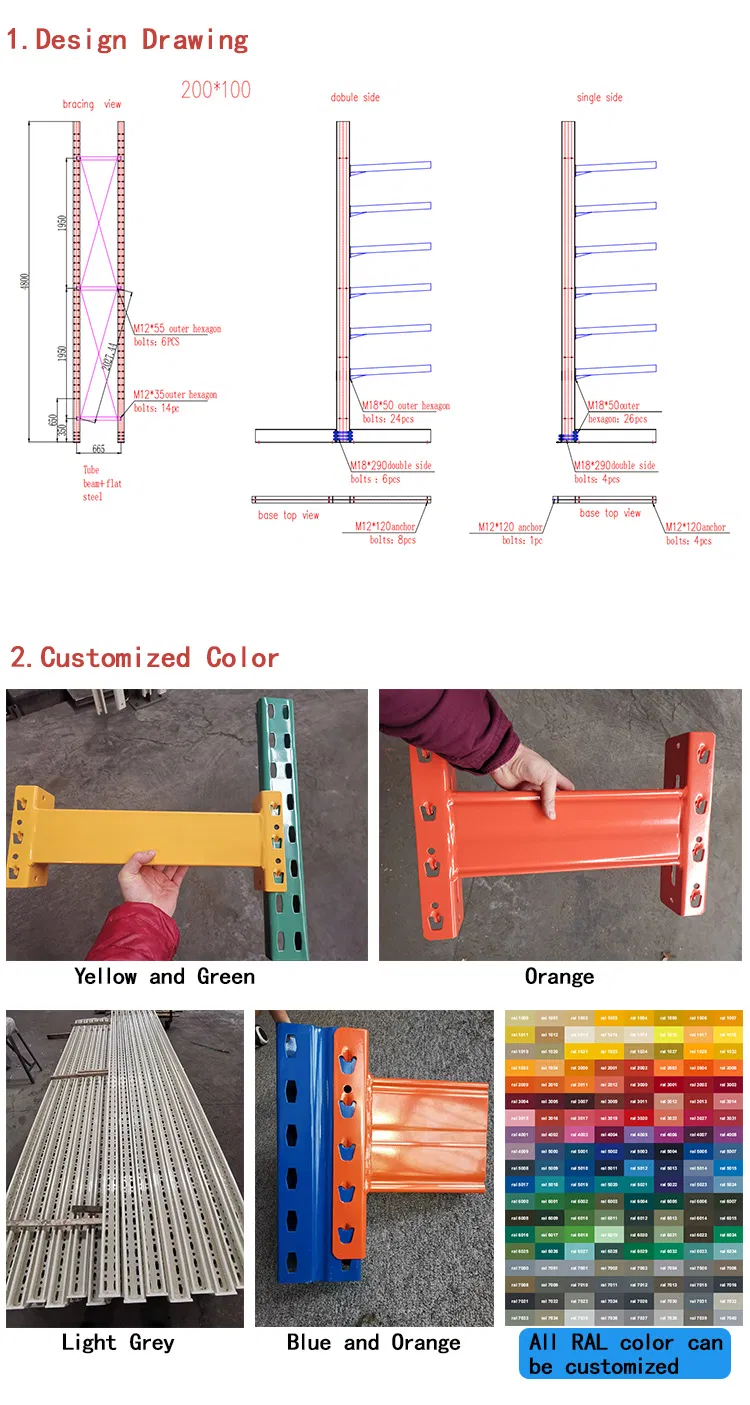

Custom Design	Supported (CAD/PDF/3D Drawing).
3D Sample	1:1 3D Sample to save time and cost of trial and error.
Lead Time	15-20 Days for regular one container orders.
Installation	Manuals, videos, and engineer support available if needed.
Warranty	10-year warranty provided for long-term reliability.

★

Why Choose Our Racking System

1. Strict Quality Inspection: Our professional inspection team checks every production step to guarantee structural integrity.

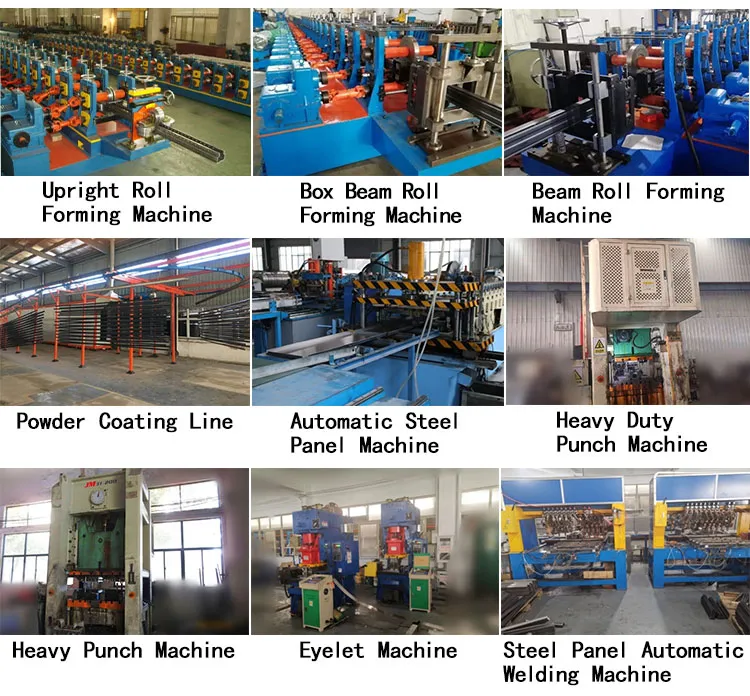

2. Advanced Equipment: State-of-the-art automated technology ensures precision and timely delivery.

3. Superior Powder Coating: Utilizing powerful pickling technology to create a robust oxidation film, ensuring the resin powder adheres perfectly for an extended product lifespan.

⚒

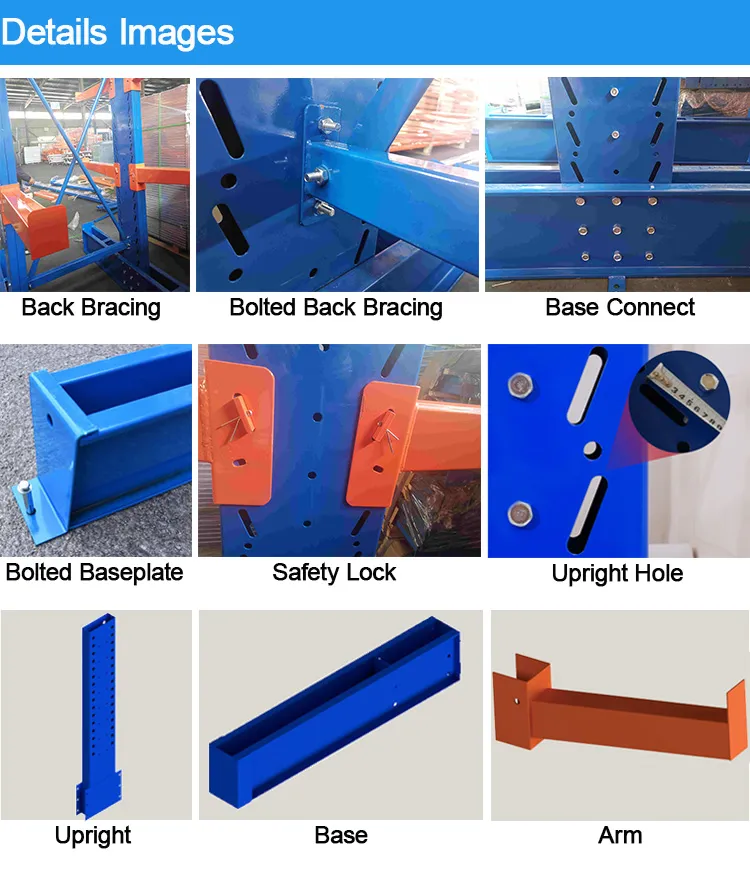

Customization & Components

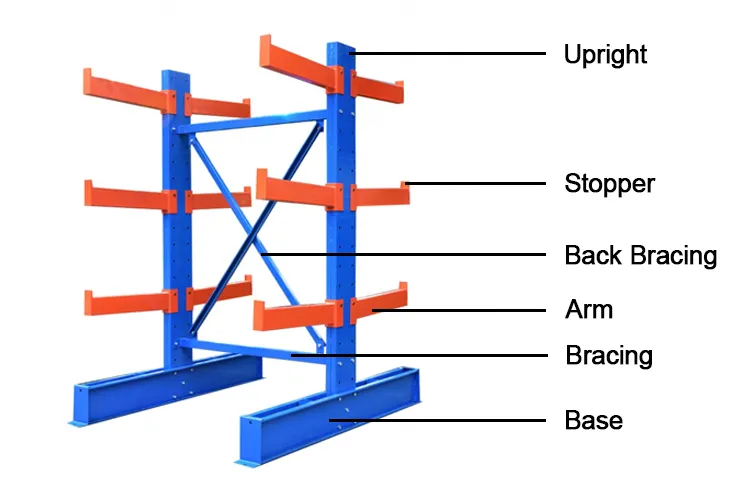

The system consists of high-quality Q235 cold-rolled steel components:

Uprights: Available in single or double-sided with 100mm hole spacing for vertical adjustment.
Beams/Arms: Horizontal or tilted types connected via embedding or high-strength bolts.
Base: Uses high load-bearing H-Beam for maximum stability.

Frequently Asked Questions

What is the difference between Roll-Formed and Structural Cantilever racks?

Roll-formed systems have a bolt-less structure suitable for lightweight materials. Structural types are bolted to the ground and are designed for heavy-duty industrial storage.

How is the cost of a new cantilever racking system estimated?

The cost depends on your specific weight requirements, available warehouse space, and the complexity of the racking design.

What factors should I consider before purchasing?

Consider the warehouse roof height and floor capacity. Correct selection of uprights, braces, and arms is vital to avoid product overhanging or structural deflection.

Can goods be stored at the base of the rack?

Yes, the base of the cantilever racking is designed to safely support and store heavy materials.

How can I adjust or expand the system later?

Uprights have holes every 100mm, allowing for easy shelf height adjustment. You can also add more uprights to extend the overall length of the system.

What kind of warranty is provided?

We provide a 10-year warranty on the structure and offer 24/7 after-sales support for all maintenance and technical questions.
