Heavy Duty Long Span Metal Shelf for Industrial Warehouse Storage

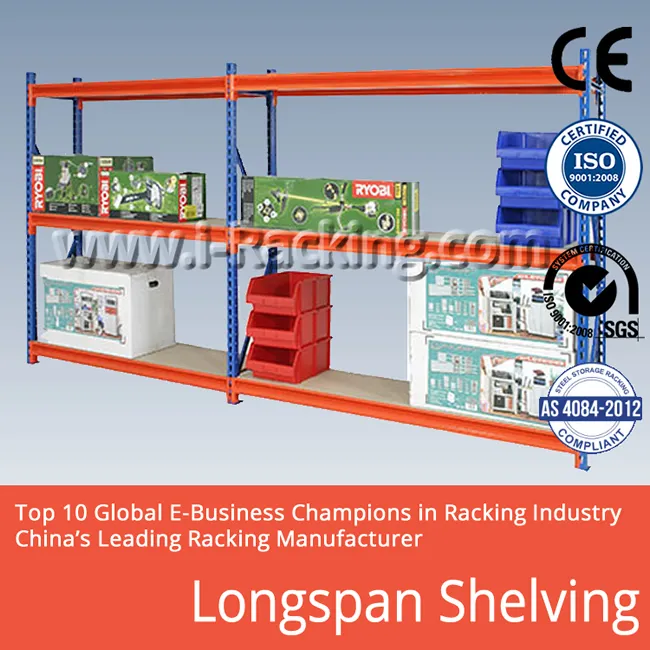

Longspan Shelving is a strong, durable, versatile and economical shelving system that looks good and minimises lost space from uprights making it ideal for a wide variety of applications from archives to automotive, factories, warehouses, retail, wholesale and commercial.

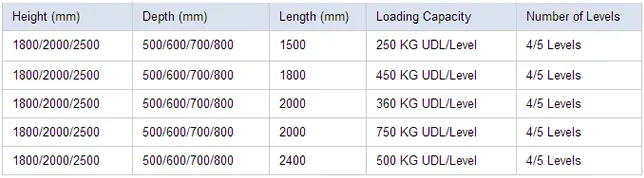

| Technical Specifications | |
|---|---|
| Loading Capacity | 200-800 kg UDL/level as general, up to 1,000 kg UDL/level as special request |
| Racking Height | 1,800-3,000mm as general, up to 11,000mm as special request |
| Racking Depth | 500-800mm as general, up to 1,200mm as special request |
| Beam Length | 1,500-2,500mm as general, up to 3,000mm as special request |
| Racking Finish | Powder Coated Finish or Galvanised Finish for Steel Panels and upright Frame |
| Packing Details | Standard export seaworthy packing |
*UDL = uniformly distributed load

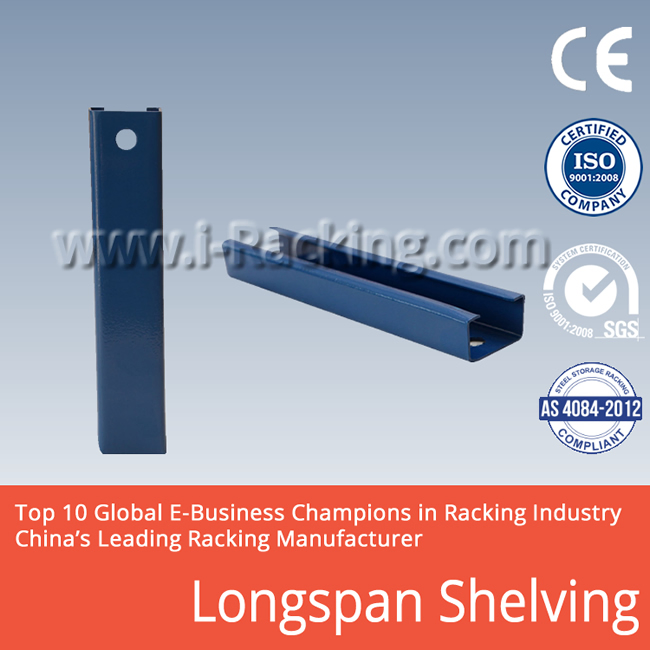

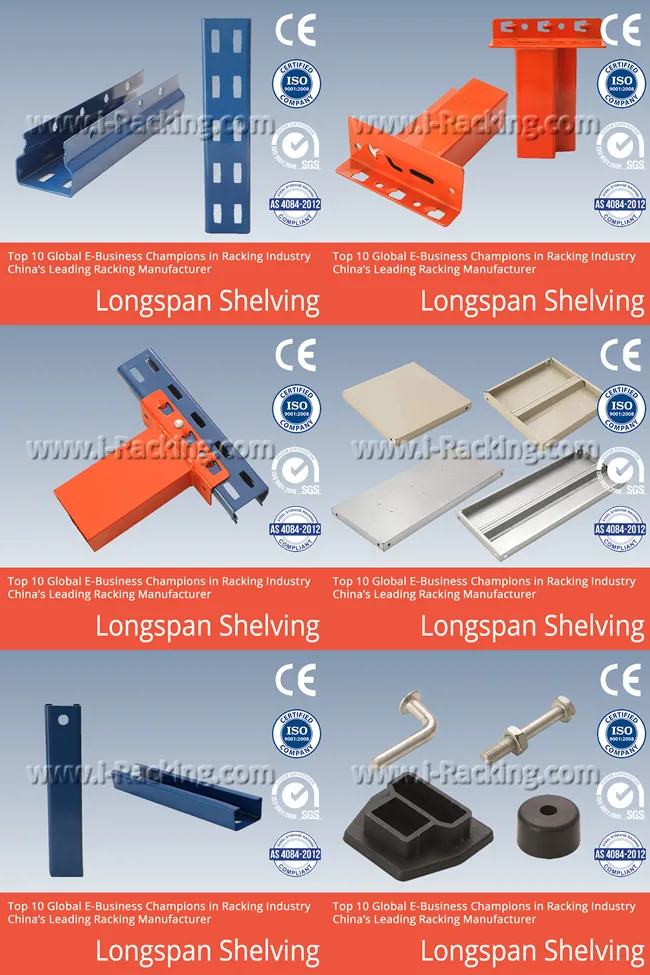

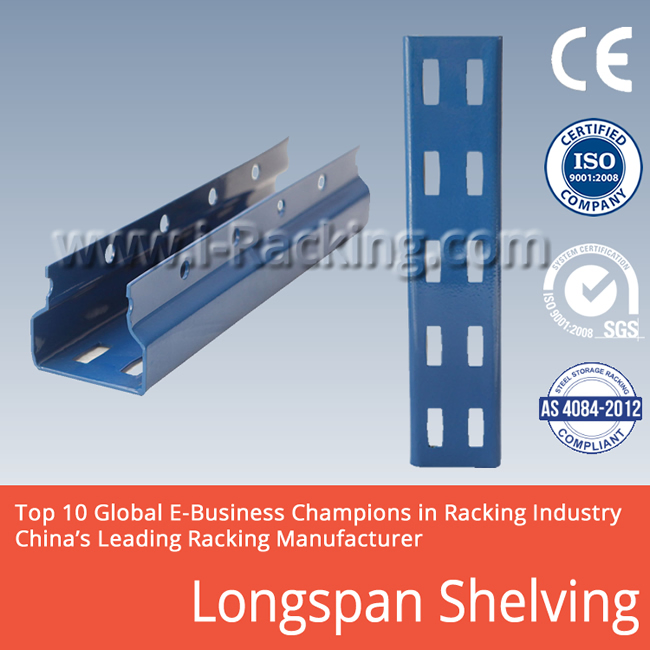

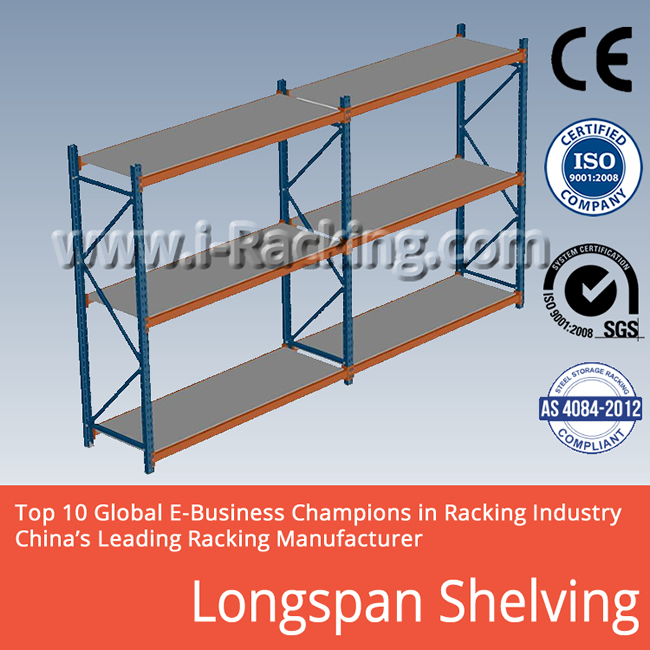

The main components of the Longspan Shelving System are uprights, step beams, connectors, steel panels, and accessories. Step beams are the horizontal components on which the load is directly deposited and on which the shelves are fitted in order to store small-sized products.

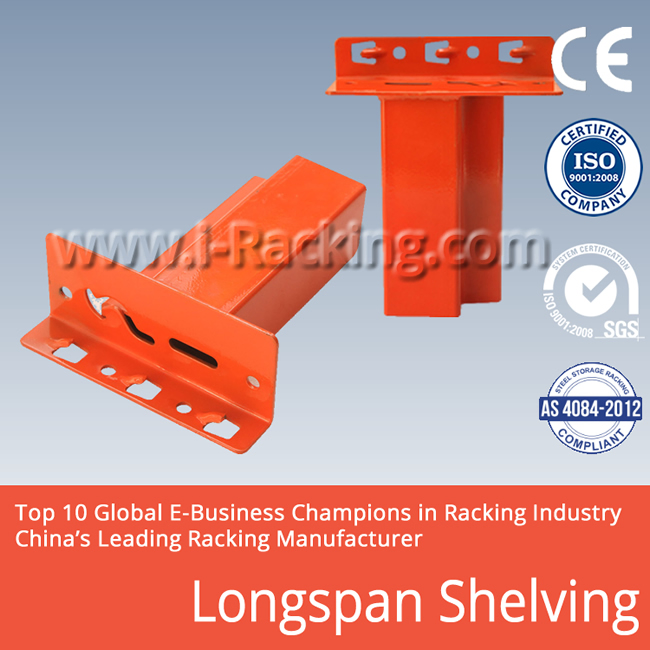

The extensive range of step beams covers any storage need in terms of size, load type, and capacity. Beams are joined to uprights by means of connectors which fit into upright slots. Depending on loading capacity, 2-hooker or 3-hooker connectors are adopted. Each beam includes two safety pins to prevent accidental dislodgement.

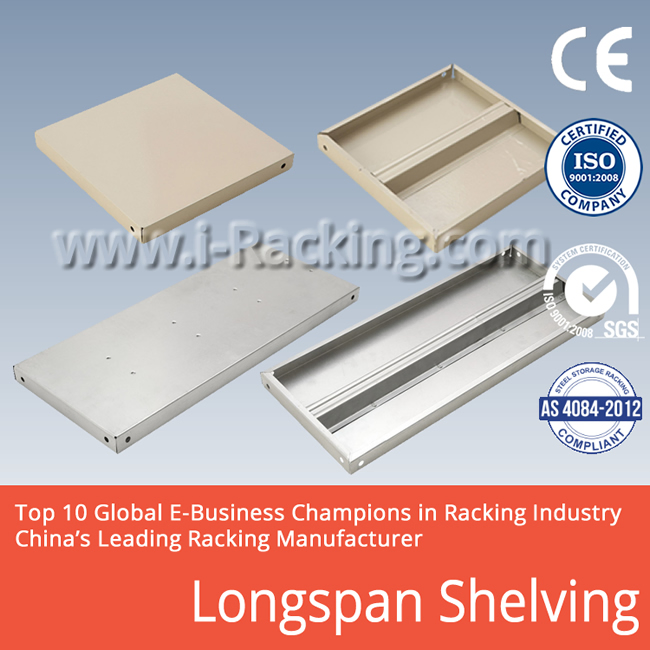

Each level is made up of 2 or 3 steel panels based on beam length and weight. Options include powder coated or pre-galvanized finishes, with backside reinforcements for higher loading capacity.
