Product Description

Basic Specifications

Model NO.

OKE-20240715-04

Material

Steel

Type

Cantilever Rack

Height

6m or Customized

Weight Capacity

500-15000kg

Depth

800-1200mm

Upright Section

200*60 / 300*90mm

Surface Finish

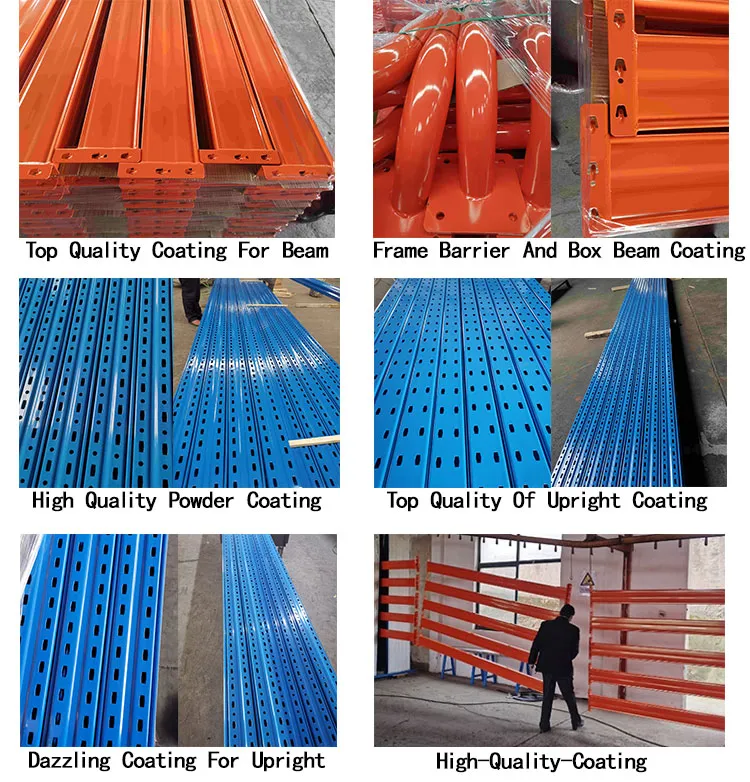

Powder Coated / Galvanized

Color

Blue, Orange or Customized

Feature

Durable, Corrosion Protection

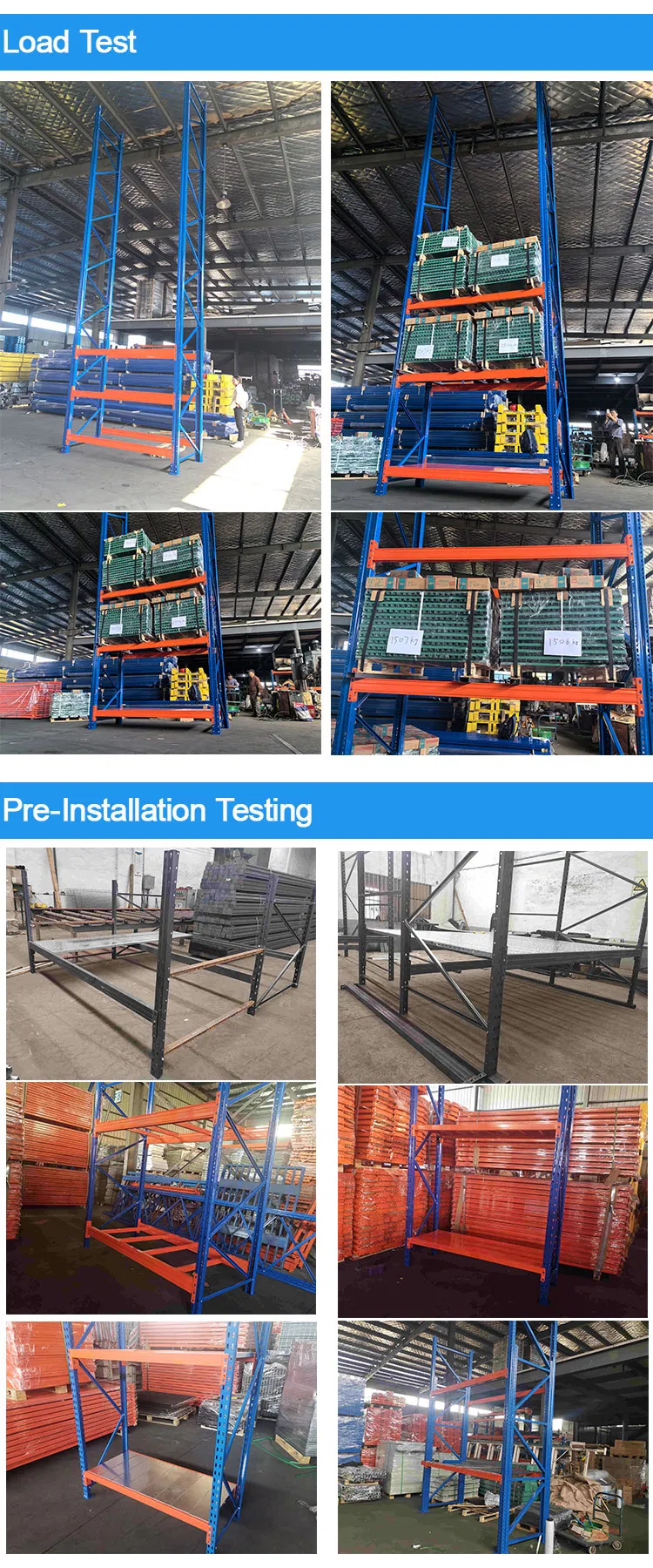

Product Details & Load Test

Our Safety Assurance

Our meticulously designed safety accessories, coupled with top-notch structural engineering, enhance the stability of our racking units, providing you with peace of mind, safety, and practicality.

Tilted Cantilever: Upward angle (2°~4°) effectively prevents goods from scattering when weight causes a downward shift.
Arm Ends & Base Retainers: Prevents goods from rolling and falling, safeguarding operators.
Special Cross Braces: Horizontal and diagonal connections strengthen torsional stability.
Extended Base: Designed longer than the arms to prevent tilting.
High-Strength Bolts: Use of M16/M18 heavy-duty bolts and Grade 8.8 expansion bolts for ground anchoring.

Service & Support

Products Support	Availability
Free Consultation	Yes, Professional Technical Advice
Support For Custom	Yes (Size, Color, Load Capacity)
Free Design	Yes, CAD/PDF/3D Drawings Provided
Capacity Test	Yes, On Request
Installation Service	Installation Drawings & Video Support
Warranty	Long-term Quality Assurance

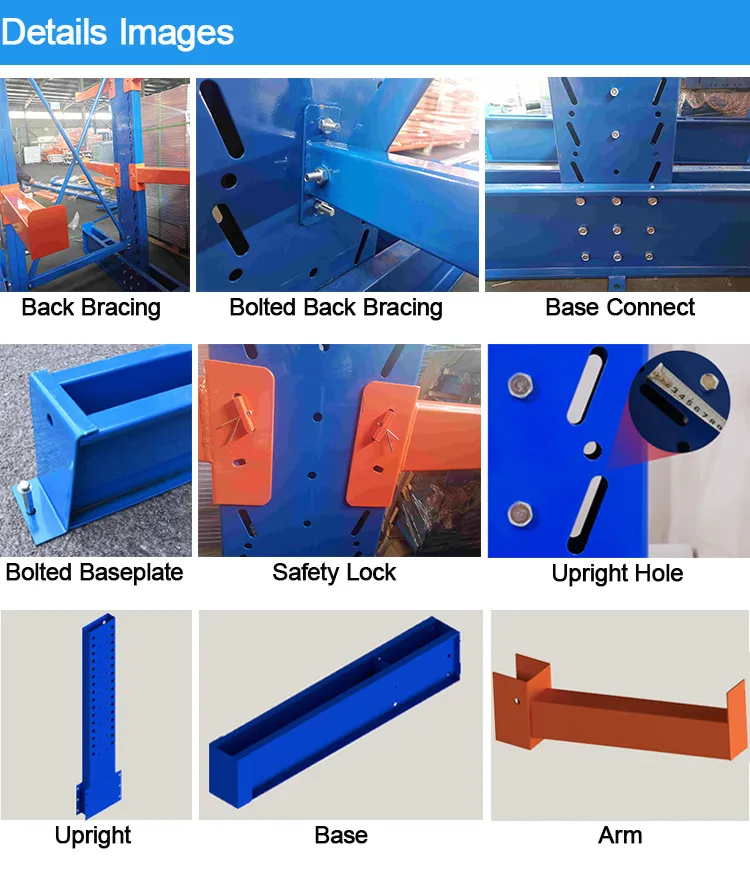

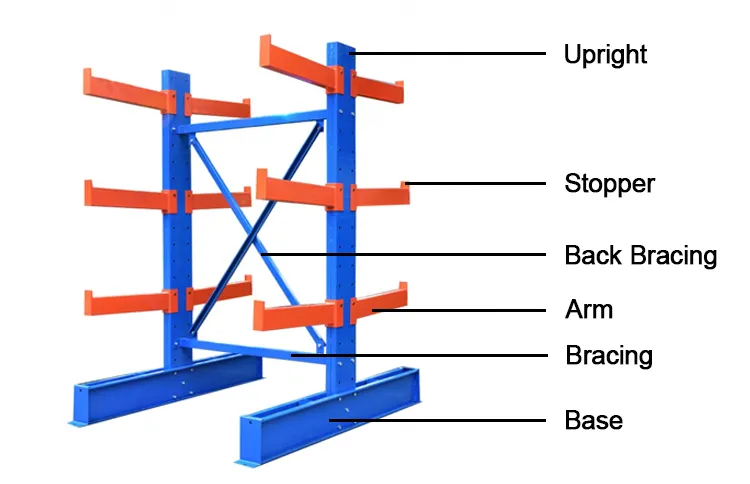

Main Components

Uprights: Made from high-quality Q235 cold-rolled steel with 100mm hole spacing for vertical adjustability.

Beams/Arms: Available in horizontal and tilted types. Light-duty arms are embedded; heavy-duty use bolt connections.

Base: High load-bearing H-Beam construction for maximum stability.

Bracing: Cross braces horizontally and diagonally connect uprights for structural integrity.

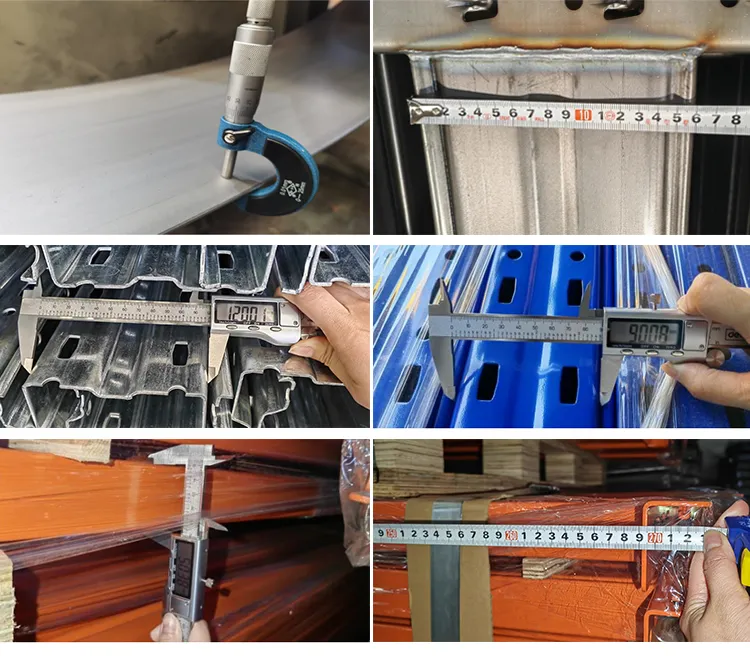

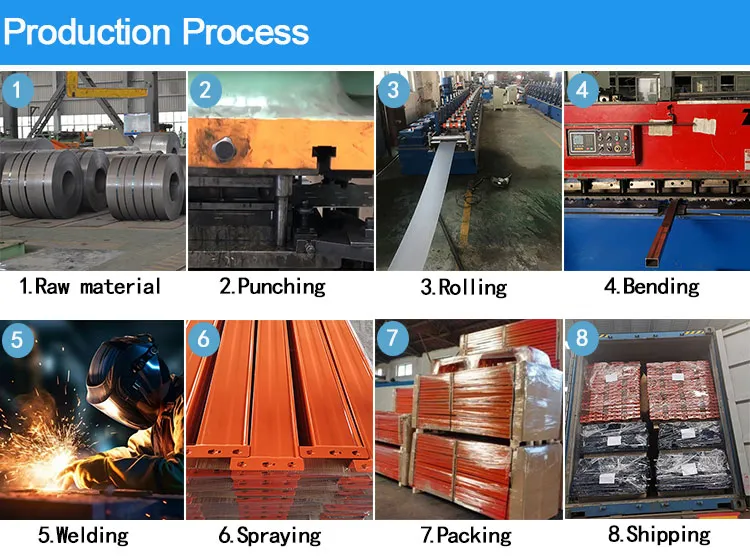

Quality Control & Production

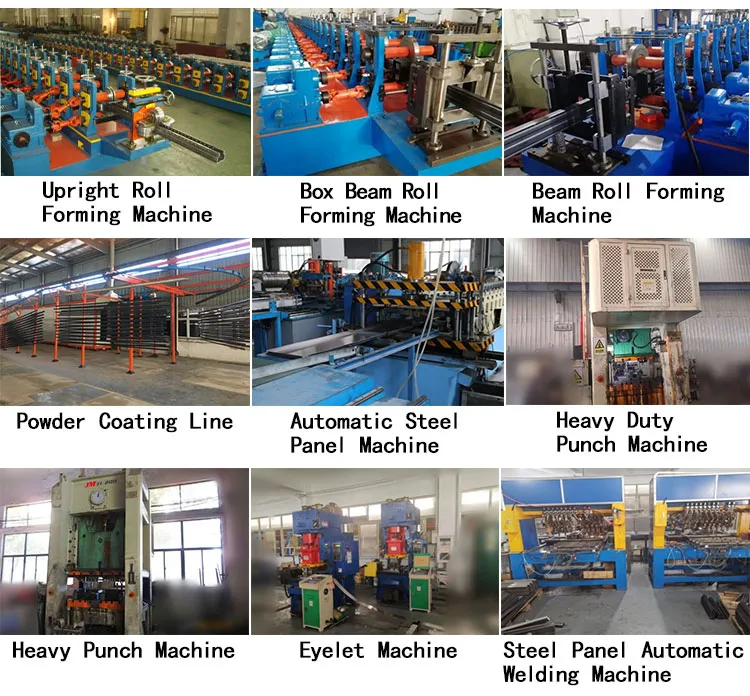

Production Environment

Frequently Asked Questions

What is the difference between roll-formed and structural cantilever arms?

Roll-formed systems have a bolt-less structure suitable for lightweight materials. Structural types are bolted to the ground and are perfect for heavy-duty industrial storage.

What factors should I consider before purchasing?

Consider your warehouse roof height for customization, and ensure correct selection of uprights, braces, and arms to avoid product overhanging.

Can goods be stored at the base of the rack?

Yes, storing materials at the base of your cantilever racking system is completely safe and efficient for space utilization.

How can I adjust or expand the rack?

The uprights feature 100mm hole spacing. You can adjust shelf heights in 100mm increments or add more uprights to extend the system's length.

What maintenance is required?

We recommend regular inspections, cleaning, and checking components for wear. We provide maintenance guides to ensure long-term safety.

What is the estimated lead time for an order?

Typically, the lead time is 15-20 days for a standard container of regular pallet or cantilever racking.
