Product Description

i
Basic Information
Model NO.
Narrow Aisle Rack
Material
Steel Q235B
Structure
Rack
Type
Multi-Level Racking
Height
5-15m
Weight Capacity
500kg
Surface Treatment
Powder Coated
Certificate
CE
HS Code
7308900000
Feature
Corrosion Protection
★
Product Description

Heavy-Duty VNA Rack System for Industrial Warehouse Organization

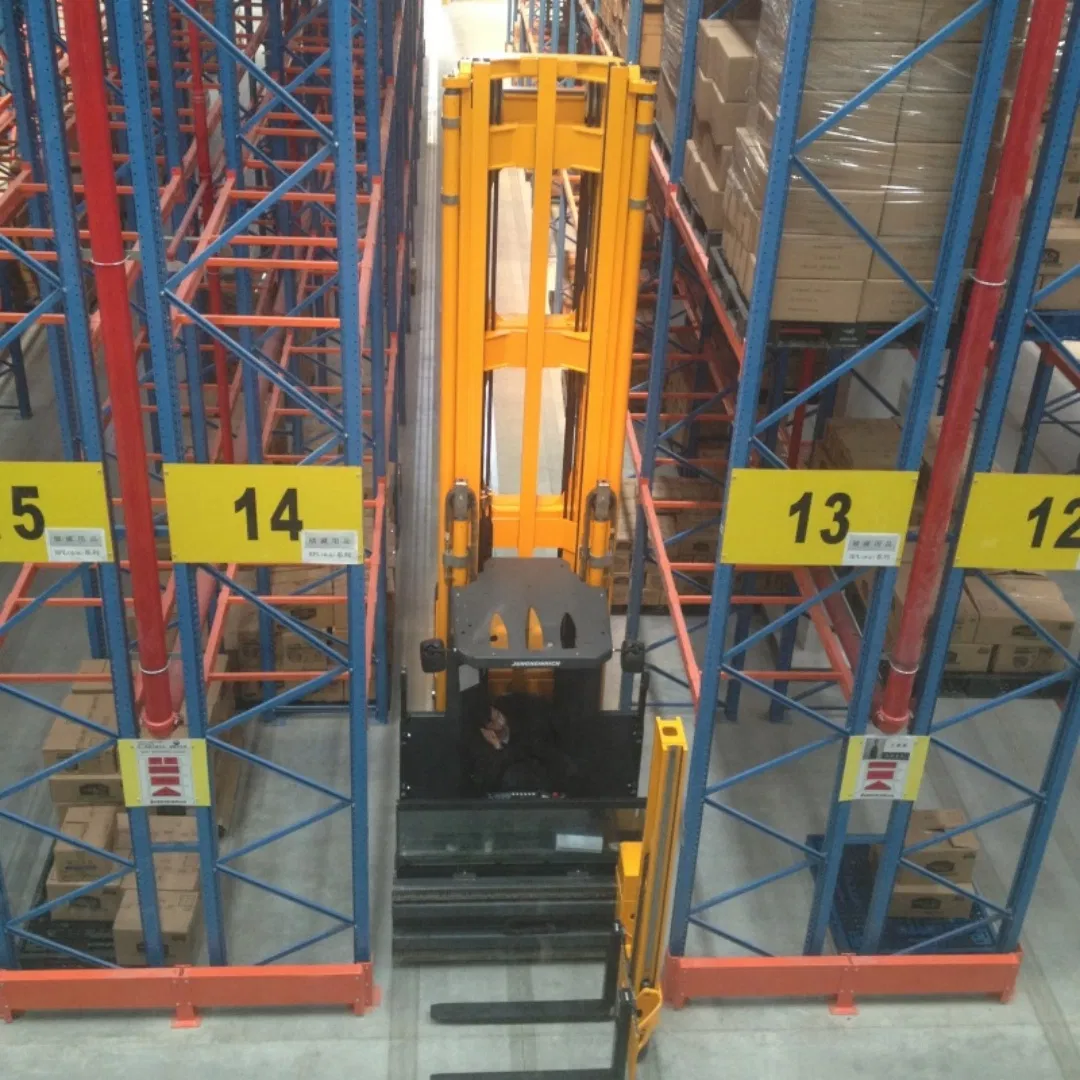

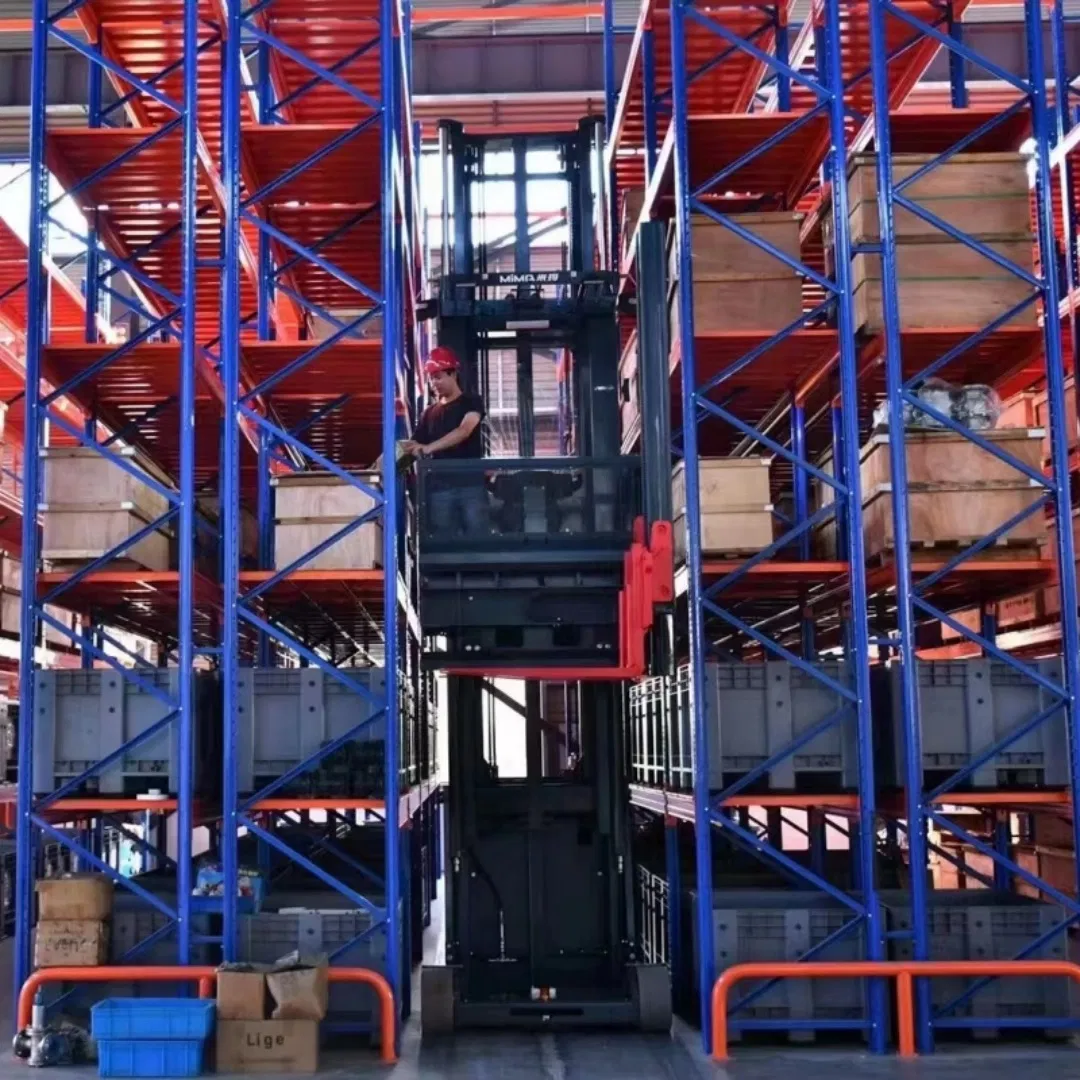

VNA racking (ultra-narrow aisle racking) is a high-density storage system specifically designed to maximize the utilization of warehouse space. It is typically used in conjunction with three-way stacker forklifts or narrow aisle forklifts.

📊
Space Optimization
Saves more than 50% aisle space and has much larger storage capacity than ordinary shelves.
⚡
Access Efficiency
Forklifts do not need frequent U-turns, offering faster retrieval speeds. Combined with WMS for intelligent management.
🛡️
Safe & Reliable
Made of high-strength steel with load-bearing capacity up to 2-3 tons per layer. Optional seismic design available.

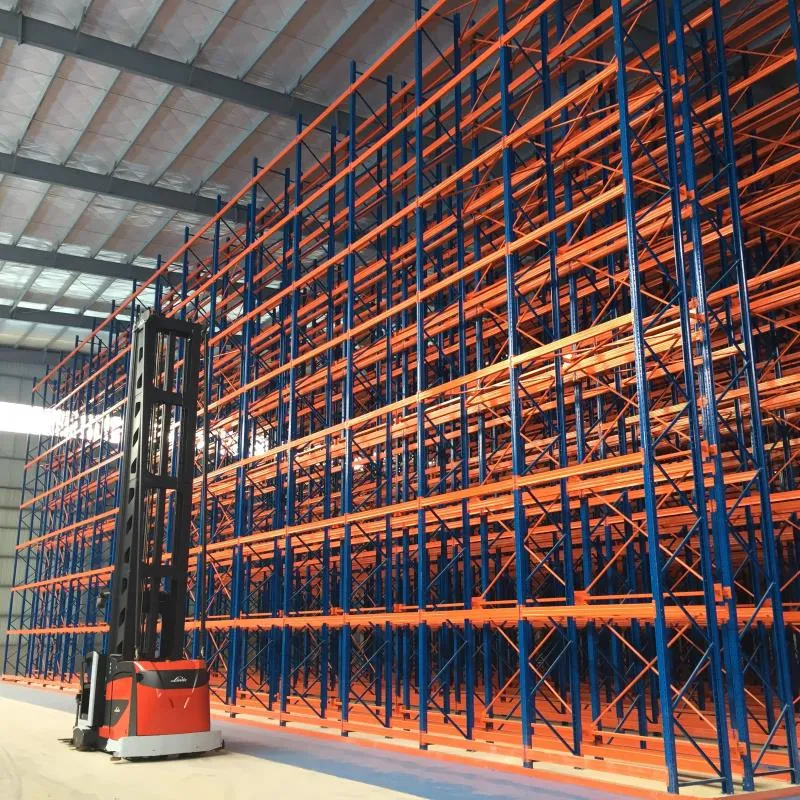

VNA Rack System Application
📋
Technical Specifications
NameCantilever Racking / VNA RackMaterialQ235B Steel
SizeCustomized SizeColorCustomized Color
DepthCustomizedWeight Capacity1000kg/arm (Variable)
WidthCustomizedHeightCustomized
FinishPowder coating; Hot Dip Galvanized
CertificationRMI/CE/ISO/TUV/AS4084-2012
OEMAvailable

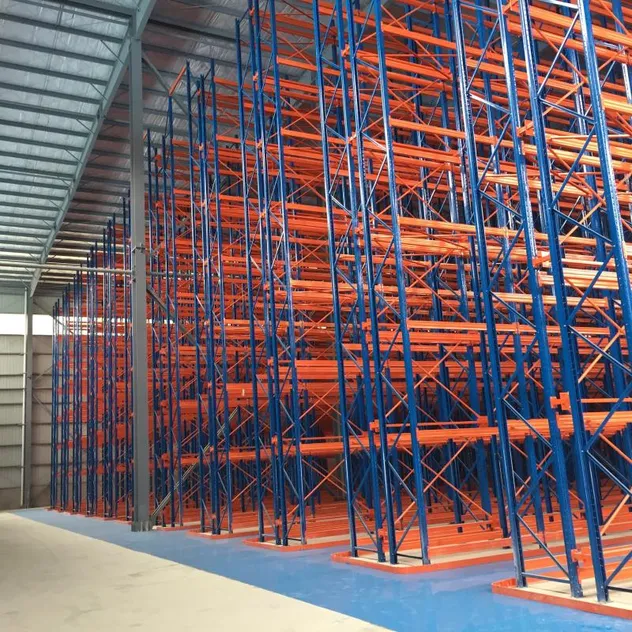

right elevation
Right Elevation

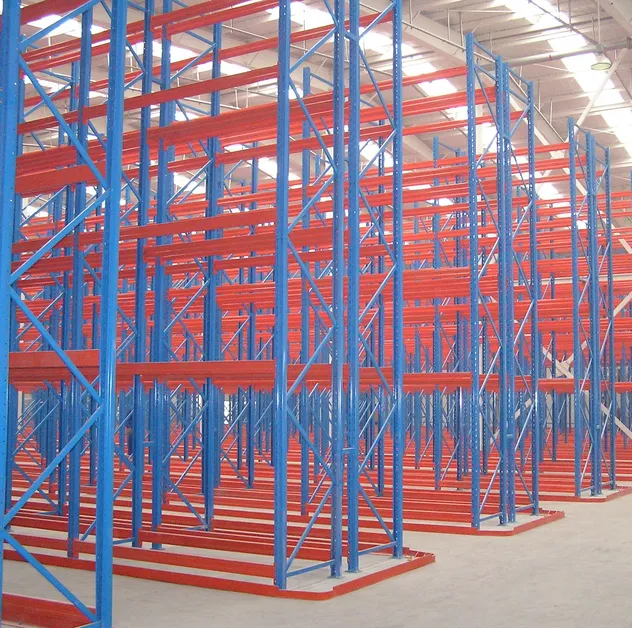

left elevation
Left Elevation

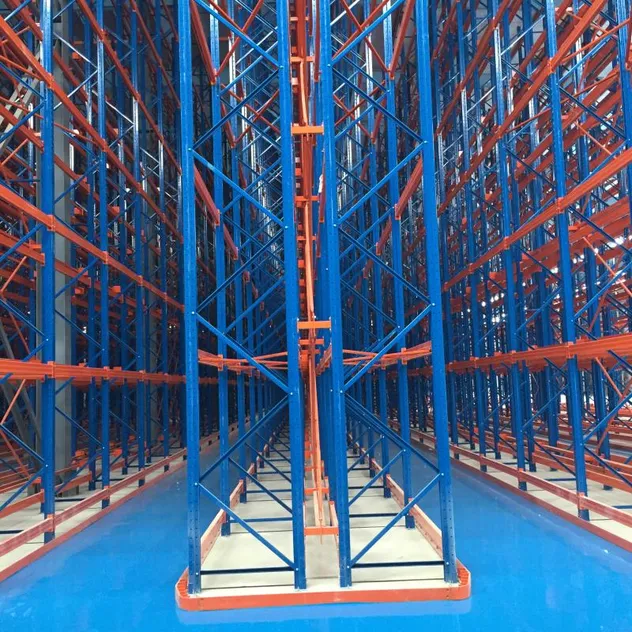

front elevation
Front Elevation
📐
Drawings & Dimensions

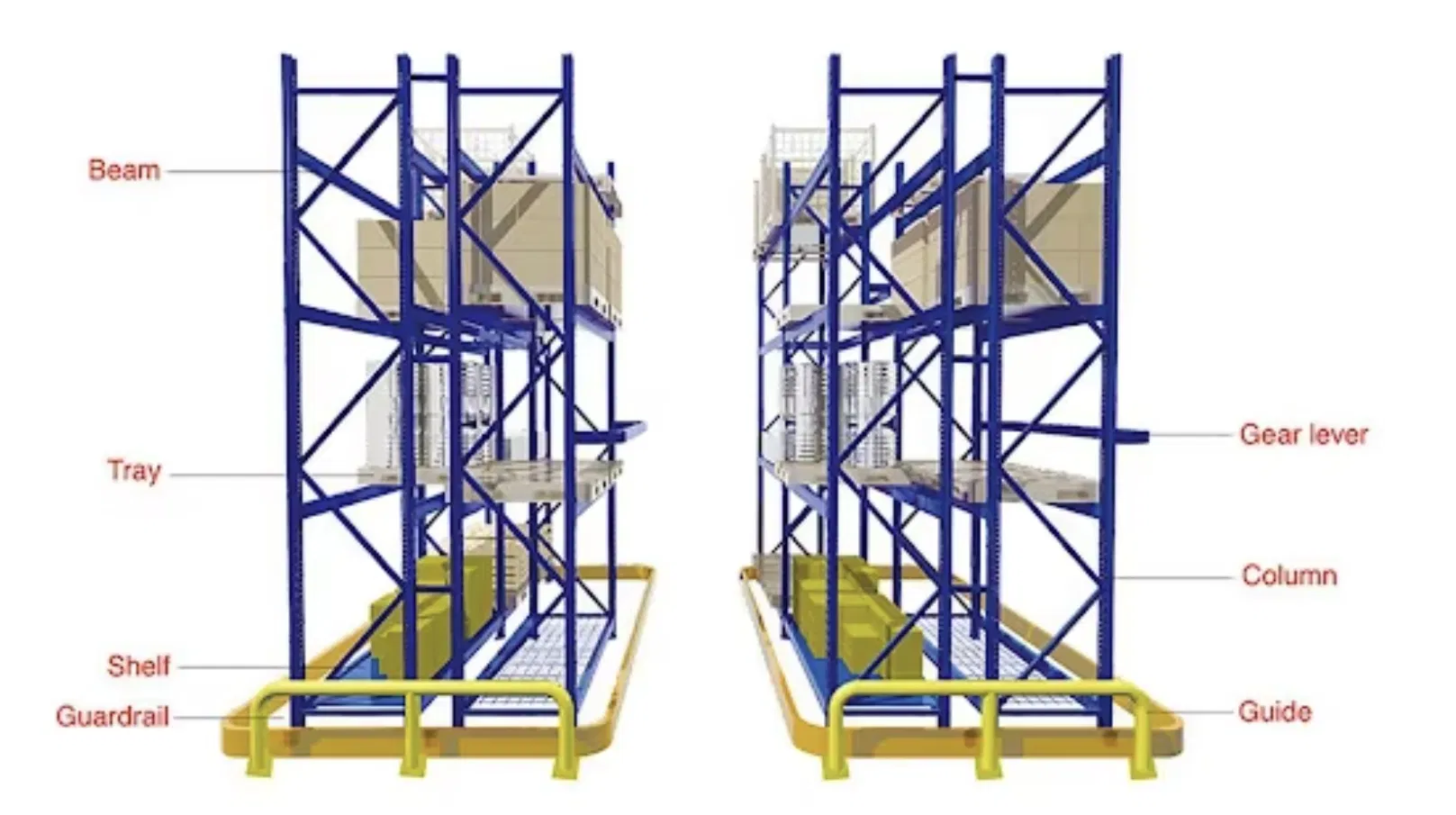

VNA Rack Drawings
🛠️
After Sales Service
  • Standard Warranty: 12 months or 2,000 operating hours.
  • Extended Warranty: Optional coverage up to 36 months.
  • Global Support: 24/7 technical assistance and spare parts supply.
  • Training: On-site or remote operation and maintenance training.
🏢
Manufacturing Capability

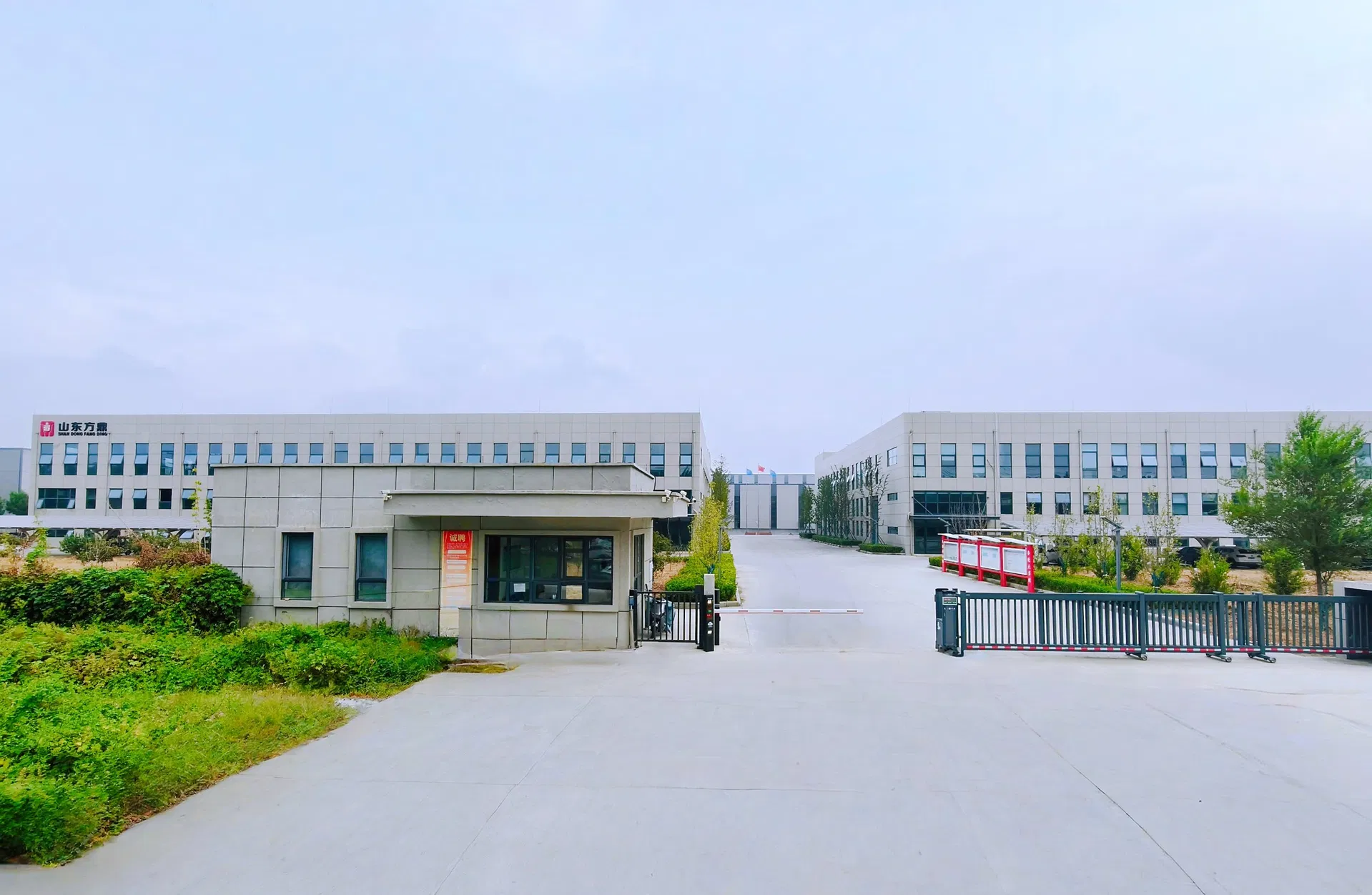

Manufacturing Facility

Established in 2008, we are a professional manufacturer dedicated to the research, design, production, and installation of modern logistics technology. Our facility is equipped with cold-rolling lines for section steel, automated powder coating lines, and automatic continuous punching lines. With an annual production capacity of over 20,000 tons, we rank among the top in the industry for scale and technical strength.

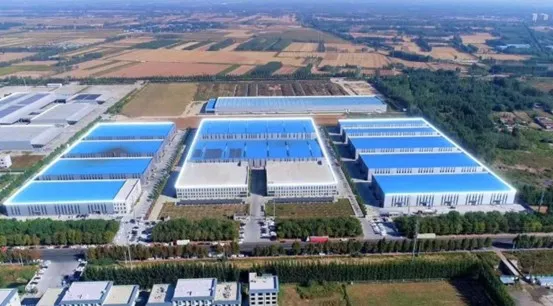

Production Line 1

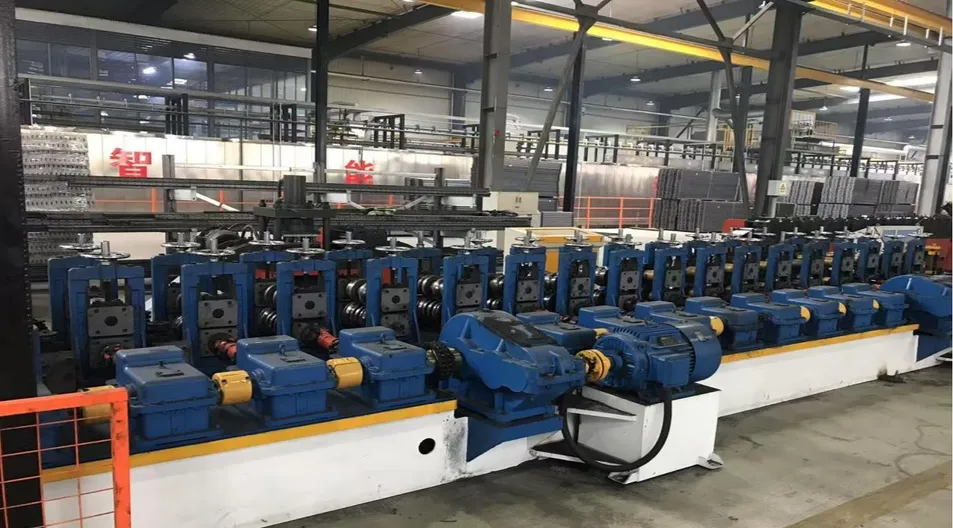

Production Line 2
?
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a professional manufactory for storage racks and logistics equipment.
Q: What is the raw material used for your products?
A: Our standard material is carbon steel Q235B. For cold storage (-18°C or lower), we utilize Q345D or other specialized steel types as per your needs.
Q: Do you have a Minimum Order Quantity (MOQ)?
A: No, we do not have a strict MOQ for most products. However, a 1*20ft container order is recommended to optimize shipping costs.
Q: What is the standard delivery time?
A: Delivery typically takes 15 to 30 days after receipt of the deposit, depending on the order quantity and rack types.
Q: How do I install the racking systems?
A: We provide detailed installation videos and drawings. If necessary, we can dispatch an engineer or an installation team to guide the process on-site.
Q: Which port is used for loading?
A: Normally Qingdao port, but we can arrange shipments from other ports according to your requirements.
