Product Description

Overview & Basic Info
Model NO.Narrow Aisle Rack
MaterialSteel Q235B
Height5-15m
Weight Capacity500kg - 3000kg/layer
Surface TreatmentPowder Coated
CertificateCE / ISO / TUV
StructureAdjustable Rack
ColorBlue / Orange or Customized
Product Description

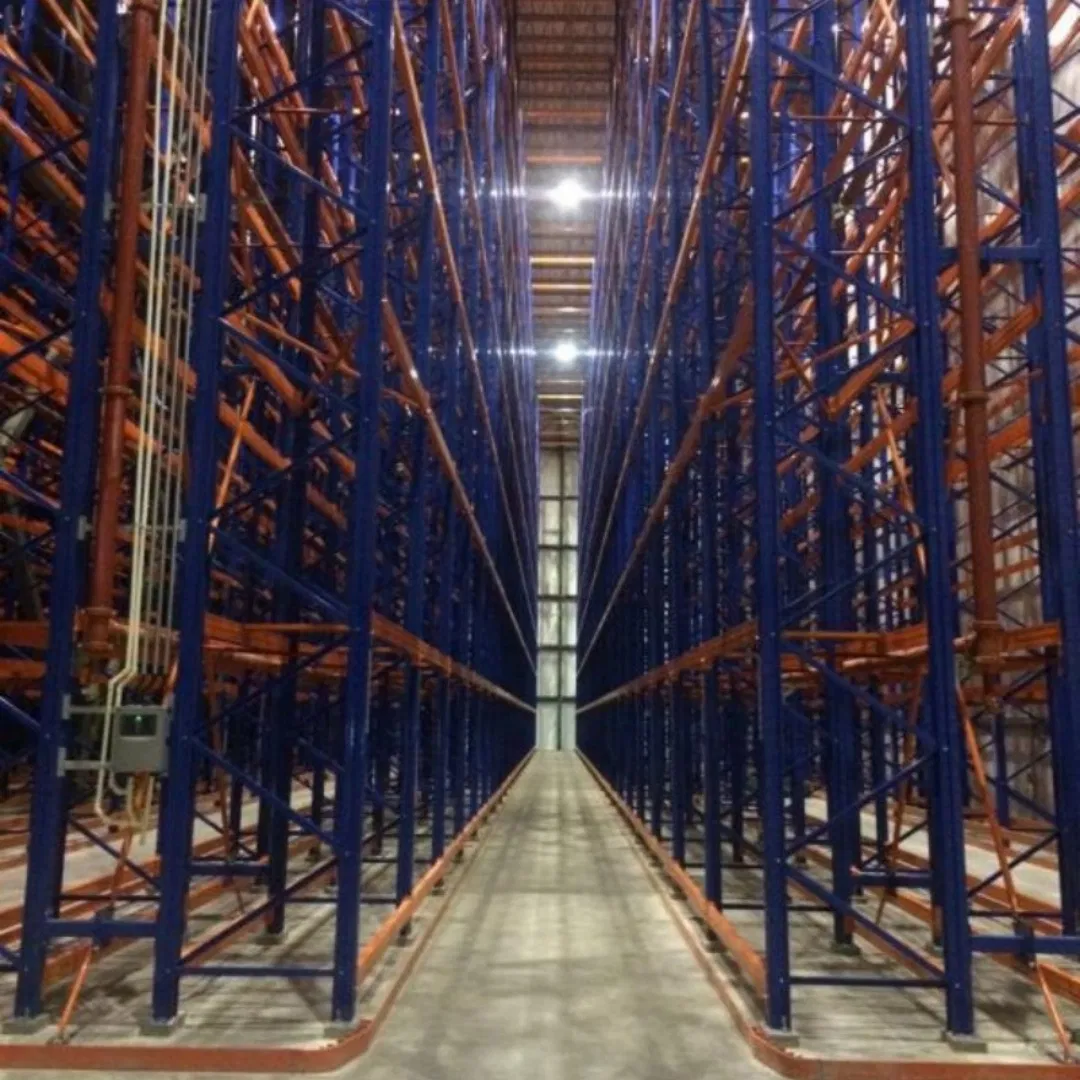

Heavy-Duty VNA Rack System for Optimized Warehouse Space Management

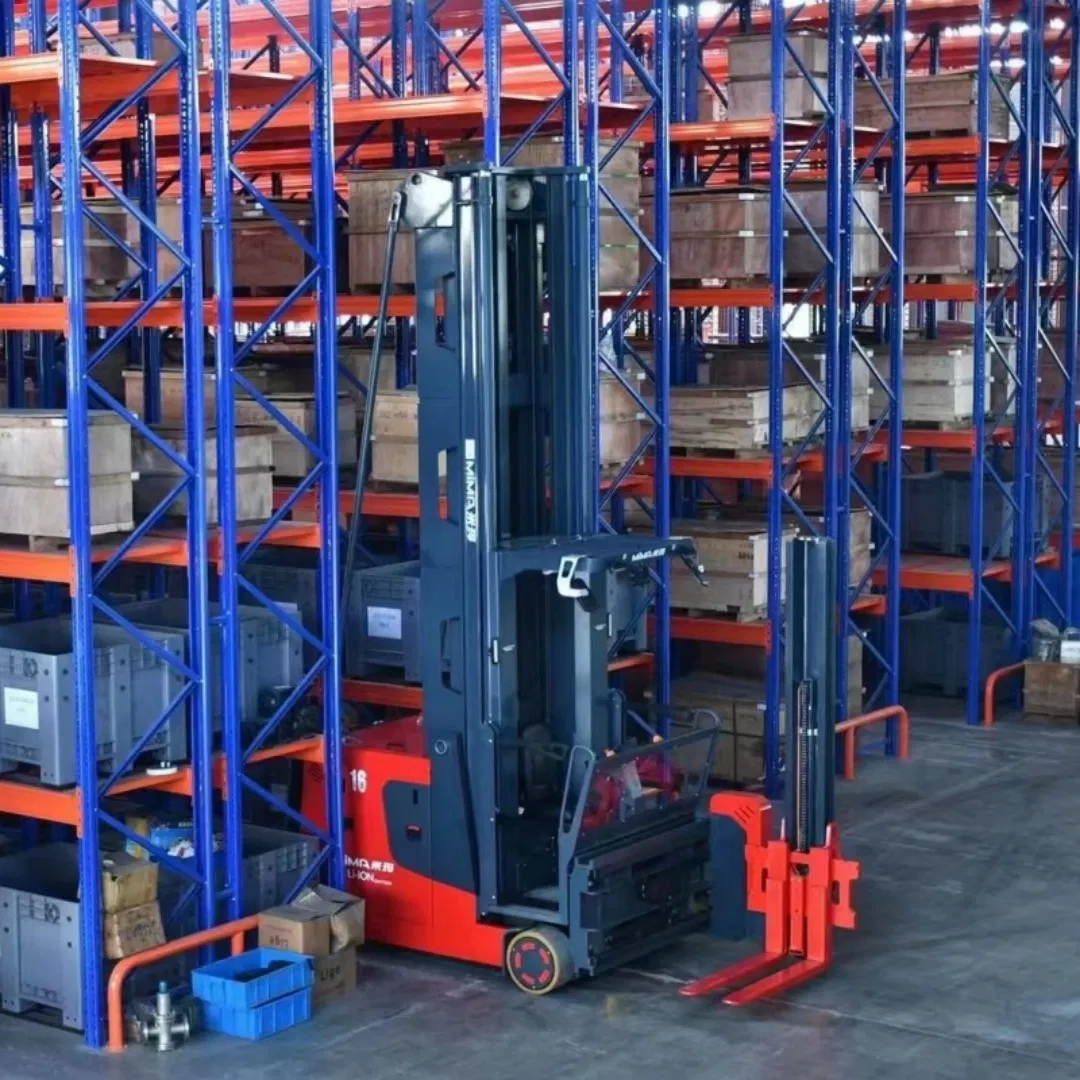

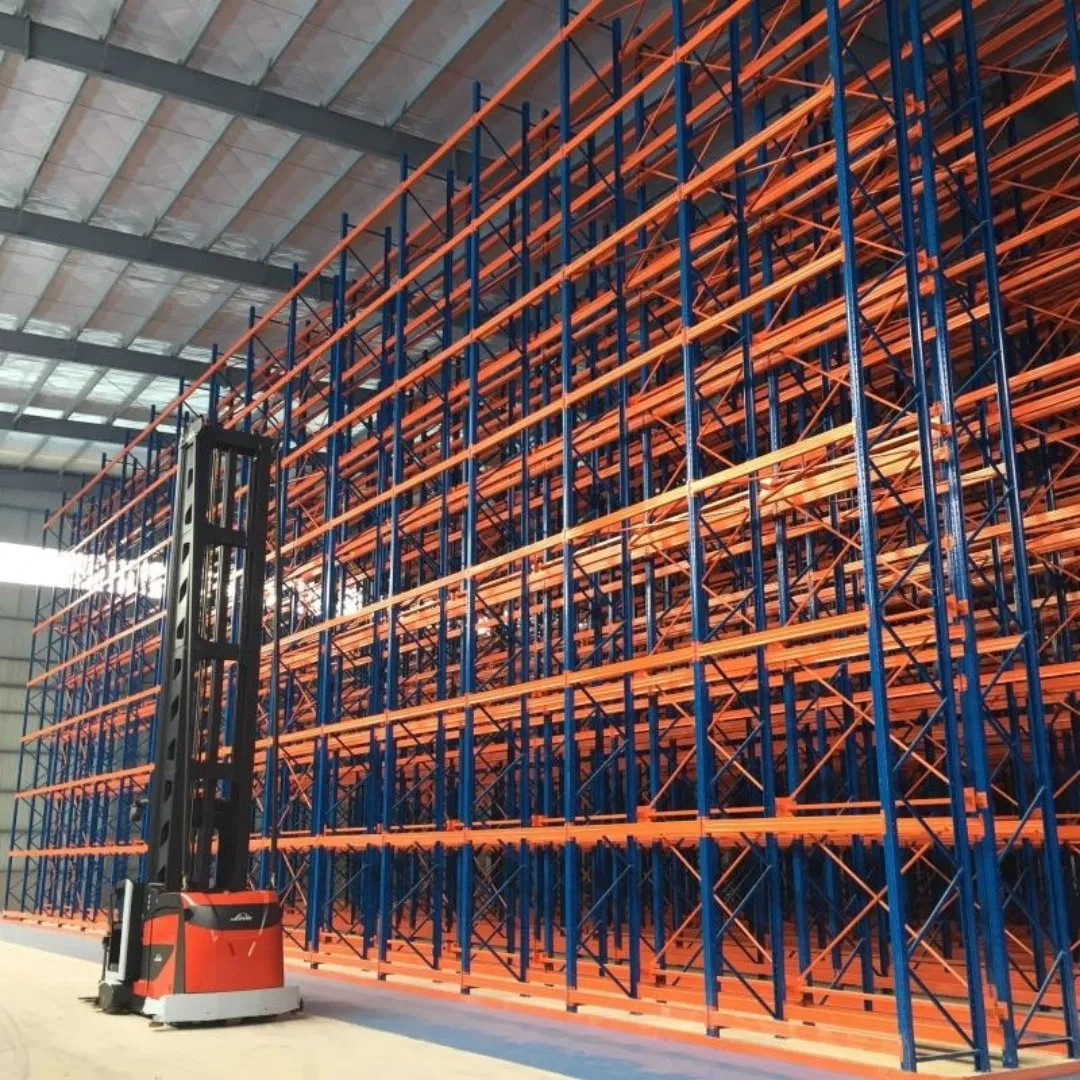

VNA racking (ultra-narrow aisle racking) is a high-density storage system specifically designed to maximize the utilization of warehouse space. It is typically used in conjunction with three-way stacker forklifts or narrow aisle forklifts.

✔
Maximize Warehouse Space: Saves more than 50% aisle space and has much larger storage capacity than ordinary shelves. Ideal for areas with high land costs.
✔
Improve Access Efficiency: Faster access and retrieval speeds; suitable for high-frequency operation and intelligent WMS management.
✔
Versatile Application: Suitable for palletized goods in food, beverage, electronics, and chemical industries.
✔
Safe & Reliable: Made of high-strength steel with strong load-bearing capacity (up to 2-3 tons per layer).
VNA Rack Application
VNA Rack System Application
Application Scenarios

Logistics & Cold Chain

E-commerce warehousing, cold storage (-18℃ to 4℃), and pharmaceutical distribution centers.

Industrial & Manufacturing

Automobile parts storage, electronic components, and chemical raw material warehousing.

Design & Elevations

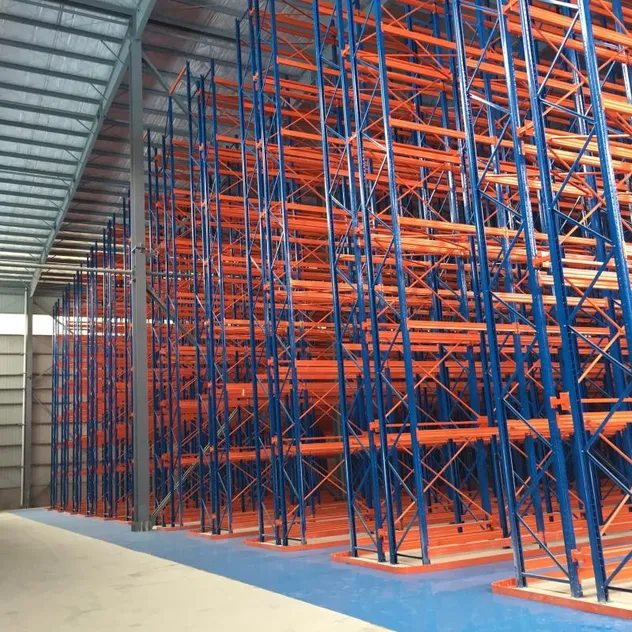

Right Elevation
Right Elevation

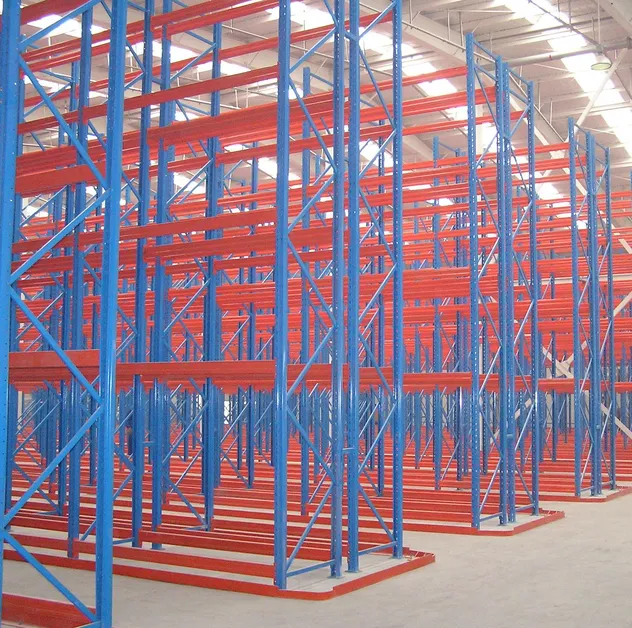

Left Elevation
Left Elevation
Front Elevation
Front Elevation
Technical Specifications
Product NameCantilever / VNA RackingMaterialQ235B Steel
SizeCustomizedColorCustomized
Weight Capacity1000kg/arm or PalletFinishPowder coating / Galvanized
CertificationRMI / CE / ISO / TUV / AS4084-2012
OEM ServiceAvailable upon request

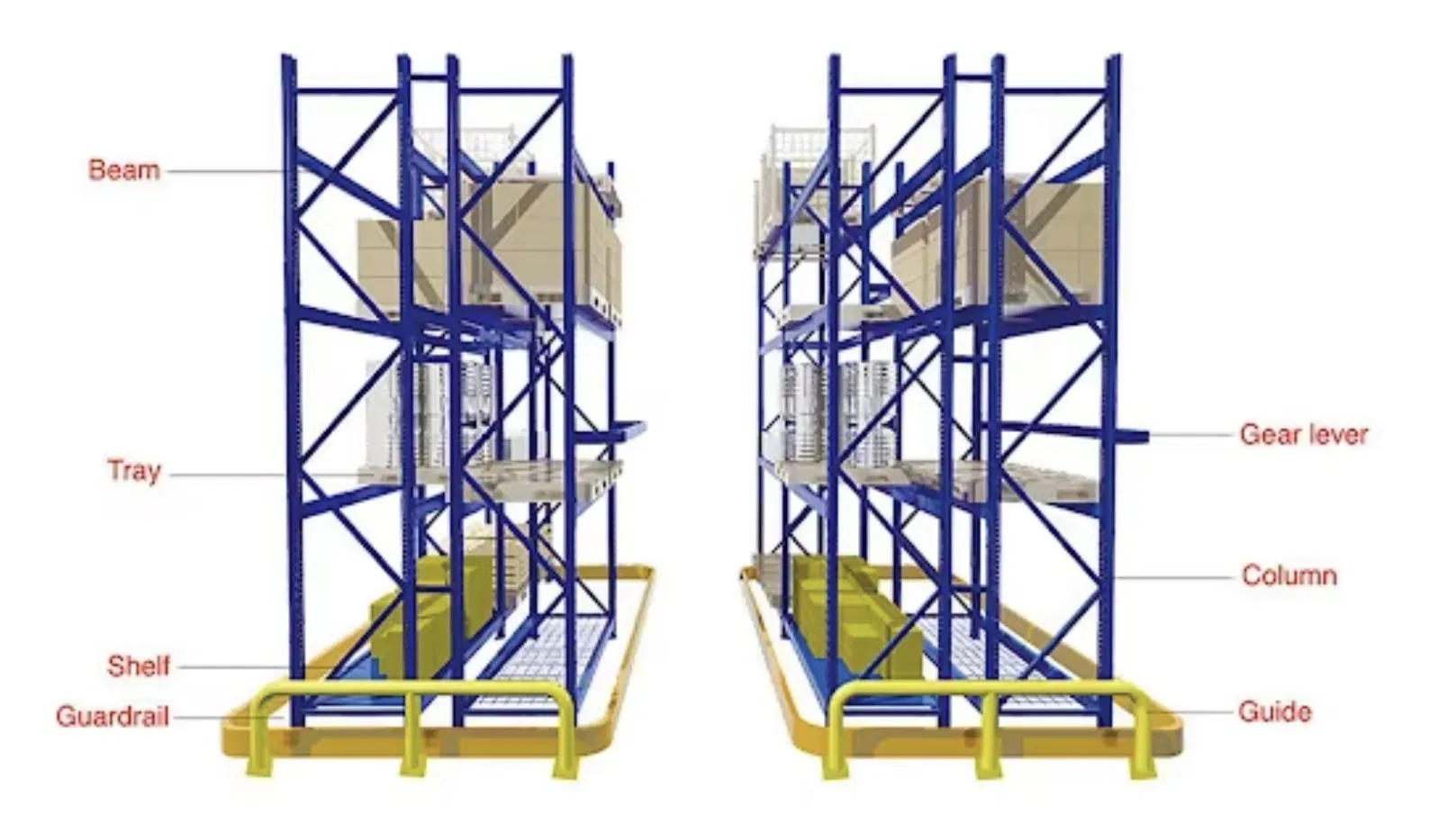

Technical Drawings
Detailed Engineering Drawings
Service & Support
🛡️
Standard Warranty: 12 months or 2,000 operating hours. Optional extended coverage up to 36 months.
🌍
Global Support: 24/7 technical assistance and spare parts supply.
🎓
Professional Training: On-site or remote operation and maintenance training.
Production & Quality

Established in 2008, we are a professional manufacturer dedicated to the research, design, production, and installation of modern logistics technology. With over 150 employees and automated production lines, our annual capacity exceeds 20,000 tons.

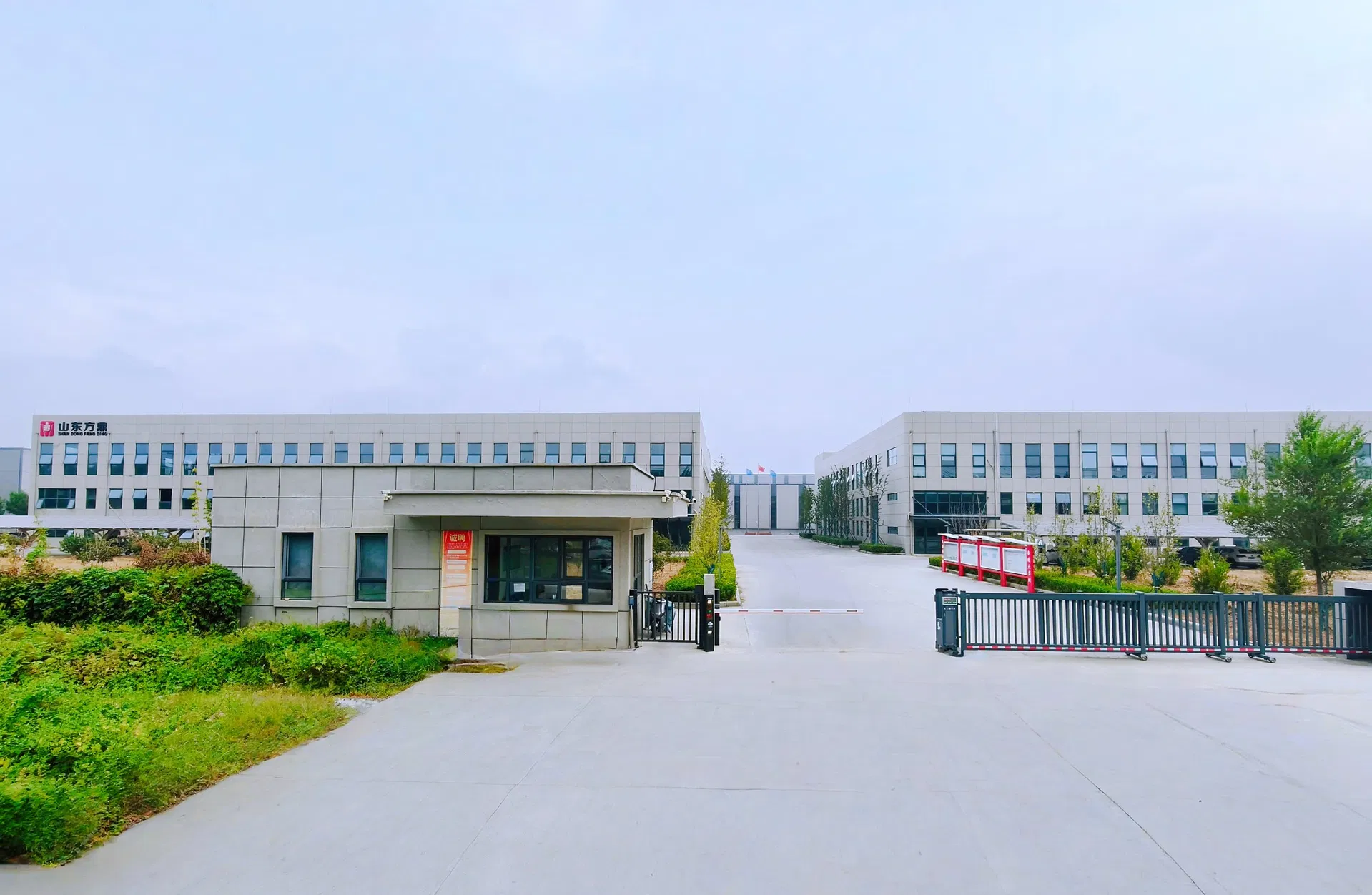

Factory Overview

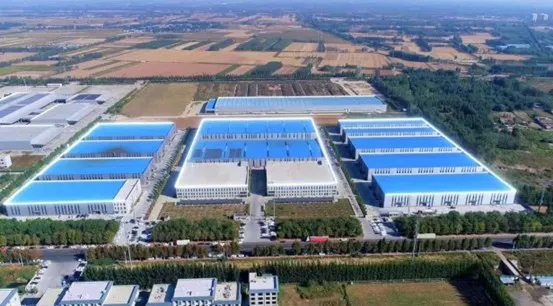

Production Line

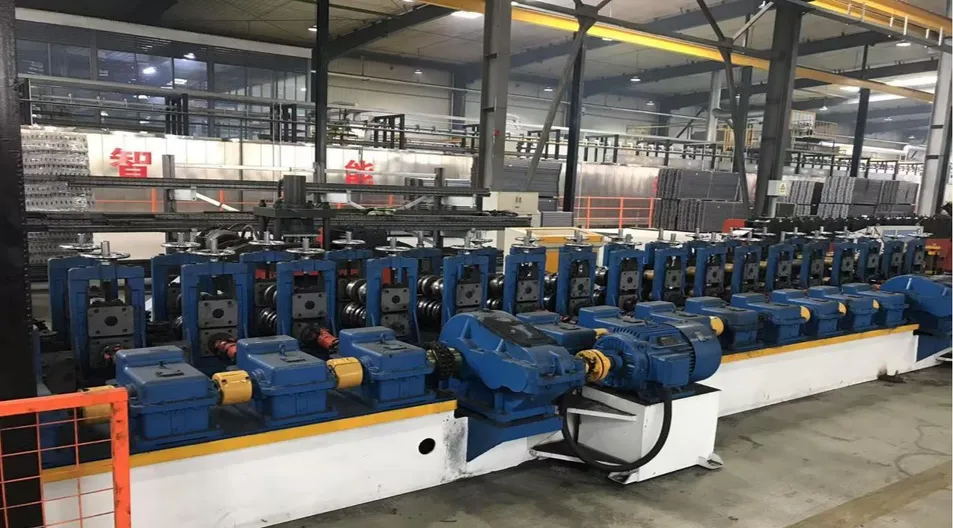

Quality Control
Frequently Asked Questions
Are you a factory or trading company?
We are a direct manufactory specializing in high-quality storage rack systems.
What is the raw material used for your products?
The primary raw material is carbon steel Q235B. For cold storage environments (-18°C or lower), we use Q345D or other specialized steel types based on your requirements.
Do you have a minimum order quantity (MOQ)?
No, we do not have a strict MOQ for most products. However, a 1*20ft container is recommended to maximize shipping cost-efficiency.
What is the delivery time for an order?
It depends on the quantity and rack type, but typically it takes 15 to 30 days after receiving the deposit.
How are the racks installed?
We provide comprehensive installation videos and drawings. If necessary, we can dispatch engineers or an installation team to your site for guidance.
What are your terms of payment?
We generally accept T/T and L/C payments.
