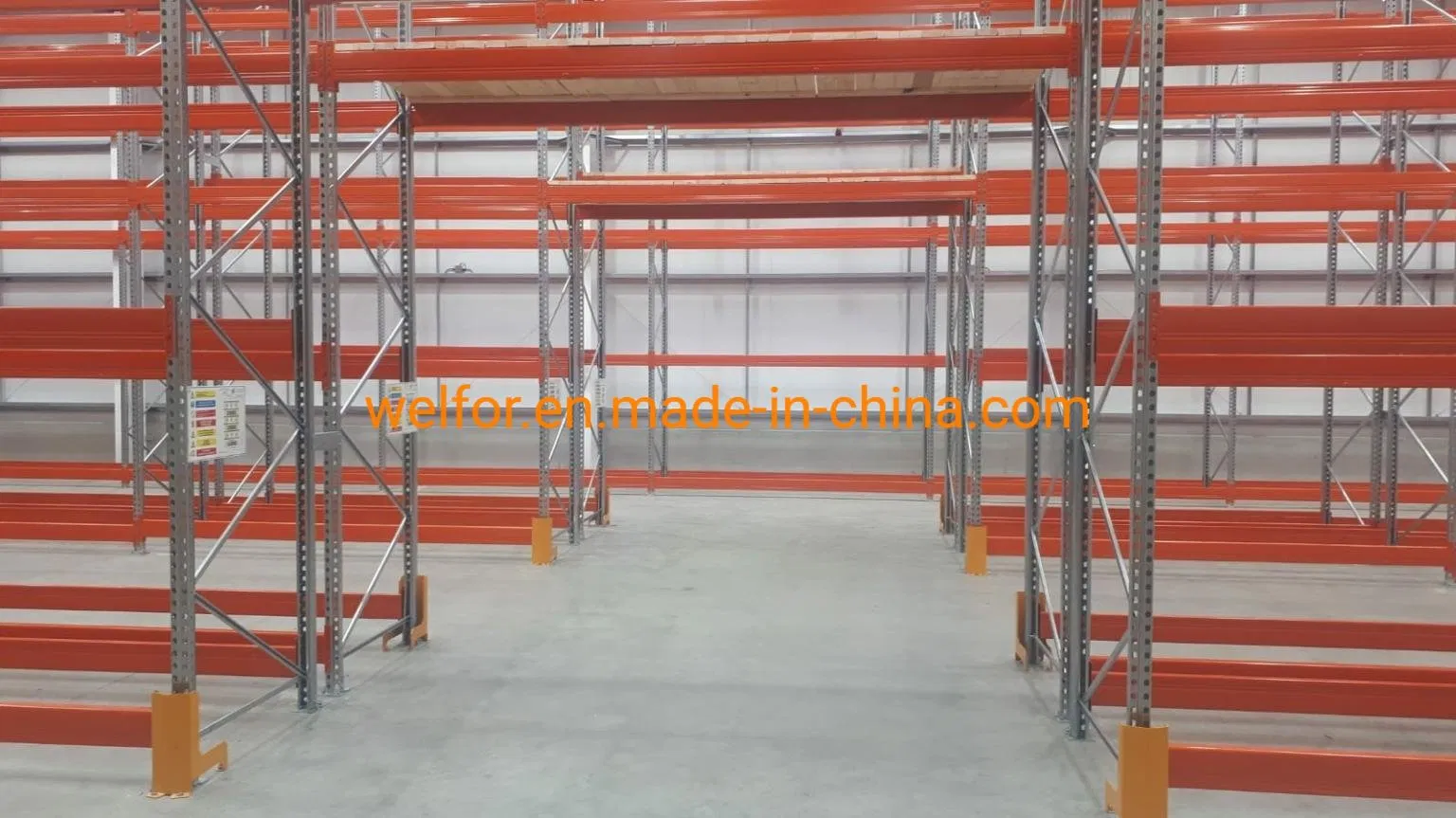

Heavy Duty Warehouse Shelving Storage Pallet Rack Selective Heavy Duty Racking System
Heavy Duty Warehouse Shelving Storage Pallet Rack Selective Heavy Duty Racking System
Heavy Duty Warehouse Shelving Storage Pallet Rack Selective Heavy Duty Racking System
Heavy Duty Warehouse Shelving Storage Pallet Rack Selective Heavy Duty Racking System
Heavy Duty Warehouse Shelving Storage Pallet Rack Selective Heavy Duty Racking System
1 / 5
Heavy Duty Warehouse Shelving Storage Pallet Rack Selective Heavy Duty Racking System
Heavy Duty Warehouse Shelving Storage Pallet Rack Selective Heavy Duty Racking System
Heavy Duty Warehouse Shelving Storage Pallet Rack Selective Heavy Duty Racking System
Heavy Duty Warehouse Shelving Storage Pallet Rack Selective Heavy Duty Racking System
Heavy Duty Warehouse Shelving Storage Pallet Rack Selective Heavy Duty Racking System

Heavy Duty Warehouse Shelving Storage Pallet Rack Selective Heavy Duty Racking System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
HDR-001
Material
Steel
Type
Pallet Racking
Mobility
Fixed
Height Range
5-15m
Weight Capacity
1000kg-2500kg/Level
Color
Blue and Orange
HS Code
73089000
Product Description
Heavy Duty Warehouse Shelving Storage Pallet Rack Selective System

This is the most common type of heavy-duty racking used in industrial warehouses as it is extremely sturdy and designed for high-capacity storage. The system features orange beams installed with specialized safety pins to prevent accidental dislodgement, ensuring a secure environment for bulky and heavy goods.

Heavy Duty Racking 1
Heavy Duty Racking 2

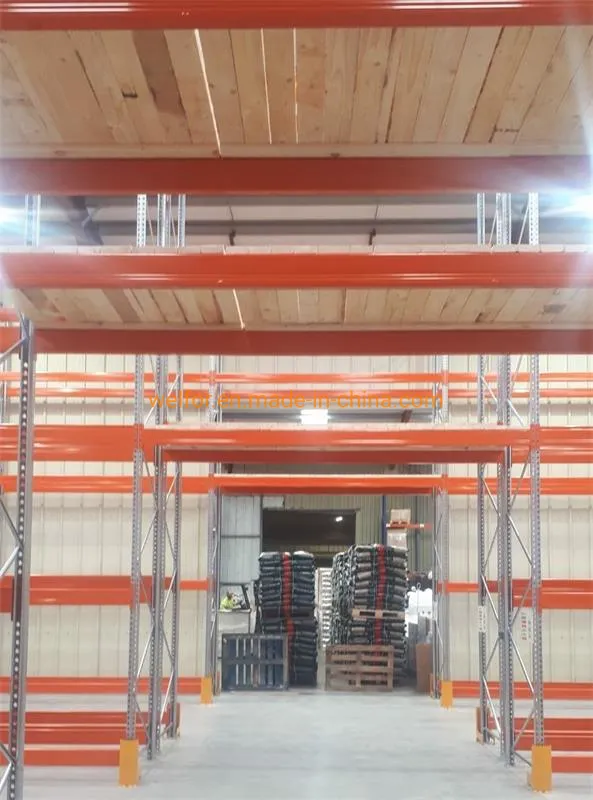

Heavy Duty Racking 3

Ideal for cold storage and distribution centers, these racks can be adjusted in height according to specific storage requirements. They are highly versatile for goods that are bulky, long, or heavy.

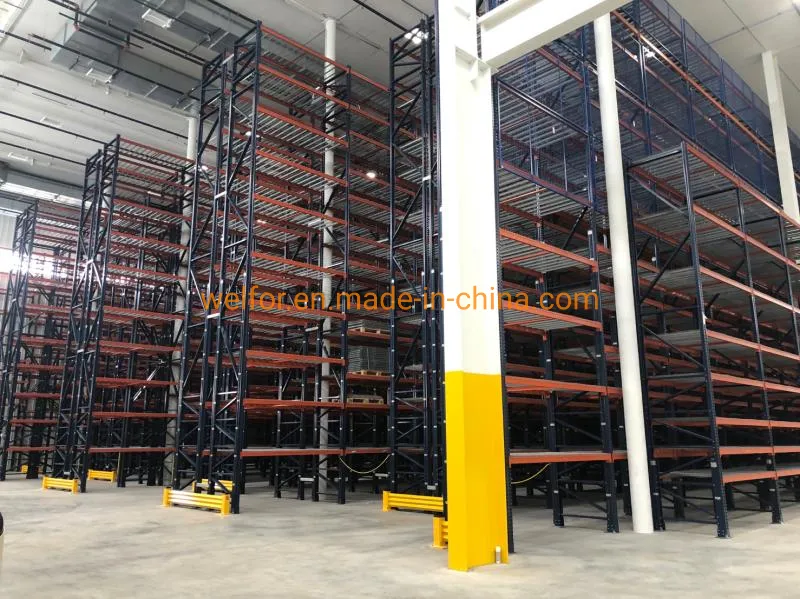

Racking Installation
Racking Detail

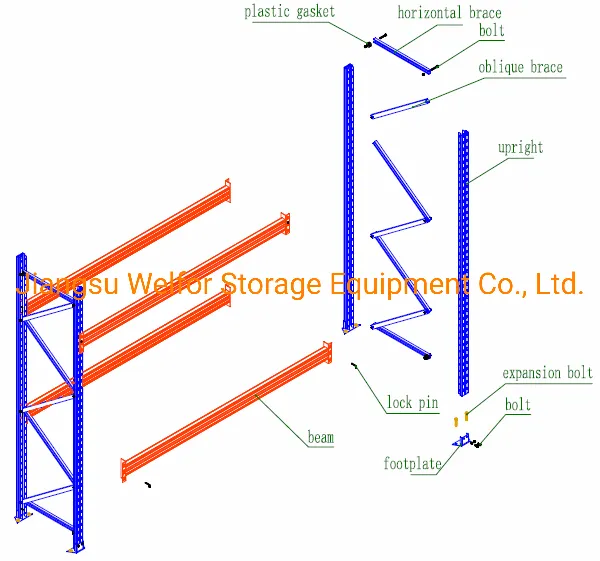

Freezer Storage Rack
Loading Capacity Tables
UPRIGHT LOADING TABLE
80x60x1.88500KG/BAY 100x70x1.811800KG/BAY
80x60x2.09400KG/BAY 100x70x2.013500KG/BAY
90x70x1.810000KG/BAY 100x70x2.315000KG/BAY
90x70x2.011800KG/BAY 100x70x2.516300KG/BAY
BOX BEAM LOADING TABLE (UDL Capacity)
Beam length (mm) 80*50*1.5 100*40*1.5 110*50*1.5 120*50*1.5 140*50*1.5 160*50*1.5
23001823259938604665--
250014032000297035985160-
2700120317152546307744256033
300097413892065249235854887
System Specifications
◈ Height (mm): 1200 up to 6000 (per 300mm interval)
◈ Depth (mm): 600, 900, 1200
◈ Length (mm): 1350 to 3600 options
◈ Decking Material: Plywood, Metal Shelving, Wire Mesh
◈ Loading Capacity: 1000kg to 3000kg/UDL per level
Components & Workflow

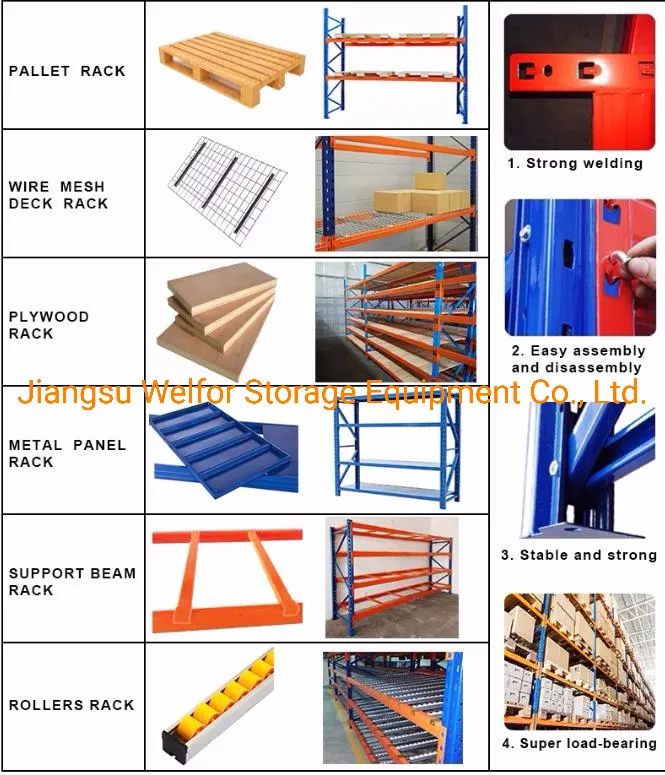

Components
Detailed View
Workflow Detail

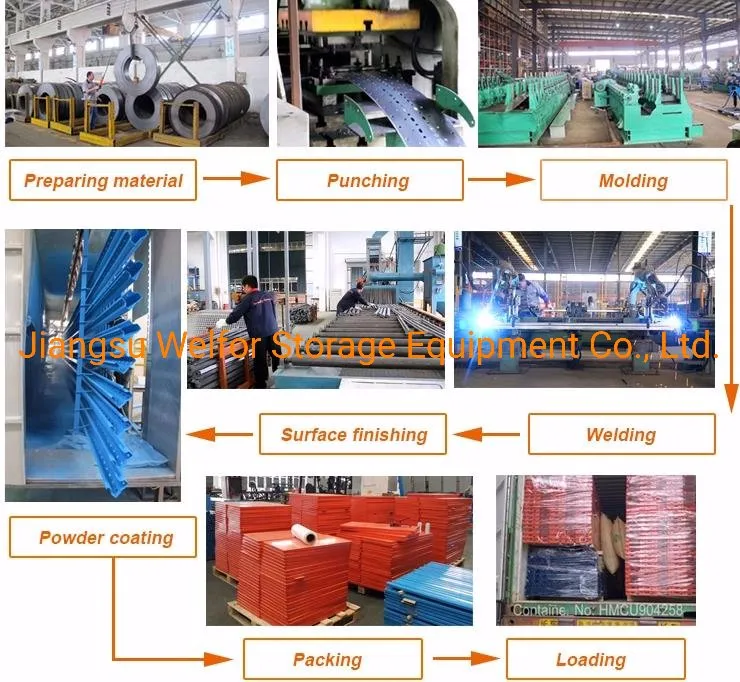

Manufacturing Process Flow
Production Flow
Certifications

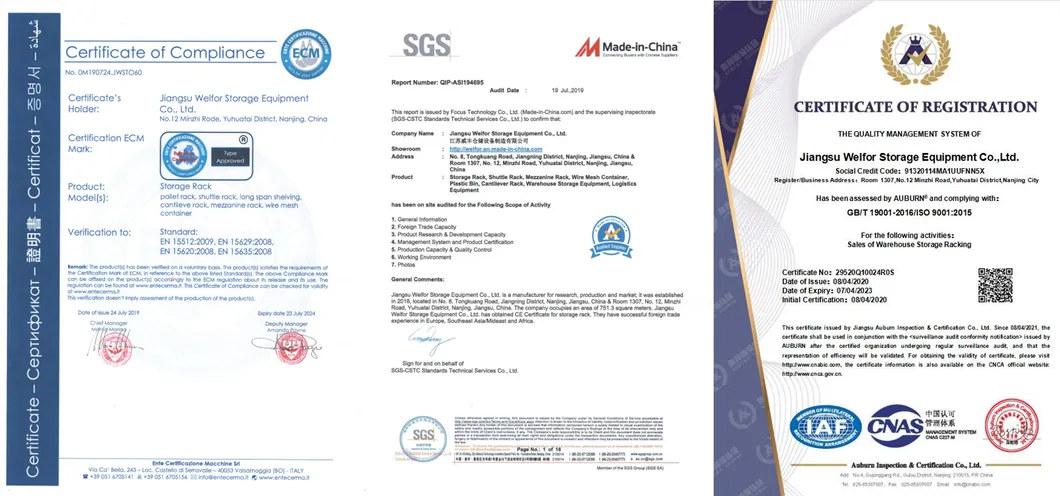

CE ISO Certificates
Frequently Asked Questions
1. What is the maximum loading capacity per level?
The heavy-duty racking system can support between 1000kg and 3000kg per level (UDL), depending on the beam and upright configuration selected.
2. Can the shelf height be adjusted after installation?
Yes, the height of each level is adjustable at 300mm intervals, allowing you to customize the storage space based on your changing inventory needs.
3. What materials are used for the decking?
We offer multiple decking options including Plywood, Metal Shelving, and Wire Mesh to suit different types of stored goods.
4. Is this racking system suitable for cold storage?
Absolutely. Our racking systems are designed to perform reliably in various environments, including cold storage distribution centers and freezers.
5. How is safety ensured for the beams?
The orange beams are fitted with specially designed safety pins that prevent the beams from being accidentally dislodged by forklifts or heavy handling.
6. Does the system meet international quality standards?
Yes, the production process and products are CE and ISO certified, ensuring high-quality manufacturing and structural safety.
