High Density Asrs Flexible Automated Pallet Storage and Retrieval System

i

Basic Information

Model NO.

Shuttle-ASRS

Type

Multi-Layer Warehouse

Material

Steel

Height

Up to 30m

Load Capacity

>500kg per Layer

Serviceability

Common Use

Function

Automated Storage

Shuttle Load

1500kg - 3000kg

Battery Duration

Over 8 Hours

Speed (Full Load)

0.6-0.8m/S

1

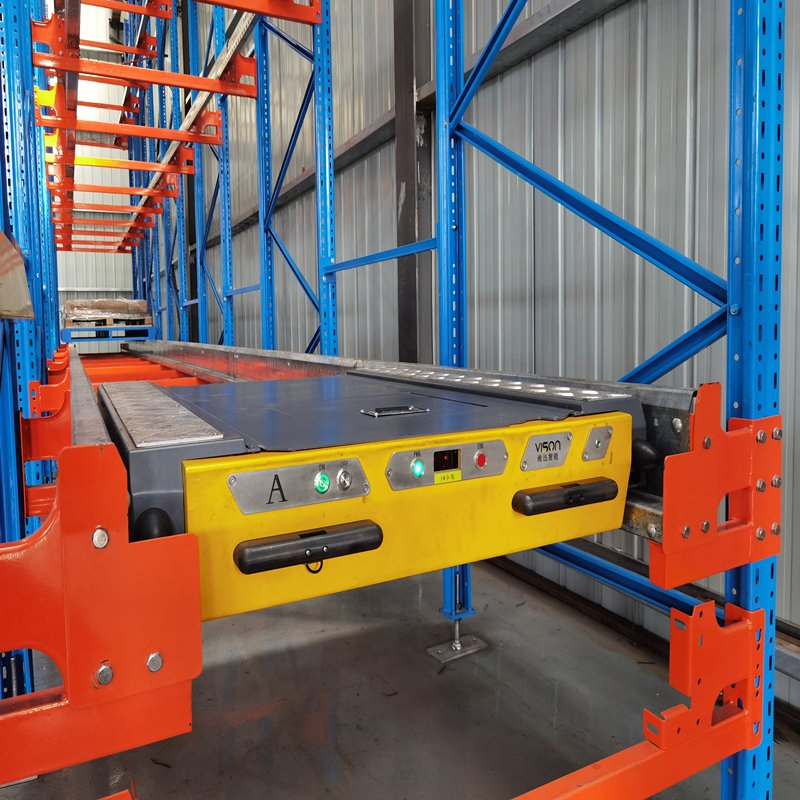

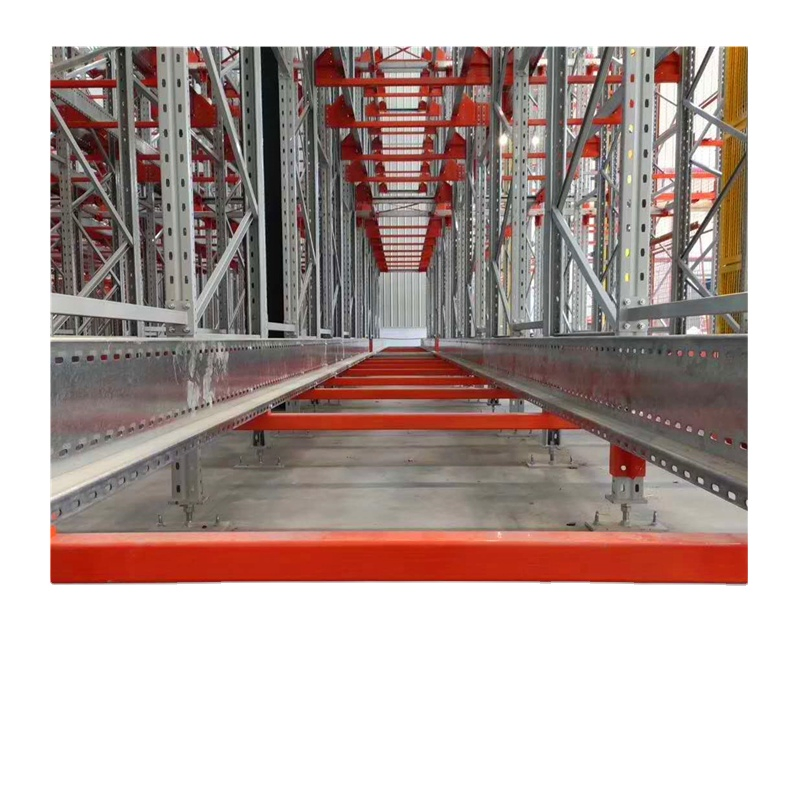

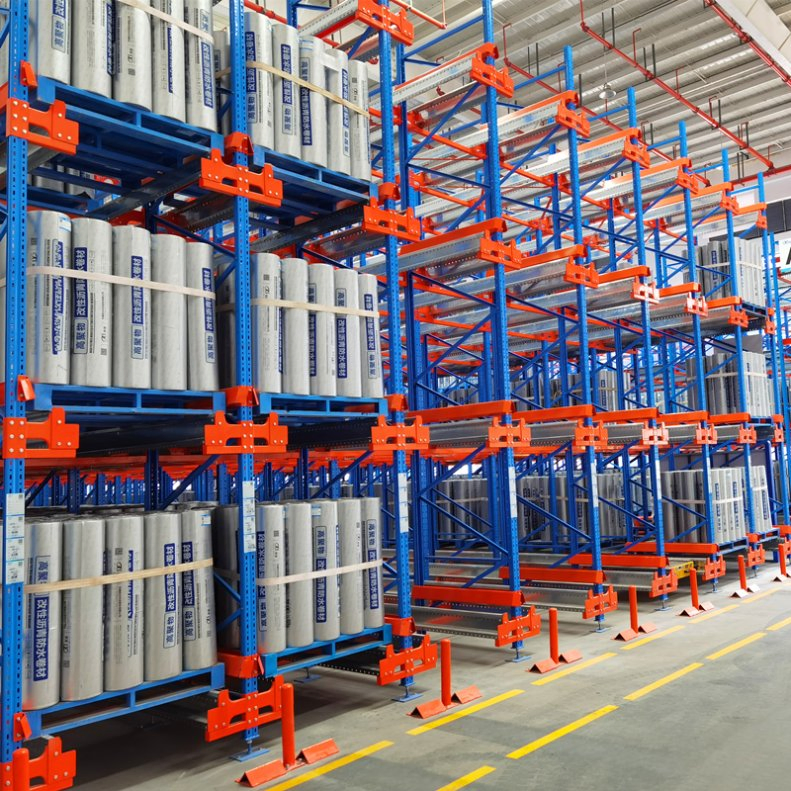

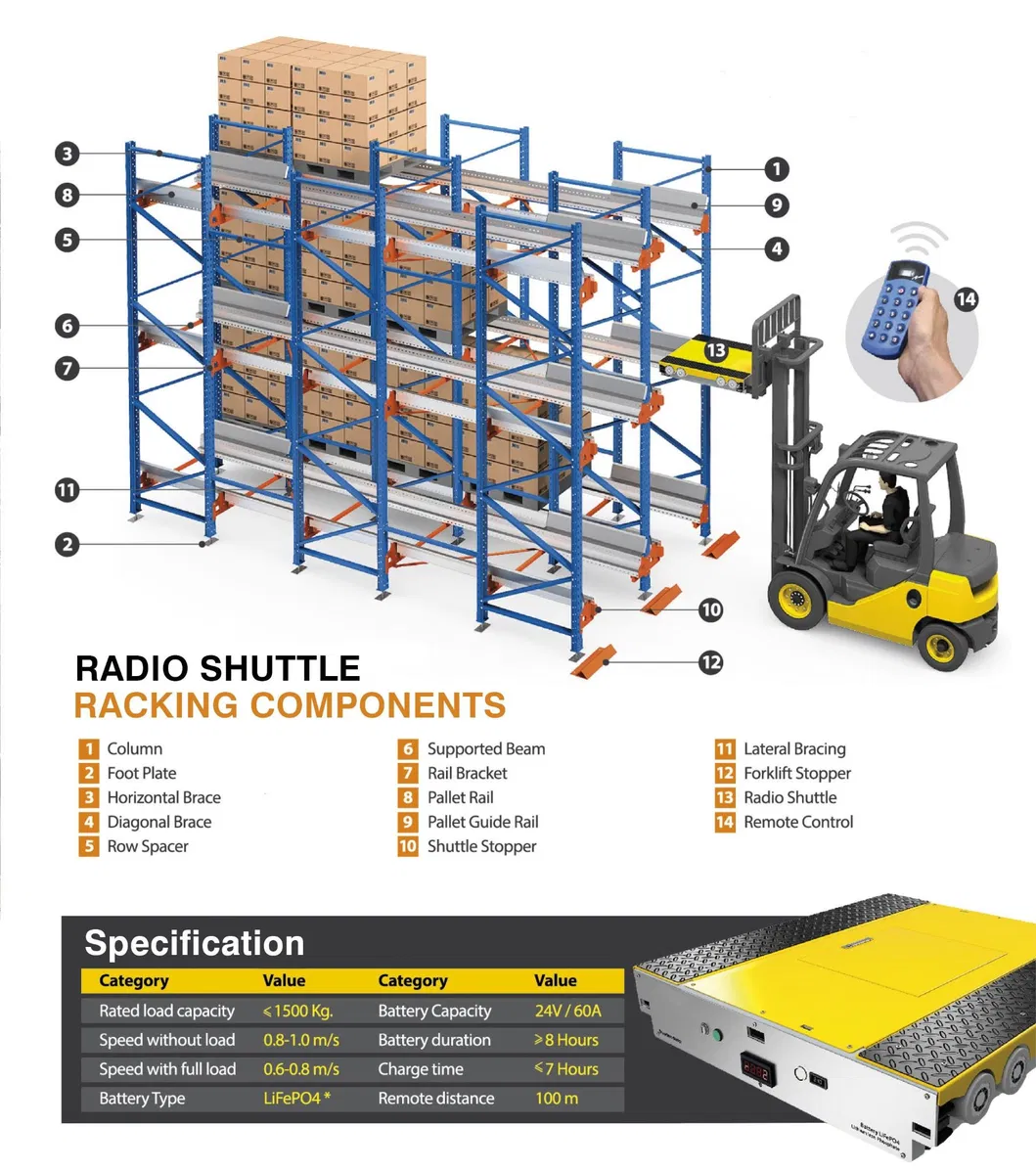

Brief Introduction

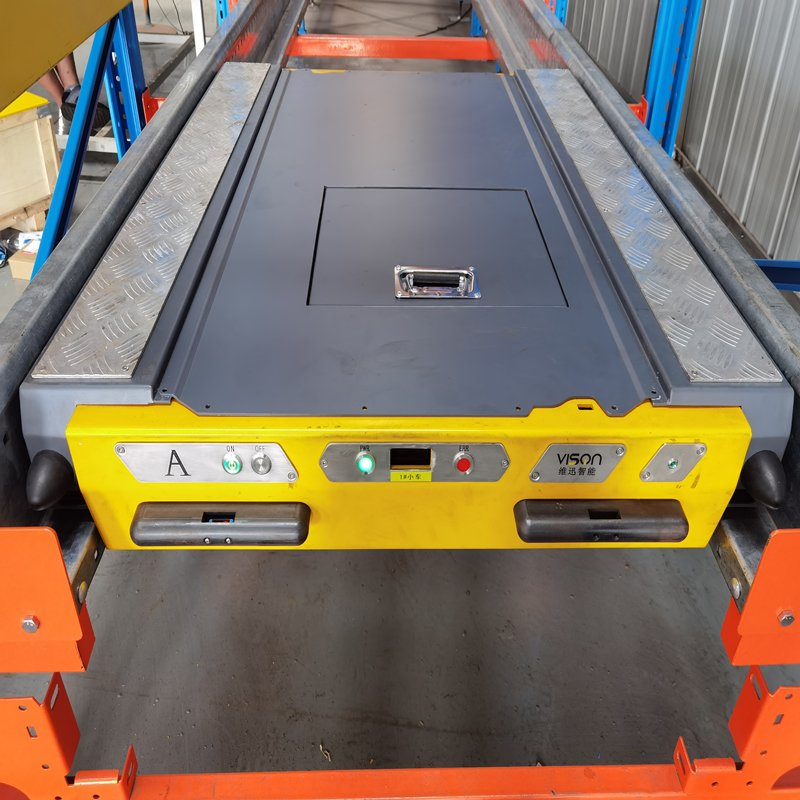

Radio shuttle racking is a semi-automated palletized products storage solution system, which is revolutionary within the fields of warehousing and logistics allowing for greater efficiency and better usage of the warehouse area than ever before. It consists of pallet racking, radio shuttle and forklift.

●

Loading: Forklifts load the pallet on the shuttle cart, which carry the pallet to an appointed location by remote control.

●

Unloading: Shuttle car carries the pallet to the exit of the racking system for the forklift to unload.

★

Key Features

1High density storage system for maximum warehouse utilization.

2First-in-last-out (FILO) access system.

3Top and back bracing for enhanced stability and safety.

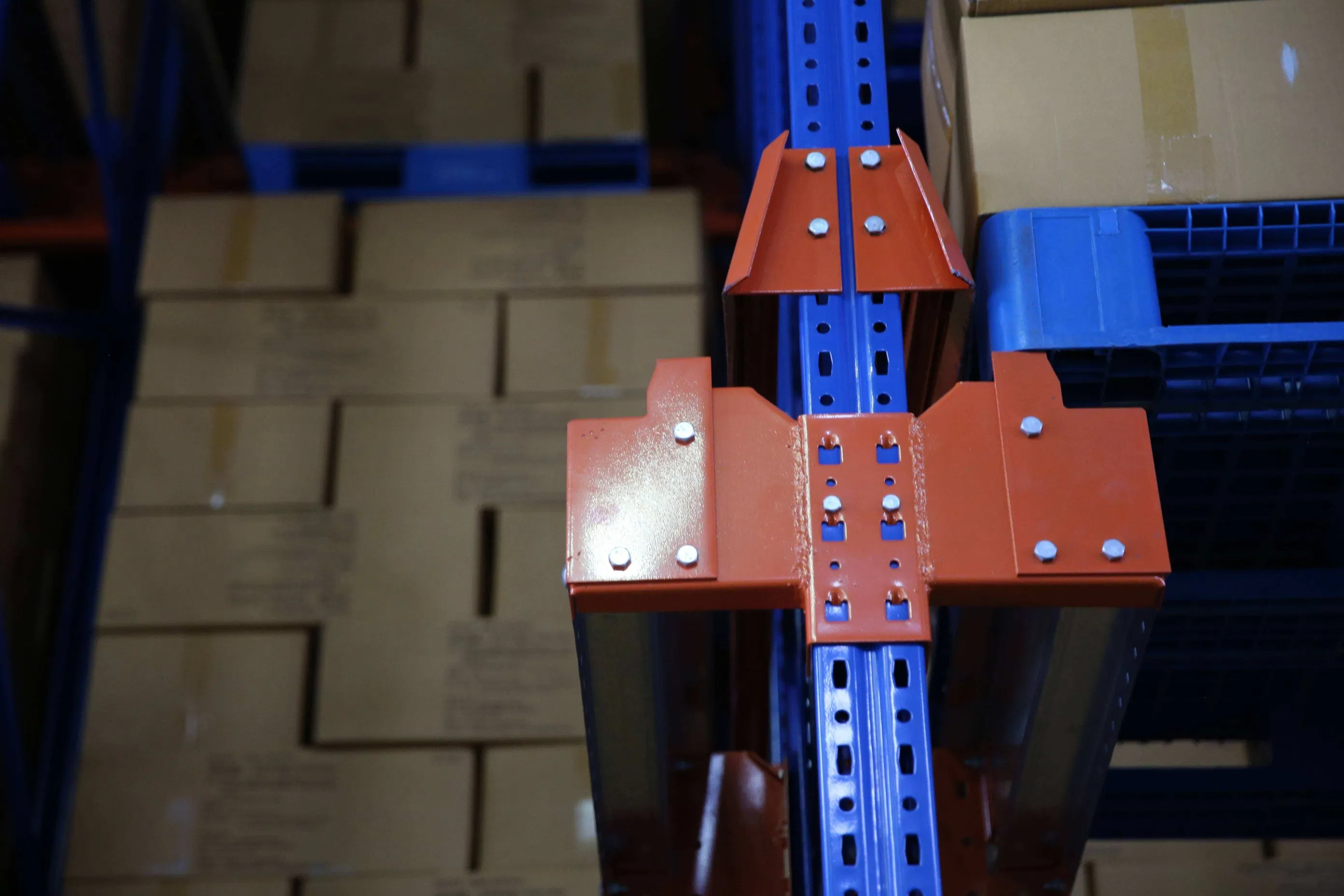

4Guide rails allow for efficient pallet placement.

5Simple installation process with improved space utilization.

2

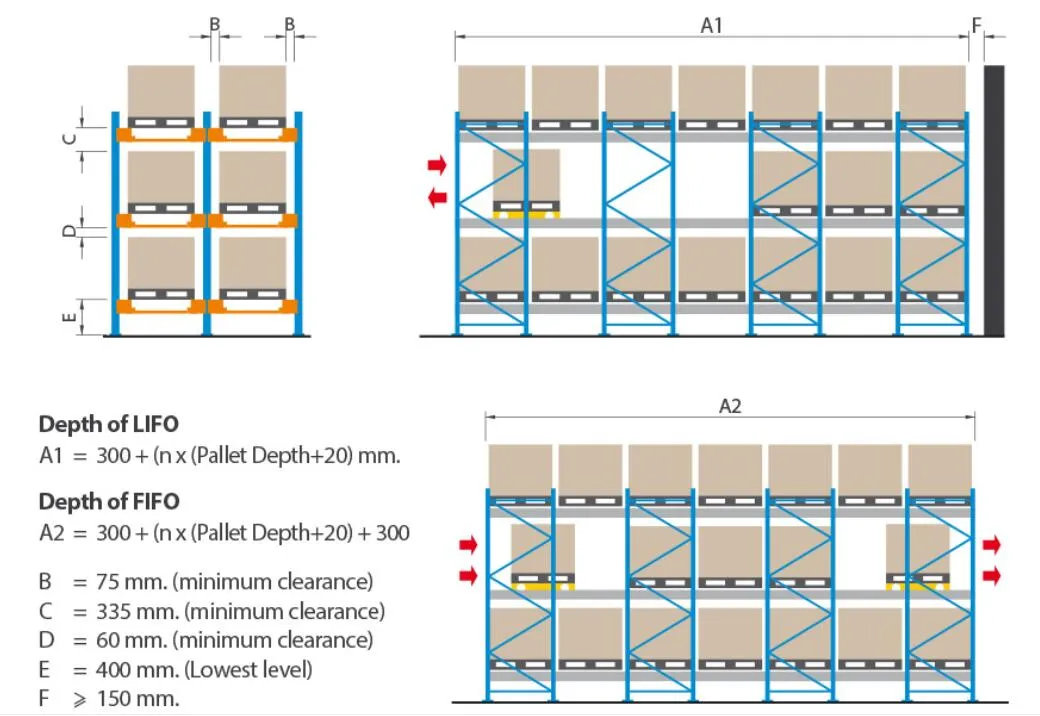

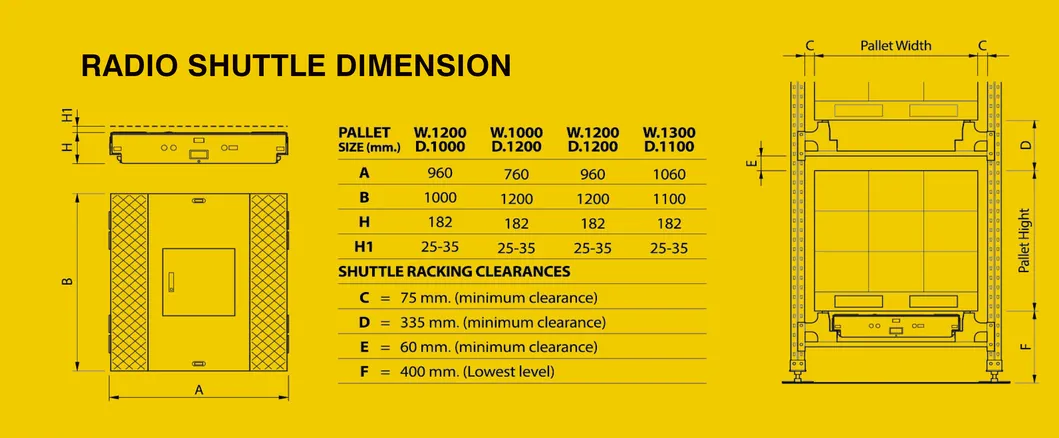

Product Parameters

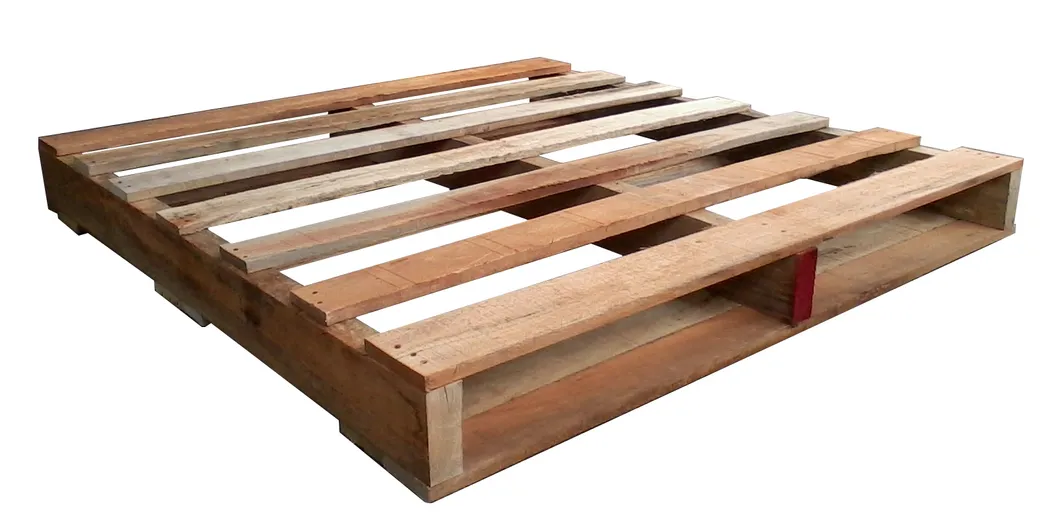

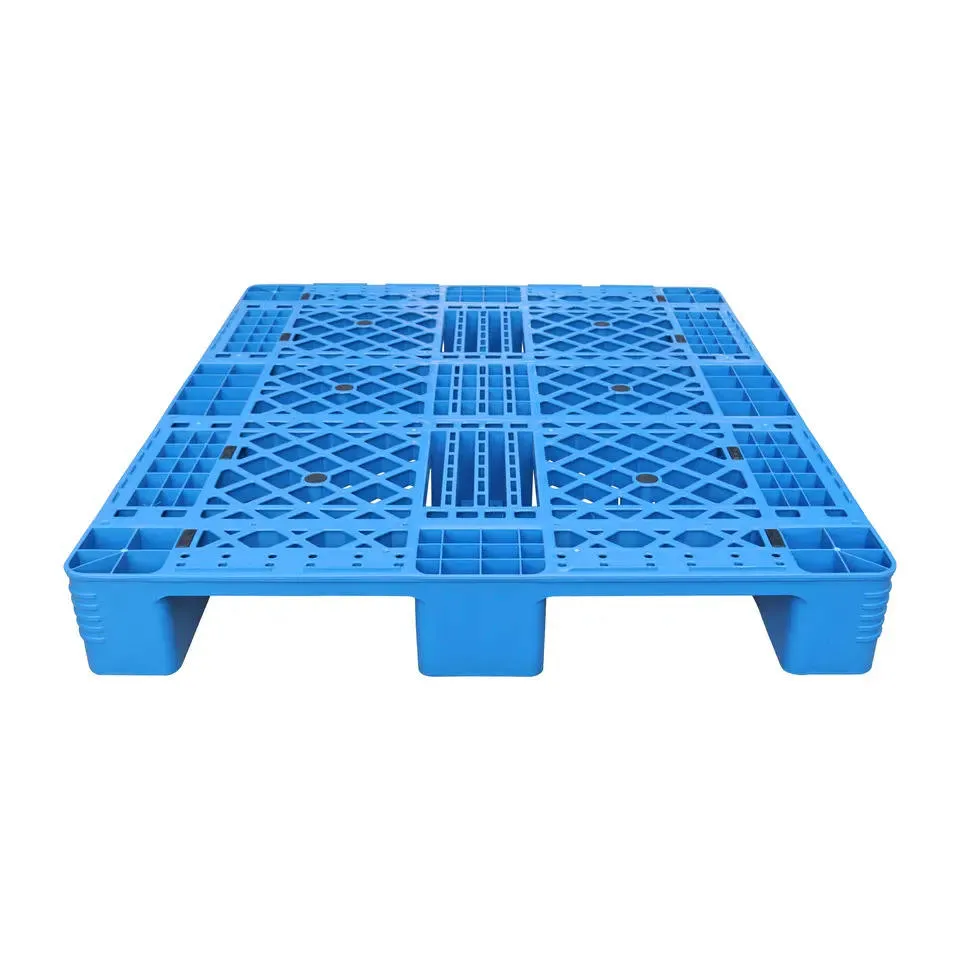

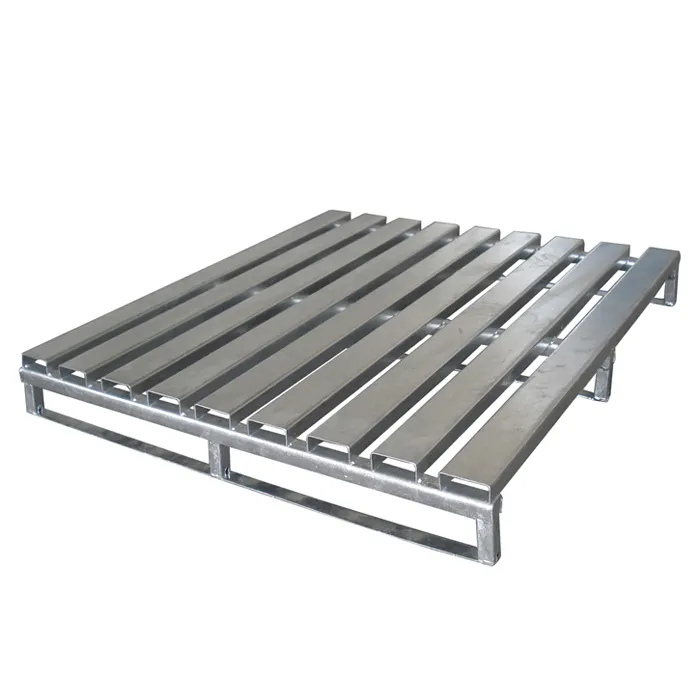

Matched Pallets for Radio Shuttles

Commonly Used Pallet Size	Pallet Material	Remarks
L1200 * W1000mm	Wood, Steel, Plastic	Good condition
L1200 * W800mm	Wood, Steel, Plastic	Good condition
L1100 * W1100mm	Wood, Steel, Plastic	Good condition
L1219 * W1016mm	Wood, Steel, Plastic	Good condition
Customized systems for different pallet sizes are supported.

3

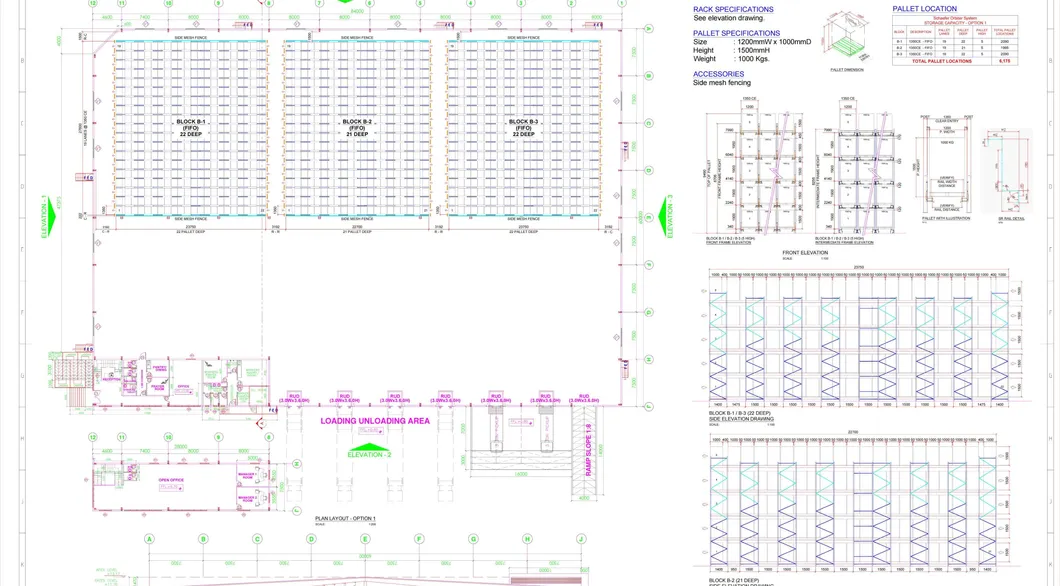

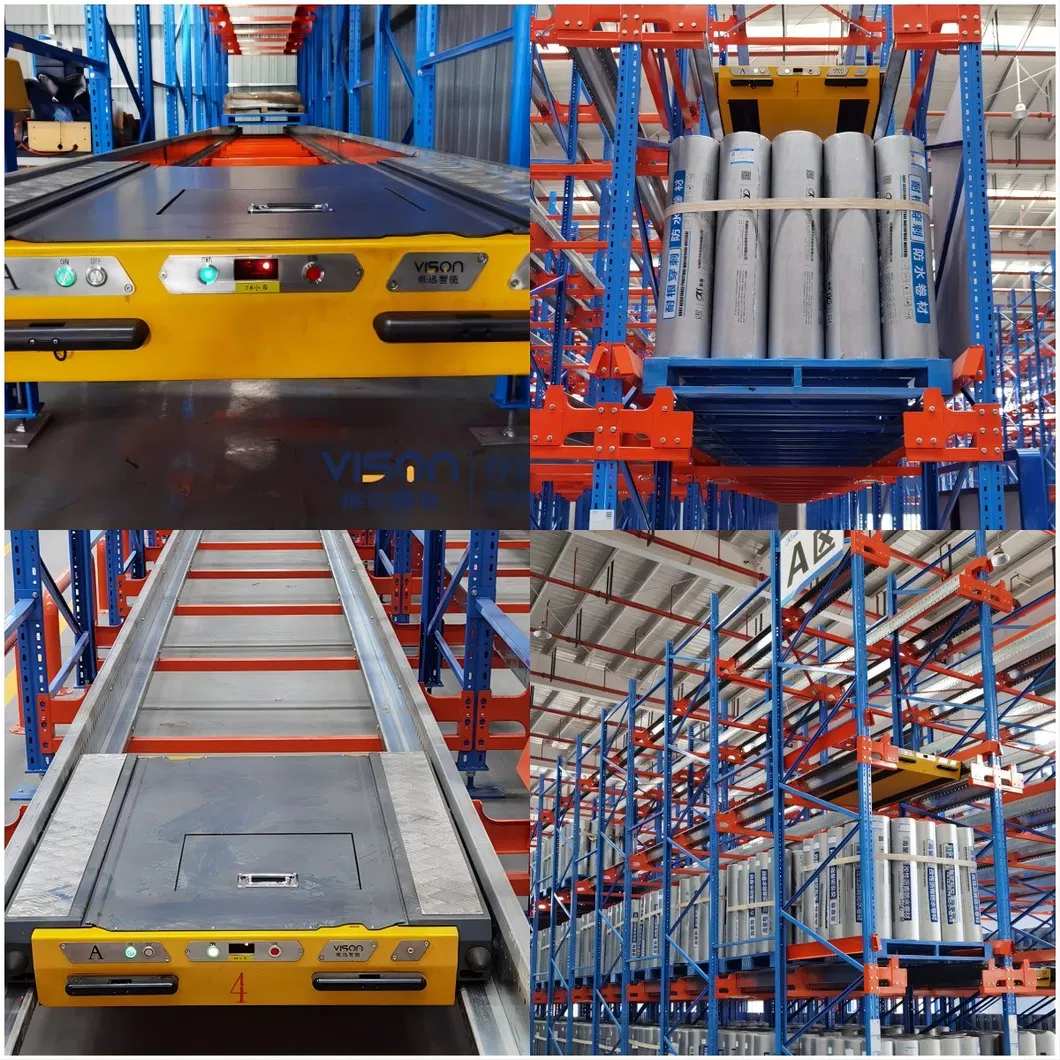

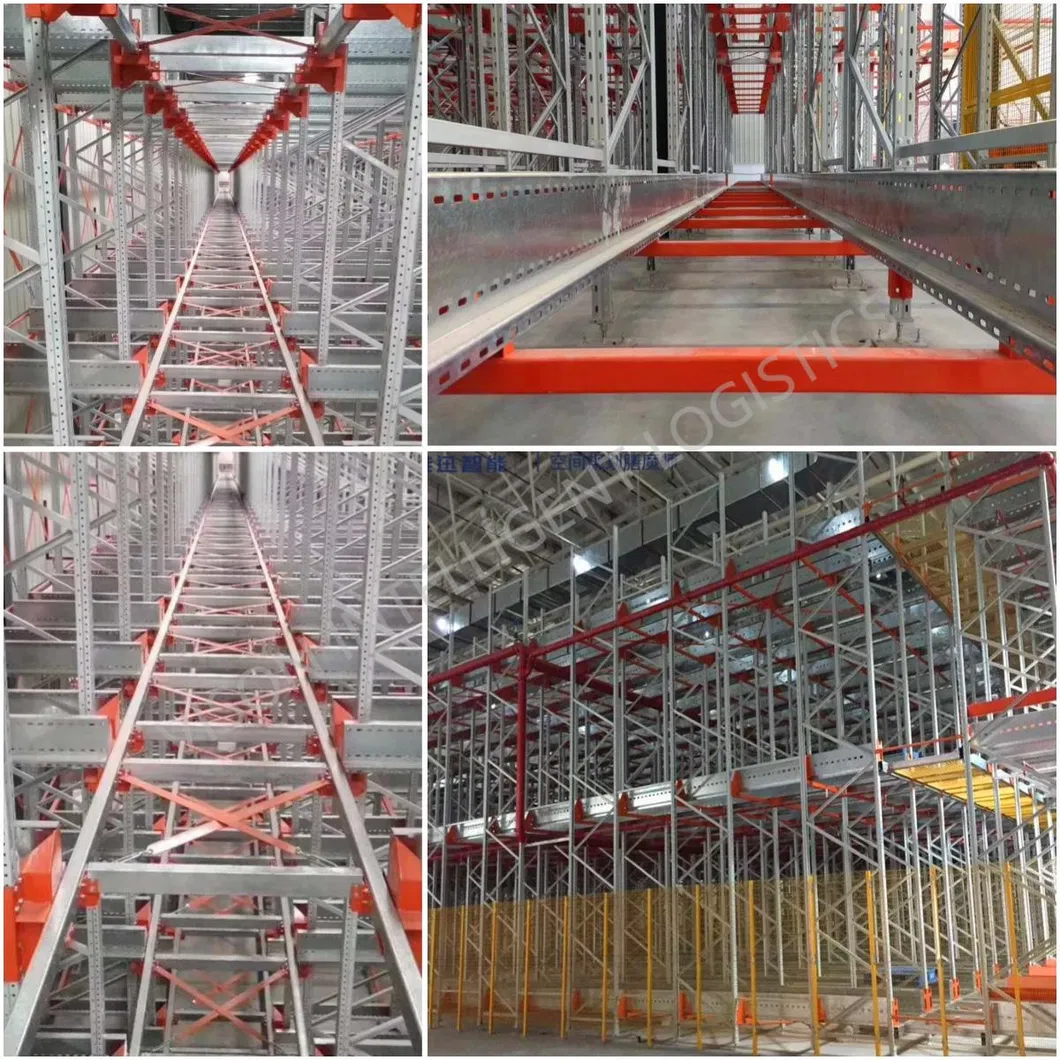

Design Cases & Production

We provide professional storage solutions based on warehouse layout, product characters, inventory quantity, and picking rates. Our engineers design systems for space maximization and cost-saving.

4

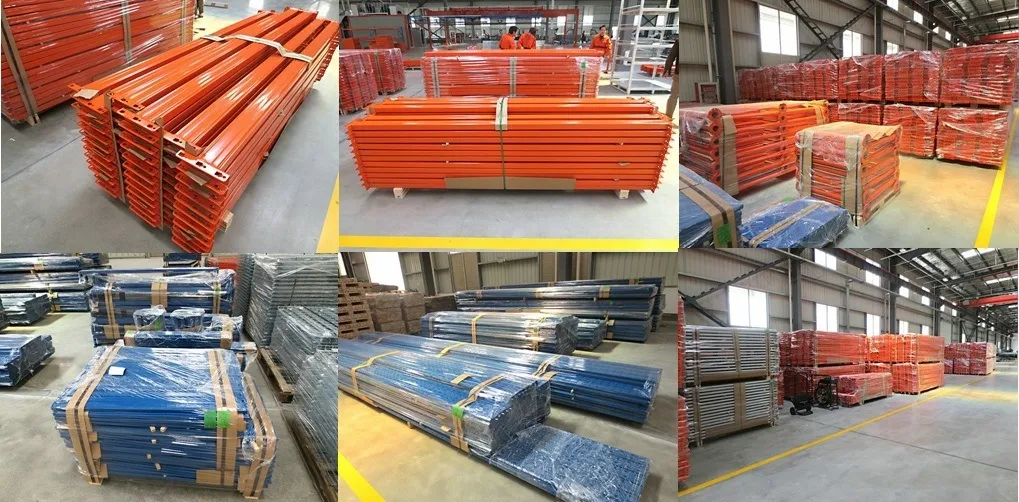

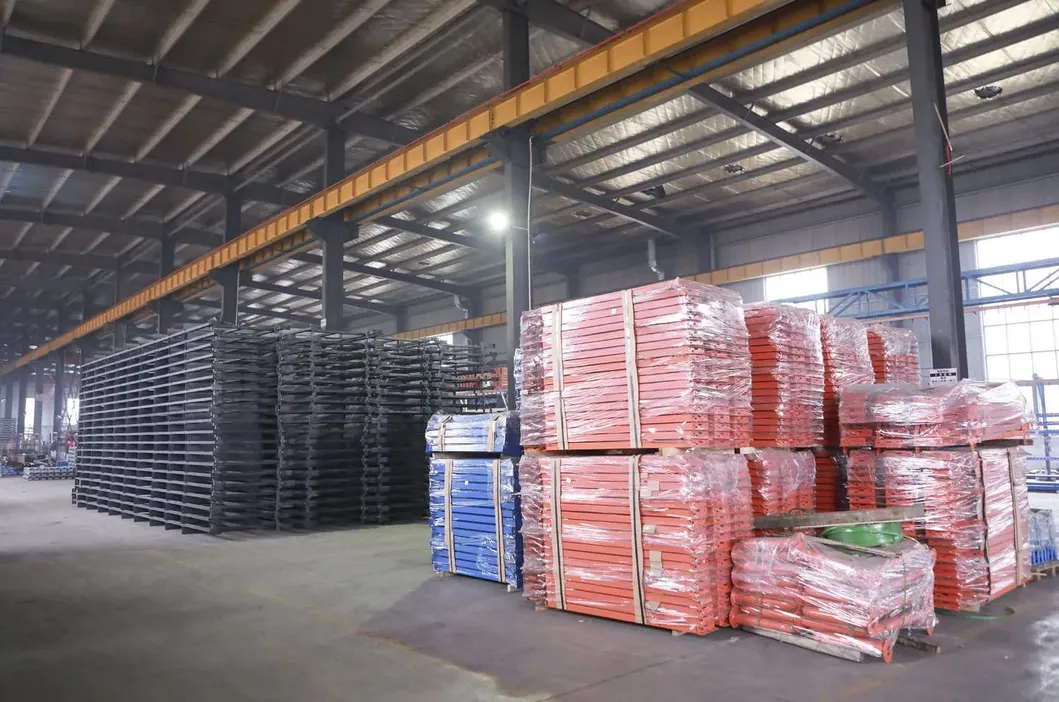

Packaging & Shipping

5

Why Choose Us

✔One-stop services from design and production to installation.

✔Rich international experience with OEM and ODM support.

✔Strict quality control with competitive pricing.

✔Advanced R&D for intelligent material handling equipment.

✔Compliance with ISO9001, CE, AS4084, and RMI standards.

6

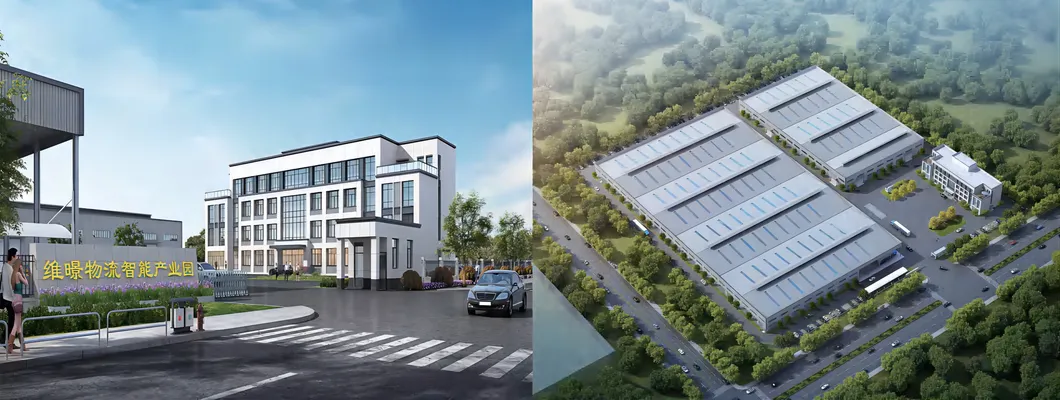

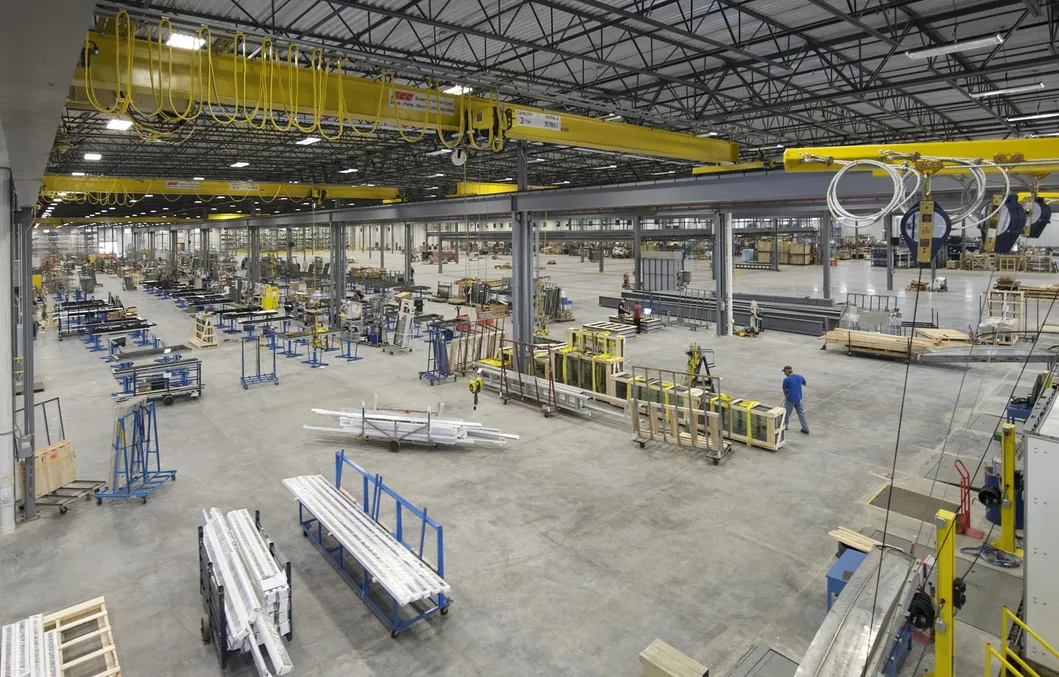

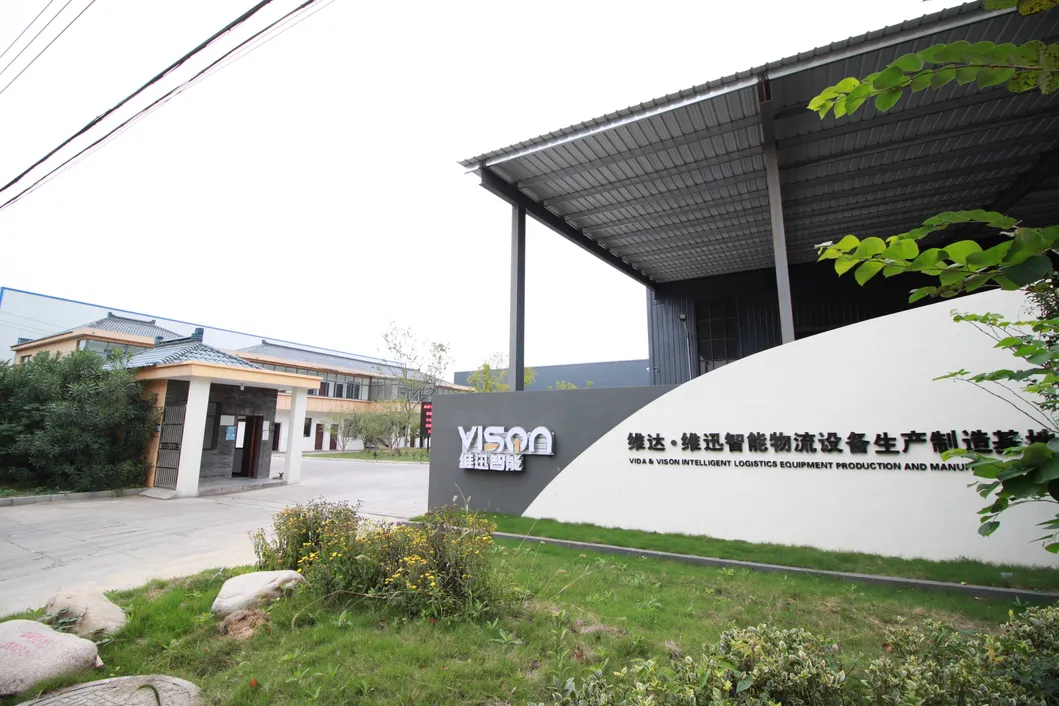

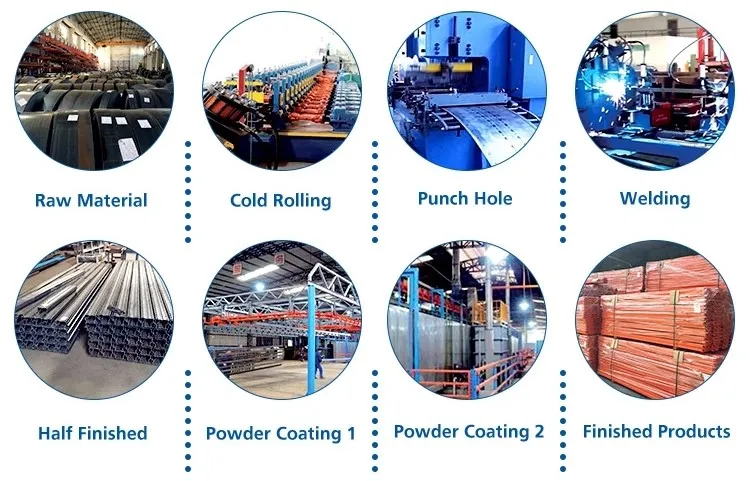

Production Capability

As a leading manufacturer of intelligent storage solutions, we specialize in automated storage equipment. Our systems are exported globally, including Europe, America, and Southeast Asia. With multiple production bases, we continue to increase technological development to provide world-class warehouse storage and material handling solutions.

?

FAQ

Q: What are your trading terms? A: We accept T/T (30% deposit, 70% balance against B/L), L/C, and O/A. Lead time is normally 20-25 days. Samples are available for all models.

Q: How do you handle product delivery? A: Goods are primarily shipped via sea freight through major ports like Shanghai. We also coordinate with client-designated shipping agents.

Q: What services do you provide? A: We offer 12-hour inquiry response, OEM/ODM services, and free professional designs from experienced engineers.

Q: Is there a minimum order requirement (MOQ)? A: There is no strict MOQ, but we recommend quantities fitting at least one 20ft container (approx. 15 tons) for optimal pricing.

Q: What are your advantages over competitors? A: Competitive factory-direct pricing, fast delivery for rush orders, flexible payment terms (O/A 40-60 days), and a two-year warranty with free parts replacement.

Q: How can we visit the production facilities? A: Please contact us directly to arrange a visit based on your timeline. All visits are warmly welcomed.

✔
