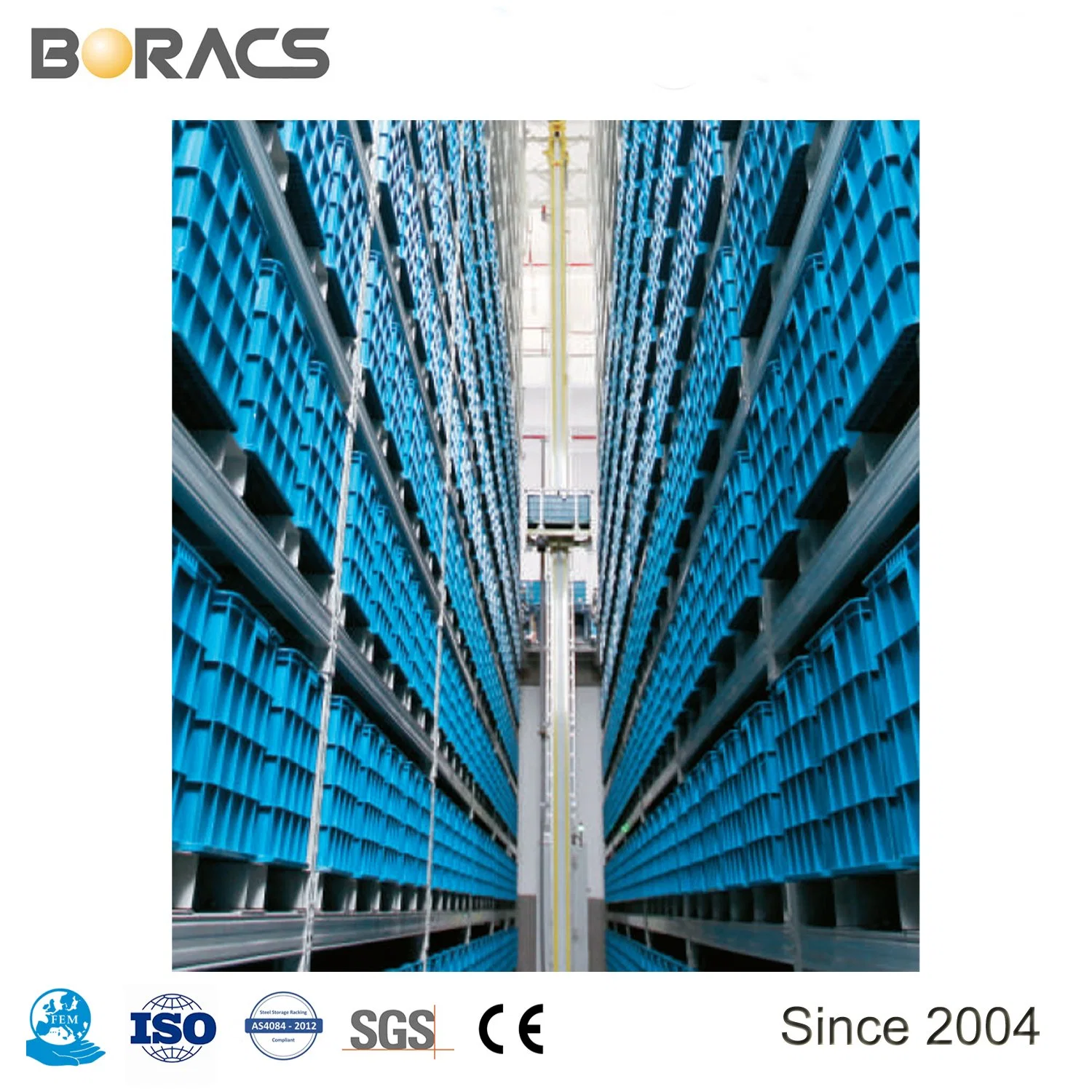

High Density Automatic Logistics Equipment as/RS Stacker Crane System for Warehouse Rack Storage
High Density Automatic Logistics Equipment as/RS Stacker Crane System for Warehouse Rack Storage
High Density Automatic Logistics Equipment as/RS Stacker Crane System for Warehouse Rack Storage
High Density Automatic Logistics Equipment as/RS Stacker Crane System for Warehouse Rack Storage
High Density Automatic Logistics Equipment as/RS Stacker Crane System for Warehouse Rack Storage
1 / 5
High Density Automatic Logistics Equipment as/RS Stacker Crane System for Warehouse Rack Storage
High Density Automatic Logistics Equipment as/RS Stacker Crane System for Warehouse Rack Storage
High Density Automatic Logistics Equipment as/RS Stacker Crane System for Warehouse Rack Storage
High Density Automatic Logistics Equipment as/RS Stacker Crane System for Warehouse Rack Storage
High Density Automatic Logistics Equipment as/RS Stacker Crane System for Warehouse Rack Storage

High Density Automatic Logistics Equipment as/RS Stacker Crane System for Warehouse Rack Storage

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Surface Treatment:Powder Coating & Galvanized
Main Systems:Racking, Stacker, Conveyor, Controlling, WMS
Certificate:As4084, Fem, ISO9001, CE
Origin:China
HS Code:73089000
Production Capacity:10000t/Year
Product Description

Automatic Storage and Retrieval System (ASRS)

In ASRS system, heavy-duty rackings are placed in booth sides with a small aisle space between these racks. The rail-mounted storage and retrieval mechanism is fixed between the aisle spaces. The rails cover the entire with PLC Controller to control the overall operation of the system.

Stacker cranes are machines designed for the automated storage of pallets. They travel along the aisle of a warehouse, carrying out the storage, placement and retrieval of goods. Making full use of storage space achieving standardization, automation, greatly reducing error rate, labor intensity, storage and transportation costs.

System Overview
Product NameAS/RS Racking System (Automated Storage / Retrieval System)
Basic ComponentsRacking system, stacker system, conveyor system, management and controlling system
MaterialSteel, cold-rolled steel
ColorRAL system (blue, grey, orange or customized)
Surface TreatmentPowder coating
Main System Components
  • Racking: Usually equipped with pallet racking and drive-in racking, both of which are composite structures. Steel panels and wooden panels are available for loading with good capacity.
  • Stacker: Double upright structure, steady and reliable, vector frequency conversion drive and encoder position control. Includes mechanical and electronic safety devices.
  • Conveyor System: Equipped in the front or back of the warehouse for conveying goods, bridging forklifts and stackers using rolling or chain conveyors.
  • Controlling System: Communicates with WMS and ECS through OPC agreement, set up by controller to operate all conveyors offline.
  • WMS System: Features star network structure, network servers, and RF terminals for comprehensive warehouse management.
Detailed Photos

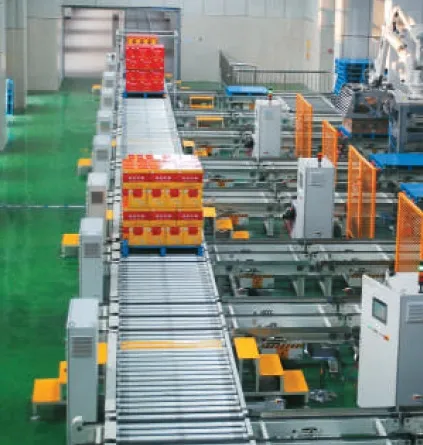

ASRS Stacker Crane System

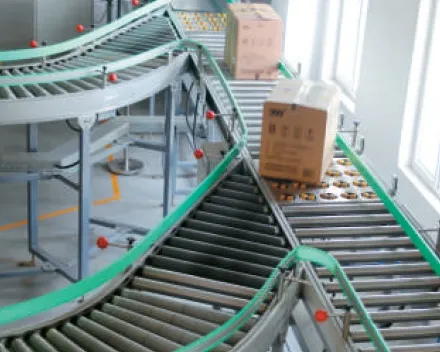

Warehouse Rack Storage

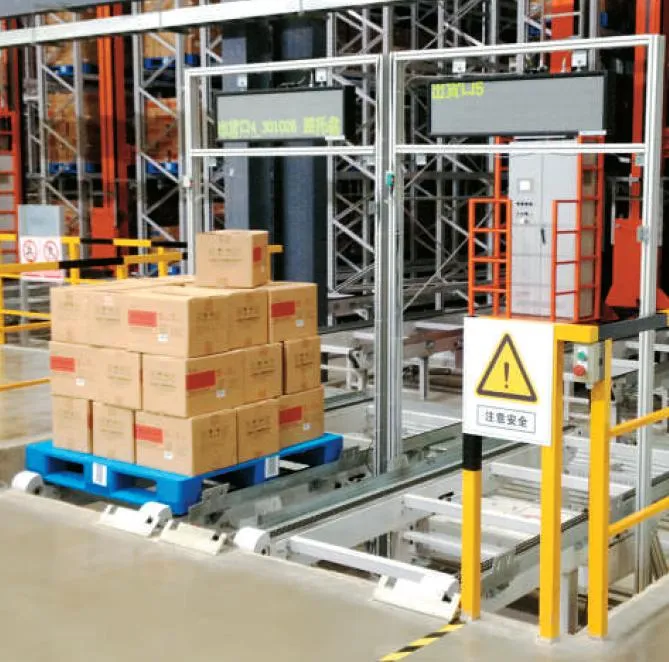

Logistics Equipment
Technical Parameters
Parameter Item Specifications
Size & LoadCustomized load and size, total height can reach 40 meters
Lifting Speed0-60m/min by frequency control
Positioning MethodLaser ranging + rotary encoder, photoelectric address
Horizontal Running Speed0-240m/min by frequency control
Positioning AccuracyHigh precision control for warehouse safety
Our Advantages
  • Maximize space utilization through a multi-level automated warehouse system.
  • Flexible height options: can reach 30 meters, with settings for elevated (12m+), middle (5-12m), and low (below 5m) requirements.
  • Rigorous quality control: Regular Tensile and Yield Strength tests ensure material quality.
  • Compliance with international standards: Racks comply with European FEM and Australian Standards.

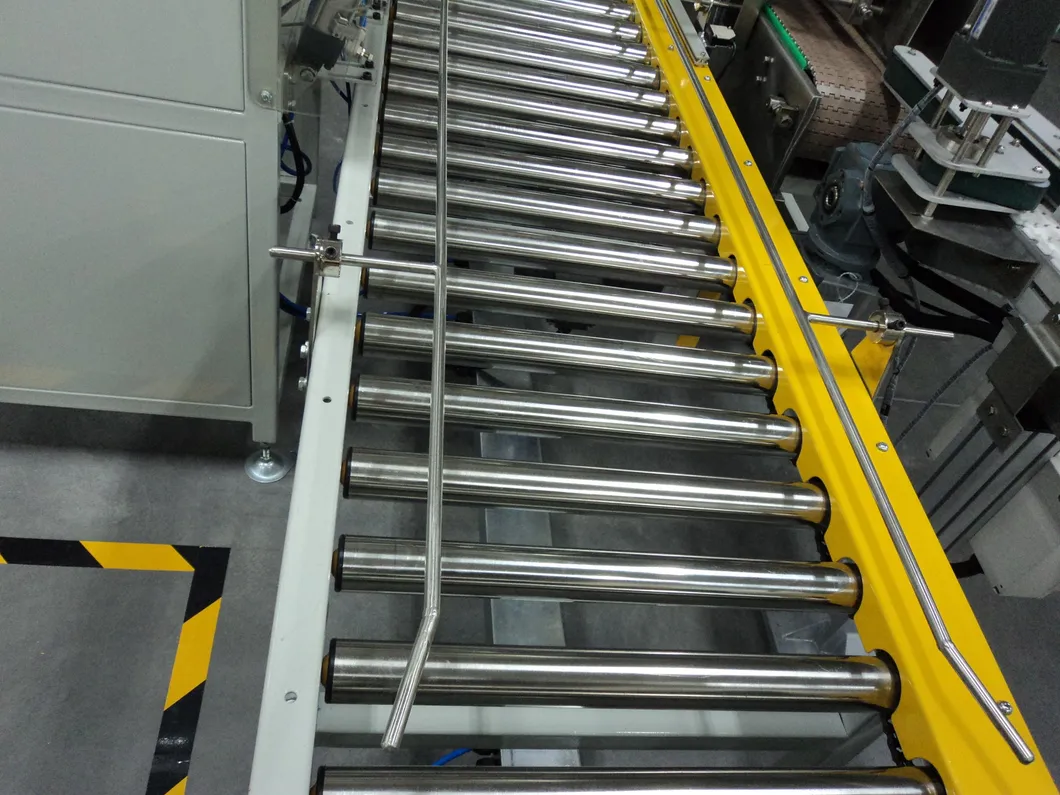

Warehouse Advantage 1

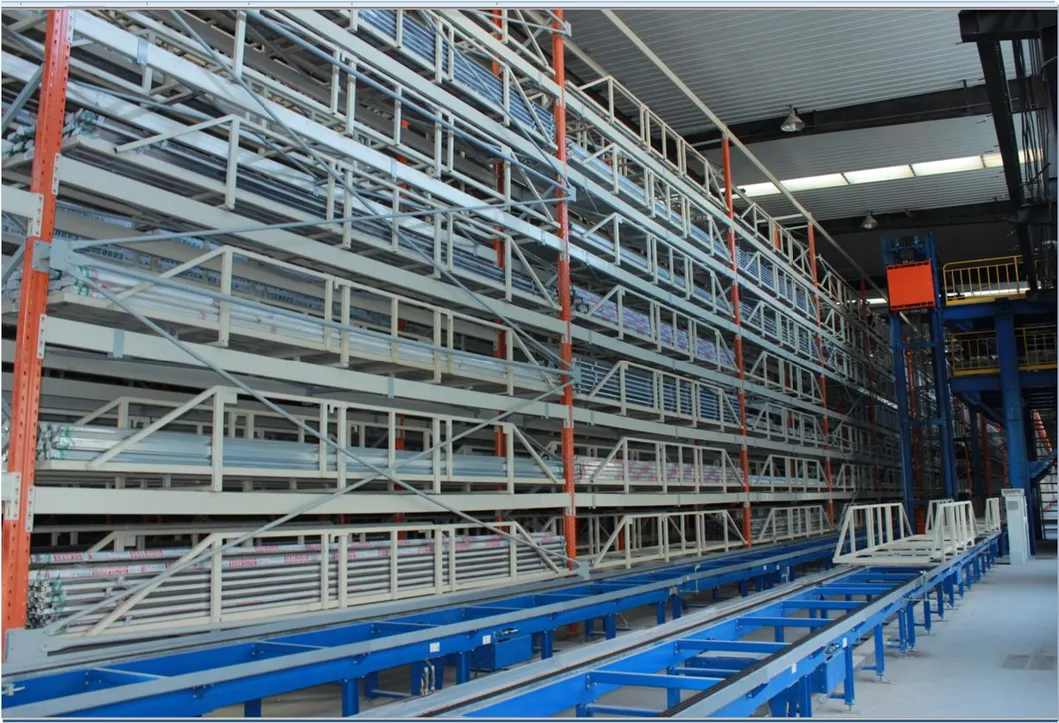

Warehouse Advantage 2

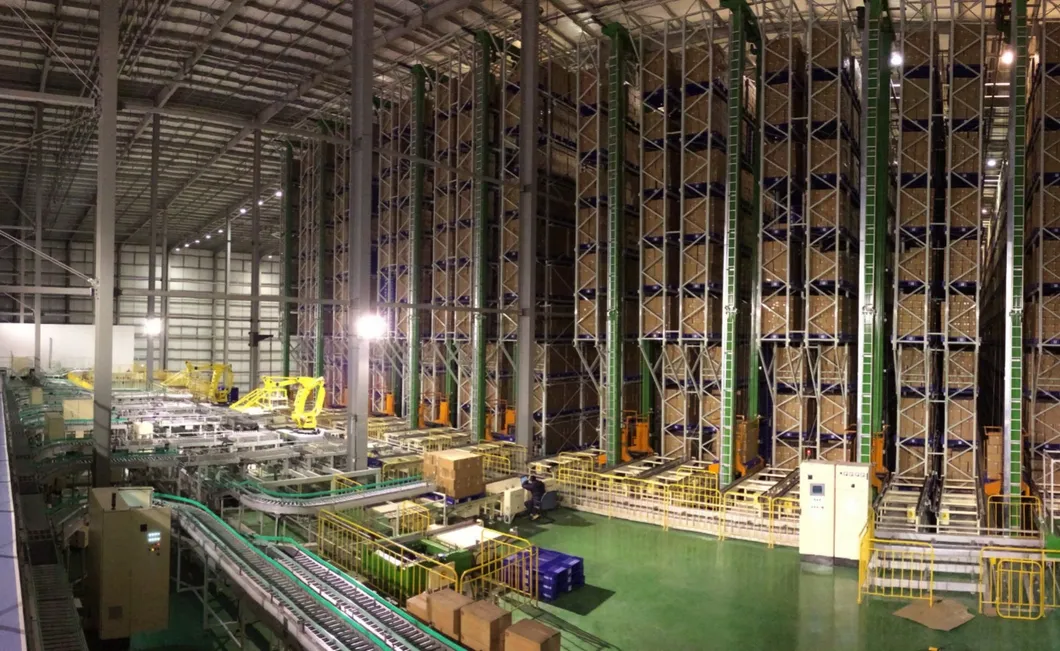

Warehouse Advantage 3
Packaging & Shipping
Packaging Info 1

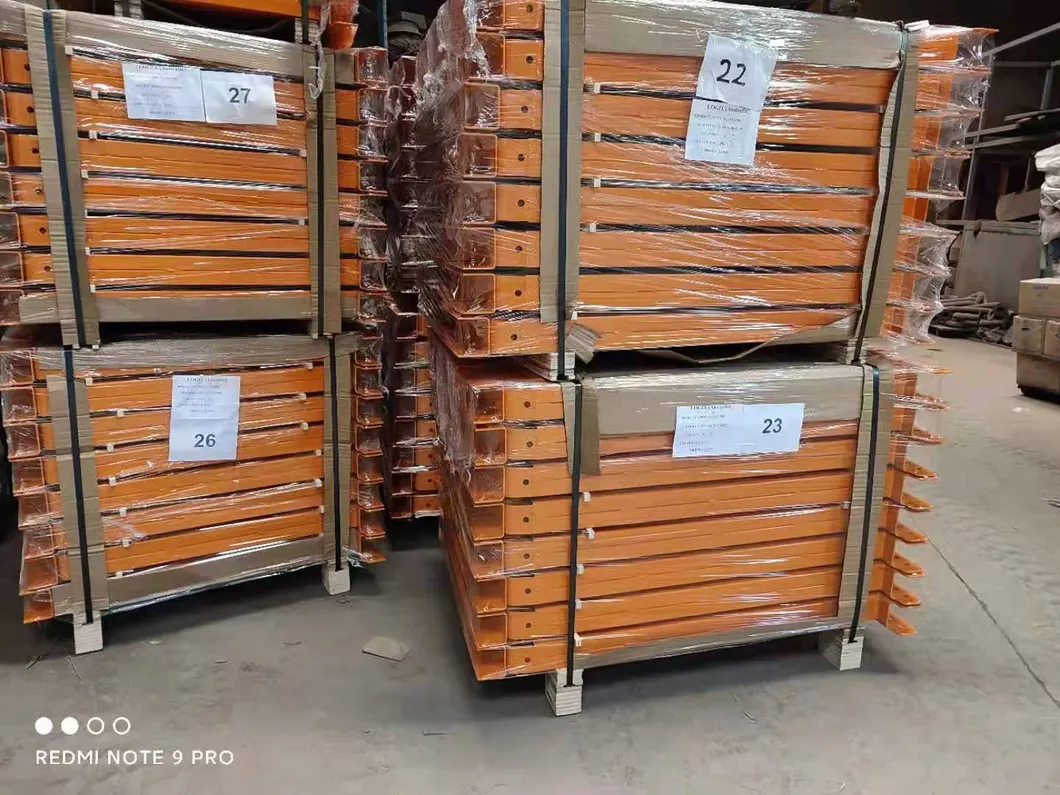

Shipping Info 2
Delivery Info 3
Storage Facility
Racking Installation
Frequently Asked Questions
1. What is an AS/RS System? An Automated Storage and Retrieval System (AS/RS) consists of a variety of computer-controlled systems for automatically placing and retrieving loads from specific storage locations.
2. What are the primary components of your AS/RS? The system includes high-density racking, automated stacker cranes, conveyor systems for transport, and integrated WMS (Warehouse Management System) software.
3. How high can the storage system reach? The system is highly customizable; it can reach up to 30 or even 40 meters in height to maximize vertical warehouse space.
4. Which industries commonly use these automated systems? AS/RS is widely utilized in the food and beverage, tobacco, electronic, mechanical, and pharmaceutical industries where high-efficiency storage is required.
5. What safety measures are included with the stacker cranes? Our stacker cranes are equipped with both mechanical and electronic safety devices, vector frequency conversion drives, and real-time tracing technology to ensure secure operation.
6. Are the systems compatible with international standards? Yes, our systems are designed and tested to comply with European FEM and Australian Standards, ensuring global compatibility and safety.
