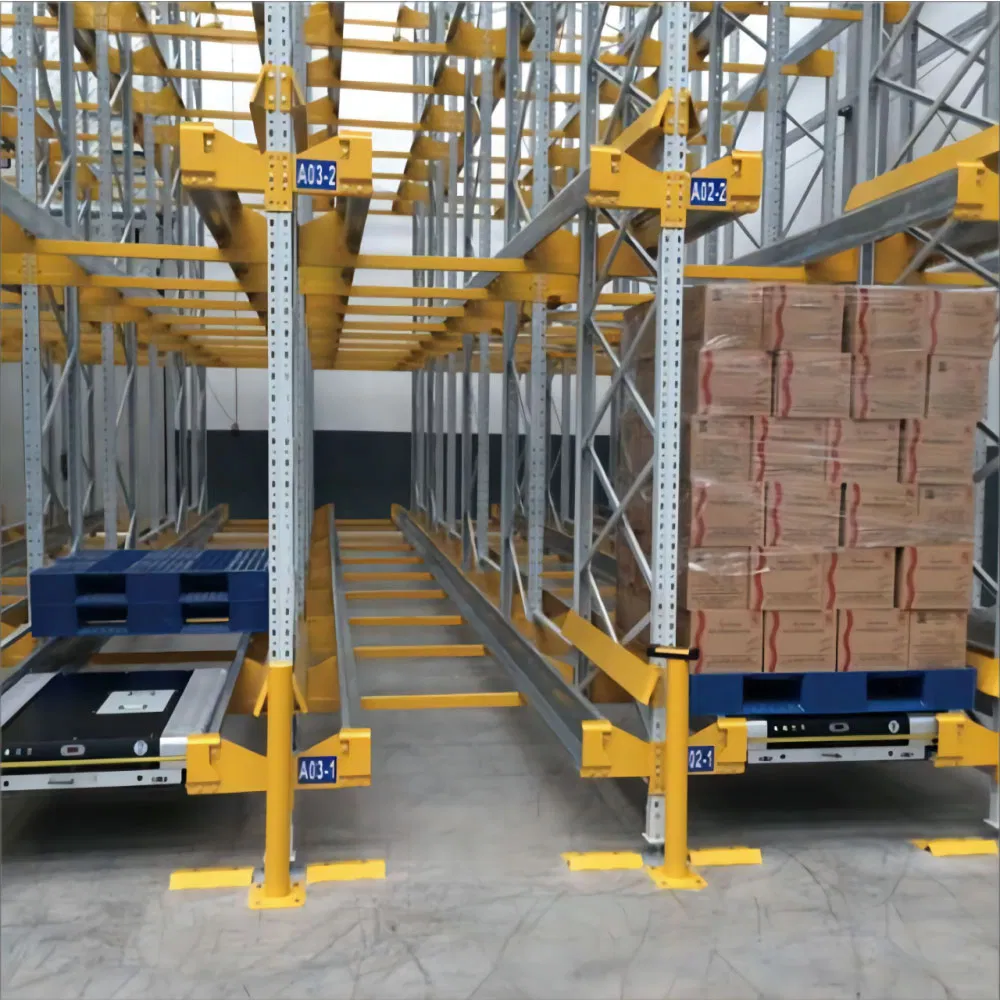

High Density Storage Automatic Radio Shuttle Racks Electric Pallet Control Racking System
High Density Storage Automatic Radio Shuttle Racks Electric Pallet Control Racking System
High Density Storage Automatic Radio Shuttle Racks Electric Pallet Control Racking System
High Density Storage Automatic Radio Shuttle Racks Electric Pallet Control Racking System
High Density Storage Automatic Radio Shuttle Racks Electric Pallet Control Racking System
1 / 5
High Density Storage Automatic Radio Shuttle Racks Electric Pallet Control Racking System
High Density Storage Automatic Radio Shuttle Racks Electric Pallet Control Racking System
High Density Storage Automatic Radio Shuttle Racks Electric Pallet Control Racking System
High Density Storage Automatic Radio Shuttle Racks Electric Pallet Control Racking System
High Density Storage Automatic Radio Shuttle Racks Electric Pallet Control Racking System

High Density Storage Automatic Radio Shuttle Racks Electric Pallet Control Racking System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.
OKE-20250723-04
Usage
Tool Rack, Beverage, Tools, Food, Industrial, Warehouse Rack
Material
Steel
Structure
Rack
Type
Pallet Shuttle Racking
Mobility
Adjustable
Height
Max 10m, Customizable
Weight Capacity
Max 1500 Kg/Level
Width
1450mm or Customized
Depth
Maximum 35 Pallets Deep
Shuttle Weight
285 Kg-365 Kg
Control System
Siemens S7-200 PLC

Product Detail Gallery

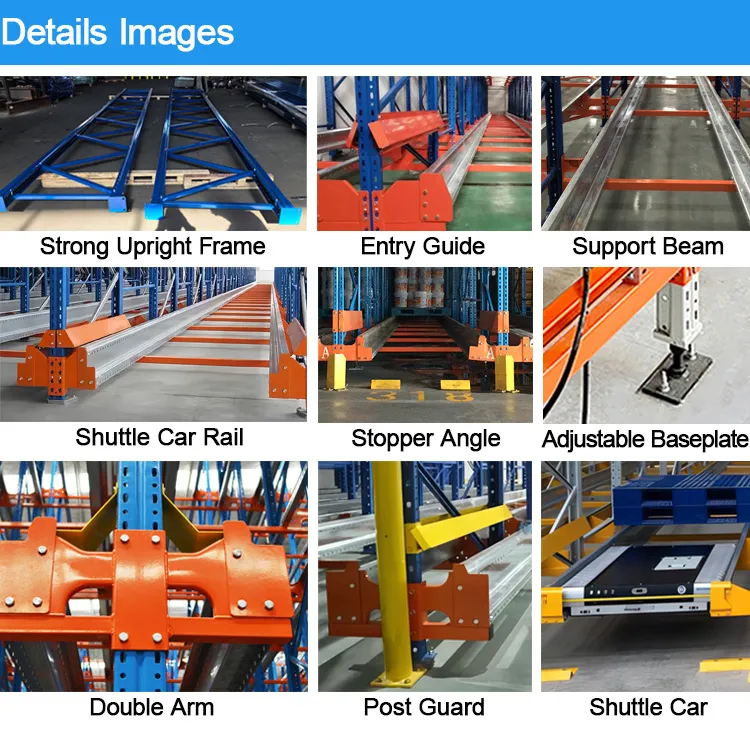

Automatic Radio Shuttle Racking
Shuttle Type A
Shuttle Type B
Shuttle Type C

Product Classifications

Parameters Economic Type Standard Type Advanced Type
Loading Capacity Max. Max 1500kg Max 1500kg Max 1500kg
Running Speed (Empty/Full) 1.0m/s / 0.8m/s 1.0m/s / 0.8m/s 1.5m/s / 1.0m/s
Drive Motor Domestic brush servo Domestic brushless servo Imported brushless servo
Lifting Height ≤45mm ≤45mm ≤45mm
Positioning System Germany P+F/SICK Germany P+F/SICK Germany P+F/SICK
Battery Running Time ≥8h ≥8h ≥8h

Our Safety Assurance

To ensure the stability and safety of our racking structures, we have implemented multiple safety measures:

Support Beams: Reinforced 2mm thick beams securely fastened to reduce vibrations.
Galvanized Guide Rails: 3.0mm high-strength rails for maximum wear resistance.
Horizontal Bracing: Minimizes swaying during high-speed shuttle movements.
End Caps & Limiters: 3mm thick components prevent shuttles from derailment.
Sensors: Laser positioning systems for safe distance management.
Emergency Protection: Instant suspension buttons and sound/light alarms.

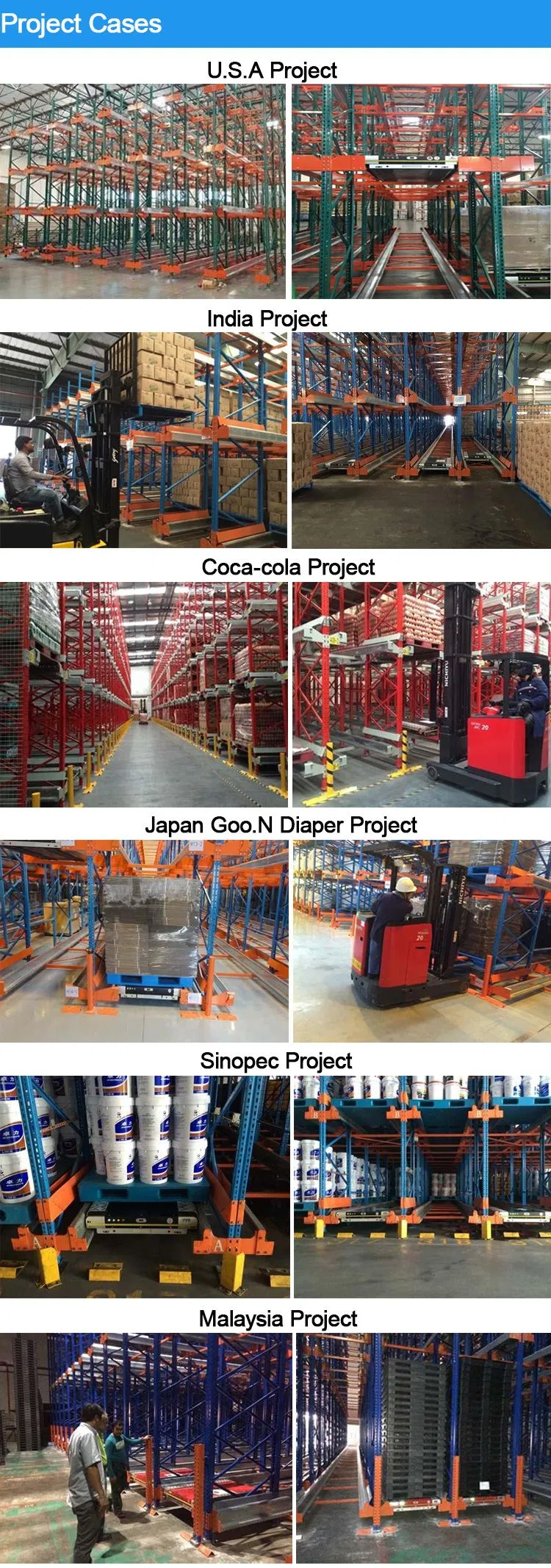

Safety Features

Why Choose Our Solutions

Strict Quality Inspection: A professional team of 15 people checks every production step.
Advanced Equipment: Fully automated technology ensures precision and timely delivery.
Premium Powder Coating: Dual-stage powerful pickling creates a superior oxidation film for long-lasting finish.
Extensive Experience: Over 23 years of experience exporting to 85+ countries worldwide.

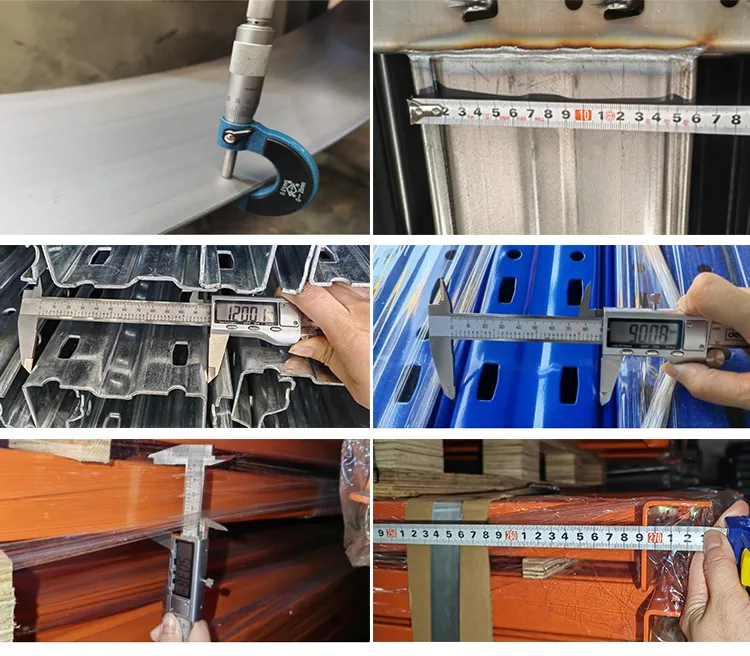

Quality Inspection

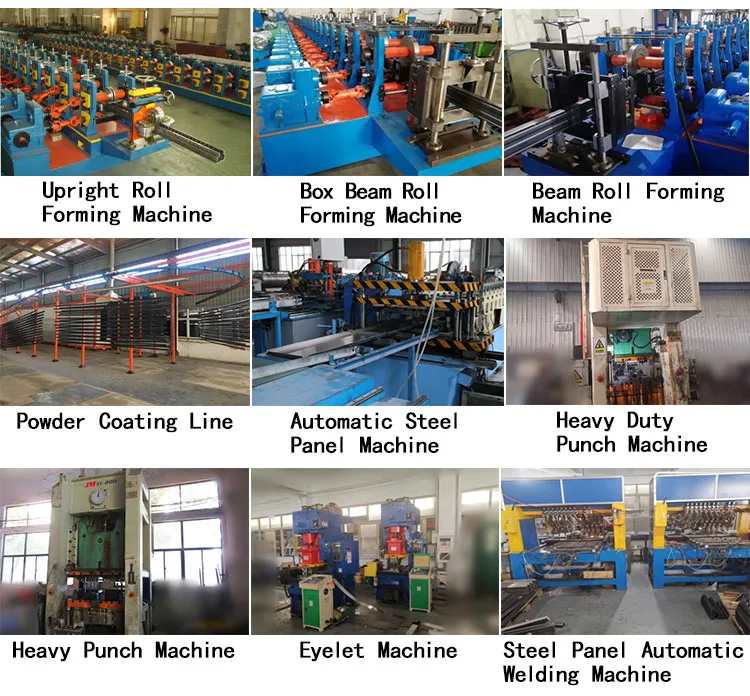

Production Equipment

Frequently Asked Questions

Is Shuttle Pallet Racking expensive to manufacture?
It has a lower comprehensive cost compared to drive-in racks, push-back racks, and gravity racks due to its high-density storage efficiency and reduced labor needs.
What are the common forms of Pallet Shuttle systems?
The forms include regular forklift + shuttle, mother-son shuttle systems, and stacker crane + shuttle combinations, depending on the required storage density and automation level.
What happens if there is a failure in the shuttle car?
Our shuttles feature multiple safety designs including anti-collision, laser positioning protection, and battery/temperature safeguards. We also provide 24/7 technical support.
How long is the typical lead time?
On average, it takes 20-25 days for production. Highly customized solutions may require additional time.
What is the load capacity of the shuttle cars?
The load capacity can reach up to 1500 kg, while the shuttle itself weighs between 285 kg and 365 kg.
Do you provide installation services?
Yes, we provide detailed installation drawings and videos. On-site installation guidance by an engineer is available if needed.
