High Density Power Concentration Integrated All-in-One Ess Storage Efficiency Management System LiFePO4 Battery Smart Bess Solar Wind Renewable Energy System
High Density Power Concentration Integrated All-in-One Ess Storage Efficiency Management System LiFePO4 Battery Smart Bess Solar Wind Renewable Energy System
High Density Power Concentration Integrated All-in-One Ess Storage Efficiency Management System LiFePO4 Battery Smart Bess Solar Wind Renewable Energy System
High Density Power Concentration Integrated All-in-One Ess Storage Efficiency Management System LiFePO4 Battery Smart Bess Solar Wind Renewable Energy System
High Density Power Concentration Integrated All-in-One Ess Storage Efficiency Management System LiFePO4 Battery Smart Bess Solar Wind Renewable Energy System
1 / 5
High Density Power Concentration Integrated All-in-One Ess Storage Efficiency Management System LiFePO4 Battery Smart Bess Solar Wind Renewable Energy System
High Density Power Concentration Integrated All-in-One Ess Storage Efficiency Management System LiFePO4 Battery Smart Bess Solar Wind Renewable Energy System
High Density Power Concentration Integrated All-in-One Ess Storage Efficiency Management System LiFePO4 Battery Smart Bess Solar Wind Renewable Energy System
High Density Power Concentration Integrated All-in-One Ess Storage Efficiency Management System LiFePO4 Battery Smart Bess Solar Wind Renewable Energy System
High Density Power Concentration Integrated All-in-One Ess Storage Efficiency Management System LiFePO4 Battery Smart Bess Solar Wind Renewable Energy System

High Density Power Concentration Integrated All-in-One Ess Storage Efficiency Management System LiFePO4 Battery Smart Bess Solar Wind Renewable Energy System

Customization: Available
Container Size: 1500*1288*2500mm
Weight: 2700kgs
Send Inquiry

Product Description

i

Basic Information

Model NO.BR-BESS2
Nominal Voltage768V
Warranty3 Years
Nominal Capacity215.04kwh
Cycle Life6000 times
Specification1500*1288*2500mm
Battery TypeLiFePO4 (LFP)
ProtectionIP54
★

Product Description

High Density Power Concentration Integrated All-in-One Ess Storage Efficiency Management System LiFePO4 Battery Smart Bess Solar Wind Renewable Energy System
Parameter Item Specifications
System OverviewType Class100KW/215KWh
Energy Storage Capacity215KWh
System Voltage768V
Operating Voltage RangeDC672V~DC876V
DC ParametersVoltage RangeDC650V - DC900V
Single Channel Rated Current175A
AC Grid ConnectionRated Power100KW
Rated VoltageAC 380V (3W+PE)
Rated Frequency50Hz/60Hz
Output Harmonic≤3%
Power Factor1
EnvironmentOperating Temperature-20ºC ~ 55ºC
Relative Humidity0% ~ 95% (non-condensing)
Working Altitude2000m (up to 4000m derated)
Noise Level<70dB
Safety & OthersCooling ModeAir Conditioner
Fire FightingPerfluorohexone Fire Extinguisher
CommunicationCAN/RS485
📷

Product Gallery

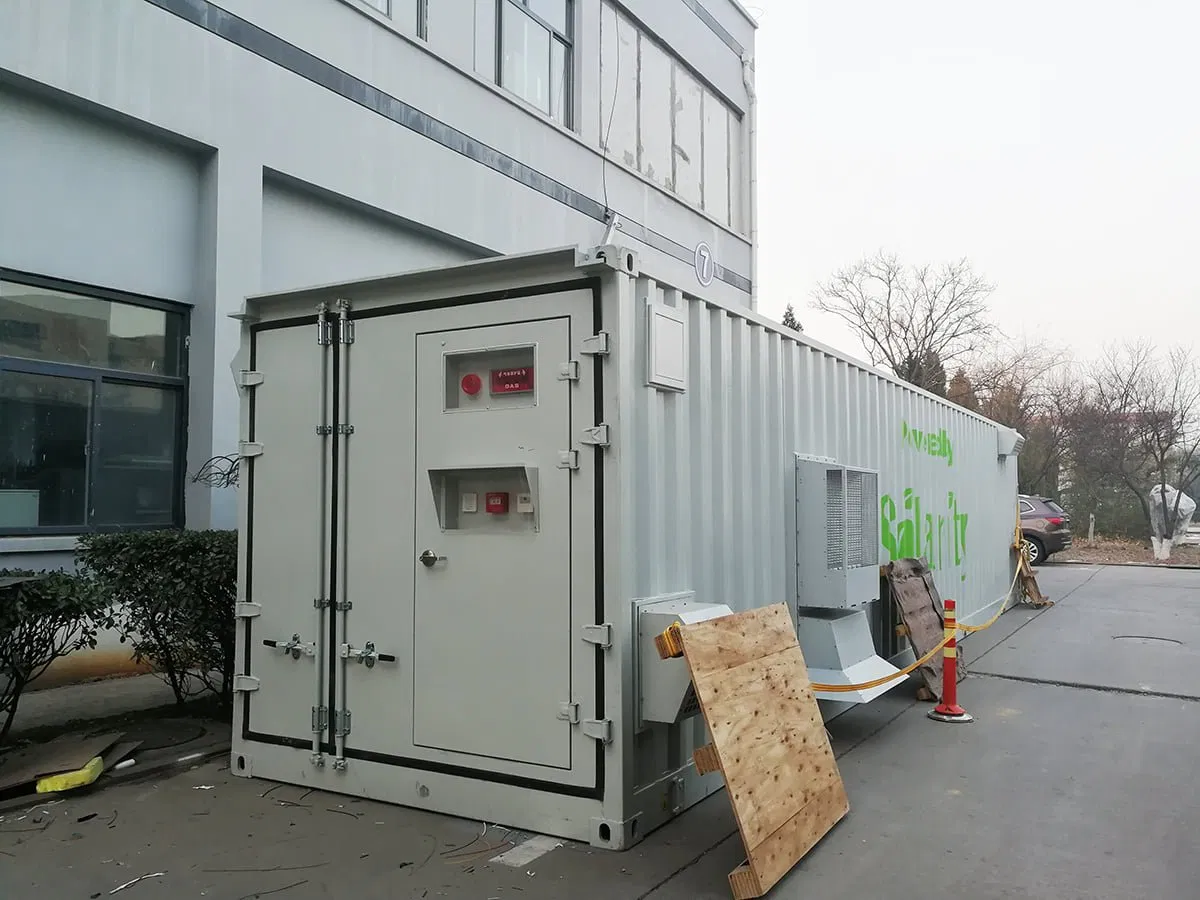

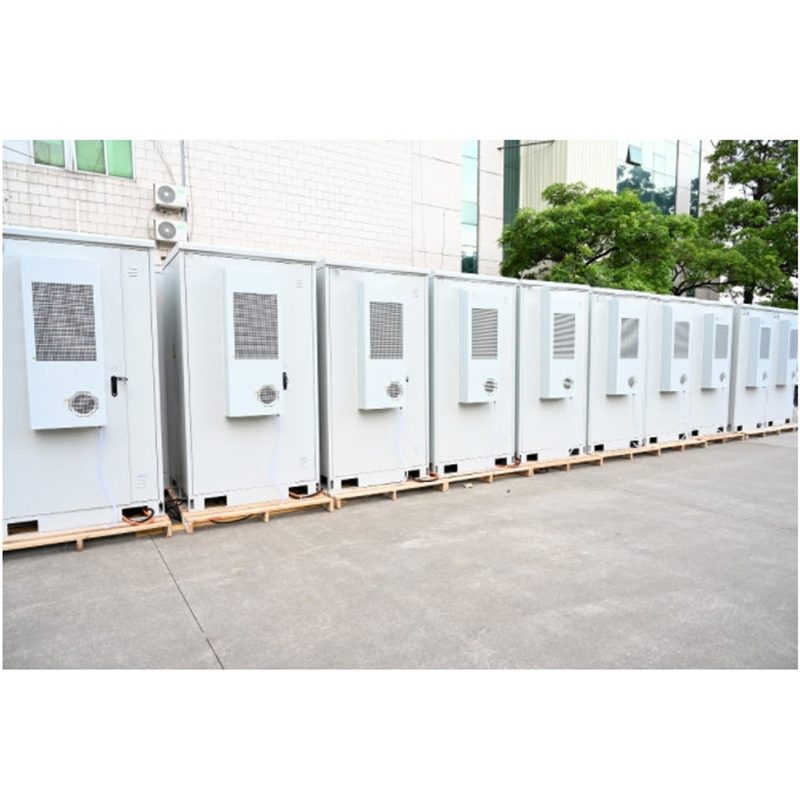

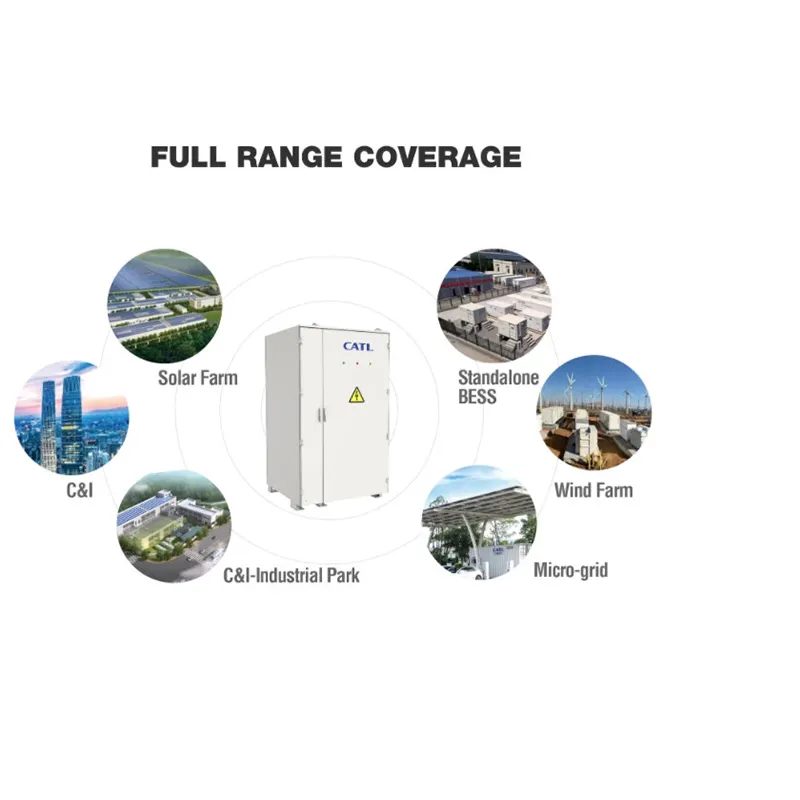

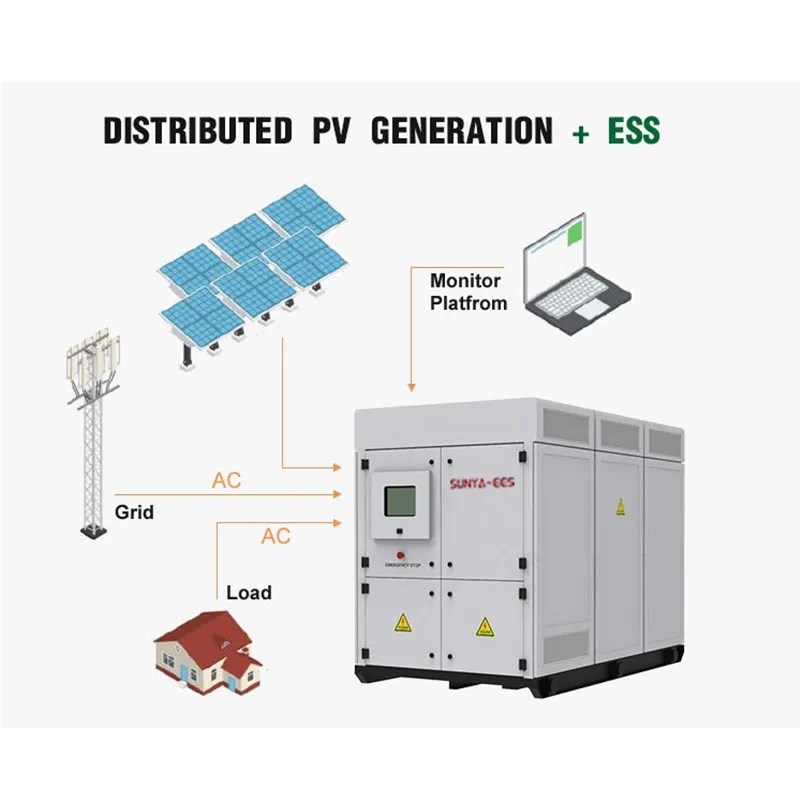

BESS System 1 BESS System 2

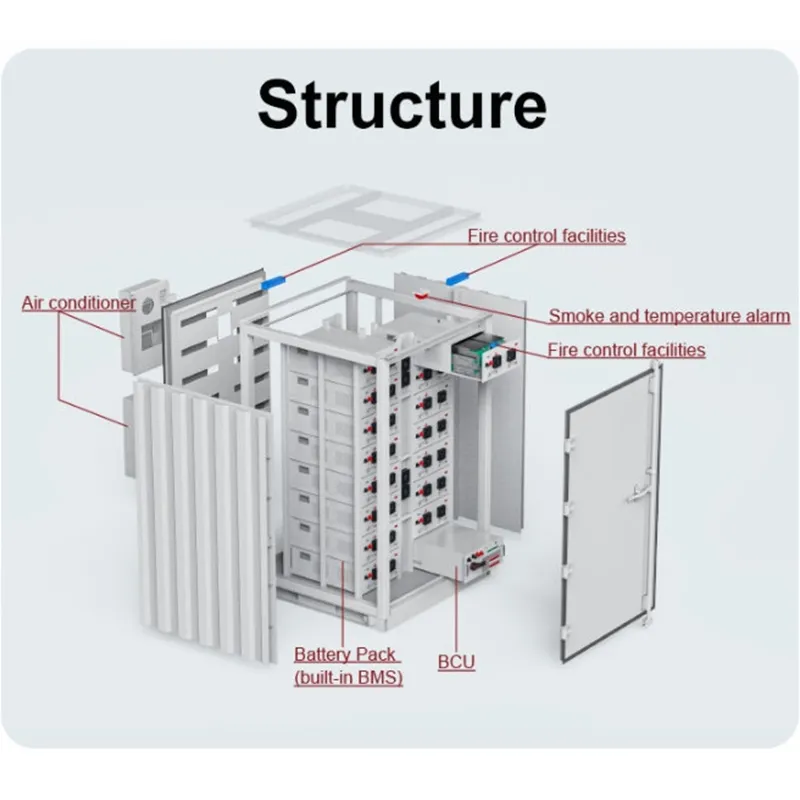

BESS Detail 1

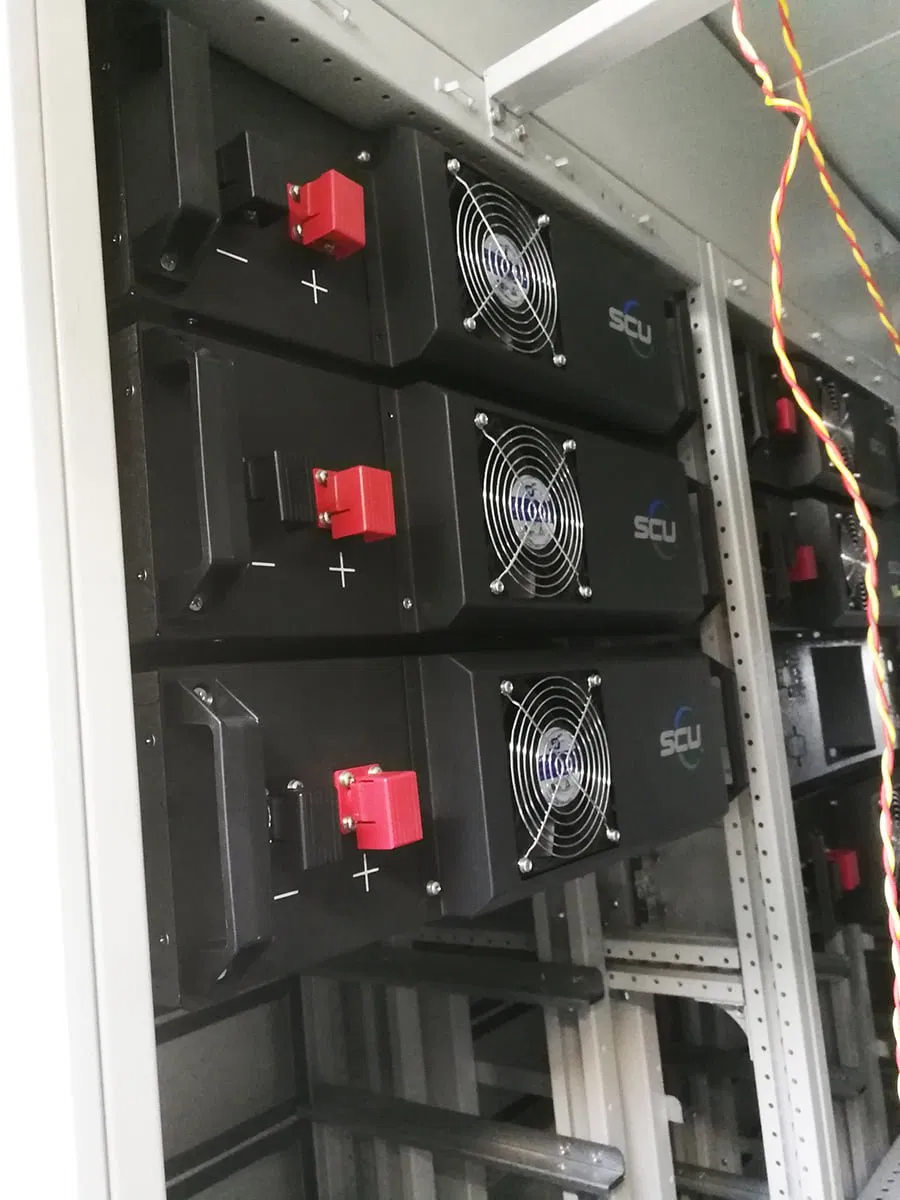

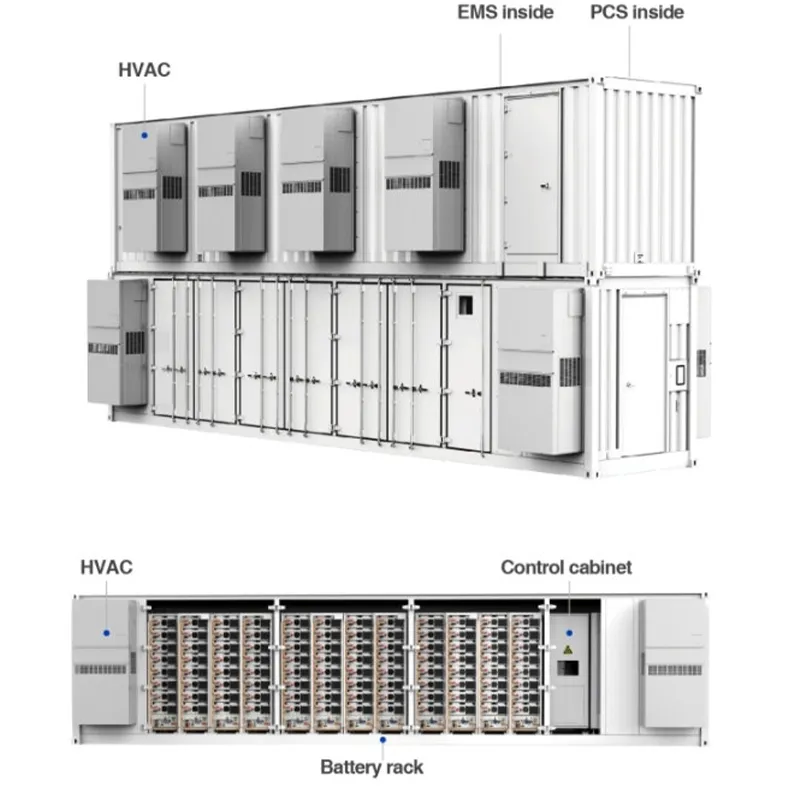

BESS Detail 2

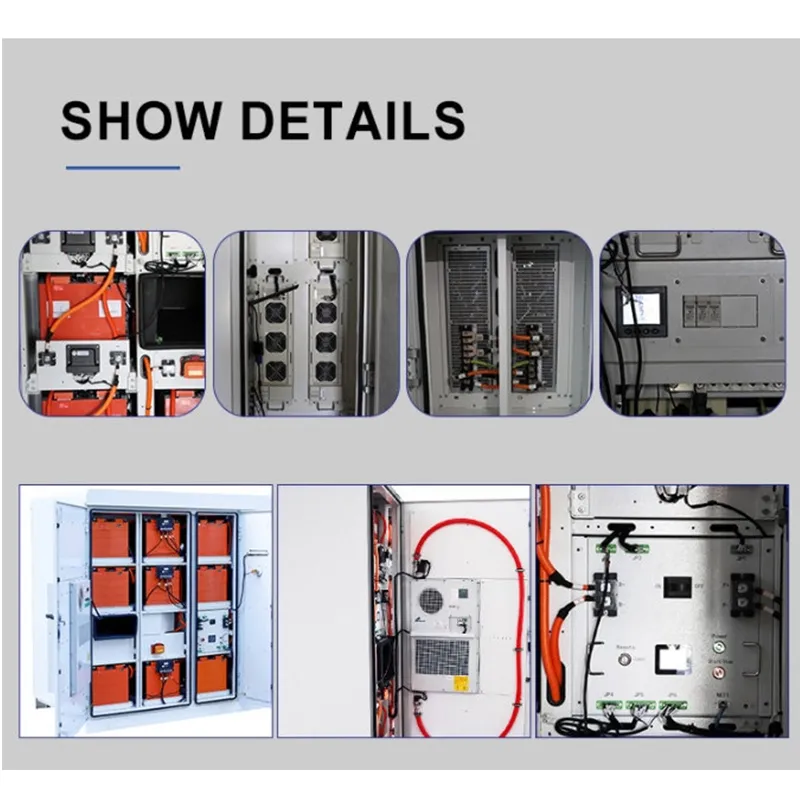

BESS Detail 3

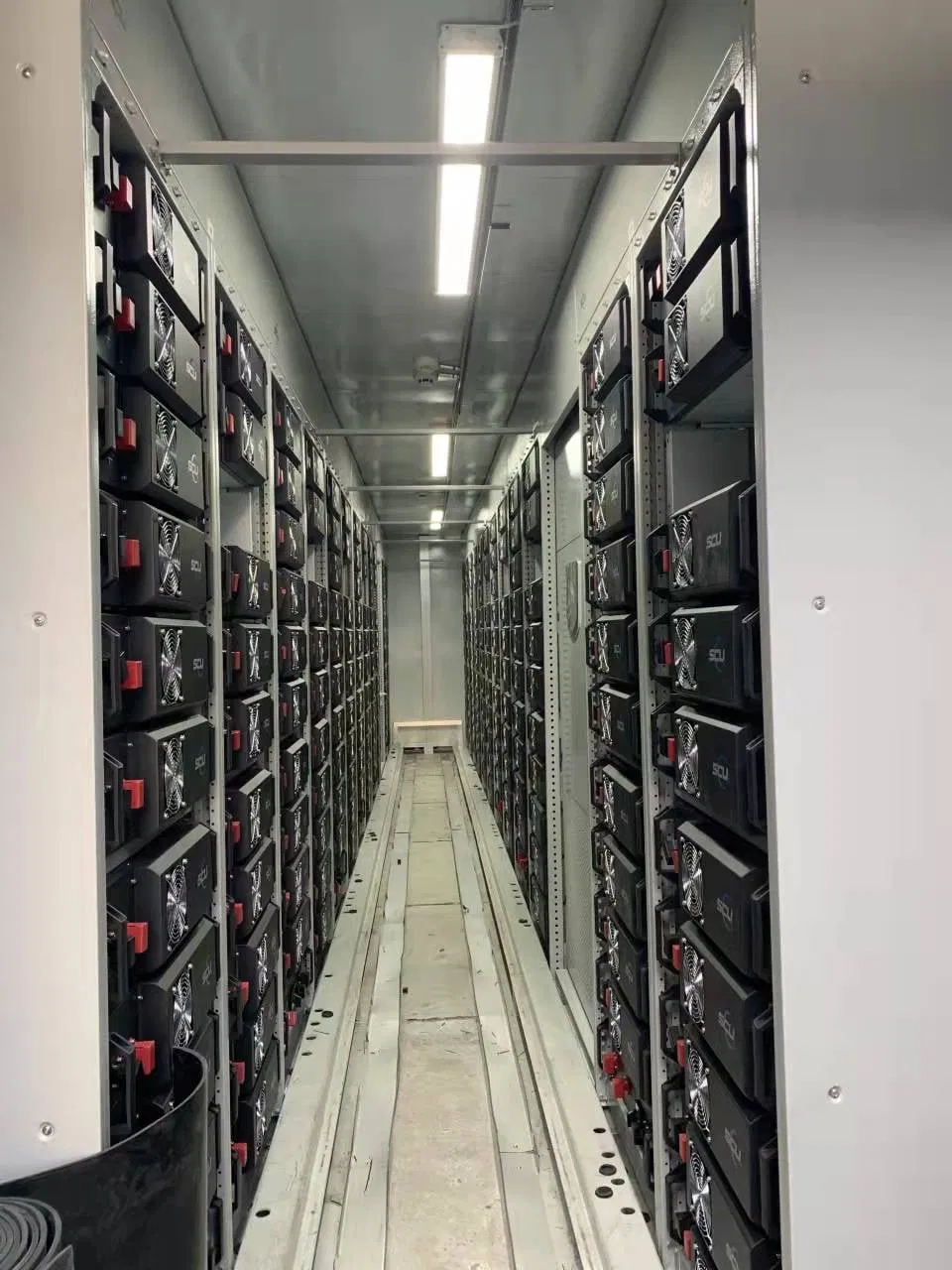

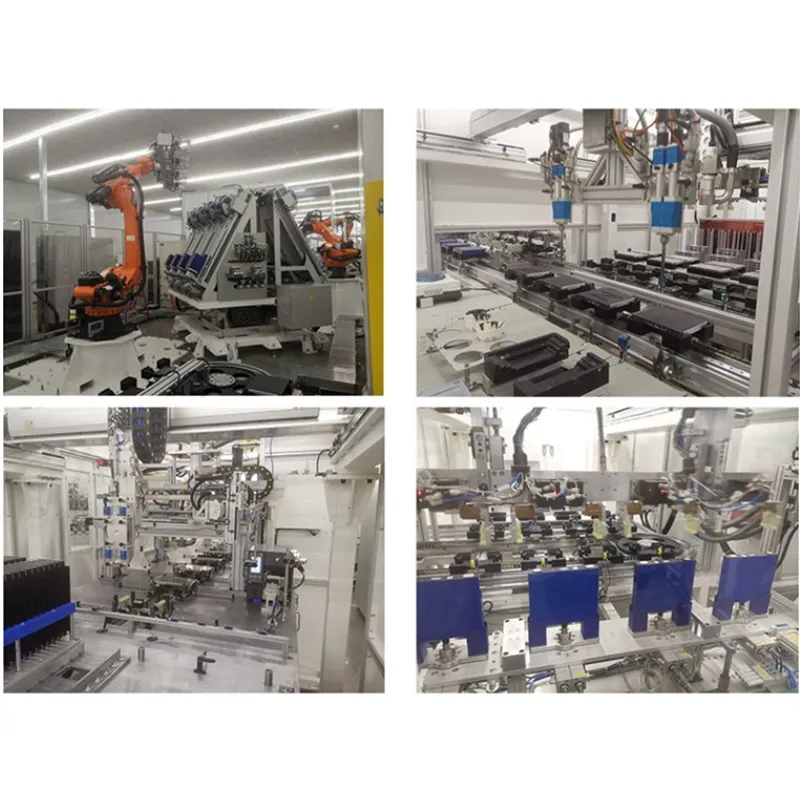

BESS System 3

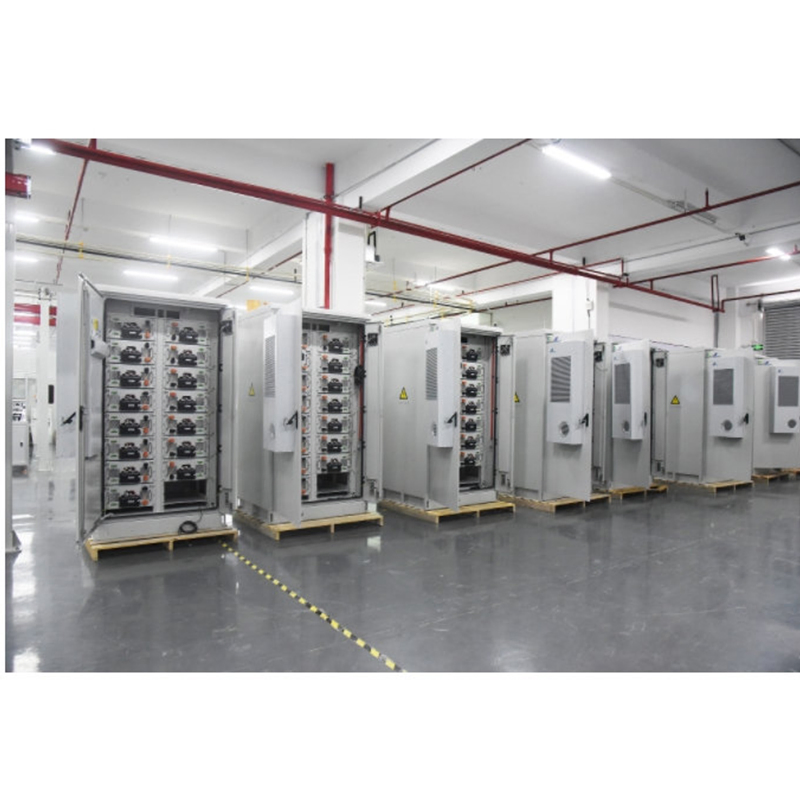

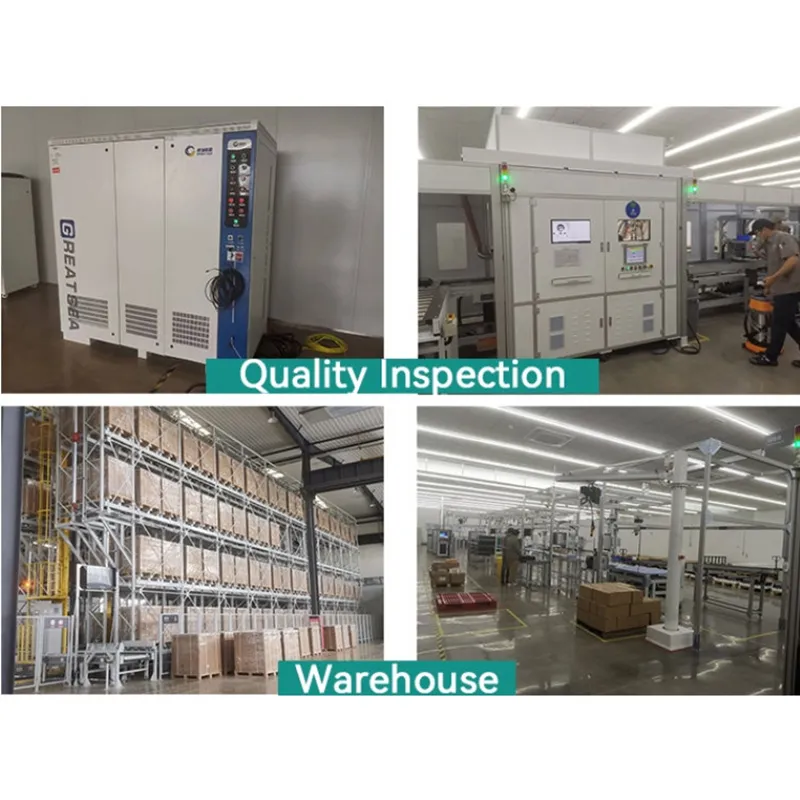

BESS Manufacturing 1
BESS Manufacturing 2
✔

Our Service

  • 01. Prompt Support: Inquiries regarding products or services are replied to within 12 hours.
  • 02. Expert Staff: Well-trained and experienced team to answer all inquiries in fluent English.
  • 03. OEM & ODM: Customized design and private mold options available for selection.
  • 04. Quality Guarantee: 2-year warranty provided with full design requirement support.
  • 05. Sample Orders: Sample orders are accepted for testing purposes.
  • 06. Privacy: Strict protection of private information and design ideas.
?

Frequently Asked Questions

1. What is the total energy capacity of this BESS?
The system provides a nominal capacity of 215.04kWh with a rated output power of 100KW.
2. What type of batteries are used in this system?
It uses high-density LiFePO4 (Lithium Iron Phosphate) cells, known for safety and long cycle life.
3. How long is the cycle life of the battery?
The system offers a cycle life of over 6,000 times at 100% DOD (Depth of Discharge) with 80% capacity remaining.
4. Is the system suitable for outdoor installation?
Yes, the system is rated IP54 for protection and includes an integrated air conditioning system for temperature management.
5. What safety features are integrated?
The BESS includes anti-reverse connection, overcurrent and overvoltage protection, islanding prevention, and a Perfluorohexone fire extinguishing system.
6. What is the expected lifespan of the device?
The whole life cycle is designed for 10 years, based on standard usage of 2 charges and 2 releases per day for 300 days per year.
