High Density Warehouse Automated Systems Asrs Automatic Storage Retrieval System

Technical Specifications

Model NO.

HYD-ASRS02

Usage

Warehouse Storage & Industrial

Material

High-Strength Steel

Structure

Racking System

Height

5-40m

Weight Capacity

150kg-5000kg

Pallet Size

1*1.2m or Customized

Origin

China

High Density Warehouse Automated Systems

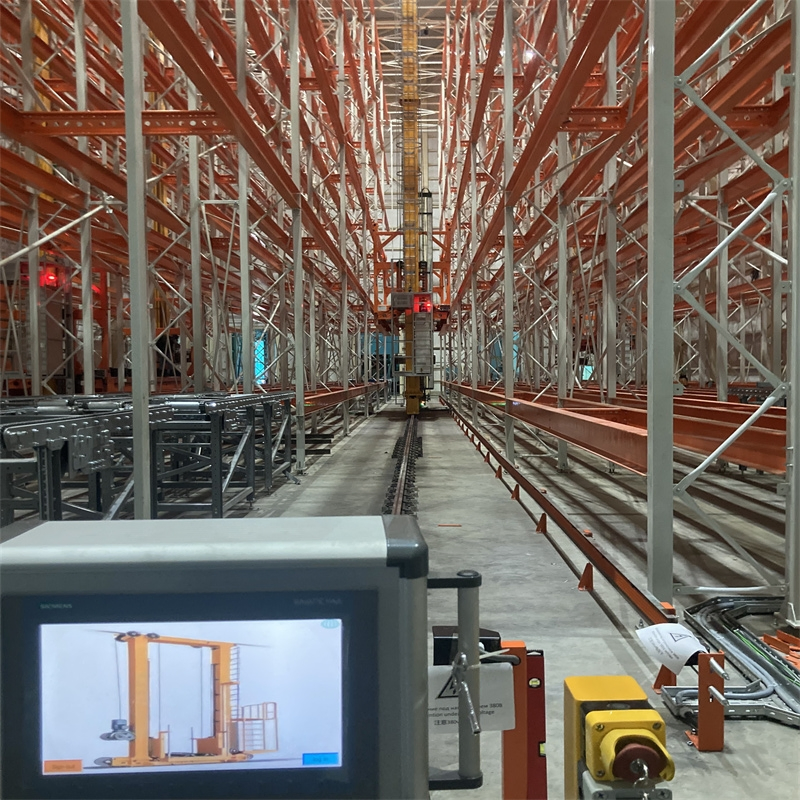

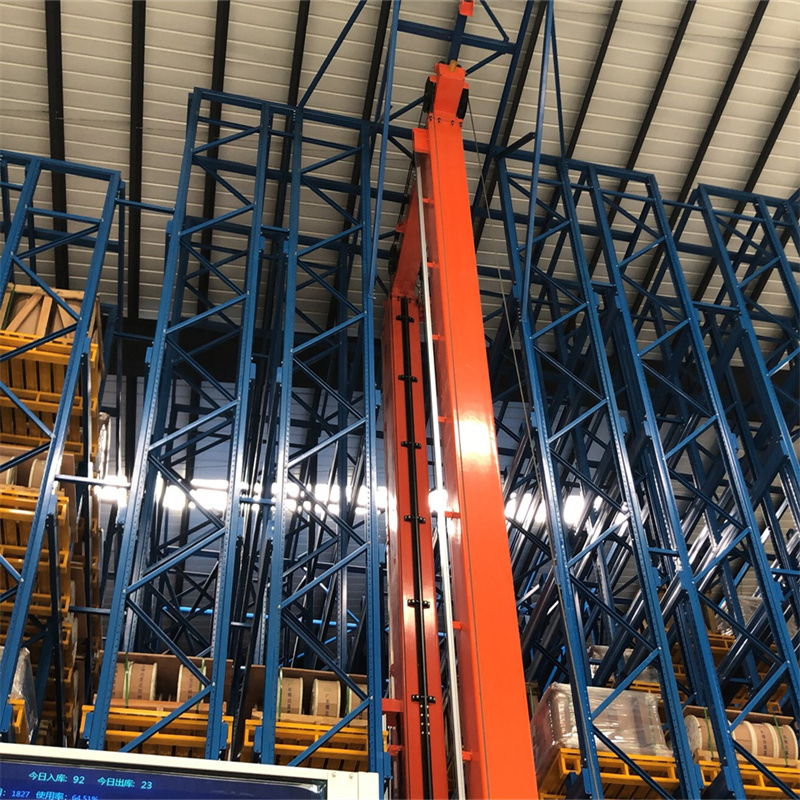

Stacker Crane AS/RS for pallets is an automated system that efficiently stores and retrieves goods, replacing manual warehousing tasks. The storage and retrieval machine (SRM) operates as a crane that moves horizontally within a single aisle.

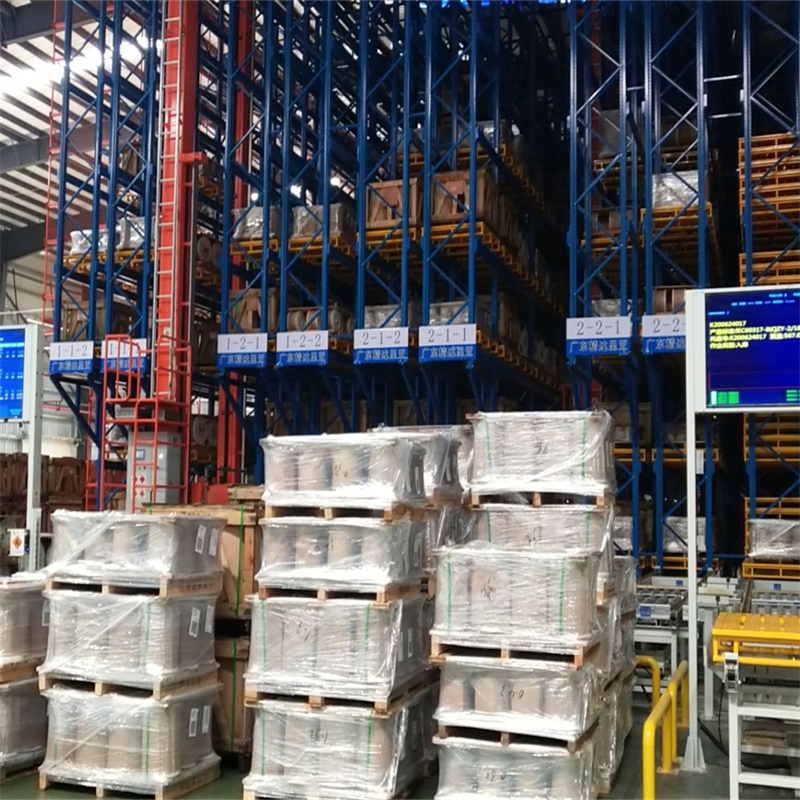

Double Deep Pallet Automated Warehouse Storage System (AS/RS) is renowned for its high-density pallet storage, rapid operation, and adaptability. Its versatile design spans up to 40 meters, allowing customization to integrate into specific installation environments.

Make full use of warehouse vertical space and improve turnover rate.

Reduce dependence on manual labor demand.

Fast transportation speed, reducing storage and transportation losses.

Automated management of goods with precise QR code positioning.

Unit Load Handling Scope

	Open Pallet: Standard shape popular in Europe and Asia. Standard sizes: 800 x 1,200 and 1,000 x 1,200.

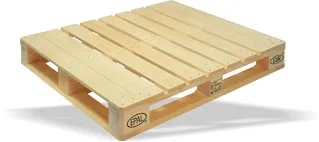

	Closed Pallet: Robust design for varied logistics needs. Standard sizes: 800 x 1,200 and 1,000 x 1,200.
	Stillages / Pallet Cage: A four-legged pallet cage commonly used for storing machine parts.

System Configurations

Efficient Automated Movement

Storage / Retrieval Machine (S/RM): Provides horizontal and vertical positioning movement. Features a Double Mast Design for stability at heights up to 140 feet. Achieves horizontal speeds of 900 ft./min and vertical speeds of 400 ft./min.

Streamlined Material Flow

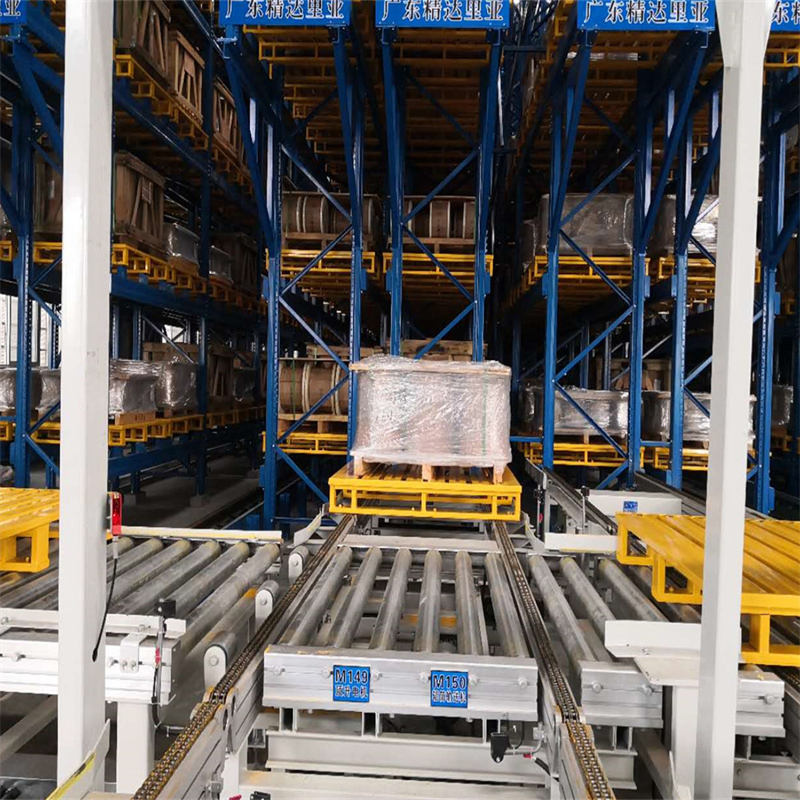

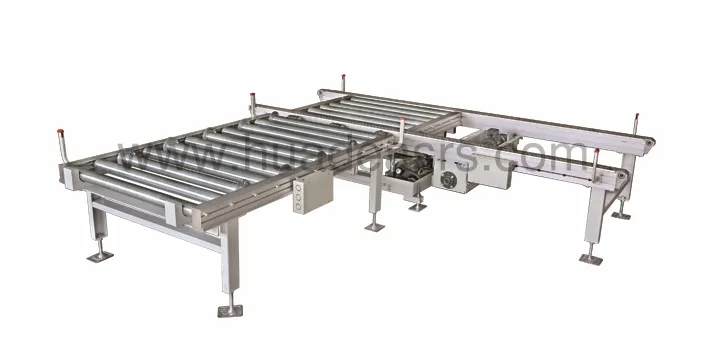

Conveying Systems: Ensures accurate movement of goods. Integrates with stretch-wrappers, label applicators, and dispensers. Engineered for high throughput and durability with minimal maintenance.

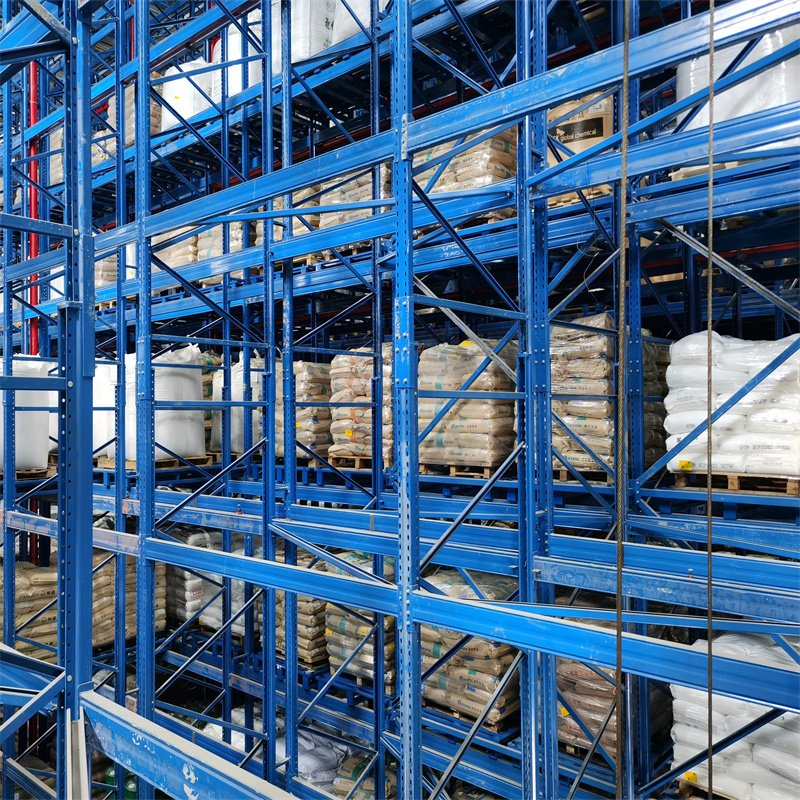

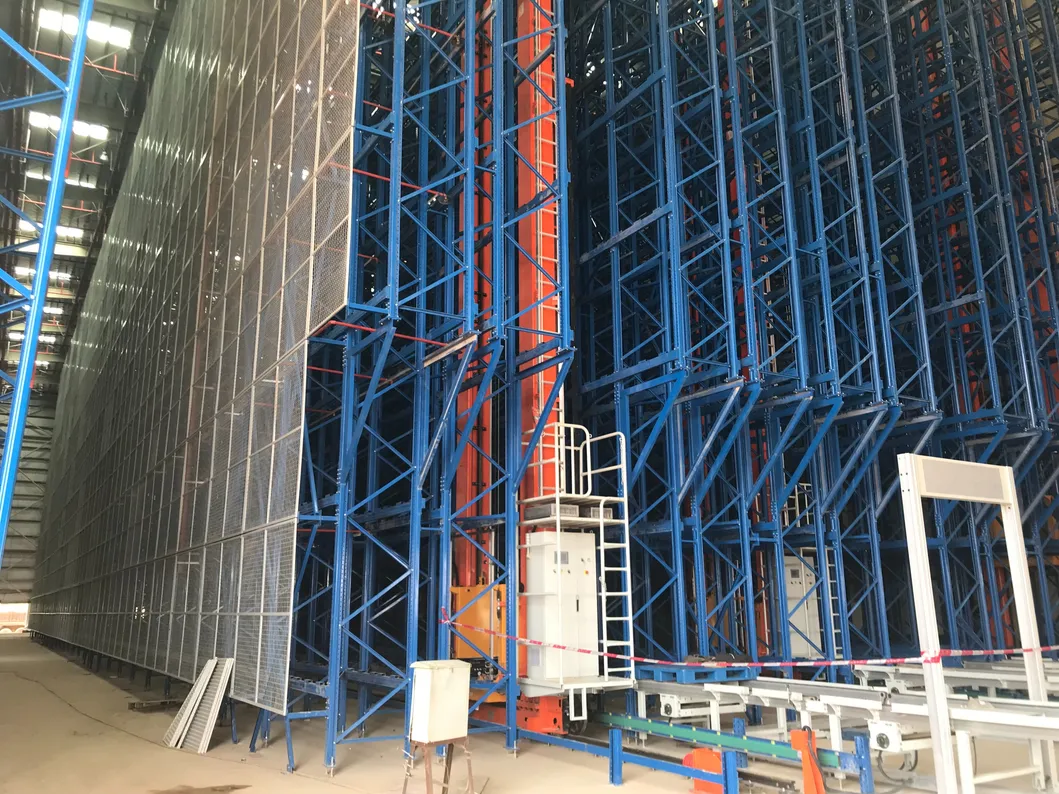

ASRS Racking

Optimized for high-bay warehouses. Precision manufactured and fully bolted to the floor slab. Engineered for structural integrity, catering to weight loads and seismic requirements.

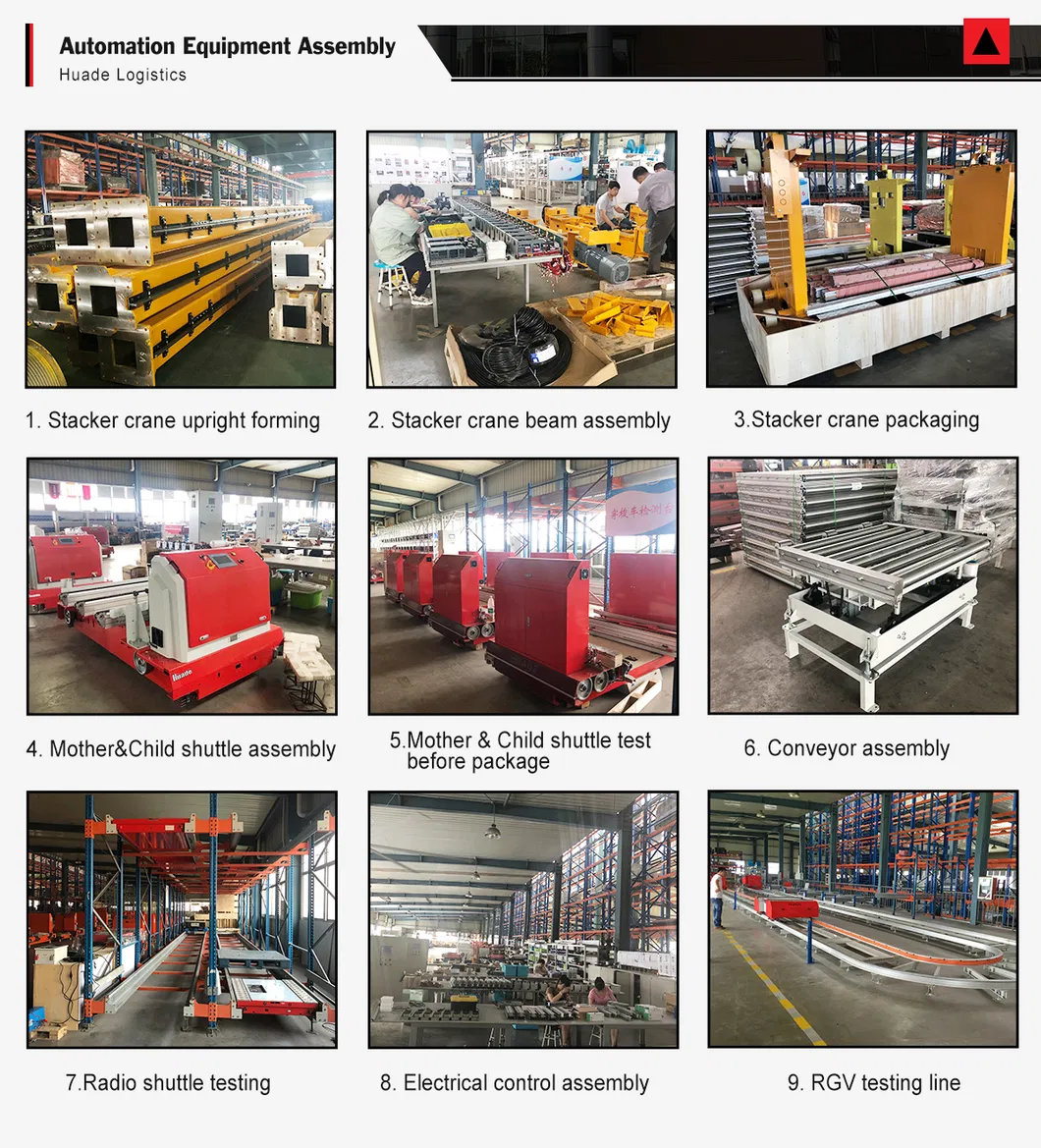

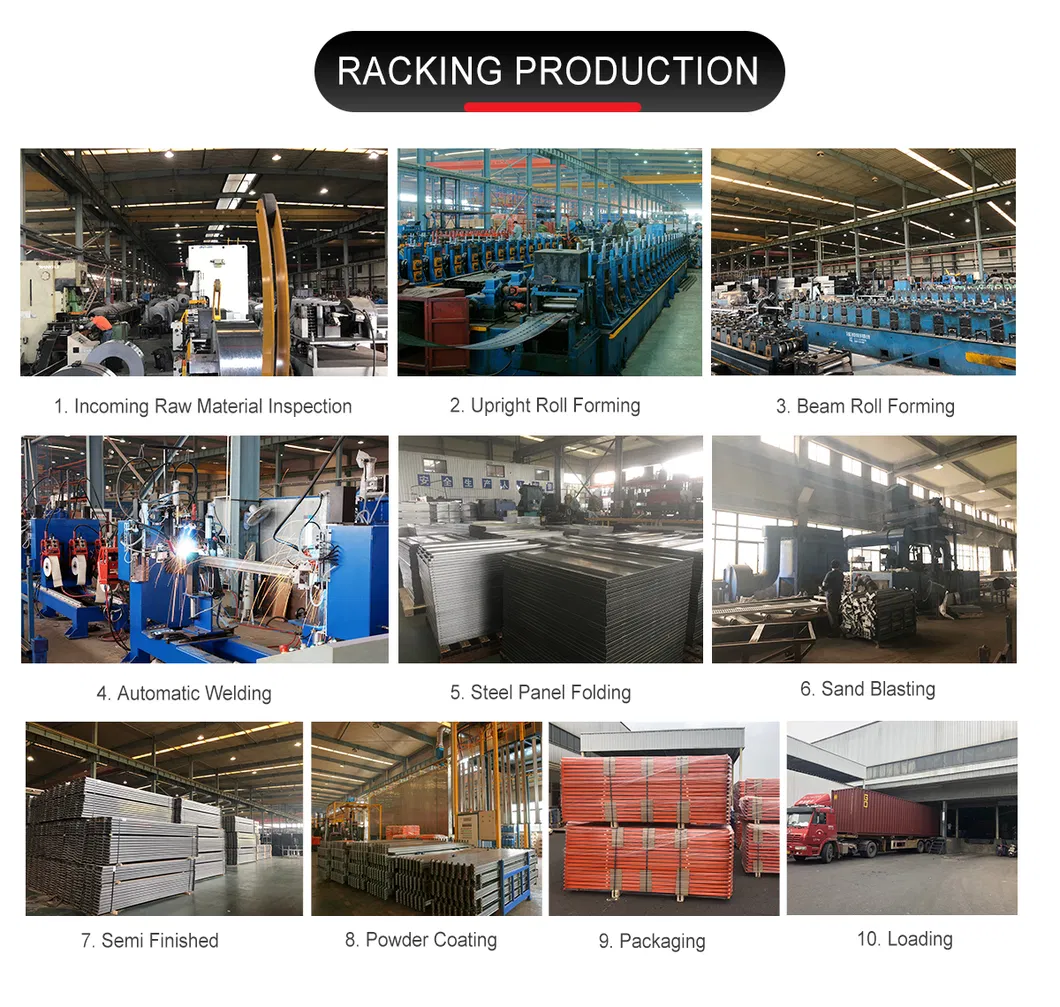

Project Showcase

Frequently Asked Questions

What types of ASRS systems are available?

We offer Pallet Type (Unitload), Box/Container Type (Miniload), Shuttle Storage & Sequencing systems, Rack-supported buildings, and Electrical Mobile Racking.

What are the main advantages of using an automated warehouse?

The main benefits include maximizing vertical space usage, reducing labor dependency, increasing transportation speed, and implementing automated inventory management.

Can the system operate in cold storage environments?

Yes, our systems feature specially treated anti-low temperature designs, making them perfectly suitable for cold storage projects.

How is the project design process handled?

The process follows a 6-step methodology: Define objectives, Measure business data, Analyze system requirements, Design the state model, Validate feasibility/costs, and final Client Presentation.

What level of speed can the stacker cranes achieve?

Our stacker cranes reach horizontal speeds of up to 900 ft./min and vertical speeds of 400 ft./min, ensuring rapid throughput for high-demand operations.

Is the racking system customizable for different load weights?

Yes, the racking is engineered to cater to load capacities ranging from 150kg to 5000kg, and heights up to 40 meters, tailored to local seismic and environmental criteria.
