Light Duty High Efficiency Scalable Asrs System for Order Picking

Basic Specifications

Model NO.	HY-ASRS-1
Usage	Tool Rack, Beverage, Tools, Supermarket, Industrial, Warehouse Rack
Material	Steel (Q235/Q355/Q345)
Structure	Rack System
Type	Pallet Racking
Mobility	Adjustable
Height	>15m
Weight Capacity	500-1300kg/Layer
Surface Treatment	Powder Coating
Colors	Royal Blue, Orange-Red, Light Gray

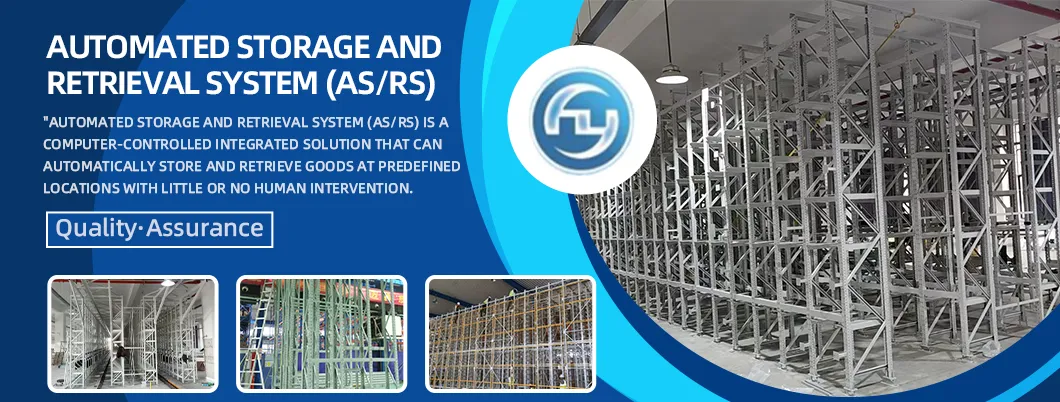

Automated Storage and Retrieval System (AS/RS)

Since the 1960s, this system has become essential in high-density, efficient warehousing. AS/RS Racking Systems are core storage structures composed of high-rise steel structural racks, stacker cranes, conveyor systems, and WMS/WCS control systems.

Core Components:

■High-Density Racking: Vertical space optimization up to 30m+.

■SRMs/Stacker Cranes: Automated unit load storage/retrieval.

■Conveyor/AGV System: Seamless transfers between docks.

■WCS + WMS: Real-time equipment control and inventory management.

■Sensing & Identification: Barcode/RFID and safety sensors.

Key Advantages

★

High Space Utilization: Vertical expansion cuts floor area by 30%-70%; increases density 3-5x.

★

Labour Cost Savings: Minimizes manual work, reducing labor input and injury risk.

★

High Accuracy: Inventory accuracy over 99.99%; stable performance during peak periods.

★

Real-Time Inventory: Integrated WMS offers real-time data for forecasting and fulfillment.

System Types & Applications

System Type	Features & Industries
Pallet AS/RS	Height 10–40m, Load 1–5 tons. Ideal for Automotive parts, machinery, and chemical raw materials.
Shuttle Car System	High-density storage, cold storage stable. Used in Food & beverage, fresh cold chain, and FMCG.
Mini-load System	Small parts storage, high speed. Ideal for Pharmaceutical, e-commerce, and electronic components.
Customized Racking	Explosion-proof, corrosion-resistant, or special-shaped items like pipes and PV modules.

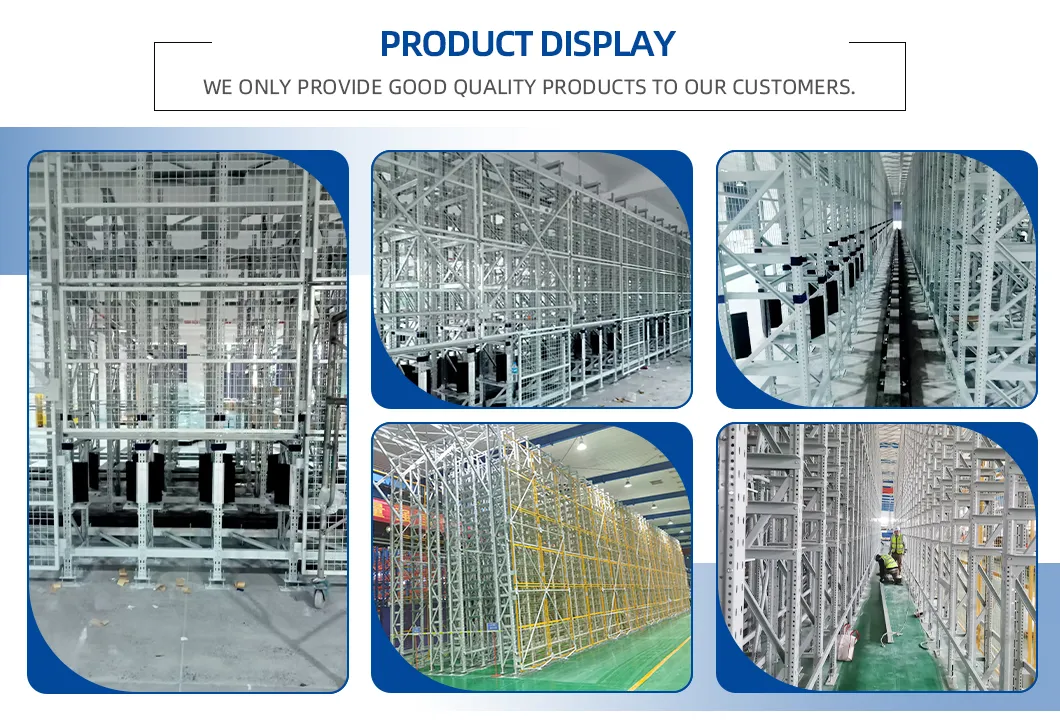

Product Gallery

Production & Quality Assurance

✔Fully Automated Production: Equipped with automatic stamping lines, CNC bending, and automatic spray coating lines.

✔Premium Material: High-quality Q235/Q355 cold-rolled steel with a 10-year service life guarantee.

✔Precision QC: ISO certified intelligent inspection with a 99.8% qualification rate.

✔Global Delivery: Rapid mass production within 7–25 days with worldwide shipping support.

System Operation Demo

Packaging & Shipping

All components are neatly arranged on export pallets, separated by cardboard to avoid scratches. Units are firmly strapped with steel belts and wrapped in stretch film for waterproof and dustproof protection. We support global transportation via sea, air, and land (FCL/LCL).

Frequently Asked Questions

Are your warehouse racks customizable?

Yes, we provide full customization for size, load capacity, color, and structure based on your specific warehouse layout and requirements.

What materials and surface treatments are used?

We use high-quality cold-rolled steel (Q235/Q355). All components undergo a professional powder coating process for maximum durability and rust resistance.

What is the typical lead time for an AS/RS project?

Production generally takes 7 to 25 days depending on the project scale and complexity. For large-scale 2000+ piece orders, the timeline is negotiated based on the schedule.

Do you provide installation support for international clients?

Yes, we provide detailed assembly drawings, installation videos, and real-time online technical guidance to ensure a smooth setup process.

How are the goods protected during long-distance sea transit?

Items are separated by composite strips, fixed on pallets with plastic-steel strapping, and fully wrapped with heavy-duty stretch film to prevent moisture and collision damage.

What happens if parts are damaged during delivery?

In the rare event of transit damage, simply provide photos of the affected parts. We offer a guarantee to resend free replacements immediately to protect your project timeline.
