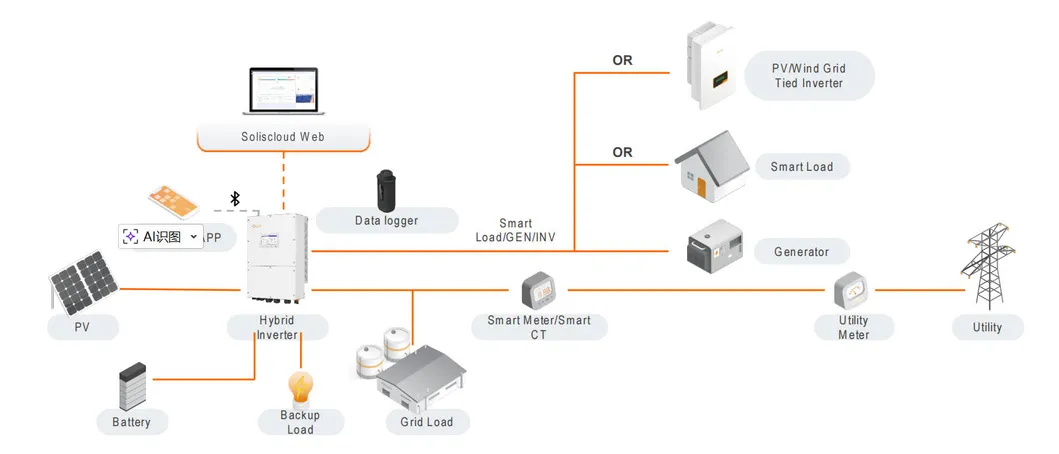

A complete hybrid solar photovoltaic (PV) power generation system mainly consists of a power generation unit, a conversion unit, an energy storage unit (optional), a control unit, and supporting auxiliary materials.

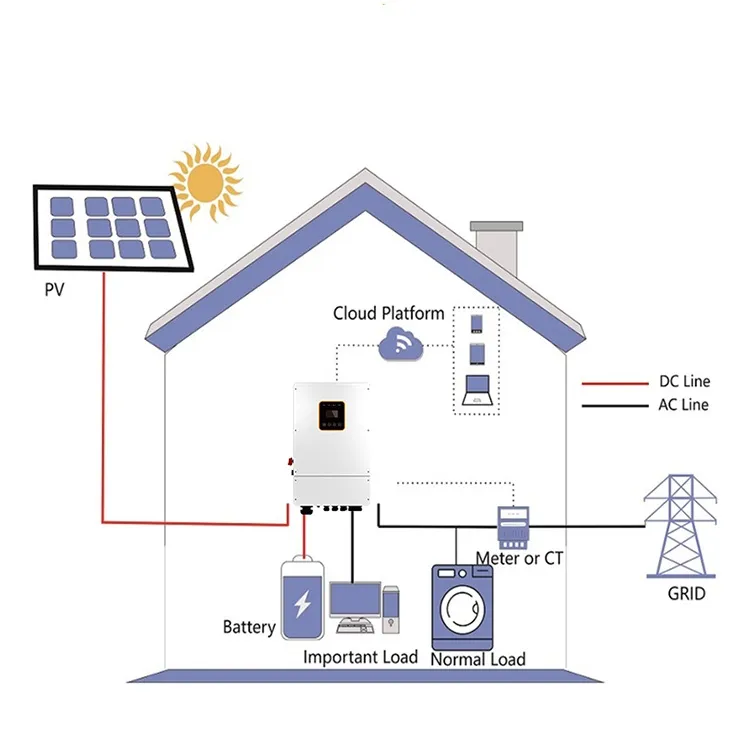

Daylight Operation: PV modules generate electricity, prioritizing local loads. Excess energy is stored or fed into the grid.
Night/Rainy Days: Battery discharges to supply loads. If insufficient, the grid automatically replenishes power.
Peak-Valley Arbitrage: Purchases cheap off-peak electricity to charge and discharges during high-price peak periods.
Grid Failure: Switches to "off-grid mode" automatically to ensure continuous operation of critical equipment.

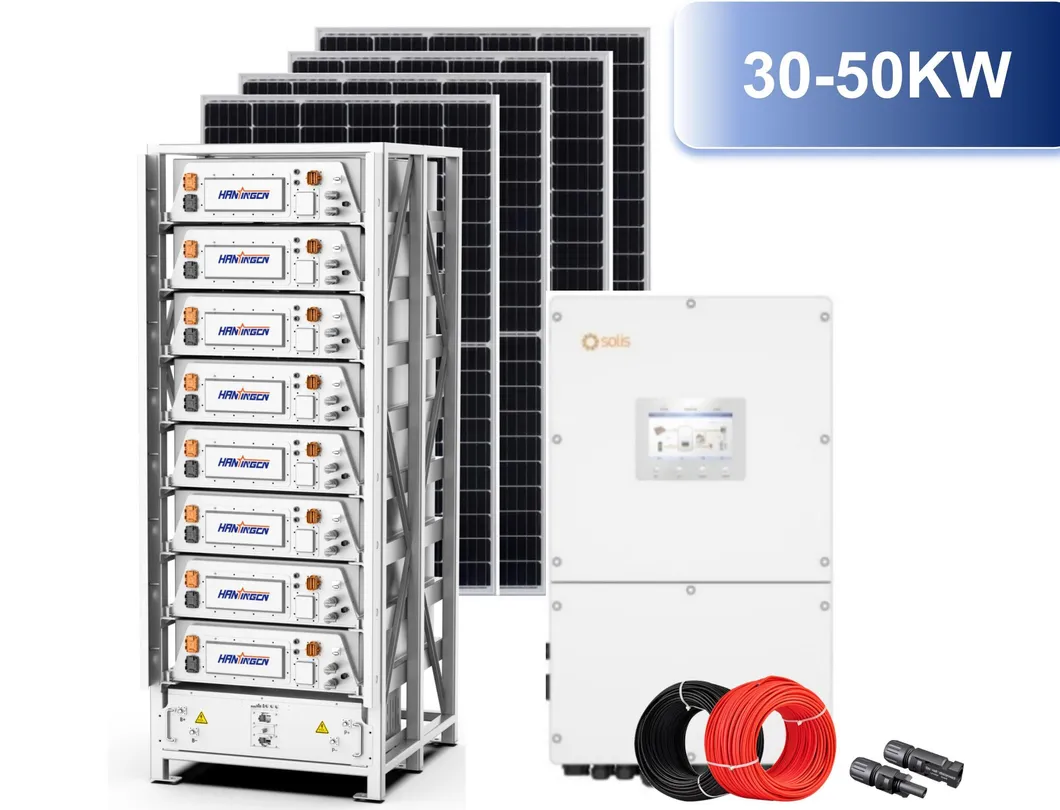

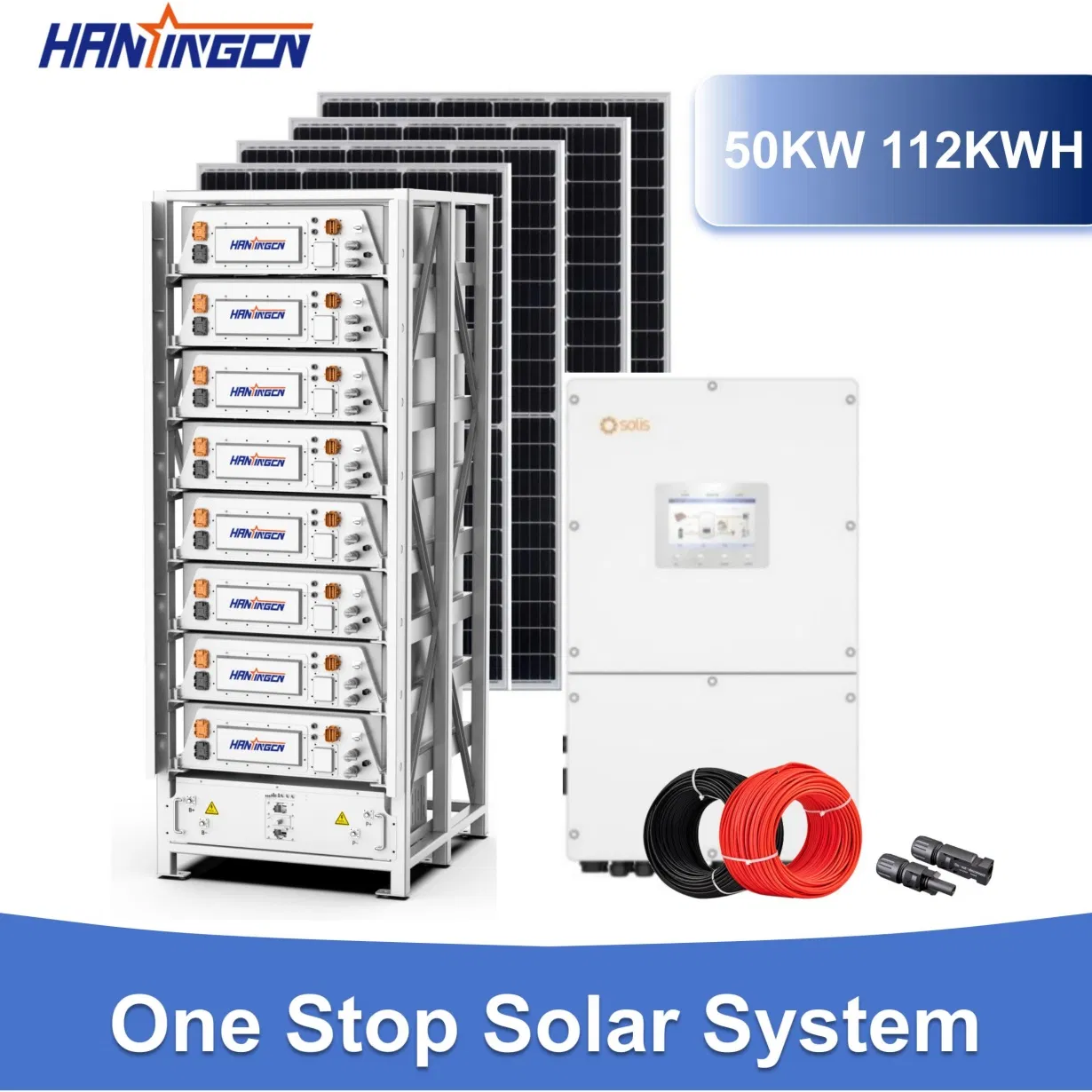

| 30-50KW Solar Energy Storage System Solution | |||
|---|---|---|---|
| Model | 30KW | 40KW | 50KW |
| Solar Panel | 30-33KW | 40-44KW | 50-55KW |
| Hybrid Solar Inverter | 30KW | 40KW | 50KW |
| Battery Rack | 60kwh | 80kwh | 100kwh |
| PV/DC Cable | 300 Meters | 400 Meters | 500 Meters |
| MC4 Connector | 20 Pairs | 20 Pairs | 30 Pairs |

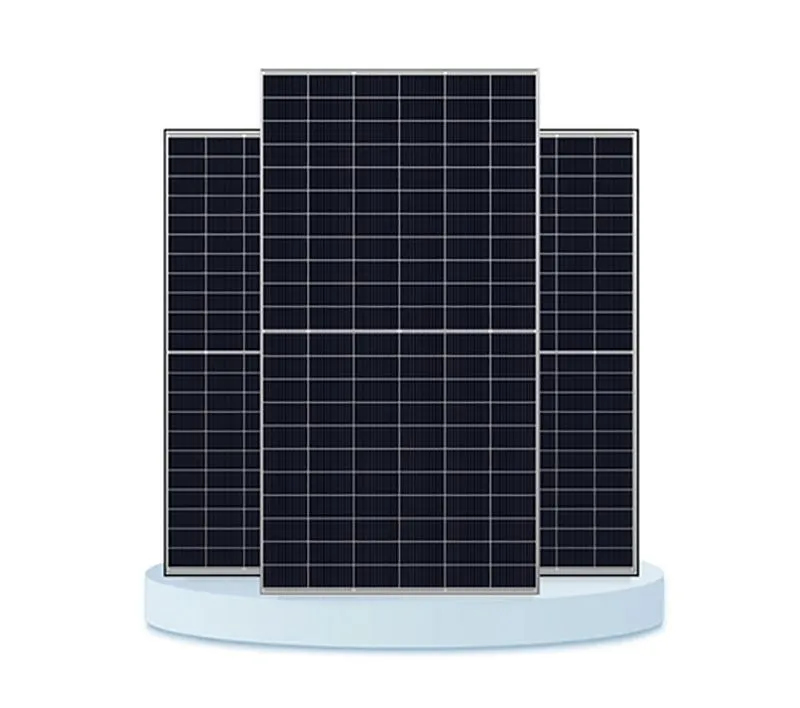

Function: The system's "energy source," converting solar energy into DC power.
Advantages: High conversion efficiency, long lifespan (25-30 years), and strong environmental adaptability for extreme environments.

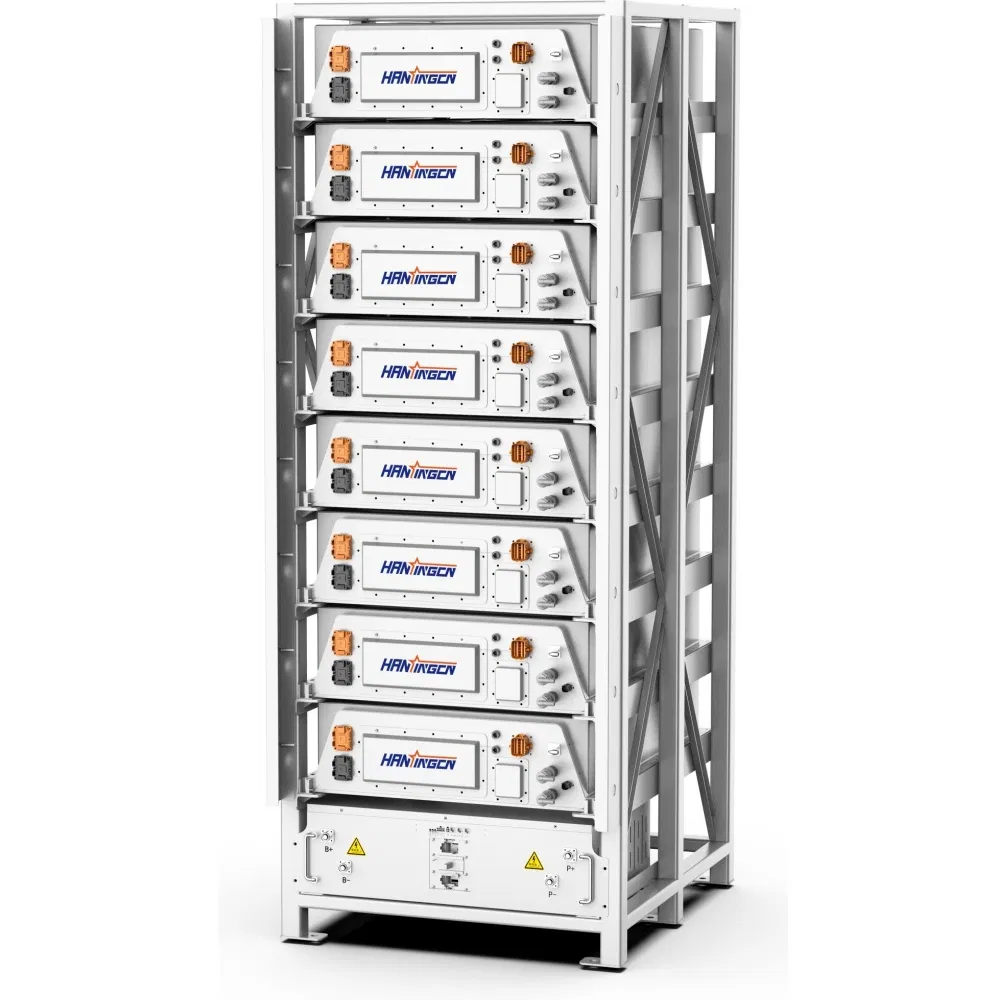

Function: Stores excess power during the day and discharges it when sunlight is insufficient, ensuring continuous supply.
Advantages: Lifepo4 technology for high safety, 8000+ deep cycles, high energy density, and wide temperature adaptability (-20ºC~60ºC).

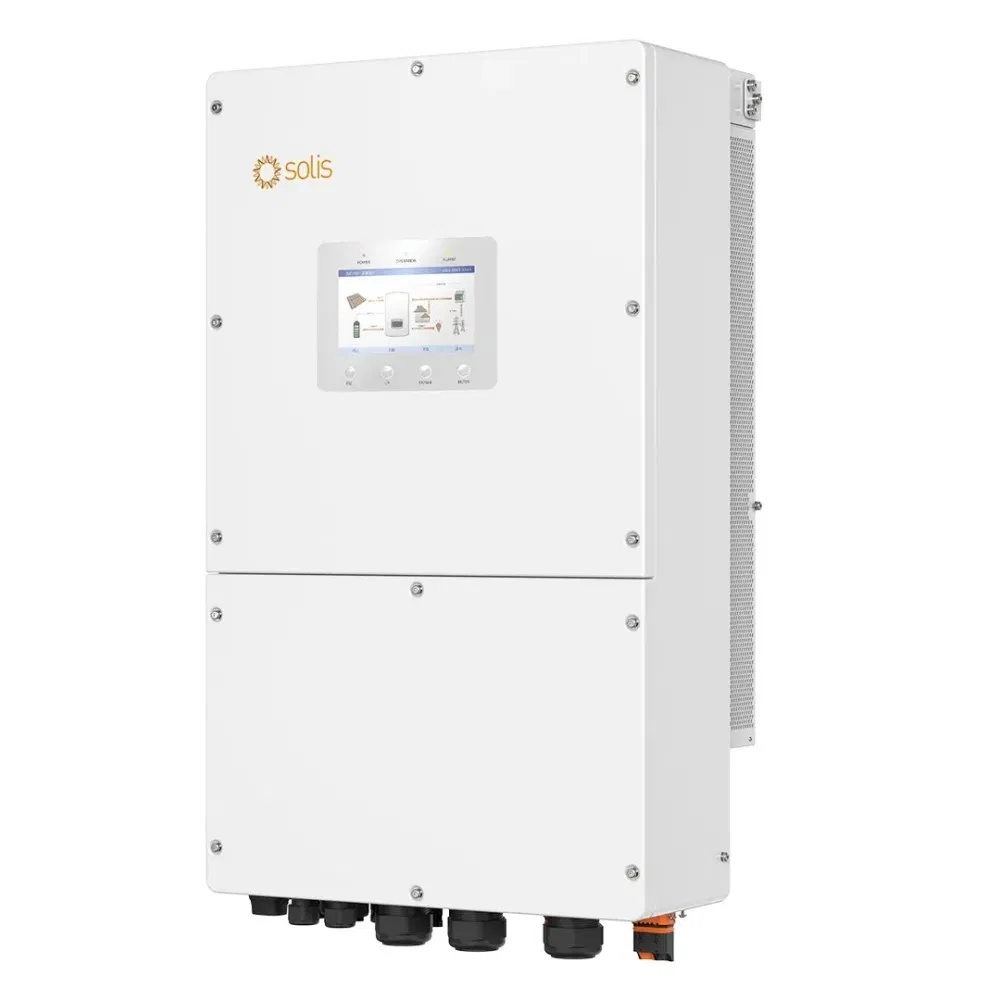

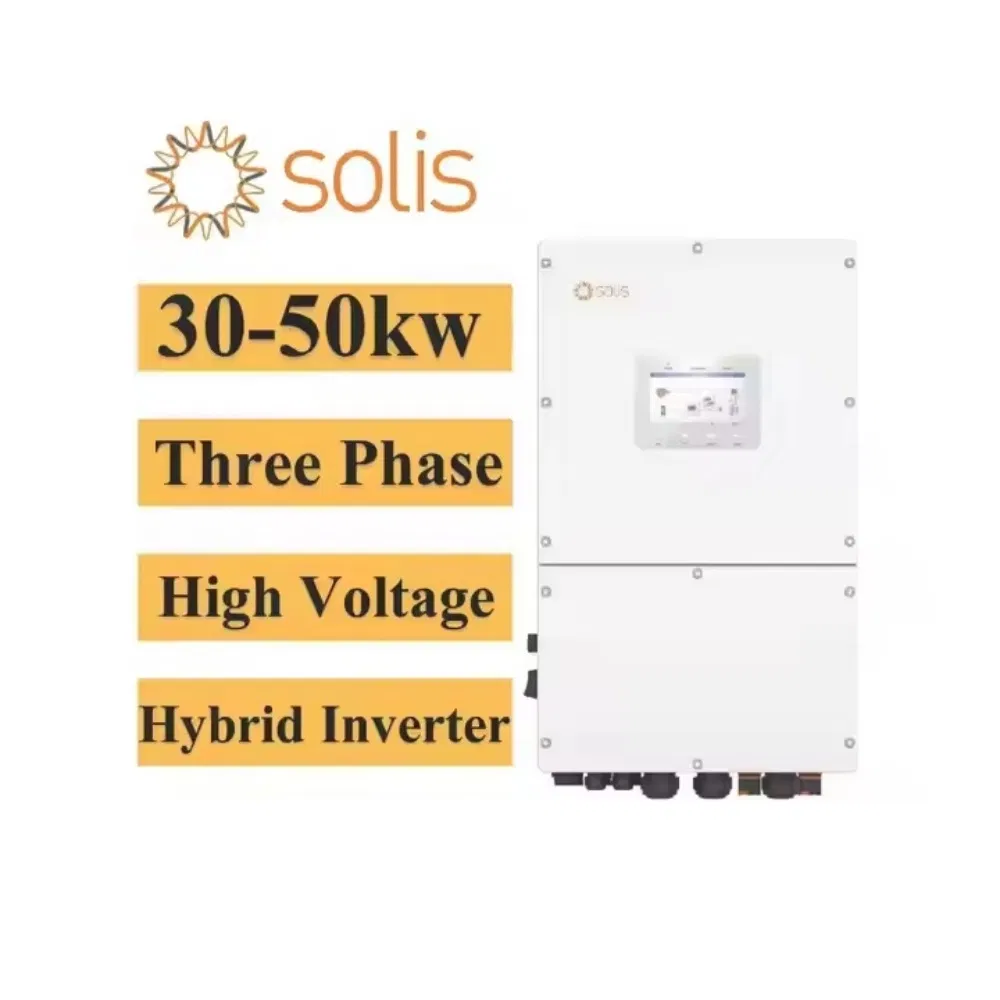

A "four-in-one" system integrating PCS, PV grid-connected generation, diesel switching, and EMS management.
Features 200% DC oversizing, intelligent AI energy management, and patented heat dissipation for stability.

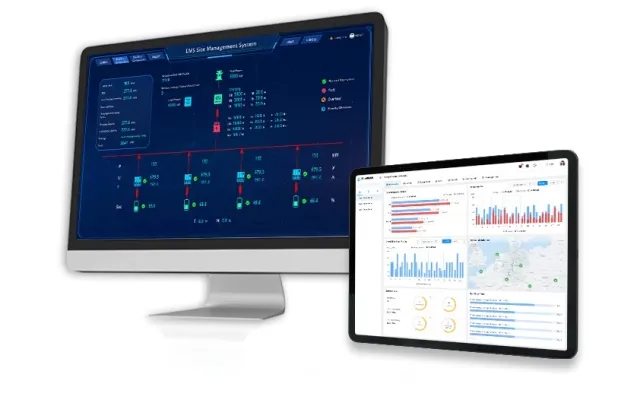

EMS: Formulates optimal charging/discharging strategies and real-time monitoring.

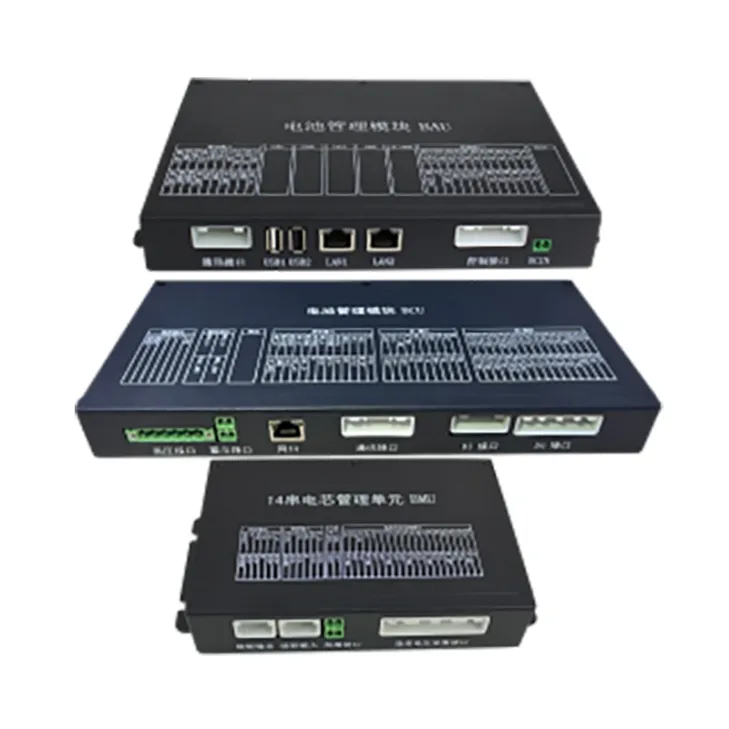

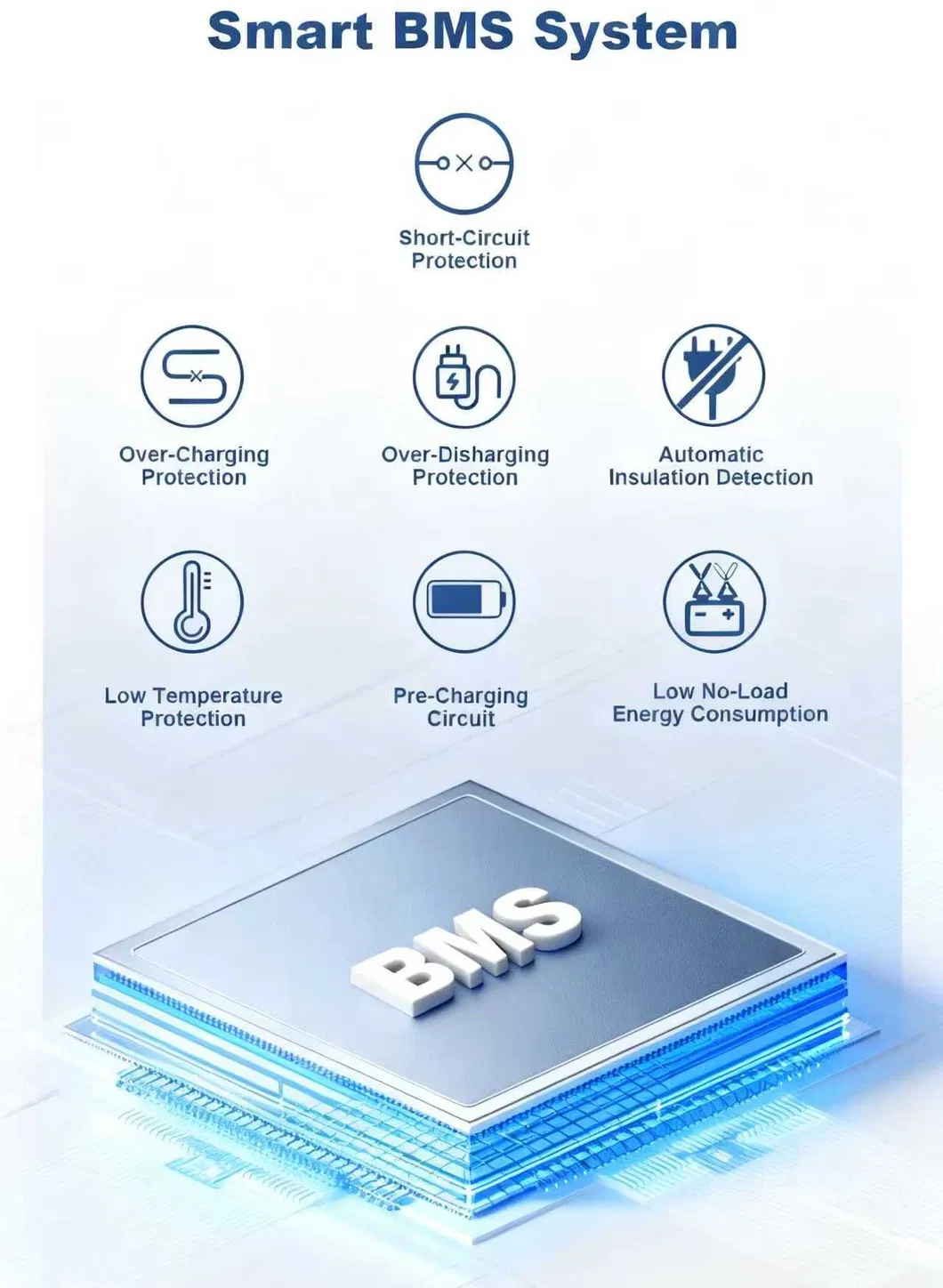

BMS: Monitors cell voltage and SOC, ensuring battery safety and longevity.

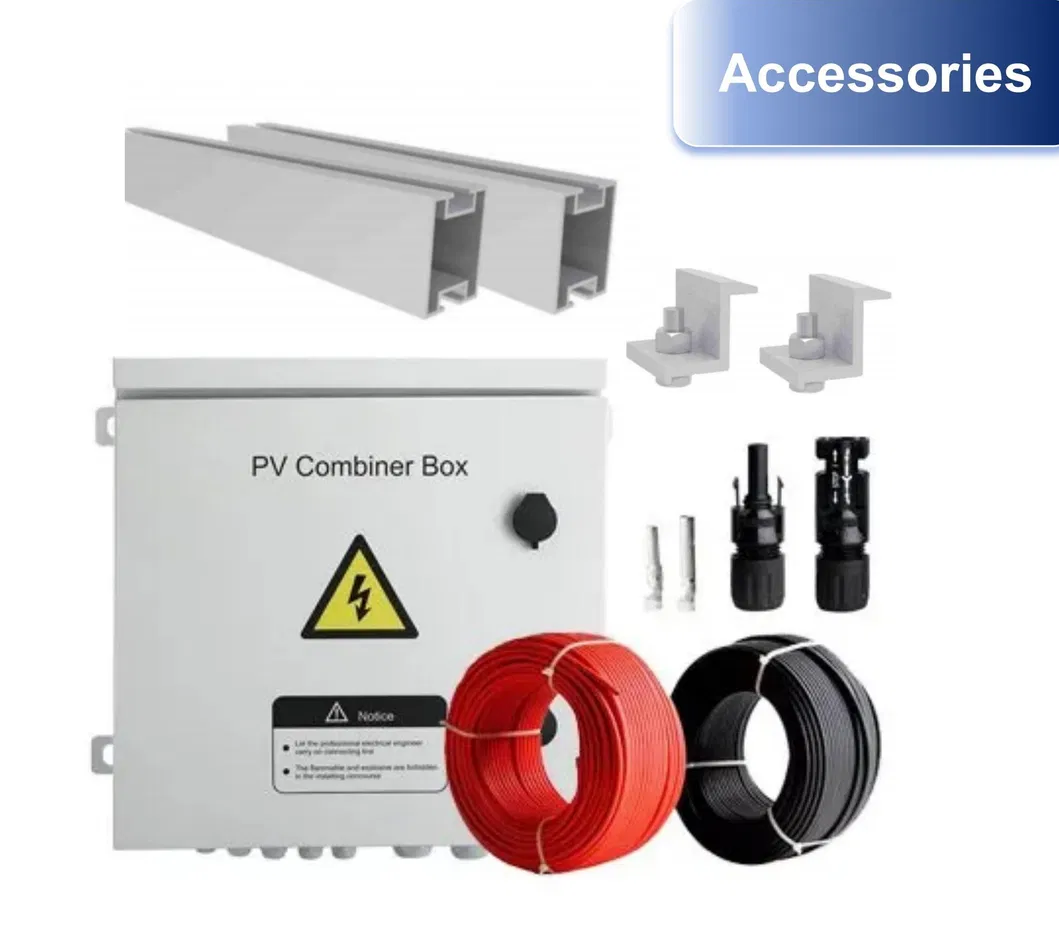

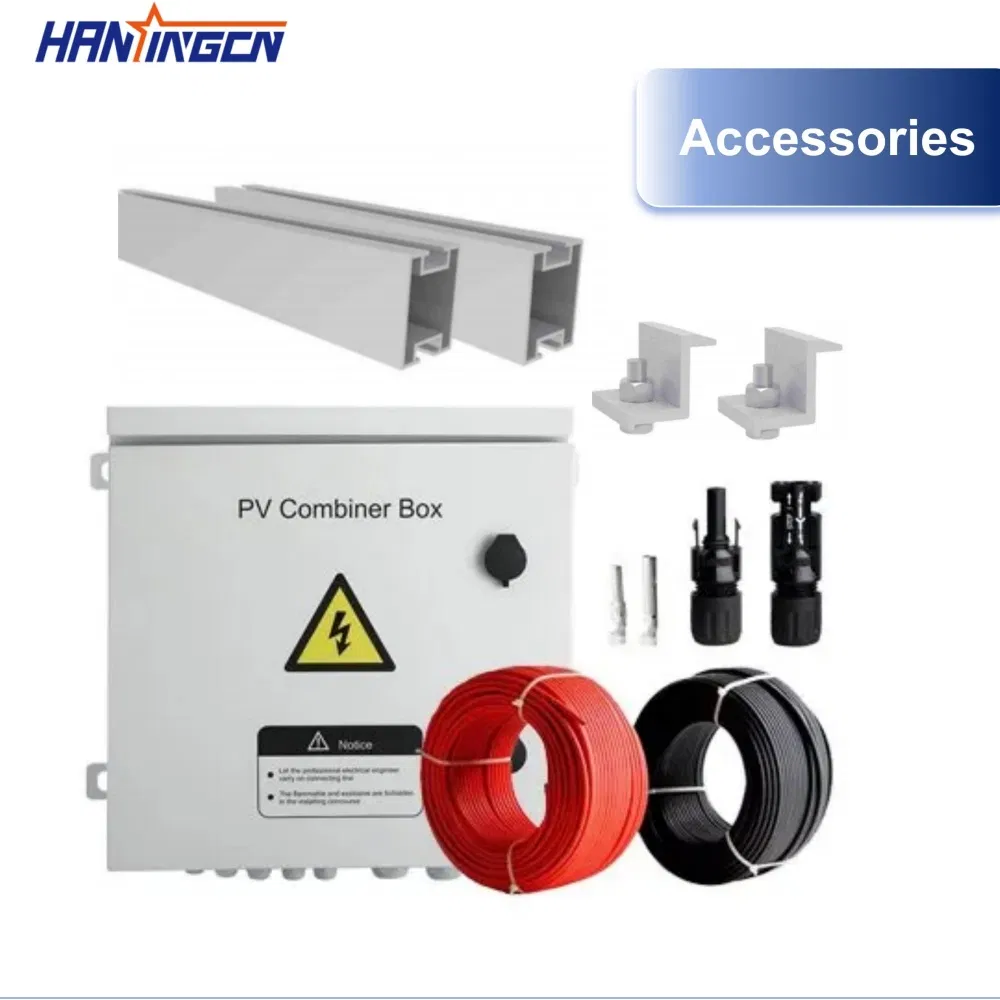

Support & Cables: Aluminum/Galvanized steel brackets and high-quality MC4 connectors.
