High Quality Asrs Warehouse Picking System Automated Storage and Retrieval System
High Quality Asrs Warehouse Picking System Automated Storage and Retrieval System
High Quality Asrs Warehouse Picking System Automated Storage and Retrieval System
High Quality Asrs Warehouse Picking System Automated Storage and Retrieval System
High Quality Asrs Warehouse Picking System Automated Storage and Retrieval System
1 / 5
High Quality Asrs Warehouse Picking System Automated Storage and Retrieval System
High Quality Asrs Warehouse Picking System Automated Storage and Retrieval System
High Quality Asrs Warehouse Picking System Automated Storage and Retrieval System
High Quality Asrs Warehouse Picking System Automated Storage and Retrieval System
High Quality Asrs Warehouse Picking System Automated Storage and Retrieval System

High Quality Asrs Warehouse Picking System Automated Storage and Retrieval System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
HYD-ASRS02
Material
Steel (Q235)
Usage
Industrial, Warehouse, Food, Chemical
Structure
Rack
Type
Selective Pallet Racking
Height
5-40m
Weight Capacity
150kg-5000kg
Pallet Size
1*1.2 or Customized
Mobility
Combined
Origin
China

Product Description

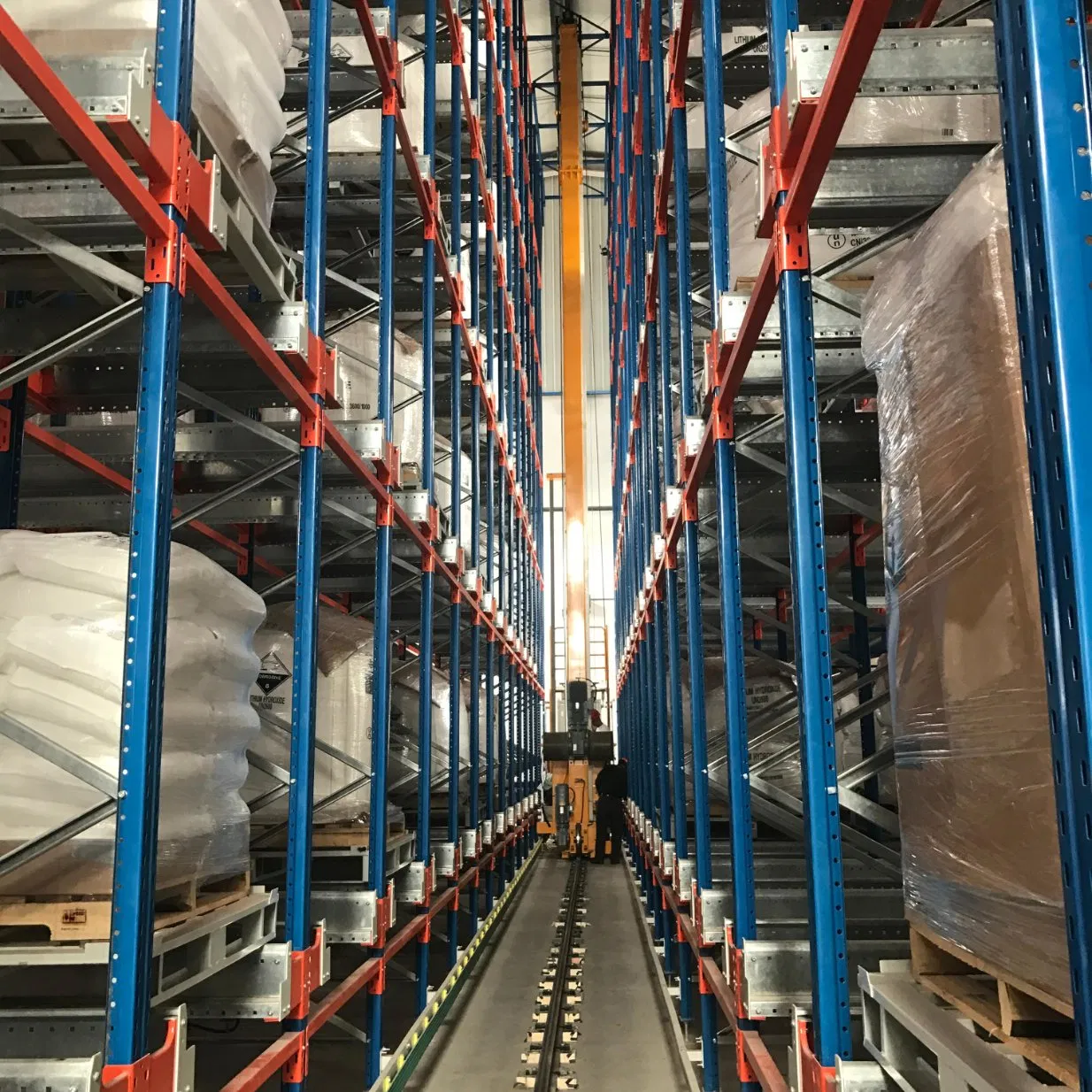

Stacker Crane AS/RS for pallets is an automated system that efficiently stores and retrieves goods, replacing manual warehousing tasks. The storage and retrieval machine (SRM) operates as a crane that moves horizontally within a single aisle.

The Double Deep Pallet Automated Warehouse Storage System (AS/RS) is renowned for its high-density pallet storage, rapid operation, and adaptability. Its versatile design spans up to 40 meters, allowing customization to seamlessly integrate into your specific installation environment and operational requirements.

Automated Storage and Retrieval System

Key Solutions:

  • System consists of stacker crane, pallet conveying system, ASRS racking system, and WMS/WCS management.
  • Capable of managing any pallet position, ideal for high SKU counts and sorting requirements.
  • Single-deep or double-deep designs to optimize storage density.
  • Advanced stacker crane with precise QR code positioning and anti-low temperature design for cold storage.

Unit Load Handling Scope

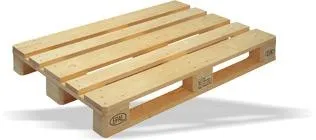

Open Pallet

Open Pallet
Standard 800x1200 / 1000x1200

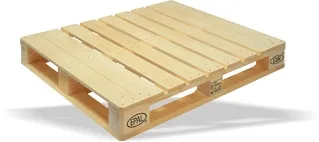

Closed Pallet

Closed Pallet
Standard shapes for Europe/Asia

Pallet Cage

Pallet Cages
For machine parts storage

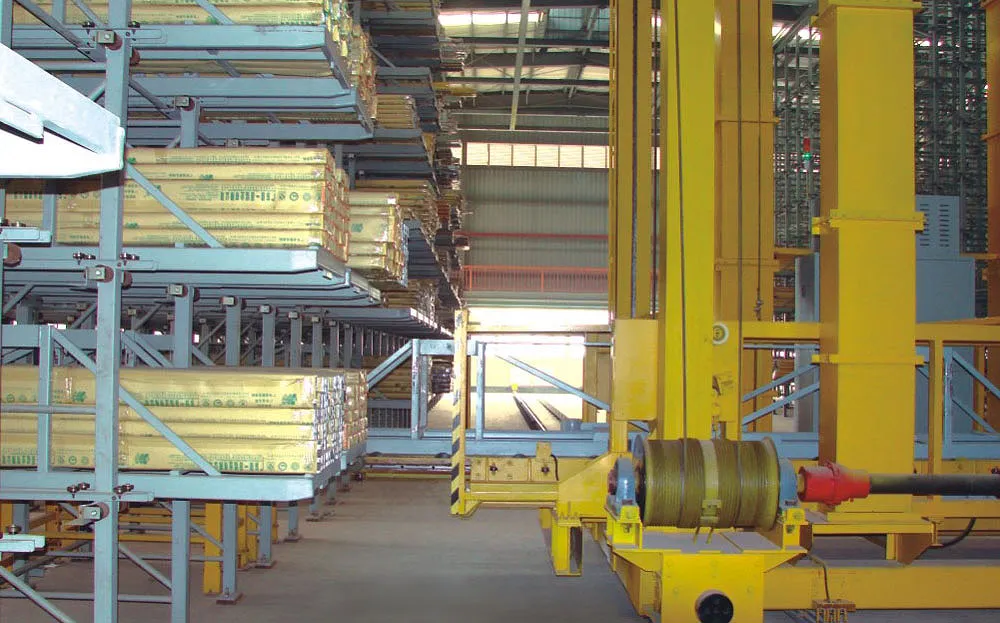

Long Objects

Long objects: High density storage of long pipes, bars, and plates up to 6 m long.

Configurations & Tech Features

Efficient Movement (S/RM)

Double Mast Design provides stability for heavier loads up to 140 feet. Horizontal speeds reach 900 ft./min.

S/RM

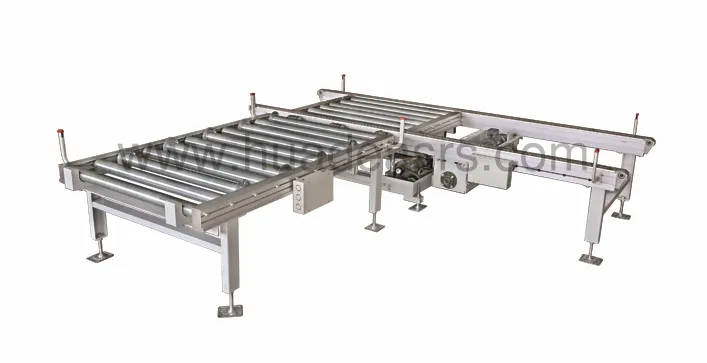

Conveying Systems

Seamless integration with stretch-wrappers, label applicators, and dispensers. Engineered for high throughput and durability.

Conveying

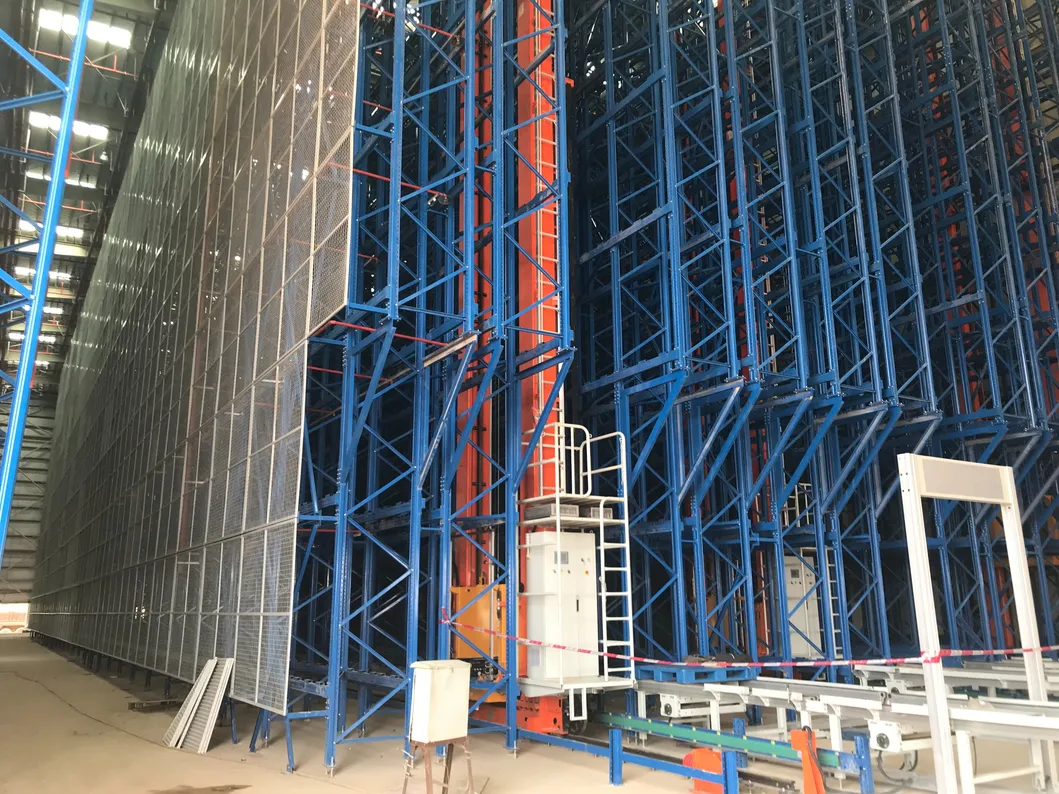

ASRS Racking

Precision manufactured and fully bolted structure. Designed for environmental loads and seismic zone requirements.

Racking
Workflow 1
Workflow 2
Workflow 3
Workflow 4
Workflow 5
Workflow 6

Frequently Asked Questions

What types of AS/RS solutions are available?
We provide Pallet Type (Unitload), Box/Container Type (Miniload), Shuttle Storage & Sequencing systems, Rack-supported buildings, and Semi-automated Radio Shuttle systems.
What services are included in a turnkey project?
Solutions include engineering & consulting, design & manufacturing, implementation, training, commissioning, and dedicated after-sale service.
How is a project initiated and designed?
The process follows six steps: Defining objectives, Measuring business data, Analyzing current states, Designing predictive models, Validating feasibility/costs, and final Presentation.
Can the system handle specialized storage environments?
Yes, the equipment features innovative designs and stable structures, including specially treated anti-low temperature designs suitable for cold storage projects.
What are the primary benefits of an automated warehouse?
It maximizes vertical space, improves turnover rates, reduces manual labor dependency, and minimizes transportation losses through automated management.
What is the capacity of the Storage/Retrieval Machine?
Single-load machines can handle up to 5,000 lbs, while dual-load machines are capable of handling loads up to 2 x 3,500 lbs at high horizontal speeds.
