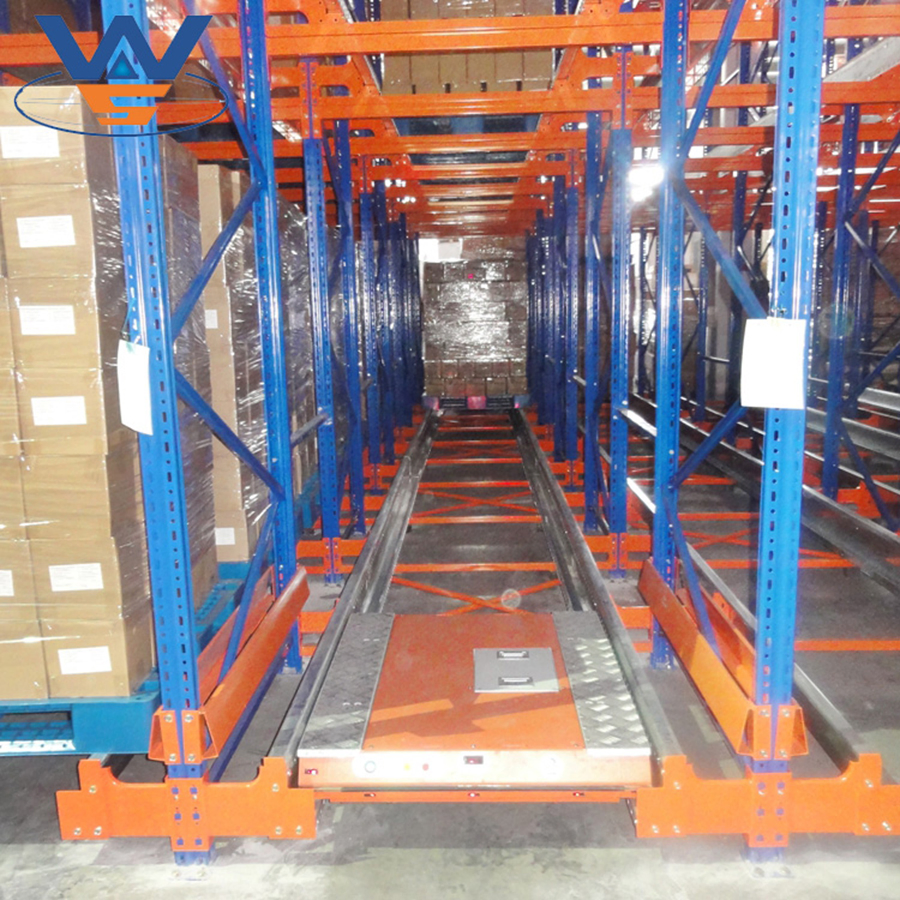

High Quality Warehouse Storage System Automatic Fifo Lifo Radio Shuttle Racking System

Warehouse System Radio Shuttle Shelving

We are engaged in plan, design, manufacture, installation and consulting service of racking and other material handling systems. We are a member of the China Logistics Association and are well-known for providing series of automated logistics systems solutions and management software.

The Shuttle Concept

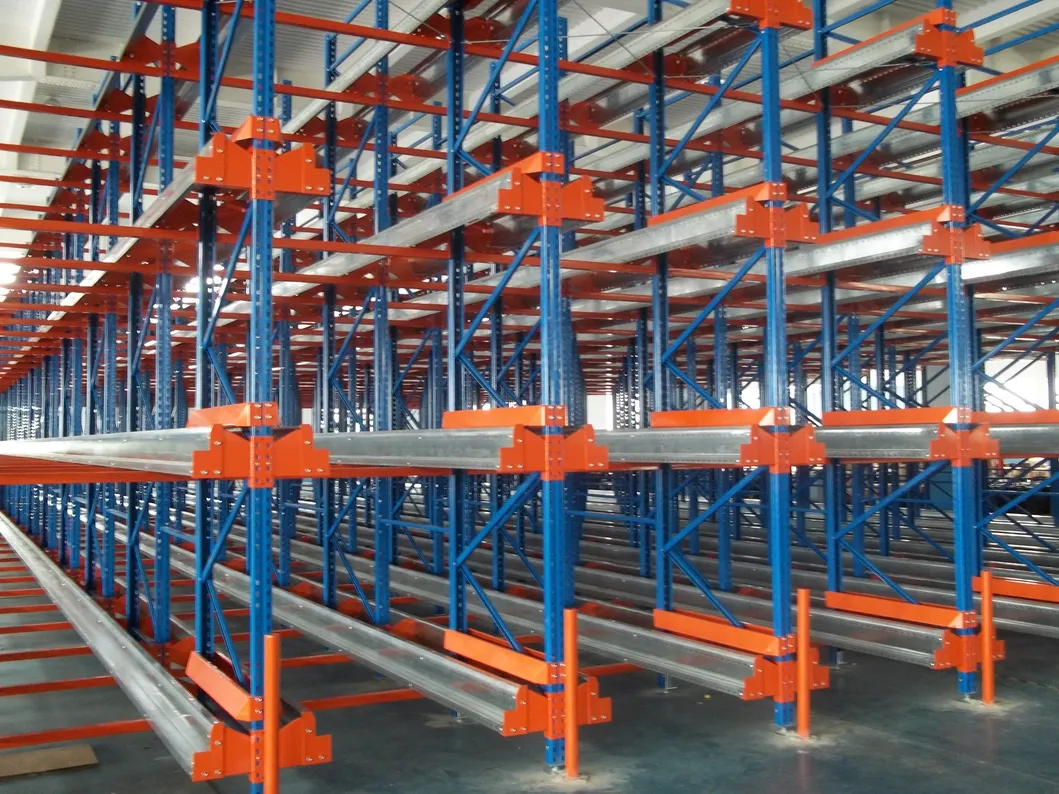

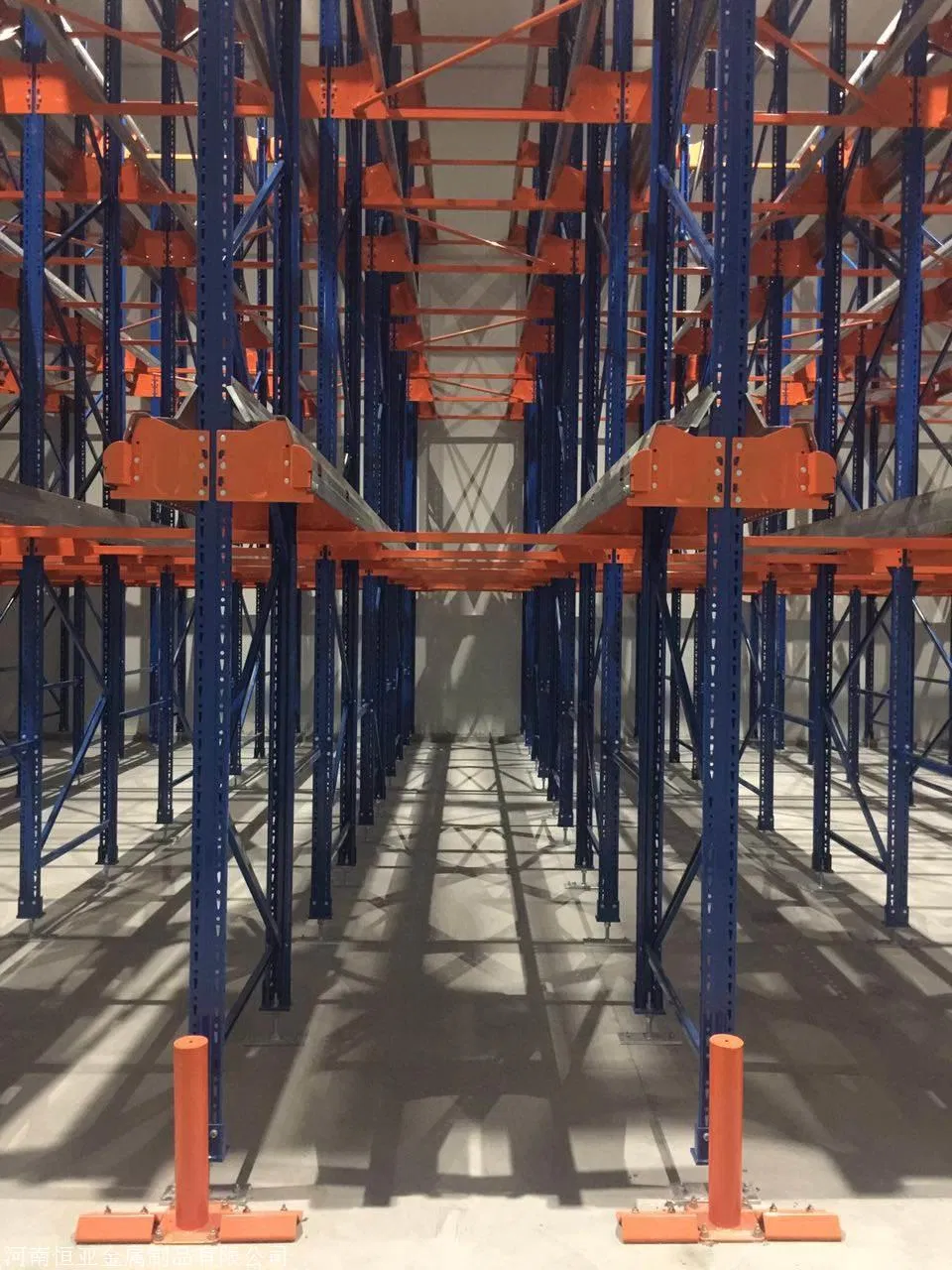

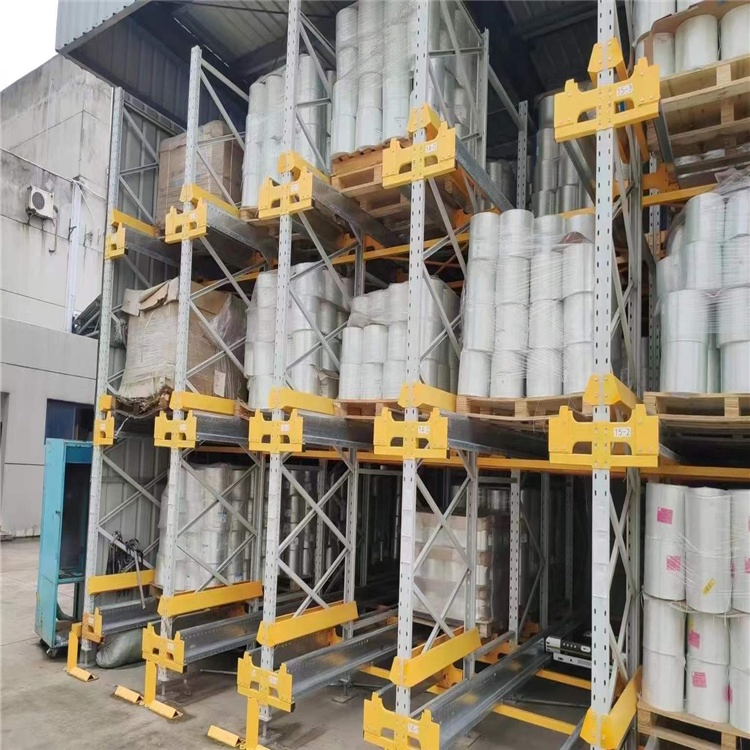

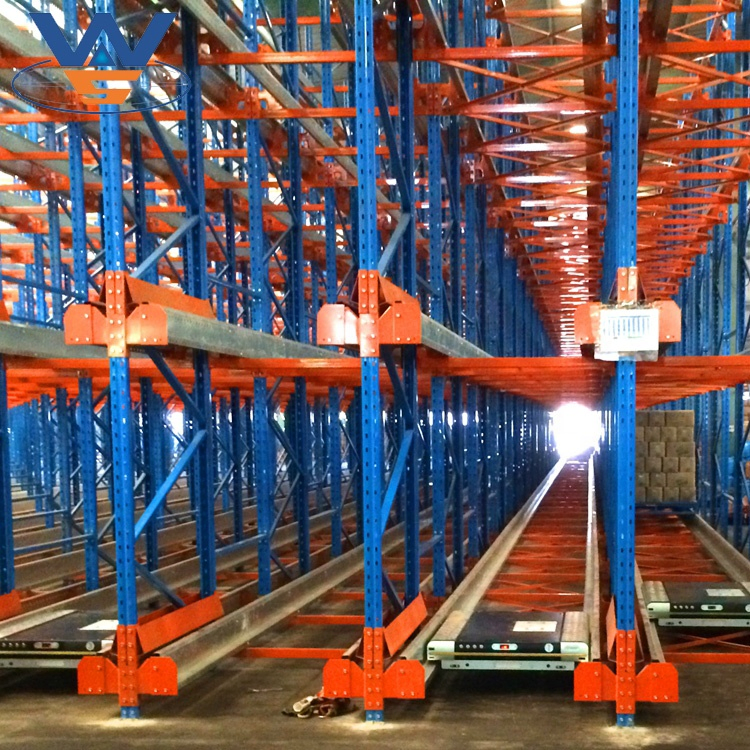

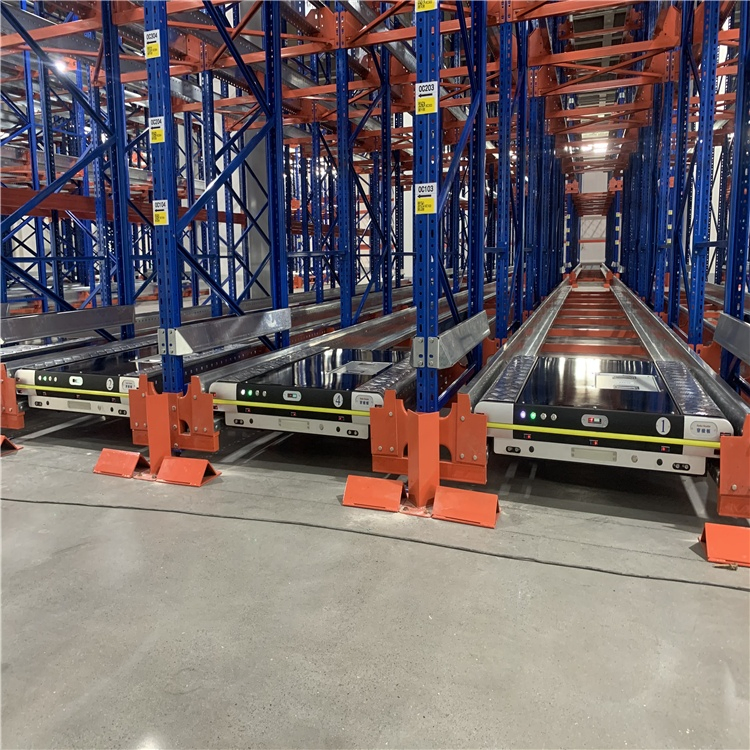

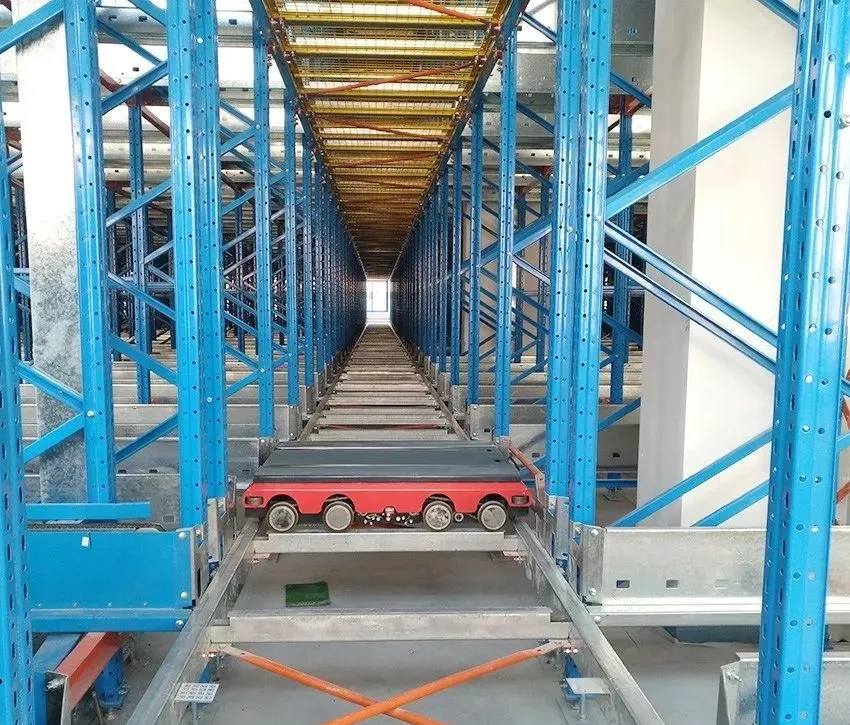

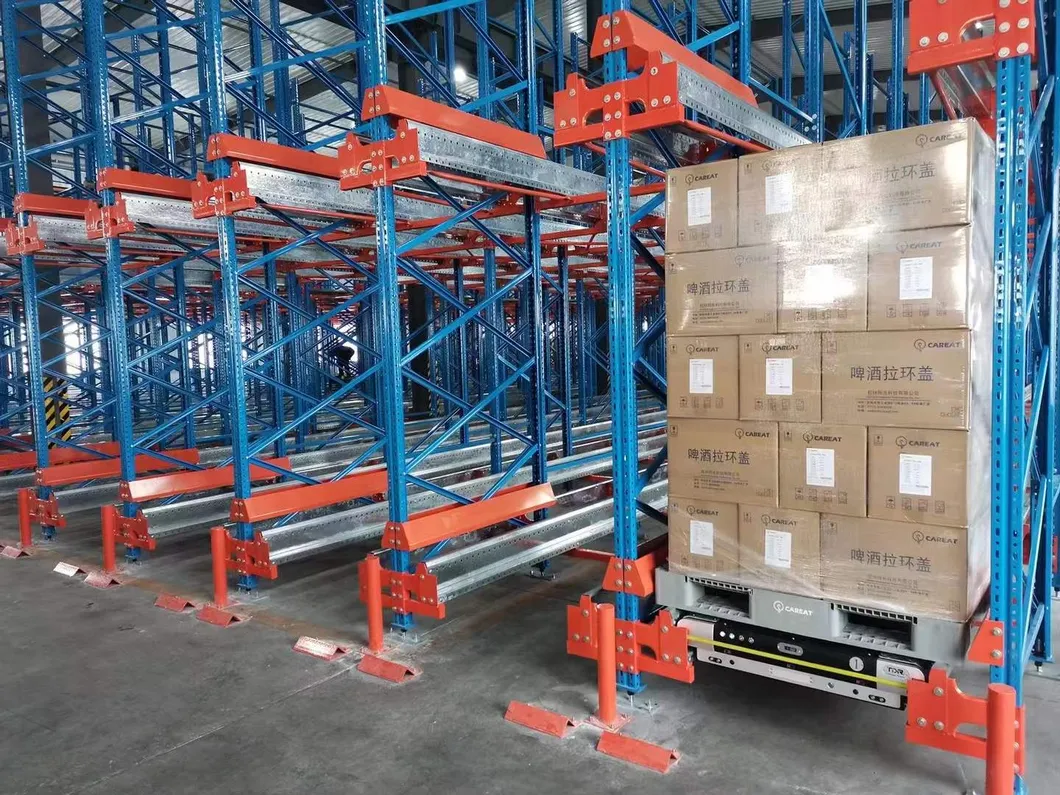

A shuttle system consists of supporting rack, shuttle rails and a shuttle cart. The shuttle cart runs on the rails and is propelled by an electric motor. It also has a platform on the top that can lift up and down. The lifting action is required to lift a pallet that is placed on the rail and then the electric motor moves the cart with the pallet on top into the rack in order to deposit the pallet in its right position.

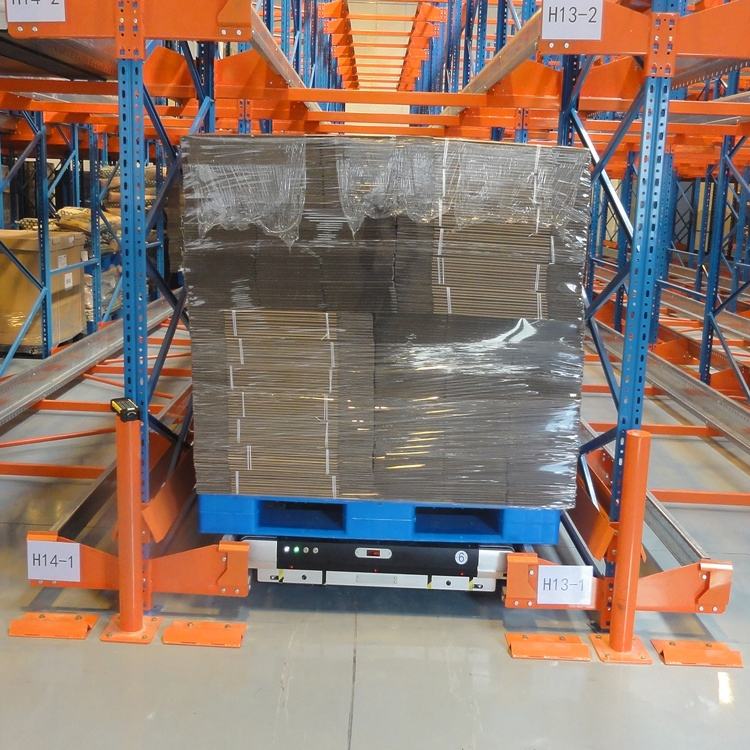

When the pallet is required, the cart moves in under the pallet, lifts it and brings it to the front of the rack where it can be retrieved by a forklift. All the movements of the shuttle cart are controlled with a hand held remote control.

The Shuttle is a fully programmable deep lane storage and retrieval system used to transport pallets within a racking structure for maximum storage and throughput of bulk stored items.

• High Density Storage: Allows more pallets to be stored compared to normal static racks.
• Reduced Damage: Minimizes damage to the rack as forklifts do not enter the structure.
• High Efficiency: Each pallet only needs to be positioned at the beginning of the storage lane.
• Flexibility: FIFO or FILO options available.
• Safety: Better safety and anti-seismic performance than drive-in racks.

✓ Factory price with high quality
✓ OEM / ODM are available
✓ Fast delivery timelines
✓ ISO, CE certified, one-stop solution for your project
✓ Exquisite technology and sincere service

Please provide the following for a quick quotation:
A) Warehouse layout plans | B) Size (L*W*H) | C) Number of layers | D) Loading capacity | E) RAL color preference
