Hta28t Linear Drive for Emergency Vehicle Equipment Racks

1 / 5

Hta28t Linear Drive for Emergency Vehicle Equipment Racks

Customization:	Available
Application:	Agricultural Machinery, Automotive, Furniture, Industrial Automation, Marine, Medical Equipment, Robotics, Solar Tracking System
Certification:	CE, RoHS

Send Inquiry

Product Description

🔹 Basic Information

Model NO.

HTA28T

Max Thrust

6000N

Voltage

12V, 24V, 36V, 48V DC

IP Rating

IP66 / IP65

Motor Type

PMDC Brushed Gear Motor

Speed

3800rpm

Limit Switch

Built-in (Non-adjustable)

Stroke

Customized Stroke Available

Efficiency

IE 1

Temperature

-20°C to +45°C

Construction

Permanent Magnet

Signal Options

Hall Sensor, Potentiometer

📑 Product Description

Specializing in industrial linear actuators, our core competence lies in advanced development and customization for complex mechanical requirements.

Our latest innovations include linear actuators integrated with the CANbus system, as well as specialized lifting columns designed for Cobots, charging piles, and automated industrial equipment.

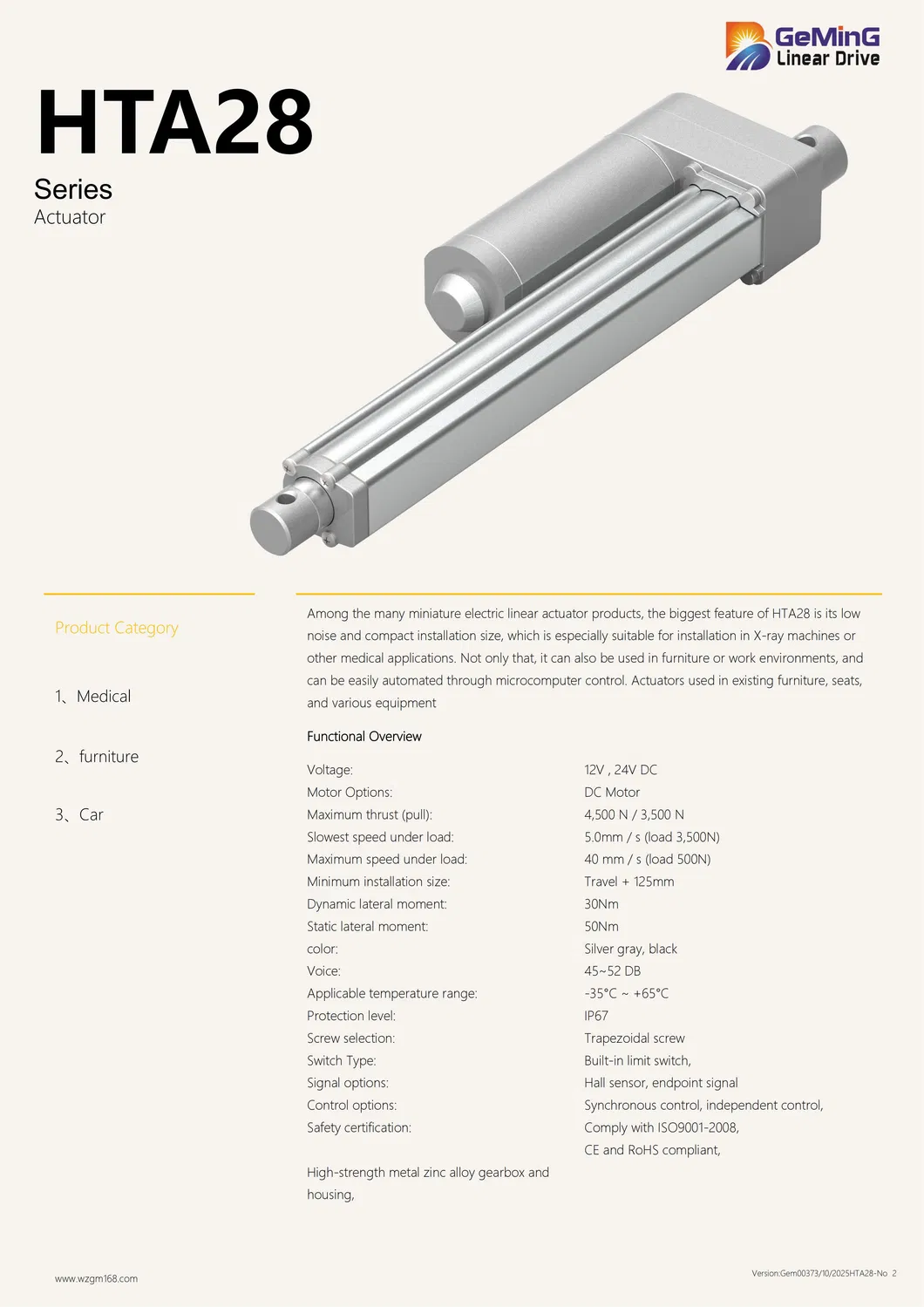

General Features
Name	Linear Actuator
Voltage of Motor	12V DC, 24V DC, 36V DC, 48V DC
Minimum Dimensions	Stroke+125 mm (S<300mm) / Stroke+140 (S>300mm)
Color	Silver Grey, Black (Customizable)
Material	High-grade Aluminium Alloy
Control Options	Built-in, Synchronized, or Independent Controllers
Noise Level	48-52 dB

📊 Load & Speed Performance (HTA25)

Max Load (N)	3,500	2,000	1,500	1,000	900	450	300
No-load Speed (mm/s)	5	10	15	20	25	50	75
Full Load Speed (mm/s)	4	8	12	16	20	40	60

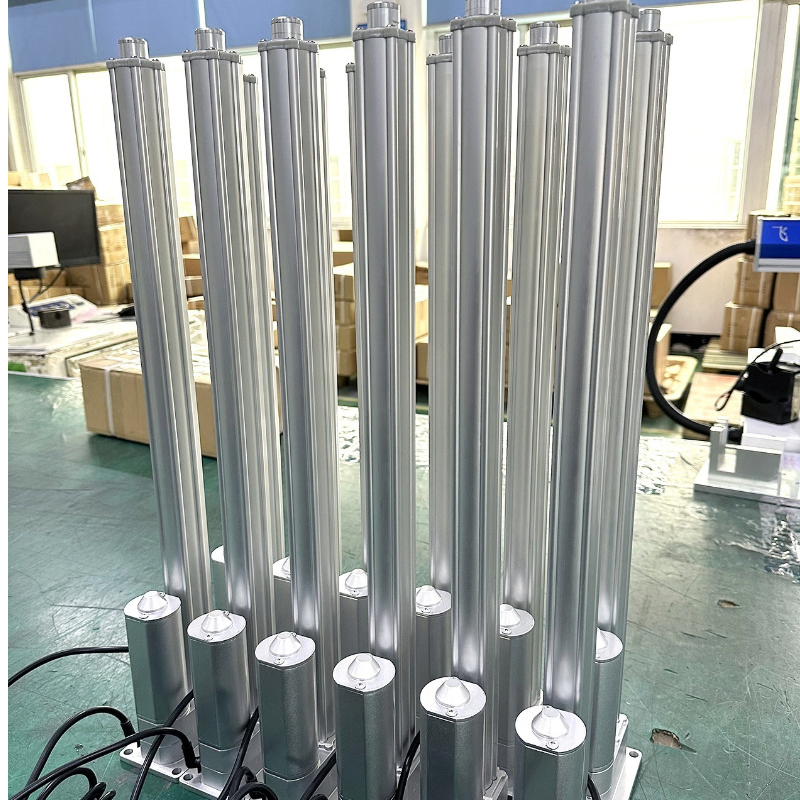

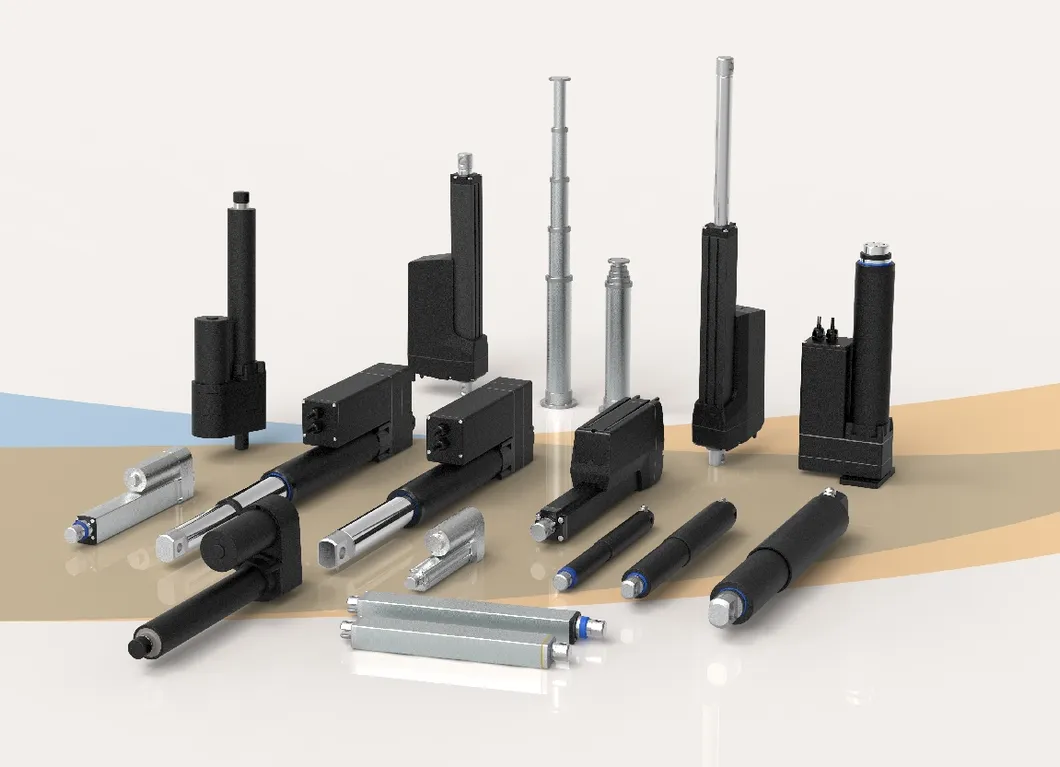

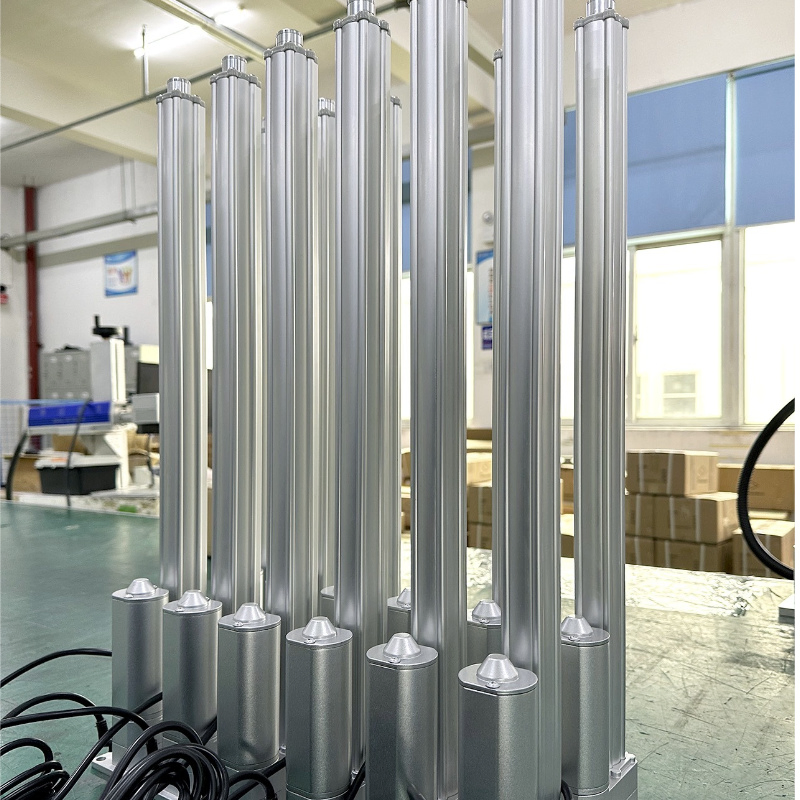

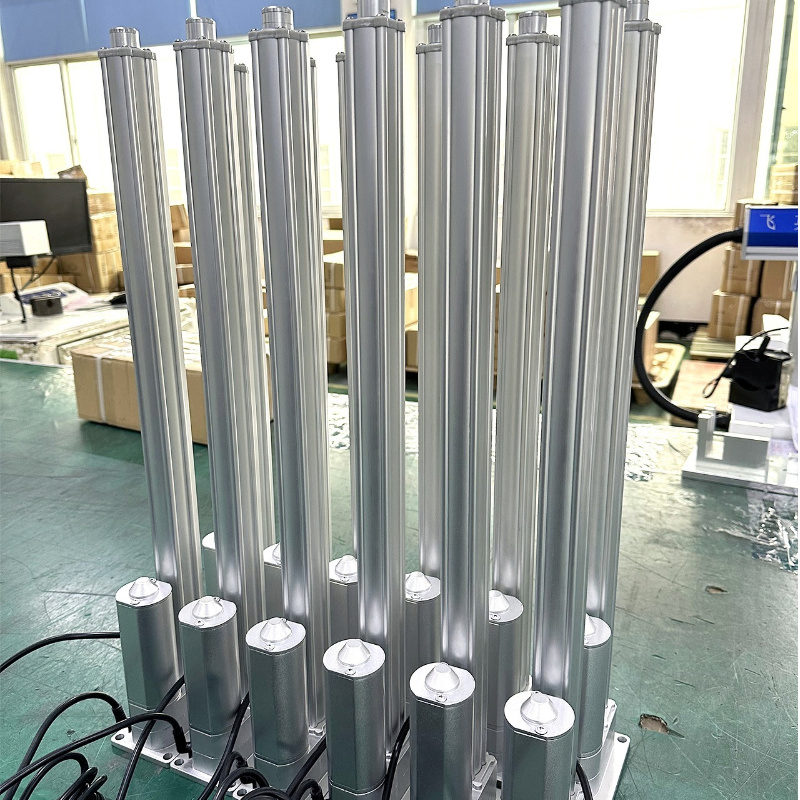

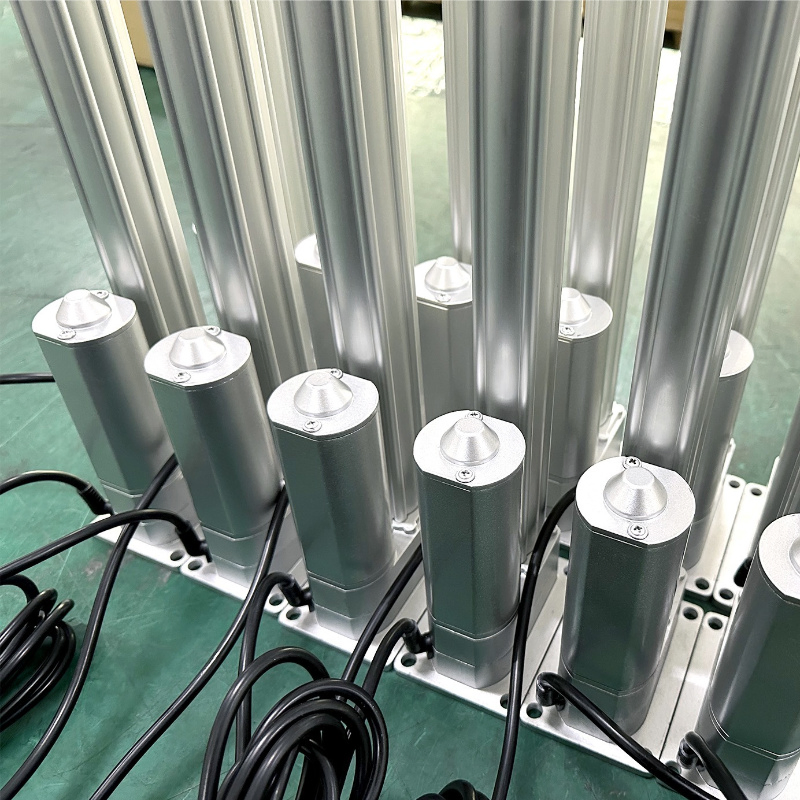

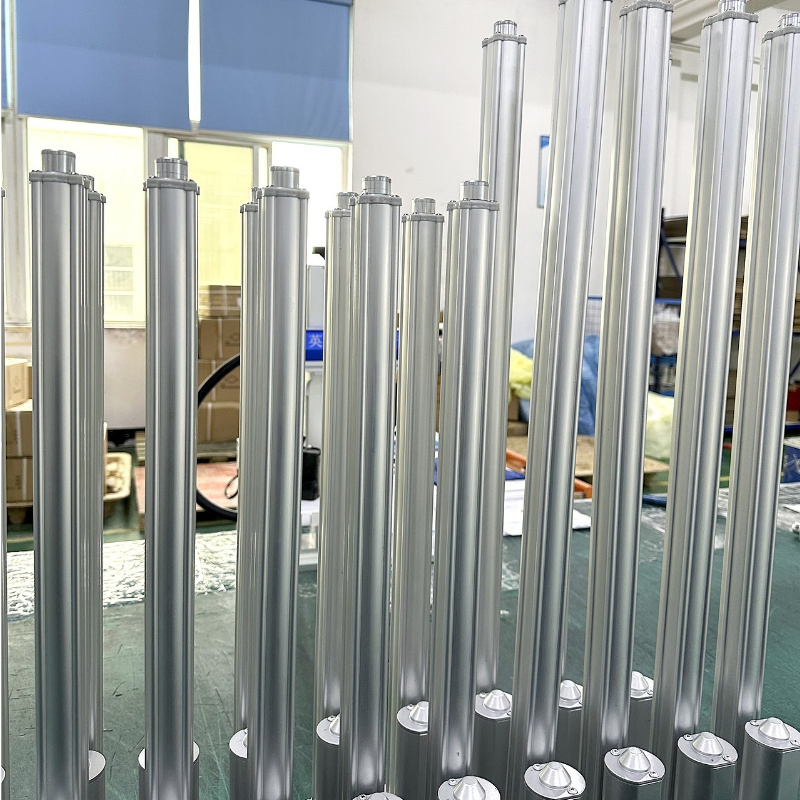

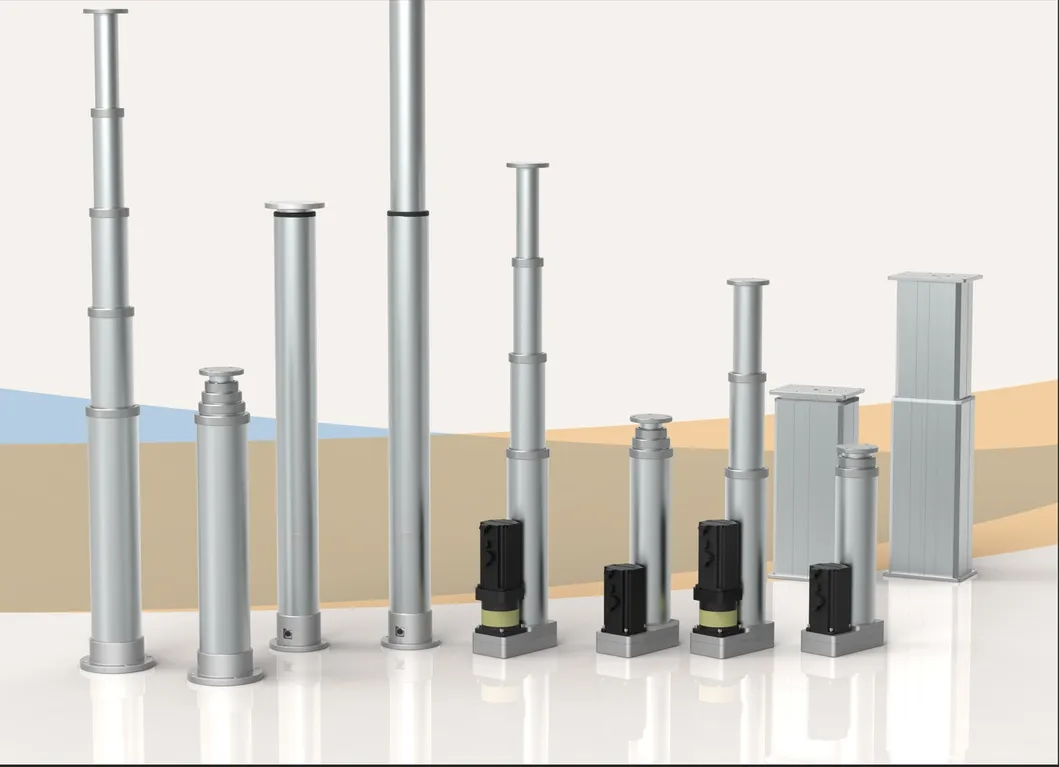

🖼️ Product Visuals

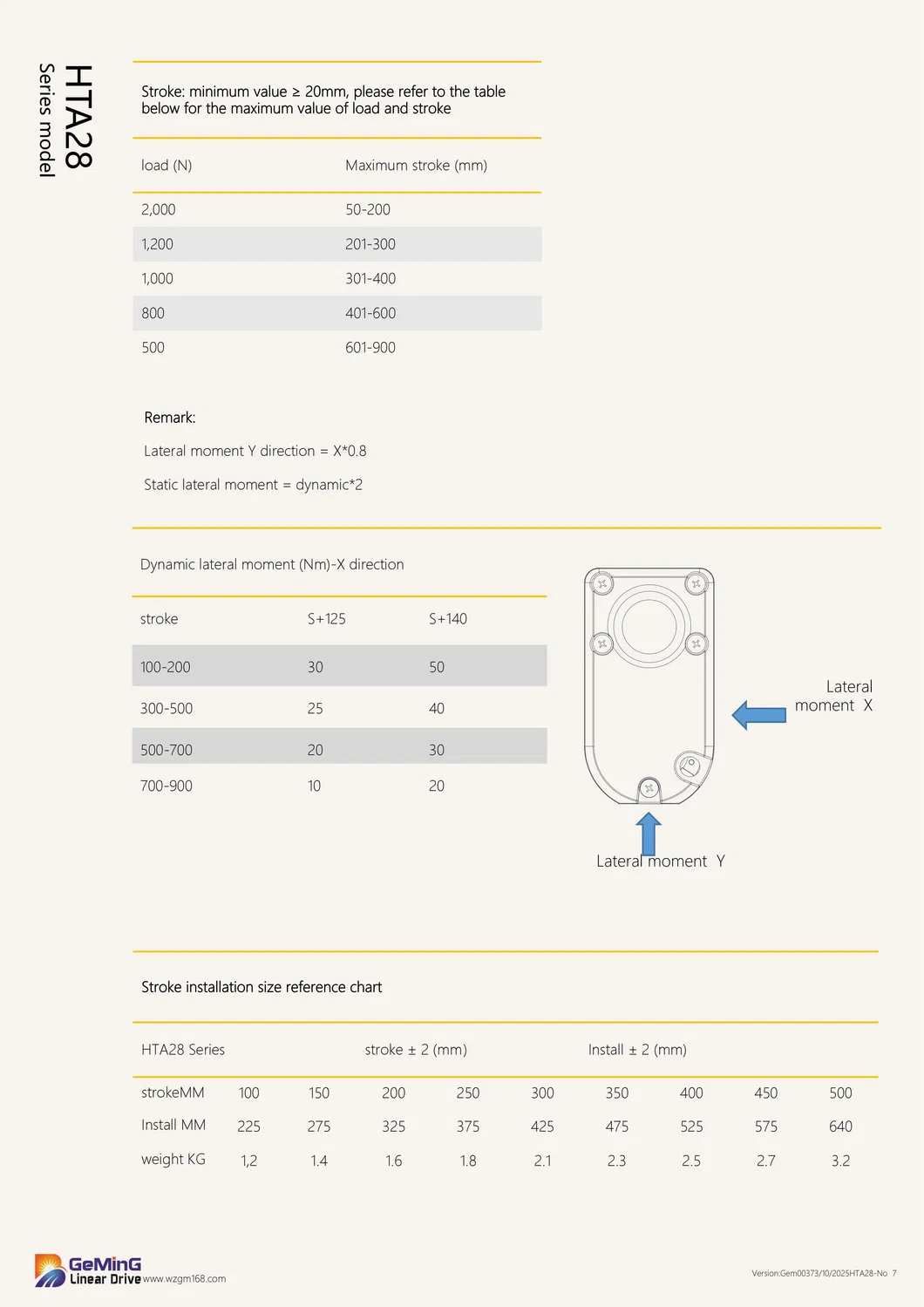

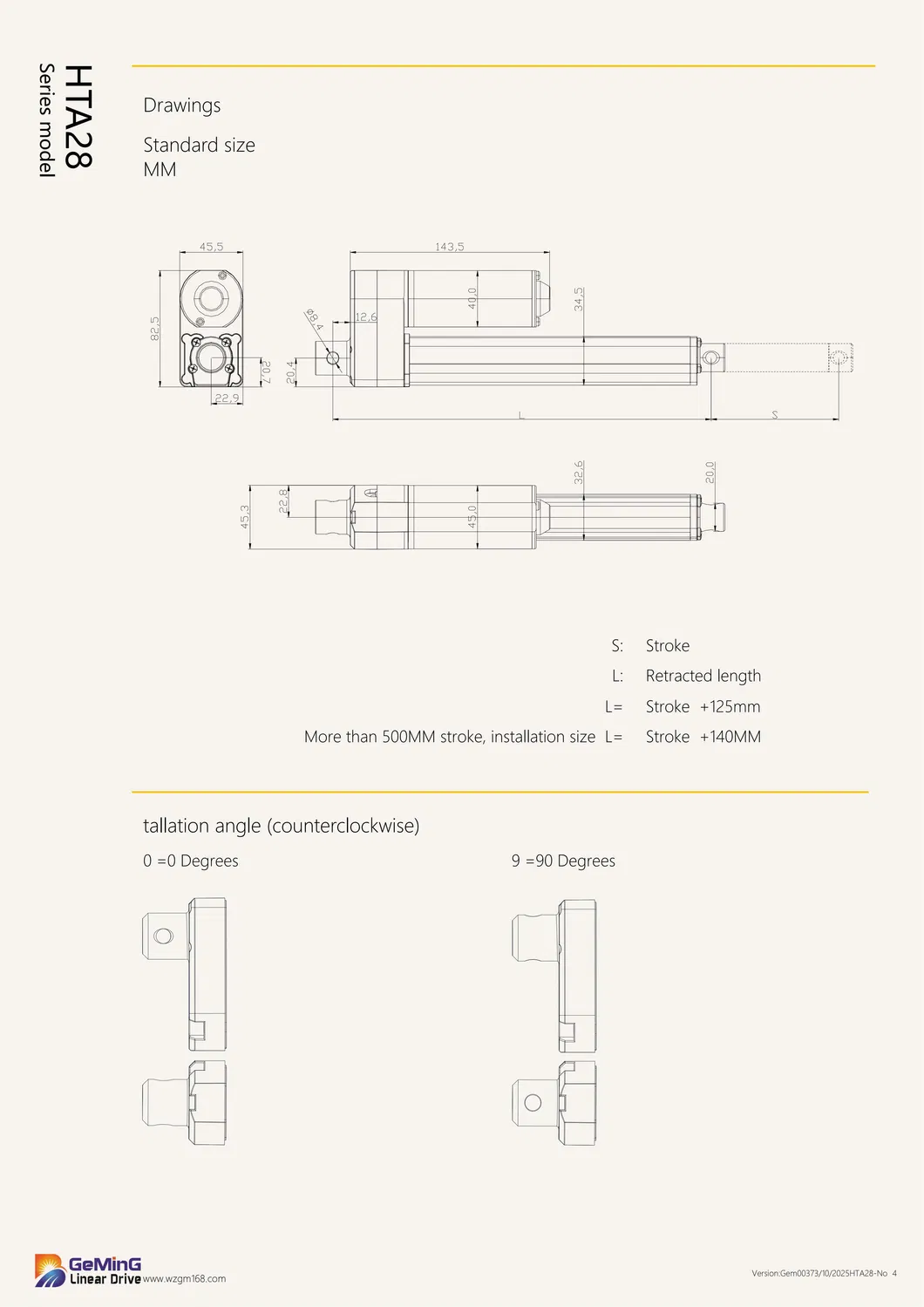

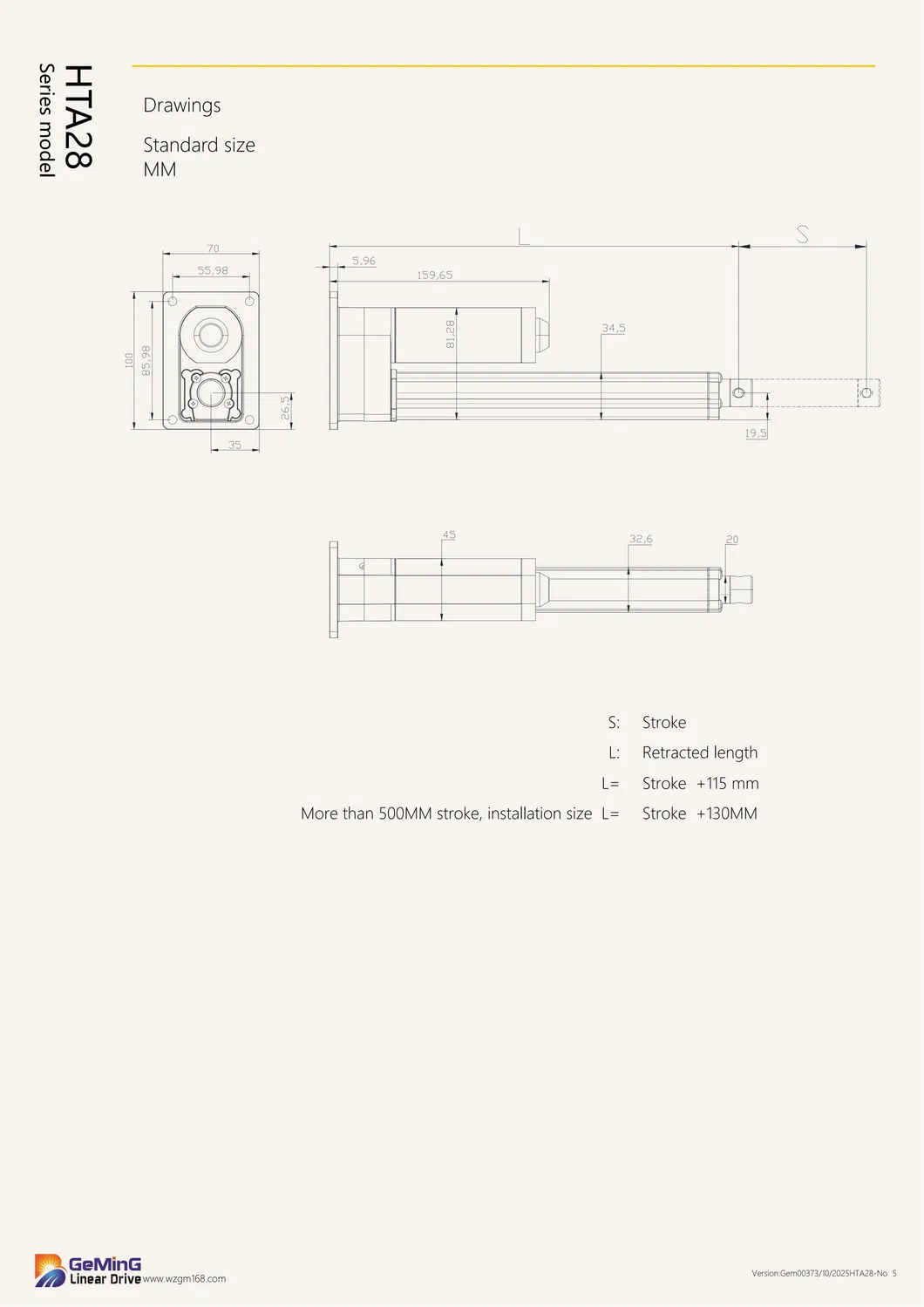

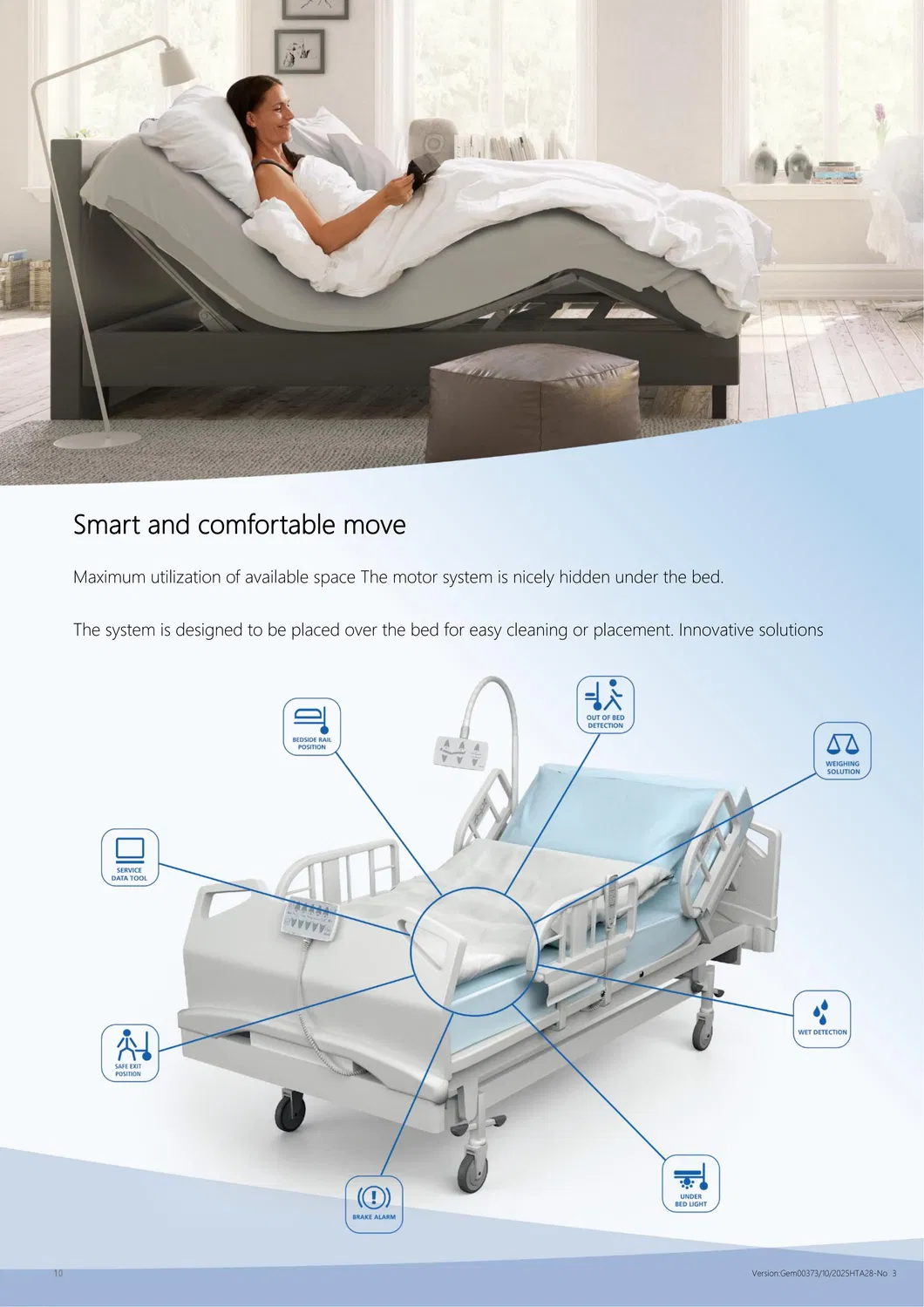

⚙️ Technical Diagrams

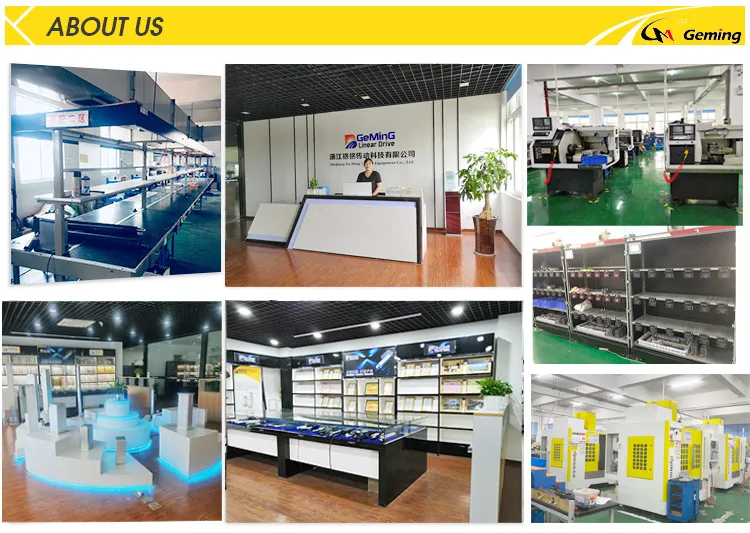

🏭 Facility & Testing

📦 Packaging & Logistics

❓ Frequently Asked Questions

Q: What if I need an actuator with a specific Stroke length or Force not in stock? A: We offer numerous actuator configurations and specialize in custom orders. Please provide your specific requirements for a tailored solution.

Q: How can I mount the linear actuators? A: Each actuator features mounting holes at both ends. These can be combined with mounting brackets (supporting a 180° turning radius) for versatile installation. Ensure the mounting surface can support the rated weight.

Q: Do the actuators include internal limit switches? A: Yes, they come equipped with built-in limit switches. These automatically stop the actuator at the end of its travel in either direction, preventing over-extension and reducing power consumption.

Q: Can the actuator hold a load when partially or fully extended? A: Yes, our actuators are designed to hold their rated force weight when stopped at any point along the stroke length, even if the power is disconnected.

Q: What is the environmental protection level of these actuators? A: These units are rated IP66, making them highly resistant to dust and water ingress. They are designed to operate in temperatures ranging from -20°C to +45°C.

Q: Where can I find detailed technical drawings and CAD models? A: Technical specifications, wiring schematics, and measurement details are provided in the product documentation. Custom CAD drawings can be requested for specific integration needs.
