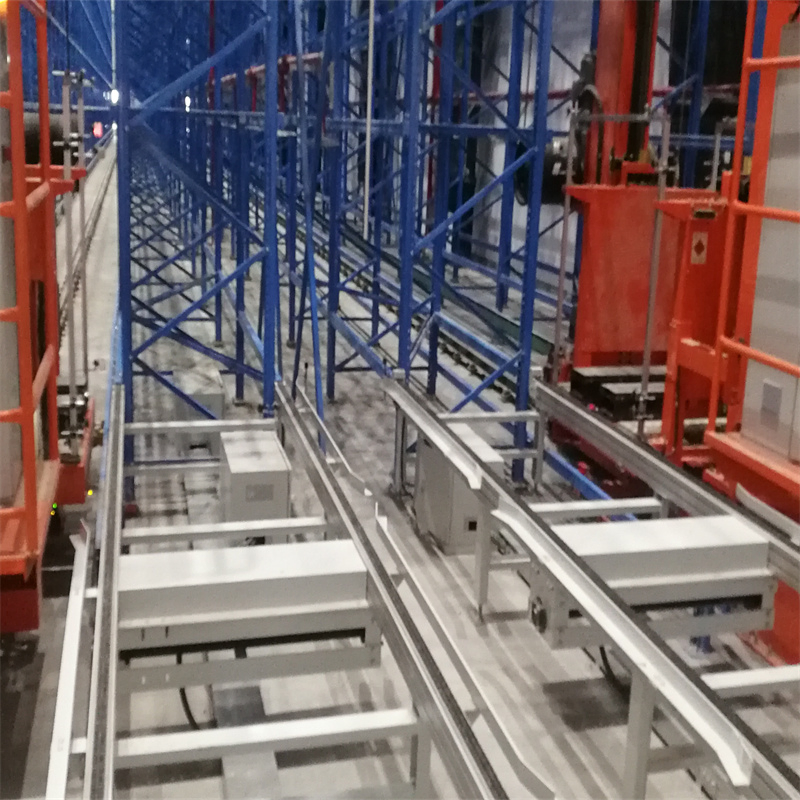

Huayide Asrs Racking System Warehouse Storage Management Stack Pallet Racking System

Still deciding? Get samples of $ !
Order Sample

Product Description

System Specifications

Model NO.
HYD-ASRS02
Material
Steel
Type
Selective Pallet Racking
Height Range
5-40m
Weight Capacity
150kg-5000kg
Pallet Size
1*1.2 or Customized
Usage
Warehouse, Industrial, Food, Chemical, Clothing
Structure
Combined Rack

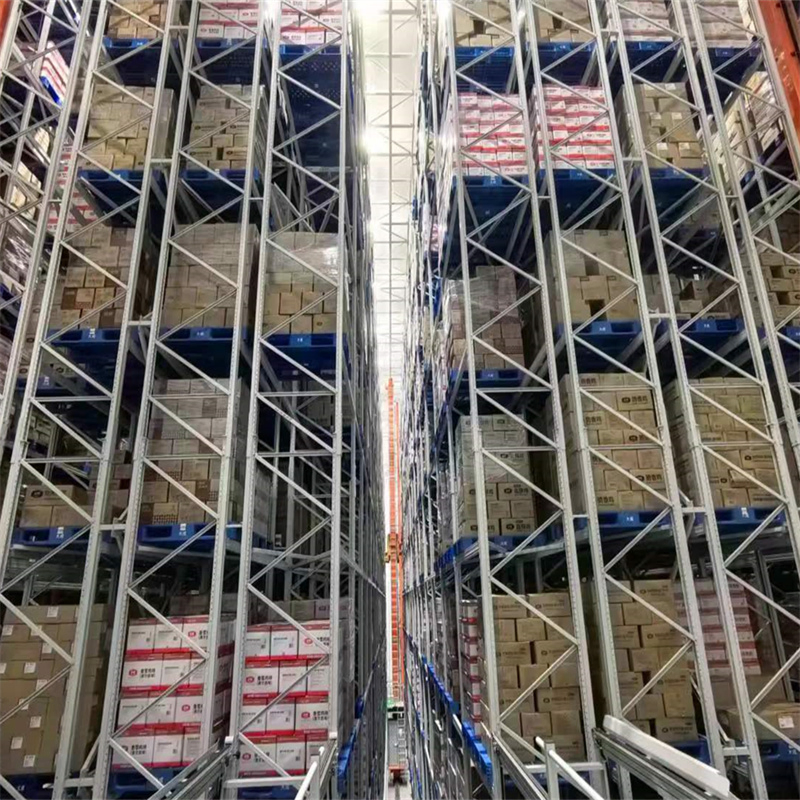

Automated Storage and Retrieval System (AS/RS)

The Stacker Crane AS/RS for pallets is an advanced automated system designed to efficiently store and retrieve goods, effectively replacing manual warehousing tasks. The Storage and Retrieval Machine (SRM) operates as a crane moving horizontally within single aisles with high precision.

Our Double Deep Pallet Automated Warehouse Storage System is renowned for high-density storage, rapid operation, and adaptability. Reaching up to 40 meters in height, the system is customized to integrate seamlessly into your specific installation environment.

ASRS Racking System Overview
Vertical Optimization: Maximizes warehouse space utilization.
Labor Efficiency: Reduces dependence on manual labor.
High Speed: Rapid transportation reduces storage cycle time.

Unit Load Handling Scope

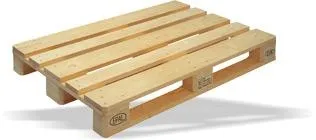

Open Pallet
Open Pallet (Standard 800x1200 / 1000x1200)

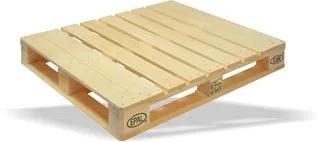

Closed Pallet
Closed Pallet (Standard European/Asian sizes)
Pallet Cage
Stillages / Pallet Cages

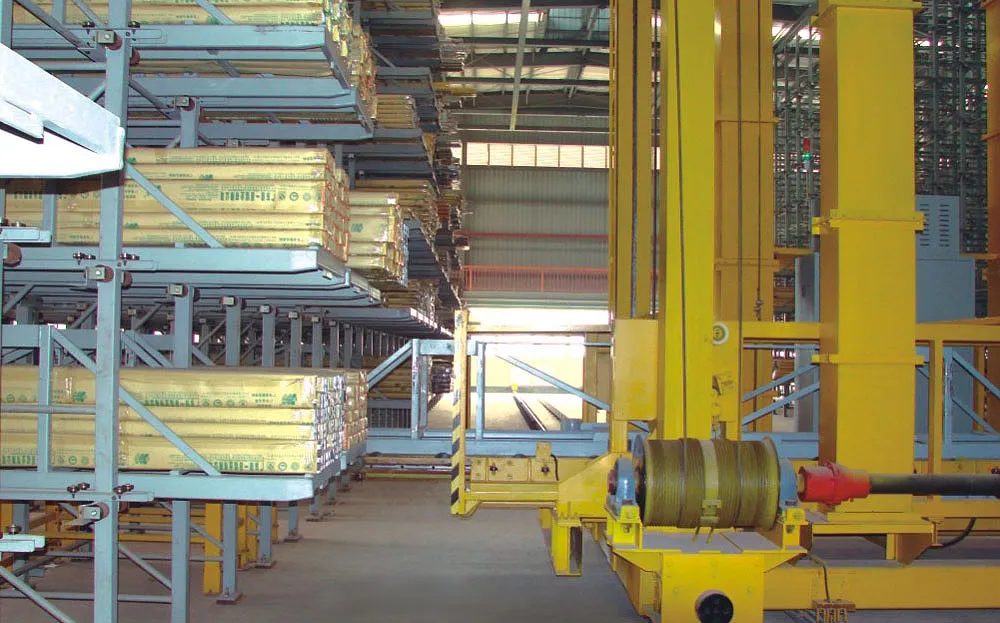

Long Objects
Long objects (Pipes, bars up to 6m)

System Configurations

Efficient Movement: S/RM

Storage / Retrieval Machines enable high-speed horizontal (900 ft/min) and vertical (400 ft/min) movement. The double mast design supports heights up to 140 feet and loads up to 5,000 lbs.

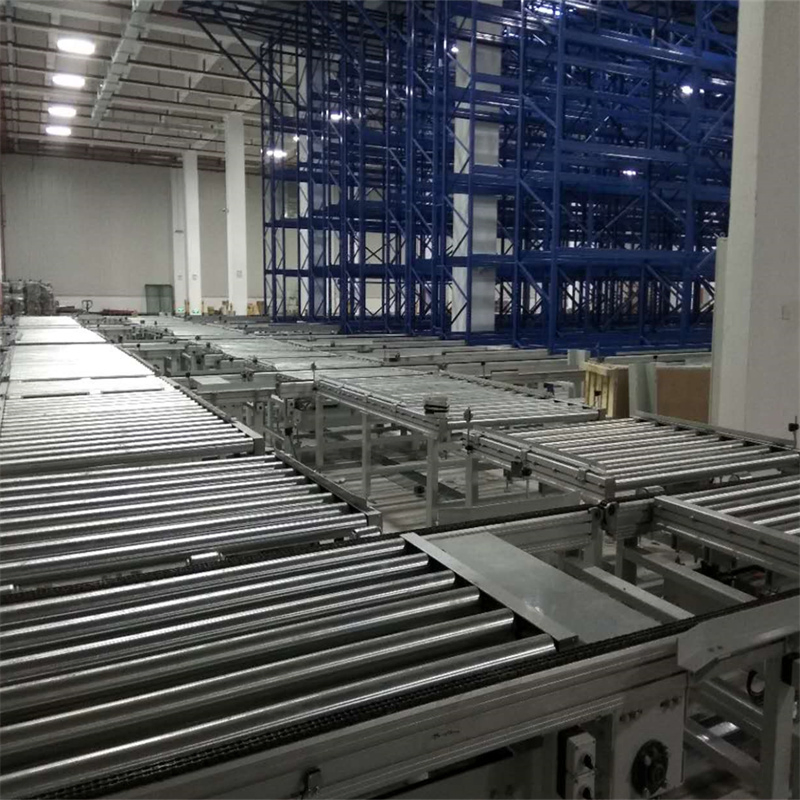

Material Flow: Conveying

Precision control systems for continuous movement, integrating with stretch-wrappers, labelers, and dispensers for high-throughput fulfillment.

Stacker Crane

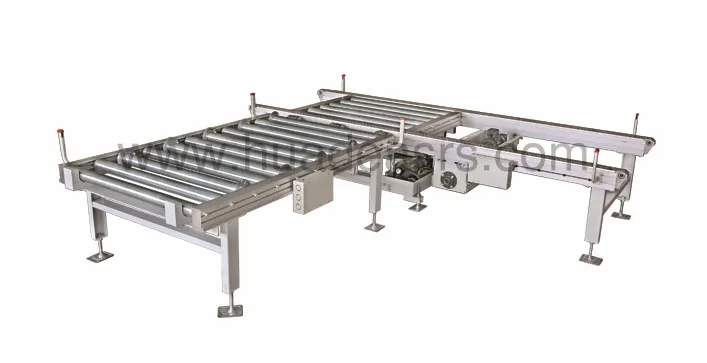

Conveying Systems

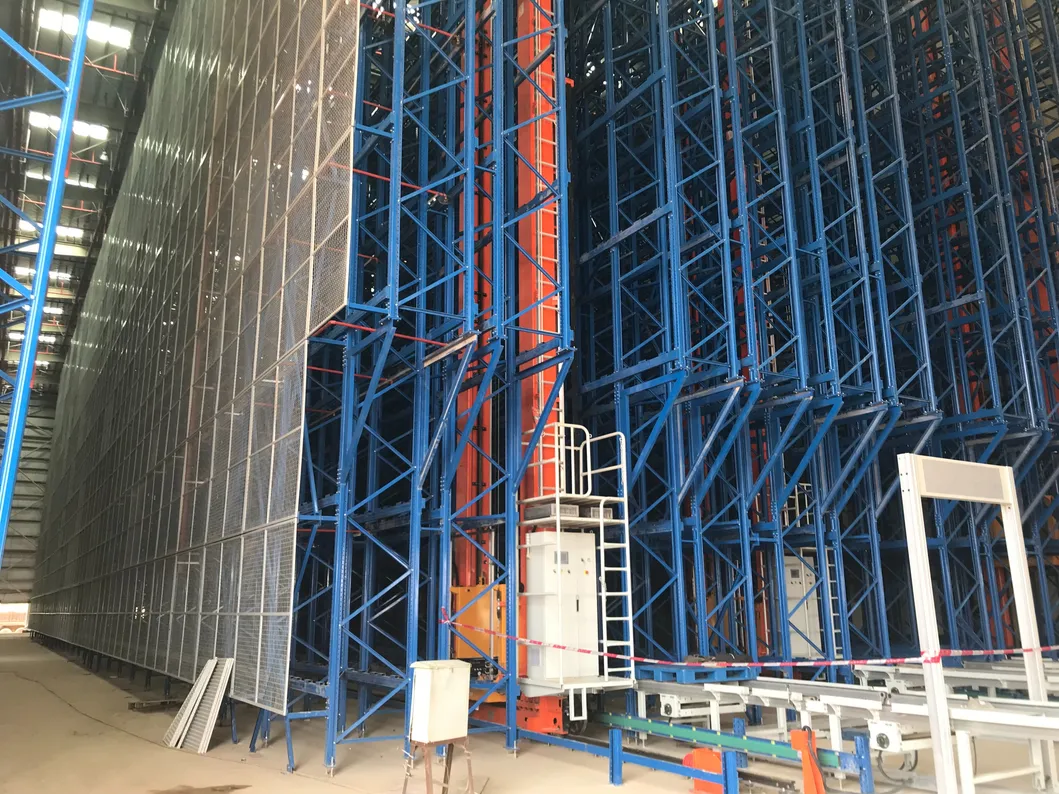

ASRS Racking

Project Showcase

Project 1
Project 2
Project 3

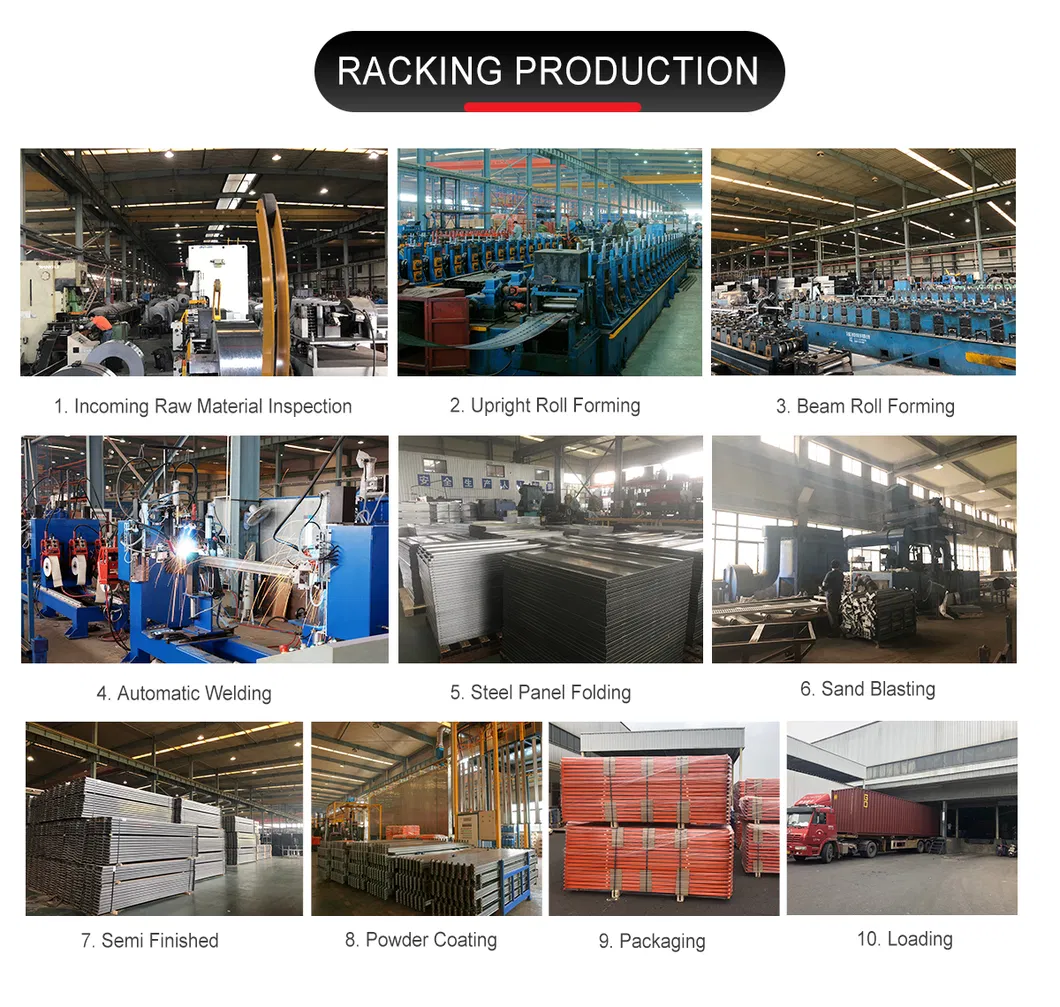

Project 4

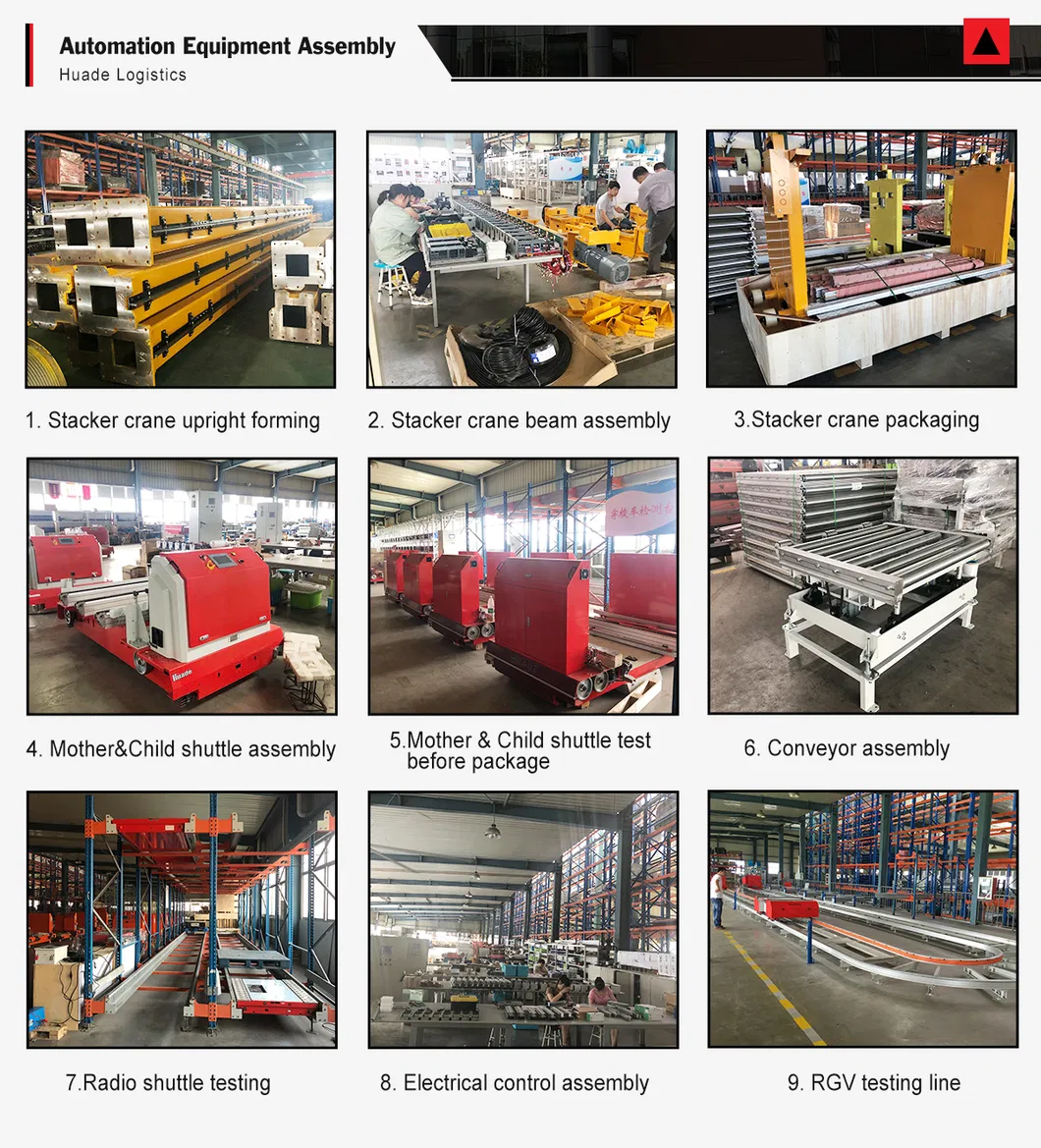

Project 5
Project 6
Project 7
Project 8
Project 9

Frequently Asked Questions

1 What types of AS/RS systems do you provide?
We offer Unitload AS/RS for pallet types, Miniload AS/RS for boxes/containers, shuttle storage systems, rack-supported buildings, and semi-automated radio shuttle systems.
2 What is the maximum height and capacity of the racking?
The system can reach heights from 5m up to 40m. Load capacities range from 150kg to 5000kg per unit, depending on the configuration.
3 Can this system be used in cold storage environments?
Yes, our equipment features specially treated anti-low temperature designs, making it ideal for cold storage and frozen food logistics projects.
4 What is the typical workflow for project implementation?
Our 6-step process includes: Define objectives, Measure business data, Analyze operations, Design the custom model, Validate feasibility/costs, and final Client Presentation.
5 How fast are the stacker cranes?
The stacker cranes achieve high horizontal driving speeds of up to 900 ft./min and vertical lifting speeds of up to 400 ft./min, ensuring high throughput.
6 Are the solutions turnkey?
Yes, we provide full turnkey solutions including engineering consulting, design, manufacturing, implementation, training, and after-sales commissioning.
