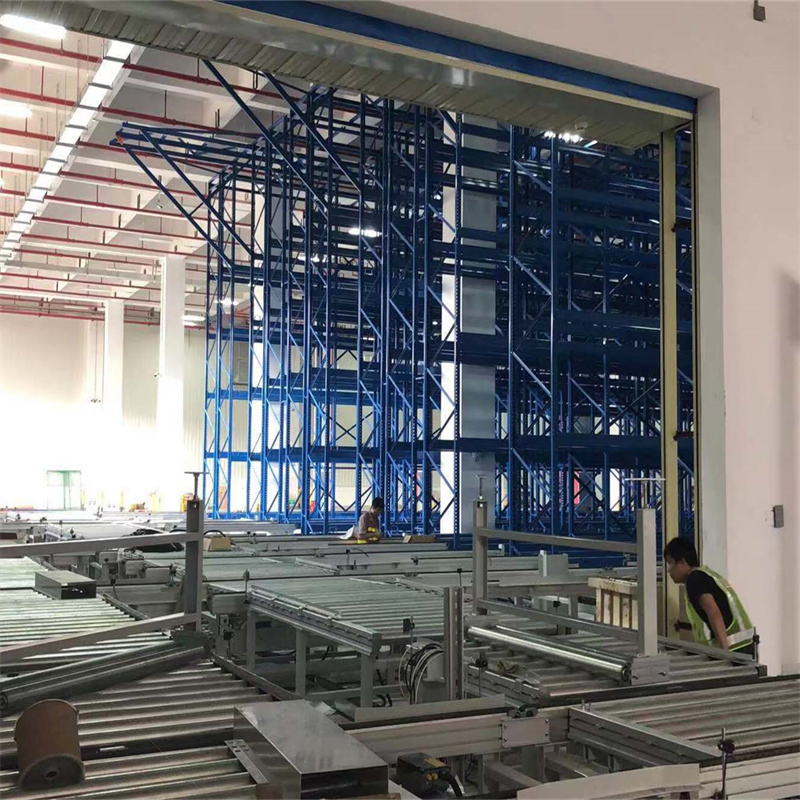

Automated Warehouse Solution AS/RS Robotic System for pallets is an automated system that efficiently stores and retrieves goods, replacing manual warehousing tasks. The storage and retrieval machine (SRM) operates as a crane that moves horizontally within a single aisle.

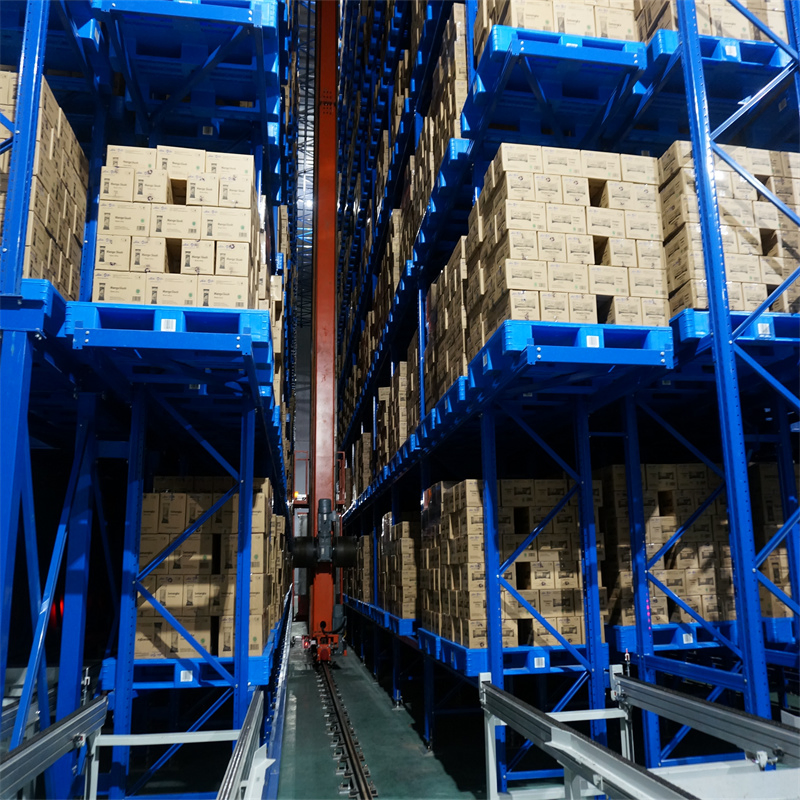

Double Deep Pallet Automated Warehouse Storage System (AS/RS) is renowned for its high-density pallet storage, rapid operation, and adaptability. Its versatile design spans up to 40 meters, allowing customization to seamlessly integrate into your specific installation environment and operational requirements.
AS/RS is the main application form in the field of non-dense automated storage. The system consists of stacker crane, pallet conveying system, racking system, and WMS/WCS management and control system.
Compared to dense storage systems, this system can manage any pallet position and is suitable for storage modes with a large number of SKUs and requirements for return and sorting. Single-deep or double-deep designs can be implemented to optimize storage density.

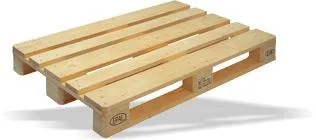

Open Pallet: Standard shape used in Europe and Asia (800x1200 / 1000x1200).

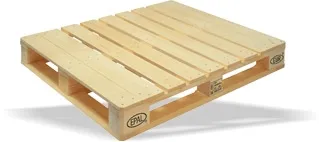

Closed Pallet: Standard shape for versatile logistics applications.
Stillages / Pallet Cage: Four-legged cages for storing machine parts.

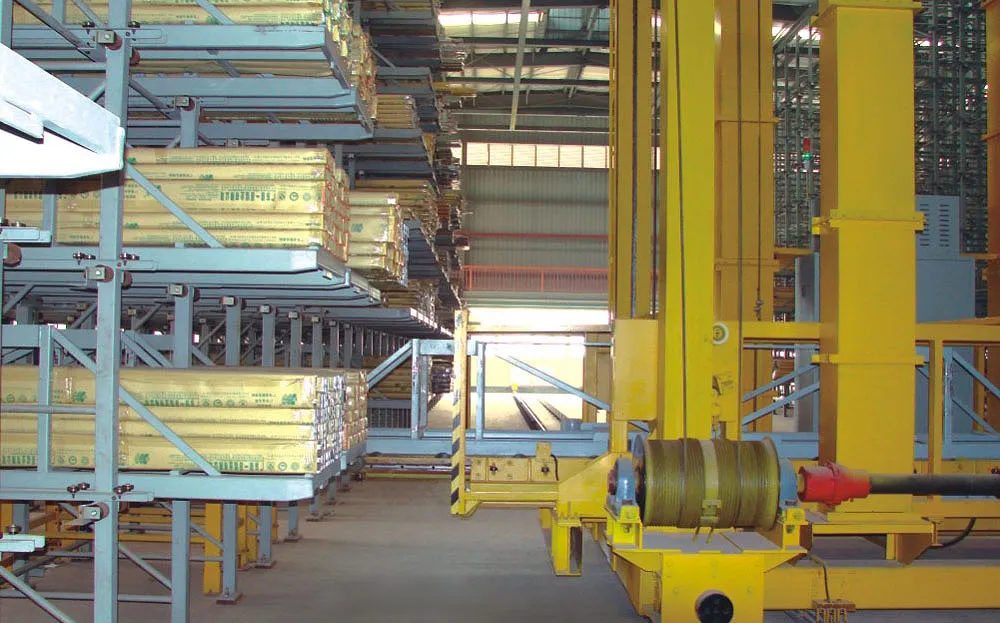

Long Objects: High density storage for pipes, bars, and plates up to 6m.

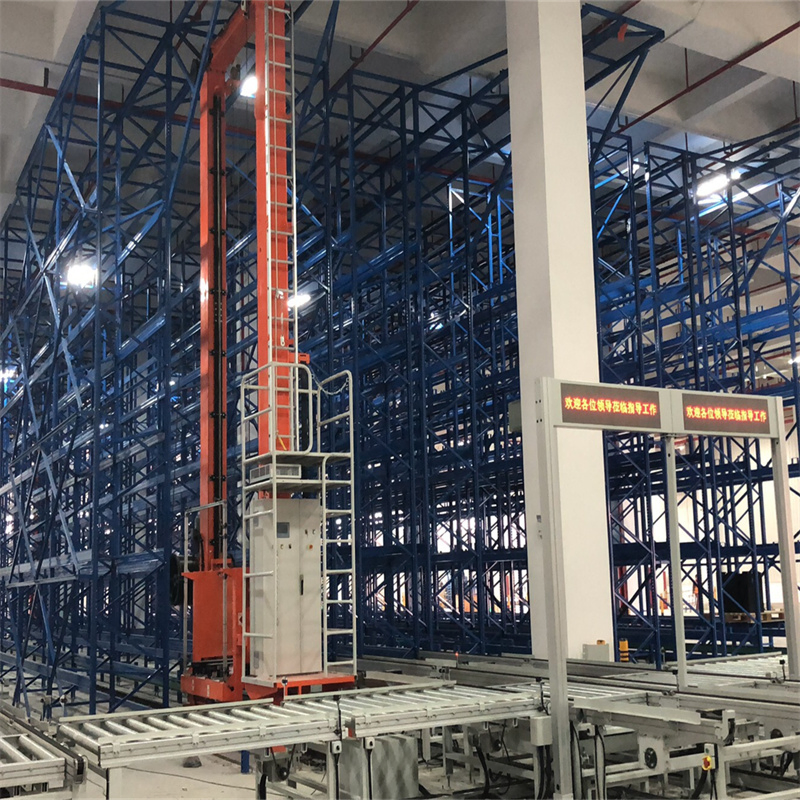

Our S/RM enables efficient horizontal and vertical positioning movement within the AS/RS. The Double Mast Design provides added stability for heavier loads and supports heights up to 140 feet.
Horizontal Speed: Up to 900 ft./min
Vertical Speed: 400 ft./min
Load Capacity: Up to 5,000 lbs.

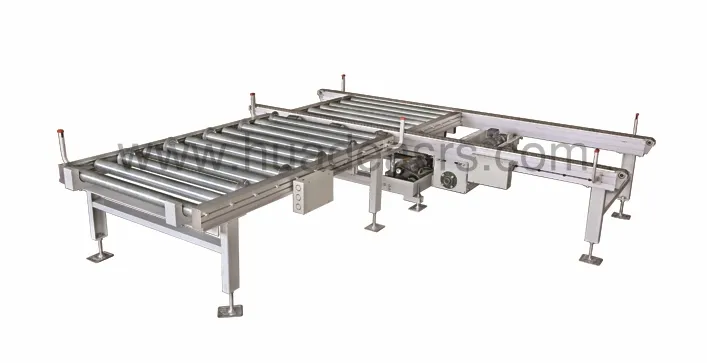

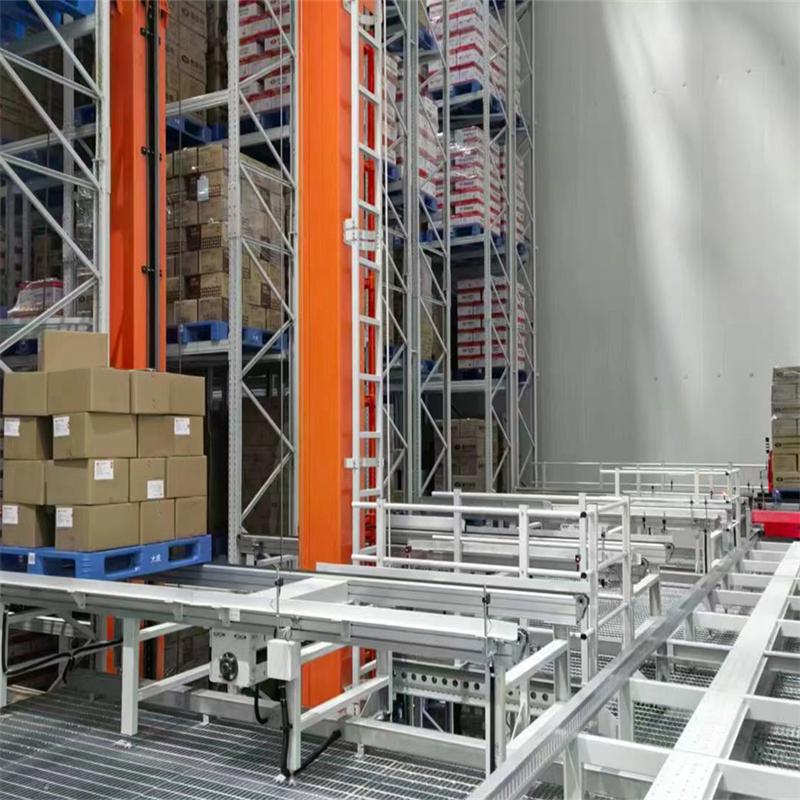

Ensures continuous and accurate movement of goods. Works in harmony with stretch-wrappers, label applicators, and staging systems.

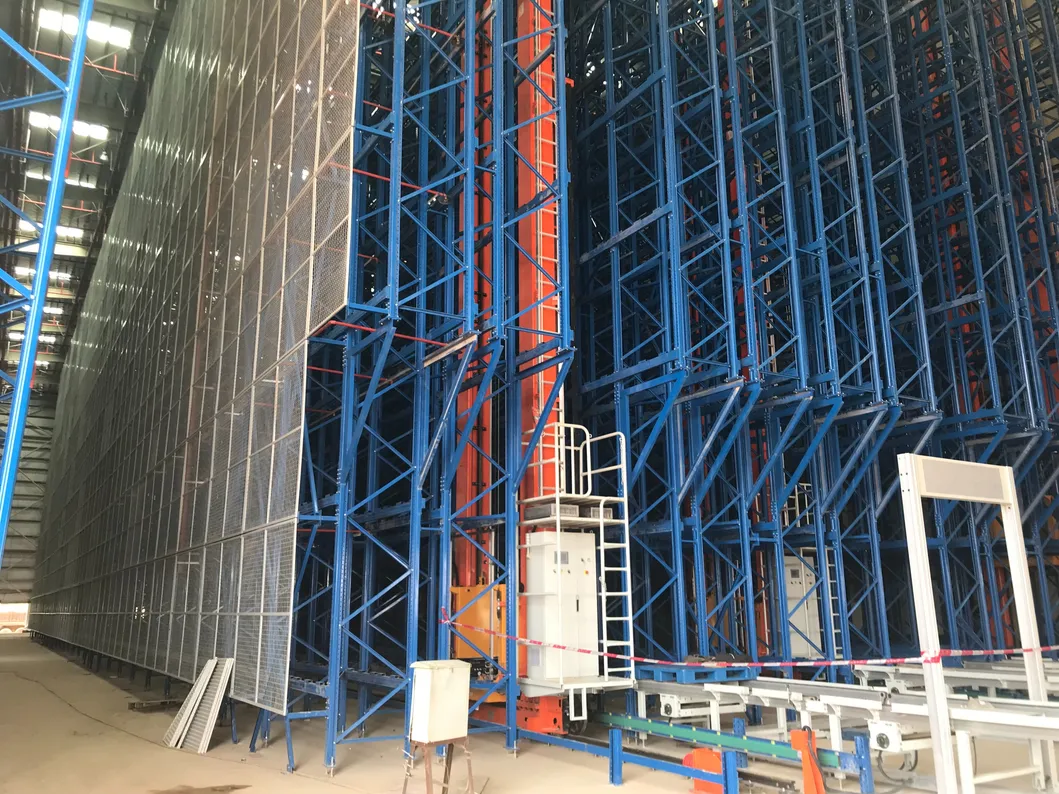

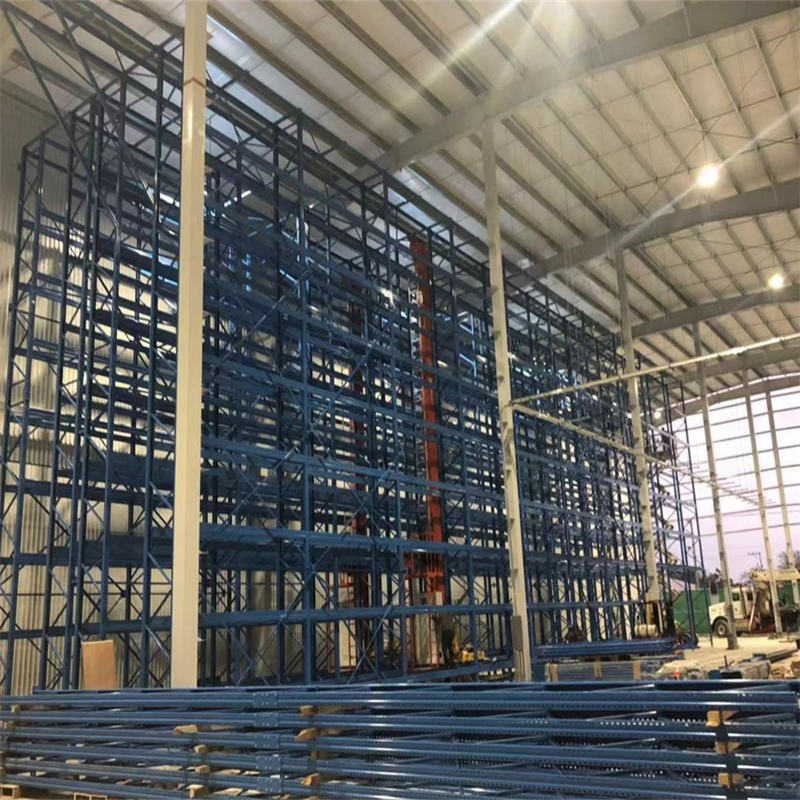

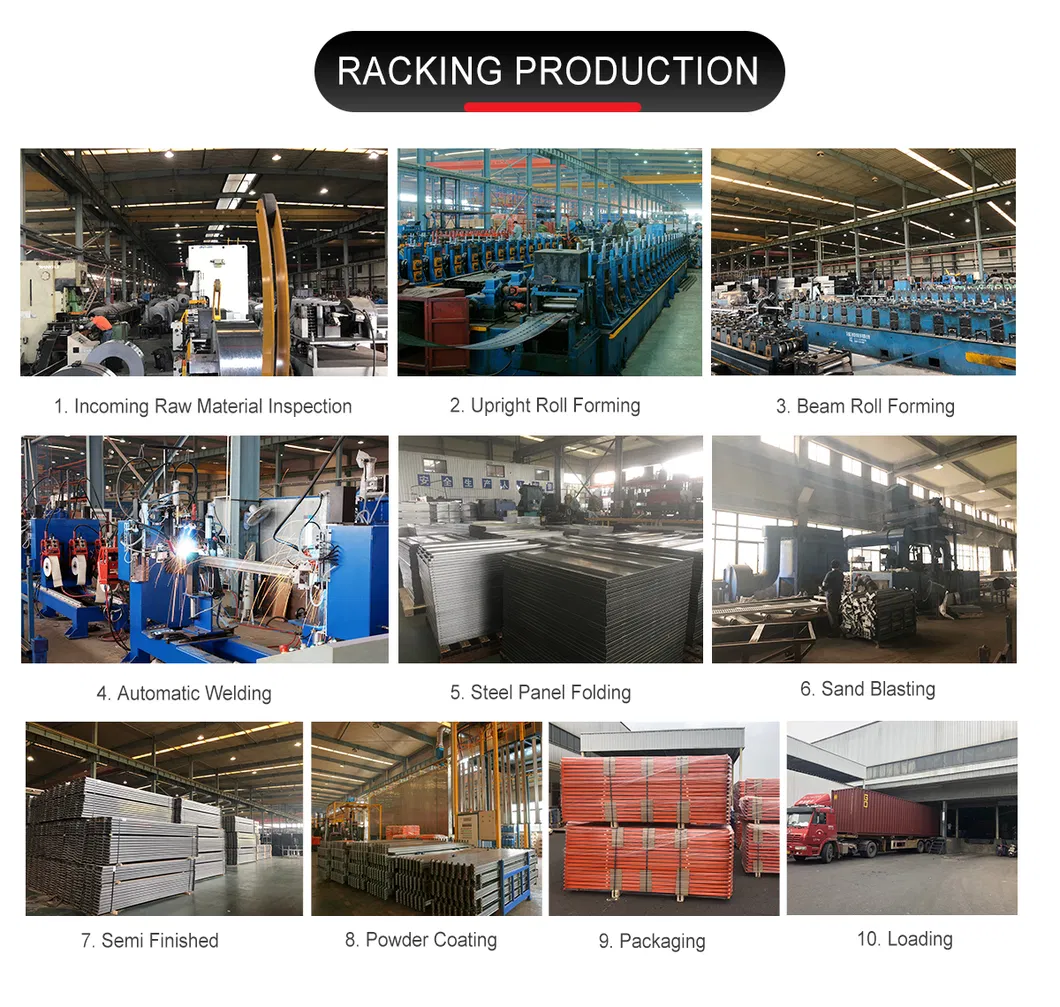

Compact storage in high bay warehouses. Racking structures are manufactured with precision and are fully bolted to the floor slab for structural integrity.
