Industrial Warehouse Shelving Cantilever Racks Racking System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

CR--001

Material

Steel

Structure

Rack

Type

Cantilever Rack

Mobility

Combined

Weight Capacity

500kg

Closed

Open

Development

New Type

Serviceability

Common Use

Color

Blue and Orange

Certificate

CE, ISO

Origin

China

HS Code

73089000

Production Capacity

100000tons/Year

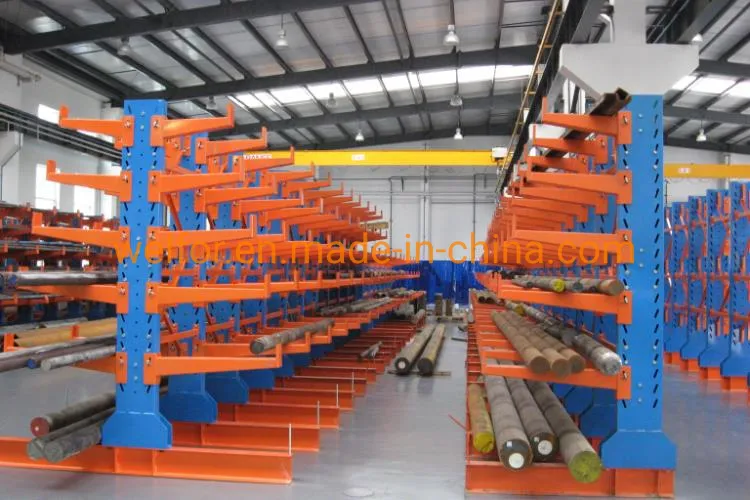

Industrial Warehouse Cantilever Racking System

Industrial Warehouse Shelving Cantilever Racks

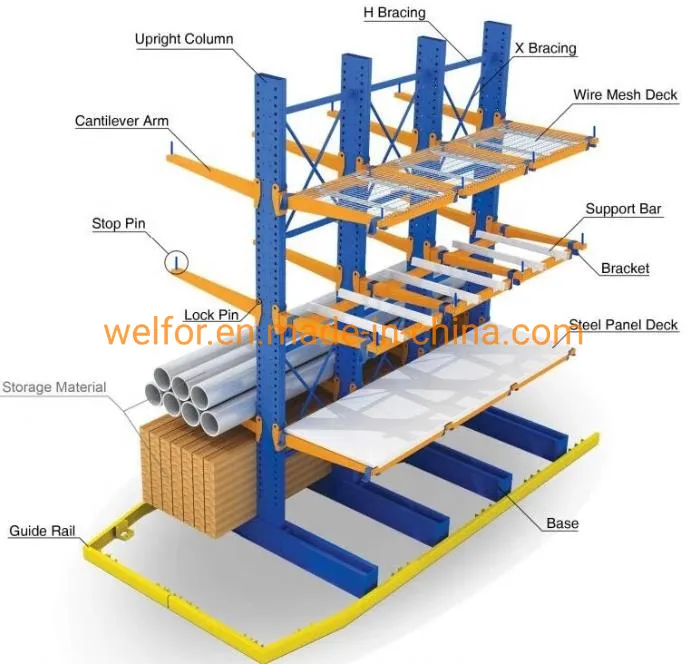

Product Overview: H beam cantilever rack is also called structural cantilever rack, single sided and double sided are both available. It features a simple structure, easy assembly, and disassembly. Mainly consists of column, base, arm, straight brace and "X" brace. The structure can load about 800kg to 1200kg per arm.

Feature	Details
Name	Cantilever Rack
Weight Capacity	500kgs / Layer
Standard Size	Customized is available
Certificate	SGS, CE, ISO9000
Finish	Powder Coating or Galvanized, Corrosion protection, Outdoor Powder Coated, Robot Welding
Main Components	Frame (Upright, Bracing, foot plate), Beam, Frame Tie, and accessories included
Optional	Upright Protector, Frame Protector, Wire Decking, Support Bar, Back Mesh, etc.
Color	Blue, Orange, Yellow, Red, Green. Customized color available
Lead Time	Standard 2-3 weeks
Warranty	2 Years

Technical Brief Introduction

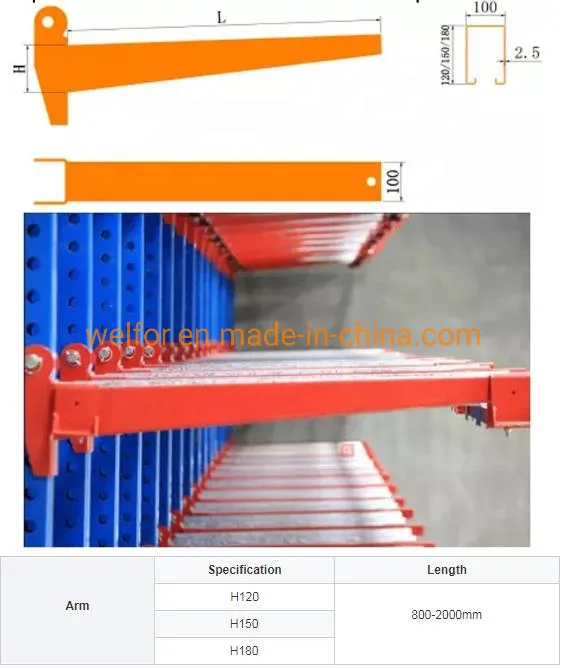

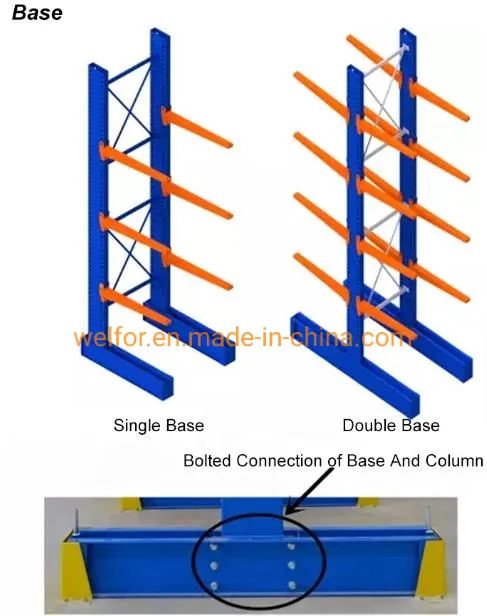

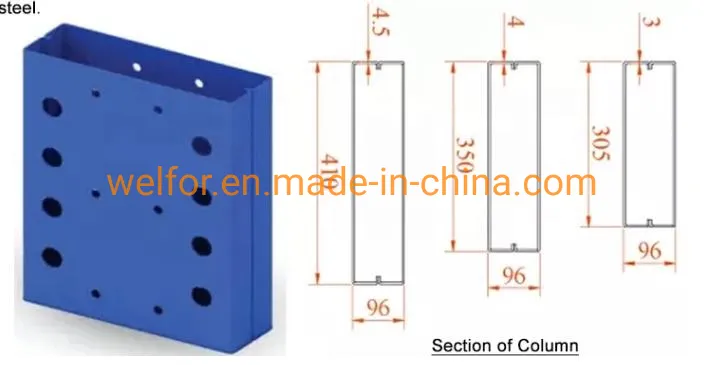

This Cantilever Rack is designed with C/C roll-formed upright column of hot-rolled coil, while arm and column are bolted connected by lifting lug. The base is a welded single unit to be bolted with column. Adjustable diagonal flats and connecting bar is designed to improve the whole stability.

Key Advantages

✔️

Height Versatility: Exceeding 6m height is available, reaching up to 10.5m.

✔️

Heavy Loading: Loading of single-arm can reach up to 1500kg.

✔️

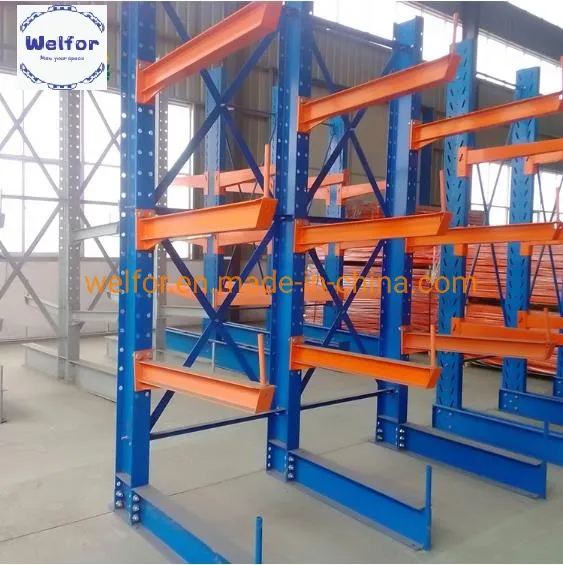

Safety Design: Arm has a 2° uptilt to ensure goods won't tilt down.

✔️

Ingenious Connection: Connection mitigates the impact of forklift operations.

✔️

Custom Extensions: Longest arm can reach up to 3m.

Application Industries

📍Textile and garment industry

📍Machinery and equipment industry

📍Food and cold storage

📍Logistics and warehouse

📍Auto parts and 4S shops

📍Pharmaceutical and chemical

Frequently Asked Questions (FAQ)

❓ What is the typical weight capacity per arm?

The standard cantilever racks support approximately 800kg to 1200kg per arm, with heavy-duty options capable of reaching up to 1500kg.

❓ Can the height of the racks be customized?

Yes, we can provide column heights exceeding 6 meters, with the highest columns reaching up to 10.5 meters.

❓ How does the safety uptilt feature work?

Our cantilever arms are designed with a 2° uptilt. This ensures that when goods are placed, the arm will not tilt downward, maintaining structural safety and load stability.

❓ What types of finishes are available for corrosion protection?

Racks are available with high-quality powder coating or galvanized finishes, making them suitable for both indoor and outdoor warehouse environments.

❓ What is the lead time for a standard order?

The standard production lead time is typically 2 to 3 weeks, depending on the order volume and customization requirements.

❓ Are the racks compatible with irregular-sized items?

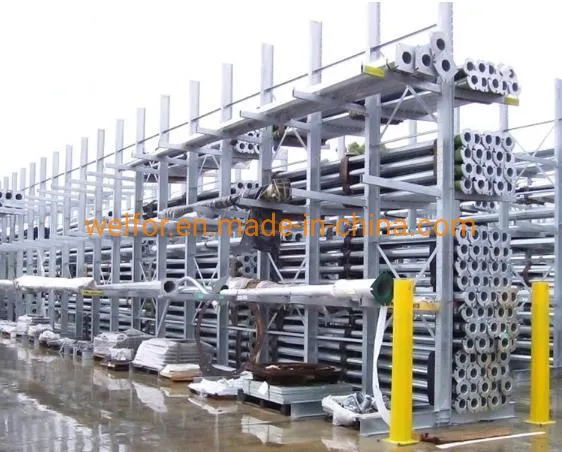

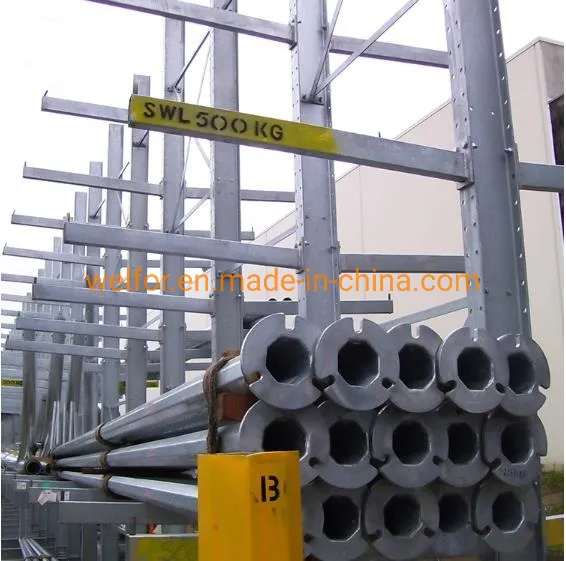

Absolutely. Cantilever racks are specifically designed for long, bulky, and irregular materials like pipes, timber, and steel sheets.
