Product Description

📊

Basic Information

Usage	Beverage, Supermarket, Food, Industrial, Warehouse Rack
Material	Steel Q235, SS400
Structure	Shelf
Type	Multi-Level Racking
Mobility	Rotary
Height	>15m (Up to 25,000 mm)
Weight Capacity	Up to 5,000 kg UDL/level
Product Name	Automatic Storage & Retrieval System (ASRS)
HS Code	73089000

⚙️

Product Description

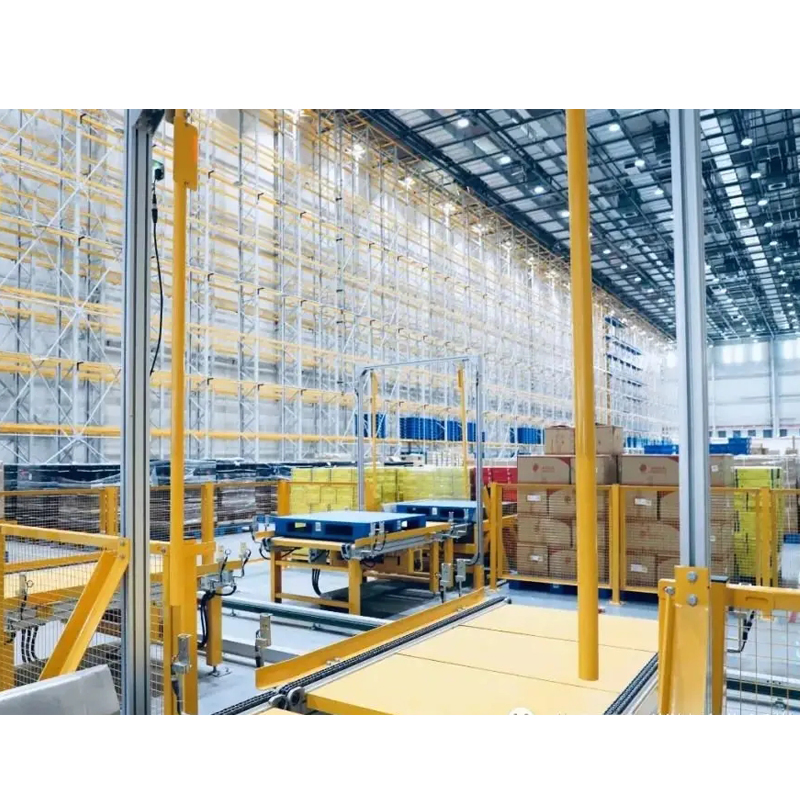

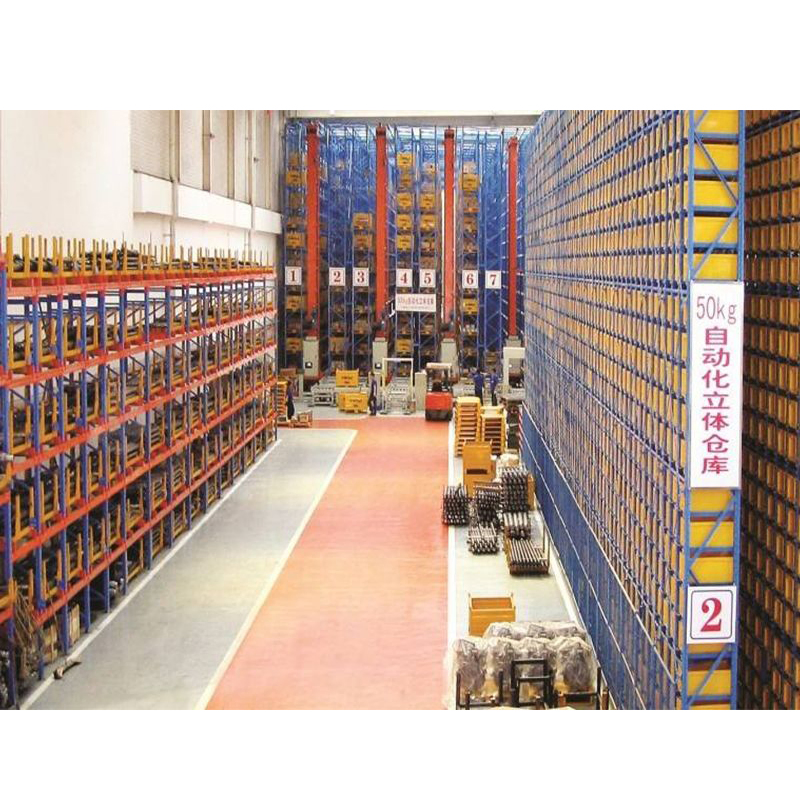

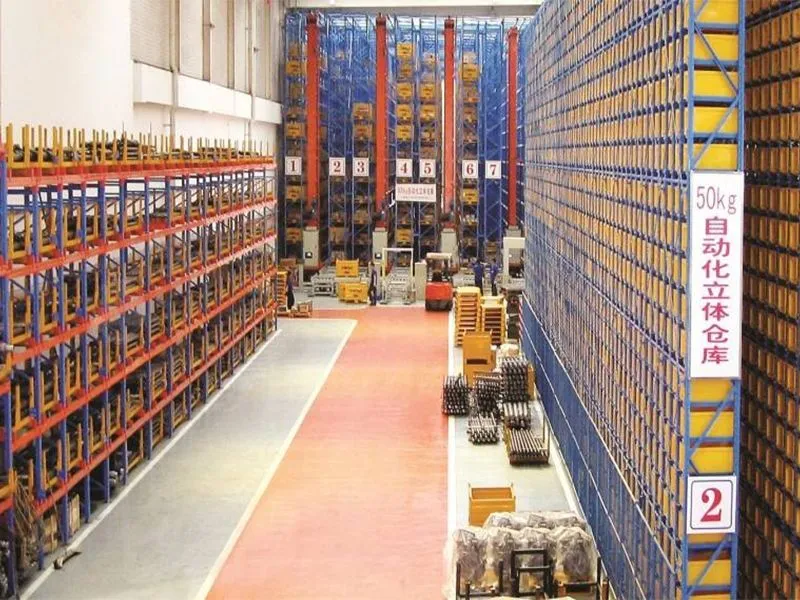

The High Efficiency ASRS Automatic Warehouse Storage Rack System is a comprehensive three-dimensional automatic warehouse storage solution. It integrates a Racking system, Automatic Storage and Retrieval Machine (Stacker Crane), Conveyors, Palletizer, De-palletizer, Automatic transfer equipment, Electrical control System, and WMS/WCS software.

Designed with advanced logistics concepts and control technology, this system provides a fully customized solution for retrieval and storage requirements, primarily utilized in canned drinks, food processing, and various industrial warehouse sectors.

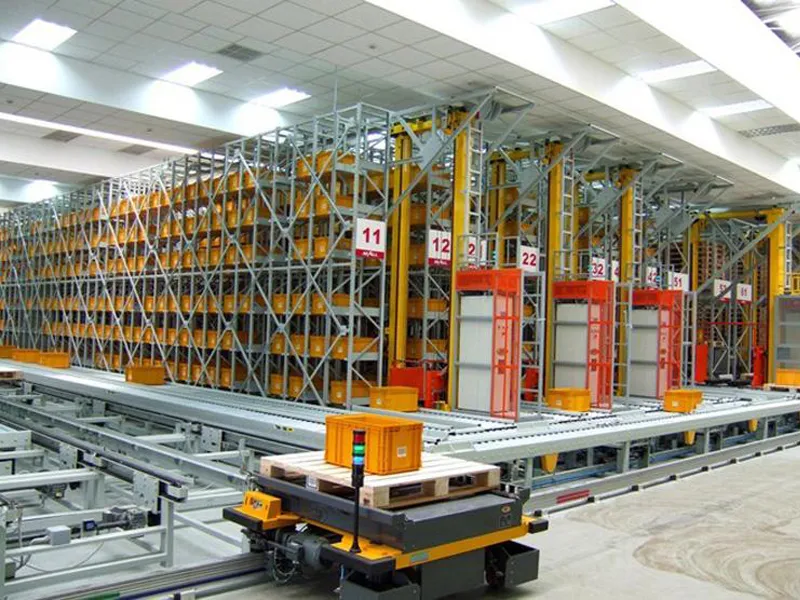

1. Racking System

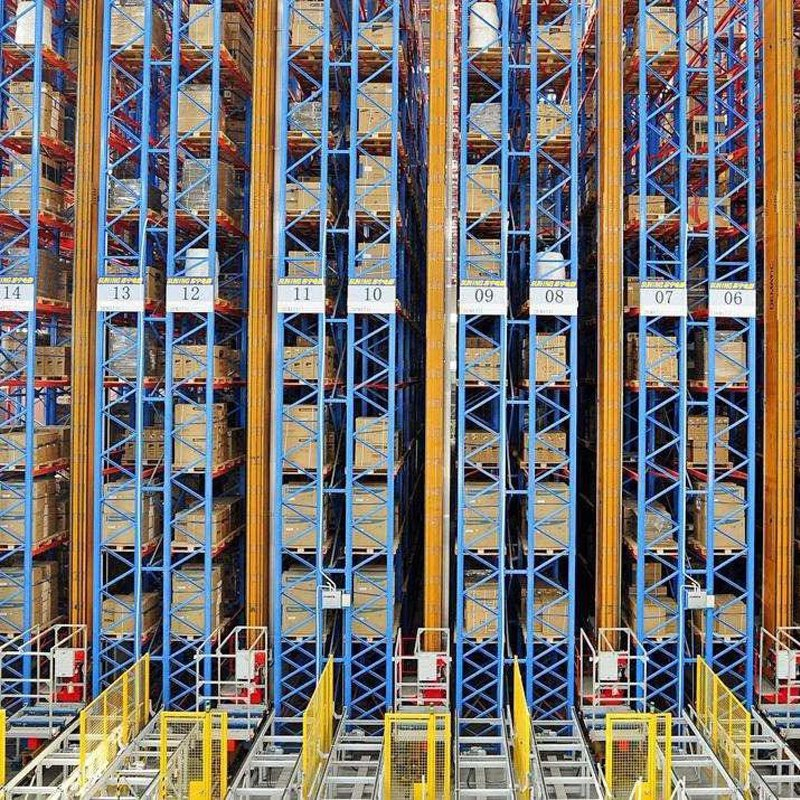

The rack system consists of pallet racking and cantilever racking, treated with powder coating for durability. It is designed to store box or pallet cargo efficiently within an AS/RS environment.

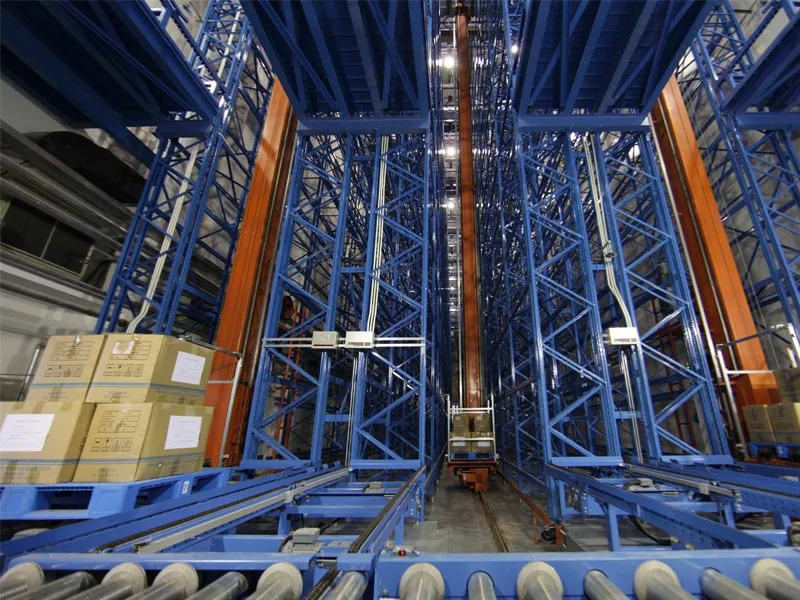

2. Storage & Retrieval Machine (Stacker Crane)

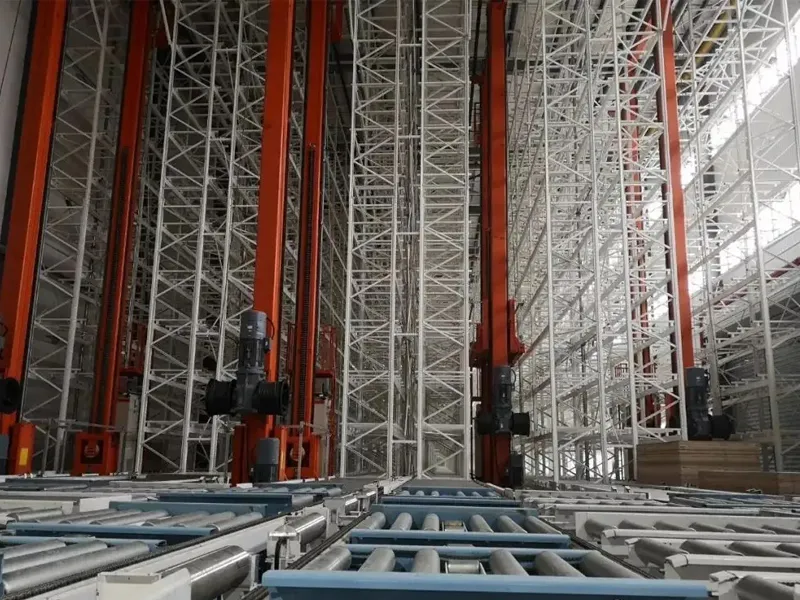

The Stacker Crane is the heart of the ASRS, fulfilling the task of storing or retrieving cargo from specific shelf areas with high precision and speed.

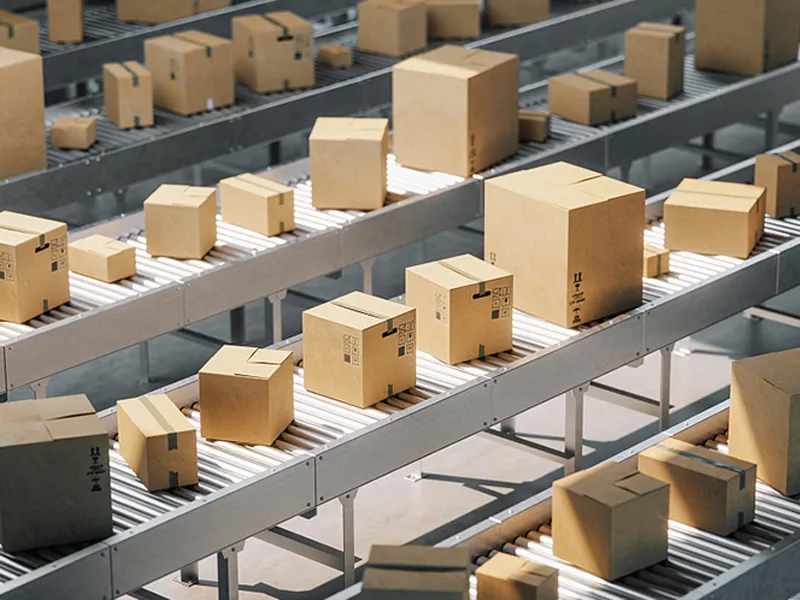

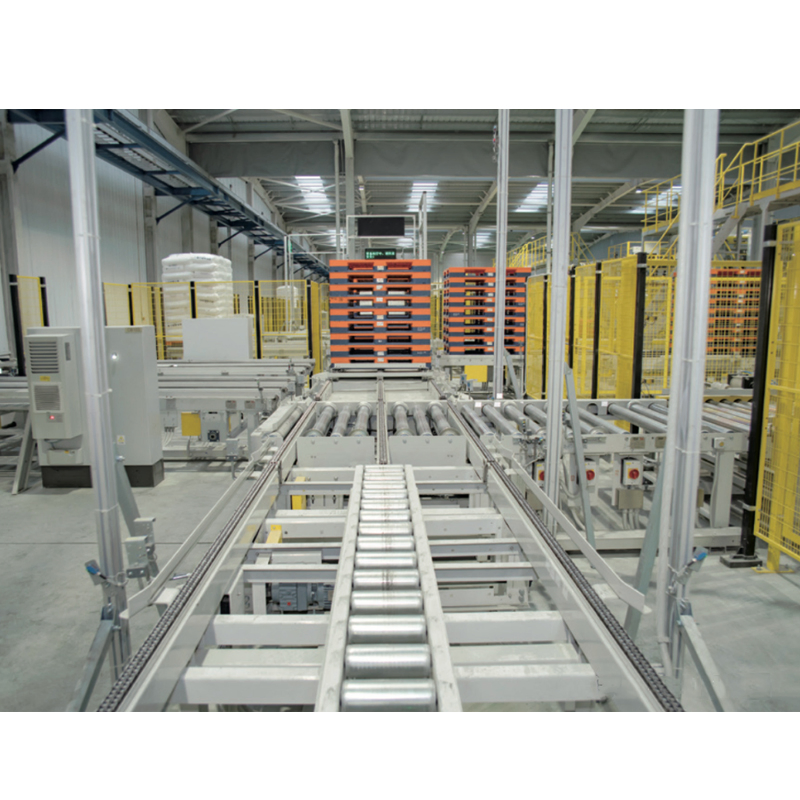

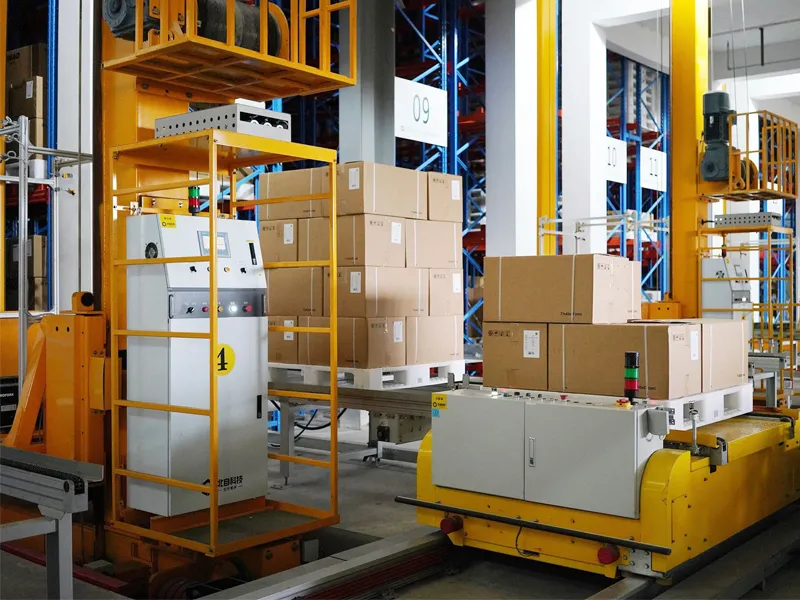

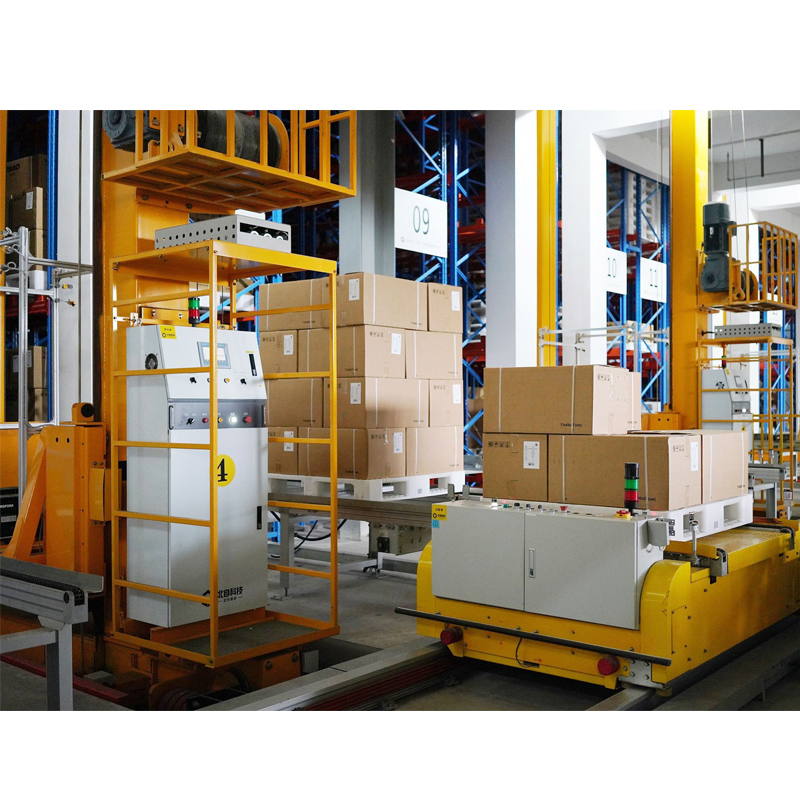

3. Conveying & Stacking System

Includes various conveyors, lifting devices, RGV (Rail Guided Vehicles), and detecting doors. The palletizing system stacks cartons or bags before they are transported to the racks, significantly saving labor costs.

4. Control & Management Software

WMS System: Manages the star network structure, network servers, and RF terminals for inventory monitoring.
Electrical Control: Coordinates the movement of all hardware, including stacker cranes and RGV units.

🛠️

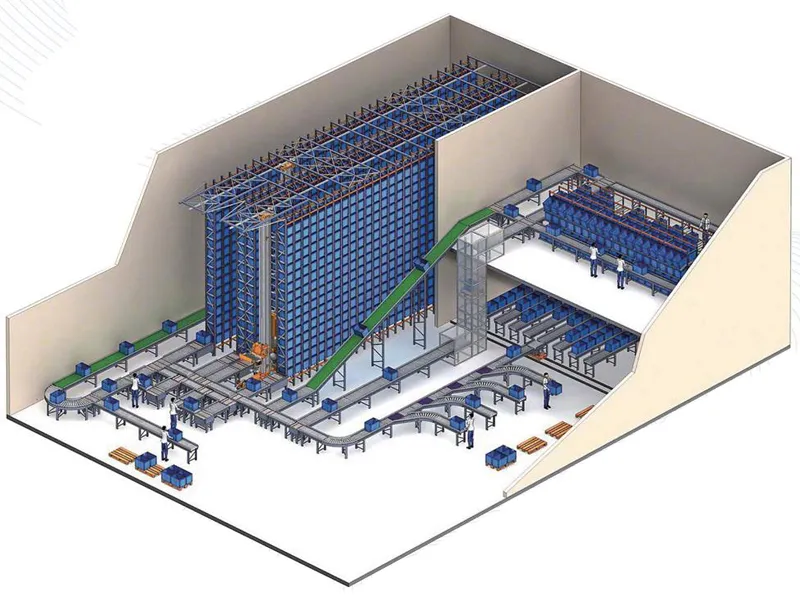

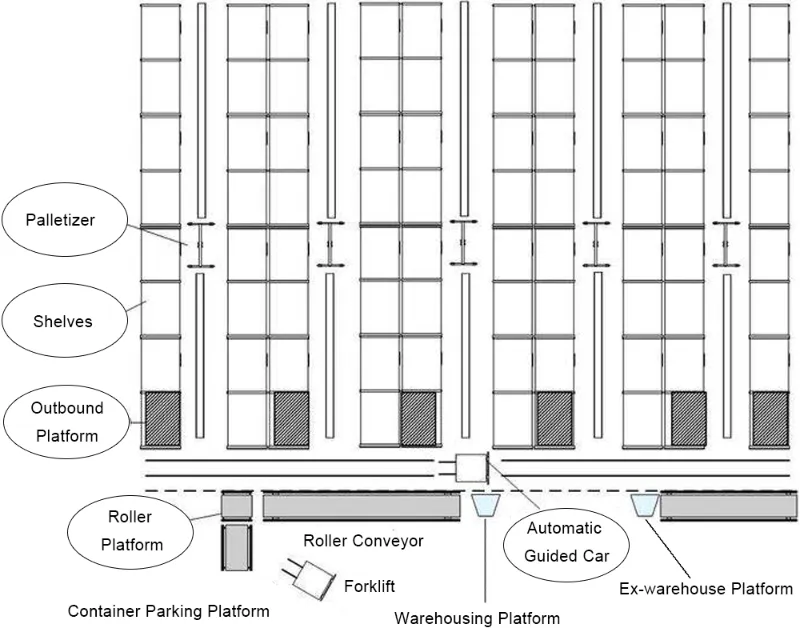

Custom Solutions

We provide free solution design tailored to your exact warehouse dimensions and operational demands.

📦

Related Equipment

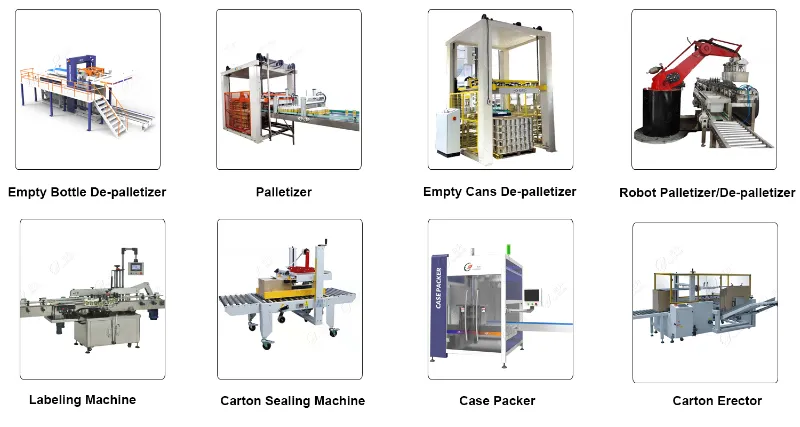

Professional packaging solutions including labeling machines, palletizers, sealing machines, and case packers to complete your end-of-line production.

❓

Frequently Asked Questions

Q1: What are the main products available? The range includes Palletizers, Conveyors, Case Packers, Sealing machines, Case Erecting machines, Capping Machines, and Labeling Machines.

Q2: What is the typical delivery date? For most machines, the delivery date is usually 30 working days.

Q3: What are the payment terms? A 30% deposit is required in advance, with the remaining 70% due before the machine is shipped.

Q4: How do you guarantee the quality of the equipment? We utilize a strict working procedure where different workers are responsible for specific processes. Core electrical and pneumatic components are sourced from world-famous brands like Siemens and Panasonic. All machines undergo strict test runs and are certified by CE, ISO, and SGS.

Q5: Can you design the system according to specific requirements? Yes, we can customize equipment based on technical drawings or design entirely new machines to meet your specific operational needs.

Q6: Is overseas technical support available? Yes, we can dispatch engineers to your site to set up the machinery and provide training for your workers if required.
