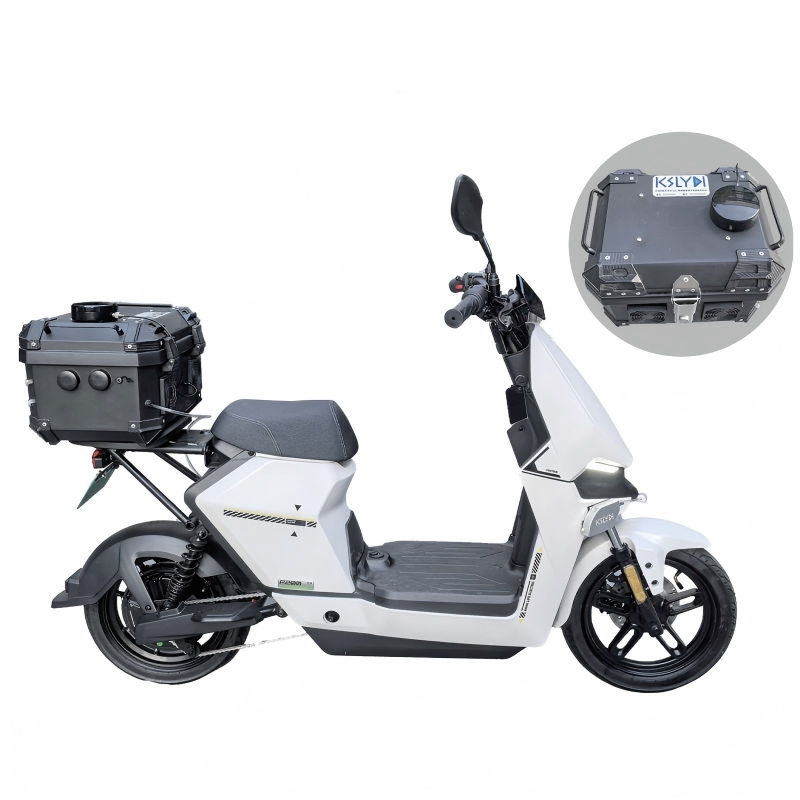

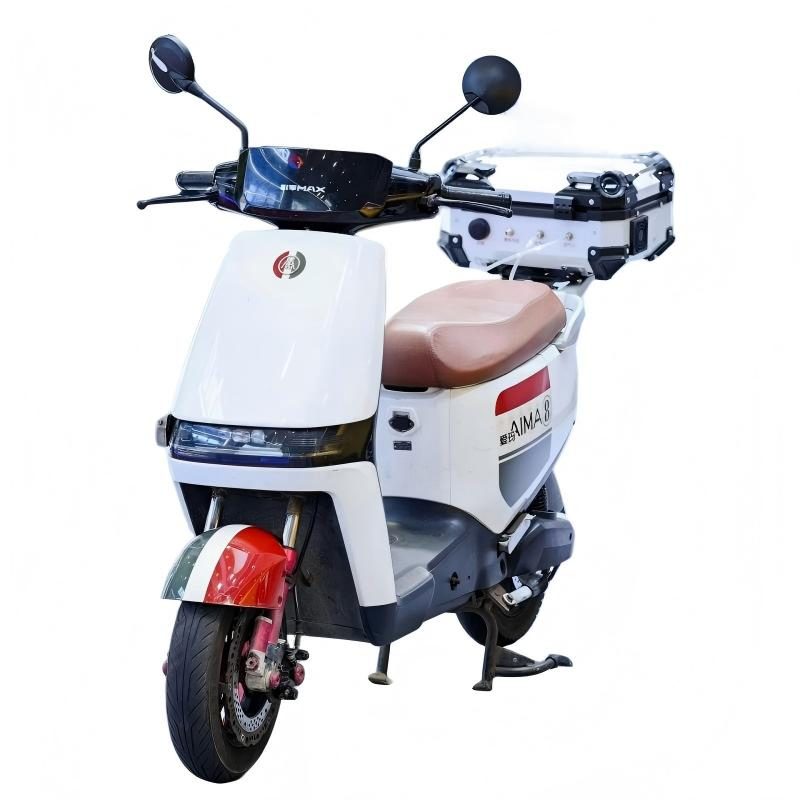

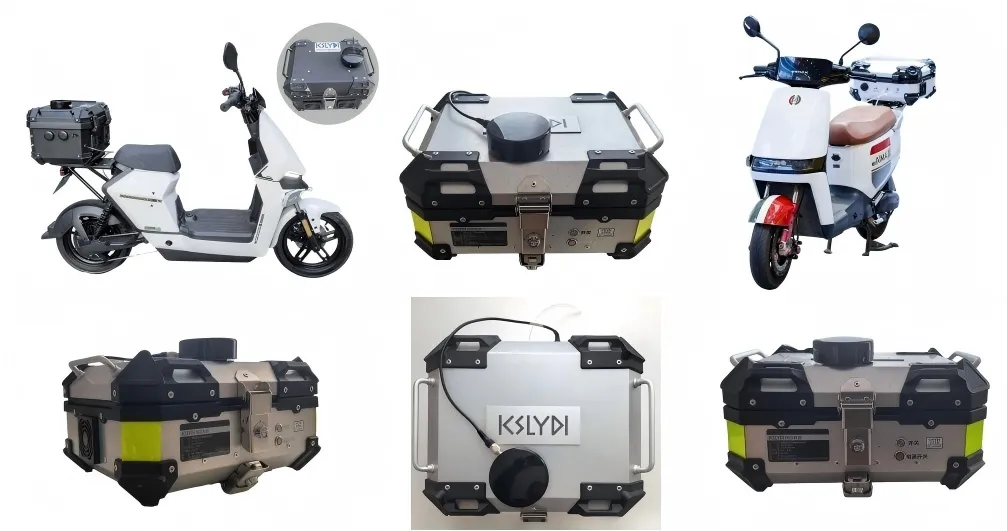

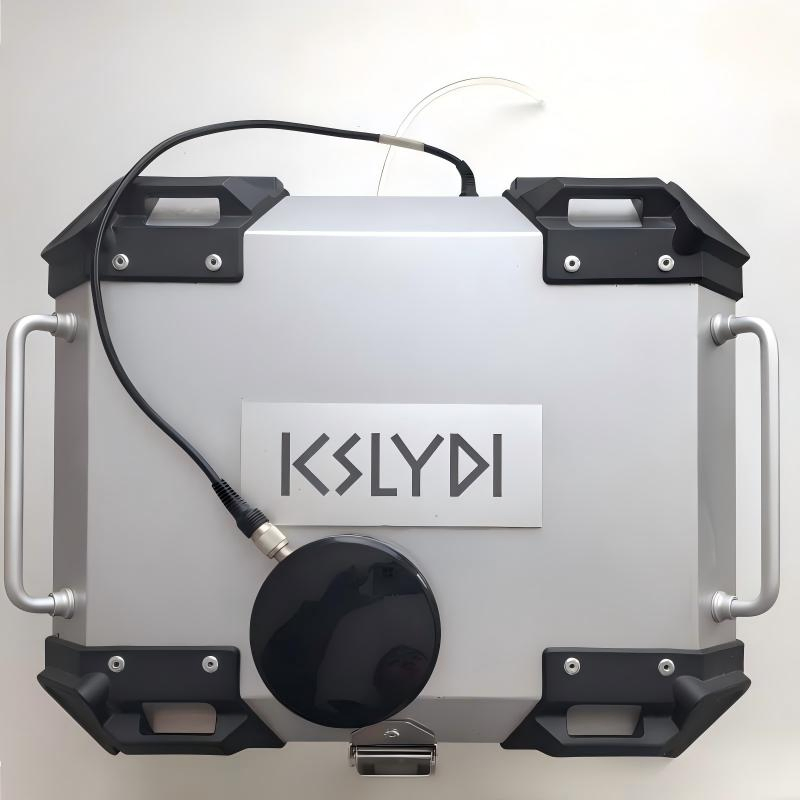

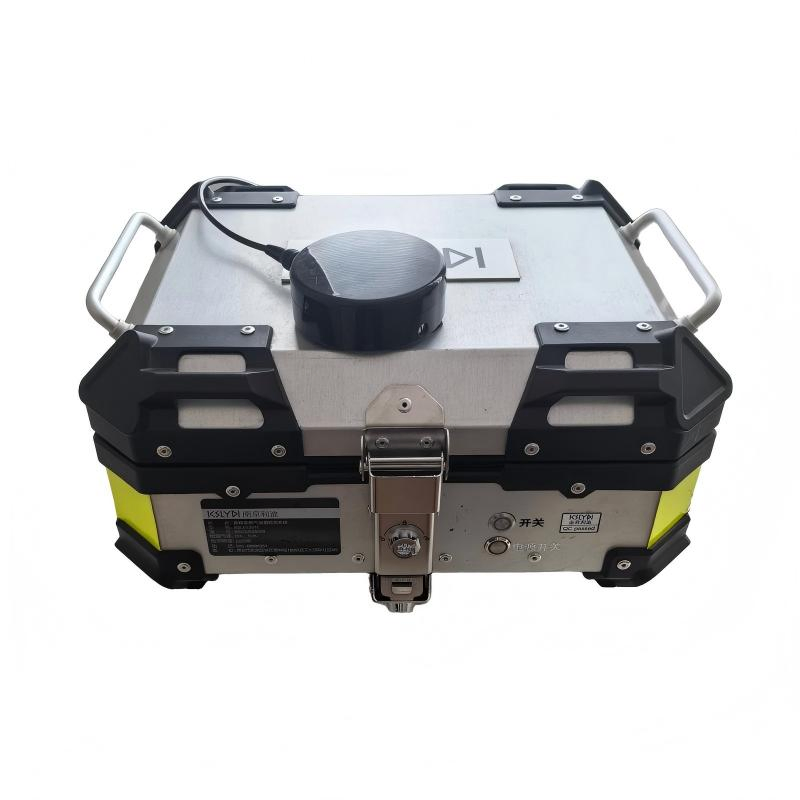

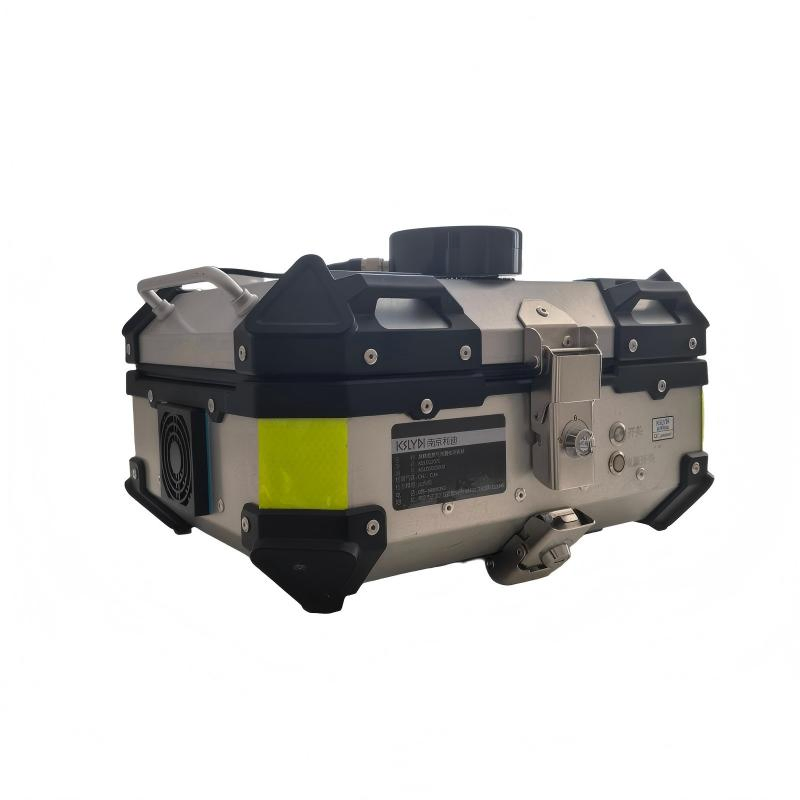

By utilizing a mid-infrared laser absorption spectrometer combined with high-precision positioning and real-time data transmission, this two-wheeled ppb-level natural gas detection system achieves accurate identification of gas leaks.
The inspection data is uploaded in real-time, merged with vehicle-mounted detection tasks, and fully integrated with GIS systems. This highly stable system is designed to handle shock, rain, and extreme temperature variations, ensuring efficient long-term pipeline inspections in urban areas and narrow courtyards.
| PARAMETRIC | DESCRIPTION |
|---|---|
| Measurement Technology | Mid-infrared laser absorption spectrum |
| Maximum Speed | 60km/h |
| Analysis Media | Environmental Atmosphere (Methane and Ethane) |
| Detection Precision | Methane at 2ppb, Ethane at 2ppb |
| Detection Range | 0.002~1000ppm (CH4 & C2H6) |
| Gas Intake Method | Pump suction |
| Positioning | Beidou inertial navigation (centimetre level) |
| Start-up Time | ≤1 min |
As a leading developer of ppb-level detection products, our technical team is committed to intelligent gas leakage detection and city gas lifeline infrastructure solutions. Leveraging ppb-level mid-infrared laser technology, we provide proprietary algorithms and software platforms across various deployments, including automobiles, UAVs, robotic dogs, and two-wheeled vehicles.
Our solutions offer integrated 3D multi-dimensional intelligent detection through aerial, ground, and subterranean platforms. The research team specializes in gas dispersion dynamics in soil and atmosphere, ensuring high-end empowerment for smart city gas safety.
Daily Maintenance: Check power supply, sampling gas lines, and filter status before each test. Ensure sensors and antennas are kept clean and stored properly in vehicles. Filters should generally be replaced every 3 months.
Usage Precautions: Avoid operations in heavy rain or snow to protect the laser cell. In summer, park in shade to avoid direct sunlight. For humidity exceeding 85%, use desiccants on the intake duct.
