Intelligent Warehouse Increase Space Usage Storage Racks Very Narrow Aisle Pallet Rack / Vna Racking System
Intelligent Warehouse Increase Space Usage Storage Racks Very Narrow Aisle Pallet Rack / Vna Racking System
Intelligent Warehouse Increase Space Usage Storage Racks Very Narrow Aisle Pallet Rack / Vna Racking System
Intelligent Warehouse Increase Space Usage Storage Racks Very Narrow Aisle Pallet Rack / Vna Racking System
Intelligent Warehouse Increase Space Usage Storage Racks Very Narrow Aisle Pallet Rack / Vna Racking System
1 / 5
Intelligent Warehouse Increase Space Usage Storage Racks Very Narrow Aisle Pallet Rack / Vna Racking System
Intelligent Warehouse Increase Space Usage Storage Racks Very Narrow Aisle Pallet Rack / Vna Racking System
Intelligent Warehouse Increase Space Usage Storage Racks Very Narrow Aisle Pallet Rack / Vna Racking System
Intelligent Warehouse Increase Space Usage Storage Racks Very Narrow Aisle Pallet Rack / Vna Racking System
Intelligent Warehouse Increase Space Usage Storage Racks Very Narrow Aisle Pallet Rack / Vna Racking System

Intelligent Warehouse Increase Space Usage Storage Racks Very Narrow Aisle Pallet Rack / Vna Racking System

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Information

Material
Steel
Structure
Rack
Type
Pallet Racking
Mobility
Adjustable
Height
5-15m
Weight
>500kg
Surface Treatment
Powder Coating & Galvanized
Capacity
1000-4000kg
Origin
China
Production
10000ton/Year
P

Product Description

Very Narrow Aisle Racking (VNA Rack) provides a high-density storage solution by reducing aisle width compared to selective pallet racks. It maximizes the use of warehouse space, offering superior storage capability for modern logistics facilities.

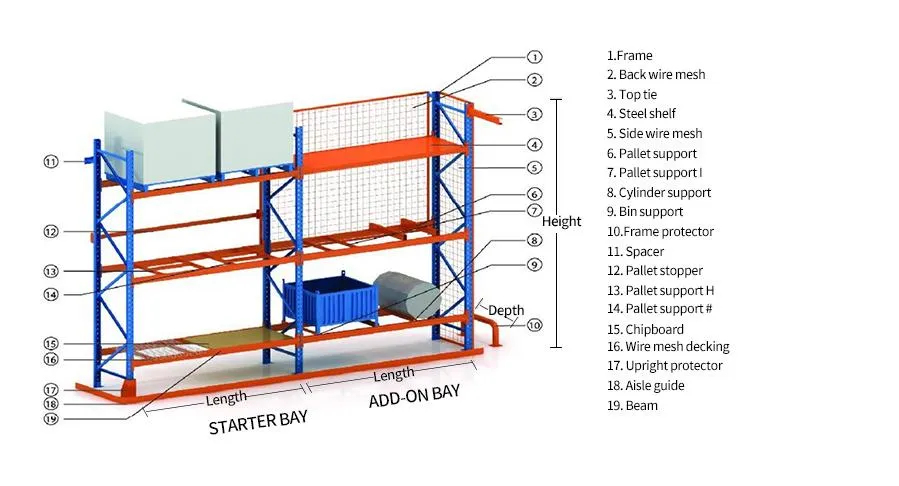

VNA Racking System
  • Narrower aisles compared to selective pallet racks, maximizing vertical and floor space.
  • Load per level typically ranges from 500 to 4000kg.
  • Heights can reach 12 meters or more, depending on operational needs.
  • Adjustable beam heights to accommodate various product dimensions.
  • Widely used in machinery, logistics, food, chemical, electronics, and furniture industries.
Technical Specifications
Rack CostMedium Low
Pick-up ModeFlexible
Forklift AisleAround 1700mm (Depends on forklift parameters)
Load Capacity≤4000kgs per beam pair
Standard Length950mm ~ 3700mm
Standard Depth700mm ~ 1500mm
MaterialQ235 (SS400), Q355 (S355JR)
FinishEpoxy resin electrostatic spraying (Powder Coating)
A

Key Advantages & Benefits

System Advantages

  • Fast order picking capabilities.
  • Best utilization of warehouse cubic space.
  • 100% accessibility to every individual pallet.
  • High throughput levels for busy operations.

Operational Benefits

  • Configuration optimized for maximum storage density.
  • Lower occupancy rates per pallet stored.
  • Suitability for uniform pallet sizes and automated systems.
  • Enhanced efficiency in high-roof warehouses.
D

Detailed Photos

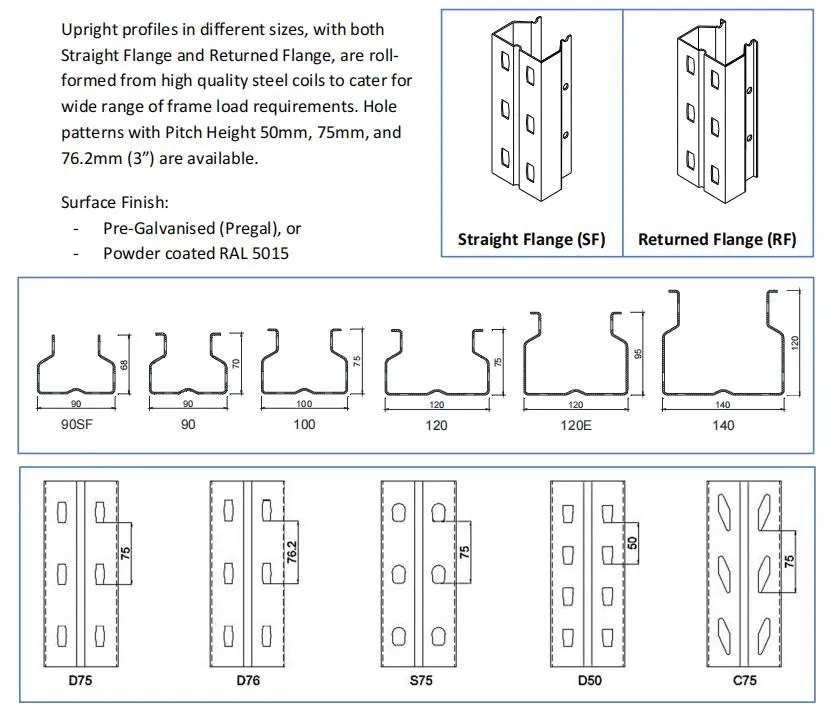

Detailed View 1

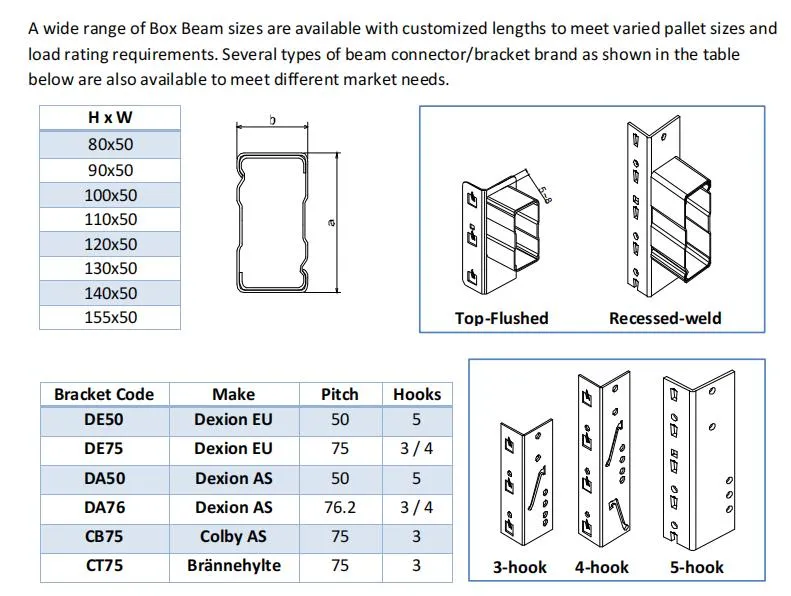

Detailed View 2

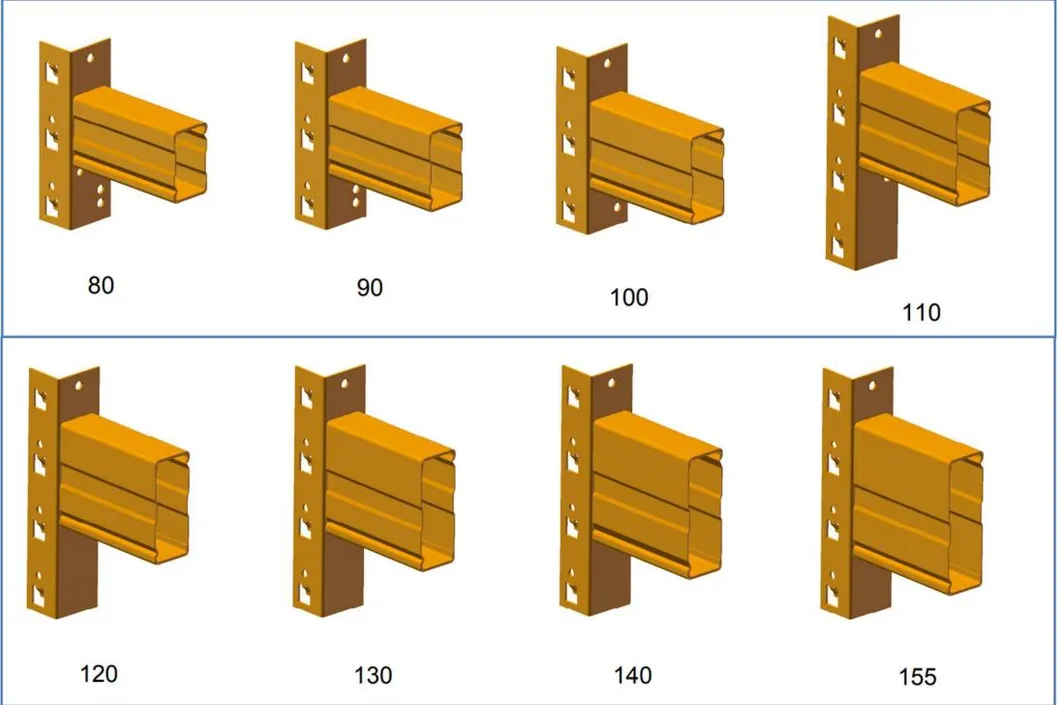

Detailed View 3

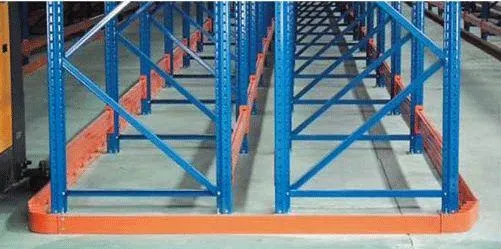

Component View 1

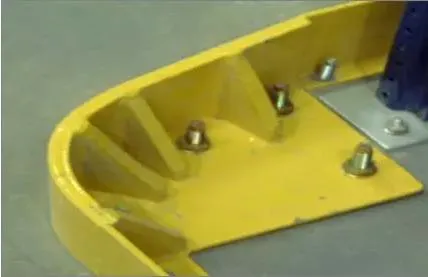

Component View 2
C

Professional Manufacturing

As a dedicated racking systems manufacturer, we focus on the international export market with installations in over 30 countries. We strive to serve clients with quality products, competitive prices, and prompt services. All materials undergo regular Tensile and Yield Strength tests to ensure top-tier safety. Our selective and cantilever racks comply with European FEM and Australian Standards.

Manufacturing Process

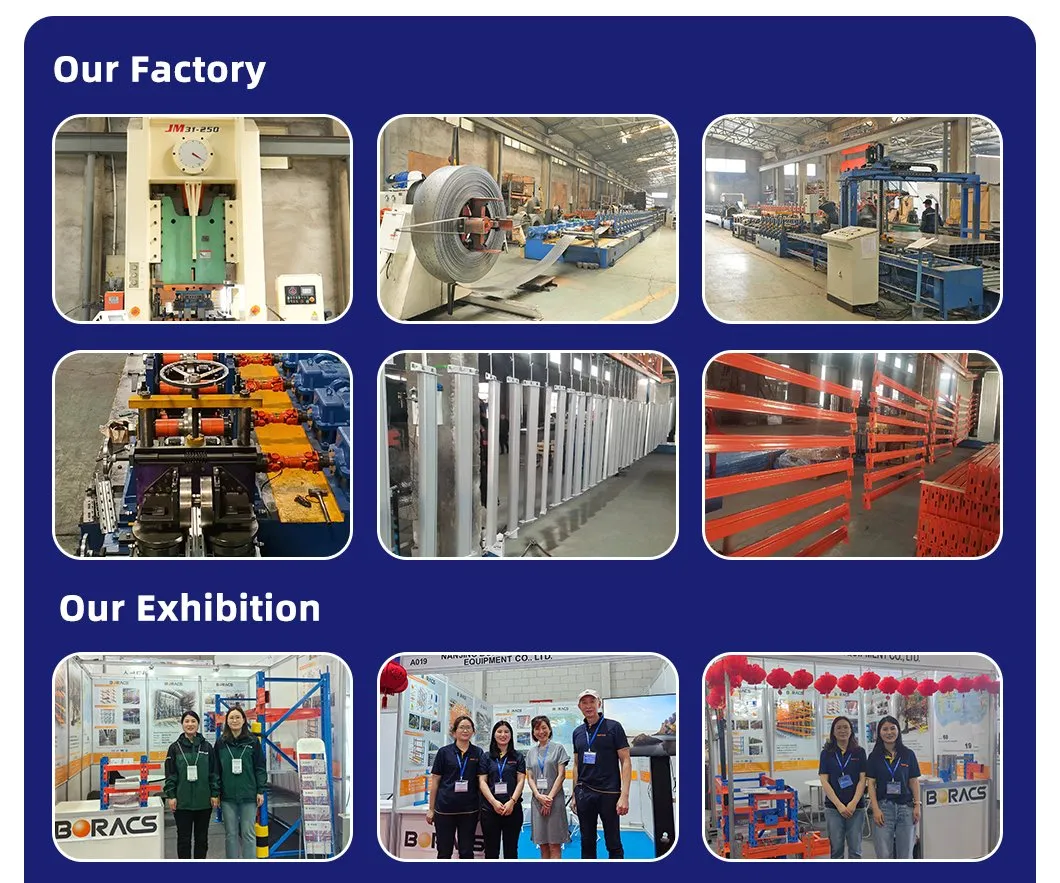

Quality Control
Global Shipping
?

Frequently Asked Questions

1. What makes your service different?
We offer quick quotes and promise to reply within 24 hours. Our expert team is available to provide immediate advice on storage solutions for your specific warehouse needs.
2. What is the typical manufacturing and delivery time?
For normal orders, we promise a production time within 15 days. Delivery typically occurs within 20 days for standard products, while special products depend on tooling setup.
3. How do you protect products for export?
We use specialized export packaging, including plastic clips on beams to prevent surface damage and transparent plastic film wrapping for all uprights during transportation.
4. What is the warranty period for your racking systems?
We provide a 10-year warranty for normal use, reflecting the high standards of our design and manufacturing processes.
5. What are the accepted payment terms?
We currently accept T/T (Telegraphic Transfer) and LC (Letter of Credit) for international orders.
6. Can I get samples or track my order status?
Yes, we can send sample sections via express for your reference. For active orders, we provide photos and updates at different production stages so you remain fully informed.
