Laser-Cut Steel Plate Intelligent Automated Sheet Metal Storage
Laser-Cut Steel Plate Intelligent Automated Sheet Metal Storage
Laser-Cut Steel Plate Intelligent Automated Sheet Metal Storage
Laser-Cut Steel Plate Intelligent Automated Sheet Metal Storage
Laser-Cut Steel Plate Intelligent Automated Sheet Metal Storage
1 / 5
Laser-Cut Steel Plate Intelligent Automated Sheet Metal Storage
Laser-Cut Steel Plate Intelligent Automated Sheet Metal Storage
Laser-Cut Steel Plate Intelligent Automated Sheet Metal Storage
Laser-Cut Steel Plate Intelligent Automated Sheet Metal Storage
Laser-Cut Steel Plate Intelligent Automated Sheet Metal Storage

Laser-Cut Steel Plate Intelligent Automated Sheet Metal Storage

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
HC-S6015-63
Usage
Tool Rack, Industrial, Warehouse Rack
Material
Steel
Structure
Drawer
Type
Multi-Level Racking
Mobility
Adjustable
Height
5-15m
Weight
500kg
Mode of Movement
Linear Guide Rail + Chain
Loading Per Layer
3t/5t
Capacity
10000set/Year
Sheet Metal Storage
Automated Storage Detail
Sheet Metal Automatic Storage Unit

It enables centralized storage of plates, automatic weight detection, automatic warehousing, and automatic retrieval. Controlled by PLC and touch screen, it achieves classified visual management of plates, ensuring safety and efficiency. It effectively ensures product quality, improves production efficiency, and reduces production costs.

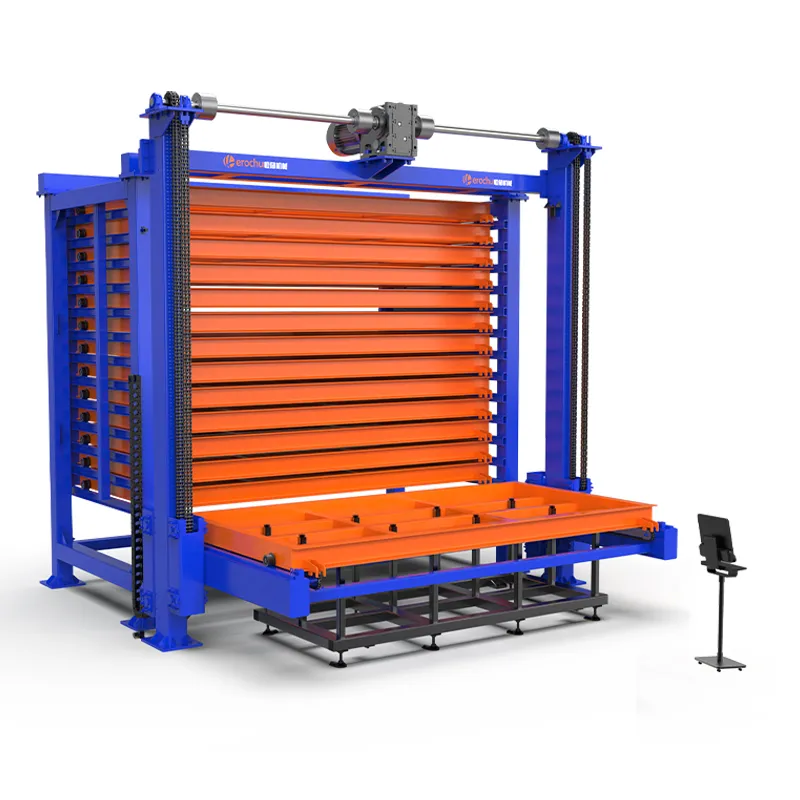

Automatic Unit View

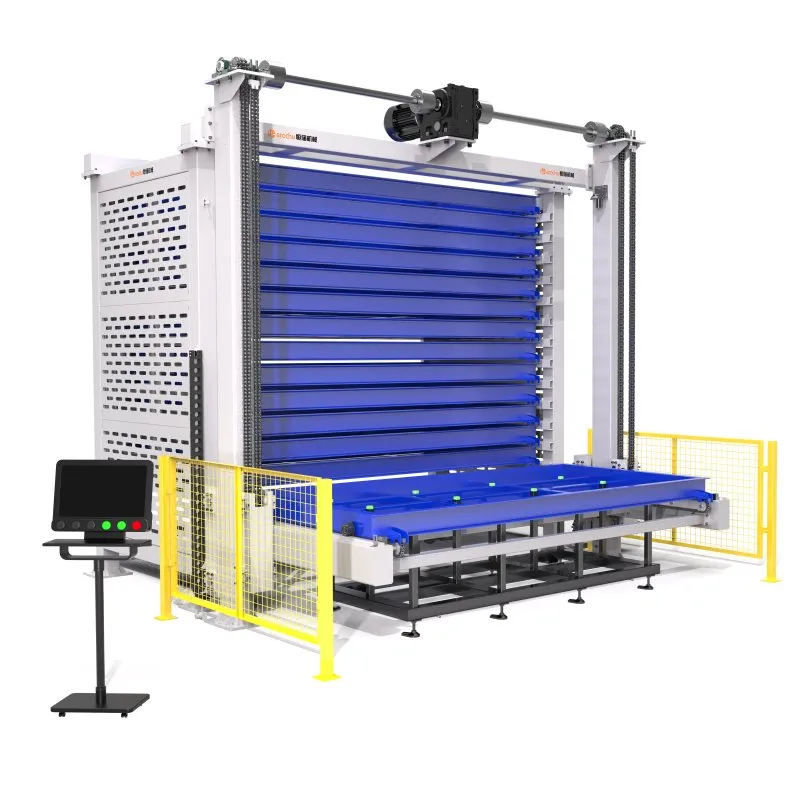

Storage Structure
1

The Robotic Core: Precision Movement and Drive

The system's ability to reliably handle tons of material with millimeter precision rests on its robust transmission and movement systems.

  • Linear Guide Rail + Chain Movement: Ensures smooth, rigid, and precisely aligned horizontal and vertical movement. The durable chain drive provides powerful engagement for consistent operation over millions of cycles.
  • Optimized Performance Speeds: Vertical lifting speed of 9 m/min and inlet/outlet speed of 12 m/min, designed for unwavering stability and precision.

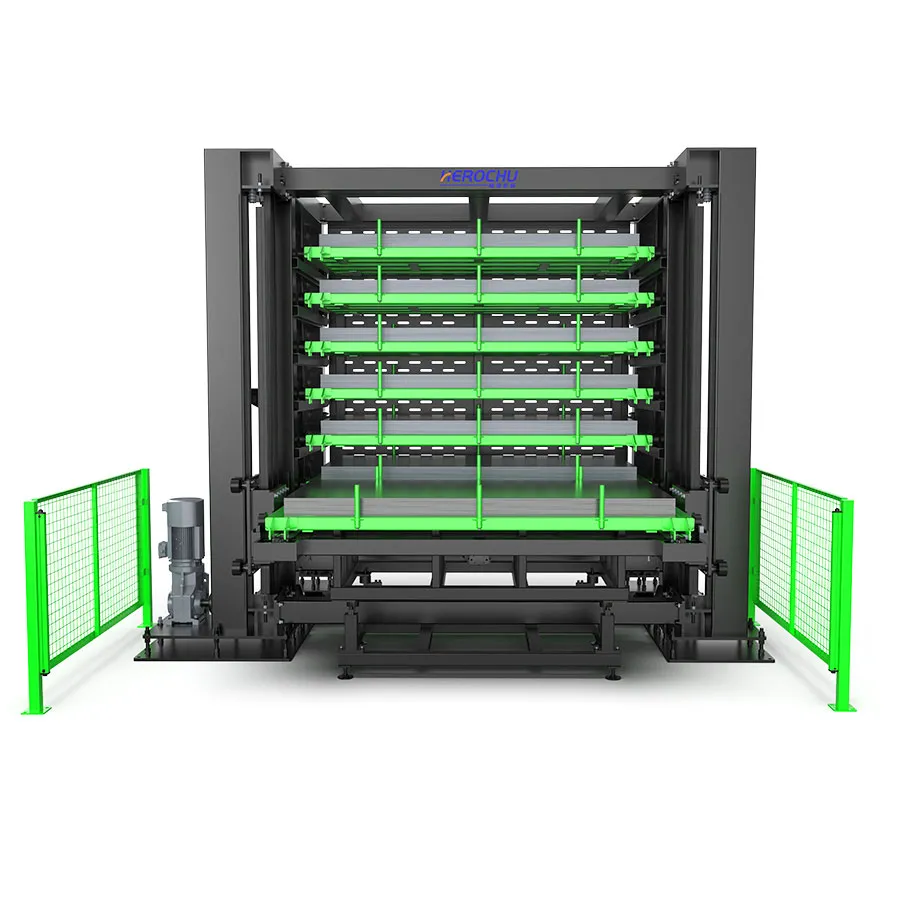

Movement System
2

The Backbone: Structural Integrity and Customization

Designed dynamically for decades of heavy-duty use.

  • High-Strength Steel Construction: Fabricated from high-grade steel to withstand constant stresses.
  • Unmatched Customization: Configure number of floors, storage units, and sheet sizes (3015, 4020, 6020mm).
  • Load Capacity: Choose between 3T or 5T load per layer.

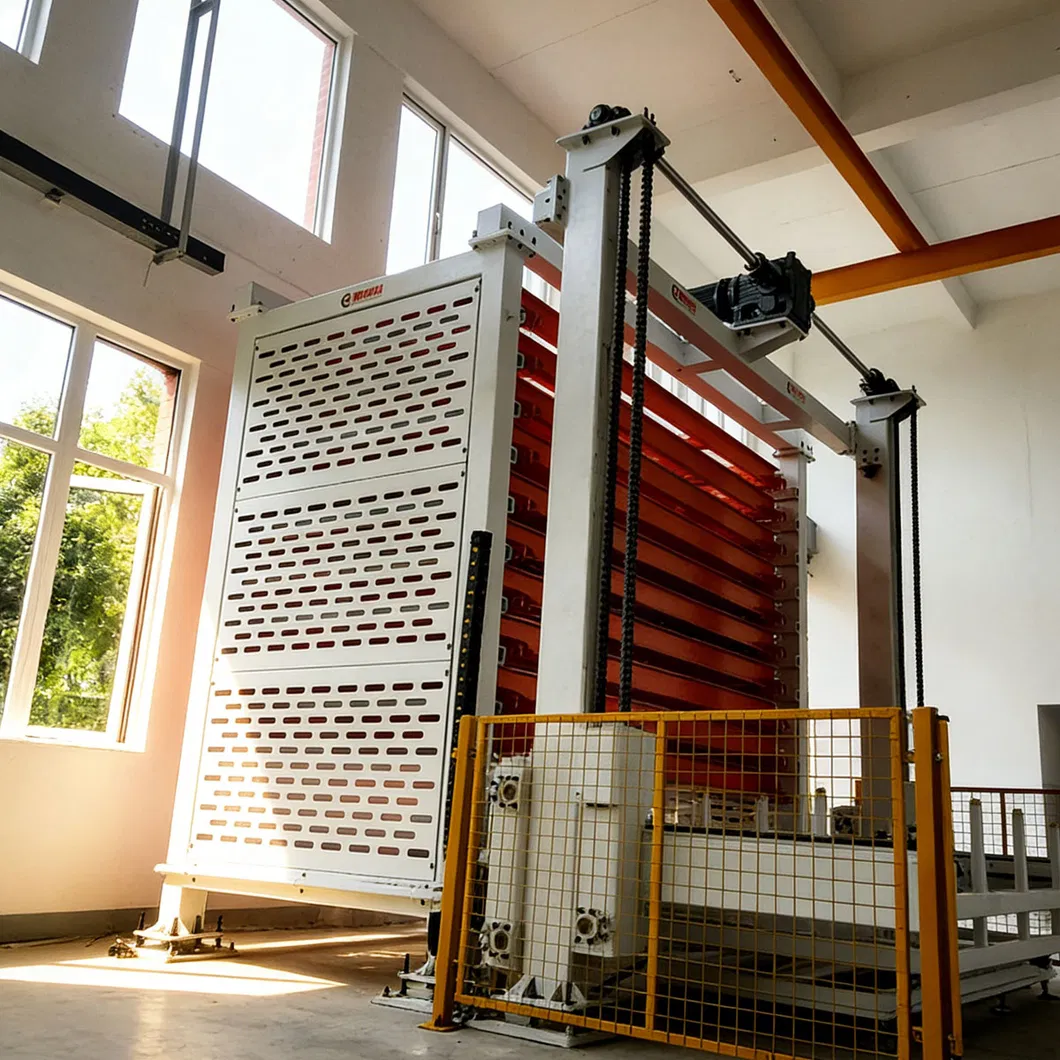

Structural Frame
3

The Intelligent Layer: Pallet and Support Systems

Drawer pallets are engineered for maximum support and minimal deflection.

  • Engineered Pallets: Pressure rating of 667 kg per square meter to prevent bowing or warping.
  • Optional Support Configurations: Tailored designs for delicate aluminum, thick steel, or non-ferrous metals.

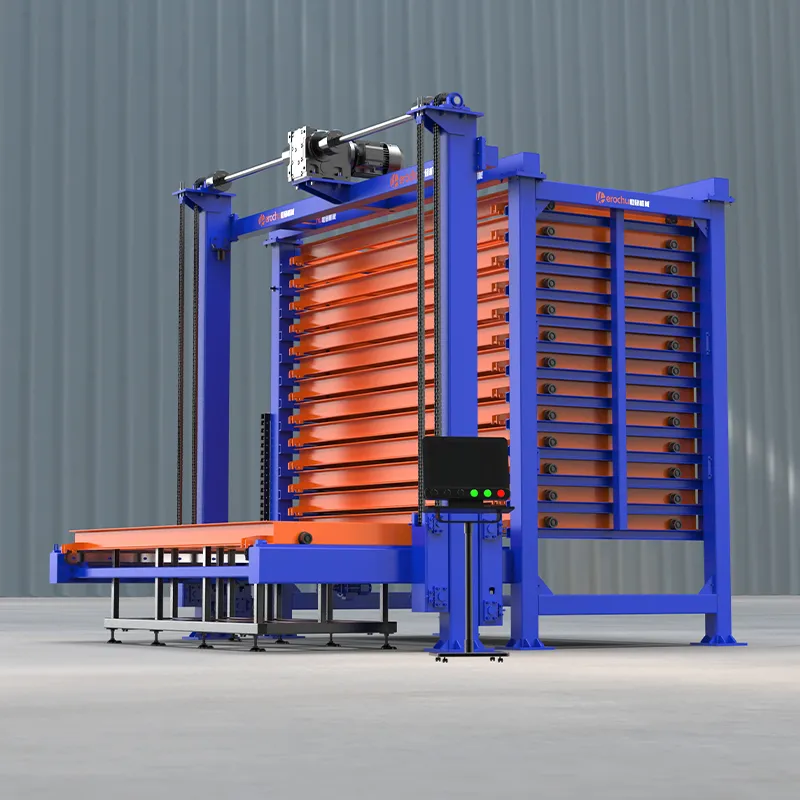

Pallet Detail 1

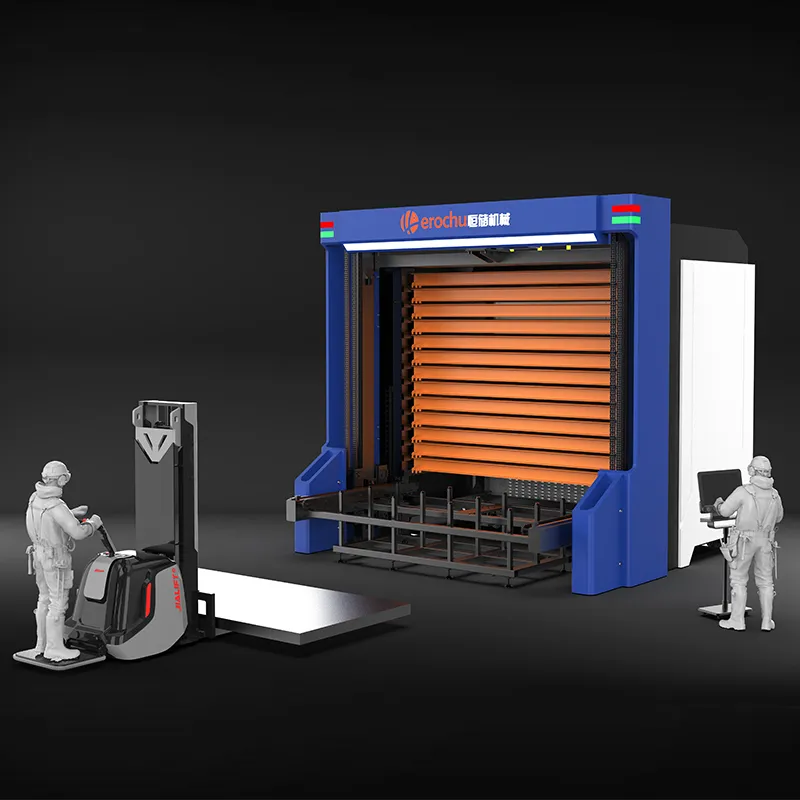

Pallet Detail 2

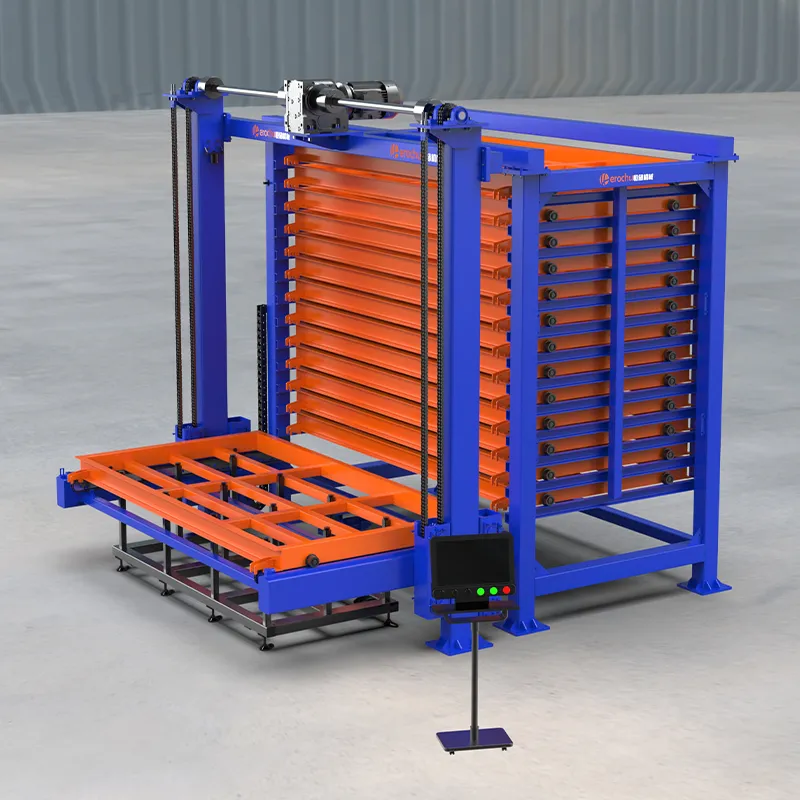

Pallet Detail 3
Technical Specifications Overview
Specs Banner
Specification Value Range
Sheet Size Compatibility3015/4015/4020/6015/6020/6025mm
Number of FloorsCustomization Available
Load per Layer3T / 5T
Mode of MovementLinear Guide Rail + Chain
Transmission ModeChain Drive
Vertical Lifting Speed9m/min
Inlet and Outlet Speed12m/min
Plate SupportOptional Selection
Warehouse View 1
Warehouse View 2
Warehouse View 3
Frequently Asked Questions
How can I proceed with procurement?
Contact our technical personnel with your parameters. We will provide a suitable technical solution and quotation based on your requirements.
How do I determine the right shelf specifications?
Provide details regarding the material type, dimensions, and the required number of storage layers. Our team will design a professional solution tailored to your needs.
Do you provide integrated loading and unloading systems?
Yes. We need to know the laser cutting machine table size and your specific loading method (board rack, exchange platform, or material warehouse) to provide the correct configuration.
Can you provide on-site installation and debugging?
Yes, professional personnel can be sent to your factory to install and debug the system until successful trial operation is achieved. We have global service experience.
How is product quality ensured?
We implement ISO9001 quality standards and maintain a dedicated quality inspection department. Load testing is conducted on all equipment before it leaves the factory to ensure structural stability and safety.
Can I inspect the equipment before purchasing?
We welcome video factory inspections and on-site visits to observe our manufacturing processes and equipment strength firsthand.
