Live Racking Solutions for Effective Pallet Management in Warehouses

Customization:	Available
After-sales Service:	All Life
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Usage:Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack

Material:Steel

Structure:Rack

Type:Gravity Rack

Mobility:Adjustable

Height:0-10 meters

Weight:500-1500kg

Closed:Semi-closed

Used Scene:Pallet Density Storage, Cold Warehouse

Load/Unload:Forklift or Forklift Agv

Surface:Powder Coating or Galvanizing

Production Capacity:10000 Sets/Year

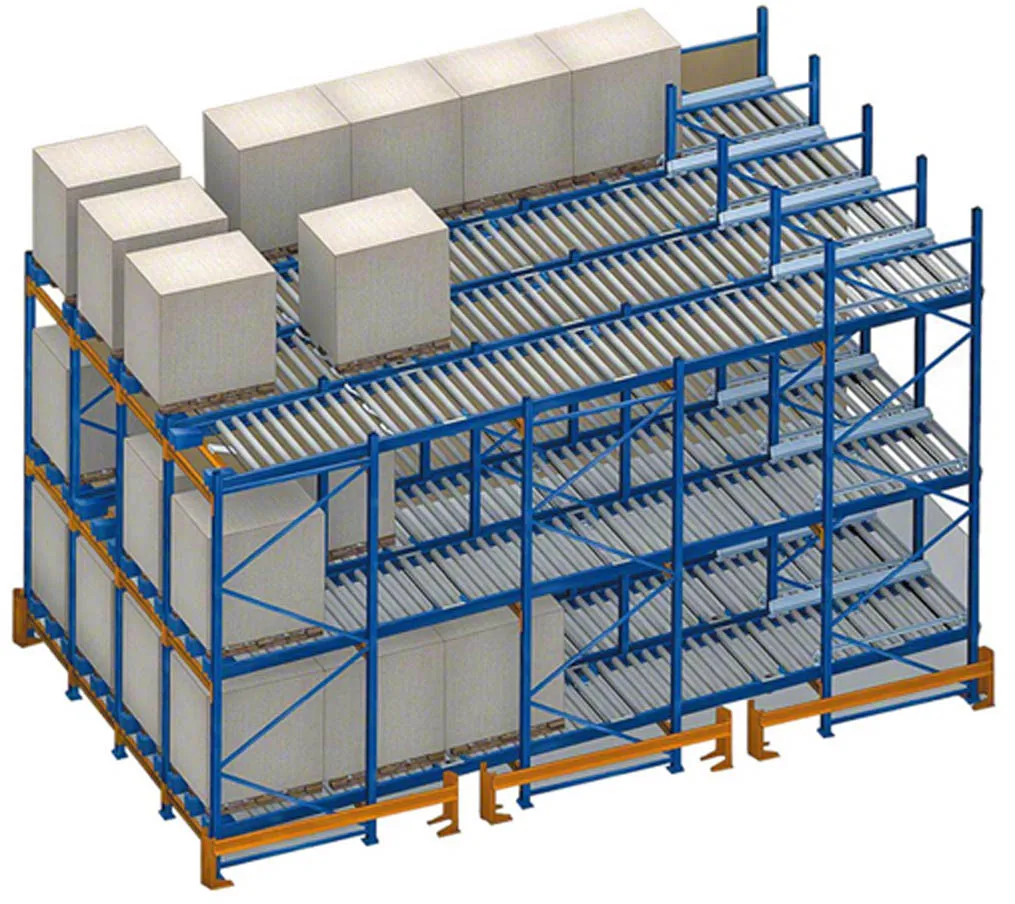

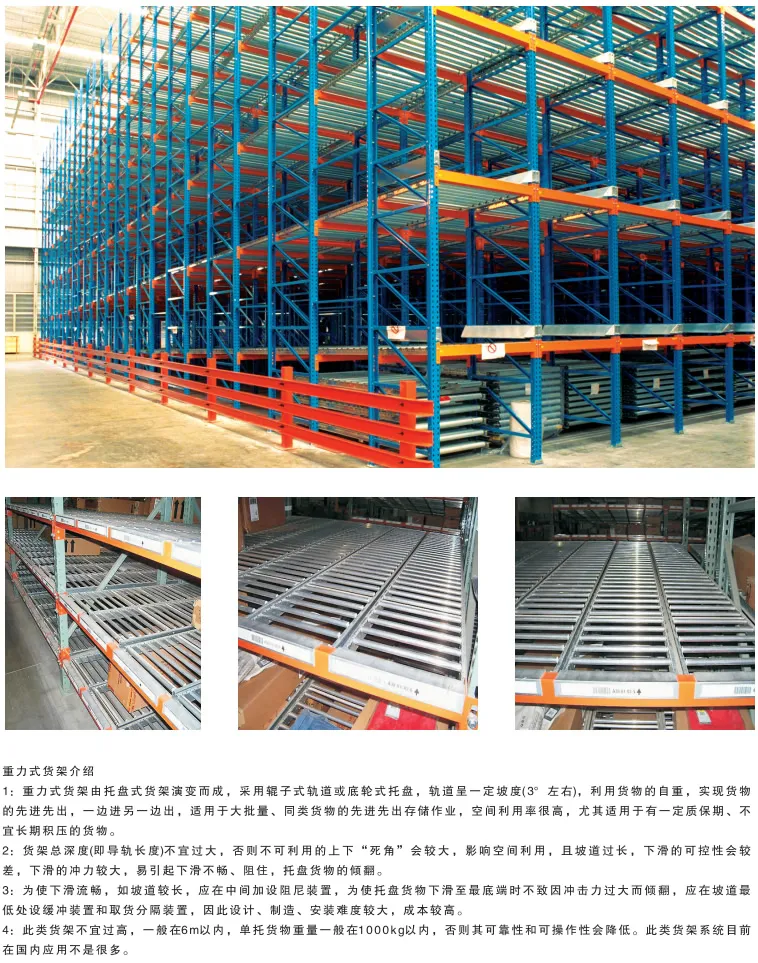

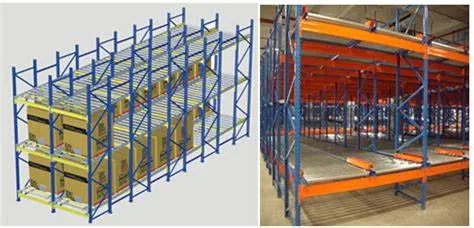

Gravity Flow Racking System Introduction

Gravity Flow Racking is an advanced, high-density storage marvel crafted for seamless FIFO (First-In, First-Out) inventory management. It employs expertly designed inclined roller tracks, allowing goods to glide effortlessly from the loading point to the picking end using the natural force of gravity. This minimizes manual handling, enhances order-picking efficiency, and optimizes your warehouse operations.

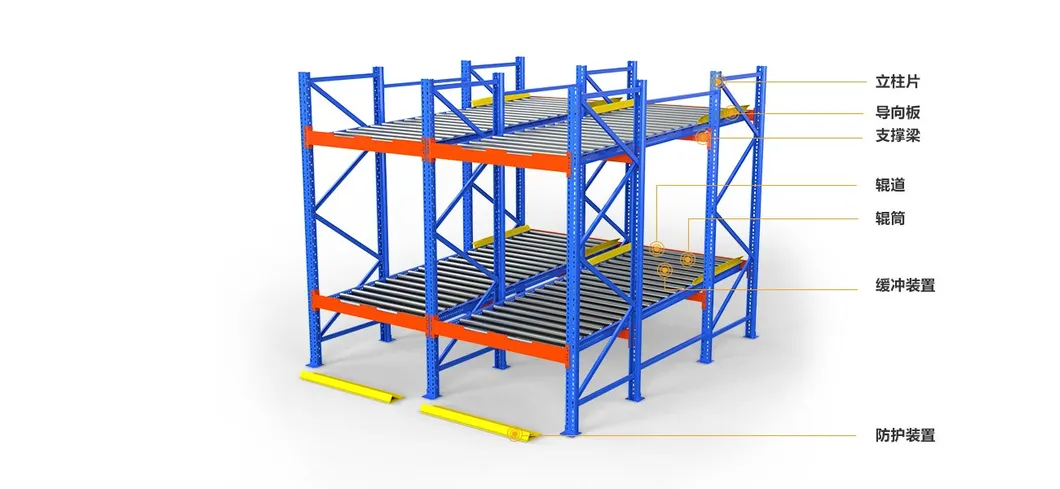

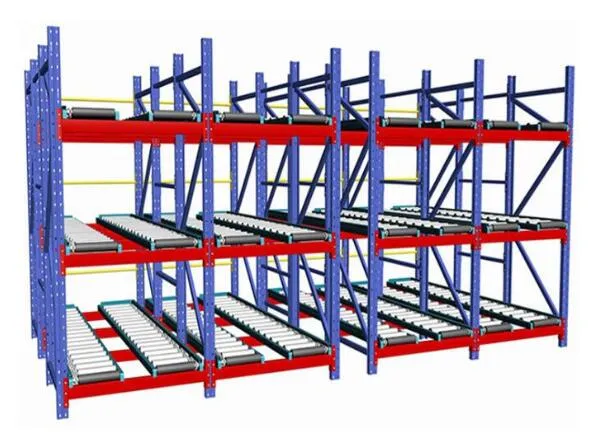

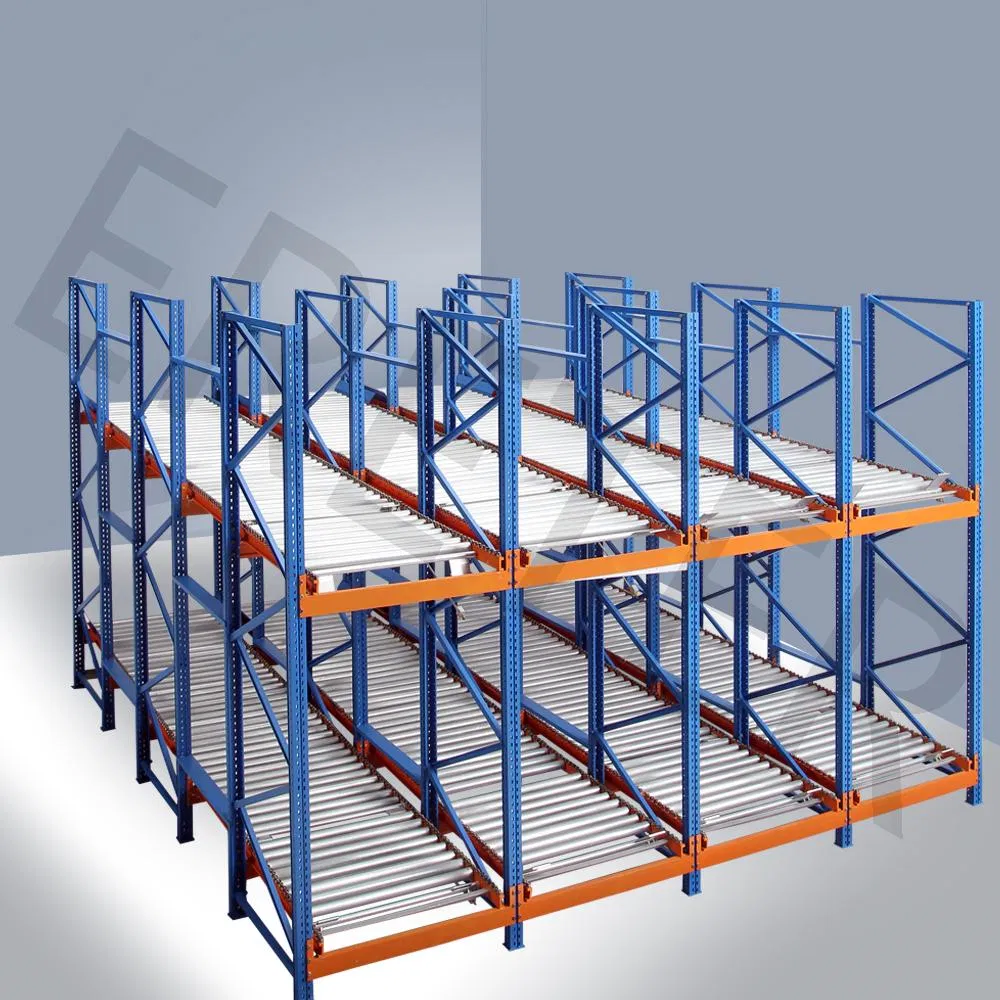

1. Structural Design

Core Components:

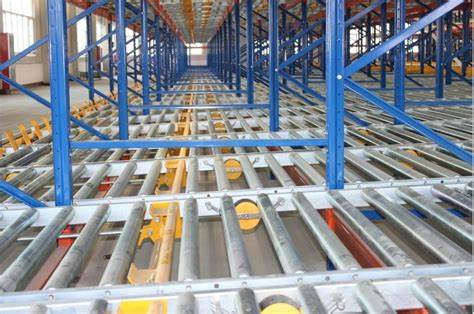

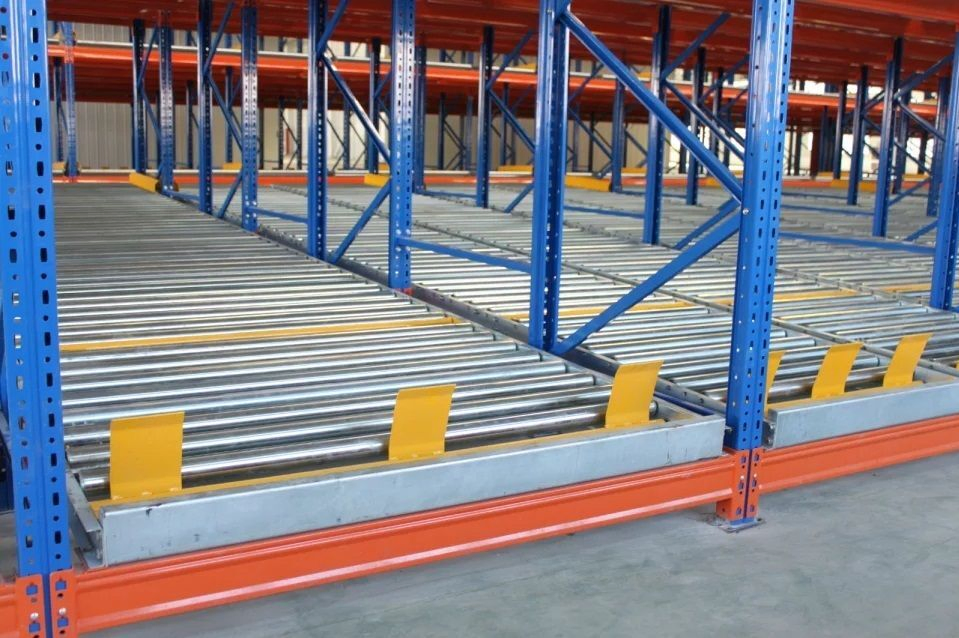

Roller Tracks: Precision-engineered inclined steel or polymer rollers with low-friction bearings for smooth movement.
Frame Structure: Robust steel uprights and beams providing steadfast support for heavy pallet loads.
Braking System: Sophisticated speed controllers or wheel brakes regulating item movement for optimal safety.
Zones: Dedicated entry (higher end) and exit (lower end) points to streamline workflow.

Material Quality: Built from galvanized or powder-coated steel for superior corrosion resistance and rollers crafted from high-quality nylon, polyurethane, or steel.

2. Key Advantages

High-Density Storage: Maximizes warehouse capacity by eliminating aisle gaps, ideal for homogeneous SKUs.
FIFO Compliance: Ensures automatic stock rotation, essential for perishable or time-sensitive products.
Labor Efficiency: Reduces forklift travel and manual picking time by up to 50%.
Scalability: Modular design allows for effortless expansion or reconfiguration.
Safety: Equipped with roller brakes and guardrails to prioritize a secure operational environment.

3. Applications

Food & Beverage: Optimal for cold storage of dairy and meats.
E-commerce Fulfillment: High-speed picking for small to medium parcels.
Automotive: Storage for tires, batteries, and parts kits.
Pharmaceuticals: Strict FIFO management for expiration-dated medicines.
Retail Distribution: Rapid replenishment of high-turnover items.

4. Technical Specifications

Parameter	Specification
Load Capacity	500 - 2,000 kg per lane (customizable design)
Roller Pitch	Adjustable between 75-150 mm for various sizes
Incline Angle	Optimized 3°-7° for smooth gravity flow
System Height	Customizable from 2 - 12 meters
Compliance	FEM 10.2.02, OSHA, or ISO standards

5. Types of Flow Racking

Type	Features	Use Case
Carton Flow Racking	Rollers spaced for small SKUs and boxed items	Retail warehouses and pharmacies
Pallet Flow Racking	Heavy-duty rollers for full pallet loads	Bulk storage such as beverages
Hybrid Systems	Combines flow lanes with static shelving	Mixed inventory environments

6. Installation & Safety Guidelines

1. Floor Preparation: Ensure flooring is level to maintain consistent incline angles.
2. Load Testing: Rigorous verification of roller speed and braking before full operation.
3. Safety Features: Install guardrails at picking ends and photoelectric sensors for empty lane alerts.
4. Maintenance: Annual lubrication of rollers and quarterly inspections of braking systems.

7. Comparison with Static Shelving

Feature	Gravity Flow Racking	Static Shelving
Space Utilization	High-density (eliminates aisles)	Lower (requires aisle access)
Workflow	Automated FIFO process	Manual FIFO/LIFO management
Labor Cost	Significantly reduced picking time	Higher manual handling costs
Initial Investment	Higher initial cost, long-term ROI	Lower initial outlay

Frequently Asked Questions

Q1: What is the main benefit of Gravity Flow Racking? It maximizes warehouse space by eliminating aisles and automates the FIFO (First-In, First-Out) inventory process, ensuring efficient stock rotation.

Q2: What load capacity can these racks handle? The system is designed to support between 500 kg to 2,000 kg per lane, depending on the specific structural design and warehouse needs.

Q3: Are these systems suitable for cold storage? Yes, Gravity Flow Racks are ideal for cold storage environments, particularly for perishable goods like food, beverages, and pharmaceuticals.

Q4: How does the braking system work? The system uses speed controllers or centrifugal roller brakes to regulate the speed of the pallets as they glide down the incline, preventing collisions.

Q5: Can the rack height and incline be customized? Absolutely. System heights usually range from 2 to 12 meters, and incline angles are typically set between 3° and 7° to ensure optimal flow for your specific products.

Q6: What kind of maintenance is required? Maintenance is minimal, involving annual lubrication of the rollers and quarterly inspections of the braking and alignment systems to ensure safe operation.
