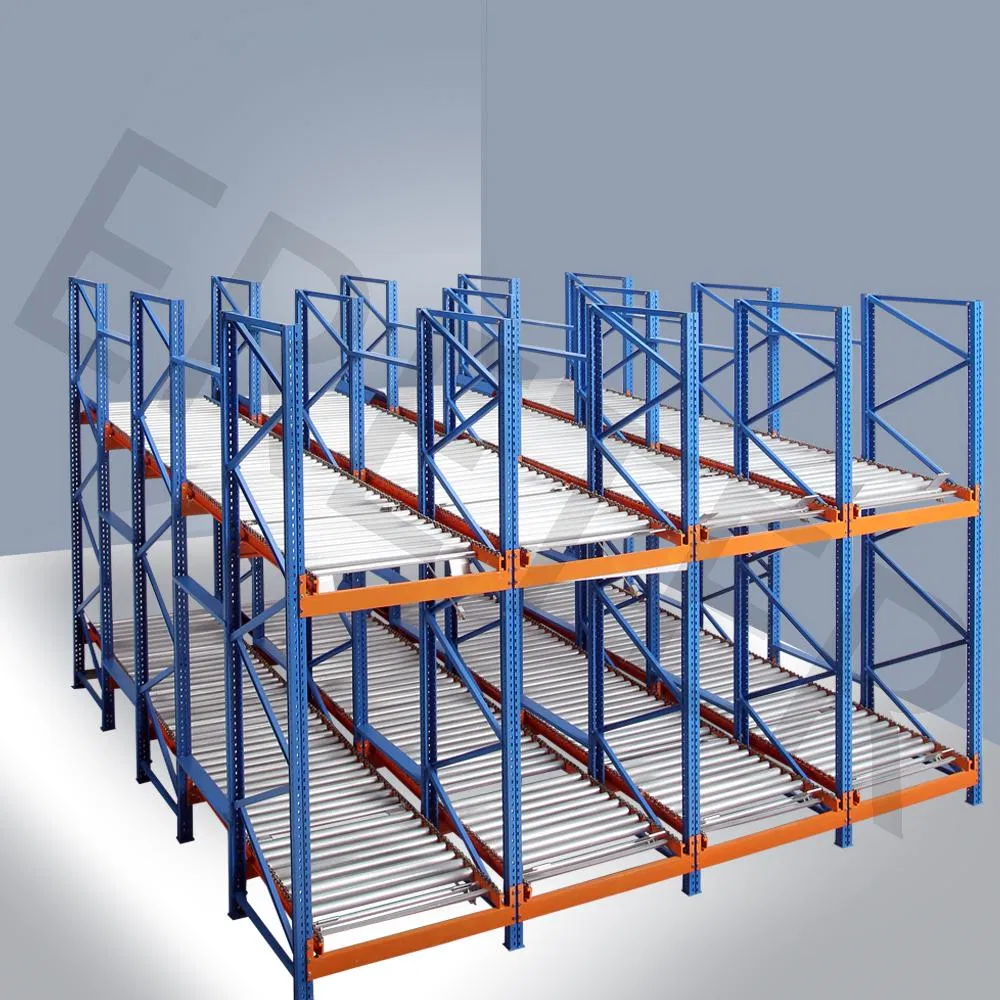

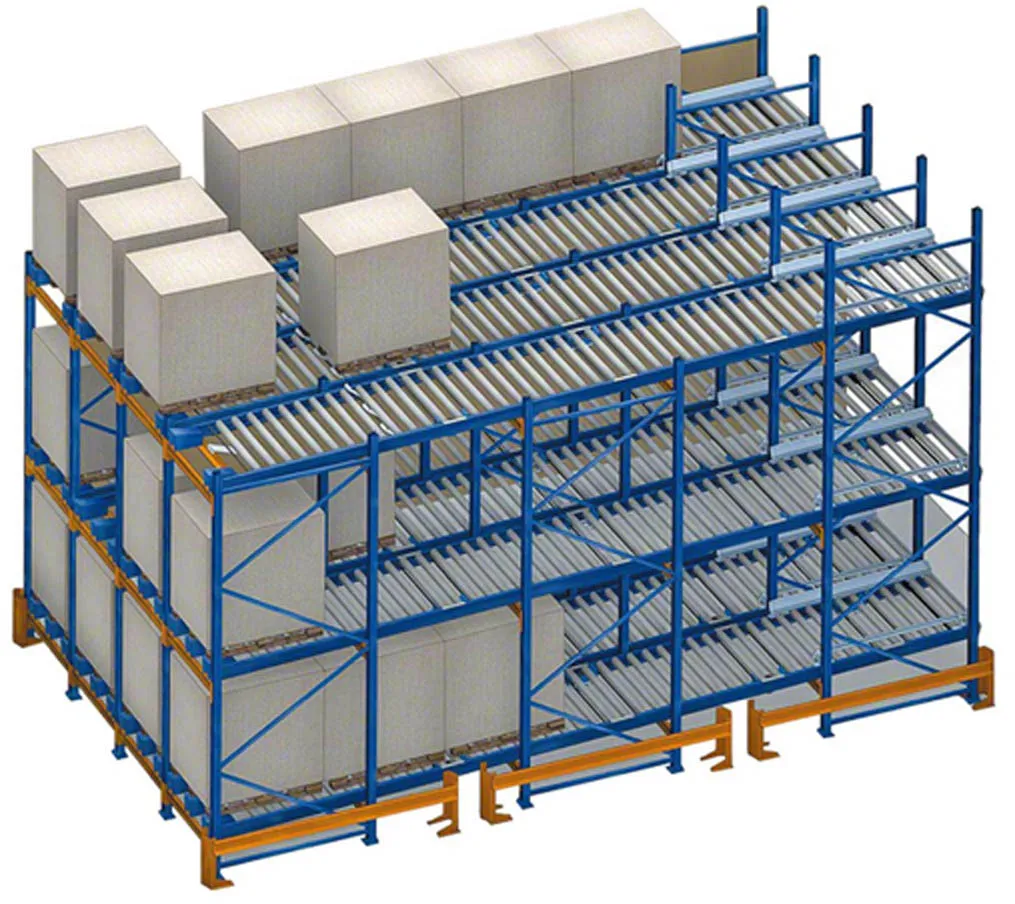

⚙️ Gravity Flow Racking System Introduction
Gravity Flow Racking provides the pinnacle of warehouse storage efficiency with our high-density, dynamic Gravity Flow Racking System. Tailored for seamless FIFO (First-In, First-Out) inventory management, it employs inclined roller tracks, allowing goods to gracefully glide from the loading point to the picking destination through the natural force of gravity. This design minimizes manual handling, elevating order-picking efficiency to new heights.

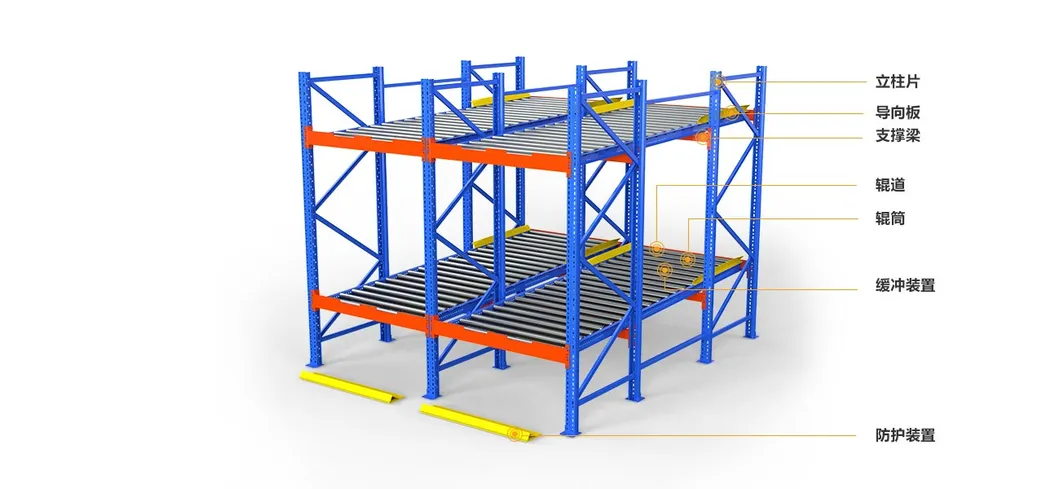

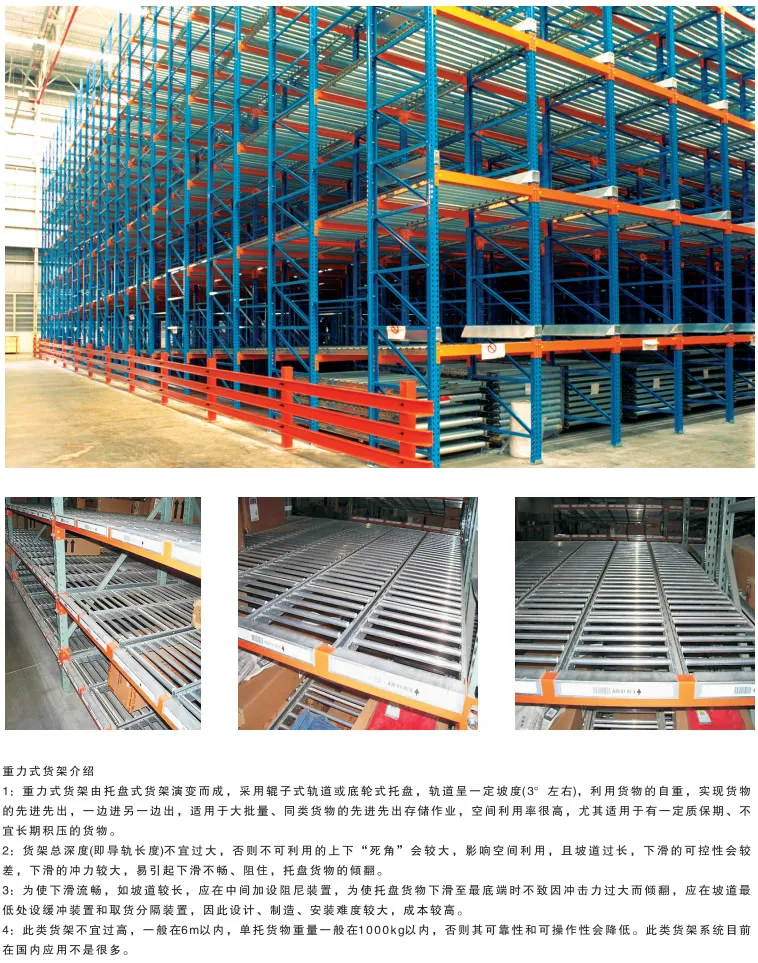

🏗️ 1. Structural Design

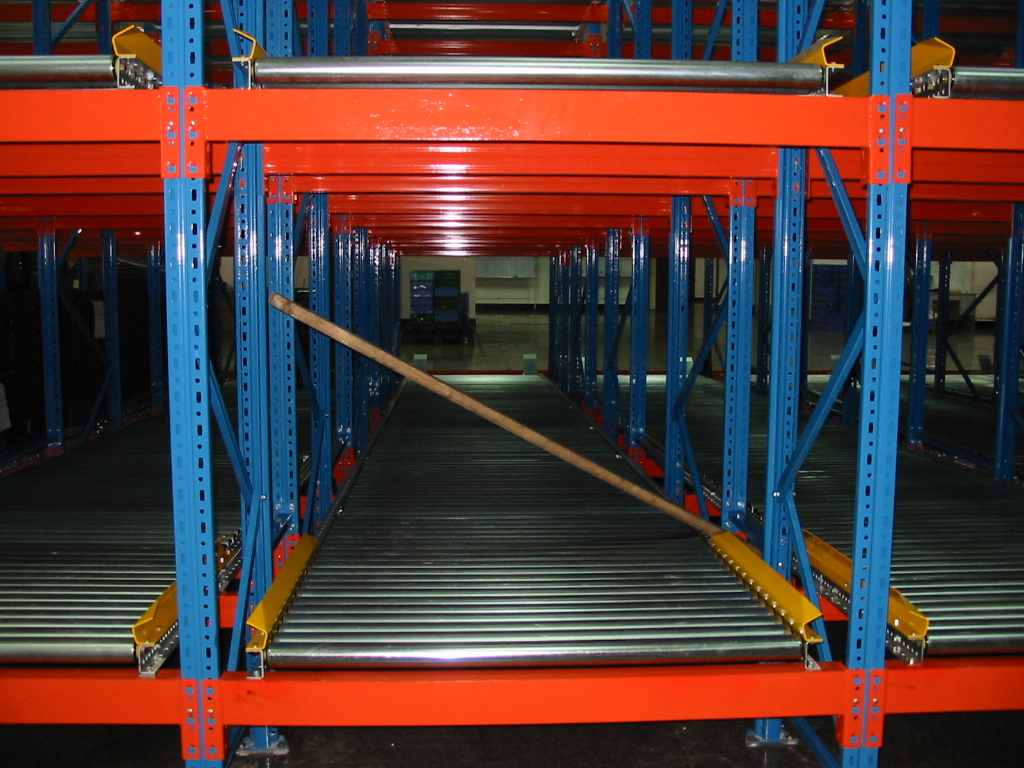

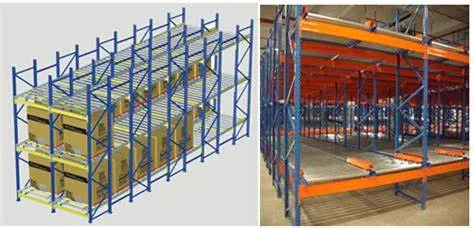

- Roller Tracks: Precision-engineered inclined steel or polymer rollers equipped with low-friction bearings, ensuring flawless movement.
- Frame Structure: Constructed from robust steel uprights and beams, designed to steadfastly support the roller tracks and pallet loads.
- Braking System: Integrated speed controllers or wheel brakes for precise item movement regulation.
- Loading/Unloading Zones: Strategically designated entry (elevated end) and exit (lower end) points for enhanced workflow efficiency.
- Material: Crafted from galvanized or powder-coated steel to guarantee long-lasting corrosion resistance. Rollers fashioned from resilient materials such as nylon, polyurethane, or steel.
✅ 2. Key Advantages
- High-Density Storage: Achieve maximum warehouse space utilization by eradicating aisle gaps, ideal for storing homogeneous SKUs.
- FIFO Compliance: Facilitates automatic stock rotation, indispensable for perishable goods or products sensitive to time.
- Labor Efficiency: Diminish forklift travel and manual picking time by up to an impressive 50%.
- Scalability: The modular design offers seamless expansion or reconfiguration to accommodate evolving storage needs.
- Safety: Equipped with roller brakes to avert collisions and guardrails to maintain load stability.
🏬 3. Applications
- Food & Beverage: Ideal for cold storage of perishables such as dairy and meats, ensuring freshness.
- E-commerce Fulfillment: Enhances high-speed picking of small to medium parcels.
- Automotive: Perfect for storing components including tires, batteries, and parts kits.
- Pharmaceuticals: Administrates FIFO management of medications with critical expiration dates.
- Retail Distribution: Enables rapid replenishment of high-turnover items.
📋 4. Technical Specifications
| Parameter |
Specification |
| Load Capacity | 500-2,000 kg per lane (tailored to design) |
| Roller Pitch | Adjustable between 75-150 mm |
| Incline Angle | 3°-7°, meticulously optimized for gravity flow |
| System Height | Customizable range from 2-12 meters |
| Compliance | Adheres to FEM 10.2.02, OSHA, or ISO standards |
🔧 5. Types of Flow Racking
| Type |
Features |
Use Case |
| Carton Flow Racking |
Specifically designed for boxed items with optimal roller spacing. |
Retail warehouses and pharmacies with swift access needs. |

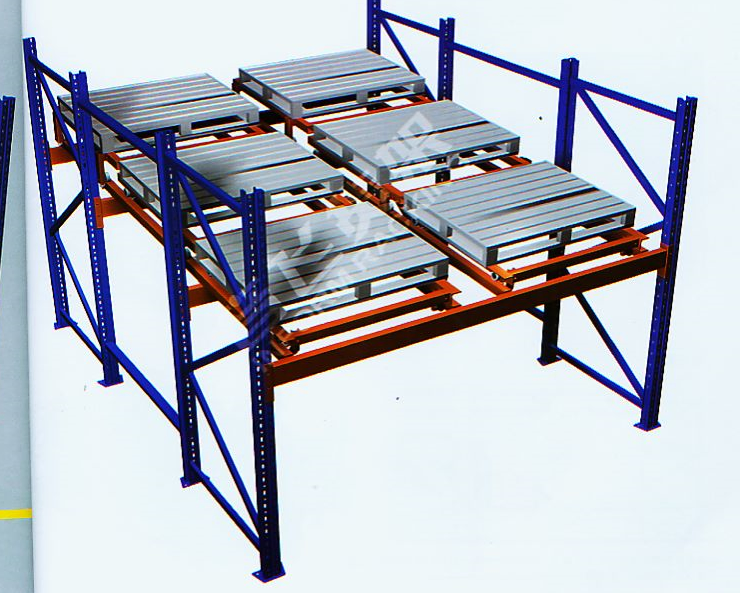

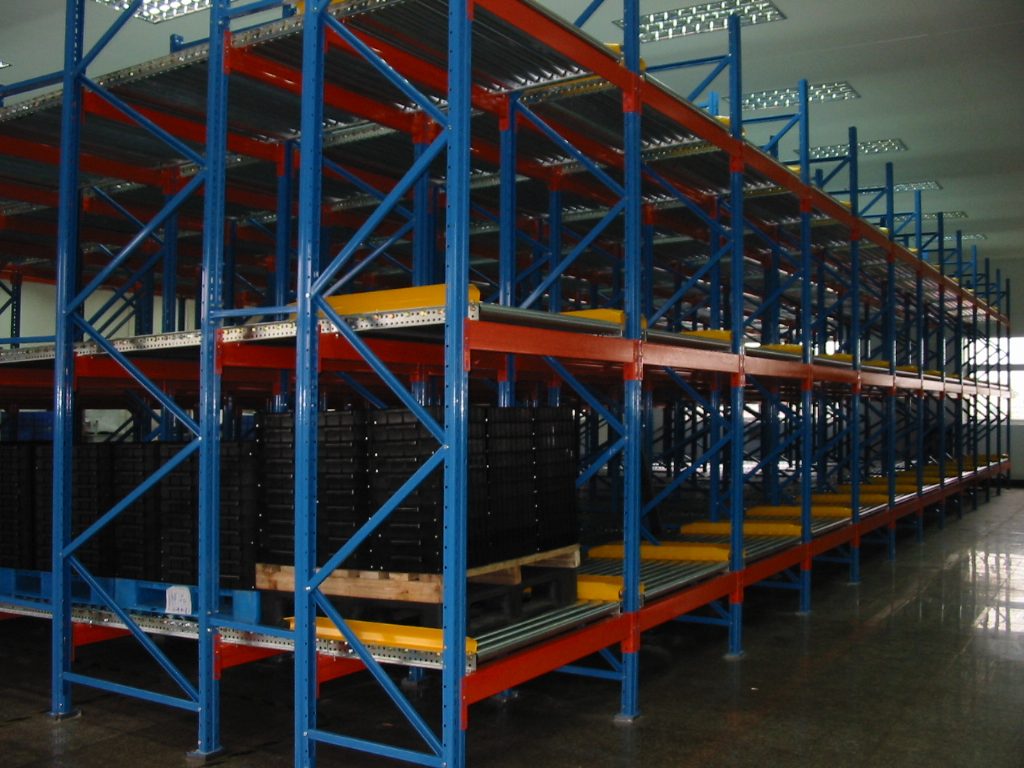

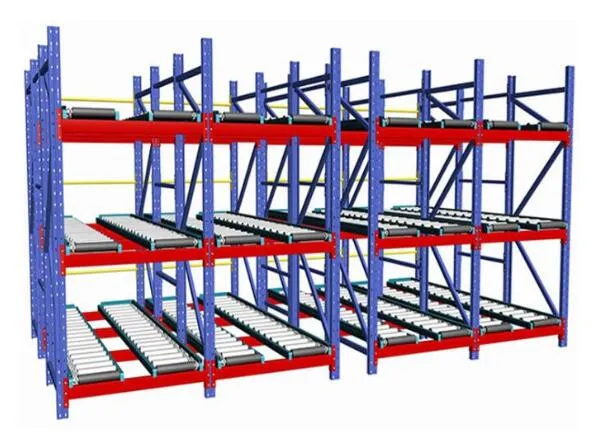

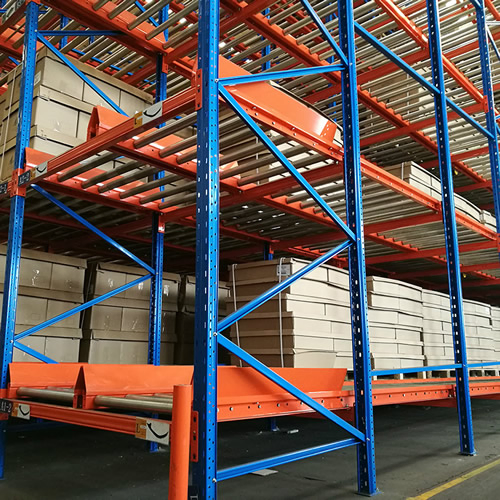

| Pallet Flow Racking |
Robust, heavy-duty rollers designed for full pallet loads. |
Bulk storage such as beverage distribution. |
| Hybrid Systems |
Blends flow lanes with static shelving. |
Mixed inventory environments. |
🛡️ 6. Installation & Safety Guidelines
- Floor Preparation: Ensure the flooring is perfectly leveled to maintain consistent incline angles.
- Load Testing: Conduct thorough verifications of roller speed and braking efficiency.
- Safety Features: Installation of robust guardrails and photoelectric sensors to alert empty lanes.
- Maintenance: Annual lubrication of rollers and quarterly inspections of alignment and braking systems.
🔄 7. Comparison with Static Shelving
| Feature |
Gravity Flow Racking |
Static Shelving |
| Space Utilization | High-density (no aisles) | Requires aisles for access |
| Workflow | Seamless FIFO automation | Manual management |
| Labor Cost | Significantly lower | Higher manual requirements |
| Initial Investment | Higher (complex installation) | Lower (simple structure) |
❓ Frequently Asked Questions
How does the Gravity Flow Racking system achieve FIFO?
The system uses inclined roller tracks. Goods are loaded from the higher end and glide naturally to the lower picking end. This ensures the first item loaded is always the first one to be picked.
What is the maximum load capacity for this system?
The standard load capacity ranges from 500 kg to 2,000 kg per lane, but this can be customized based on specific warehouse requirements and design parameters.
Is the system safe for heavy pallets?
Yes. The system is equipped with an integrated braking system and speed controllers to regulate the movement of heavy pallets, along with guardrails to ensure stability and safety.
Can the system be used in cold storage environments?
Absolutely. Gravity Flow Racking is ideal for cold storage warehouses, particularly for food and beverage applications where strict FIFO management and high-density storage are critical.
How much floor space can I save with this solution?
By eliminating unnecessary aisles required by static shelving, Gravity Flow Racking can significantly increase storage density and reduce floor space usage while improving picking efficiency by up to 50%.
What maintenance does the system require?
We recommend annual lubrication of the rollers and quarterly inspections of the alignment and braking systems to ensure long-term reliability and smooth operation.
