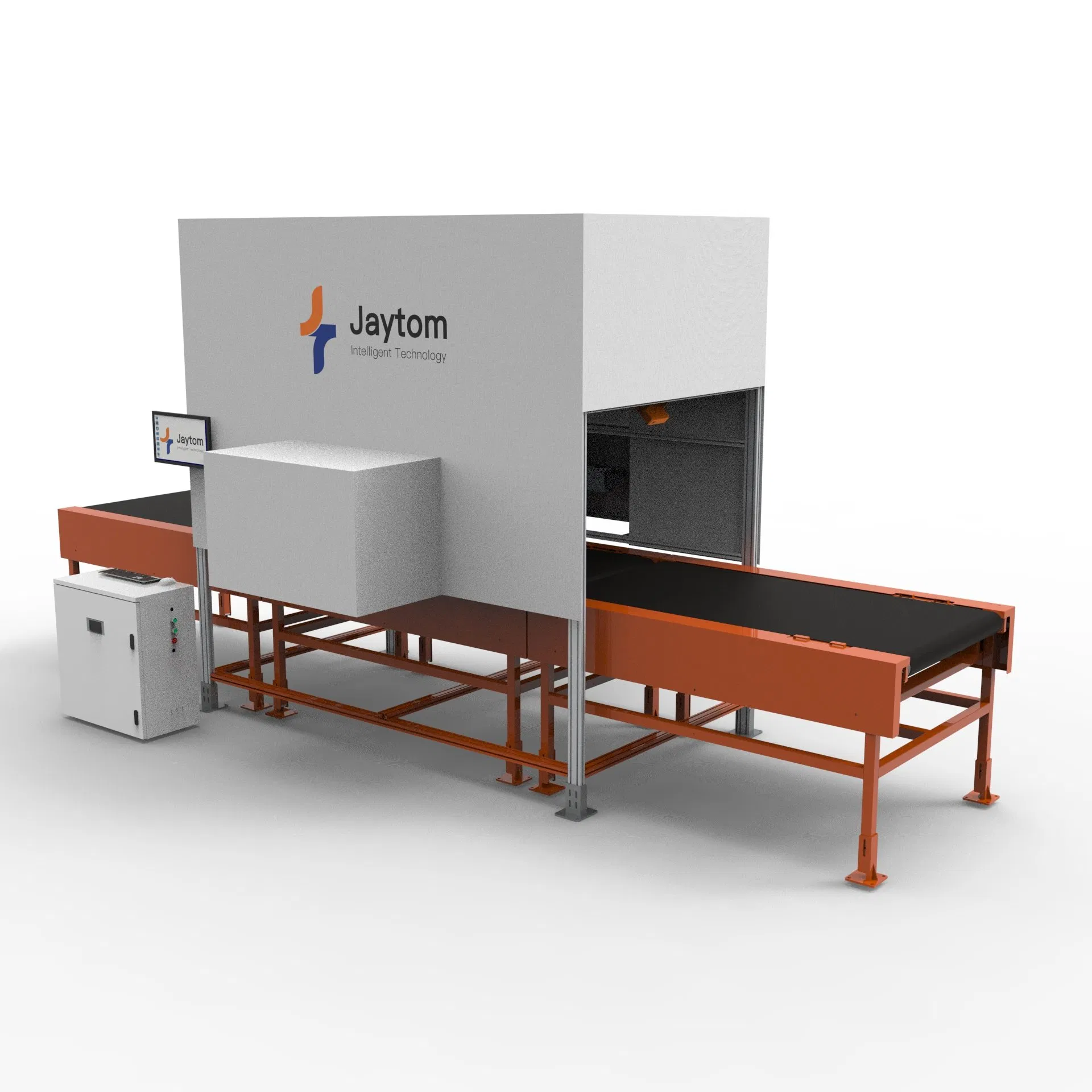

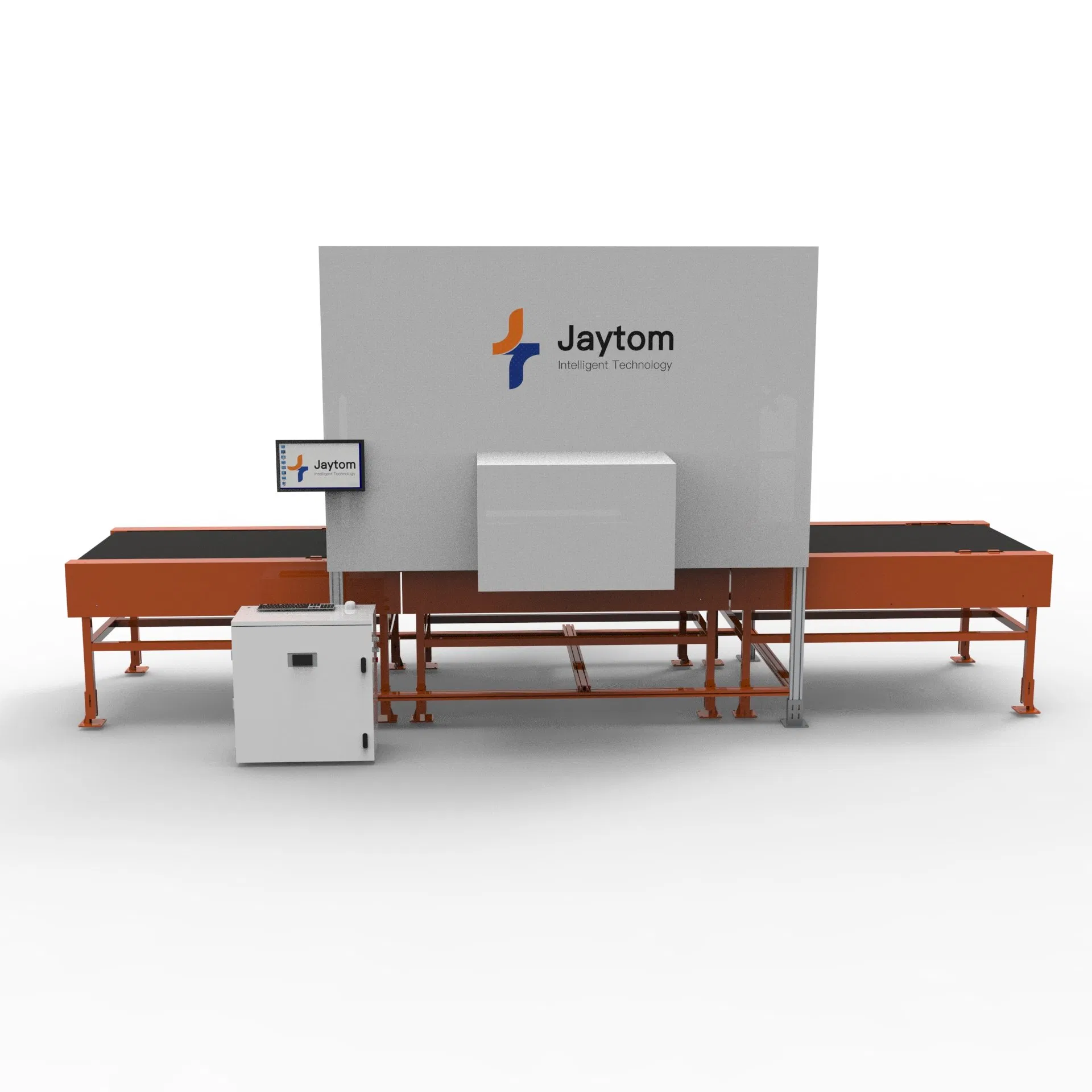

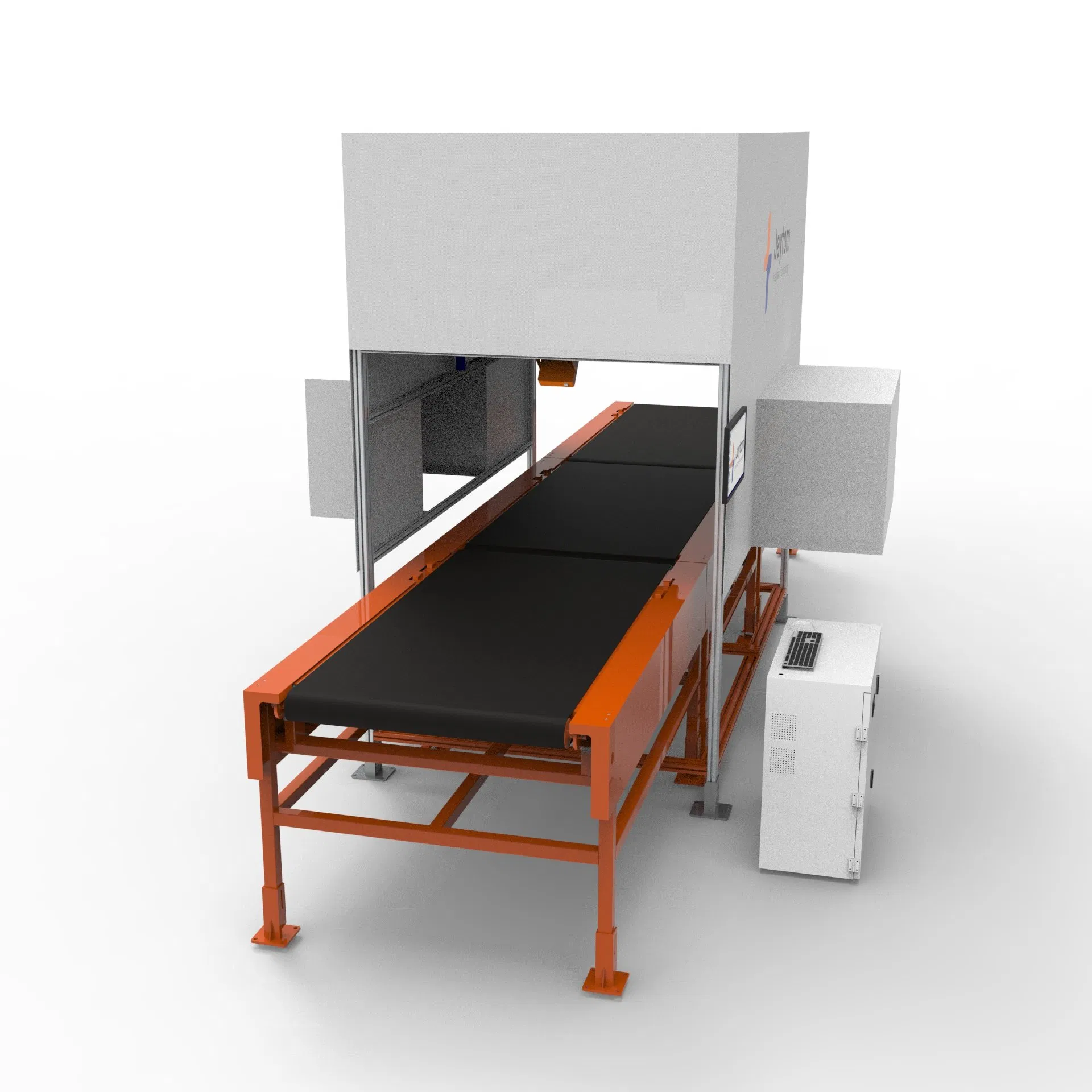

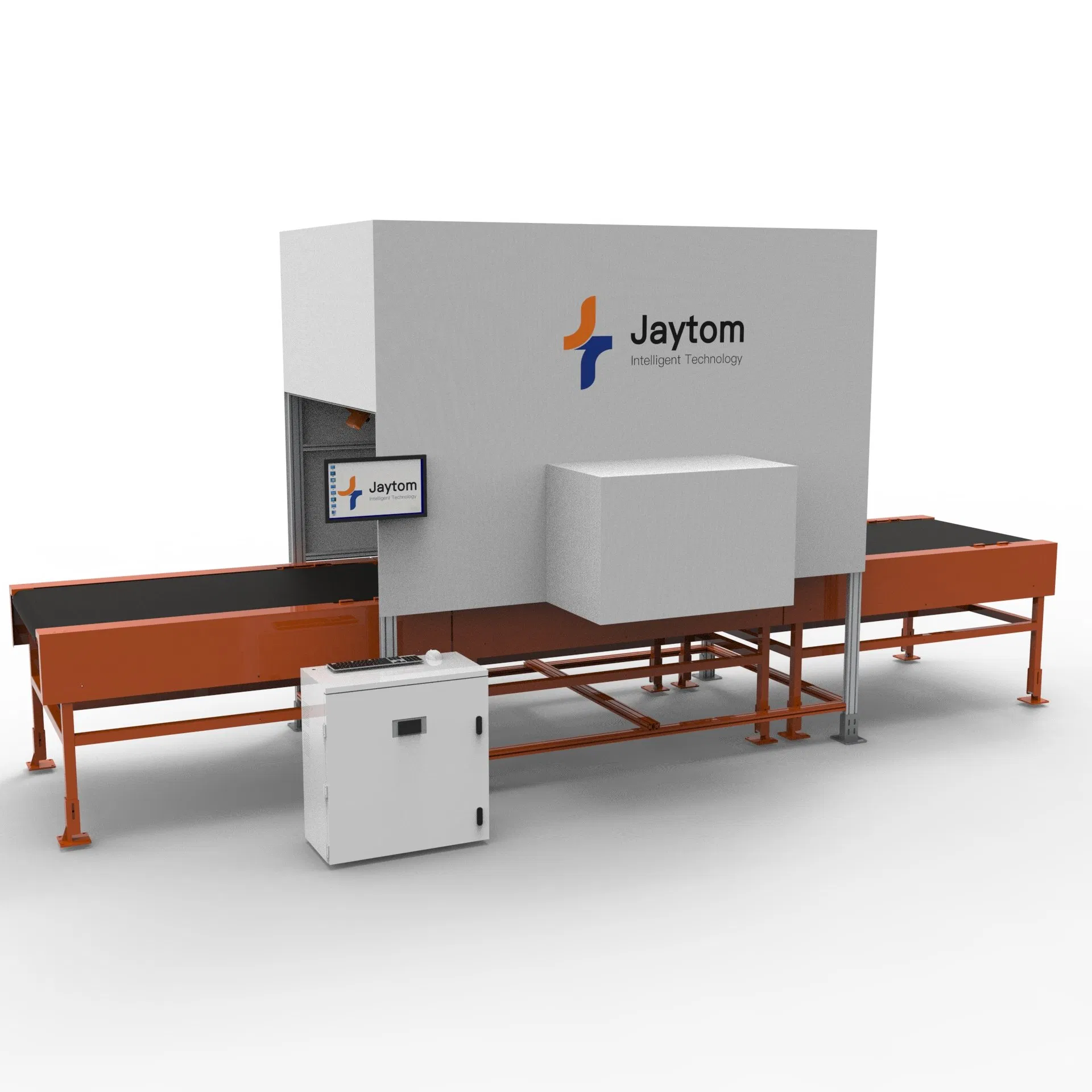

Logistics Dynamic Dws System Parcel Weight and Scanning Volume Sorting Dimension Automation Warehouse Order Picking Machine
Logistics Dynamic Dws System Parcel Weight and Scanning Volume Sorting Dimension Automation Warehouse Order Picking Machine
Logistics Dynamic Dws System Parcel Weight and Scanning Volume Sorting Dimension Automation Warehouse Order Picking Machine
Logistics Dynamic Dws System Parcel Weight and Scanning Volume Sorting Dimension Automation Warehouse Order Picking Machine
Logistics Dynamic Dws System Parcel Weight and Scanning Volume Sorting Dimension Automation Warehouse Order Picking Machine
1 / 5
Logistics Dynamic Dws System Parcel Weight and Scanning Volume Sorting Dimension Automation Warehouse Order Picking Machine
Logistics Dynamic Dws System Parcel Weight and Scanning Volume Sorting Dimension Automation Warehouse Order Picking Machine
Logistics Dynamic Dws System Parcel Weight and Scanning Volume Sorting Dimension Automation Warehouse Order Picking Machine
Logistics Dynamic Dws System Parcel Weight and Scanning Volume Sorting Dimension Automation Warehouse Order Picking Machine
Logistics Dynamic Dws System Parcel Weight and Scanning Volume Sorting Dimension Automation Warehouse Order Picking Machine

Logistics Dynamic Dws System Parcel Weight and Scanning Volume Sorting Dimension Automation Warehouse Order Picking Machine

Customization: Available
Type: EP200
Material: PU
Send Inquiry

Product Description

Basic Information

Model NO.
DWS-M-100-3stage-Six sided Scanning
Inside Material
Polyester
Feature
Heat-Resistant
Tensile Strength
Strong
Transport Package
Box
Specification
100
Origin
China
HS Code
8471419000

Product Description

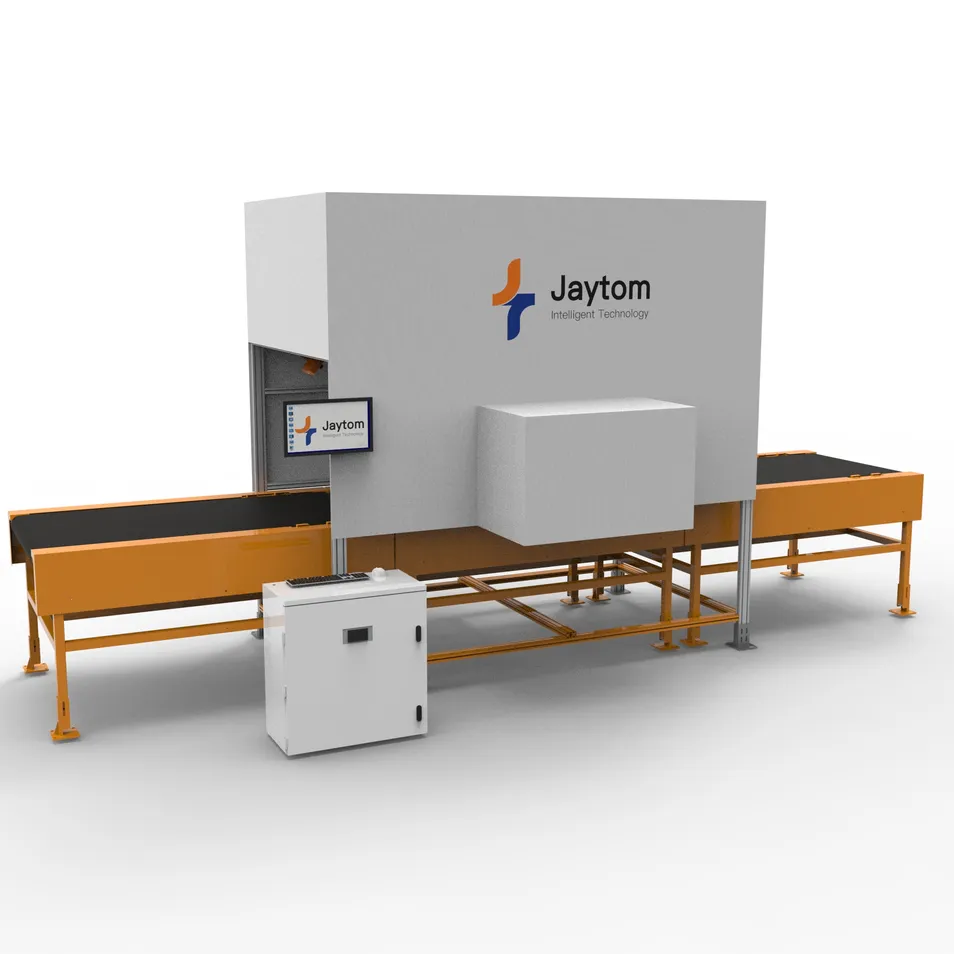

Logistics Dynamic DWS System
Parcel Weight and Scanning
✓
Fully automatic dynamic recognition sorting technology: Advanced automation for high-speed logistics.
✓
6-sided DWS system: All-round scanning with no dead angles, eliminating the need for manual barcode flipping.
✓
High Efficiency: Automatic weighing and recognition system with a throughput of over 5,000 pieces per hour.
✓
Versatile Integration: Can be paired with swing wheel sorters, linear high-speed sorters, and cross-belt sorters.

Core Function: The system completes one-time collection of parcel information (including barcode, dimension, and weight) through 6-sided scanning, requiring no manual intervention.

Applicable Scenarios: Widely used in e-commerce warehouses, express transfer centers, and fresh produce distribution centers. Especially suitable for high daily throughput environments.

DWS Component 1
DWS Component 2
DWS Component 3

Technical Parameters

Category Component / Parameter Function / Value
Solution Introduction Components DWS Parcel Pulling Section Adjust parcel posture for suitable weighing angle
Components DWS Single-scale Section Weight detection and data recording
Components DWS Buffer Section Information processing of scanned items
Components DWS Six-sided Scanning Barcode identification and automatic collection
Parameters Speed 1.5 ~ 2.0 m/s
Spacing 1000 mm parcel control spacing
Efficiency Up to 6000 pieces/hour
Accuracy Weight: ±20g (III Class)
Applicability Parcel Size Min: 100x100x50mm | Max: 800x1500x700mm
Reading Rate ≥ 99% Barcode Identification

Frequently Asked Questions

What is the maximum processing efficiency of this DWS system?
The system can handle up to 6,000 parcels per hour depending on the configuration and parcel spacing, significantly improving warehouse throughput.
Does the system require manual parcel flipping?
No. With the 6-sided scanning technology, the system captures barcodes from all angles (top, bottom, and four sides), eliminating the need for manual intervention.
What is the weighing accuracy of the dynamic scale?
The system features high-precision weighing with an accuracy of ±20g, meeting Class III precision standards for industrial logistics.
What types of parcels are not suitable for this equipment?
Parcels with highly reflective/transparent surfaces, severely damaged waybills, or spherical/cylindrical shapes may result in less accurate volume measurements.
Can this DWS be integrated into existing sorting lines?
Yes, the system is designed for high compatibility and can be seamlessly linked with swing wheel sorters, cross-belt sorters, and backend management software.
What barcode types can the system identify?
It supports a wide range of 1D codes (Code128, Code39, EAN) and 2D codes (QR, DM) with a reading rate of 99% or higher.
