Very Narrow Aisle Racking System
Very Narrow Aisle Racking System
Very Narrow Aisle Racking System
Very Narrow Aisle Racking System
Very Narrow Aisle Racking System
1 / 5
Very Narrow Aisle Racking System
Very Narrow Aisle Racking System
Very Narrow Aisle Racking System
Very Narrow Aisle Racking System
Very Narrow Aisle Racking System

Very Narrow Aisle Racking System

Customization: Available
Usage: Industrial, Warehouse Rack
Material: Steel
Send Inquiry

Product Description

Basic Specifications

Structure
Rack
Type
Pallet Racking
Mobility
Adjustable
Height
5-15m
Weight Capacity
500kg-2000kg
Closed
Semi-closed
Development
Conventional
Serviceability
Common Use
Aisle Width
1800mm
Forklift Type
3 Way Very Narrow Aisle Forklift
Norm
Fem 10.2.02
HS Code
73089000
Capacity
20,000 Tons Per Year

Very Narrow Aisle Racking System

Product Description: Very narrow aisle (VNA) racking system means pallet racks are placed closer together than other pallet racking solutions because they are loaded and unloaded using a side loading fork lift truck; enabling aisles to be narrow and ensuring that storage space is used efficiently.

The amount of product stored and warehouse footprint is maximized. VNA aisles are typically 1.8 to 2.0m wide, providing 40% more floor space than a selective pallet rack system.

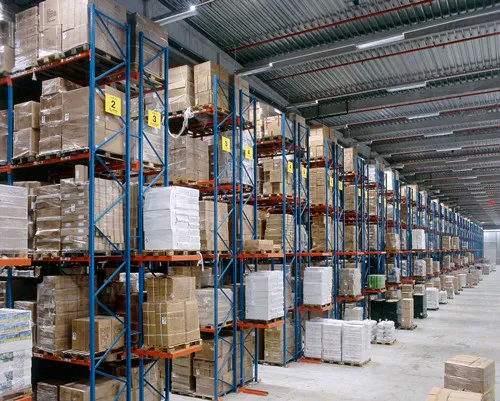

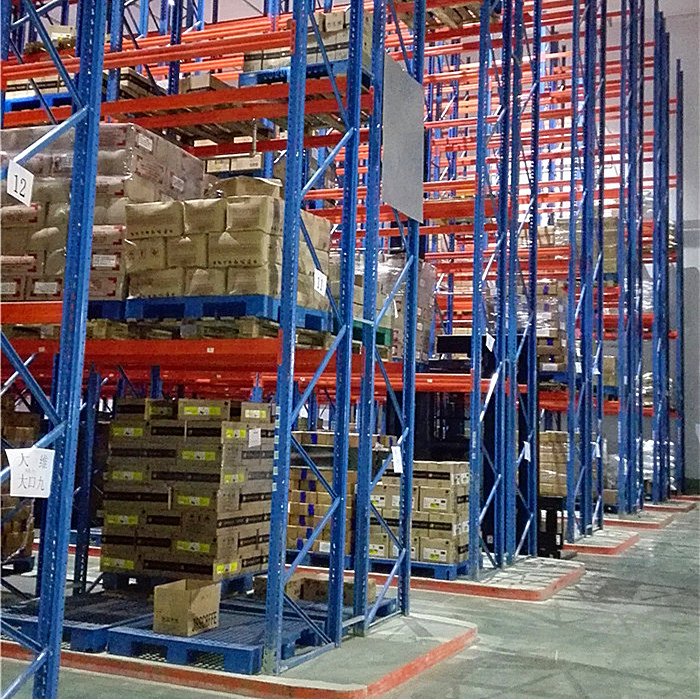

Very Narrow Aisle Racking System Display

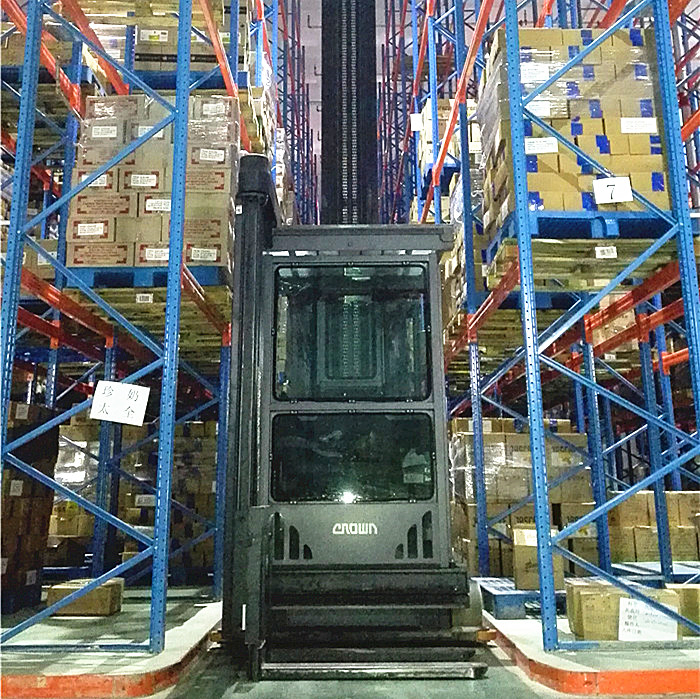

The Height for VNA pallet rack can over 10m to 15m, There is a floor guide rail to extend the rack working lifespan. A special three-way forklift is used for VNA pallet rack.

Basic Components & Structure

Very narrow aisle racking system is composed of basic elements such as frames and beams. It also consists of P&D Station and floor guided rail. The system is designed for the optimized storage of goods of all sizes and weights.

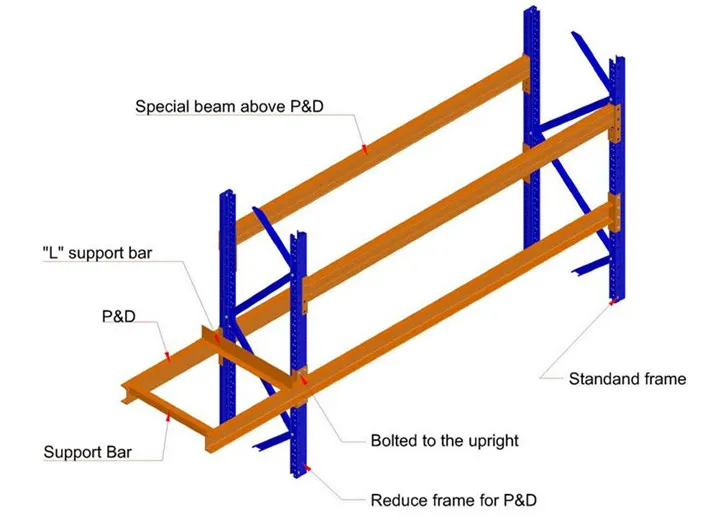

Components Diagram

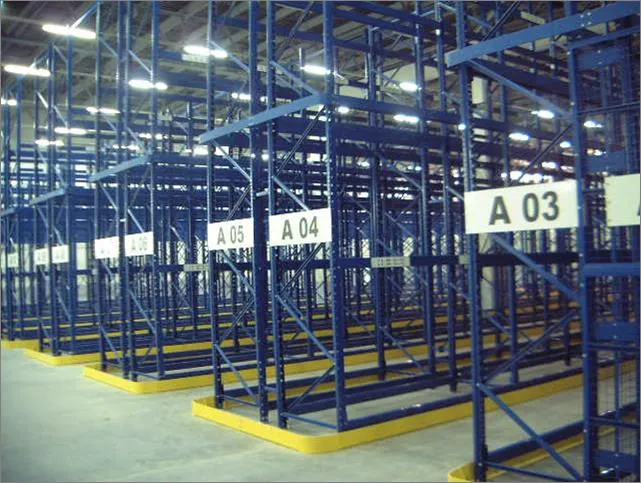

VNA Rack Structure

Floor Rail for VNA Rack System:

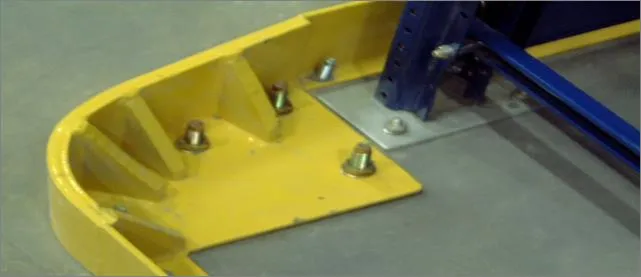

Floor Rail Details

Product Features

  • An improvement of traditional selective pallet racking with stable structure and large load capacity.
  • Narrow aisles can improve warehouse space utilization by 20%.
  • Optimum use of both warehouse floor area and vertical space.
  • Guide rails installed at both sides effectively reduce damage caused by forklift operators.
  • Suitable for various goods types with high quantity, heavy weight, and fast turnover.

Factory Production

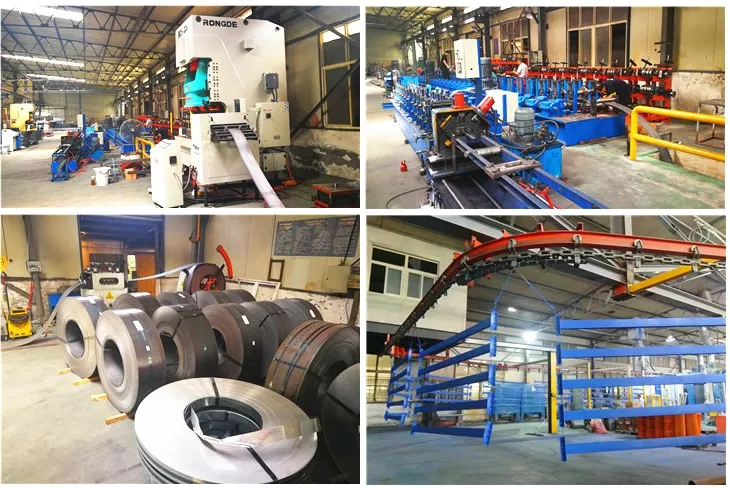

Factory Production Line

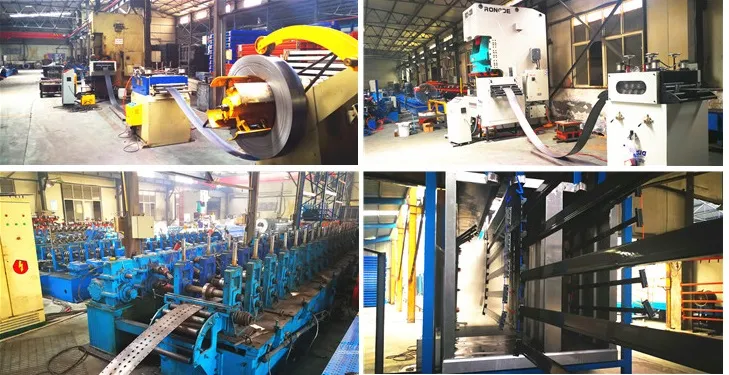

Racking Manufacturing

Requirement For Quotation (RFQ)

Please prepare the following information for an accurate quotation:

  • Warehouse layout CAD drawings if available.
  • Pallet size, entry side, width, depth, and height of goods.
  • Loading weight per pallet.
  • Clear height of the warehouse.
  • Forklift information: working aisles width and max reaching height.
  • Intra-logistic flow within the warehouse.

Frequently Asked Questions

1. What defines a Very Narrow Aisle (VNA) system?
A VNA system utilizes aisles that are significantly narrower (1.8m to 2.0m) than standard pallet racking, requiring specialized side-loading forklifts to maximize storage density.
2. How much space can I save with VNA racking?
VNA systems can provide up to 40% more floor space compared to traditional selective pallet rack systems by reducing aisle widths and utilizing vertical space.
3. What is the maximum height for VNA racking?
The system is designed to reach heights of 10 to 15 meters, making full use of the warehouse's vertical capacity.
4. Are guide rails necessary for VNA systems?
Yes, floor guide rails are typically installed to assist forklift precision within the narrow aisles and to prevent accidental damage to the rack structure.
5. What type of forklift is compatible with this system?
A specialized 3-way very narrow aisle forklift or side-loader is required to operate effectively within the 1800mm-2000mm aisles.
6. What is the weight capacity per pallet for this system?
The standard loading capacity ranges from 500kg to 2000kg per pallet, depending on the specific beam and frame configurations.

Related Products

China Vna Pallet Rack Narrow Aisle Storage Boltless Rack System Customized Adjustable for Warehouse

China Vna Pallet Rack Narrow Aisle Storage Boltless Rack System Customized Adjustable for Warehouse
Heavy-Duty Vna Rack System for Industrial Warehouse Organization Metal Narrow Aisle Rack

Heavy-Duty Vna Rack System for Industrial Warehouse Organization Metal Narrow Aisle Rack
Heavy-Duty Vna Rack System for Optimized Warehouse Space Management Industrial Metal Storage Shelving

Heavy-Duty Vna Rack System for Optimized Warehouse Space Management Industrial Metal Storage Shelving
Automated Stacker Crane System for High-Density Storage in Narrow Aisle Warehouses

Automated Stacker Crane System for High-Density Storage in Narrow Aisle Warehouses
Automated Shelf Warehouse Stacker Crane Asrs Narrow Aisles Storage Crane System

Automated Shelf Warehouse Stacker Crane Asrs Narrow Aisles Storage Crane System
Smart Warehouse System Stacker Crane as/RS Narrow Aisles Storage Crane System

Smart Warehouse System Stacker Crane as/RS Narrow Aisles Storage Crane System
High Quality Automated Warehouse Stacker Crane Narrow Aisles Storage Crane System for Cold Warehouse

High Quality Automated Warehouse Stacker Crane Narrow Aisles Storage Crane System for Cold Warehouse
Professional Manufacture Automated Warehouse Stacker Crane Narrow Aisles Storage Crane System

Professional Manufacture Automated Warehouse Stacker Crane Narrow Aisles Storage Crane System
Certificated Warehouse Storage Vna Racks Warehouse Very Narrow Aisle Racking System

Certificated Warehouse Storage Vna Racks Warehouse Very Narrow Aisle Racking System
Ultra-Narrow Agv Rack System 500mm Aisle Width Laser-Guided Alignment B2b Space Optimization
